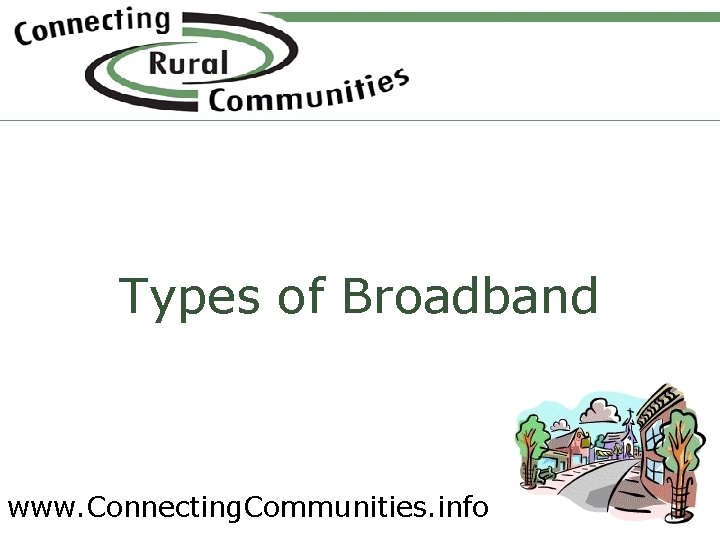

Types of Broadband www Connecting Communities info Broadband
Types of Broadband www. Connecting. Communities. info
Broadband Flavors Wired: Wireless: • Digital Subscriber Lines (DSL) • Satellite • Cable Modem • Wi-Fi • Leased Lines (T 1) • Fiber Optic Cable • Broadband Over Powerline (BPL) • Fixed Wireless • Wi. MAX

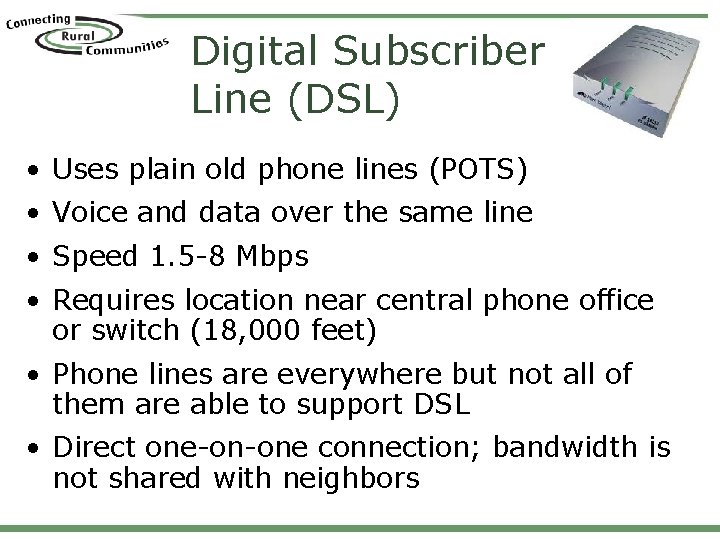

Digital Subscriber Line (DSL) • Uses plain old phone lines (POTS) • Voice and data over the same line • Speed 1. 5 -8 Mbps • Requires location near central phone office or switch (18, 000 feet) • Phone lines are everywhere but not all of them are able to support DSL • Direct one-on-one connection; bandwidth is not shared with neighbors
Cable Modem • Faster than DSL • Uses the same cable television lines that deliver pictures and sound to your TV set • Shared connection; speeds can slow down when many people in the same neighborhood are online • Easy to install
Broadband Over Powerline (BPL) • Delivered through power lines • Almost all homes and businesses are connected to the power grid • Still in early stages of development • Potential interference with ham radio signals • Speeds similar to DSL and cable
Satellite • Available most places including hard-toreach rural areas • Slower than cable or DSL. Wild. Blue download speeds up to 1. 5 Mbps and upload speeds up to 256 Kbps. • Trees and heavy rain affects signal • Need unobstructed view of southern sky
Fiber Optic Cable • Delivered over fiber optic cables • Very high bandwidth • High cost to build fiber network • Low maintenance
Wireless Broadband • Fast relatively inexpensive deployment • DSL and cable speeds • Many varieties — Point-to-Point — Point-Multipoint — Mesh — Hot zones — Hot spots
Point-to-Point Fixed Wireless • Uses part of the radio spectrum to send and receive signals. Typically made up of on-the-ground antenna-to-antenna systems. • Requires indoor or outdoor antenna • Coverage about 5 miles transmitter or access point • High bandwidth • Usually licensed • Backbone or transport layer • Line of site
Fixed Wireless http: //www. connectusa. com/faq. htm
Point-to-Multipoint Fixed Wireless • Broadband delivery to premise • Consumer or business grade • One antenna to many sites • Line-of-sight • Large coverage area • Licensed or unlicensed
Mesh Network Wireless • Nodes (radios) • Connect to user • Transmit to aggregation point • Typically unlicensed • Favor urban areas or hot zones Aggregation Point
Mobile Wi-Fi • Wireless fidelity • Wi-Fi access points found at cafés, homes, campuses, businesses. • Access is limited to 50 -300 feet • Coverage limited by location and number of transmitters • Relatively cheap for providers to set-up • End-user equipment cheap and easy to install
Where to Wi-Fi • • • Hotels, motels, inns, and resorts Airports Public libraries Cybercafes and fast food restaurants Courthouses City parks like NYC's Central Park Public recreation areas and rest stops Truck stops RV parks
Wi. MAX • Wi-Fi on steroids • Can cover a large area – 30 miles • Still in early stages of development • Can support ultra-broadband - a really big pipe with lots of bandwidth and speed. Just what you would need to run your own real-time online video channel.
How Much Broadband Costs Depends on… • How fast you want to go • Residential or business use • Pricing of the provider
Connecting Rural Communities www. Connecting. Communities. info Connecting Rural Communities Southern Rural Development Center
