TXZ Gas Cabinet Product Enhancement Spire Watlow Temperature

TXZ Gas Cabinet Product Enhancement Spire

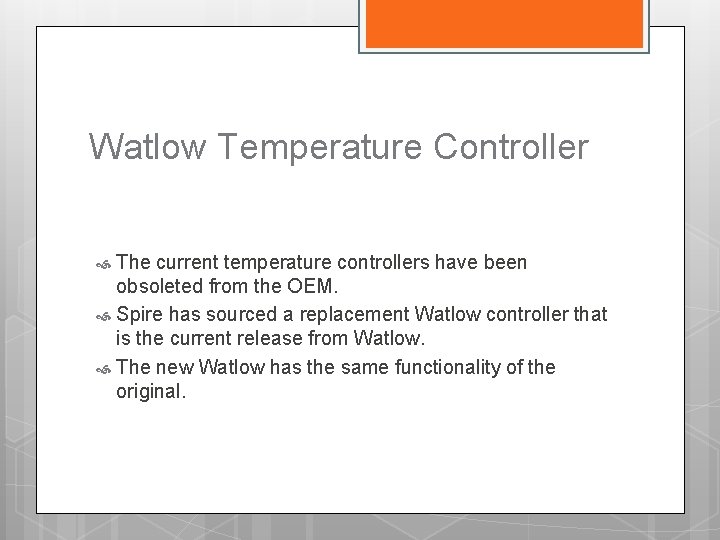

Watlow Temperature Controller The current temperature controllers have been obsoleted from the OEM. Spire has sourced a replacement Watlow controller that is the current release from Watlow. The new Watlow has the same functionality of the original.

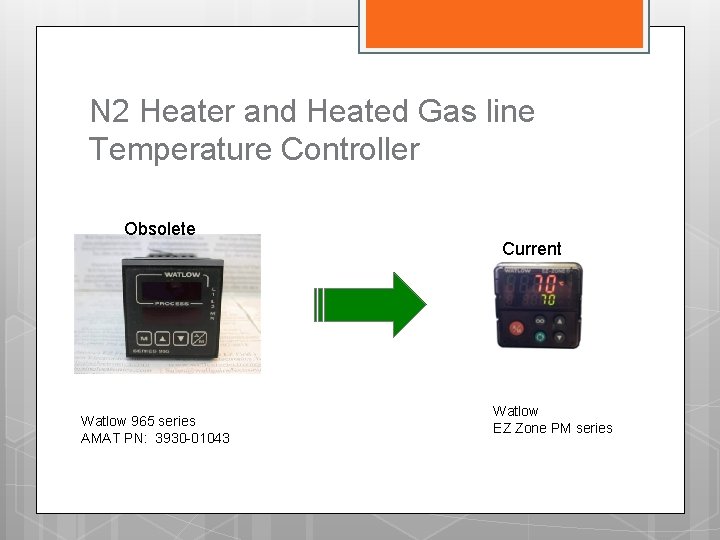

N 2 Heater and Heated Gas line Temperature Controller Obsolete Watlow 965 series AMAT PN: 3930 -01043 Current Watlow EZ Zone PM series

Ampule Heater Temperature Controller Obsolete Watlow 988 series AMAT PN: 3930 -01092 Current Watlow EZ Zone PM series

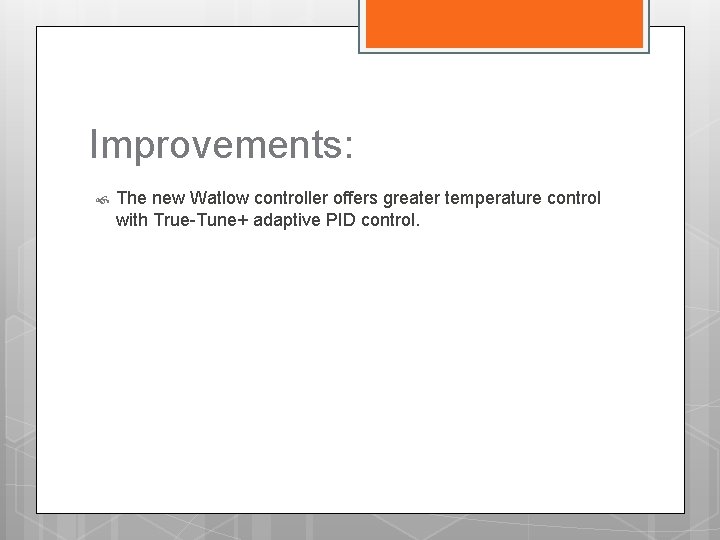

Improvements: The new Watlow controller offers greater temperature control with True-Tune+ adaptive PID control.

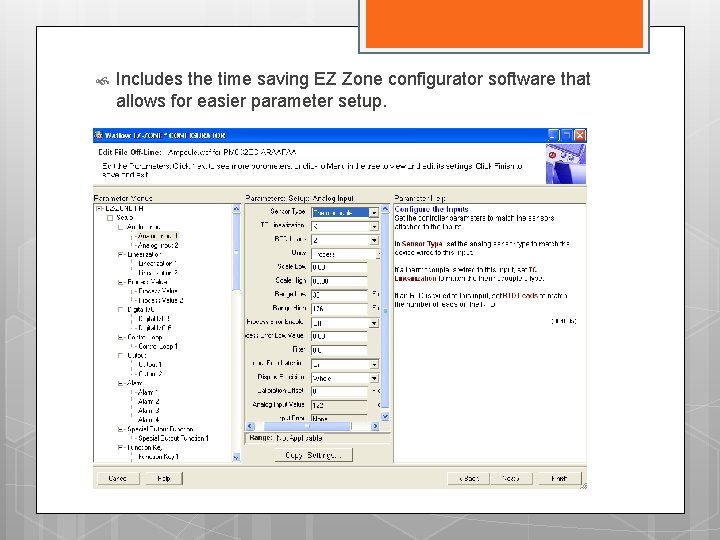

Includes the time saving EZ Zone configurator software that allows for easier parameter setup.

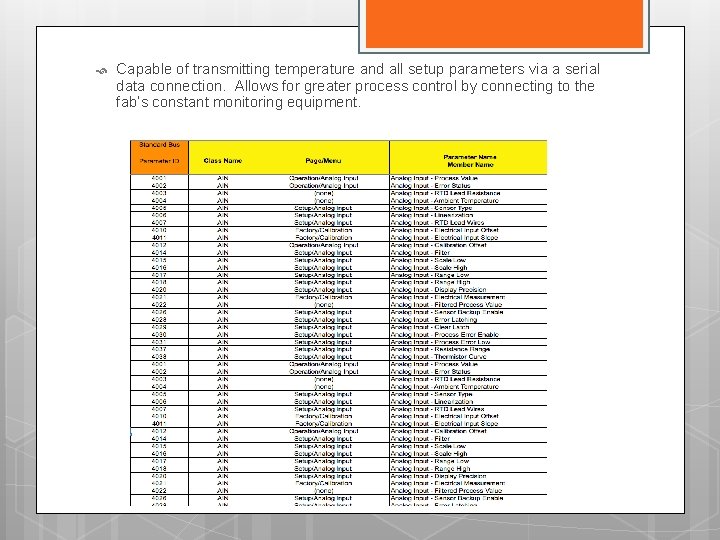

Capable of transmitting temperature and all setup parameters via a serial data connection. Allows for greater process control by connecting to the fab’s constant monitoring equipment.

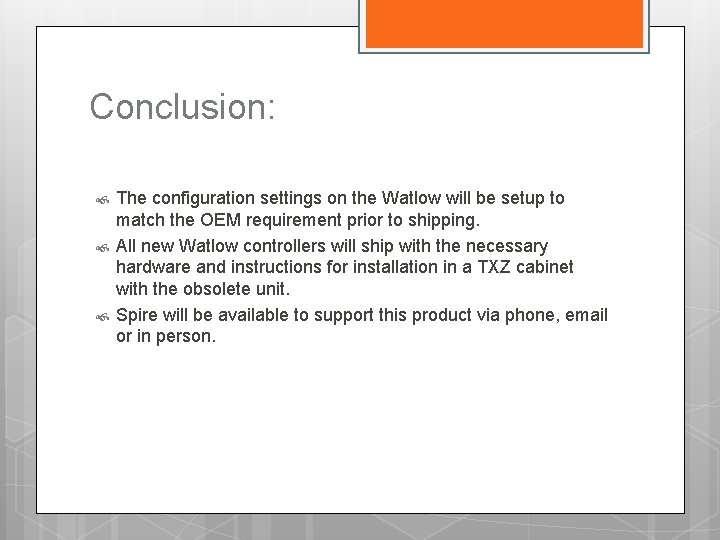

Conclusion: The configuration settings on the Watlow will be setup to match the OEM requirement prior to shipping. All new Watlow controllers will ship with the necessary hardware and instructions for installation in a TXZ cabinet with the obsolete unit. Spire will be available to support this product via phone, email or in person.
