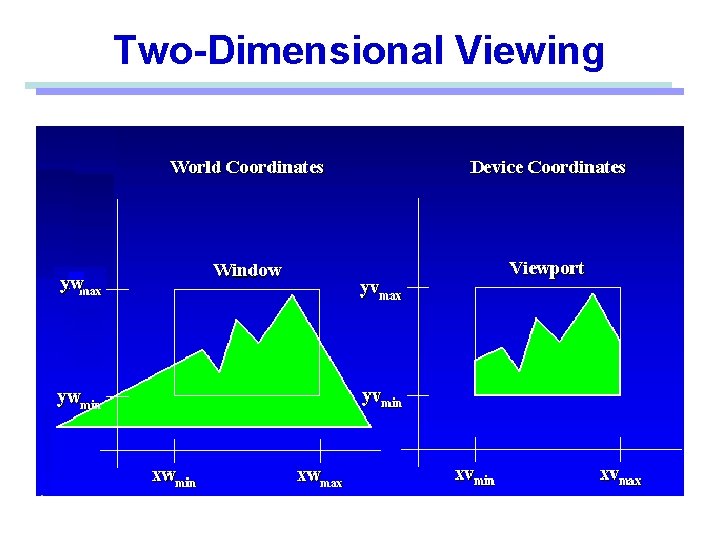

Two-Dimensional Viewing

Two-Dimensional Viewing

Window • A world-coordinate area selected for display. defines what is to be viewed

Window • A world-coordinate area selected for display. defines what is to be viewed Viewport • An area on a display device to which a window is mapped. defines where it is to be displayed Viewing transformation • The mapping of a part of a world-coordinate scene to device coordinates. A window could be a rectangle to have any orientation.

Two-Dimensional Viewing

Two-Dimensional Viewing

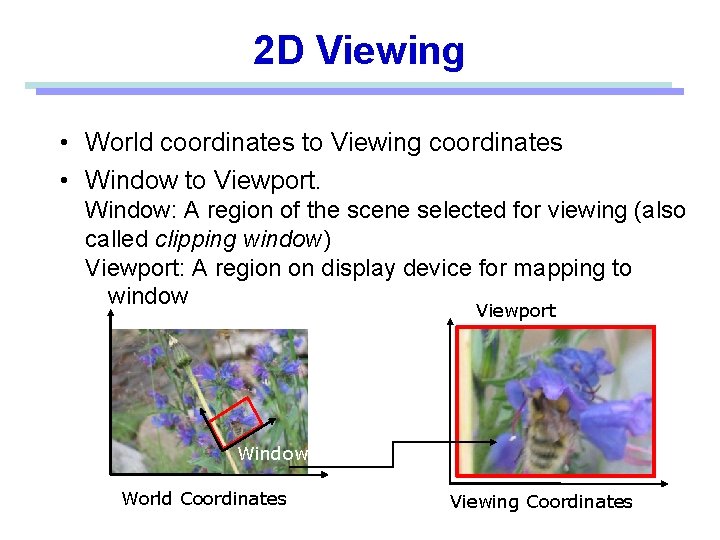

2 D Viewing • World coordinates to Viewing coordinates • Window to Viewport. Window:

2 D Viewing • World coordinates to Viewing coordinates • Window to Viewport. Window: A region of the scene selected for viewing (also called clipping window) Viewport: A region on display device for mapping to window Viewport Window World Coordinates Viewing Coordinates

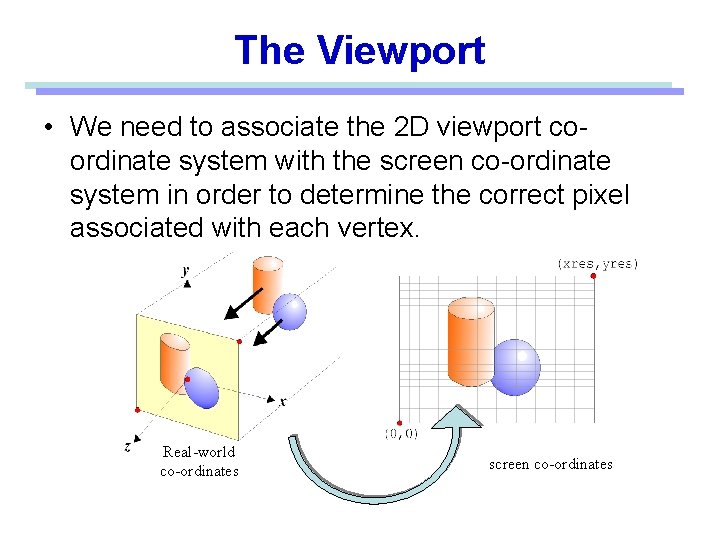

The Viewport • We need to associate the 2 D viewport coordinate system with

The Viewport • We need to associate the 2 D viewport coordinate system with the screen co-ordinate system in order to determine the correct pixel associated with each vertex. Real-world co-ordinates screen co-ordinates

The Viewing Pipeline

The Viewing Pipeline

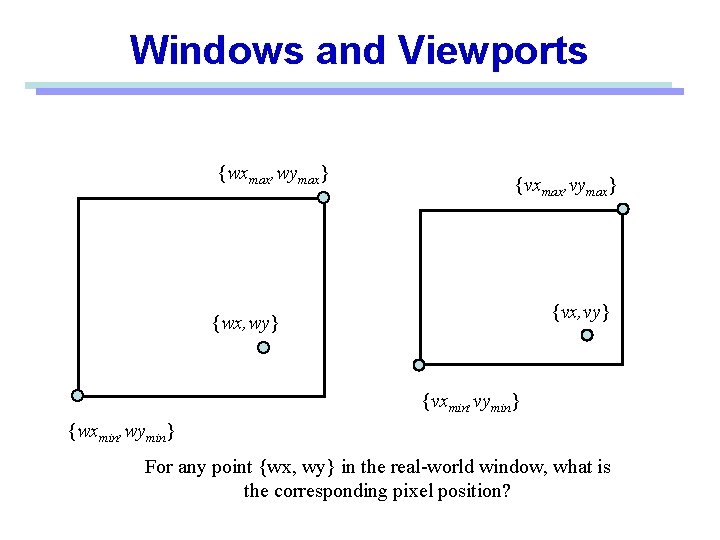

Windows and Viewports {wxmax, wymax} {vxmax, vymax} {vx, vy} {wx, wy} {vxmin, vymin} {wxmin,

Windows and Viewports {wxmax, wymax} {vxmax, vymax} {vx, vy} {wx, wy} {vxmin, vymin} {wxmin, wymin} For any point {wx, wy} in the real-world window, what is the corresponding pixel position?

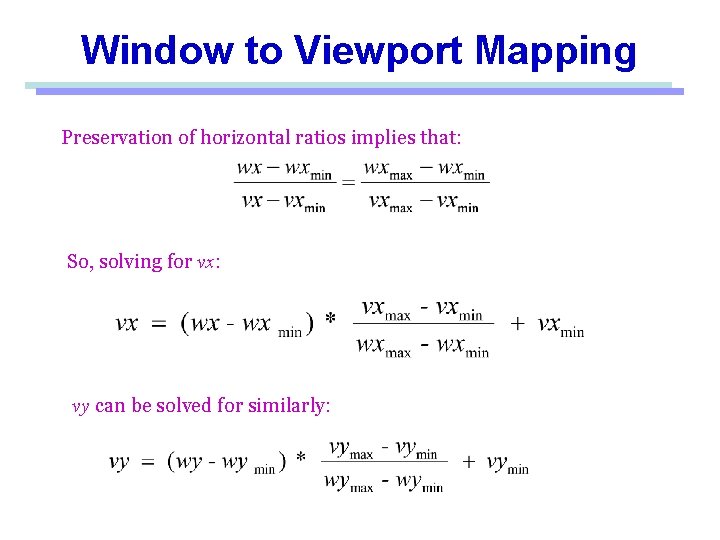

Window to Viewport Mapping Preservation of horizontal ratios implies that: So, solving for vx:

Window to Viewport Mapping Preservation of horizontal ratios implies that: So, solving for vx: vy can be solved for similarly:

Viewing Pipeline

Viewing Pipeline

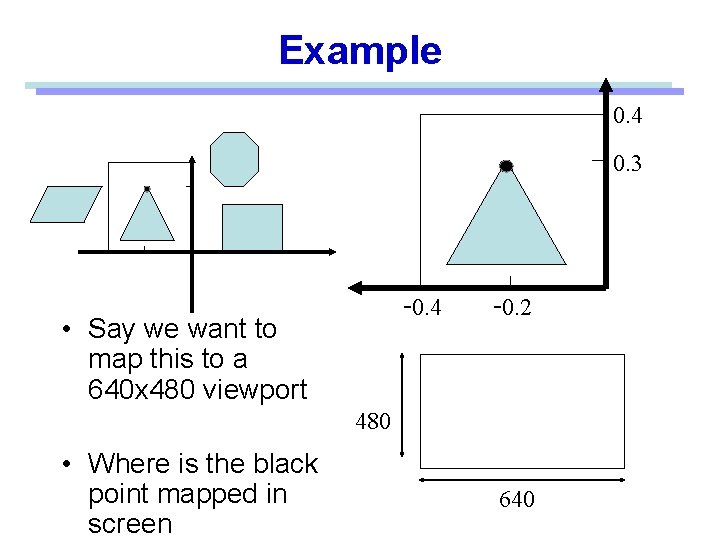

Example 0. 4 0. 3 -0. 4 • Say we want to map this

Example 0. 4 0. 3 -0. 4 • Say we want to map this to a 640 x 480 viewport -0. 2 480 • Where is the black point mapped in screen 640

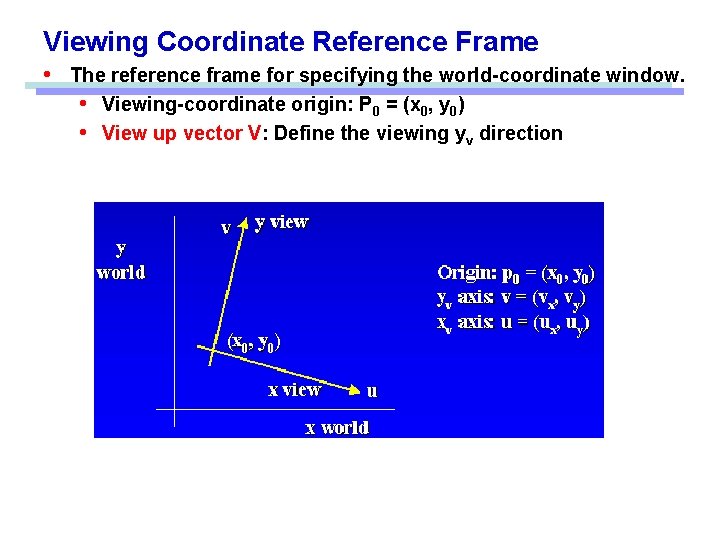

Viewing Coordinate Reference Frame • The reference frame for specifying the world-coordinate window. •

Viewing Coordinate Reference Frame • The reference frame for specifying the world-coordinate window. • Viewing-coordinate origin: P 0 = (x 0, y 0) • View up vector V: Define the viewing yv direction

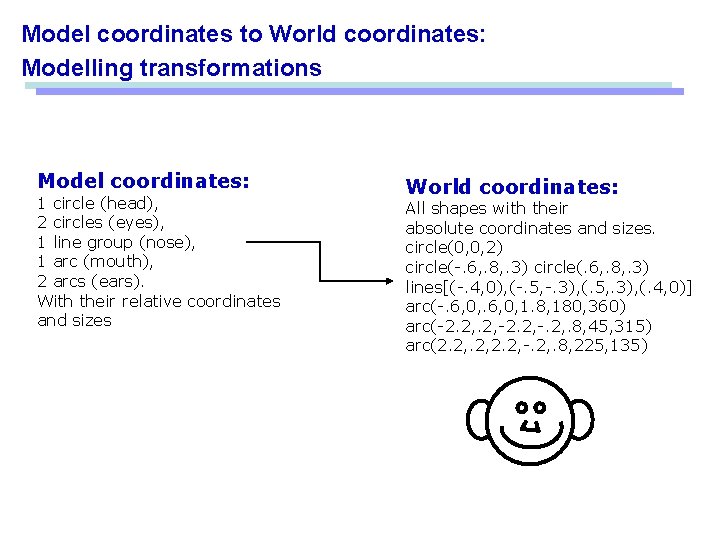

Model coordinates to World coordinates: Modelling transformations Model coordinates: 1 circle (head), 2 circles

Model coordinates to World coordinates: Modelling transformations Model coordinates: 1 circle (head), 2 circles (eyes), 1 line group (nose), 1 arc (mouth), 2 arcs (ears). With their relative coordinates and sizes World coordinates: All shapes with their absolute coordinates and sizes. circle(0, 0, 2) circle(-. 6, . 8, . 3) circle(. 6, . 8, . 3) lines[(-. 4, 0), (-. 5, -. 3), (. 5, . 3), (. 4, 0)] arc(-. 6, 0, 1. 8, 180, 360) arc(-2. 2, -. 2, . 8, 45, 315) arc(2. 2, -. 2, . 8, 225, 135)

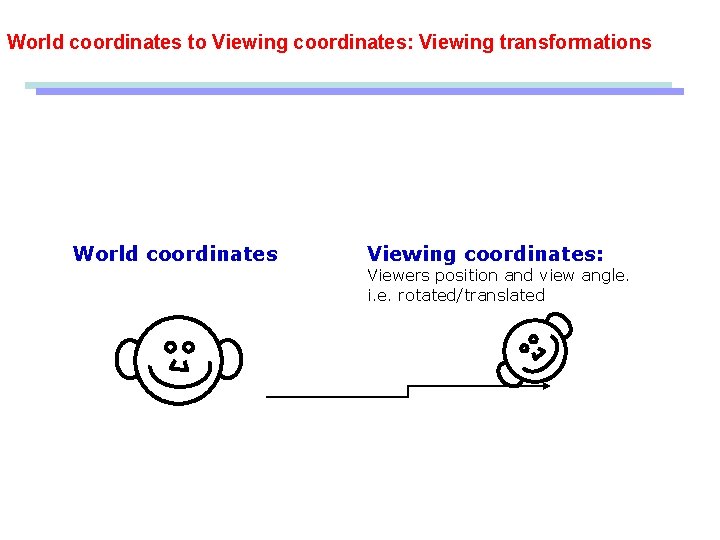

World coordinates to Viewing coordinates: Viewing transformations World coordinates Viewing coordinates: Viewers position and

World coordinates to Viewing coordinates: Viewing transformations World coordinates Viewing coordinates: Viewers position and view angle. i. e. rotated/translated

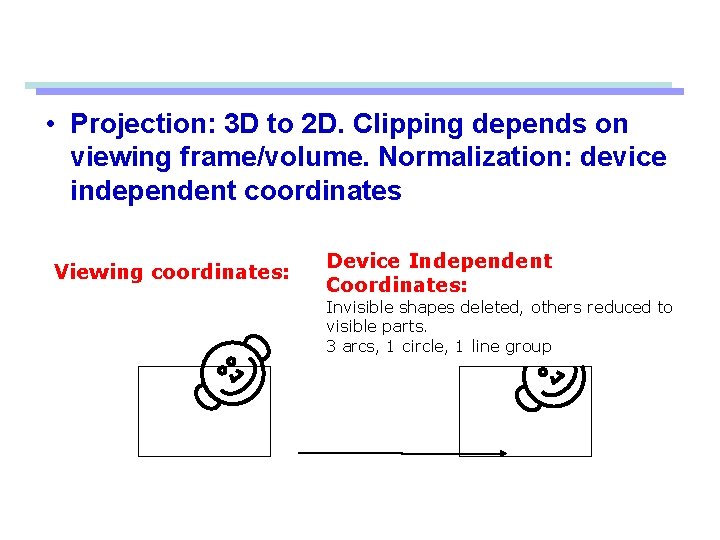

 • Projection: 3 D to 2 D. Clipping depends on viewing frame/volume. Normalization:

• Projection: 3 D to 2 D. Clipping depends on viewing frame/volume. Normalization: device independent coordinates Viewing coordinates: Device Independent Coordinates: Invisible shapes deleted, others reduced to visible parts. 3 arcs, 1 circle, 1 line group

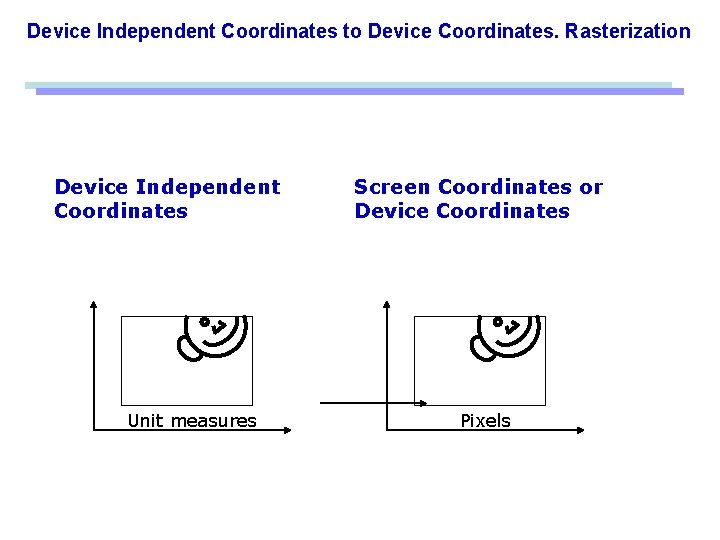

Device Independent Coordinates to Device Coordinates. Rasterization Device Independent Coordinates Unit measures Screen Coordinates

Device Independent Coordinates to Device Coordinates. Rasterization Device Independent Coordinates Unit measures Screen Coordinates or Device Coordinates Pixels

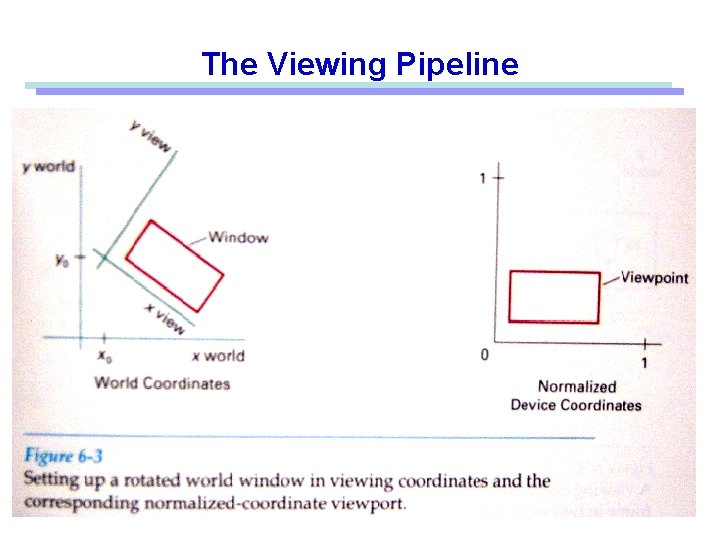

The Viewing Pipeline

The Viewing Pipeline

World-coordinates to Viewing Coordinates • Mwc, vc= R·T

World-coordinates to Viewing Coordinates • Mwc, vc= R·T

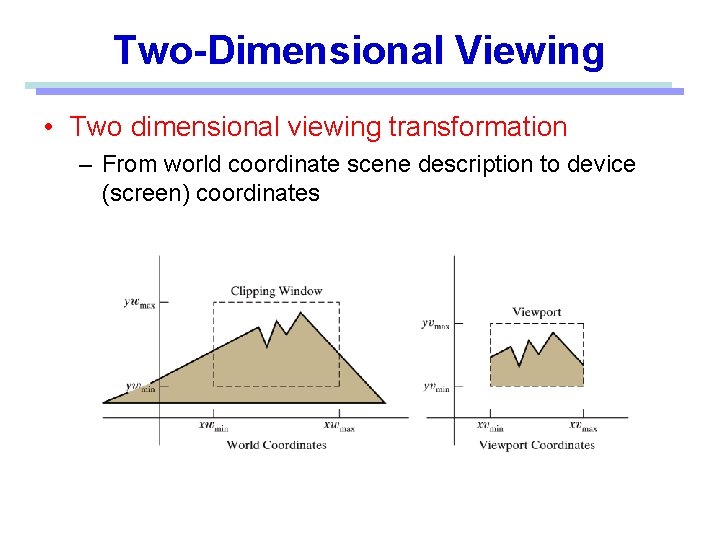

Two-Dimensional Viewing • Two dimensional viewing transformation – From world coordinate scene description to

Two-Dimensional Viewing • Two dimensional viewing transformation – From world coordinate scene description to device (screen) coordinates

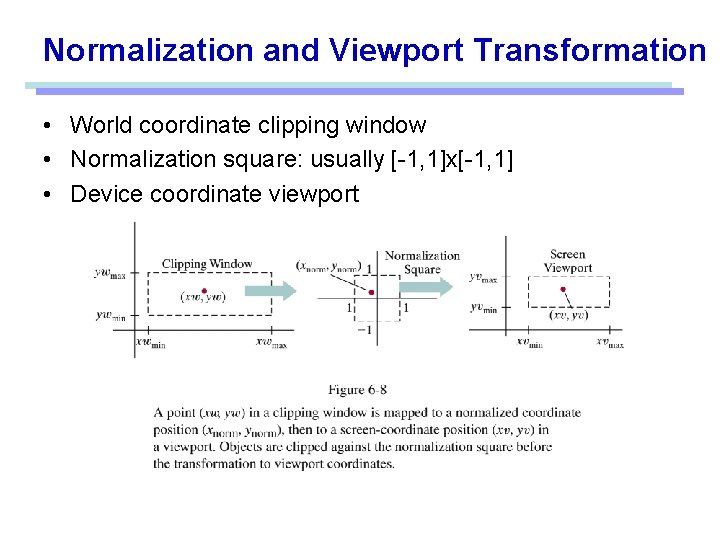

Normalization and Viewport Transformation • World coordinate clipping window • Normalization square: usually [-1,

Normalization and Viewport Transformation • World coordinate clipping window • Normalization square: usually [-1, 1]x[-1, 1] • Device coordinate viewport

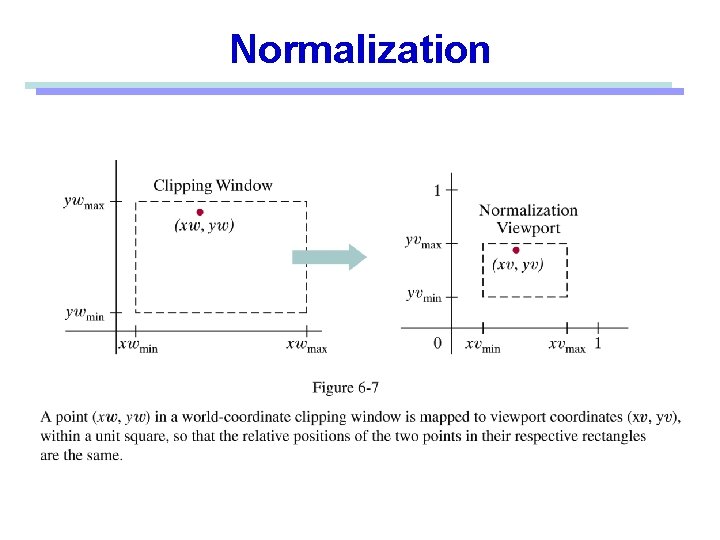

Normalization

Normalization

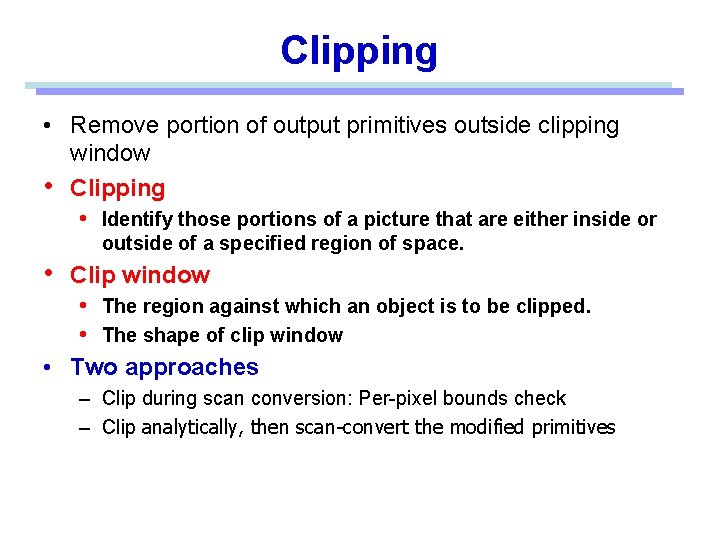

Clipping • Remove portion of output primitives outside clipping window • Clipping • Identify

Clipping • Remove portion of output primitives outside clipping window • Clipping • Identify those portions of a picture that are either inside or outside of a specified region of space. • Clip window • The region against which an object is to be clipped. • The shape of clip window • Two approaches – Clip during scan conversion: Per-pixel bounds check – Clip analytically, then scan-convert the modified primitives

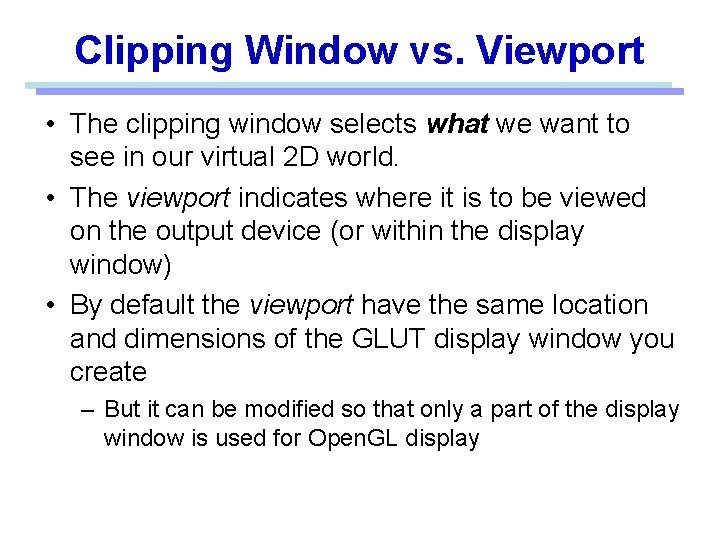

Clipping Window vs. Viewport • The clipping window selects what we want to see

Clipping Window vs. Viewport • The clipping window selects what we want to see in our virtual 2 D world. • The viewport indicates where it is to be viewed on the output device (or within the display window) • By default the viewport have the same location and dimensions of the GLUT display window you create – But it can be modified so that only a part of the display window is used for Open. GL display

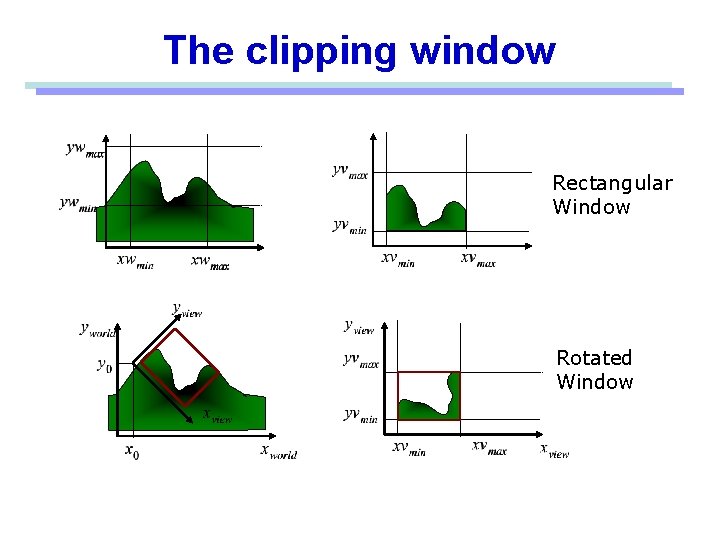

The clipping window Rectangular Window Rotated Window

The clipping window Rectangular Window Rotated Window

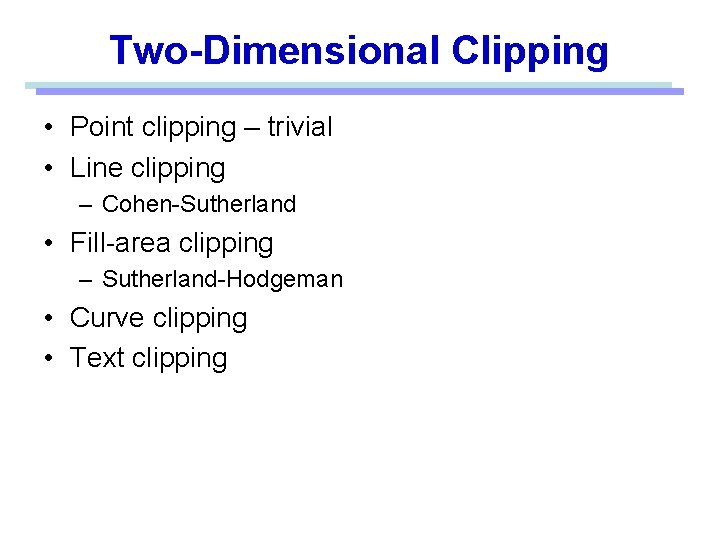

Two-Dimensional Clipping • Point clipping – trivial • Line clipping – Cohen-Sutherland • Fill-area

Two-Dimensional Clipping • Point clipping – trivial • Line clipping – Cohen-Sutherland • Fill-area clipping – Sutherland-Hodgeman • Curve clipping • Text clipping

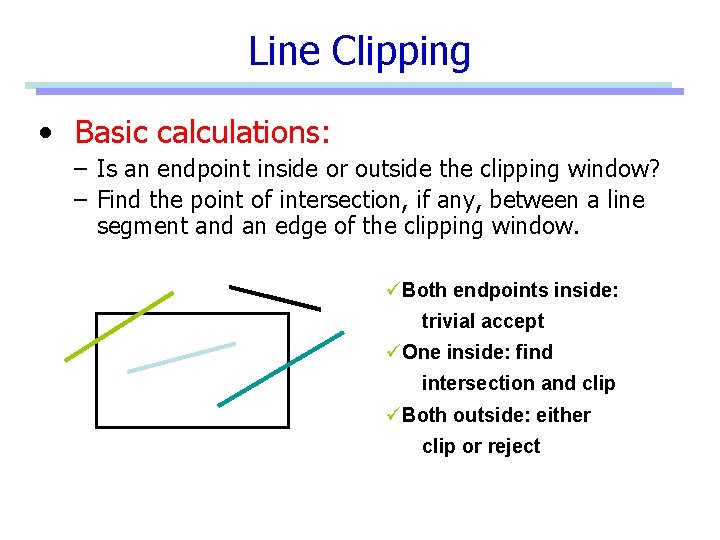

Line Clipping • Basic calculations: – Is an endpoint inside or outside the clipping

Line Clipping • Basic calculations: – Is an endpoint inside or outside the clipping window? – Find the point of intersection, if any, between a line segment and an edge of the clipping window. üBoth endpoints inside: trivial accept üOne inside: find intersection and clip üBoth outside: either clip or reject

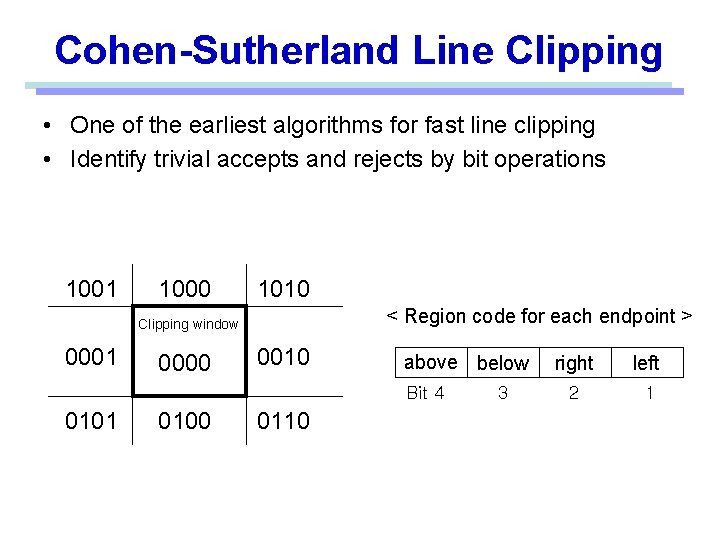

Cohen-Sutherland Line Clipping • One of the earliest algorithms for fast line clipping •

Cohen-Sutherland Line Clipping • One of the earliest algorithms for fast line clipping • Identify trivial accepts and rejects by bit operations 1001 1000 1010 < Region code for each endpoint > Clipping window 0001 0000 0010 above below Bit 4 0101 0100 0110 3 right left 2 1

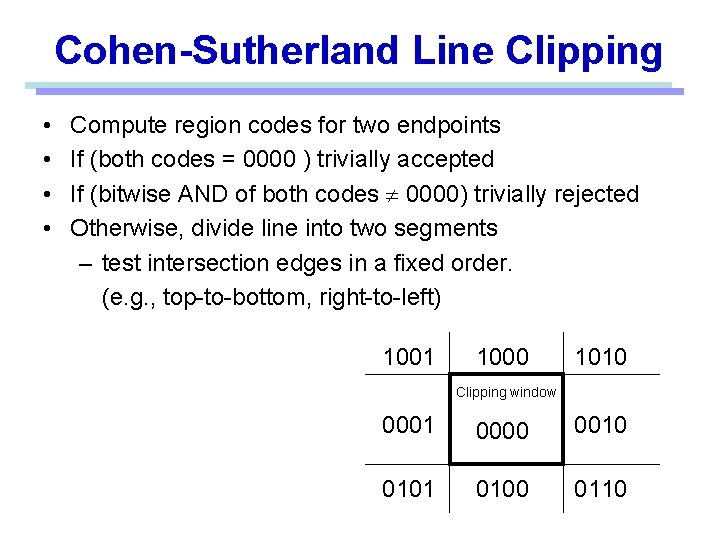

Cohen-Sutherland Line Clipping • • Compute region codes for two endpoints If (both codes

Cohen-Sutherland Line Clipping • • Compute region codes for two endpoints If (both codes = 0000 ) trivially accepted If (bitwise AND of both codes 0000) trivially rejected Otherwise, divide line into two segments – test intersection edges in a fixed order. (e. g. , top-to-bottom, right-to-left) 1001 1000 1010 Clipping window 0001 0000 0010 0101 0100 0110

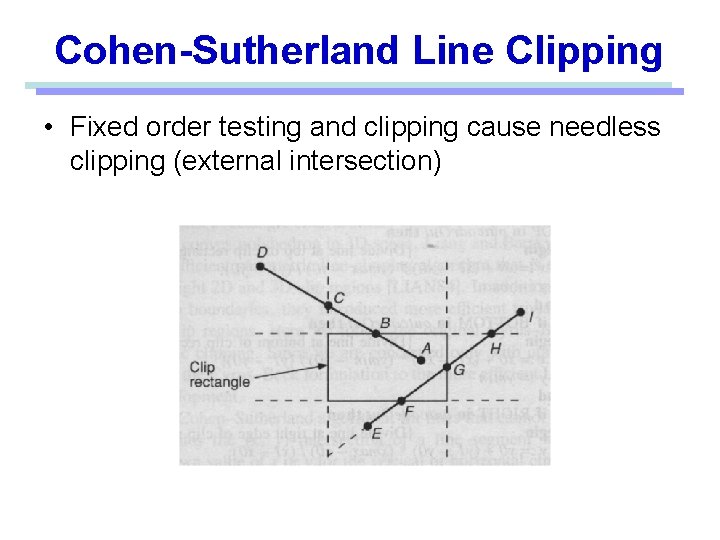

Cohen-Sutherland Line Clipping • Fixed order testing and clipping cause needless clipping (external intersection)

Cohen-Sutherland Line Clipping • Fixed order testing and clipping cause needless clipping (external intersection)

Cohen-Sutherland Line Clipping • This algorithm can be very efficient if it can accept

Cohen-Sutherland Line Clipping • This algorithm can be very efficient if it can accept and reject primitives trivially – Clip window is much larger than scene data • Most primitives are accepted trivially – Clip window is much smaller than scene data • Most primitives are rejected trivially • Good for hardware implementation

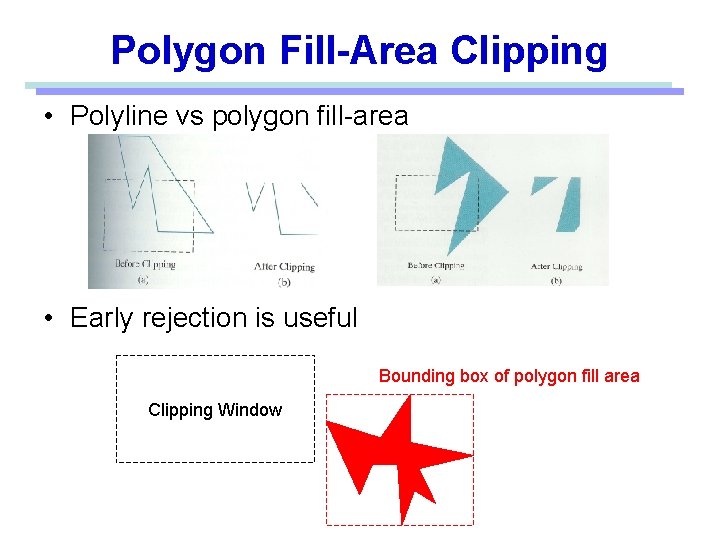

Polygon Fill-Area Clipping • Polyline vs polygon fill-area • Early rejection is useful Bounding

Polygon Fill-Area Clipping • Polyline vs polygon fill-area • Early rejection is useful Bounding box of polygon fill area Clipping Window

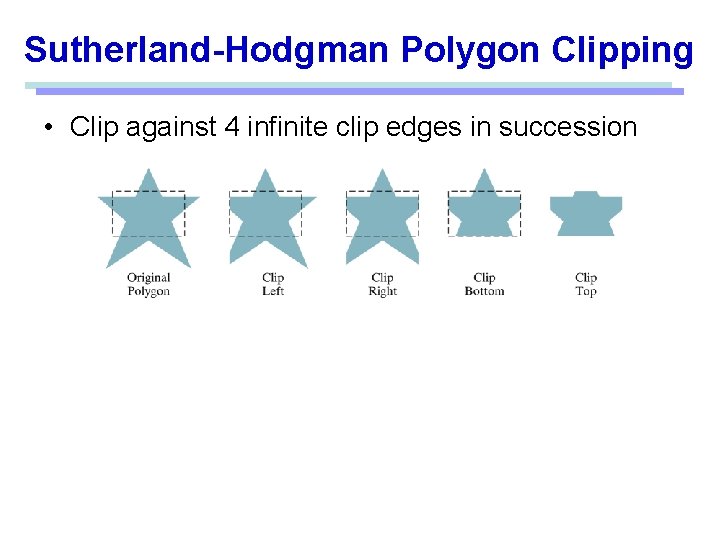

Sutherland-Hodgman Polygon Clipping • Clip against 4 infinite clip edges in succession

Sutherland-Hodgman Polygon Clipping • Clip against 4 infinite clip edges in succession

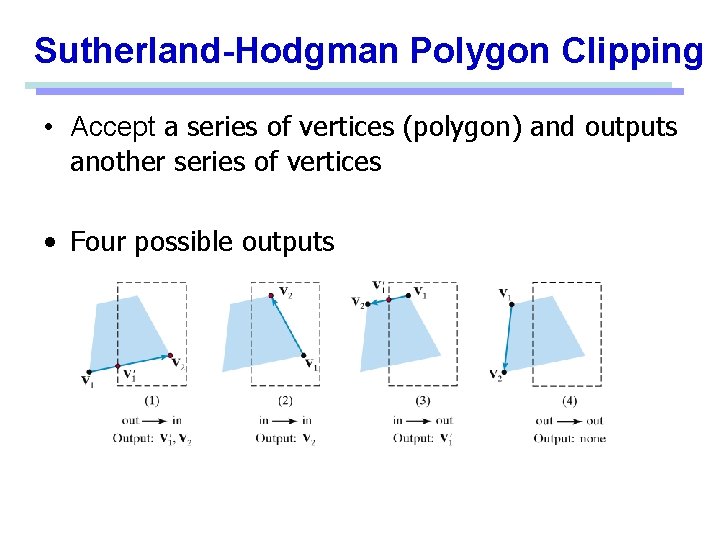

Sutherland-Hodgman Polygon Clipping • Accept a series of vertices (polygon) and outputs another series

Sutherland-Hodgman Polygon Clipping • Accept a series of vertices (polygon) and outputs another series of vertices • Four possible outputs

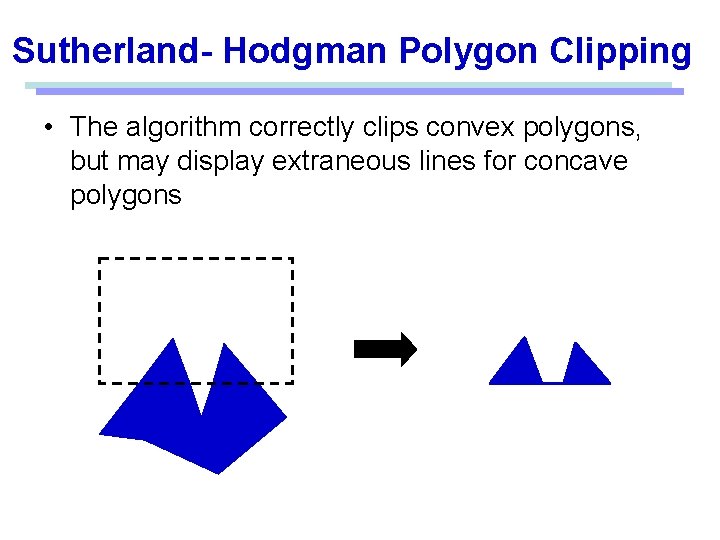

Sutherland- Hodgman Polygon Clipping • The algorithm correctly clips convex polygons, but may display

Sutherland- Hodgman Polygon Clipping • The algorithm correctly clips convex polygons, but may display extraneous lines for concave polygons

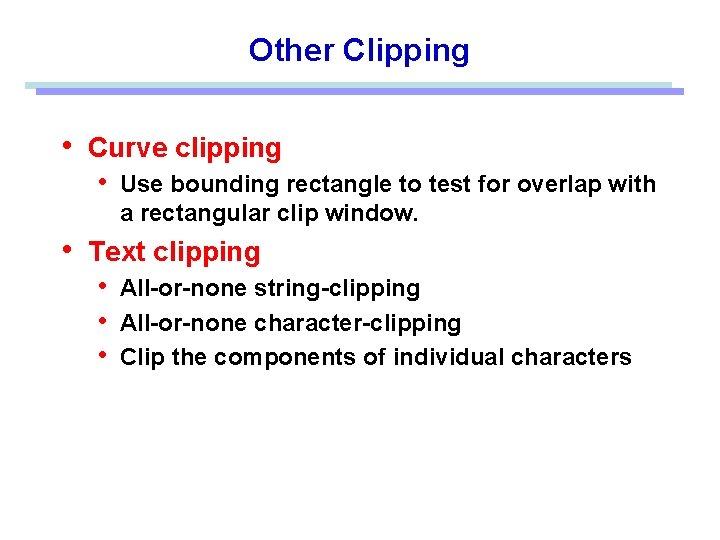

Other Clipping • Curve clipping • Use bounding rectangle to test for overlap with

Other Clipping • Curve clipping • Use bounding rectangle to test for overlap with a rectangular clip window. • Text clipping • All-or-none string-clipping • All-or-none character-clipping • Clip the components of individual characters

Text Clipping • All-or-none text clipping – Using boundary box for the entire text

Text Clipping • All-or-none text clipping – Using boundary box for the entire text • All-or-non character clipping – Using boundary box for each individual character • Character clipping – Vector font: Clip boundary polygons or curves – Bitmap font: Clip individual pixels

Other Clipping Curve clipping • Use bounding rectangle to test for overlap with a

Other Clipping Curve clipping • Use bounding rectangle to test for overlap with a rectangular clip window. Text clipping • All-or-none string-clipping • All-or-none character-clipping • Clip the components of individual characters

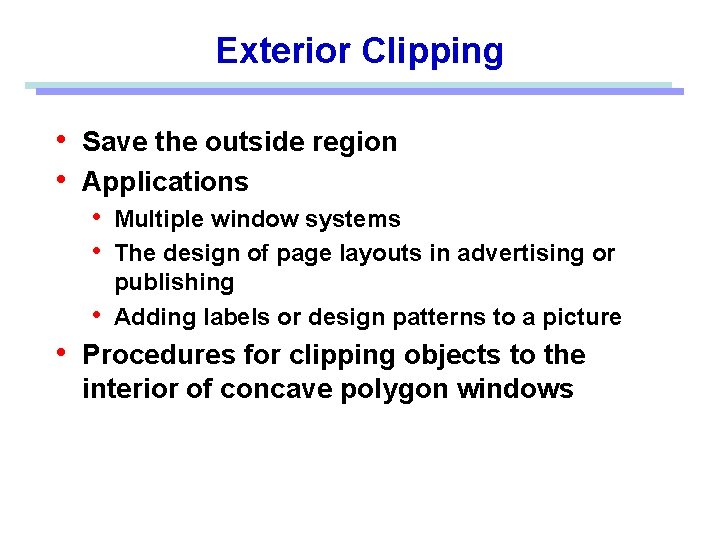

Exterior Clipping • Save the outside region • Applications • Multiple window systems •

Exterior Clipping • Save the outside region • Applications • Multiple window systems • The design of page layouts in advertising or publishing Adding labels or design patterns to a picture • • Procedures for clipping objects to the interior of concave polygon windows

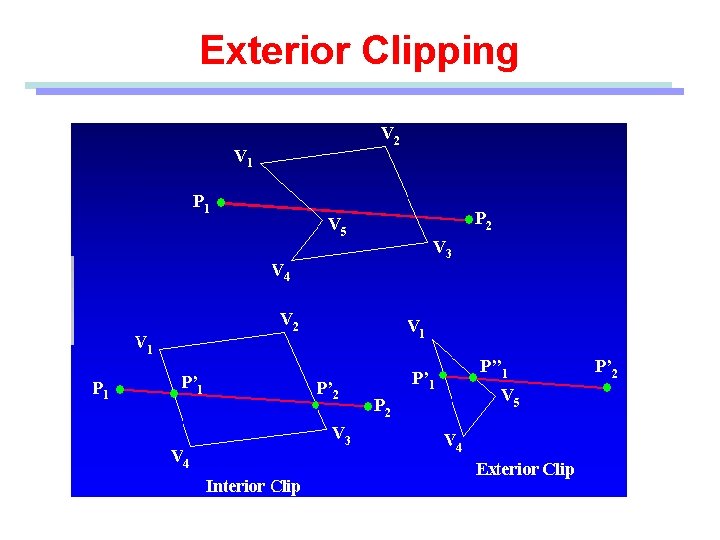

Exterior Clipping

Exterior Clipping
