Two-dimensional Context-Free Grammars: Mathematical Formulae Recognition Daniel Průša, Václav Hlaváč Center for Machine Perception Faculty of Electrical Engineering Czech Technical University, Prague 1
Presentation Overview 2 § § § § Formulae recognition, problem formulation Known methods General idea of structural recognition Two-dimensional context-free grammars Extension of the grammars Recognition tool, pilot implementation Results, future plans

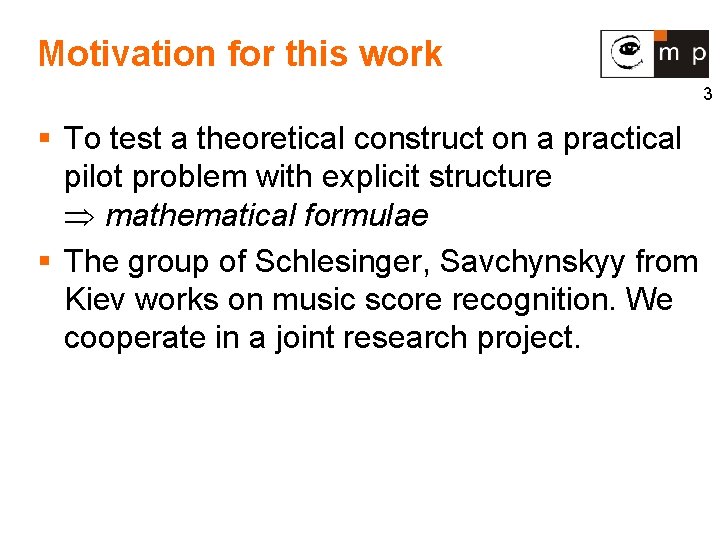

Motivation for this work 3 § To test a theoretical construct on a practical pilot problem with explicit structure mathematical formulae § The group of Schlesinger, Savchynskyy from Kiev works on music score recognition. We cooperate in a joint research project.
Math. formulae, off-line or on-line 4 Formulae recognition can be divided into two groups by the type of input: 1. Off-line recognition – a formula is depicted in a raster image. 2. On-line recognition – a formula represented by a sequence of pen strokes (growing importance due to tablet PCs).
Math. formulae recognition, usage 5 § Off-line recognition – conversion of scanned printed mathematical texts into an electronic form. § On-line recognition – connected to penbased computing technologies (electronic tablets). There are many papers on formulae recognition, but only a few commercial products (e. g. , x. Math. Journal by x. Think)
Usual architecture 6 Two independent layers: § Symbol detection and recognition. § Structural analysis. image, sequence of strokes symbol recognition symbols (+ coordinates and font size) error corrections (optional) structural analysis derivation tree
Symbol recognition methods 7 § Image segmentation + OCR tool. § Image segmentation and character recognition performed simultaneously (e. g. , by Hidden Markov Models). • It is very difficult to recover from errors made in segmentation phase. • Semantic not taken into account.
Structural analysis methods 8 Grammar based • geometric grammars • graph grammars § Non-grammar based • minimum spanning tree • hard-coded rules
Our approach to structural recognition 9 Based on general structural constructions by M. I. Schlesinger, V. Hlaváč in Ten Lectures on Statistical and Syntactic Pattern Recognition (Kluwer Academic Publishers, 2002) § Do not separate segmentation and parsing, perform them simultaneously. • Suitable for recognition of objects with rich structure. • Already successfully applied to music scores and electric circuits diagrams.
Structural Recognition – General Idea Assumptions: input image, set of derivation rules Recognition: 1. Algorithm starts with regions labeled by terminals - squares corresponding to one symbol, - regions detected by an external tool. 2. Bigger regions labeled by non-terminals are derived by applying the rules, each derivation is assigned by a penalty. 3. Result: region matching the whole picture with the smallest penalty. N A B C D Region N is derived by a rule from regions A, B, C, D 10

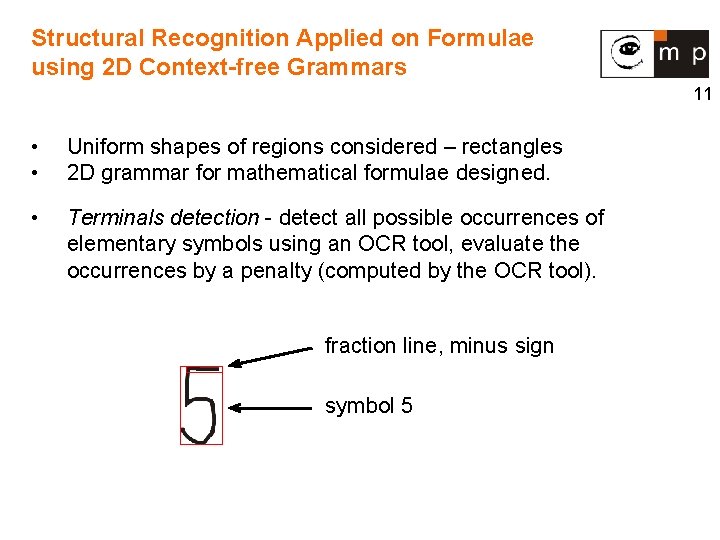

Structural Recognition Applied on Formulae using 2 D Context-free Grammars 11 • • Uniform shapes of regions considered – rectangles 2 D grammar for mathematical formulae designed. • Terminals detection - detect all possible occurrences of elementary symbols using an OCR tool, evaluate the occurrences by a penalty (computed by the OCR tool). fraction line, minus sign symbol 5

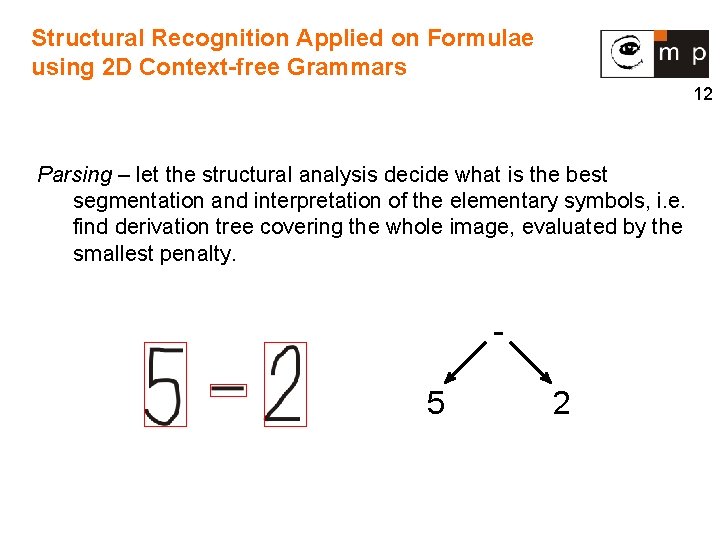

Structural Recognition Applied on Formulae using 2 D Context-free Grammars 12 Parsing – let the structural analysis decide what is the best segmentation and interpretation of the elementary symbols, i. e. find derivation tree covering the whole image, evaluated by the smallest penalty. 5 2
Two-dimensional Context-free Grammars … set of terminals … set of non-terminals … initial non-terminal … set of productions Three basic types of productions in P: Generalized form of productions: 13
Interpretation of Productions 14 G generates pictures that can be named by the initial non-terminal S
Theoretical Results on 2 D CF Languages 15 L(2 CFG). . . class of languages that can be generated by a 2 D CF grammar • L(2 CFG) includes 1 D context-free languages • L(2 CFG) and L(2 FSA) are not comparable • There is no analogy to the Chomsky normal form of productions • Basic form of productions is weaker than general one • Emptiness problem is not decidable • Languages in L(2 CFG) can be recognized in polynomial time Observation: natural generalization, but the properties of L(2 CFG) differ to the properties of the class of 1 D context-free languages.
Recognition in Polynomial Time 2 D CF grammars with productions in the basic form: 16 Generated languages can be recognized in time picture size (M. I. Schlesinger) Algorithm can be generalized on all languages in L(2 CFG) Maximal number of rows on the right-hand side of a production. Maximal number of columns on the right-hand side of a production. • degree of the polynomial depends on size of the productions

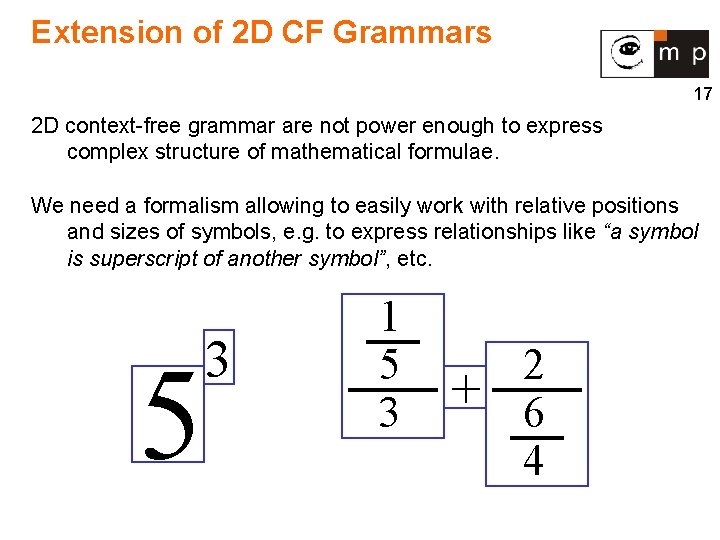

Extension of 2 D CF Grammars 17 2 D context-free grammar are not power enough to express complex structure of mathematical formulae. We need a formalism allowing to easily work with relative positions and sizes of symbols, e. g. to express relationships like “a symbol is superscript of another symbol”, etc. 5 3 1 5 3 + 2 6 4
Extension of 2 D CF Grammars § Regions are still rectangles. § Each derived region is assigned by a feature point (logical center). The feature point a derived region is determined by the applied production. 1 5 3 18
Extension of 2 D CF Grammars § Usage of productions is not limited on directly neighboring (touching) rectangles. § Productions can specify a rectangular area where some specific point of a rectangle has to be contained. § Position and sizes can be given relative to one of the rectangles. § Restrictions on relative sizes of rectangles are also possible. 5 3+2 19

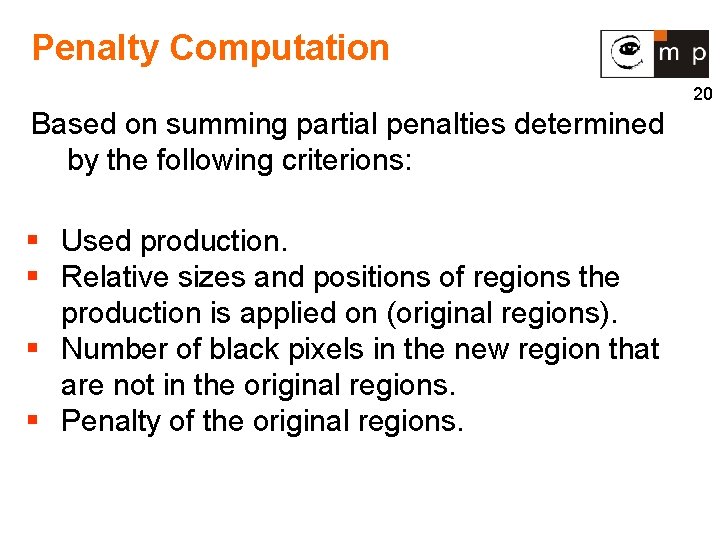

Penalty Computation 20 Based on summing partial penalties determined by the following criterions: § Used production. § Relative sizes and positions of regions the production is applied on (original regions). § Number of black pixels in the new region that are not in the original regions. § Penalty of the original regions.

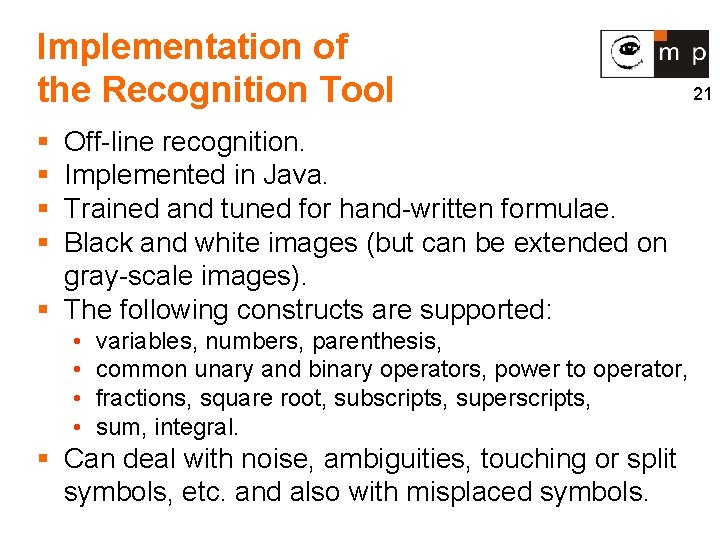

Implementation of the Recognition Tool § § Off-line recognition. Implemented in Java. Trained and tuned for hand-written formulae. Black and white images (but can be extended on gray-scale images). § The following constructs are supported: • • variables, numbers, parenthesis, common unary and binary operators, power to operator, fractions, square root, subscripts, superscripts, sum, integral. § Can deal with noise, ambiguities, touching or split symbols, etc. and also with misplaced symbols. 21
Tool Architecture 22 OCR tool terminals detection 2 D grammar parsing
Terminals Detection 23 Ideally, all regions should be scanned for an elementary symbol presence, but this consumes much time, two smarter strategies implemented: • • Scanning rectangular windows of some predefined sizes (not all sizes). Detection based on connectivity components. Limitations of the method: overlaping symbols’ bounding boxes, symbols that intersect Used OCR tool: A simple method implemented - feature vector extracted from image, k-nearest neighbor classifier used to classify the vector. Trained for all supported elementary symbols.
Remarks on Terminals Detection 24 • • Symbols that do not have size limited by a constant are not treated as terminal symbols (e. g. , fraction line, square root). In addition, square root cannot be separated from an image by a rectangle (it surrounds its argument). Solution: Treat these cases as symbols composed of several terminal symbols, extend grammar by related productions.
Parsing Algorithm 25 § Bottom up approach, as described in the general structural recognition. § Complexity – depends on the number of terminals detected during the first phase; in general, can be exponential, but it is substantially reduced by production restristions and usage of suitable data structures § Data structures for orthogonal range queries (searching points that are located in a rectangle) used to speed up the algorithm.
Future Plans 26 § Focus on printed formulae § Collect sufficiently large set of annotated printed formulae § Apply learning methods: learn etalons of elementary symbols and productions parameters
