Two scale modeling of superfluid turbulence Tomasz Lipniacki

Two scale modeling of superfluid turbulence Tomasz Lipniacki He II: -- normal component, -- superfluid vortices. Relative proportion of normal fluid and superfluid as a function of temperature. • Solutions of single vortex motion in LIA • Fenomenological models of anisotropic turbulence vortex line core diameter ~ 1Å

Localized Induction Approximation c - curvature - torsion

Ideal vortex Totally integrable, equivalent to non-linear Schrödinger equation. Countable (infinite) family of invariants: Quasi static solutions:

Hasimoto soliton on ideal vortex (1972) : Figure 1

Kida 1981 General solutions of in terms of elliptic integrals including shapes such as circular vortex ring helicoidal and toroidal filament plane sinusoidal filament Euler’s elastica Hasimoto soliton

Quasi static solutions for quantum vortices ? Quantum vortex shrinks:

Quasi-static solutions Lipniacki JFM 2003 Frenet Seret equations

In the case of pure translation we get analytic solution where For Solution has no self-crossings

Quasi-static solution: pure rotation Vortex asymptotically wraps over cones with opening angle for where in cylindrical coordinates

Quasi-static solution: general case For vortex wraps over paraboloids

Results in general case I. 4 -parametric class of solutions, determined by initial condition II. Each solution corresponds to a specific isometric transformation G(t) related analytically to initial condition. III. The asymptotic for is related analytically via transformation G(t) to initial condition.

Shape-preserving solutions Lipniacki, Phys. Fluids. 2003 Equation is invariant under the transformation If the initial condition is scale-free, than the solution is self-similar In general scale-free curve is a sum of two logarithmic spirals on coaxial cones; there is four parametric class of such curves.

Shape-preserving solutions + solutions with decreasing scale

Analytic result: shape-preserving solution In the case when transformation is a pure homothety we get analytic solution in implicit form:

Shape preserving solution: general case Logarithmic spirals on cones

Results in general case I. 4 -parametric class of solutions, determined by initial condition II. Each solution corresponds to a specific similarity transformation III. The asymptotics for is given the initial condition of the original problem (with time).

Self-similar solution for vortex in Navier-Stokes? N-S is invariant to the same transformation The friction coefficient corresponds to

Wing tip vortices

Macroscopic description -- Euler equation for superfluid component -- Navier-Stokes equation for normal component Coupled by mutual friction force where and L is superfluid vortex line density.

Microscopic description of tangle superfluid vortices Aim Assuming that quantum tangle is “close” to statistical equilibrium derive equations for quantum line length density L and anisotropy parameters of the tangle. Statistical equilibrium? Two cases I – rapidly changing counterflow, but uniform in space II – slowly changing counterflow, not uniform in space

Model of quantum tangle “Particles” = segments of vortex line of length equal to characteristic radius of curvature. Particles are characterized by their tangent t, normal n, and binormal b vectors. Velocity of each particle is proportional to its binormal (+collective motion). Interactions of particles = reconnections.

Reconnections 1. Lines lost their identity: two line segments are replaced by two new line segments 2. Introduce new curvature to the system 3. Remove line-length

Motion of vortex line in the presence of counterflow Evolution of its line-length is

Evolution of line length density where average curvature squared I Average binormal vector (normalized)

Rapidly changing counterflow Generation term: polarization of a tangle by counterflow Degradation term: relaxation due to reconnections

Generation term: polarization of a tangle by counterflow evolution of vortex ring of radius R and orientation in uniform counterflow unit binormal Statistical equilibrium assumption: distribution of f(b) is the most probable distribution giving right I i. e.

Degradation term: relaxation due to reconnections Reconnections produce curvature but not net binormal Total curvature of the tangle Reconnection frequency Relaxation time:

Finally Lipniacki PRB 2001

Model prediction: there exists a critical frequency of counterflow above which tangle may not be sustained

Quantum turbulence with high net macroscopic vorticity Vinen-Schwarz equation We assume now Let denote anisotropy of the tangent Vinen type equation for turbulence with net macroscopic vorticity

Drift velocity where

Mutual friction force drag force where finally

Helium II dynamical equations Lipniacki EJM 2006

Specific cases: stationary rotating turbulence Pure heat driven turbulence Pure rotation „Sum” Slow rotation Fast rotation

Plane Couette flow V- normal velocity U-superfluid velocity q- anisotropy l-line length density

“Hypothetical” vortex configuration

Summary and Conclusions • Self-similar solutions of quantum vortex motion in LIA • Dynamic of a quantum tangle in rapidly varying counterflow • Dynamic of He II in quasi laminar case. In small scale quantum turbulence, the anisotropy of the tangle in addition to its density L is key to analyze dynamic of both components.

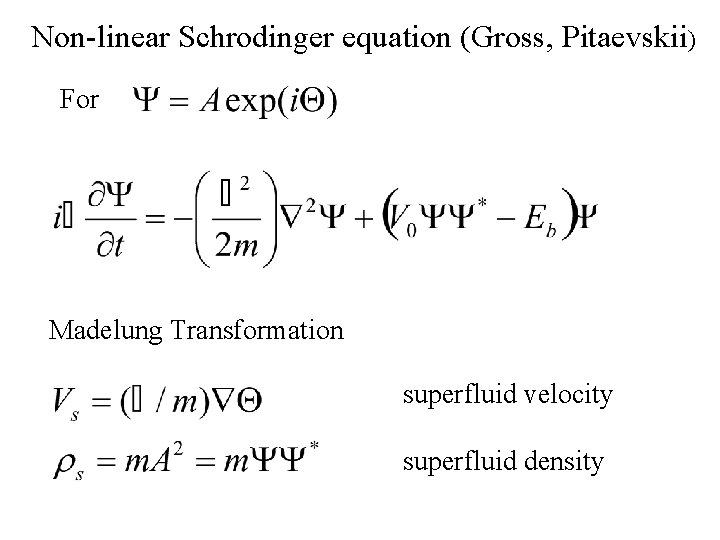

Non-linear Schrodinger equation (Gross, Pitaevskii) For Madelung Transformation superfluid velocity superfluid density

Modified Euler equation With pressure Quantum stress

Mixed turbulence Kolgomorov spectrum for each fluid - energy flux per unit mass

Two scale modeling of superfluid turbulence Tomasz Lipniacki He II: -- normal component, -- superfluid vortices. vortex line Relative proportion of normal fluid and superfluid as a function of temperature.
