Twin. CAT 3 Modbus. TCP - TF 6250 Twin. CAT Modbus. TCP Enables communication between PLC and Modbus devices in the network The Modbus protocol is based on a client/server-architecture Functionalities: 1. Act as server Modbus Clients can access Twin. CAT PLC 2. Act as client Twincat PLC-Lib allows to access Modbus device Support of TCP and UDP Access multiple runtime Win. CE support

Twin. CAT 3 Modbus. TCP - TF 6250 Installation & Requirements Target system：Windows NT/2000/XP/Vista/7/CE Min. Twin. CAT-Version ： 3. 0. 0 Min. Twin. CAT-Level ：TC 1200 TC 3 | PLC Librarys To be linked ： Tc 2_Modbus. Srv The latest Version ： 1. 0. 51. 0

Twin. CAT 3 Modbus. TCP - TF 6250 The Modbus specification defines these four Modbus-areas:

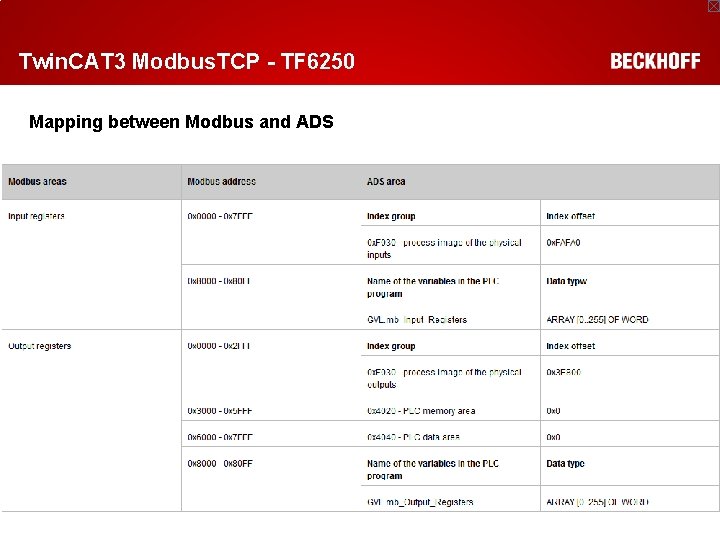

Twin. CAT 3 Modbus. TCP - TF 6250 Mapping between Modbus and ADS

Twin. CAT 3 Modbus. TCP - TF 6250 Mapping between Modbus and ADS

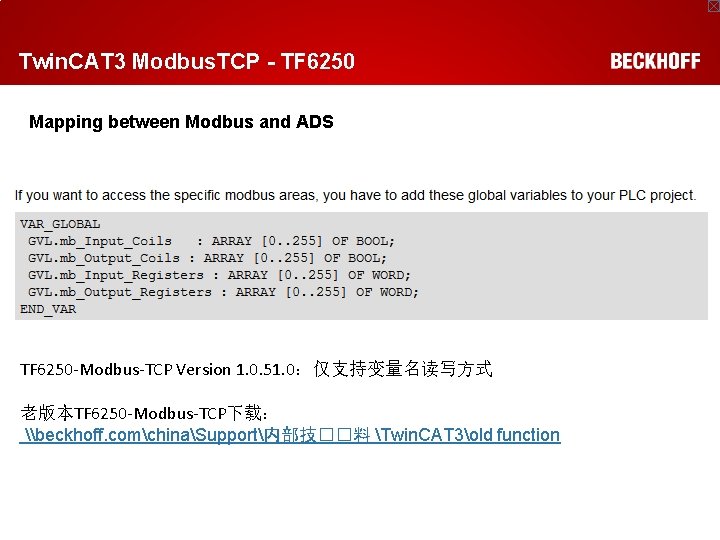

Twin. CAT 3 Modbus. TCP - TF 6250 Mapping between Modbus and ADS TF 6250 -Modbus-TCP Version 1. 0. 51. 0：仅支持变量名读写方式 老版本TF 6250 -Modbus-TCP下载： \beckhoff. comchinaSupport内部技��料 Twin. CAT 3old function

Twin. CAT 3 Modbus. TCP - TF 6250 Twin. CAT Modbus TCP Configurator The configurator is installed default to the directory Twin. CAT 3FunctionsTF 6250 Modbus-TCP The tools allows to read and change the actual configuration of Twin. CAT Modbus TCP server

Twin. CAT 3 Modbus. TCP - TF 6250 Twin. CAT Modbus TCP Configurator The configuration is XML-based and can be changed by a text editor Win. CE：The standard configuration is in the Tc. Modbus. Srv. xml (path: Twin. CAT 3FunctionsTF 6250 -Modbus. TCPServer)

Twin. CAT 3 Modbus. TCP - TF 6250 PLC Library

Twin. CAT 3 Modbus. TCP - TF 6250 Modbus TCP Tools Mod. Scan 32 Act as Client Mod. Sim 32 Act as Server

Twin. CAT 3 TCP/IP – TF 6310 Twin. CAT TCP/IP Enables communication between PLC and TCP/IP devices in the network Functionalities: Send and receive packets via TCP and UDP Implement custom TCP/IP based protocols Implement custom UDP/IP based protocols SNMP (Get/Trap) Support LAN Multicast support Win. CE support Twin. CAT PLC TCP/IP Client in PLC 3 rd Party TCP/IP device, e. g. Barcode Scanner TCP/IP Server LAN Twin. CAT PLC TCP/IP Server in PLC 3 rd Party TCP/IP device, e. g. PLC TCP/IP Client

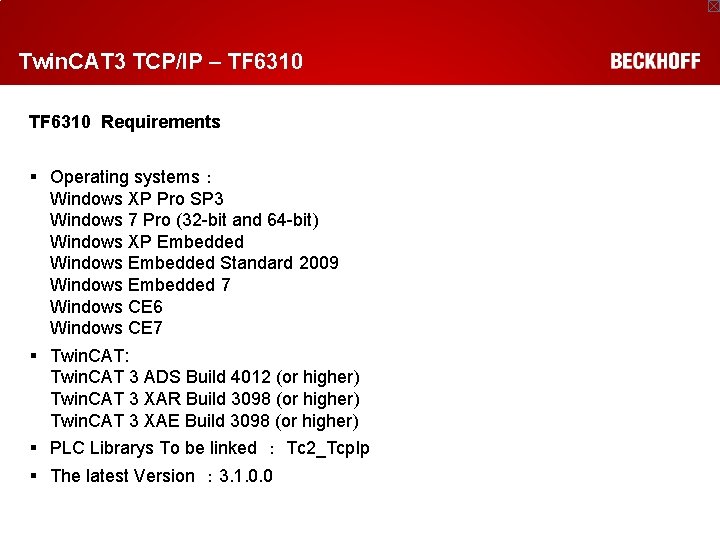

Twin. CAT 3 TCP/IP – TF 6310 Requirements Operating systems： Windows XP Pro SP 3 Windows 7 Pro (32 -bit and 64 -bit) Windows XP Embedded Windows Embedded Standard 2009 Windows Embedded 7 Windows CE 6 Windows CE 7 Twin. CAT: Twin. CAT 3 ADS Build 4012 (or higher) Twin. CAT 3 XAR Build 3098 (or higher) Twin. CAT 3 XAE Build 3098 (or higher) PLC Librarys To be linked ： Tc 2_Tcp. Ip The latest Version ： 3. 1. 0. 0

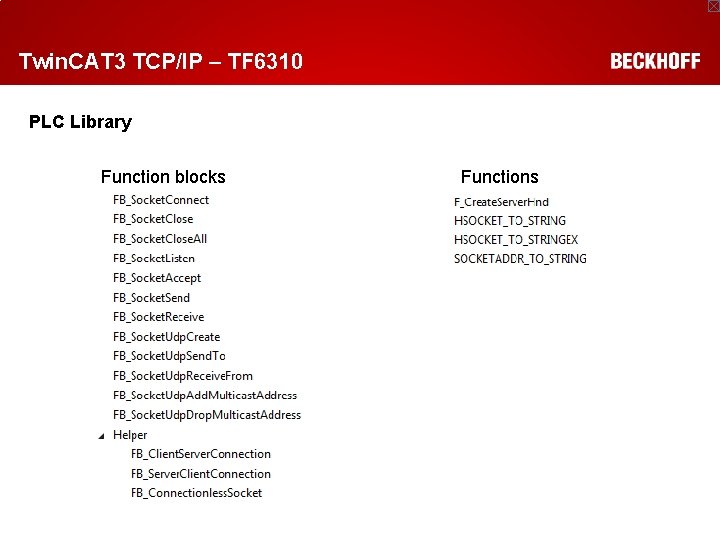

Twin. CAT 3 TCP/IP – TF 6310 PLC Library Function blocks Functions

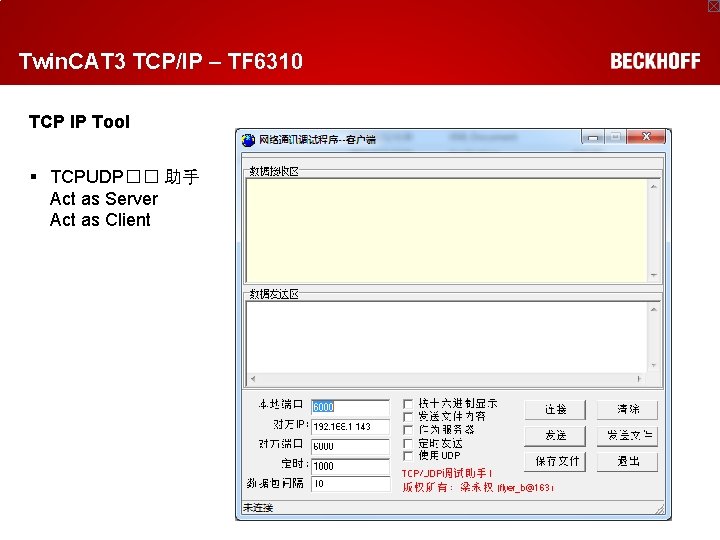

Twin. CAT 3 TCP/IP – TF 6310 TCP IP Tool TCPUDP�� 助手 Act as Server Act as Client
