TÁVVEZETÉK OSZLOPOK FÖLDRENGÉS VESZÉLYES ZÓNÁBAN DR. KEGYES CSABA egyetemi docens Győr 2004 szeptember 24

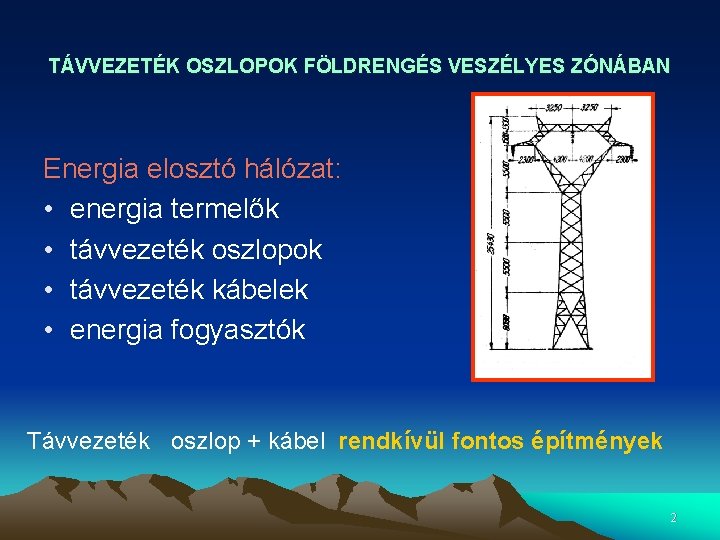

TÁVVEZETÉK OSZLOPOK FÖLDRENGÉS VESZÉLYES ZÓNÁBAN Energia elosztó hálózat: • energia termelők • távvezeték oszlopok • távvezeték kábelek • energia fogyasztók Távvezeték oszlop + kábel rendkívül fontos építmények 2

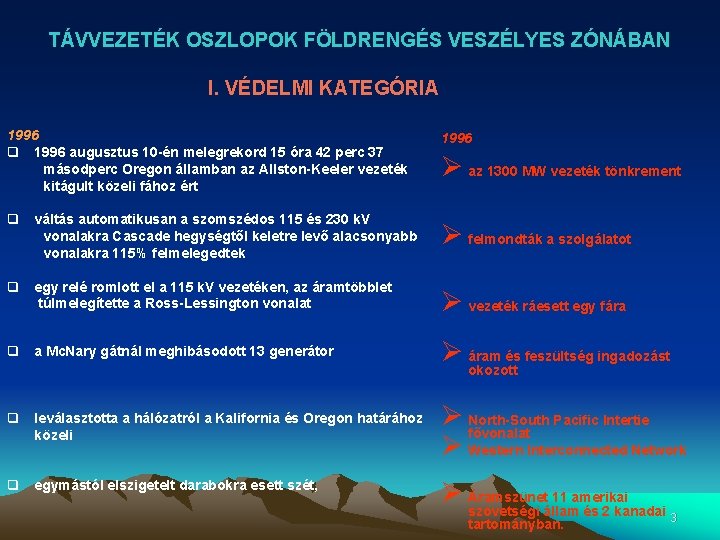

TÁVVEZETÉK OSZLOPOK FÖLDRENGÉS VESZÉLYES ZÓNÁBAN I. VÉDELMI KATEGÓRIA 1996 q 1996 augusztus 10 -én melegrekord 15 óra 42 perc 37 másodperc Oregon államban az Allston-Keeler vezeték kitágult közeli fához ért 1996 q váltás automatikusan a szomszédos 115 és 230 k. V vonalakra Cascade hegységtől keletre levő alacsonyabb vonalakra 115% felmelegedtek Ø felmondták a szolgálatot q egy relé romlott el a 115 k. V vezetéken, az áramtöbblet túlmelegítette a Ross-Lessington vonalat Ø vezeték ráesett egy fára q a Mc. Nary gátnál meghibásodott 13 generátor Ø áram és feszültség ingadozást okozott q leválasztotta a hálózatról a Kalifornia és Oregon határához közeli Ø North-South Pacific Intertie fővonalat Ø Western Interconnected Network q egymástól elszigetelt darabokra esett szét, Ø az 1300 MW vezeték tönkrement Ø Áramszünet 11 amerikai szövetségi állam és 2 kanadai tartományban. 3

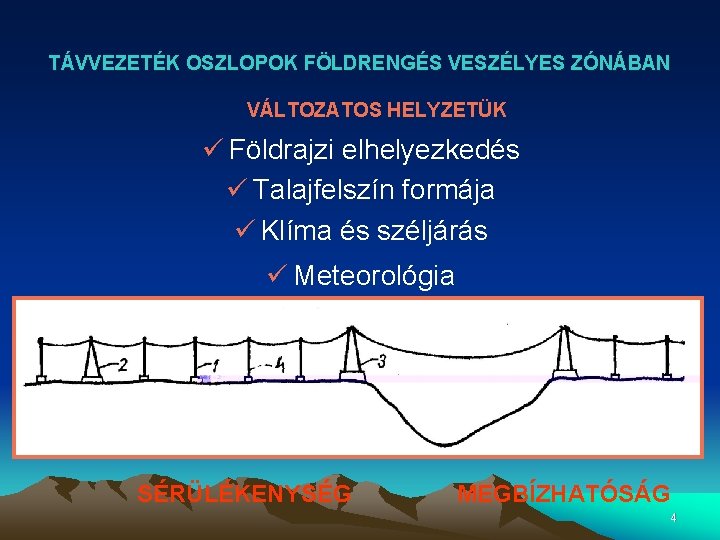

TÁVVEZETÉK OSZLOPOK FÖLDRENGÉS VESZÉLYES ZÓNÁBAN VÁLTOZATOS HELYZETÜK ü Földrajzi elhelyezkedés ü Talajfelszín formája ü Klíma és széljárás ü Meteorológia SÉRÜLÉKENYSÉG MEGBÍZHATÓSÁG 4

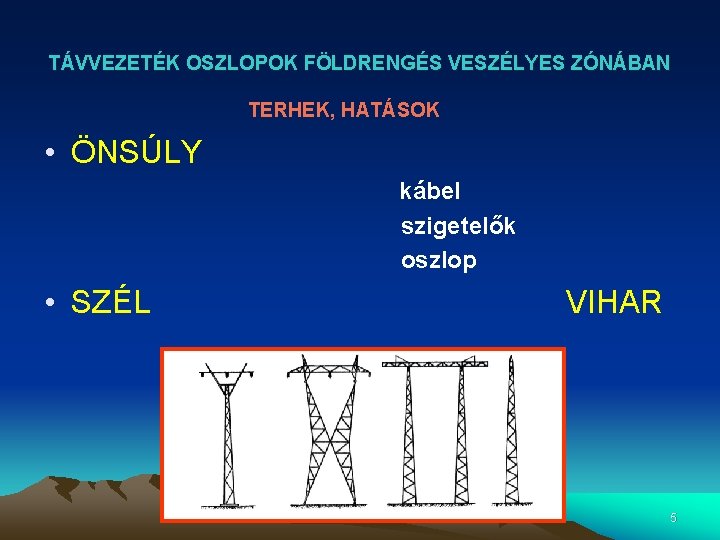

TÁVVEZETÉK OSZLOPOK FÖLDRENGÉS VESZÉLYES ZÓNÁBAN TERHEK, HATÁSOK • ÖNSÚLY kábel szigetelők oszlop • SZÉL VIHAR 5

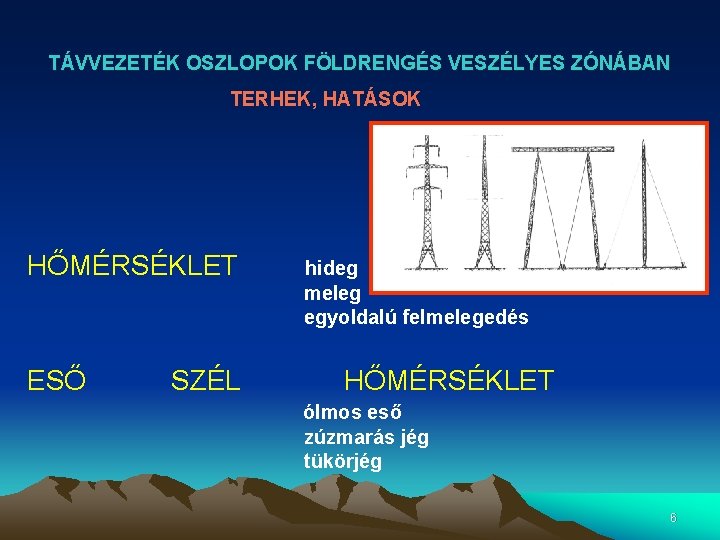

TÁVVEZETÉK OSZLOPOK FÖLDRENGÉS VESZÉLYES ZÓNÁBAN TERHEK, HATÁSOK HŐMÉRSÉKLET ESŐ SZÉL hideg meleg egyoldalú felmelegedés HŐMÉRSÉKLET ólmos eső zúzmarás jég tükörjég 6

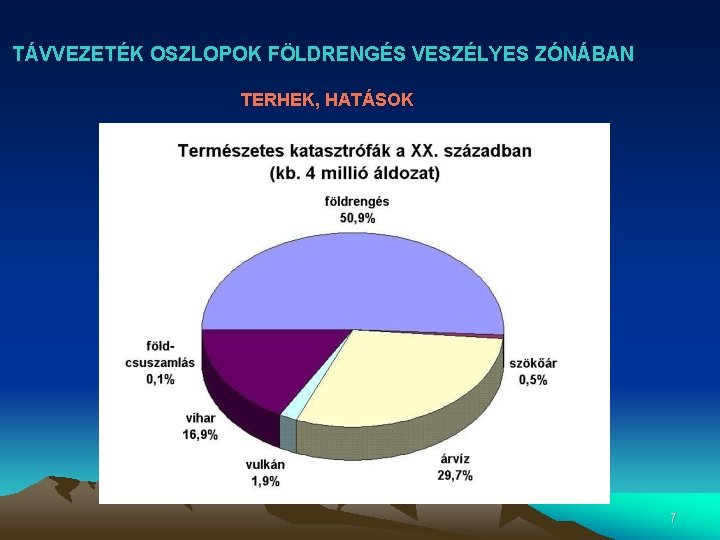

TÁVVEZETÉK OSZLOPOK FÖLDRENGÉS VESZÉLYES ZÓNÁBAN TERHEK, HATÁSOK 7

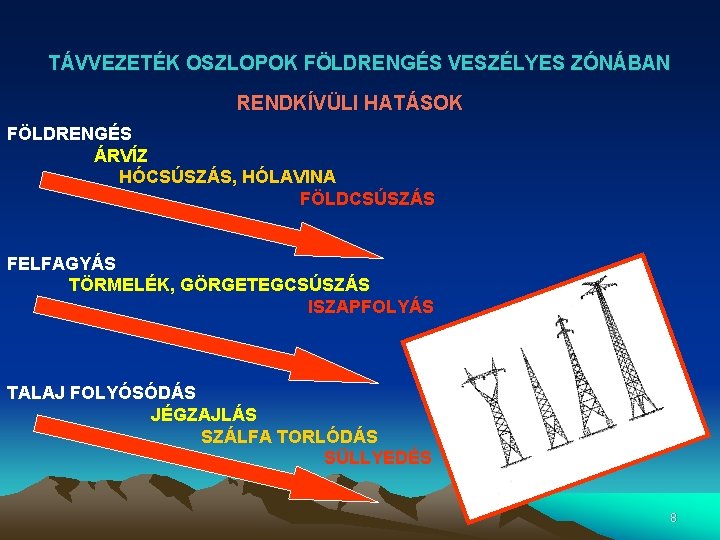

TÁVVEZETÉK OSZLOPOK FÖLDRENGÉS VESZÉLYES ZÓNÁBAN RENDKÍVÜLI HATÁSOK FÖLDRENGÉS ÁRVÍZ HÓCSÚSZÁS, HÓLAVINA FÖLDCSÚSZÁS FELFAGYÁS TÖRMELÉK, GÖRGETEGCSÚSZÁS ISZAPFOLYÁS TALAJ FOLYÓSÓDÁS JÉGZAJLÁS SZÁLFA TORLÓDÁS SÜLLYEDÉS 8
TÁVVEZETÉK OSZLOPOK FÖLDRENGÉS VESZÉLYES ZÓNÁBAN FÖLDRENGÉSEK KELETKEZÉSÉRŐL 9

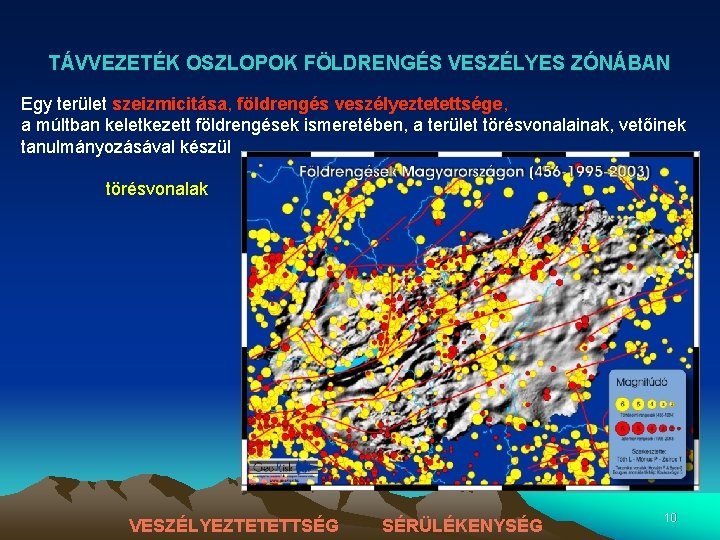

TÁVVEZETÉK OSZLOPOK FÖLDRENGÉS VESZÉLYES ZÓNÁBAN Egy terület szeizmicitása, földrengés veszélyeztetettsége, a múltban keletkezett földrengések ismeretében, a terület törésvonalainak, vetőinek tanulmányozásával készül törésvonalak VESZÉLYEZTETETTSÉG SÉRÜLÉKENYSÉG 10

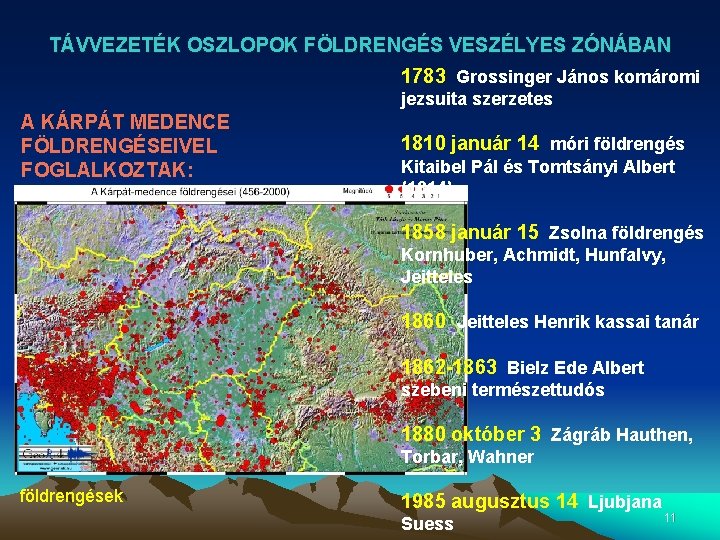

TÁVVEZETÉK OSZLOPOK FÖLDRENGÉS VESZÉLYES ZÓNÁBAN 1783 Grossinger János komáromi jezsuita szerzetes A KÁRPÁT MEDENCE FÖLDRENGÉSEIVEL FOGLALKOZTAK: 1810 január 14 móri földrengés Kitaibel Pál és Tomtsányi Albert (1814) 1858 január 15 Zsolna földrengés Kornhuber, Achmidt, Hunfalvy, Jeitteles 1860 Jeitteles Henrik kassai tanár 1862 -1863 Bielz Ede Albert szebeni természettudós 1880 október 3 Zágráb Hauthen, Torbar, Wahner földrengések 1985 augusztus 14 Ljubjana Suess 11

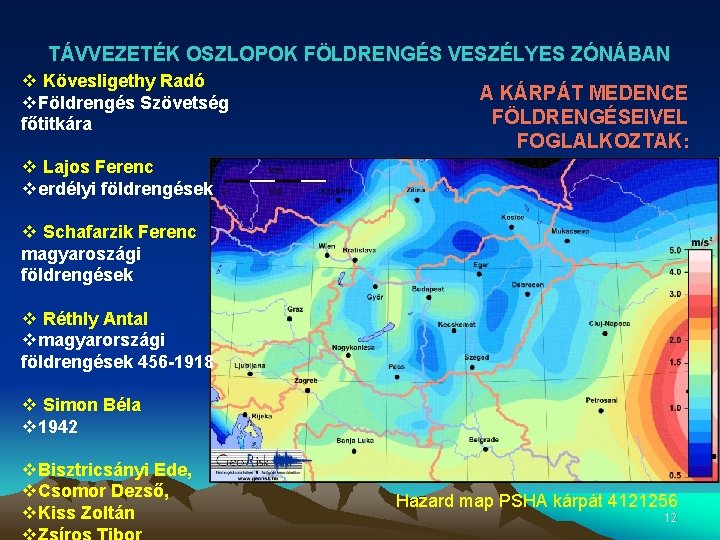

TÁVVEZETÉK OSZLOPOK FÖLDRENGÉS VESZÉLYES ZÓNÁBAN v Kövesligethy Radó v. Földrengés Szövetség főtitkára A KÁRPÁT MEDENCE FÖLDRENGÉSEIVEL FOGLALKOZTAK: v Lajos Ferenc verdélyi földrengések v Schafarzik Ferenc magyaroszági földrengések v Réthly Antal vmagyarországi földrengések 456 -1918 v Simon Béla v 1942 v. Bisztricsányi Ede, v. Csomor Dezső, v. Kiss Zoltán Hazard map PSHA kárpát 4121256 12

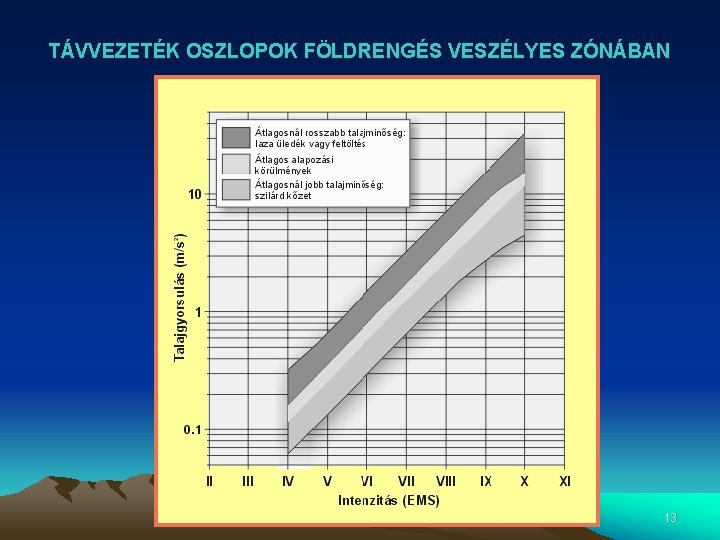

TÁVVEZETÉK OSZLOPOK FÖLDRENGÉS VESZÉLYES ZÓNÁBAN 13

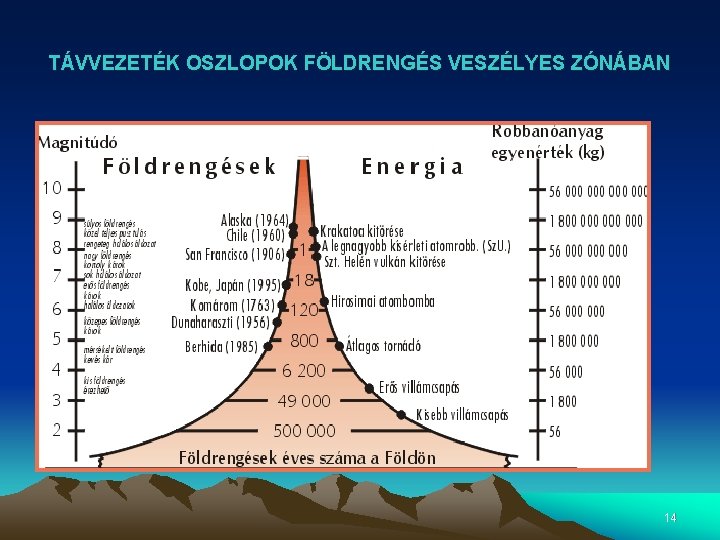

TÁVVEZETÉK OSZLOPOK FÖLDRENGÉS VESZÉLYES ZÓNÁBAN 14

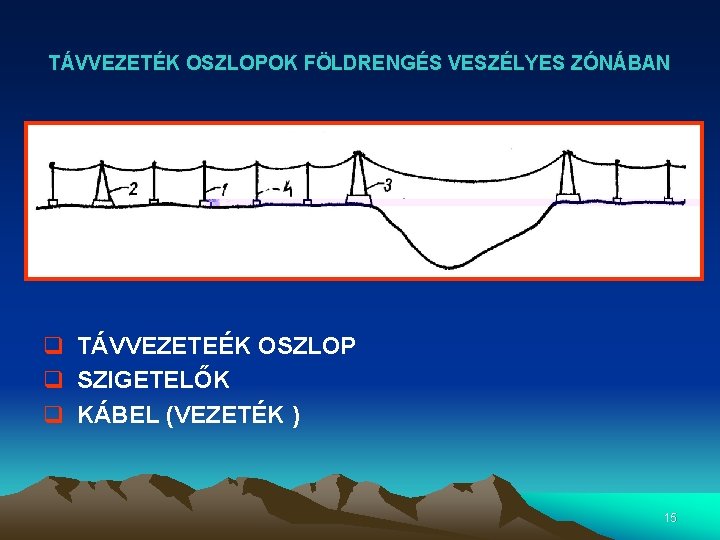

TÁVVEZETÉK OSZLOPOK FÖLDRENGÉS VESZÉLYES ZÓNÁBAN q TÁVVEZETEÉK OSZLOP q SZIGETELŐK q KÁBEL (VEZETÉK ) 15

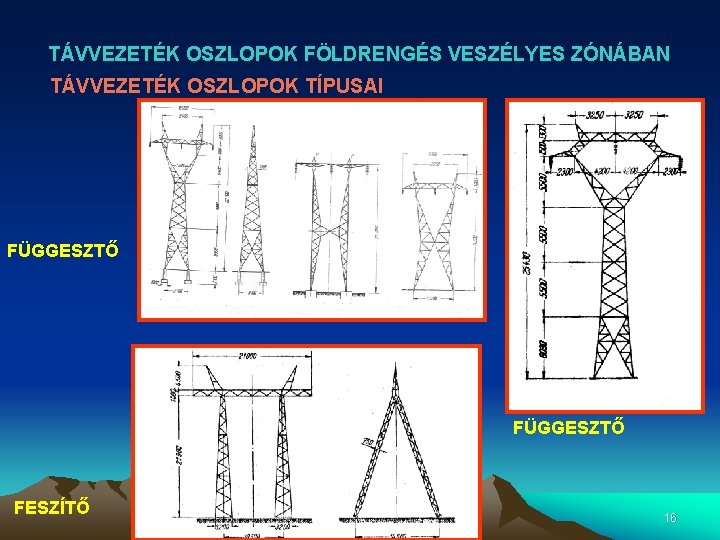

TÁVVEZETÉK OSZLOPOK FÖLDRENGÉS VESZÉLYES ZÓNÁBAN TÁVVEZETÉK OSZLOPOK TÍPUSAI FÜGGESZTŐ FESZÍTŐ 16

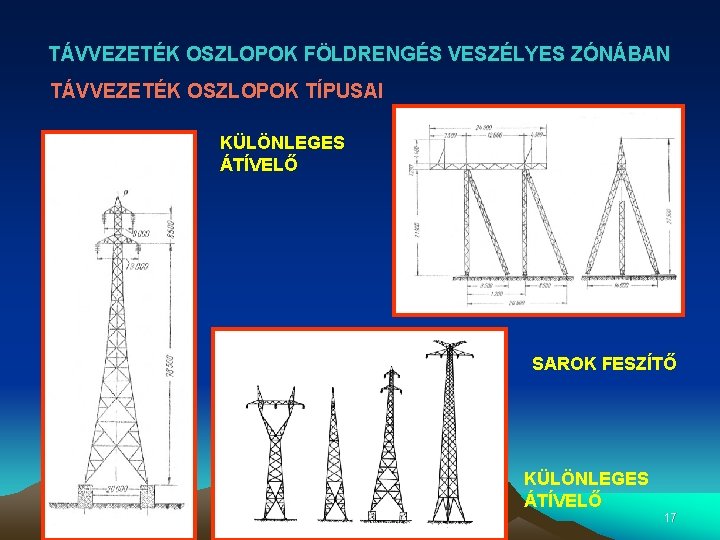

TÁVVEZETÉK OSZLOPOK FÖLDRENGÉS VESZÉLYES ZÓNÁBAN TÁVVEZETÉK OSZLOPOK TÍPUSAI KÜLÖNLEGES ÁTÍVELŐ SAROK FESZÍTŐ KÜLÖNLEGES ÁTÍVELŐ 17

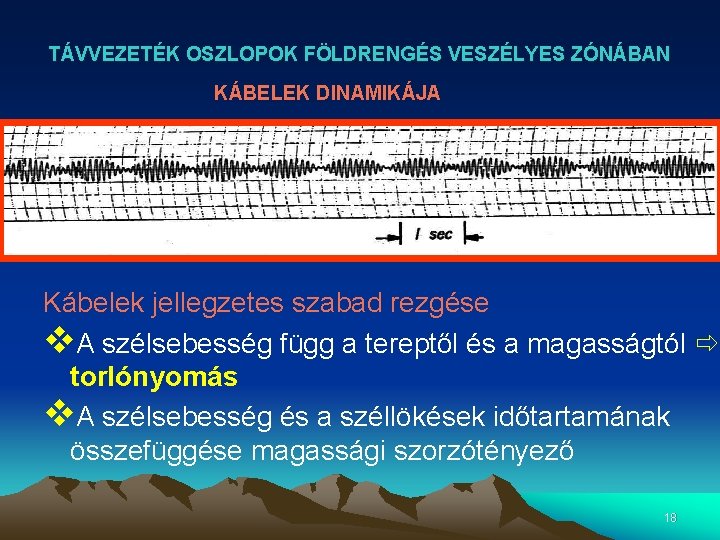

TÁVVEZETÉK OSZLOPOK FÖLDRENGÉS VESZÉLYES ZÓNÁBAN KÁBELEK DINAMIKÁJA Kábelek jellegzetes szabad rezgése v. A szélsebesség függ a tereptől és a magasságtól torlónyomás v. A szélsebesség és a széllökések időtartamának összefüggése magassági szorzótényező 18

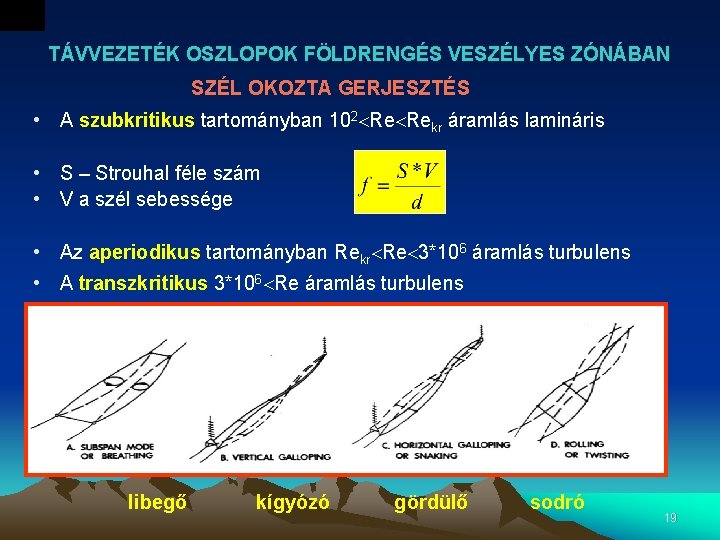

TÁVVEZETÉK OSZLOPOK FÖLDRENGÉS VESZÉLYES ZÓNÁBAN SZÉL OKOZTA GERJESZTÉS • A szubkritikus tartományban 102 Re Rekr áramlás lamináris • S – Strouhal féle szám • V a szél sebessége • Az aperiodikus tartományban Rekr Re 3*106 áramlás turbulens • A transzkritikus 3*106 Re áramlás turbulens libegő kígyózó gördülő sodró 19

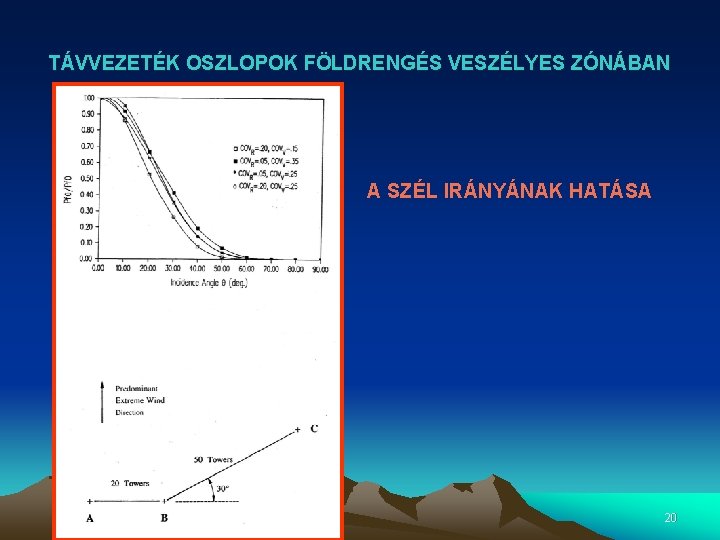

TÁVVEZETÉK OSZLOPOK FÖLDRENGÉS VESZÉLYES ZÓNÁBAN A SZÉL IRÁNYÁNAK HATÁSA 20

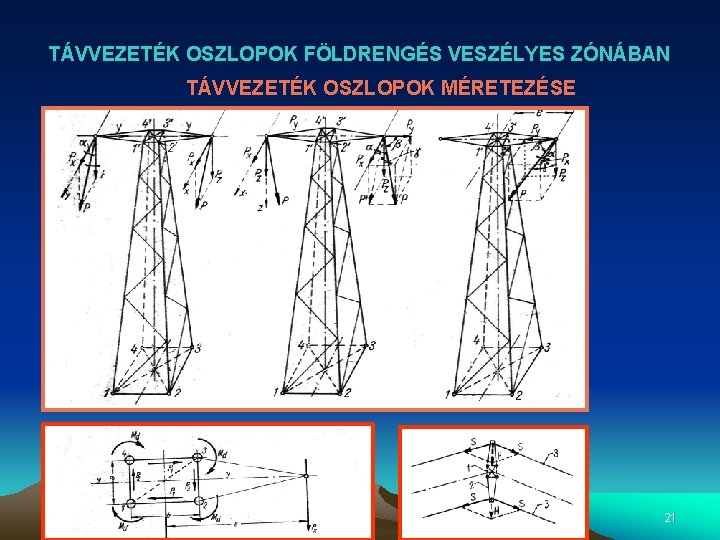

TÁVVEZETÉK OSZLOPOK FÖLDRENGÉS VESZÉLYES ZÓNÁBAN TÁVVEZETÉK OSZLOPOK MÉRETEZÉSE 21

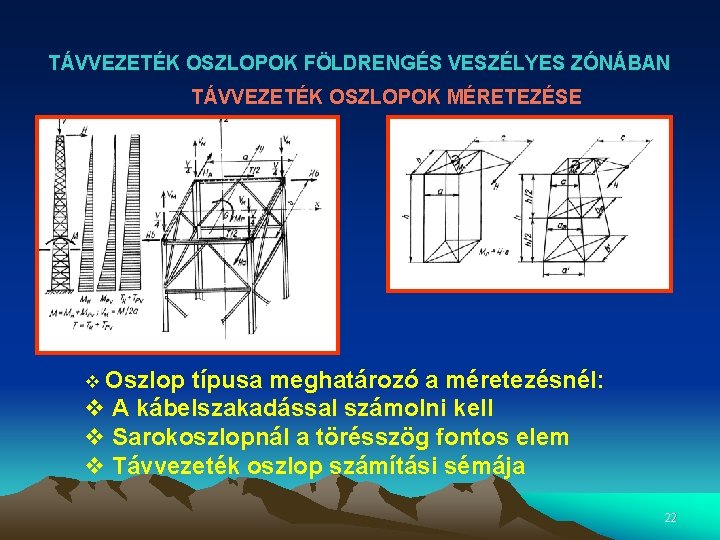

TÁVVEZETÉK OSZLOPOK FÖLDRENGÉS VESZÉLYES ZÓNÁBAN TÁVVEZETÉK OSZLOPOK MÉRETEZÉSE v Oszlop típusa meghatározó a méretezésnél: v A kábelszakadással számolni kell v Sarokoszlopnál a törésszög fontos elem v Távvezeték oszlop számítási sémája 22

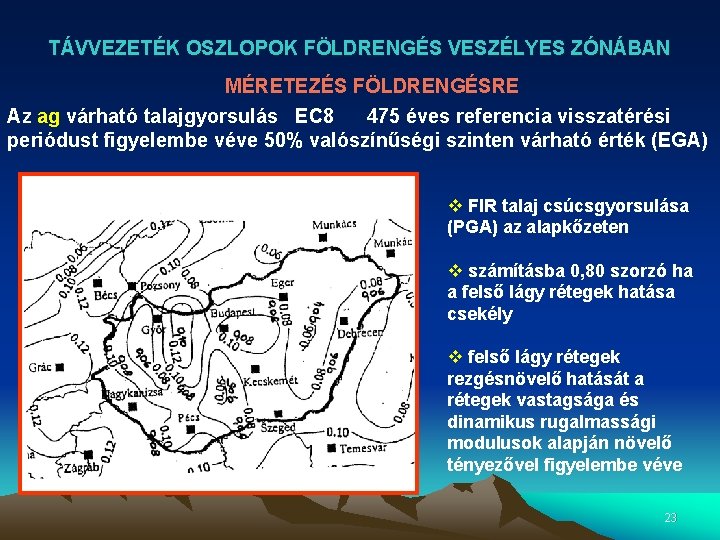

TÁVVEZETÉK OSZLOPOK FÖLDRENGÉS VESZÉLYES ZÓNÁBAN MÉRETEZÉS FÖLDRENGÉSRE Az ag várható talajgyorsulás EC 8 475 éves referencia visszatérési periódust figyelembe véve 50% valószínűségi szinten várható érték (EGA) v FIR talaj csúcsgyorsulása (PGA) az alapkőzeten v számításba 0, 80 szorzó ha a felső lágy rétegek hatása csekély v felső lágy rétegek rezgésnövelő hatását a rétegek vastagsága és dinamikus rugalmassági modulusok alapján növelő tényezővel figyelembe véve 23

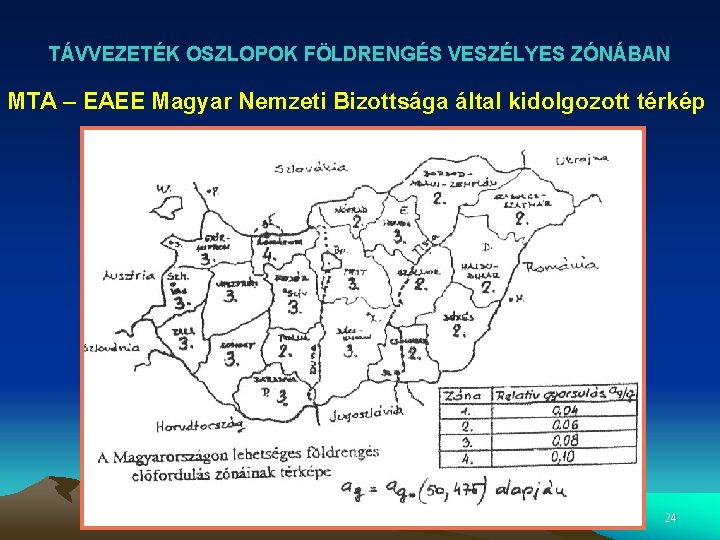

TÁVVEZETÉK OSZLOPOK FÖLDRENGÉS VESZÉLYES ZÓNÁBAN MTA – EAEE Magyar Nemzeti Bizottsága által kidolgozott térkép 24

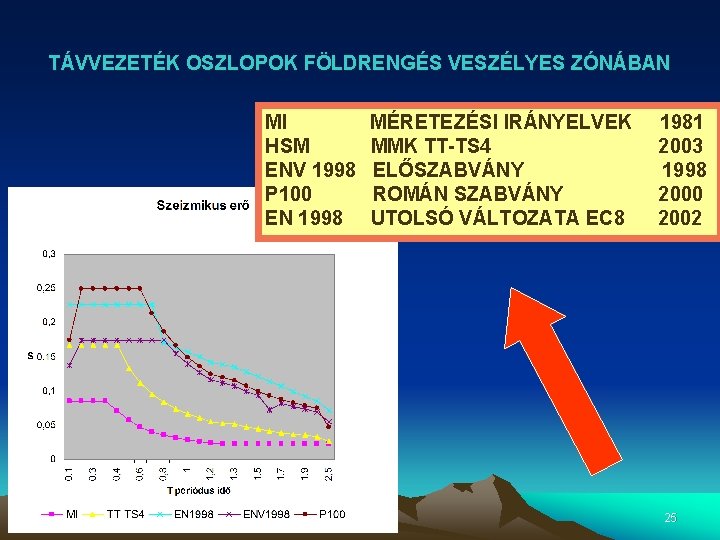

TÁVVEZETÉK OSZLOPOK FÖLDRENGÉS VESZÉLYES ZÓNÁBAN MI HSM ENV 1998 P 100 EN 1998 MÉRETEZÉSI IRÁNYELVEK MMK TT-TS 4 ELŐSZABVÁNY ROMÁN SZABVÁNY UTOLSÓ VÁLTOZATA EC 8 1981 2003 1998 2000 2002 25
TÁVVEZETÉK OSZLOPOK FÖLDRENGÉS VESZÉLYES ZÓNÁBAN M 5, 5 Type 2 Ø 0 T TB Ø TB T TC Ø TC T TD Ø TD T 4 s 26

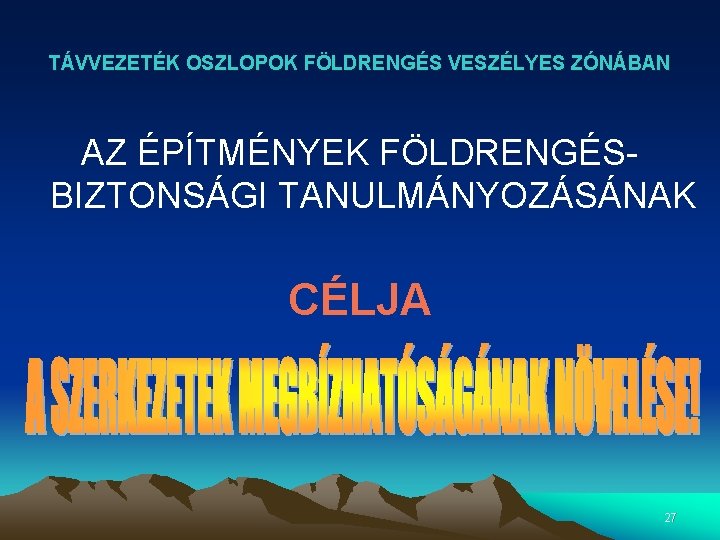

TÁVVEZETÉK OSZLOPOK FÖLDRENGÉS VESZÉLYES ZÓNÁBAN AZ ÉPÍTMÉNYEK FÖLDRENGÉSBIZTONSÁGI TANULMÁNYOZÁSÁNAK CÉLJA 27
