최상의 고로 운전을 위한 감시시스템 소개 Tuyere remote monitoring system Tuyere Remote Monitoring System EAST SEA CORPORATION ADD. : 982 Daejam-dong, Pohang, Kyungbuk, South Korea TEL: +82 -54 -282 -0151, FAX: +82 -54274 -9090 E-mail : esc 0502@nate. com
Tuyere remote monitoring system Preface OVERVIEW - MONITOR 및 SYSTEM RACK ------- 3 - IMAGE PROCESSOR----- - ------ 4 - MONITORING DISPLAY--------- 5 Ⅰ. SYSTEM INTRODUCTION--------- 6 Ⅱ. SYSTEM COMPOSITION-------- 7 Ⅲ. TYPICAL LAY OUT---------- 9 Attachment : Main partts catalogue - Tuyere Camera Unit - Image Processor Computer - Main System Rack - Local System Panel - Reference list

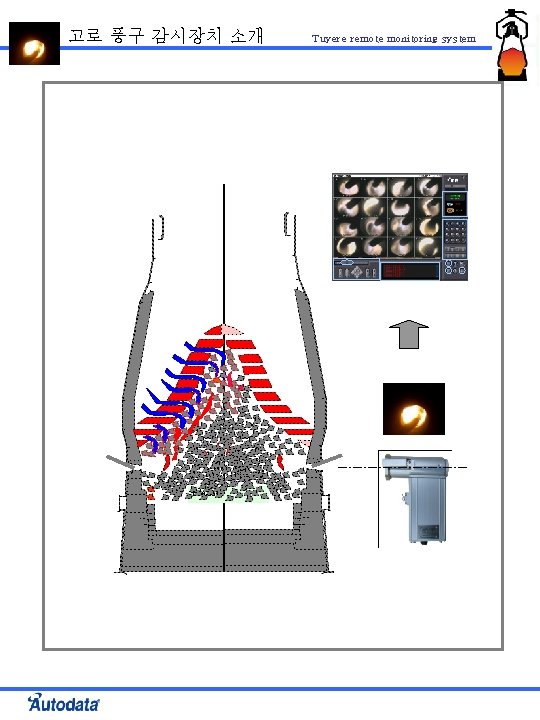

고로 풍구 감시장치 소개 노심COKE Tuyere remote monitoring system

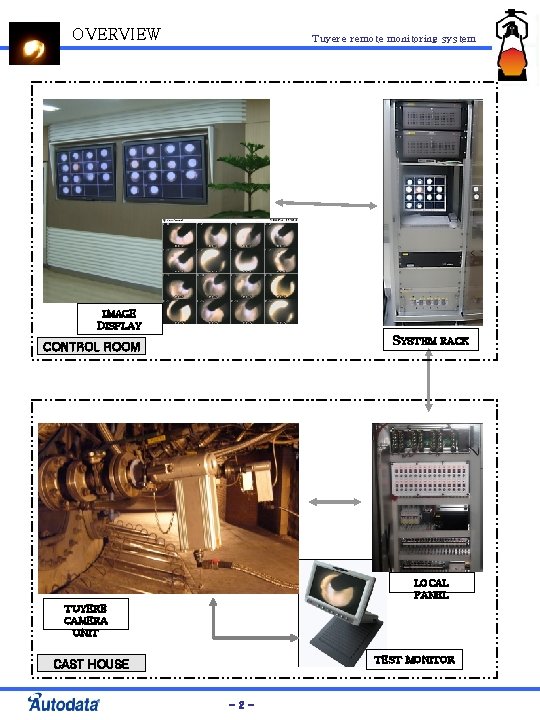

OVERVIEW Tuyere remote monitoring system IMAGE DISPLAY SYSTEM RACK CONTROL ROOM LOCAL PANEL TUYERE CAMERA UNIT TEST MONITOR CAST HOUSE -2 -
MONITOR 및 SYSTEM RACK Tuyere remote monitoring system Tuyere automatic remote monitoring system by visual display unit and camera optical device !!! • Combustion status monitoring - Real time tuyere video remote display • Tuyere condition monitoring - Lance distortion monitoring - PC ejection monitoring - Tuyere leakage monitoring(Option) - Tuyere bending monitoring(Option) • Abnormal tuyere alarm function -3 - 시스템 본체
Visual camera unit Tuyere remote monitoring system • Easy assembly and disassembly of camera • Easy and convenient angle adjustment • Half mirror method by available observation through pipe line Drawing of installed camera Main housing(General) • Easy maintenance! • Light and hard alumium material !! • Strong Non-rust finishing !!! -4 - Main housing(Water -proof type)
Tuyere Video display unit (Visual, temperature ) Tuyere remote monitoring system ☜ Tuyere Video display unit at operating room History management display ☞ ☜Tuyere status monitoring display (Temperature, brightness etc. ) -5 -
Tuyere flame temperature measurement program Tuyere remote monitoring system Actual Image Measurement video range ※ Measuring result : About 1, 800 of temperature measurement by tuyere video.
Ⅰ. System introduuction Tuyere remote monitoring system 1. System outline Blast furnace and Corex process made molten iron have several tuyres to circle direction at bottom level, supply high temperature combustion air and pulverizing coal through tuyeres. It will produce molten iron by making conbustion at high temperature through tuyeres. Tuyeres of main process will be always observed through pipe line by operator at site and automatic remote monitoring. Video camera unit will be installed at tuyere end and operator can observes inside tuyere through it and digital video processor unit will be installed, convert video signal by digital transmission unit and operator can see normal or abnormal condition inside tuyere through visual monitor at operating room and all tuyere conditions can be seen. • Conbustion condition monitoring - Real time tuyere video remote display • Tuyere condition monitoring - Lance distortion status monitoring - PC injection monitoring - Tuyere leakage automatic monitoring - Tuyere bending monitoring • Abnormal Tuyere alarm function -6 -
Ⅱ. System Configuration TYPE - A -7 - Tuyere remote monitoring system
Tuyere remote monitoring system TYPE - B
Ⅲ. Typical Layout Tuyere remote monitoring system ① ② ④ ③ Optical CABLE NO Item ① Tuyere monitoring camera ② 50 Inch PDP MONITOR ③ SYSTEM RACK ④ LOCAL SYSTEM PANEL -9 - Remark
Tuyere remote monitoring system This system is patent product(20 -0417055, 300432359).
