Tutorial on Plummer Block Hareesha N G Dept
Tutorial on Plummer Block Hareesha N G Dept of Aeronautical Engg Dayananda Sagar College of Engg Bangalore-78 6/7/2021 Hareesha N Gowda, DSCE, Blore-78 1
2. Plummer Block 6/7/2021 Hareesha N Gowda, DSCE, Blore-78 2
Part – 1: Body: 1. Create the sketch as shown in figure 2. Use Protrusion command to create the 3 D feature, width 36 mm 6/7/2021 Hareesha N Gowda, DSCE, Blore-78 3
Part – 1: Body: 1. Select XY plane, 2. Create the sketch on top face of the body as shown in figure 3. Use cutout command to create the 3 D feature shown in figure, show outside cutout while creating cutout 6/7/2021 Hareesha N Gowda, DSCE, Blore-78 4
Part – 1: Body: 1. Select bottom plane, 2. Create the sketch by selecting bottom face as shown in figure 3. Use cut out command to create the 3 D feature, depth 2 mm. 6/7/2021 Hareesha N Gowda, DSCE, Blore-78 5
Part – 1: Body: 1. Select bottom plane, 2. Create the sketch by selecting bottom face as shown in figure 3. Use cut out command to create the 3 D feature, depth through all. 6/7/2021 Hareesha N Gowda, DSCE, Blore-78 6
Part – 1: Body: 1. Select bottom plane, 2. 2. Create the sketch by selecting bottom face as shown in figure 3. Use cut out command to create the 3 D feature, depth 9 mm. 6/7/2021 Hareesha N Gowda, DSCE, Blore-78 7
Part – 1: Body: 1. Select bottom plane, 2. Create the sketch by selecting bottom face as shown in figure 3. Use cut out command to create the 3 D feature shown in figure 6/7/2021 Hareesha N Gowda, DSCE, Blore-78 8
Part – 1: Body: 1. Select top surface 2. Use hole command to create the 3 D feature shown in figure using parameters shown 6/7/2021 Hareesha N Gowda, DSCE, Blore-78 9
Part – 2: cup: 1. Select YZ plane, 2. Crete the sketch as shown in figure 3. Use protrusion command to create the 3 D feature, width 36 mm 6/7/2021 Hareesha N Gowda, DSCE, Blore-78 10
Part – 2: cup: 1. Select top surfece 2. Crete the sketch as shown in figure 3. Use cutout command to create the 3 D feature shown in figure, show outside cutout while using the command 6/7/2021 Hareesha N Gowda, DSCE, Blore-78 11
Part – 2: cup: 1. Select top surface 2. Crete the sketch as shown in figure 3. Use cutout command to create the 3 D feature shown in figure 6/7/2021 Hareesha N Gowda, DSCE, Blore-78 12
Part – 2: cup: 1. Create a plane tangent to top surface 2. Hole command to create the 3 D feature shown in figure using parameters defined 6/7/2021 Hareesha N Gowda, DSCE, Blore-78 13
Part – 3: Bottom half bearing 1. Select YZ plane, 2. Crete the sketch as shown in figure 3. Use revolved protrusion command to create the 3 D feature shown in figure, use 180 o 6/7/2021 Hareesha N Gowda, DSCE, Blore-78 14
Part – 3: Bottom half bearing 1. Select YZ plane, 2. Crete the sketch as shown in figure 3. Use revolved protrusion command to create the 3 D feature shown in figure, revolution 180 o 6/7/2021 Hareesha N Gowda, DSCE, Blore-78 15
Part – 3: Bottom half bearing 1. Select left surface 2. Crete the sketch as shown in figure 3. Use cutout command to create the 3 D feature shown in figure 6/7/2021 Hareesha N Gowda, DSCE, Blore-78 16
Part – 4: Bolt M 10 1. Select left surface 2. Crete the sketch as shown in figure 3. Use revolved cutout command to create the 3 D feature shown in figure 6/7/2021 Hareesha N Gowda, DSCE, Blore-78 17

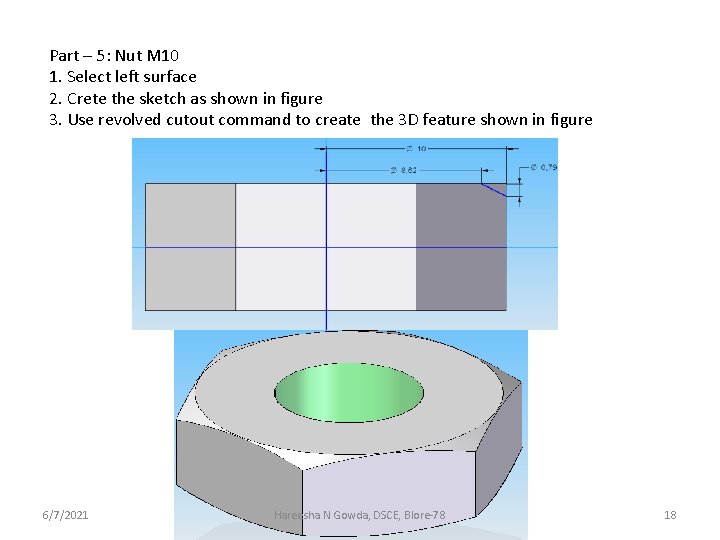

Part – 5: Nut M 10 1. Select left surface 2. Crete the sketch as shown in figure 3. Use revolved cutout command to create the 3 D feature shown in figure 6/7/2021 Hareesha N Gowda, DSCE, Blore-78 18
