Tutorial by VE 7 DIE Larry Joe Prepared

Tutorial by VE 7 DIE, Larry Joe Prepared: Jan 2, 2006 for AIRMAIL Workshop

What is AIRMAIL? • A radio messaging program for HAMS! • A radio terminal program for KB-KB, KB to BBS • A standalone Email program • A host interface to Outlook (Express) • All of the above!

Minimum Requirements? • Windows-95, 98, ME, NT 4. 0, Win-2000 or Win-XP • For HF- Pactor Modem such as: -SCS PTC-II, IIe, or IIpro -Kantronics KAM+, KAM with "enhancement board, or KAM-98 -AEA PK-232 mbx, PK-900, DSP 1232/2232 (firmware must include Pactor mode, and ver 7. 1 or later firmware is needed to use binary mode) -MFJ 1276 or 1278 B (ASCII modes only) -HAL DXP-38 -SCS PTC-plus (Pactor-1), ASCII modes only

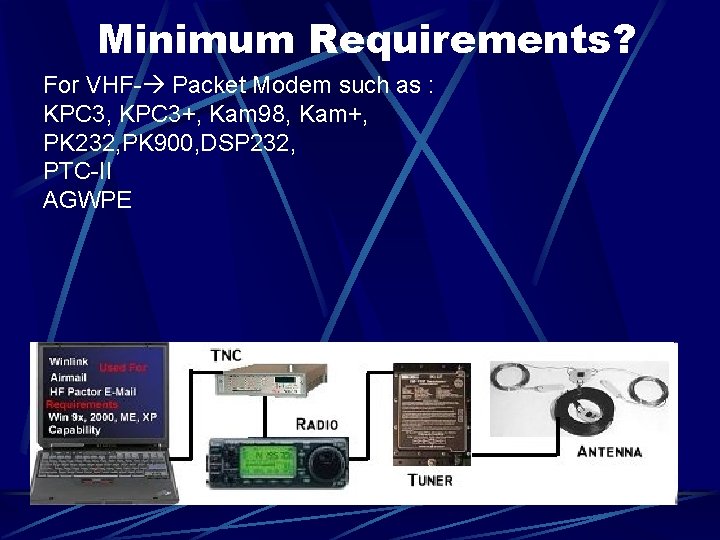

Minimum Requirements? For VHF- Packet Modem such as : KPC 3, KPC 3+, Kam 98, Kam+, PK 232, PK 900, DSP 232, PTC-II AGWPE

Minimum Requirements? Note: Some TNC’s require a firmware upgrade because: 1. They don’t support the host mode or 2. They don’t have PACTOR For example: MFJ-1278 requires MFJ-48 Eprom upgrade to version 3. 7 which includes the host mode. The PK 232 may require the MBX, MBX firmware, PSK , and/or low power upgrade Kantronics KAM requires firmware v 6 or higher.

Credits? Airmail is not "freeware" and is not "public domain". software. License to use is granted only under the terms outlined here, and other use is specifically prohibited. • freely used without charge on amateur radio bands by licensed hams. • members of the U. S. Military Afiliate Radio System (MARS), and by members of the Canadian CAFRS system, when operating on authorized MARS/CAFRS frequencies. Air. Mail is Copyright © 1997 -2004 by Jim Corenman, KE 6 RK, and Sirius Cybernetics LLC, P. O. Box 2143, Friday Harbor, WA USA

Where to Download? http: //www. airmail 2000. com Need more layman’s information on AIRMAIL? , try this link: http: //radioministries. org/Systems. htm

Common Modules • Packet Client Keyboard to Keyboard, BBS Access, 1200 Baud Typical and for connection to Telpac nodes for email exchange • Telnet Client Monitor internet connections for mail retrieval • Mail Server (SMTP/POP) Monitor port activities on 110 and 25 of the computer • HF Terminal Pactor communications with PMBOs

Outlook Express Compatible

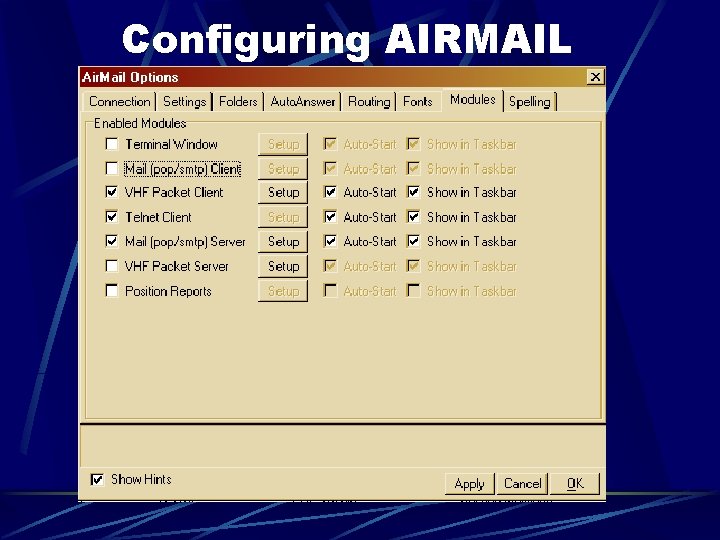

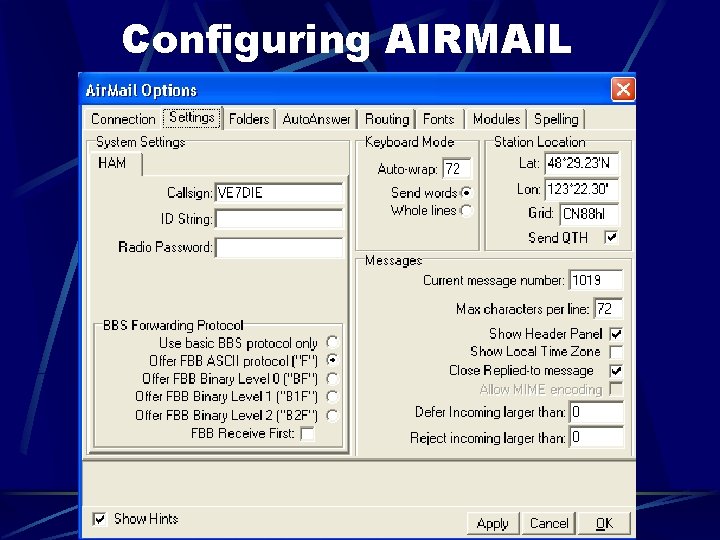

Configuring AIRMAIL

Configuring OUTLOOK

Test the internet connection

Test the packet connection First, turn on the VHF Packet Client

Test the packet initialization Next, select the packet client

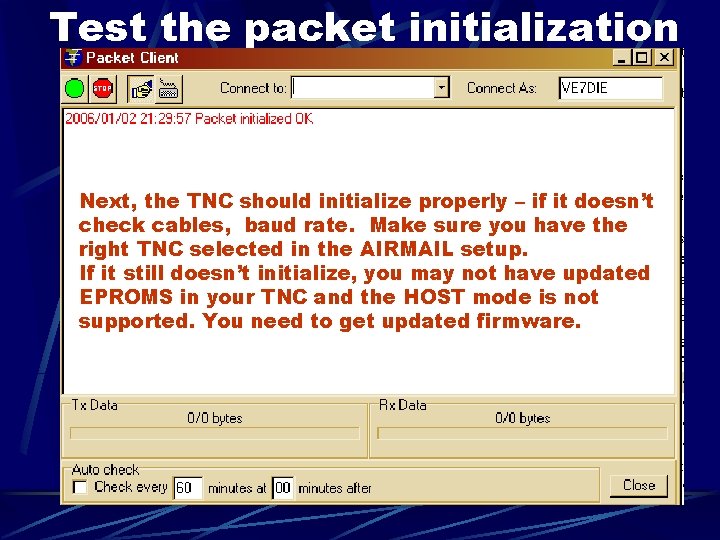

Test the packet initialization Next, the TNC should initialize properly – if it doesn’t check cables, baud rate. Make sure you have the right TNC selected in the AIRMAIL setup. If it still doesn’t initialize, you may not have updated EPROMS in your TNC and the HOST mode is not supported. You need to get updated firmware.

Test the packet connection Automatic mode to get mail

Test the packet connection Manual mode for Keyboard QSO RX SPLIT SCREEN TX SPLIT SCREEN

Test the PACTOR initialization TURN ON TERMINAL WINDOW TURN OFF PACKET CLIENT

Test the PACTOR initialization Next, select the HF Terminal (PACTOR)

Test the PACTOR initialization Example of successful PACTOR initialization. If you don’t get this screen, your TNC may not support PACTOR and may need to have a firmware upgrade.

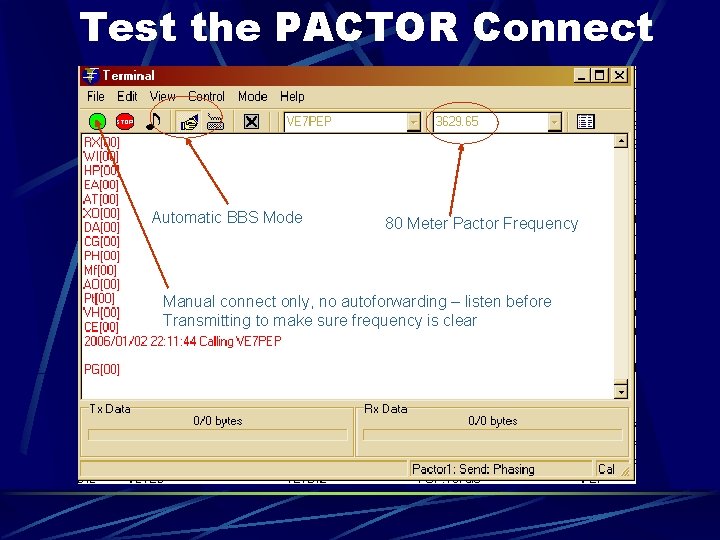

Test the PACTOR Connect Automatic BBS Mode 80 Meter Pactor Frequency Manual connect only, no autoforwarding – listen before Transmitting to make sure frequency is clear

The End!
