Tutorial 1 Combinational Logic Synthesis Introduction to VHDL

Tutorial 1 Combinational Logic Synthesis

Introduction to VHDL • VHDL = Very high speed Hardware Description Language • VHDL and Verilog are the industry standards for describing digital systems

Introduction to VHDL • Like C++, a working knowledge of VHDL can be gained relatively quickly • Like C++, a solid understanding of what you’re writing and why you’re writing it can take years • It’s especially important in VHDL to focus not on style and syntax, but on comprehension

Introduction to VHDL • VHDL is a HARDWARE DESCRIPTIVE LANGUAGE • Every line of code translates directly to hardware

Entities and Architectures • Creating a module in VHDL involves creating an entity and an architecture

Entities and Architectures Entity My. Entity is port ( a, b : in std_logic; c : out std_logic); End entity; • When you define an entity, you define the blackbox structure that’s visible to outside modules • a and b aren’t “parameters”. They’re WIRES. c isn’t a ‘return value’. It’s a WIRE.

Entities and Architectures architecture main of My. Entity is begin <your code here> end archicture; • Each entity is actually implemented inside an architecture • You can have more than one architecture for each entity, but in general, you should just have one

Component instantiation • Other blocks can then use these sub-modules, but first you have to declare it as a component DFF port( d : in std_logic; q : out std_logic); end component; • This component can now be instantiated inside this top-level entity as many times as you want

Component Instantiation • A component is instantiated as follows My. Dff : DFF Port map (d => foo, q => bar); • Foo and bar are signals or ports in the top-level entity • d and q are ports of the component being instantiated • d is connected to foo with a wire. Likewise with q and bar. • My. DFF is a label given to the component instance. VHDL requires all component instances to have unique labels to differentiate between multiple instances of the same component

Combinational Logic A <= B; • Textbooks call this a “Concurrent Assignment” • This is a WIRE

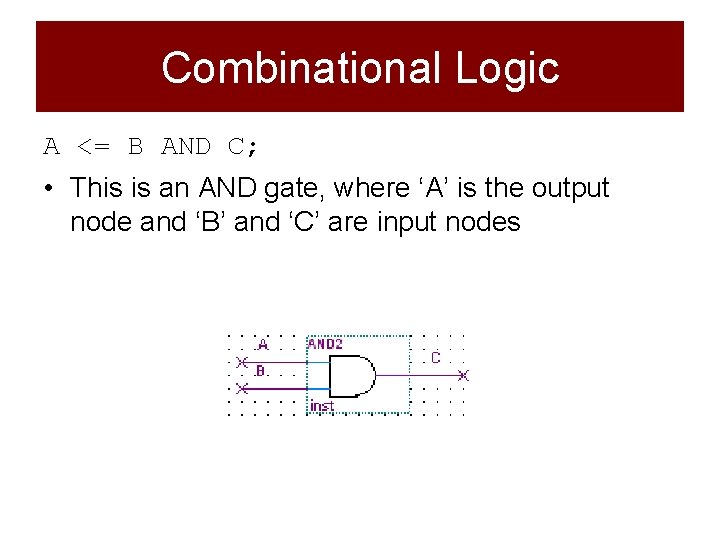

Combinational Logic A <= B AND C; • This is an AND gate, where ‘A’ is the output node and ‘B’ and ‘C’ are input nodes

Combinational Logic A <= B AND C; D <= A; E <= D AND A; • What does this look like? Remember, think of this as not code, but a description of a circuit • Bonus point: Simplify this logic. What VHDL code would represent your simplified circuit?

Combinational Logic

Select Statements With std_logic_vector’(A, B) select Q <= “ 0” when “ 00” <= “ 0” when “ 01” <= “ 1” when “ 10” <= “ 0” when “ 11” <= “ 0” when others; • This LOOKS like a case statement. It can be more accurately described as a “description of a truth table” • What does the truth table look like? What does the hardware look like?

Select Statement A B Q 0 0 1 0 1 1 1 0

Conditional Assignment Q <= ‘ 1’ when A = ‘ 1’ else ‘ 0’ when B = ‘ 1’ else ‘ 0’; • This differs from select statements because Conditional Assignment has a priority of conditions. The first condition is evaluated before the second. • If A = ‘ 1’ and B = ‘ 1’, Q becomes ‘ 1’, because that condition comes first

Conditional Assignment • In evaluating this block, statement priority is considered in populating the truth table • The truth table is then used to generate hardware. The hardware itself has no sequential nature. • What does the truth table look like? What does the hardware look like? • Any conditional assignment can be expressed with a select block

Conditional Assignment A B Q 0 0 1 0 1 1 1 1

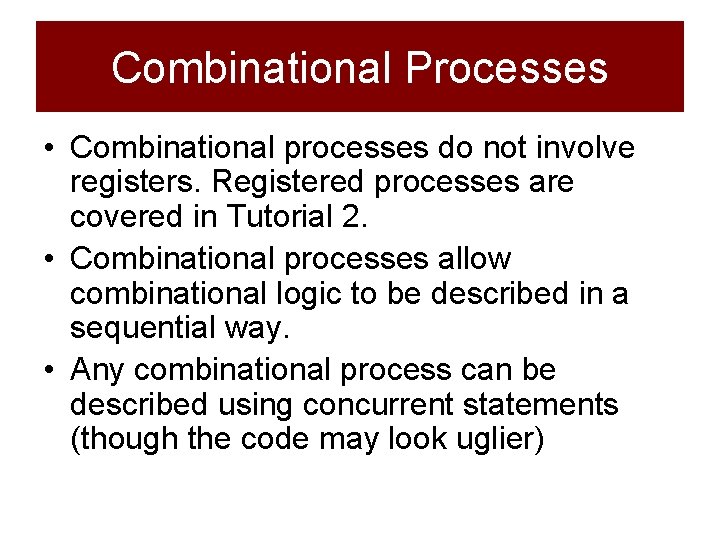

Combinational Processes • Combinational processes do not involve registers. Registered processes are covered in Tutorial 2. • Combinational processes allow combinational logic to be described in a sequential way. • Any combinational process can be described using concurrent statements (though the code may look uglier)

Combinational Processes process(a) begin b <= a; end process; • The bracketed ‘a’ is part of a process’ sensitivity list. This should list out all the signals used as inputs to this process

If-then-else If A = ‘ 1’ then Q <= ‘ 0’ Else Q <= ‘ 1’ End if; • This is an if-then-else construct similar to most programming languages • It implies a sequential priority, which is similar to conditional assignment

Case Sel is when ‘ 1’ => Q <= ‘ 1’; when others => Q <= ‘ 0’; End case • The case statement implies no priority, and is similar to the select statement

Combinational Processes • So why bother with if-then-else and case statements when you can use selects and conditional assignments? • Sometimes what you’re trying to describe is just ‘nicer looking’ or shorter in one or the other
