Tube Skin Thermocouple How to measure the correct

Tube Skin Thermocouple How to measure the correct Tube skin temperature in a Heater

The Fan Tip thermocouple • Drawing of the junction

Fan Tip Specifications • • Calibration: Type K or N Sheath Material: Hastelloy X Diameter: 6. 0 or 8. 0 mm Accuracy: +4°C

The most common used thermocouples • Fan Tip • Pad Style • Knife-edge

Comperison of accuracy Surface measurements are always trublesom and usually inaccurate. There are many methodes used for measuring tube surface temperatures. This is usually a difficult measurement becouse of the temperature of the air or flame around the tube is higher than th tube itself, leading to a positive error The ” Fan” Aproache is both more accurate and has a faster response then other designs. Using Hastelloy X material this also give long life A test has been carried out compering the thre different types In this test the real tube temperature was 500ºC and the ambient gas temperature was 800ºC resulting in the following data: Syle Indicated temperatur ºC Error ºC % Knife-edge 521 21 4. 35 Pad Style 520. 9 4. 0 Fan Tip 504. 5 0. 7

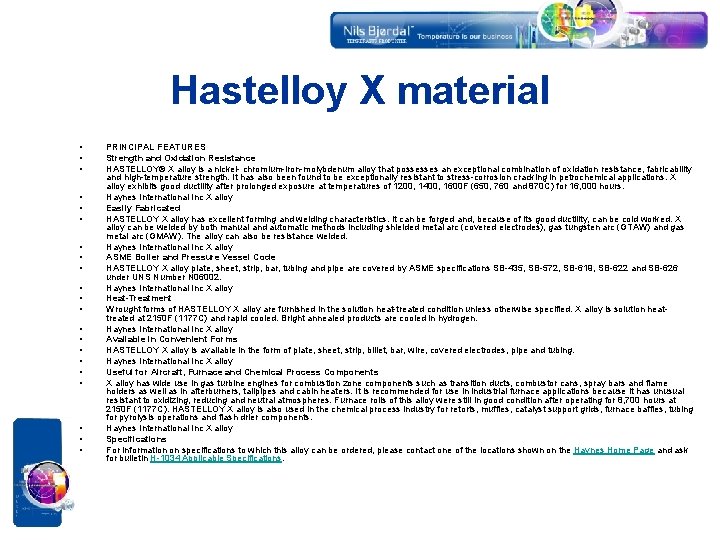

Hastelloy X material • • • • • • PRINCIPAL FEATURES Strength and Oxidation Resistance HASTELLOY® X alloy is a nickel- chromium-iron-molybdenum alloy that possesses an exceptional combination of oxidation resistance, fabricability and high-temperature strength. It has also been found to be exceptionally resistant to stress-corrosion cracking in petrochemical applications. X alloy exhibits good ductility after prolonged exposure at temperatures of 1200, 1400, 1600 F (650, 760 and 870 C) for 16, 000 hours. Haynes International Inc X alloy Easily Fabricated HASTELLOY X alloy has excellent forming and welding characteristics. It can be forged and, because of its good ductility, can be cold worked. X alloy can be welded by both manual and automatic methods including shielded metal arc (covered electrodes), gas tungsten arc (GTAW) and gas metal arc (GMAW). The alloy can also be resistance welded. Haynes International Inc X alloy ASME Boiler and Pressure Vessel Code HASTELLOY X alloy plate, sheet, strip, bar, tubing and pipe are covered by ASME specifications SB-435, SB-572, SB-619, SB-622 and SB-626 under UNS Number N 06002. Haynes International Inc X alloy Heat-Treatment Wrought forms of HASTELLOY X alloy are furnished in the solution heat-treated condition unless otherwise specified. X alloy is solution heattreated at 2150 F (1177 C) and rapid cooled. Bright annealed products are cooled in hydrogen. Haynes International Inc X alloy Available in Convenient Forms HASTELLOY X alloy is available in the form of plate, sheet, strip, billet, bar, wire, covered electrodes, pipe and tubing. Haynes International Inc X alloy Useful for Aircraft, Furnace and Chemical Process Components X alloy has wide use in gas turbine engines for combustion zone components such as transition ducts, combustor cans, spray bars and flame holders as well as in afterburners, tailpipes and cabin heaters. It is recommended for use in industrial furnace applications because it has unusual resistant to oxidizing, reducing and neutral atmospheres. Furnace rolls of this alloy were still in good condition after operating for 8, 700 hours at 2150 F (1177 C). HASTELLOY X alloy is also used in the chemical process industry for retorts, muffles, catalyst support grids, furnace baffles, tubing for pyrolysis operations and flash drier components. Haynes International Inc X alloy Specifications For information on specifications to which this alloy can be ordered, please contact one of the locations shown on the Haynes Home Page and ask for bulletin H-1034 Applicable Specifications.

Installation of the Fan Tip • This drawing shows a typical general installation with expasion coil

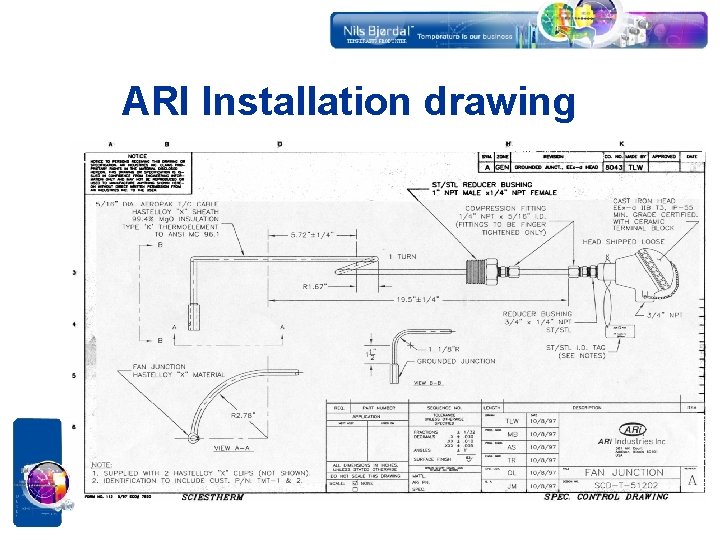

ARI Installation drawing

Fan Tip installation Ex. Xon

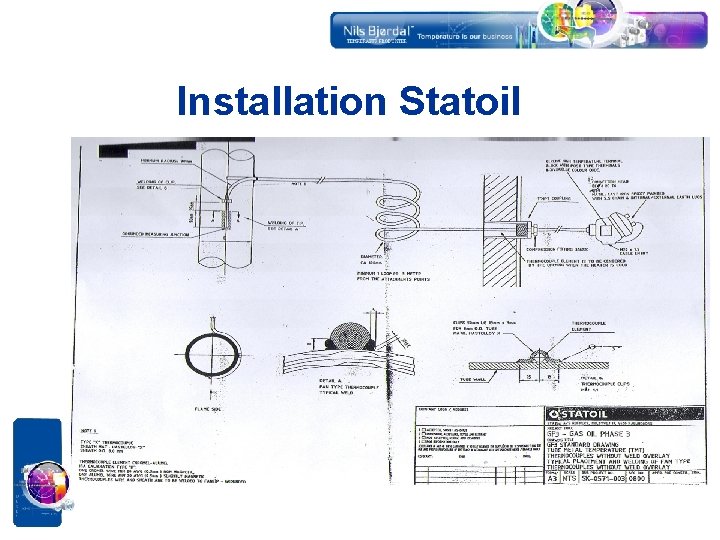

Installation Statoil

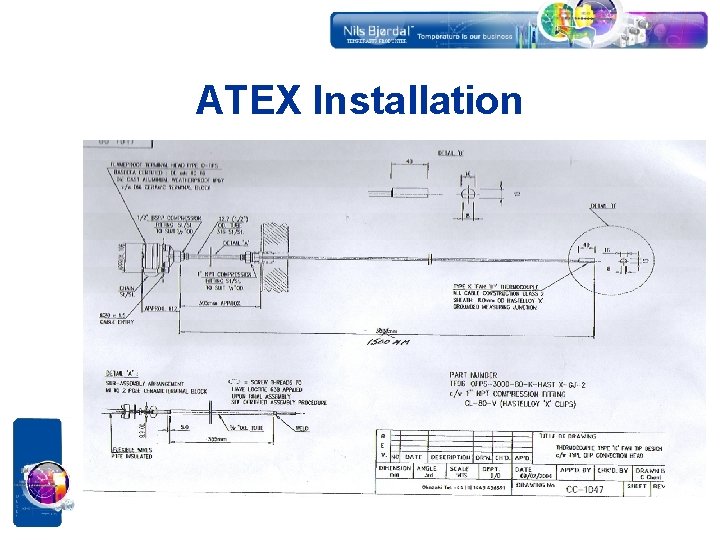

ATEX Installation

Mounting methodes • Welding has been the traditional method for this application • Metal spraying At Statoil Mongstad a method of metal spraying was developed around 1986

Welding • • • Time consuming Tube has to be preheated The weld must be annealed Risk for cracks in the tube X-Ray is sometimes a demanded If performed properly it is a god solution

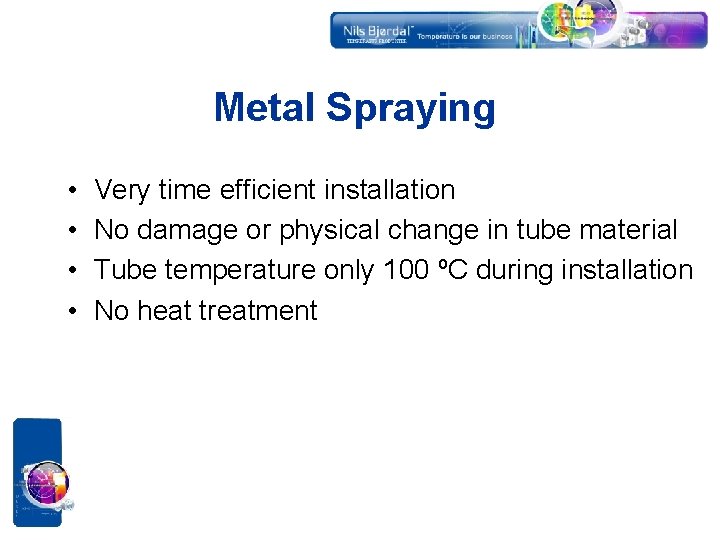

Metal Spraying • • Very time efficient installation No damage or physical change in tube material Tube temperature only 100 ºC during installation No heat treatment

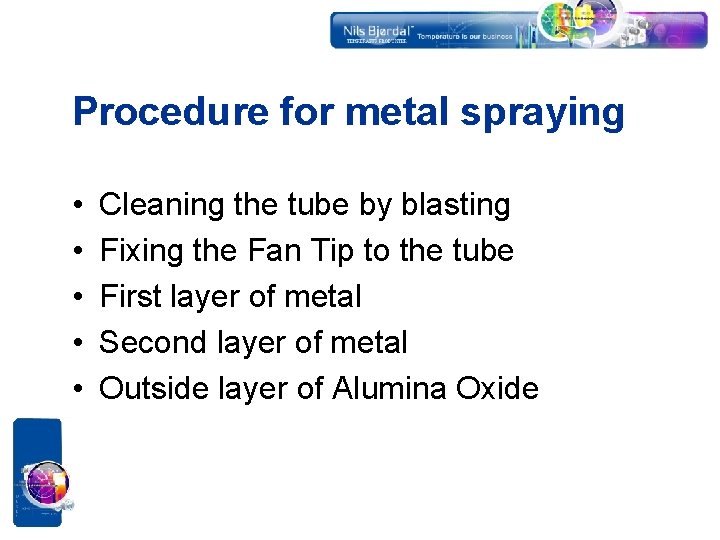

Procedure for metal spraying • • • Cleaning the tube by blasting Fixing the Fan Tip to the tube First layer of metal Second layer of metal Outside layer of Alumina Oxide

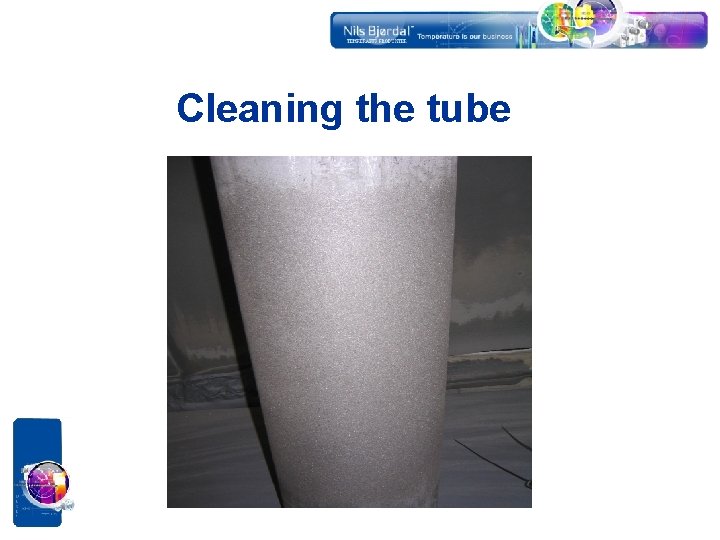

Cleaning the tube

Fixing the Fan Tip to the tube

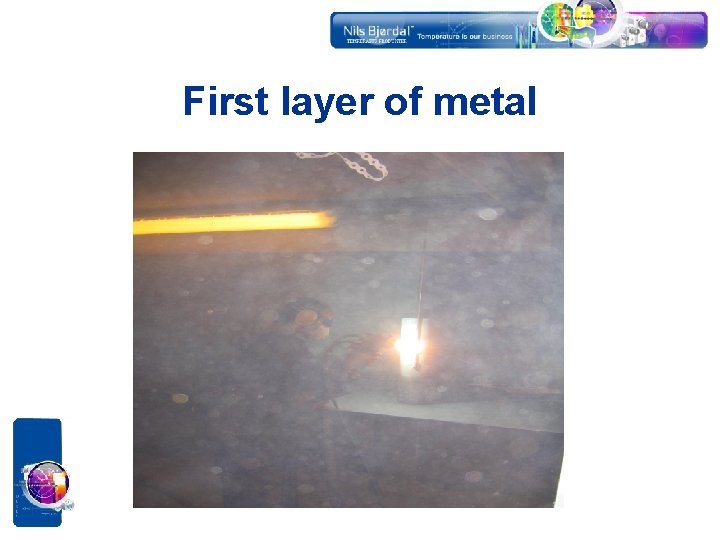

First layer of metal

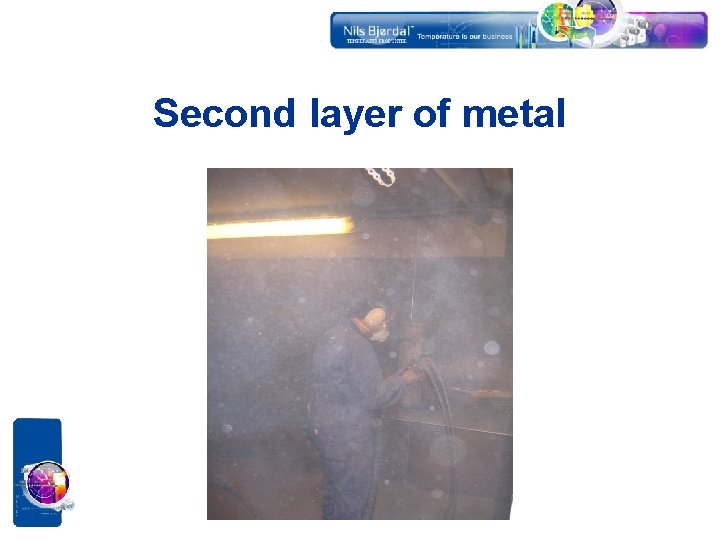

Second layer of metal

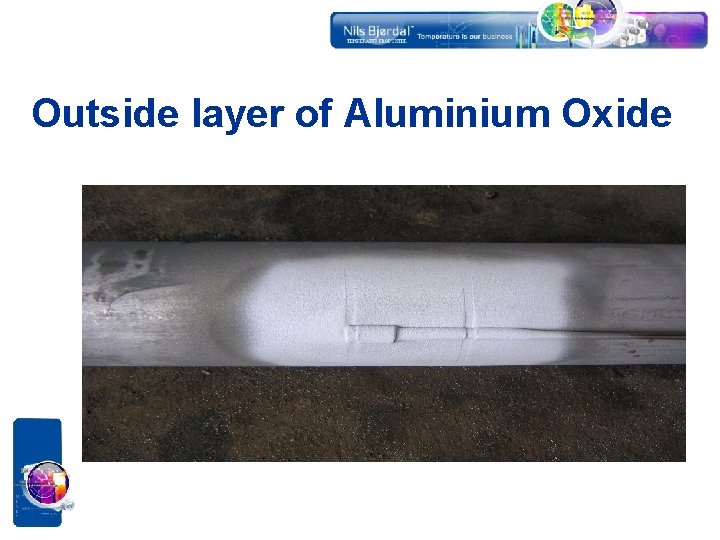

Outside layer of Aluminium Oxide

Arc spray machine

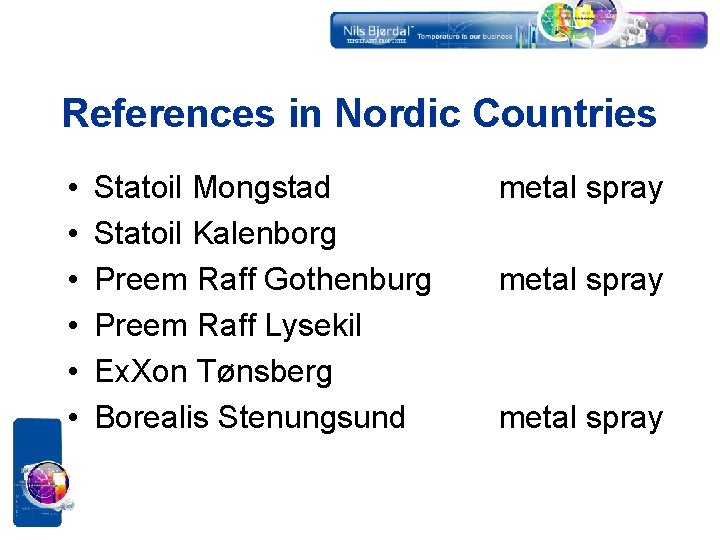

References in Nordic Countries • • • Statoil Mongstad Statoil Kalenborg Preem Raff Gothenburg Preem Raff Lysekil Ex. Xon Tønsberg Borealis Stenungsund metal spray
