TTC upgrade Status May 2006 Sophie BARON PHESS

TTC upgrade Status May 2006 § § § Sophie BARON, PH-ESS Overview AB/RF optical links Receiver crate Status and schedules Documentation LEADE, 15/06/06 1

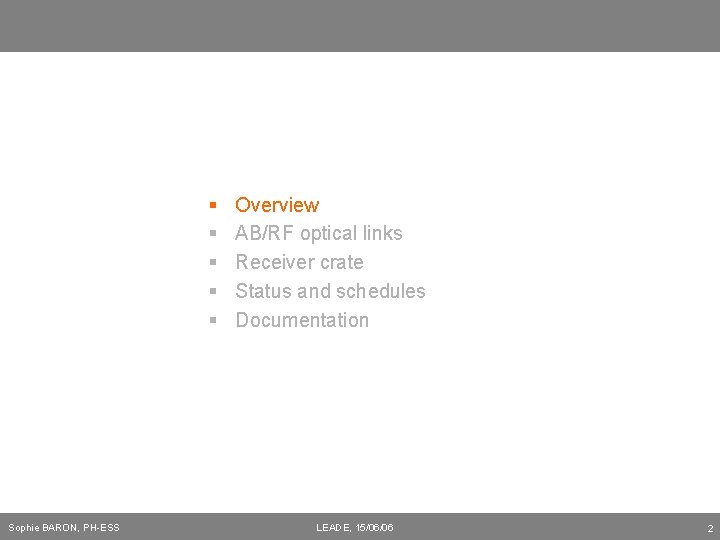

§ § § Sophie BARON, PH-ESS Overview AB/RF optical links Receiver crate Status and schedules Documentation LEADE, 15/06/06 2

OVERVIEW AB/RF Tx and Rx modules TTC Receiver Crates Optical fibres TTClab (build 4) Sophie BARON, PH-ESS LEADE, 15/06/06 3

§ § § Sophie BARON, PH-ESS Overview AB/RF optical links Receiver crate Status and schedules Documentation LEADE, 15/06/06 4

AB/RF OPTICAL LINKS [Analog solution] § Analog Modules o Transmitter module: RF_Tx_A (EDA-01331) o Receiver module: RF_Rx_A (EDA-01332) § 6 U 4 TE VME (VME 64 x and VME 64 compatible) o 3 internal registers • Power warning led threshold (RW) • CH/2 1 Power monitoring (Read Only) § Miteq links 3 GHz o validated - Specs: • Measured Phase Noise: – 400 MHz -> 0. 4 ps (pkpk) – 40 MHz -> 0. 4 ps (pkpk) – 10 MHz -> 13 ps (pkpk) More results in the evaluation report • Typical output levels: – Bunch Clock = 0 d. Bm continuous sinewave – Orbit = 1 Vpk pulse on 50 Ohms • Quantities: – 10 links have been ordered in November 05 – 10 to be ordered soon => Enough to work until 2007 Sophie BARON, PH-ESS LEADE, 15/06/06 5

AB/RF OPTICAL LINKS [Analog solution] 150 € 3200 € Sophie BARON, PH-ESS 150 € 2000 € 3200 € LEADE, 15/06/06 2000 € 6

RECEIVER CRATE [Digital Solution] § We tried to find a cheaper solution with the same form factor § Digital Modules (RF_Tx_D and RF_Rx_D) o First test boards made with PHOTON 155 Mbps/TRR-1 B 43 pair • • Standard modules of the TTC modules Performance evaluated on the same setup than the analog links Results available in the test report AB/RF agreed that this could be a cheaper solution for 70% of the links, including the TTC • If the final results are as good as expected, they will use this solution for these 70% and maintain the boards the same way. o Optical components identified and ordered • Photon getting obsolete • OCP components pin compatible components • Price: – Orbit, 10 MHz, 40 MHz: 156 Mbps links – 400 MHz: 1. 2 Gbps o Design on-going (PH/ESS). Tx Rx 156 Mbps PHOTON 197 97 156 Mbps AMS 313 227 1. 2 Gbps AMS 635 295 • Close to the analog boards, but higher density. Sophie BARON, PH-ESS LEADE, 15/06/06 7

§ § § Sophie BARON, PH-ESS Overview AB/RF optical links Receiver crate Status and schedules Documentation LEADE, 15/06/06 8

RECEIVER CRATE [Overview] o o 6 U VME crate: VME Crate controller AB/RF receiver VME modules RF 2 TTC VME module • Receives timing signals from the AB/RF modules and machine states from the BST optical link o BC and Orbit fanout Sophie BARON, PH-ESS LEADE, 15/06/06 9

RECEIVER CRATE [Crates – Power Supplies - Controllers] § Provided by PH/ESS § Common Crates: o 1 LHC standard 6 U VME 64 x crate per experiment o Available § (less) Common Power supplies: o (+3. 3 V/100 A, +5 V/100 A, +-12 V/10 A, 48 V/12 A) o ATLAS, CMS, LHCb: OP 06. 0710 o ALICE: OP 17. 0701 § (no) Common Controllers: o ALICE: Standard VP 315/317 from CCT o ATLAS, TTC lab: Standard VP 110 from CCT o CMS: CAEN PCI-controller card A 2818 + V 2718 VME-PCI optical bridge o LHCb: CAEN V 1718 VME-USB bridge o POOL items. One of each will be reserved as from August 06. Sophie BARON, PH-ESS LEADE, 15/06/06 10

RECEIVER CRATE [TTC Clock fanout] § TTC Clock fanout (EDA-01240 -V 1, PH/MIC) o o o Dual 1: 18 ECL fanout 4 NIM outputs per input (ALICE requirement) 1 status led per input (presence of clock). Maximum density The 2 dual modules can be daisy chained. Fully AC coupled Prototype produced and debugged § § § Power: 5 V-5 A, Jitter: In/Out skew=8 ps rms, Cy 2 Cy=11 ps rms Skew between outputs: a few ps Production will begin after full validation & design modifications Sophie BARON, PH-ESS LEADE, 15/06/06 11

RECEIVER CRATE [RF 2 TTC overview] § VME 64 x - 6 U – 4 TE module § Inputs o 3 BC inputs (BC 1, BC 2, BCref) (RF signals) o 2 Orbit inputs (Orb 1, Orb 2) (RF signals) o 1 Optical input for the BST signals § Outputs o 4 ECL BC outputs (BC 1, BC 2, BCref, Main. BC) • AC coupled • 4 NIM copies o 3 NECL Orbit outputs (Orb 1, Orb 2, Main. Orb) • DC coupled • Synchronised respectively to BC 1, BC 2, Main. BC • 3 NIM copies § Status leds Sophie BARON, PH-ESS LEADE, 15/06/06 12

RECEIVER CRATE [RF 2 TTC functionalities] § Adjustable parameters (via VME registers) o BC 1, BC 2, BCref, Main. BC • Adjustable level on the comparator input (BC 1, BC 2 and BCref) • Multiplexing between each input and the internal 40. 078 MHz clock • Adjustable phase shift (steps of 0. 5 ns) o Orbit 1, Orbit 2, Main Orbit • Adjustable level on the comparator input to match various types of signals (Orb 1 and 2) • Adjustable phase shift before the latching with the corresponding BC (Orb 1 and 2) • Multiplexing between each input and an internal counter • Adjustable length, coarse delay (steps of 25 ns), phase shift (steps of 0. 5 ns) before the output § Status control o Status registers (locking BC, BST ready, machine modes, Orbit alignment) o Leds § Manual or automatic mode to switch between the internal clock (orbit) and one of the machine clock (orbit) Beam Dump E(4 V - 50 G e 7 T > e. V ) Beam Dump injection ramping squeeze ~15 min ~28 min ~15 min Sophie BARON, PH-ESS time physics ~10 -20 H LEADE, 15/06/06 13

RECEIVER CRATE [RF 2 TTC block diagram] Adjustable Reset possible Monitored via a VME register Status Led Sophie BARON, PH-ESS LEADE, 15/06/06 14

§ § § Sophie BARON, PH-ESS Overview AB/RF optical links Receiver crate Status and schedules Documentation LEADE, 15/06/06 15

STATUS & Schedules NOW Power Supply AUGSEPT (test beam) Controller Fanout RF 2 TTC Sophie BARON, PH-ESS JUNESEPT (test beam) NOW 3 Weeks NOW 2 Months LEADE, 15/06/06 NOW 6 Weeks Mid JULY Production NOW Validation NOW Prototype Components ordering Software Firmware layout Review Schematics Component choice Receiver Crate Digital Tx and Rx Specs Modules AB/RF modules Analog Tx and Rx Oct July Oct 16

§ § § Sophie BARON, PH-ESS Overview AB/RF optical links Receiver crate Status and schedules Documentation LEADE, 15/06/06 17

DOCUMENTATION § TTC upgrade proposal on EDMS https: //edms. cern. ch/cedar/plsql/doc. info? cookie=5173380&document_id=628545&version=2&p_tab=TAB 6 § TTC upgrade site http: //ttc-upgrade. web. cern. ch/ttc-upgrade/Default. htm § RF 2 TTC Review on INDICO/Projects/TTC http: //indico. cern. ch/category. Display. py? categ. Id=1099 Sophie BARON, PH-ESS LEADE, 15/06/06 18
