TSX TOUCHSCREEN PREPARATION 1 TSX TOUCHSCREEN PREPARATION u

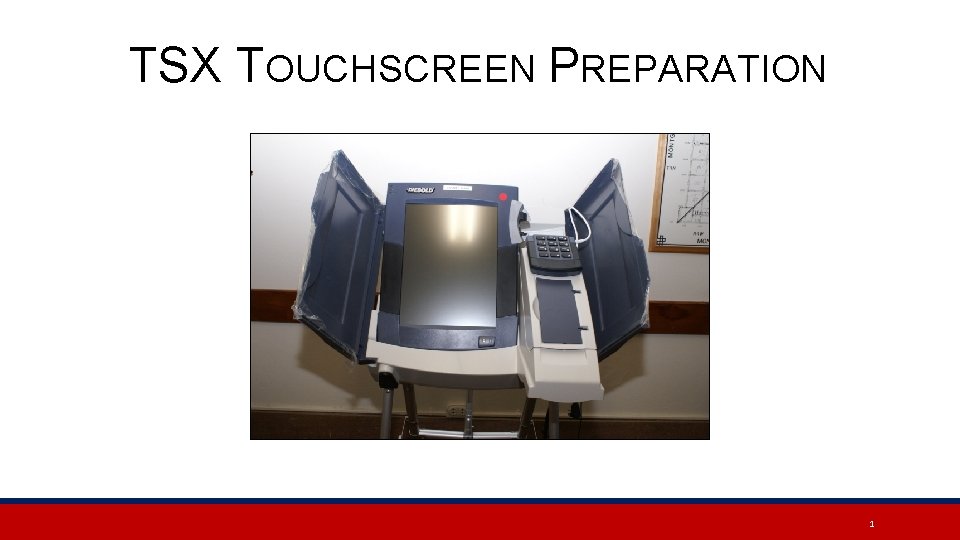

TSX TOUCHSCREEN PREPARATION 1

TSX TOUCHSCREEN PREPARATION u r t Ins s n o i t c l l i w d e vid o r p be 2

Be sure to locate and connect… HEADPHONES KEYPAD POWER CORD 3

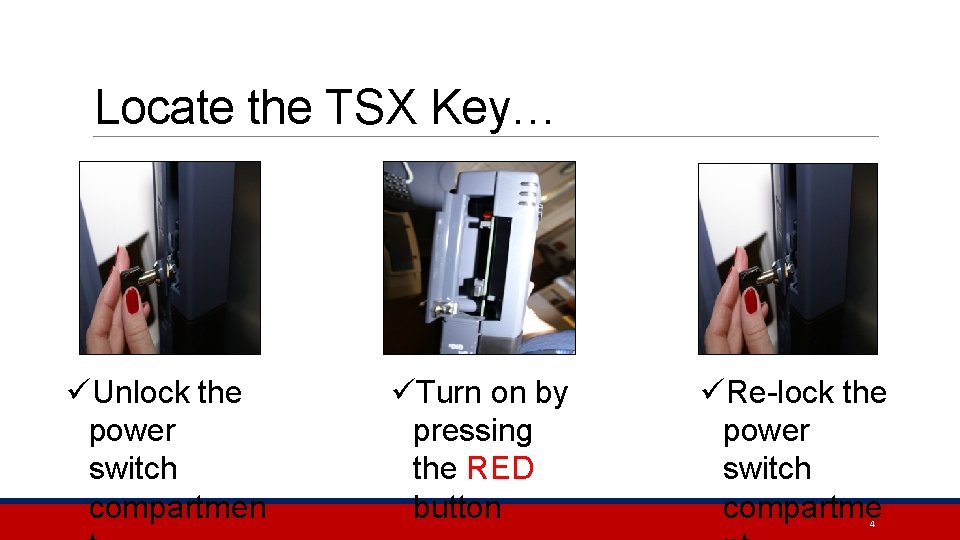

Locate the TSX Key… üUnlock the power switch compartmen üTurn on by pressing the RED button üRe-lock the power switch compartme 4

Unlock and open the printer cover… 5

üMachine will automatically do a test print when turned on. üPress “ok” when display says “printer test passed. ” Press “ok” again. ü“Zero tape” will print. Only need 1 copy. üCompare tape to specimen ballot. üPress “Start Take-Up” button, then “ok. ” 6

All judges must sign the end of the zero tape! 7

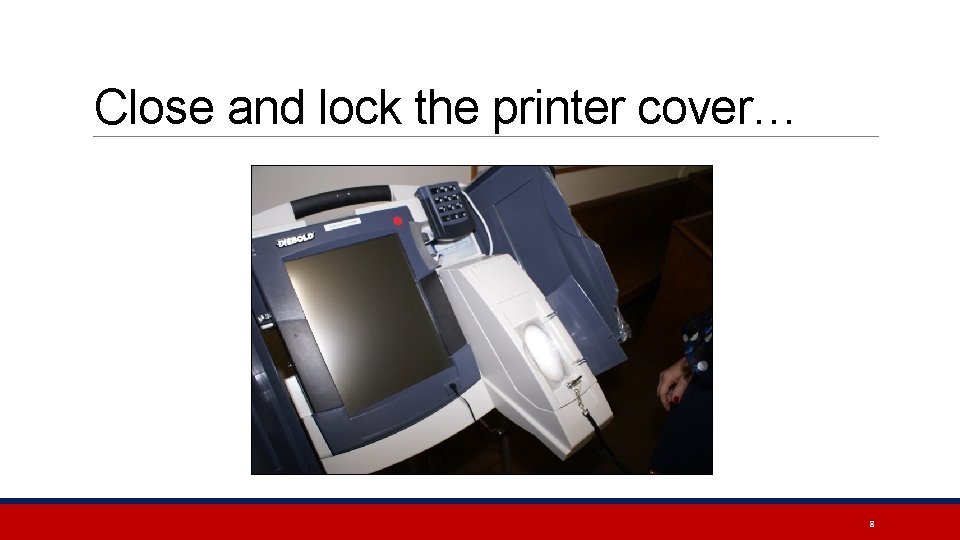

Close and lock the printer cover… 8

THE TSX IS READY FOR USE! 9

TSX TOUCHSCREEN SHUTDOWN 10

TSX TOUCHSCREEN SHUTDOWN u r t Ins s n o i t c l l i w d e vid o r p be 11

Insert the “Supervisor Card” 12

Enter the “PIN” number and press “OK” 13

Remove the “Supervisor Card” 14

Select “End Voting” & Press “Yes” 15

Several Questions to Answer… üPrint write-in candidate reports? – Yes. üAsks which reports you would like to print – Follow your Election Authority’s instructions! üPrint number of copies requested. 16

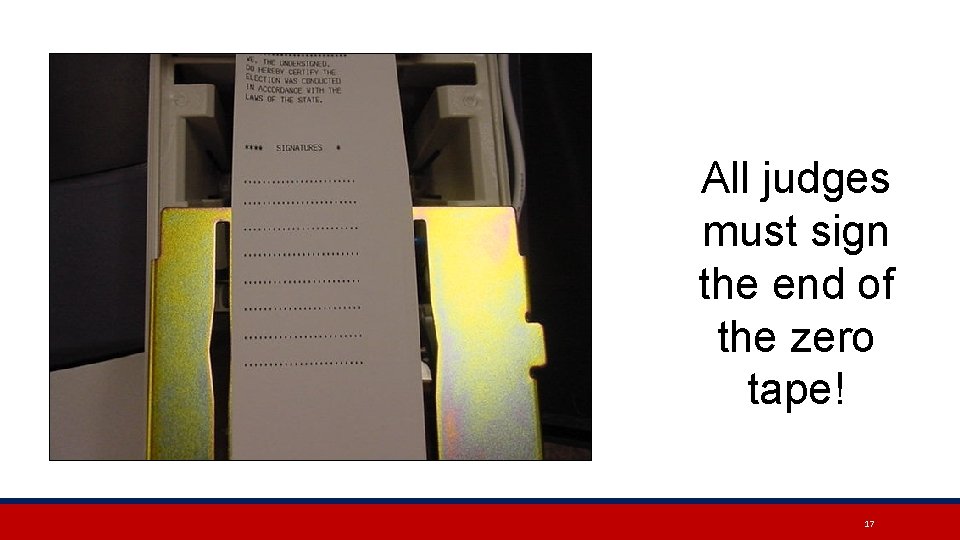

All judges must sign the end of the zero tape! 17

When you see this screen press “Shutdown” 18

FOLLOW YOUR ELECTION AUTHORITY ’S INSTRUCTIONS ! Remove memory card and return to counting center Remove entire tablet and return to counting center 19

The canister is the “Ballot Box” for the touchscreen machine. THIS CANISTER MUST BE RETURNED TO THE COUNTING CENTER AT THE END OF THE NIGHT! 20
