Try to put everything together for pipelines Before
Try to put everything together for pipelines Before going onto caches. Pipeline Summary Peer Instruction Lecture Materials for Computer Architecture by Dr. Leo Porter is licensed under a Creative Commons Attribution-Non. Commercial-Share. Alike 3. 0 Unported License.

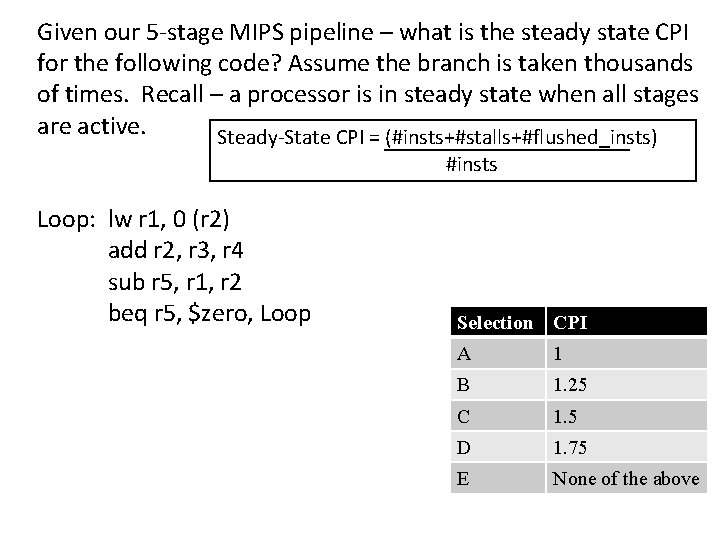

Given our 5 -stage MIPS pipeline – what is the steady state CPI for the following code? Assume the branch is taken thousands of times. Recall – a processor is in steady state when all stages are active. Steady-State CPI = (#insts+#stalls+#flushed_insts) #insts Loop: lw r 1, 0 (r 2) add r 2, r 3, r 4 sub r 5, r 1, r 2 beq r 5, $zero, Loop Selection CPI A 1 B 1. 25 C 1. 5 D 1. 75 E None of the above

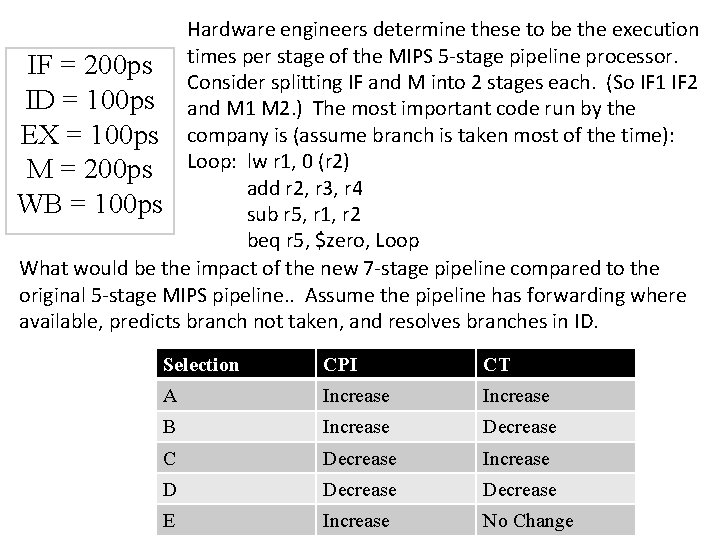

Hardware engineers determine these to be the execution IF = 200 ps times per stage of the MIPS 5 -stage pipeline processor. Consider splitting IF and M into 2 stages each. (So IF 1 IF 2 ID = 100 ps and M 1 M 2. ) The most important code run by the EX = 100 ps company is (assume branch is taken most of the time): M = 200 ps Loop: lw r 1, 0 (r 2) add r 2, r 3, r 4 WB = 100 ps sub r 5, r 1, r 2 beq r 5, $zero, Loop What would be the impact of the new 7 -stage pipeline compared to the original 5 -stage MIPS pipeline. . Assume the pipeline has forwarding where available, predicts branch not taken, and resolves branches in ID. Selection CPI CT A Increase B Increase Decrease C Decrease Increase D Decrease E Increase No Change
Hardware engineers determine these to be the execution IF = 200 ps times per stage of the MIPS 5 -stage pipeline processor. Consider splitting IF and M into 2 stages each. (So IF 1 IF 2 ID = 100 ps and M 1 M 2. ) The most important code run by the EX = 200 ps company is (assume branch is taken most of the time): M = 200 ps Loop: lw r 1, 0 (r 2) add r 2, r 3, r 4 WB = 100 ps sub r 5, r 1, r 2 beq r 5, $zero, Loop What would be the impact of the new 7 -stage pipeline compared to the original 5 -stage MIPS pipeline. . Assume the pipeline has forwarding where available, predicts branch not taken, and resolves branches in ID. Selection CPI CT A Increase B Increase Decrease C Decrease Increase D Decrease E Increase No Change

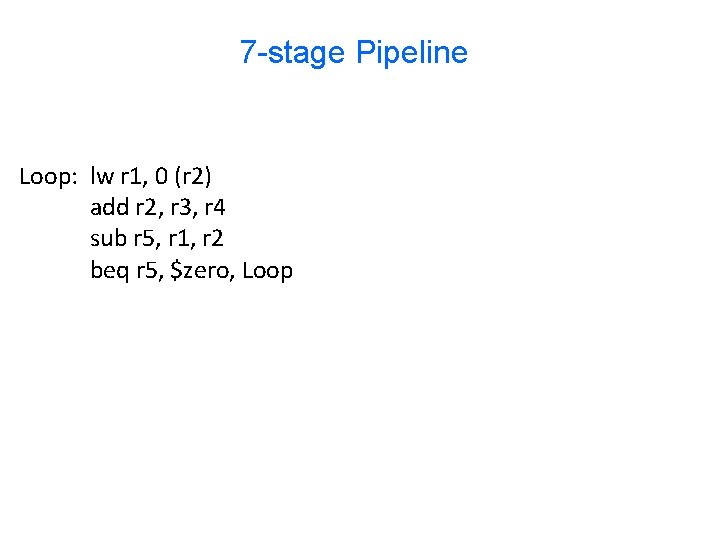

7 -stage Pipeline Loop: lw r 1, 0 (r 2) add r 2, r 3, r 4 sub r 5, r 1, r 2 beq r 5, $zero, Loop

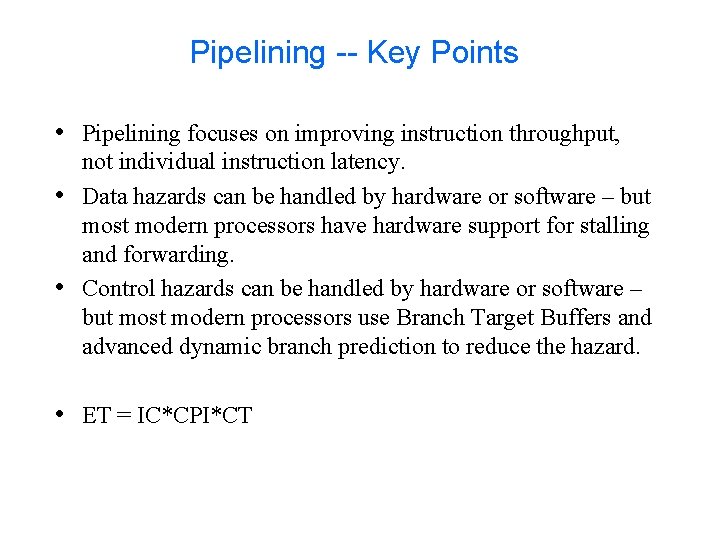

Pipelining -- Key Points • Pipelining focuses on improving instruction throughput, • • not individual instruction latency. Data hazards can be handled by hardware or software – but most modern processors have hardware support for stalling and forwarding. Control hazards can be handled by hardware or software – but most modern processors use Branch Target Buffers and advanced dynamic branch prediction to reduce the hazard. • ET = IC*CPI*CT
