Trust Management of Services in Cloud Environments: Obstacles and Solutions Paper by: Talal H. Noor, Quan Z. Sheng, Sherali Zeadally, and Jian Yu Presentation by: Jeremy Tate

Outline • • Could Definition Types of Clouds Service Level Agreements Trust management models of Clouds Analytical Framework for Trust Management Prototypes Real-world examples

Cloud • Definition o • Delivering network resources (typically from a data center) to a user as a service Users log into the service (website) to gain access

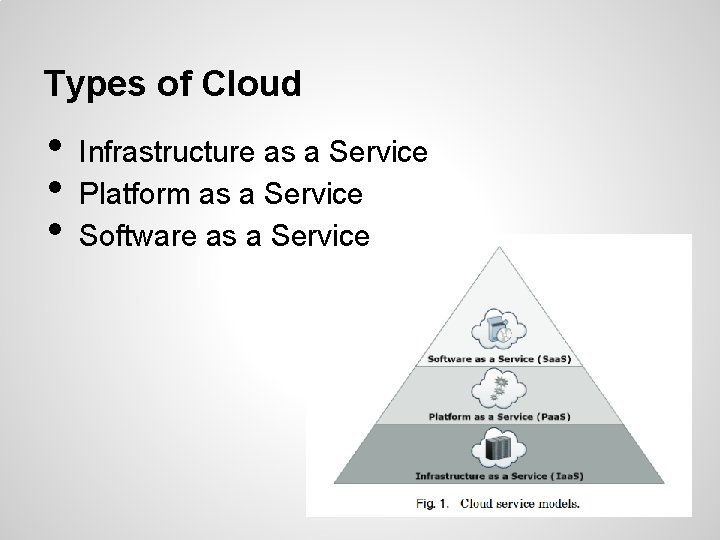

Types of Cloud • • • Infrastructure as a Service Platform as a Service Software as a Service

Infrastructure as a Service (Iaa. S) • • • Provides full virtual servers/storage/networking to a user Allows user to install exact operating system, software, and architecture for a specified project Amazon Elastic Compute Cloud (EC 2) and Simple Storage Service (S 3)

Platform as a Service (Paa. S) • • Provides a service container for the deployment of an application Customer deploys select software/applications but does not control infrastructure • Microsoft Azure, Google Apps

Software as a Service (Saa. S) • • Service provider provides all services and the user provides content User has no control over software or infrastructure • Google Docs and Facebook

Service Level Agreements (SLAs) • • Private Cloud Community Cloud Public Cloud Hybrid Cloud

Private Cloud • • Computing resources are for the sole use of a single organization/company o Could include multiple business units Interactions are B 2 B

Community Cloud • Resources are shared among members of a community o All have the same goal

Public Cloud • • Resources are available to everyone B 2 C interactions o EC 2, S 3

Hybrid Cloud • • Two or more of the previous models are used together o One portion could be private, another public B 2 B and B 2 C

Trust Models • • Service provider’s perspective (SPP) o Trust from the provider POV Service requester’s perspective (SRP) o Trust from the consumer POV

Techniques • • Policy as a Trust Management technique Recommendation as a TM technique Reputation as a TM technique Prediction as a TM technique

Policy as a TM Technique • • Uses a set of policies to control authorization and specify minimum trust levels o Trust thresholds based on trust results or credentials A cloud service consumer x, has policies Px, credentials Cx and minimum trust threshold Tx Provider has all the same attributes (as y) Relationship is considered trusted if Tr(x, y) = 1

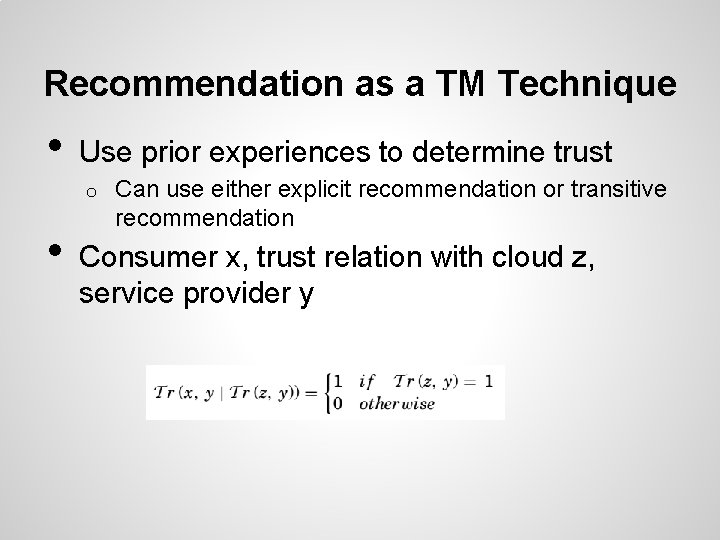

Recommendation as a TM Technique • Use prior experiences to determine trust o • Can use either explicit recommendation or transitive recommendation Consumer x, trust relation with cloud z, service provider y

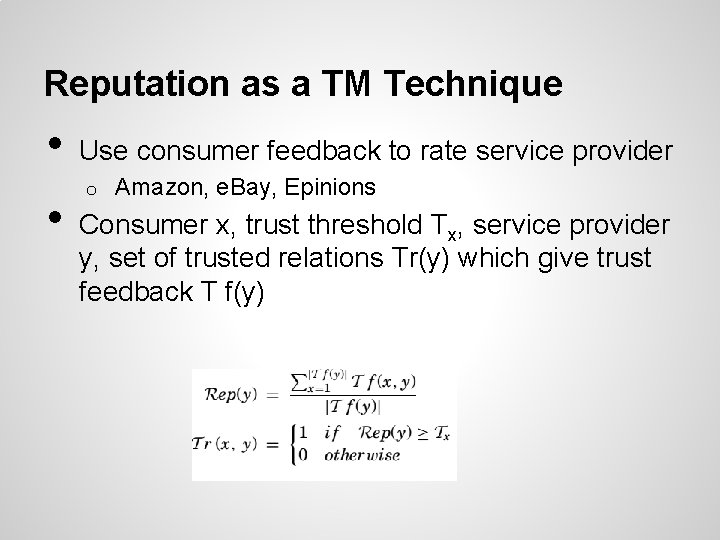

Reputation as a TM Technique • • Use consumer feedback to rate service provider o Amazon, e. Bay, Epinions Consumer x, trust threshold Tx, service provider y, set of trusted relations Tr(y) which give trust feedback T f(y)

Prediction as a TM Technique • • • Useful when there is no prior information Similarly minded entities are more likely to trust one another Consumer x has interests ix (as vector) and minimum trust threshold Tx (service provider is y)

Trust Management Analytical Framework • • Trust Feedback Sharing Layer o Different parties giving trust feedback to each other Trust Assessment Layer o • Determining the level of trust for each party, potentially using multiple metrics Trust Results Distribution Layer o Different parties requesting the trust level for other parties

Trust Management Framework

Trust Feedback Sharing Layer • Credibility • Privacy • Personalization • Integration o The quality of the information or service that makes people trust the cloud § The credibility of the cloud as well as that of the feedback o The degree of potential information exposure that users of the cloud could face when interacting with the cloud o The degree to which people adhere to the trust management rules § Users selecting their preferred feedback mechanism o Ability to integrate other trust management principles

Trust Assessment Layer • • • Perspective o From whose perspective is trust determined? User or provider? Technique o The flexibility of a technique to being adopted Adaptability o Responsiveness of the system to changes from requesting parties Security o Degree of robustness to operate in the face of attack and malicious behaviour Scalability o Amount the system can be scaled Applicability o How useful the system is for cloud trust

Trust Results Distribution Layer • • Response time o How long it takes trust system to respond to request Redundancy o How much redundancy is used to handle load Accuracy o The degree of correctness of trust results Security o Protection of trust results have from being tampered with

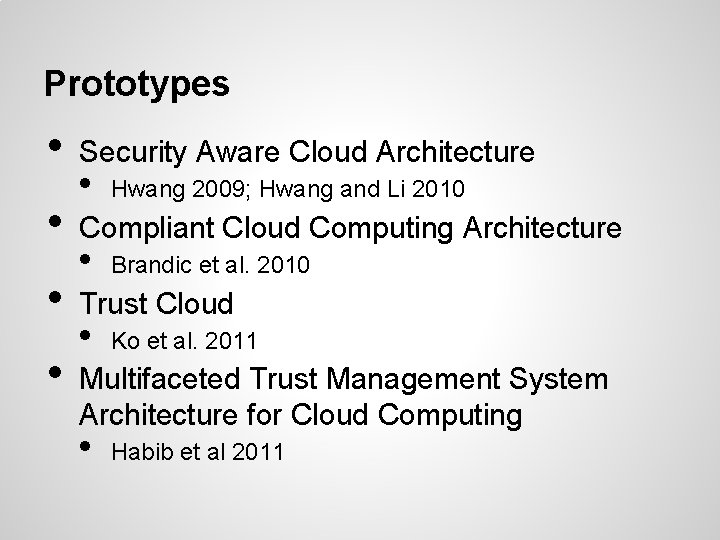

Prototypes • Security Aware Cloud Architecture • Hwang 2009; Hwang and Li 2010 • Compliant Cloud Computing Architecture • Brandic et al. 2010 • Trust Cloud • Ko et al. 2011 • Multifaceted Trust Management System Architecture for Cloud Computing • Habib et al 2011

Prototypes • CLOUD-ARMOR • Noor and Sheng 2011 • Dynamic Policy Management Framework • Yu and Ng (2006, 2009) • Sabotage Tolerance and Trust Management in Desktop Grid Computing • Domingues 2007 • Chen et al. 2008 • Grid Secure Electronic Transaction (g. SET) • Weishaupl 2006 • Role Based Trust Chains

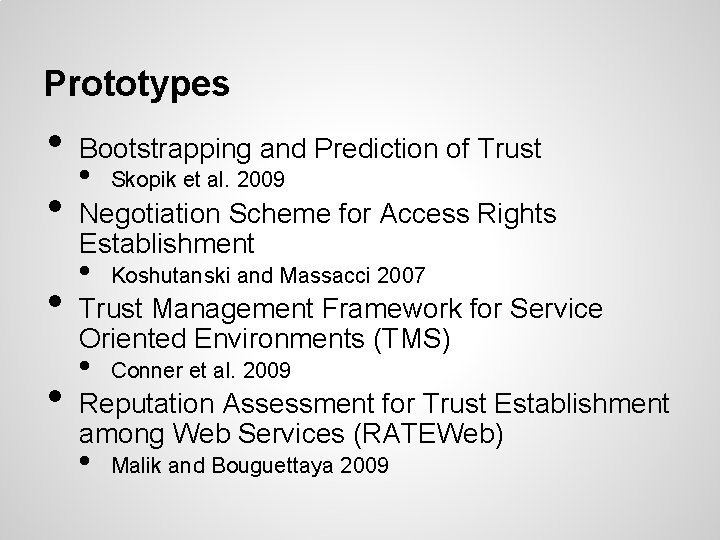

Prototypes • • Bootstrapping and Prediction of Trust • Skopik et al. 2009 Negotiation Scheme for Access Rights Establishment • Koshutanski and Massacci 2007 Trust Management Framework for Service Oriented Environments (TMS) • Conner et al. 2009 Reputation Assessment for Trust Establishment among Web Services (RATEWeb) • Malik and Bouguettaya 2009

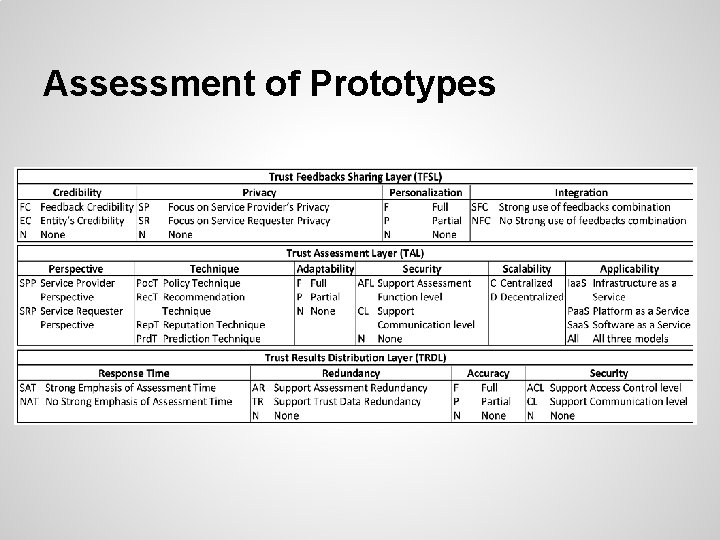

Assessment of Prototypes

Assessment of Prototypes

Assessment of Prototypes Evaluation of trust management prototypes across all dimensions

Trust Characteristics of Real Clouds • Authentication o • • Techniques and mechanisms used for authentication in a cloud Security of Communication, Data, and Physical layer Privacy Responsibility o … of cloud provider and consumer Virtualization o At either operating system level or application level Cloud Consumer Accessibility o Tools/interface by which cloud is used

Real Clouds • • Microsoft Google Amazon IBM o targeting mostly B 2 B users

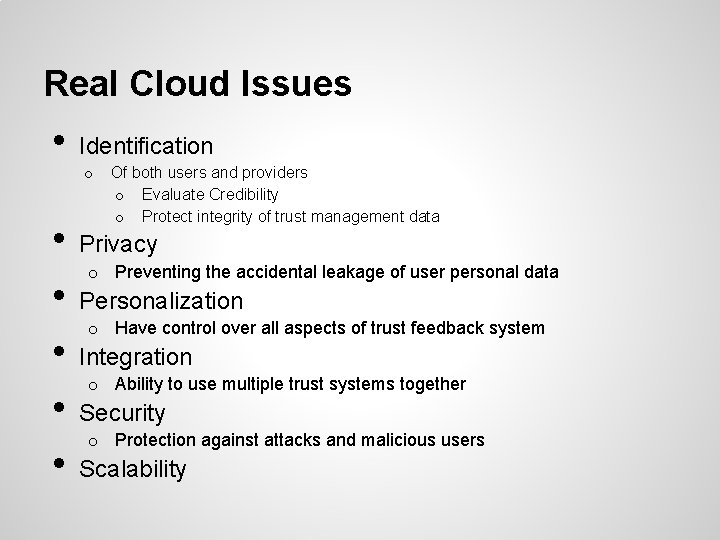

Real Cloud Issues • Identification o • • • Of both users and providers o Evaluate Credibility o Protect integrity of trust management data Privacy o Preventing the accidental leakage of user personal data Personalization o Have control over all aspects of trust feedback system Integration o Ability to use multiple trust systems together Security o Protection against attacks and malicious users Scalability
