True Shapes The Cone Technology Department Graphic Communication

True Shapes The Cone Technology Department Graphic Communication St Ninian’s High School

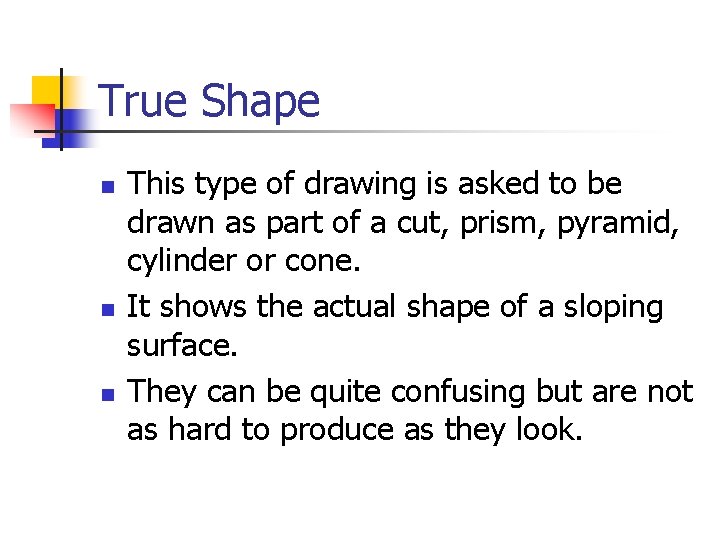

True Shape n n n This type of drawing is asked to be drawn as part of a cut, prism, pyramid, cylinder or cone. It shows the actual shape of a sloping surface. They can be quite confusing but are not as hard to produce as they look.

True Shape n n As there are other slides and presentations depicting how to draw cut prisms, pyramids, cylinders and cones we are not going to show you how to do these things in this slideshow. Instead we will focus on producing the true shape.

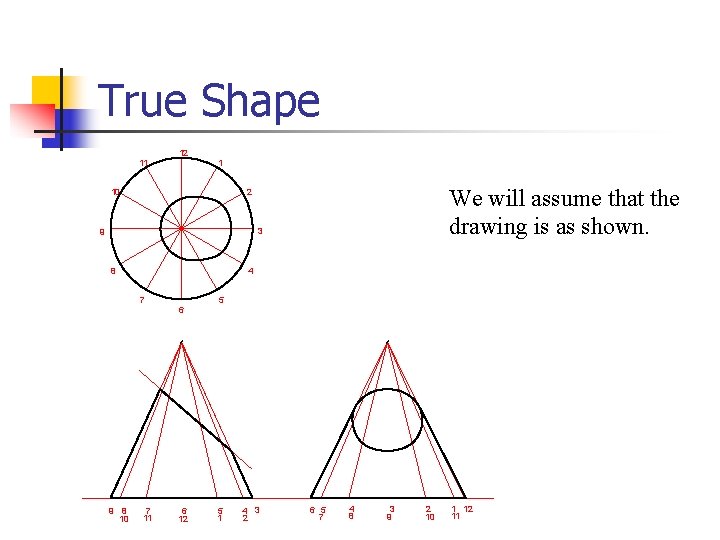

True Shape 12 1 11 We will assume that the drawing is as shown. 2 10 3 9 4 8 5 7 6 9 8 10 7 11 6 12 5 1 4 3 2 6 5 7 4 8 3 9 2 10 1 12 11

True Shape 12 From the Elevation project at 90º the end points which the cut surface intersects with the generator lines. 1 11 2 10 3 9 4 8 5 7 6 Draw a datum line for the true shape parallel to the cut surface. Project the other points that intersect the cut surface. 9 8 10 7 11 6 12 5 1 4 3 2 6 5 7 4 8 3 9 2 10 1 12 11

True Shape 12 1 11 2 10 Number the lines. 7 9 108 11 6 12 1 5 4 2 3 3 9 On the Plan, draw vertical lines from the intersection between the generator lines and the curve to the centre line of the circle. 4 8 5 7 6 9 8 10 7 11 6 12 5 1 4 3 2 6 5 7 4 8 3 9 2 10 1 12 11

True Shape 12 1 11 7 9 108 11 6 12 2 10 1 5 4 2 3 3 9 4 8 5 7 6 9 8 10 7 11 6 12 Using a compass take the distances and put them on either side of the datum line of the true shape. Connect up the points to show the true shape of the cut surface. 5 1 4 3 2 6 5 7 4 8 3 9 2 10 1 12 11

True Shape - Cones The final result.

Power. Point Presentation produced by D Mc. Laren, Robert Gordon’s College. 2003
