Trimble Site Positioning Systems SPS Total Station Portfolio
Trimble Site Positioning Systems SPS Total Station Portfolio
Why Purchase A Total Station ? § High Accuracy Work – Structures, control, monitoring, precise measurements § Difficult Operating Conditions – Under bridges, under canopy, in tunnels, tight corridors § Hazardous and Hard to Reach Areas – Safety in high production and hazardous areas such as deep cuttings, rock blasting, stockpiles, deep excavations, mines, quarries, landfills and tunnels where reflectorless and surface scanning make it easy to measure accurately from a safe location § High Accuracy Machine Guidance – Paving, fine grading, finishing with PCS and GCS products § Small Site Construction – Where one universal instrument can be used for site measurement, stakeout, earthworks, grading, paving and checking operations § General Site Measurement and Stakeout tasks
Where Is The ROI From Total Stations? § Productivity Gains – Servo, Autolock, Robotic, UTS and Reflectorless alternatives all increase productivity over mechanical instrumentation. – Automated measurements include Autolock aiming, DR+ Servo for scanning, servos for pointing, turning and tracking § Universal Operation – One instrument that meets all your needs from site measurement and staking, through earthworks to grading and finishing provides continuous value throughout a project lifecycle § Accuracy – High accuracy technologies help you to push grading tolerances, saving on expensive materials on each and every project § Labor Saving – Reflectorless and Robotic operation allow you to work with fewer personnel, one person can do the job of two allowing teams to work more effectively § SCS 900 Software – Improved data management, instant reporting via MS Excel, faster data preparation and data analysis and processing – increases efficiencies throughout the project
SPS Total Station Types § DR Reflectorless – Allows measurement from any surface § Servo – Motorized controls turn the instrument quickly between points or stakeout locations. Combined with DR provide entry level scanning capability for rapid surface measurement § Autolock – Tracker capability to seek out and lock to a target using active or passive target acquisition methods. Autolock eliminates pointing and focusing and can automate measurements to control or monitoring locations § Robotic – Radio capability provides a one person system which can increase productivity by >100%. Provides the ability for rod based control of measurement and stakeout operations, reduces mistakes and improves quality § UTS – Machine Control – High frequency, fully synchronized data updates at low latency provide combined with enhanced tracking technology deliver a perfect solution for dynamic tracking applications in machine control or marine environments
Product Family Comparison SPSx 20 § § § Robotic only Phase comparison DR Std EDM <500 m Robotic range 86 deg / sec servo speed No TCU attachment plate No Bluetooth No DR scanning capability Magdrive Multitrack (Active & Passive) No Surepoint No machine control capability – – – Non synchronized data 2. 5 Hz update rate in TRK Variable latency Main Stream / General Purpose SPSx 30 § § § Servo, Autolock, Robotic Pulsed laser DR+ EDM <800 m Robotic range 115 deg / sec servo speed TCU attachment plate Bluetooth 3 Hz scanning Magdrive Multitrack (Active & Passive) Surepoint UTS Machine control capability – – – Synchronized data 20 Hz update rate in TRK Low fixed latency and radio jitter High Value / High Performance
Accuracy Models Instrument Model Horizontal Accuracy Vertical Accuracy SPS 620 / SPS 630 5” 5” SPS 720 / SPS 730 3” 2” SPS 930 1” 1”
Reflectorless Specification Criteria Laser Class DR Std EDM (SPSx 20) DR+ EDM (SPSx 30) 3 R 2 Clear Conditions 18% >300 m >600 m Clear Conditions 90% >800 m >1300 m Difficult Conditions 18% >150 m >550 m Difficult Conditions 90% >200 m >1200 m Typical - Concrete 600 -800 m Typical - Wood 400 -800 m Typical - Metal 400 -500 m Typical – Light Rock 400 -600 m Typical – Dark rock 300 -400 m Typical – Foil 20 mm >200 m 1000 m Typical – Foil 60 mm >500 m 1600 m Extended Range Mode 18% 900 -1000 m Extended Range Mode 90% 2000 -2200 m
Why Is An SPS Total Station Different? § Ergonomics – Better by Design § § § § § Eccentric Handle Servo & Focus Controls Carl Zeiss Optics Alidade Optical Plummet Internal Battery Surepoint Reflectorless Face 2 Display Carrying Case Size and Weight
Why Is An SPS Total Station Different? § Highest Productivity – Mag. Drive Servos § 115 deg/sec § Whisper quiet § Fast response – USB communication § Fast response – DR+ Reflectorless § Long range § High speed – Multi. Track § Active targets § Passive targets Click Picture to Play
Why Is An SPS Total Station Different? § Universal – All In One Solution § § § Reflectorless Servo Autolock Robotic UTS – Site Positioning § Measurement § Stakeout § Scanning – Machine Control § Dozers / Graders § Mills / Pavers
Controllers and Radios + Trimble Tablet External Radio TSC 3 – 2. 4 GHz TCU Docking Station & Rod Mount – 2. 4 GHz

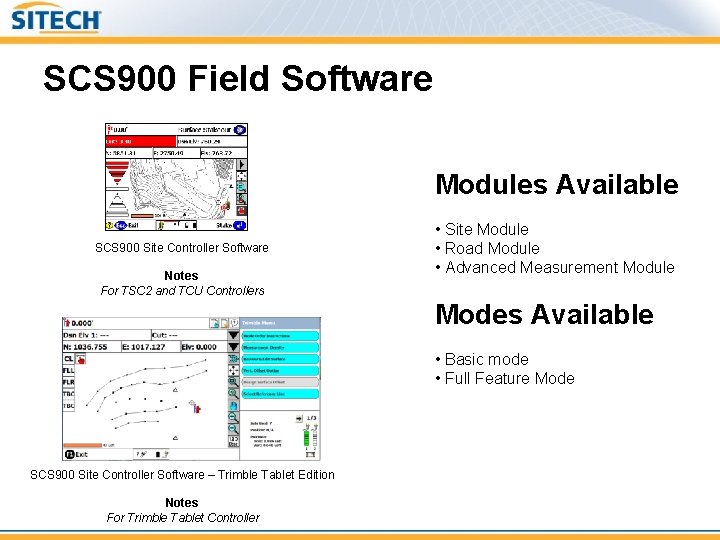

SCS 900 Field Software Modules Available SCS 900 Site Controller Software Notes For TSC 2 and TCU Controllers • Site Module • Road Module • Advanced Measurement Module Modes Available • Basic mode • Full Feature Mode SCS 900 Site Controller Software – Trimble Tablet Edition Notes For Trimble Tablet Controller

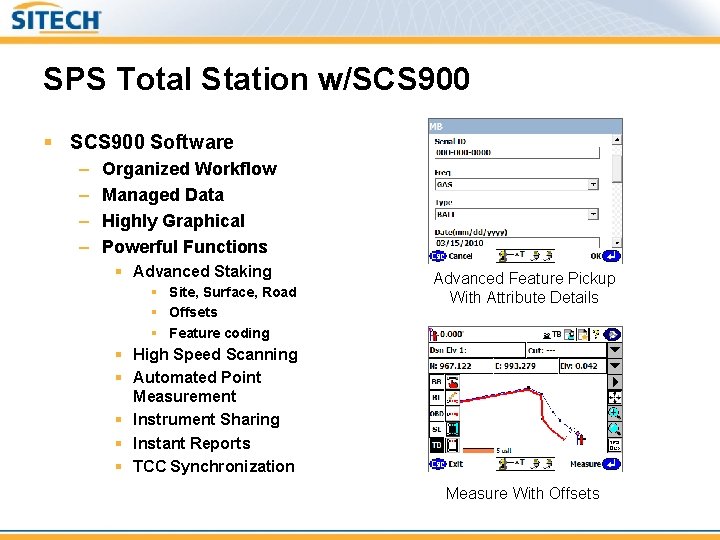

SPS Total Station w/SCS 900 § SCS 900 Software – – Organized Workflow Managed Data Highly Graphical Powerful Functions § Advanced Staking § Site, Surface, Road § Offsets § Feature coding Advanced Feature Pickup With Attribute Details § High Speed Scanning § Automated Point Measurement § Instrument Sharing § Instant Reports § TCC Synchronization Measure With Offsets
Site Measurements and As Builts § § § Utilizes an SPSx 20 or SPSx 30 instrument (any type) Mag. Drive Servos and Servo focus for rapid pointing and focusing Autolock with Active Target Technology for tracking and increased productivity – – – § Robotic for one person operation and advanced control at the rod – – § Eliminates repetitive activities and associated eye and neck strain Eliminates false lock ons and tracking of reflective objects Increases quality and reduces re-measurement Increases productivity and sustains productivity all day in any conditions Increases quality Reduces mistakes Advanced search and target acquisition Applications include – – Initial site measurements to verify elevations and pick up existing features Periodic progress measurements As builts of completed construction Inspection of completed construction
Control and Control Management Measure New Control Points Measure Existing Control Points New control points are added to the control file for the site being worked on Existing control points are checked and verified, errors are flagged

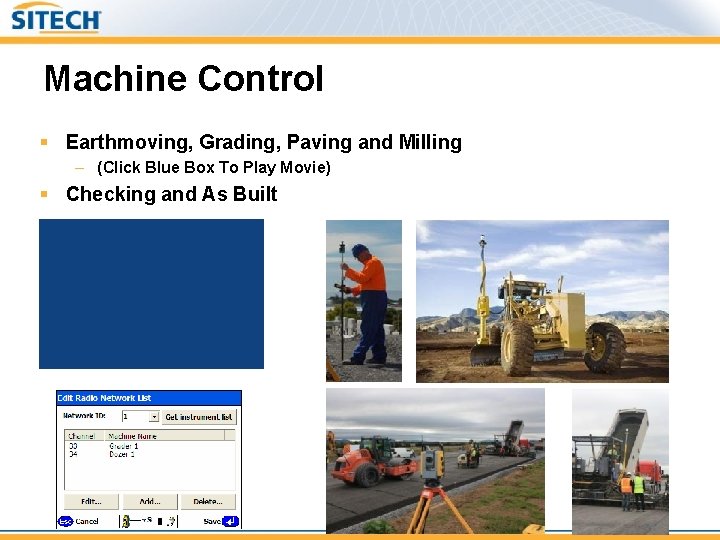

Machine Control § Earthmoving, Grading, Paving and Milling – (Click Blue Box To Play Movie) § Checking and As Built
Machine Control § Trimble UTS Total Stations are optimized for Machine Control – – – – – High speed servos Fully synchronized angle and distance data Low latency data streaming (<20 ms) Active target tracking Dedicated radio channels for machine operations Dedicated active target IDs for machine operations High accuracy dynamic positioning Large vertical range +/- 45 degrees Large distance range >700 m Instrument sharing mode

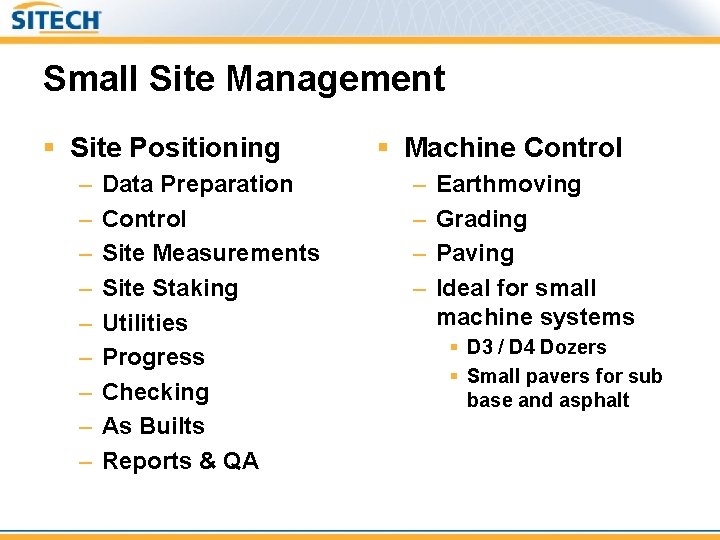

Small Site Management § Site Positioning – – – – – Data Preparation Control Site Measurements Site Staking Utilities Progress Checking As Builts Reports & QA § Machine Control – – Earthmoving Grading Paving Ideal for small machine systems § D 3 / D 4 Dozers § Small pavers for sub base and asphalt
Small Site Management § Ideal for the small site contractor § Use with small graders and dozers for earthworks and grading, and with pavers for paving operations and sub base laying in 3 D § Use with Trimble Tablet and SCS 900 for all control, site topos, grade checks and as builts § Use with Trimble Tablet and SCS 900 for all stakeout operations § Use Trimble Tablet with TBC-HCE for all data preparation requirements § Portable – Quick to setup – Multipurpose Solution § One sensor does it all …. .
Tunnels § Tunnel Measurement – – QA/QC As Builts Shotcrete checks Over / Under break § Machine Control – Bever Control System – Drilling Jumbos – AMV, Atlas Copco, Sandvik Tamrock

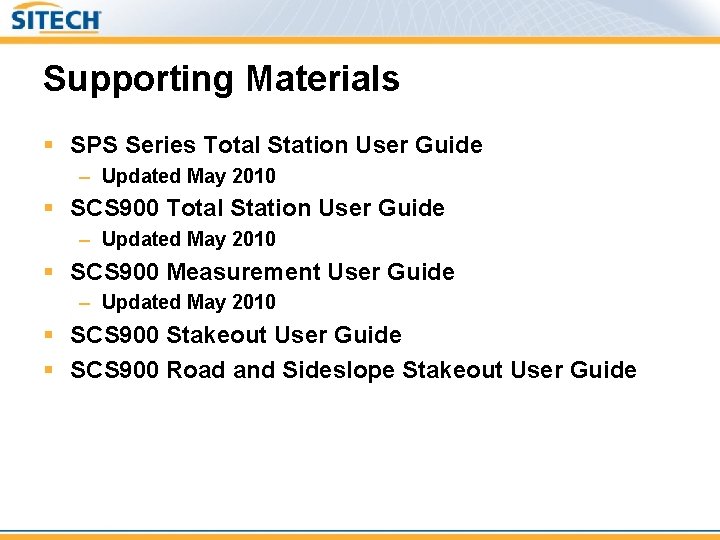

Supporting Materials § SPS Series Total Station User Guide – Updated May 2010 § SCS 900 Measurement User Guide – Updated May 2010 § SCS 900 Stakeout User Guide § SCS 900 Road and Sideslope Stakeout User Guide
Questions? Thank You
