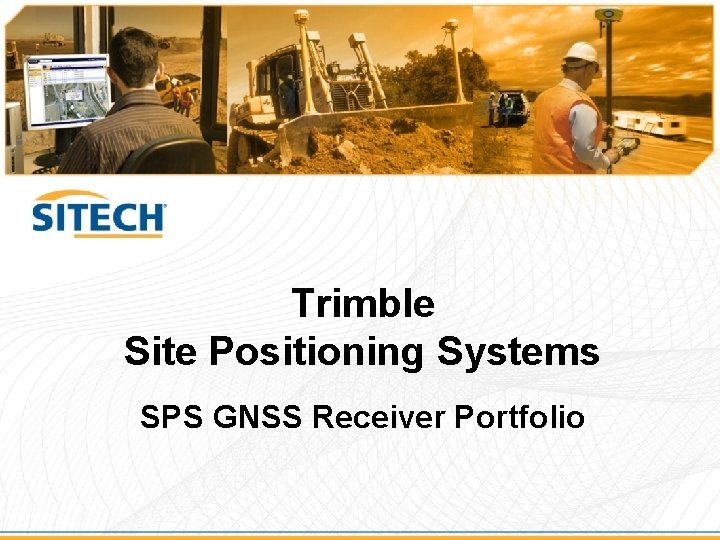

Trimble Site Positioning Systems SPS GNSS Receiver Portfolio

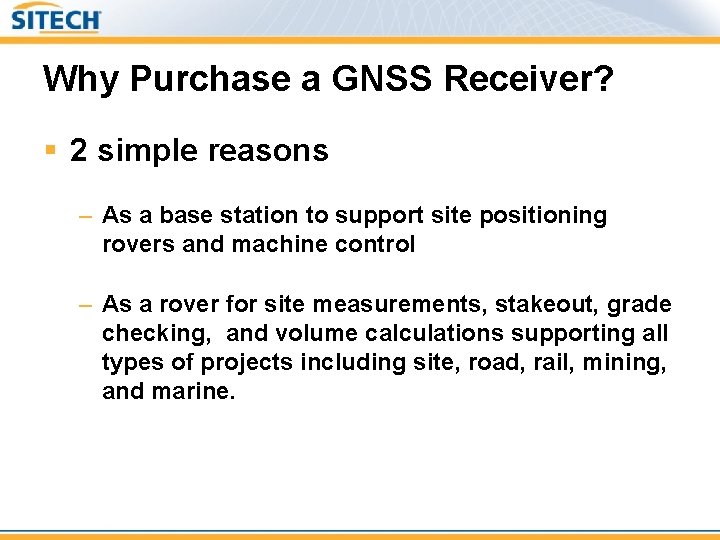

Why Purchase a GNSS Receiver? § 2 simple reasons – As a base station to support site positioning rovers and machine control – As a rover for site measurements, stakeout, grade checking, and volume calculations supporting all types of projects including site, road, rail, mining, and marine.

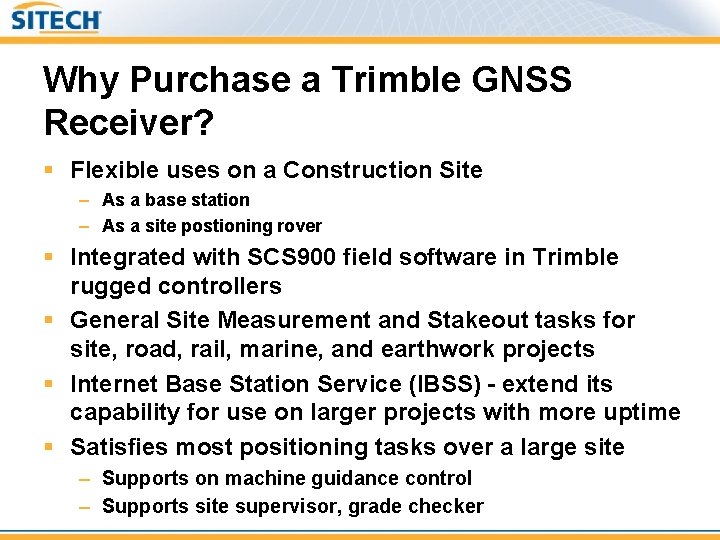

Why Purchase a Trimble GNSS Receiver? § Flexible uses on a Construction Site – As a base station – As a site postioning rover § Integrated with SCS 900 field software in Trimble rugged controllers § General Site Measurement and Stakeout tasks for site, road, rail, marine, and earthwork projects § Internet Base Station Service (IBSS) - extend its capability for use on larger projects with more uptime § Satisfies most positioning tasks over a large site – Supports on machine guidance control – Supports site supervisor, grade checker

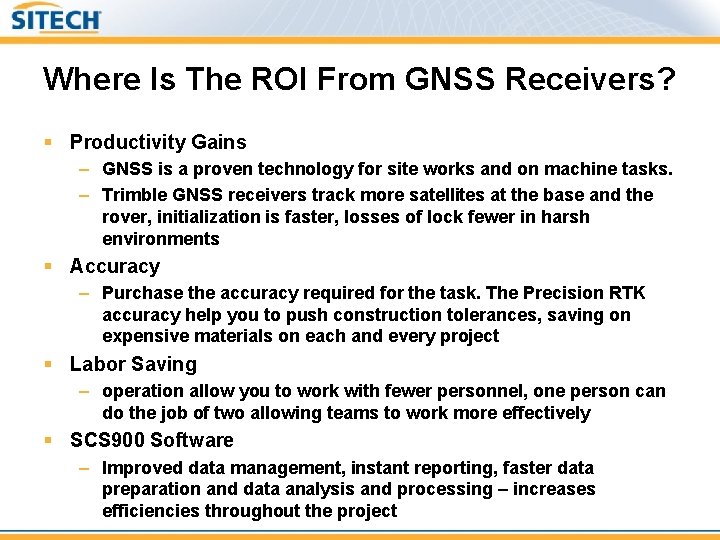

Where Is The ROI From GNSS Receivers? § Productivity Gains – GNSS is a proven technology for site works and on machine tasks. – Trimble GNSS receivers track more satellites at the base and the rover, initialization is faster, losses of lock fewer in harsh environments § Accuracy – Purchase the accuracy required for the task. The Precision RTK accuracy help you to push construction tolerances, saving on expensive materials on each and every project § Labor Saving – operation allow you to work with fewer personnel, one person can do the job of two allowing teams to work more effectively § SCS 900 Software – Improved data management, instant reporting, faster data preparation and data analysis and processing – increases efficiencies throughout the project

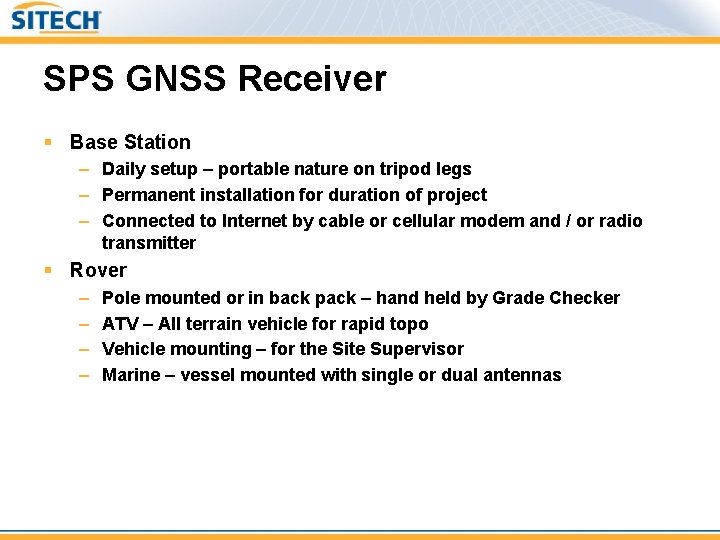

SPS GNSS Receiver § Base Station – Daily setup – portable nature on tripod legs – Permanent installation for duration of project – Connected to Internet by cable or cellular modem and / or radio transmitter § Rover – – Pole mounted or in back pack – hand held by Grade Checker ATV – All terrain vehicle for rapid topo Vehicle mounting – for the Site Supervisor Marine – vessel mounted with single or dual antennas

Base Station Setups

Rover and Site Supervisor Setups

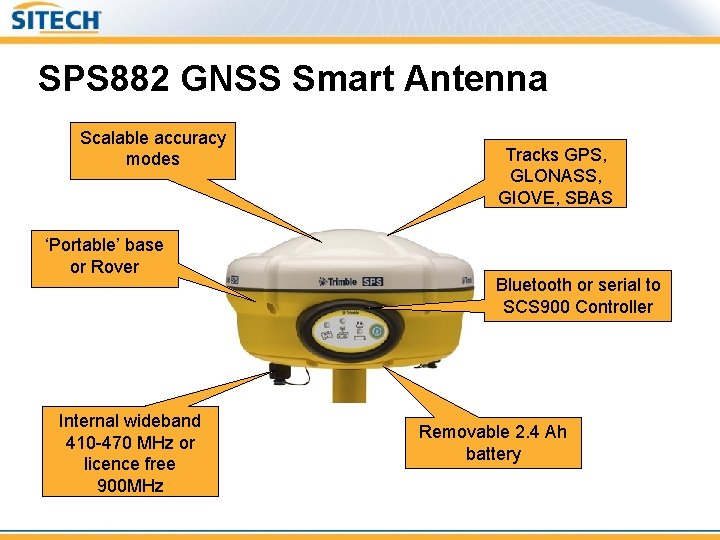

SPS 882 GNSS Smart Antenna Scalable accuracy modes ‘Portable’ base or Rover Internal wideband 410 -470 MHz or licence free 900 MHz Tracks GPS, GLONASS, GIOVE, SBAS Bluetooth or serial to SCS 900 Controller Removable 2. 4 Ah battery

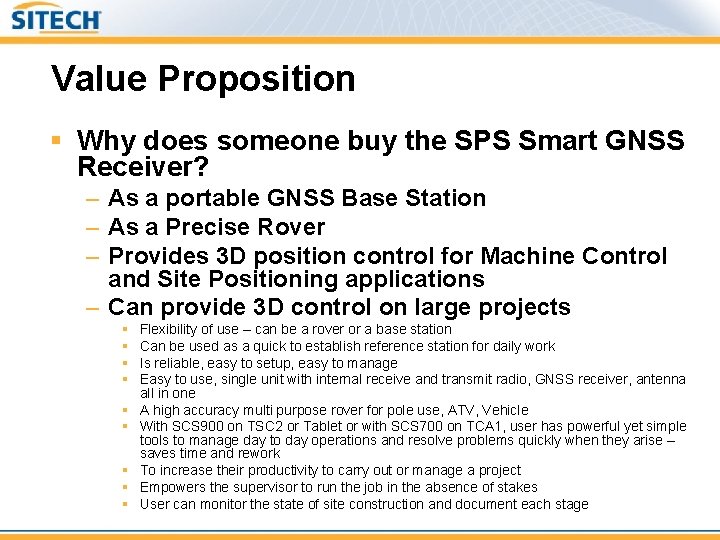

Value Proposition § Why does someone buy the SPS Smart GNSS Receiver? – As a portable GNSS Base Station – As a Precise Rover – Provides 3 D position control for Machine Control and Site Positioning applications – Can provide 3 D control on large projects § § § § § Flexibility of use – can be a rover or a base station Can be used as a quick to establish reference station for daily work Is reliable, easy to setup, easy to manage Easy to use, single unit with internal receive and transmit radio, GNSS receiver, antenna all in one A high accuracy multi purpose rover for pole use, ATV, Vehicle With SCS 900 on TSC 2 or Tablet or with SCS 700 on TCA 1, user has powerful yet simple tools to manage day to day operations and resolve problems quickly when they arise – saves time and rework To increase their productivity to carry out or manage a project Empowers the supervisor to run the job in the absence of stakes User can monitor the state of site construction and document each stage

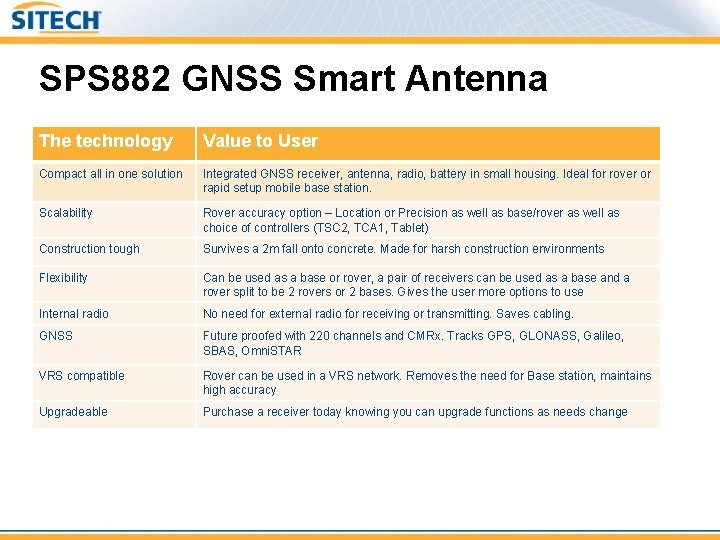

SPS 882 GNSS Smart Antenna The technology Value to User Compact all in one solution Integrated GNSS receiver, antenna, radio, battery in small housing. Ideal for rover or rapid setup mobile base station. Scalability Rover accuracy option – Location or Precision as well as base/rover as well as choice of controllers (TSC 2, TCA 1, Tablet) Construction tough Survives a 2 m fall onto concrete. Made for harsh construction environments Flexibility Can be used as a base or rover, a pair of receivers can be used as a base and a rover split to be 2 rovers or 2 bases. Gives the user more options to use Internal radio No need for external radio for receiving or transmitting. Saves cabling. GNSS Future proofed with 220 channels and CMRx. Tracks GPS, GLONASS, Galileo, SBAS, Omni. STAR VRS compatible Rover can be used in a VRS network. Removes the need for Base station, maintains high accuracy Upgradeable Purchase a receiver today knowing you can upgrade functions as needs change

SPS 852 GNSS Modular Receiver Supports base, rover, rugged and Beacon antennas Scalable accuracy modes – Location through to Precision Flexible interfacing – Bluetooth, Internet, Serial Heading Add On GNSS receiver for heading Semi permanent base station or rover GNSS capable Internal battery for 12 hour operation Marine rover use – Beacon up to Precision. Single or dual antennas Internal wideband 410 -470 MHz or licence free 900 MHz, or external cellular modem

Value Proposition § Why does someone buy the SPS Modular Receiver? – – As a GNSS Base Station As a Supervisor System Location GNSS Rover As a Precise Rover As a Systems Integration box or Marine rover § § § Provides 3 D position control for Machine Control and Site Positioning applications Can provide 3 D control on large projects via IBSS – over long ranges (saves cost) Can be used as a reference station in a VRS network Is reliable, easy to setup, easy to manage, does not need a controller Easy to use, modularity ideally suited to in vehicle use or vessel use Range of antennas suits a rugged or non rugged requirement A high accuracy multi purpose rover for backpack, ATV, Vehicle or simple machine control usage With SCS 900 on TSC 2 or Tablet or with SCS 700 on TCA 1, user has powerful yet simple tools to manage day to day operations and resolve problems quickly when they arise – saves time and rework To increase their productivity to carry out or manage a project Empowers the supervisor to run the job in the absence of stakes User can monitor the state of site construction and document each stage

SPS 852 GNSS Modular Receiver The technology Value to User Modular design Integrated unit contains receiver, battery, radio, display. Use your choice of external GPS antenna for base or rover, rugged or lightweight. Security Receiver can be located in a place secure from weather or theft Power Long life internal battery. Also acts as a Uninterruptable power supply Flexibility Can be used in a variety of base and rover tasks. Can be Location or Precision accuracy Front panel display Quickly configured. Needs no extra controller or PC. Check up on status of tracking and radio Internal radio No need for external radio for receiving or transmitting. Saves cabling. GNSS Future proofed with 220 channels and CMRx. Tracks GPS, GLONASS, Galileo, SBAS, Omni. STAR IBSS and SNM 910 In field or over LAN the receiver connects to Trimble’s IBSS service to deliver corrections over the internet to rovers out of radio range. Access adjacent jobsites or backup for radio blackspots Upgradeable Purchase a receiver today knowing you can upgrade functions as needs change Ethernet / Internet Access from anywhere in the world – check status, or update from your PC saving time by not visiting site. Stream corrections to multiple internet enabled rovers

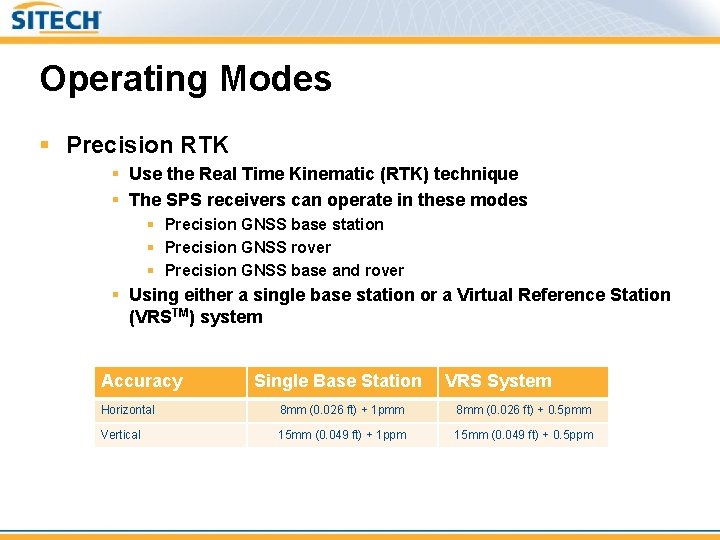

Operating Modes § Precision RTK § Use the Real Time Kinematic (RTK) technique § The SPS receivers can operate in these modes § Precision GNSS base station § Precision GNSS rover § Precision GNSS base and rover § Using either a single base station or a Virtual Reference Station (VRSTM) system Accuracy Single Base Station VRS System Horizontal 8 mm (0. 026 ft) + 1 pmm 8 mm (0. 026 ft) + 0. 5 pmm Vertical 15 mm (0. 049 ft) + 1 ppm 15 mm (0. 049 ft) + 0. 5 ppm

Operating Modes § Location GNSS (10/10) Rover § Location GNSS (10/2) Rover Accuracy Location GNSS (10/10) Location GNSS (10/2) Horizontal 10 cm (0. 32 ft) + 1 ppm Vertical 10 cm (0. 32 ft) + 1 ppm 2 cm (0. 065 ft) + 1 ppm

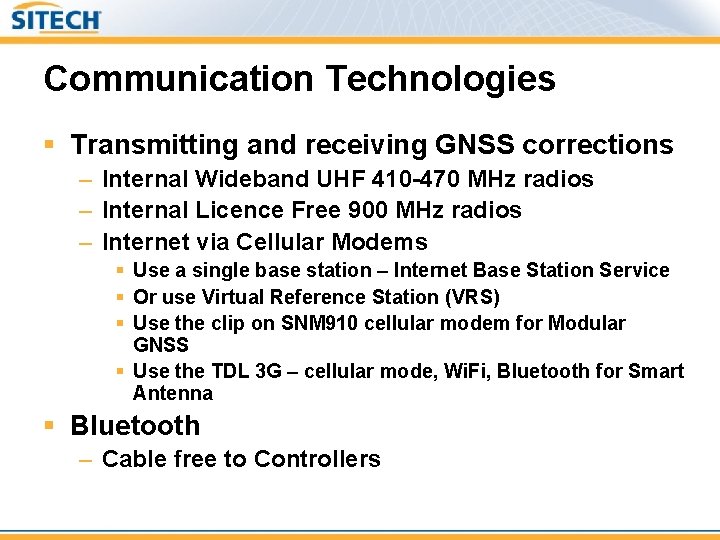

Communication Technologies § Transmitting and receiving GNSS corrections – Internal Wideband UHF 410 -470 MHz radios – Internal Licence Free 900 MHz radios – Internet via Cellular Modems § Use a single base station – Internet Base Station Service § Or use Virtual Reference Station (VRS) § Use the clip on SNM 910 cellular modem for Modular GNSS § Use the TDL 3 G – cellular mode, Wi. Fi, Bluetooth for Smart Antenna § Bluetooth – Cable free to Controllers

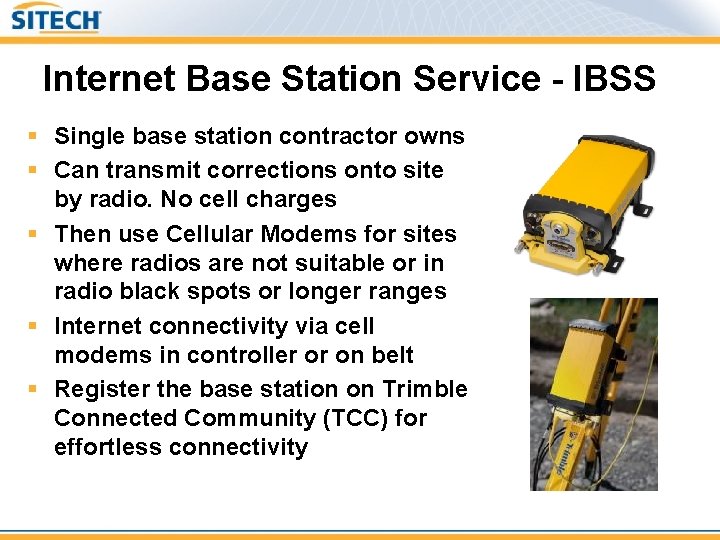

Internet Base Station Service - IBSS § Single base station contractor owns § Can transmit corrections onto site by radio. No cell charges § Then use Cellular Modems for sites where radios are not suitable or in radio black spots or longer ranges § Internet connectivity via cell modems in controller or on belt § Register the base station on Trimble Connected Community (TCC) for effortless connectivity

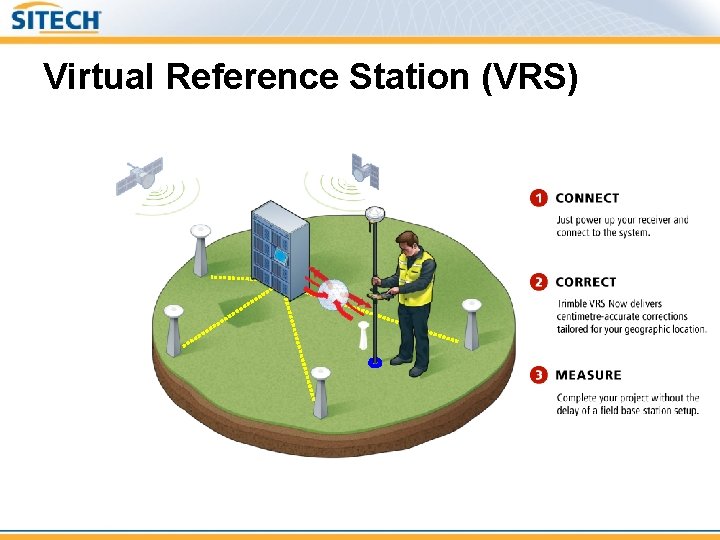

Virtual Reference Station (VRS)

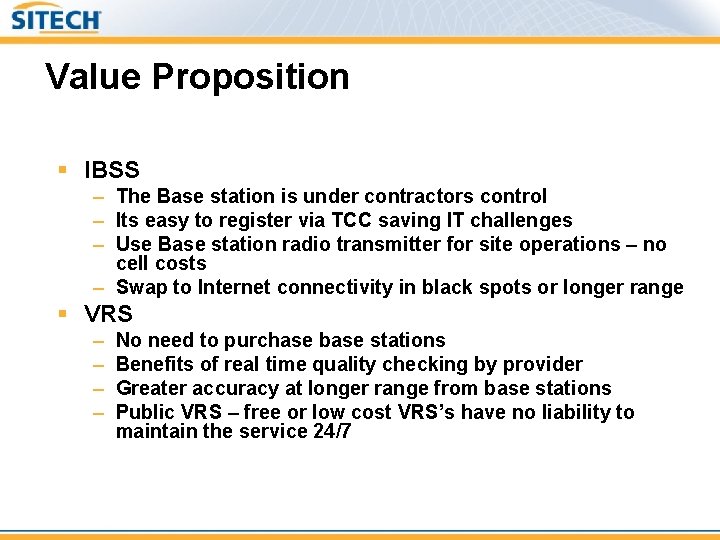

Value Proposition § IBSS – The Base station is under contractors control – Its easy to register via TCC saving IT challenges – Use Base station radio transmitter for site operations – no cell costs – Swap to Internet connectivity in black spots or longer range § VRS – – No need to purchase base stations Benefits of real time quality checking by provider Greater accuracy at longer range from base stations Public VRS – free or low cost VRS’s have no liability to maintain the service 24/7

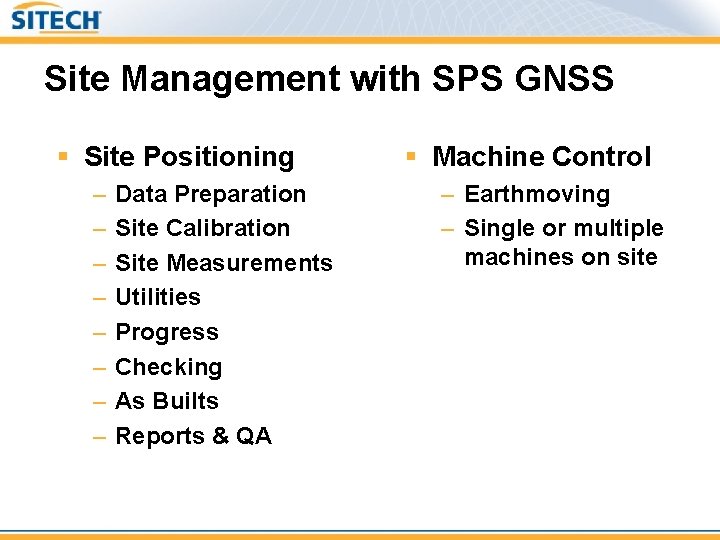

Site Management with SPS GNSS § Site Positioning – – – – Data Preparation Site Calibration Site Measurements Utilities Progress Checking As Builts Reports & QA § Machine Control – Earthmoving – Single or multiple machines on site

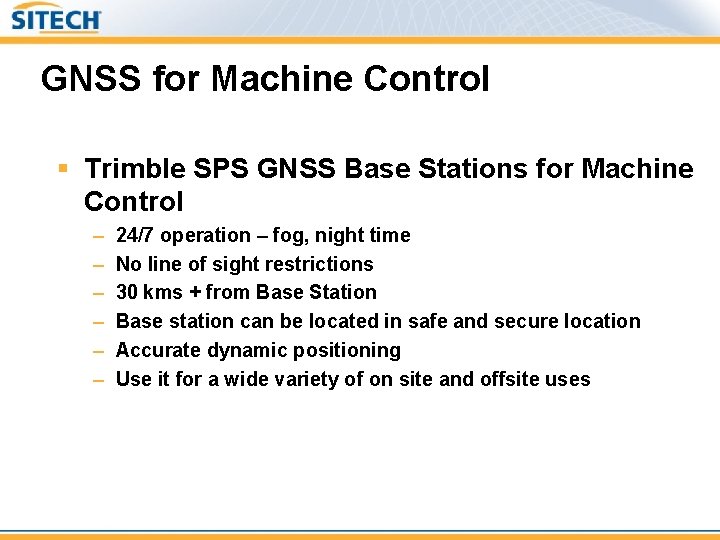

GNSS for Machine Control § Trimble SPS GNSS Base Stations for Machine Control – – – 24/7 operation – fog, night time No line of sight restrictions 30 kms + from Base Station Base station can be located in safe and secure location Accurate dynamic positioning Use it for a wide variety of on site and offsite uses

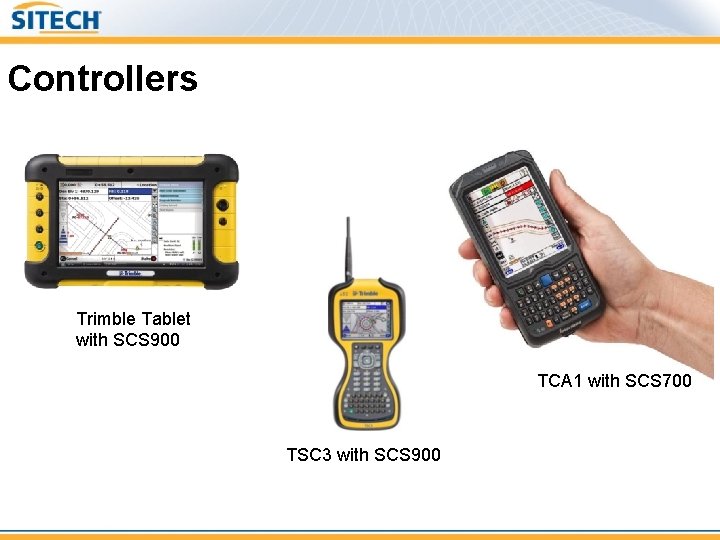

Controllers Trimble Tablet with SCS 900 TCA 1 with SCS 700 TSC 3 with SCS 900

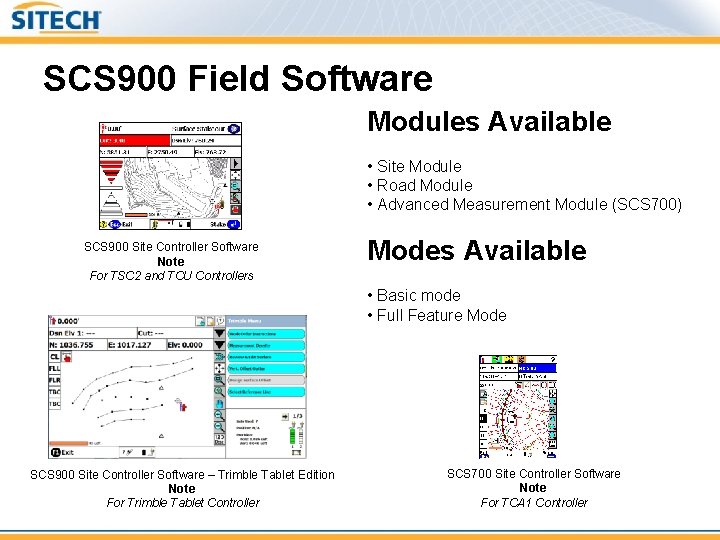

SCS 900 Field Software Modules Available • Site Module • Road Module • Advanced Measurement Module (SCS 700) SCS 900 Site Controller Software Note For TSC 2 and TCU Controllers Modes Available • Basic mode • Full Feature Mode SCS 900 Site Controller Software – Trimble Tablet Edition Note For Trimble Tablet Controller SCS 700 Site Controller Software Note For TCA 1 Controller

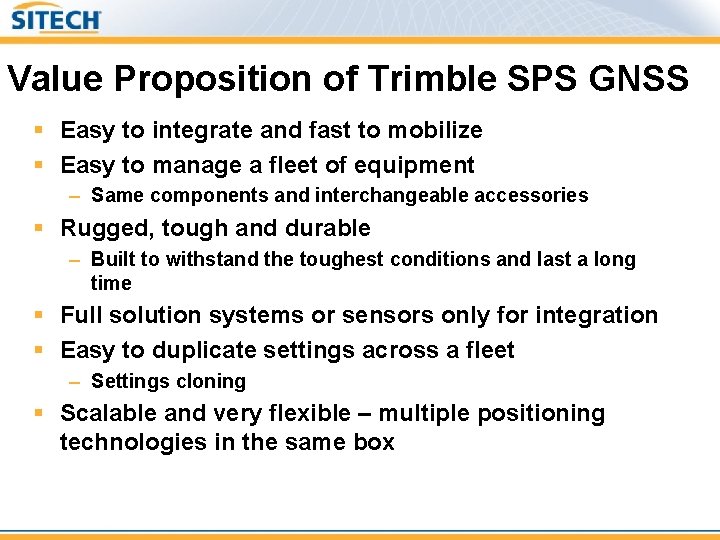

Value Proposition of Trimble SPS GNSS § Easy to integrate and fast to mobilize § Easy to manage a fleet of equipment – Same components and interchangeable accessories § Rugged, tough and durable – Built to withstand the toughest conditions and last a long time § Full solution systems or sensors only for integration § Easy to duplicate settings across a fleet – Settings cloning § Scalable and very flexible – multiple positioning technologies in the same box

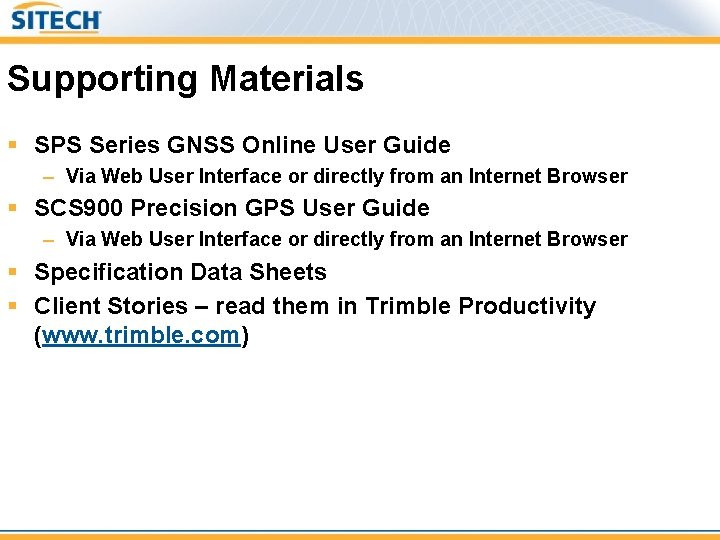

Supporting Materials § SPS Series GNSS Online User Guide – Via Web User Interface or directly from an Internet Browser § SCS 900 Precision GPS User Guide – Via Web User Interface or directly from an Internet Browser § Specification Data Sheets § Client Stories – read them in Trimble Productivity (www. trimble. com)
