Trimble MGIS GPS Receivers Trimble GPS Receiver Juno
Trimble MGIS GPS Receivers
Trimble GPS Receiver Juno ST Handheld u Pathfinder XB u Geo. Explorer 2005 Series u
Juno™ ST handheld
Juno ST Overview u u A small, lightweight field computer with integrated GPS u Sold together with field data collection software Full Windows Mobile 5. 0 functionality Standard wireless communications u WLAN u Bluetooth DGPS accuracy of 2 -5 m u Real-time WAAS or Postprocessed
Product comparisons Juno ST “Franken GPS” Mio P 550 DGPS RT PP 2 -5 m N/A WAAS Yes Maybe Yes Wireless BT+WLAN Maybe BT+WLAN Integrated Yes No Yes Weight 133 g 250 g+ 170 g Price incl. data collection software From $750 w. Terra. Sync Std From $750 with Arc. Pad* From $850 with Arc. Pad* *Terra. Sync Std not supported by these platforms
An in-depth look Stylus holder GPS antenna connector Power button Headset connector Reset button SD card slot Lock switch Calendar Today screen Power/USB socket Contacts Messaging Directional button
What’s in the box? u u u Juno ST handheld Quick Start Guide Companion CD Carry case 1 m mini USB cable u u u Rechargeable Lithium Ion battery, 1200 m. Ah Vehicle power adaptor (1030 V) International AC adaptor
Optional accessories u Stylus (2 pack) u Replacement Li-Ion battery u External antenna for vehicle use

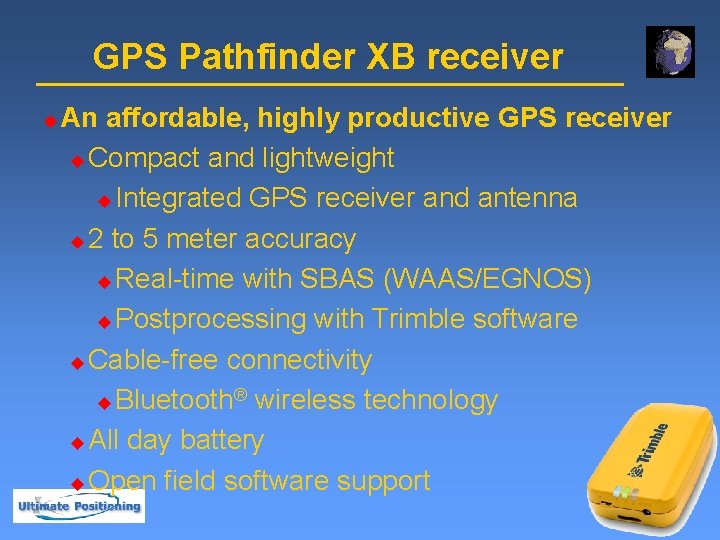

GPS Pathfinder® XB receiver
GPS Pathfinder XB receiver u An affordable, highly productive GPS receiver u Compact and lightweight u Integrated GPS receiver and antenna u 2 to 5 meter accuracy u Real-time with SBAS (WAAS/EGNOS) u Postprocessing with Trimble software u Cable-free connectivity ® u Bluetooth wireless technology u All day battery u Open field software support
All day battery Typically 10 hours use per charge u Removable Li-Ion battery u Standard charging accessories u International AC adapter u 12 V vehicle power adapter u
Open field software support u u Compatible with NMEA applications u NMEA v 2. 20 u GGA, VTG, GLL, GSA, ZDA, GSV, RMC u No postprocessing with NMEA Compatible with Trimble field and office software u Field u Terra. Sync™ software ® u Trimble GPScorrect™ extension for ESRI Arc. Pad software u Office u GPS Pathfinder Office software u Trimble GPS Analyst™ extension for ESRI Arc. GIS software u Postprocess for 2 to 5 meter accuracy
Geo. Explorer 2005 series u u u Three models: three levels of accuracy u Geo. XH™ handheld—Subfoot (with H-Star™ technology) u Geo. XT™ handheld—Submeter u Geo. XM™ handheld— 1– 3 m Microsoft® Windows Mobile® version 5. 0 software u Maximum flexibility in software choice 512 MB onboard storage plus removable SD card storage Bluetooth® and 802. 11 b Wireless LAN connectivity options Rugged handheld with all day battery Trim. Pix™ technology for wireless camera support
Data storage 512 MB onboard storage u SD memory slot for removable storage u Fully sealed and rugged u New stylus for access u Not MMC, SDIO, or SDHC compatible u
Thank You.
