Trimble LOADRITE X 2350 Payload System for Excavators

Trimble® LOADRITE® X 2350 Payload System for Excavators

What is the X 2350 Payload System? § Onboard payload measurement system for: – Tracked and wheeled excavators – Mono Boom – From 12 ton to 90 ton categories § Allows for accurate weighing without delays – Weighs the material in the bucket – Displays the payload information on in-cab display 2

How does it work? Pressure Transducers In Cab Printer (optional) In Cab Indicator Chassis Sensors Bucket Sensor Boom and Stick Position Sensors

Trimble LOADRITE X 2350 § Dynamic weighing system - No restriction on operation - Multiple weighing zones - Able to work in all conditions On-board Printer

Civil Construction - Why do I want one? § Overload fines – Not high value proposition (some countries) § fines considered as operational cost § covered by tonnage moved per day – Safety “Chain of Responsibility” (some countries)

Civil Construction § Companies that load haul trucks and move materials away from a job site § Mix of machinery ownership § Qualifying prospects – Significant volume on-road load-out – Responsible operator § Have “project” orientation

Civil Construction - Why do I want one? § Balanced and unbalanced sites § Contaminated soil – material tracking § Optimizing loads > Increased production for load-out and transport § Actual cost vs. tender estimates § Checking disposal costs § Monitoring project progress § Application limitations Axle Weights and Sticky Materials

Civil Construction - Why do I want one? § Civil Manager – Material management – Landfill management – Accurate management reporting daily/weekly/monthly on site productivity – Negotiation platform when managing trucks

Civil Construction - Why do I want one? § Site Superintendent – – – Safety of on-road trucks Monitoring of production levels Contractor management Productivity analysis Increased resource – no truck captain required Mobility of scale

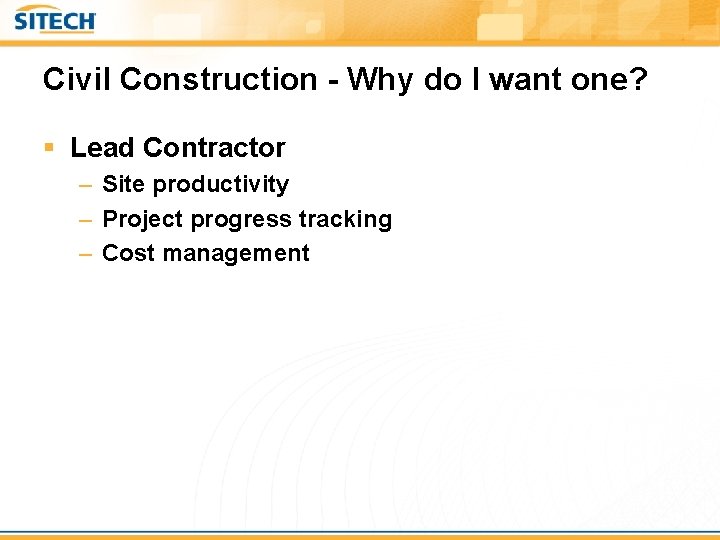

Civil Construction - Why do I want one? § Lead Contractor – Site productivity – Project progress tracking – Cost management

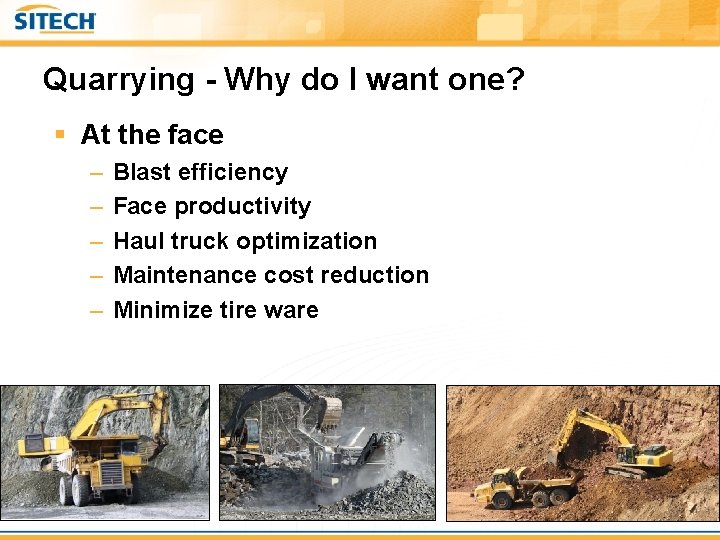

Quarrying - Why do I want one? § At the face – – – Blast efficiency Face productivity Haul truck optimization Maintenance cost reduction Minimize tire ware

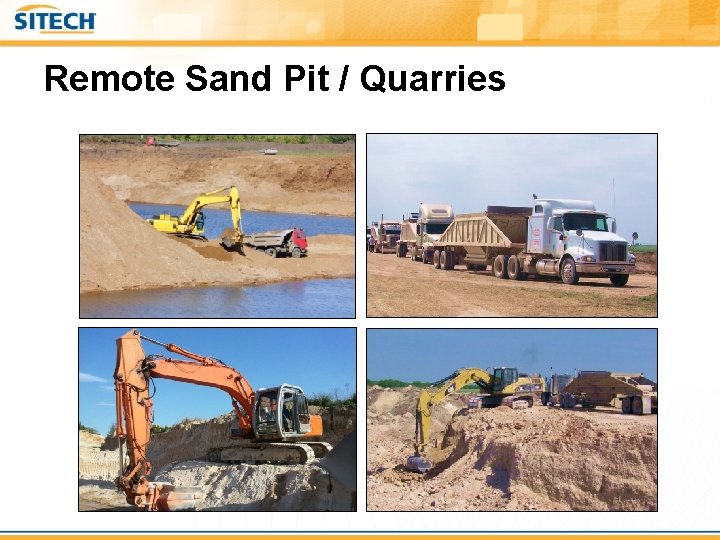

Remote Sand Pit / Quarries

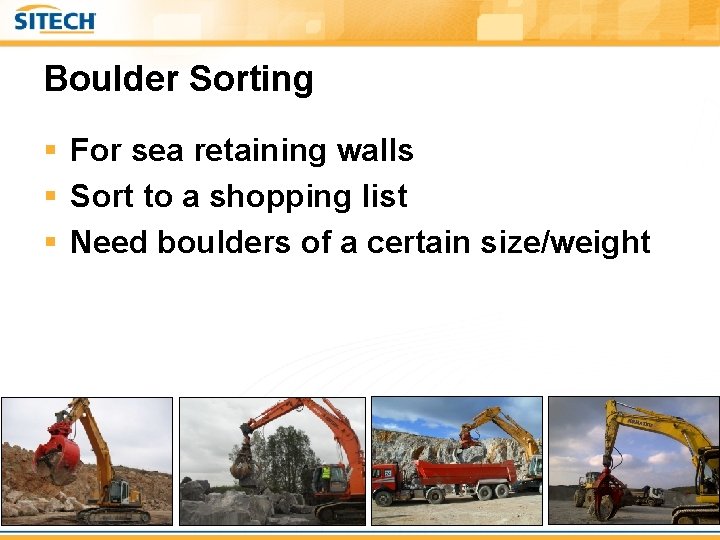

Boulder Sorting § For sea retaining walls § Sort to a shopping list § Need boulders of a certain size/weight

Rail/Harbour Work § Load-out of: – Barges – Train carriages § Distance to weighbridge/truck scale § Difficult to unload

Green Waste/Material § Difficult application § Areas of concern – Movable thumb – Light material

Waste/Recycling § Difficult application § Areas of concern: – Fixed thumb – Light material § Bucket sensor required
