Trimble GCS 900 Grade Control System Definition Construction

Trimble GCS 900 Grade Control System

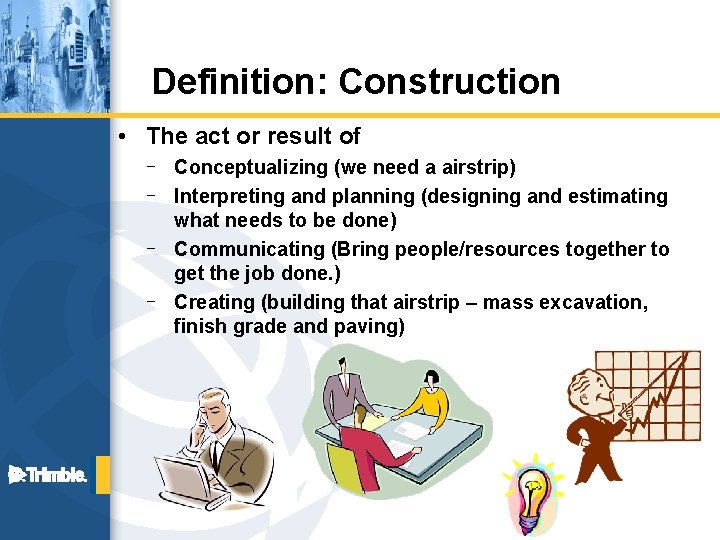

Definition: Construction • The act or result of – Conceptualizing (we need a airstrip) – Interpreting and planning (designing and estimating what needs to be done) – Communicating (Bring people/resources together to get the job done. ) – Creating (building that airstrip – mass excavation, finish grade and paving)

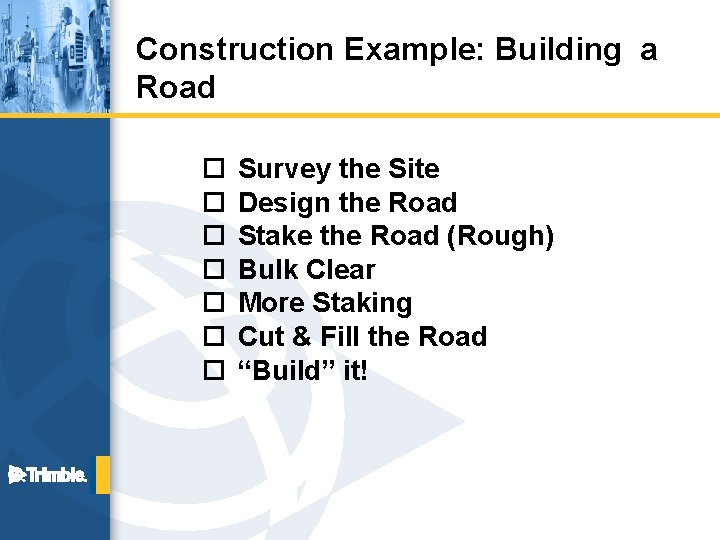

Construction Example: Building a Road ¨ ¨ ¨ ¨ Survey the Site Design the Road Stake the Road (Rough) Bulk Clear More Staking Cut & Fill the Road “Build” it!

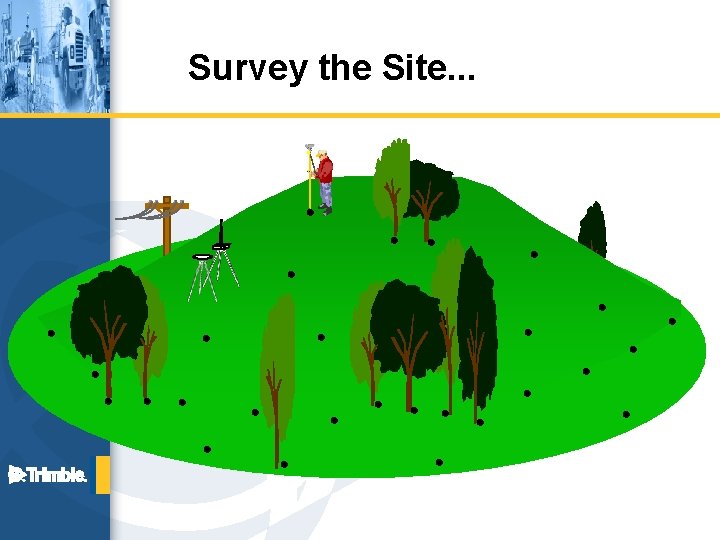

Survey the Site. . .

Design the Road Horizontal Alignment

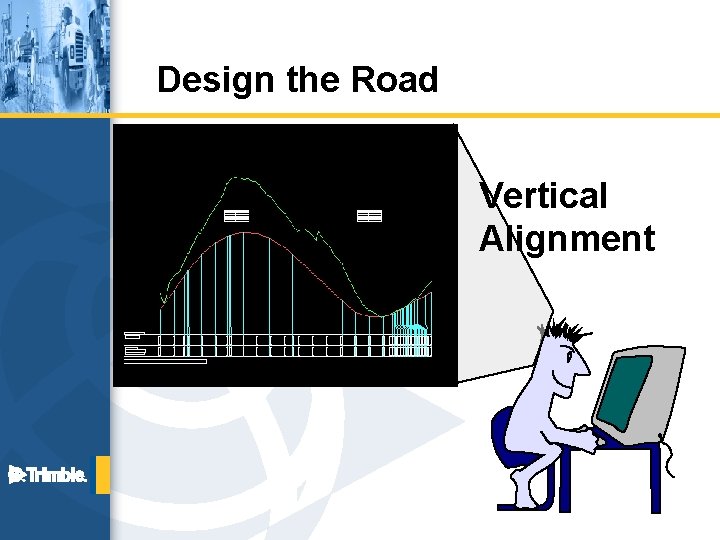

Design the Road Vertical Alignment

Design the Road X-Sections

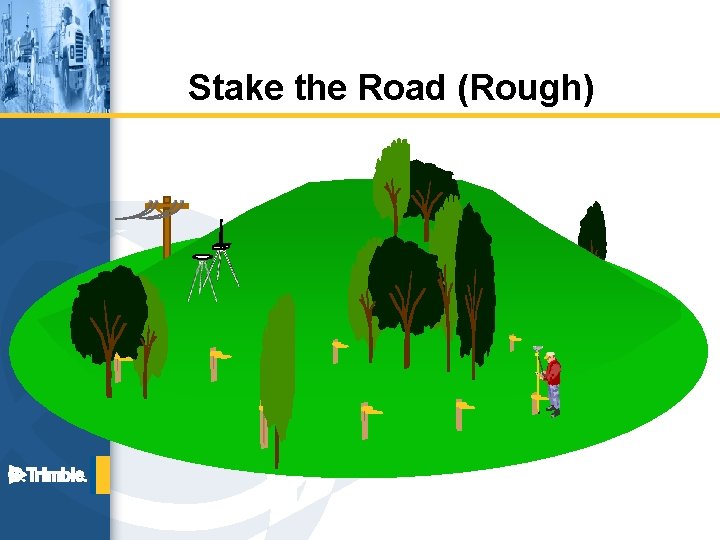

Stake the Road (Rough)

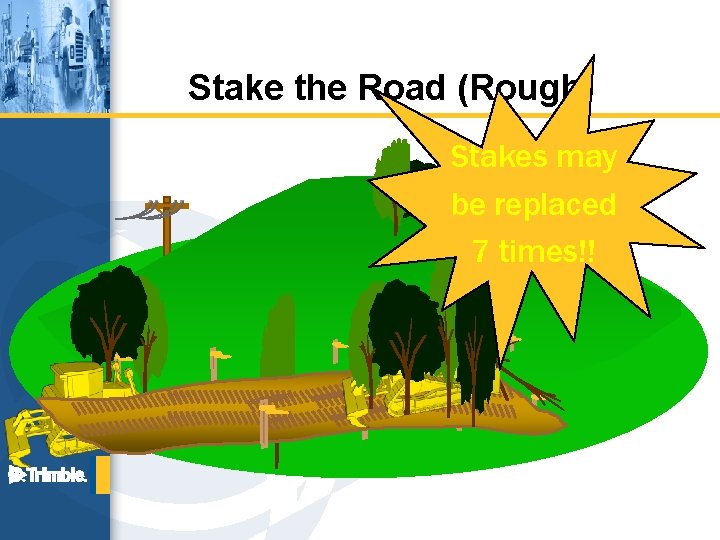

Stake the Road (Rough) Stakes may be replaced 7 times!!

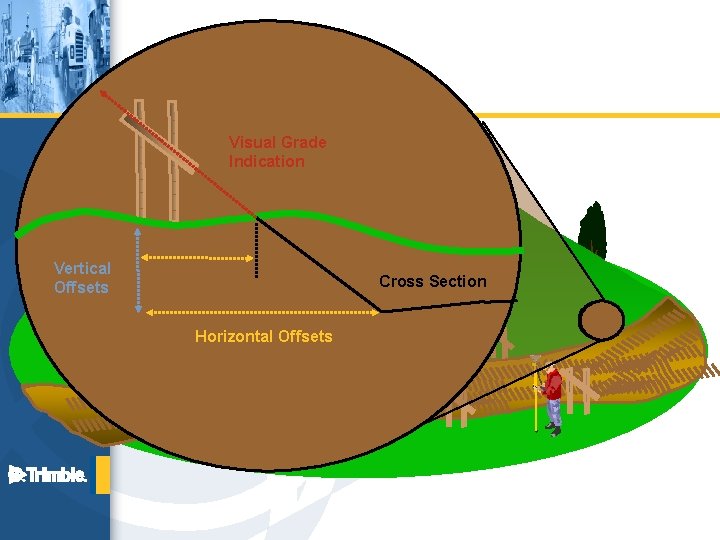

More Staking Visual Grade Indication Vertical Offsets Cross Section Horizontal Offsets

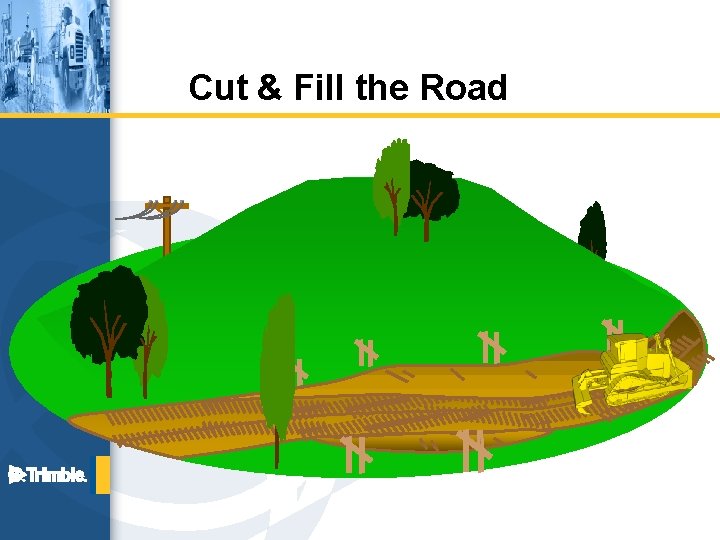

Cut & Fill the Road

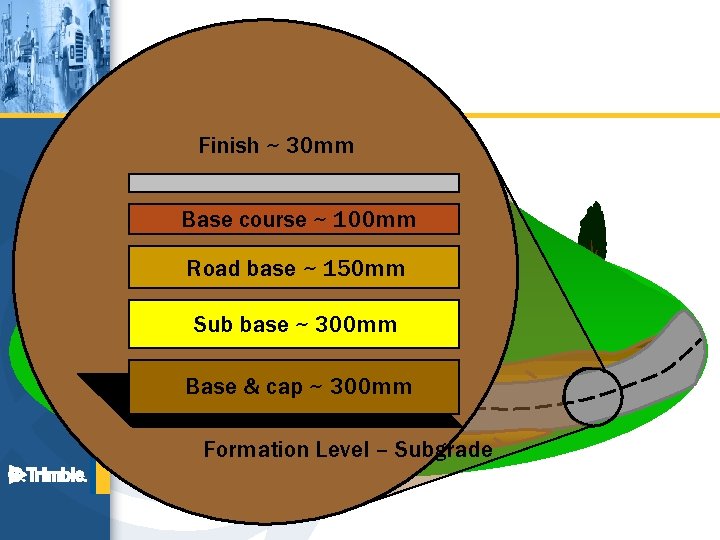

Build it! Finish ~ 30 mm Base course ~ 100 mm Road base ~ 150 mm Sub base ~ 300 mm Base & cap ~ 300 mm Formation Level – Subgrade

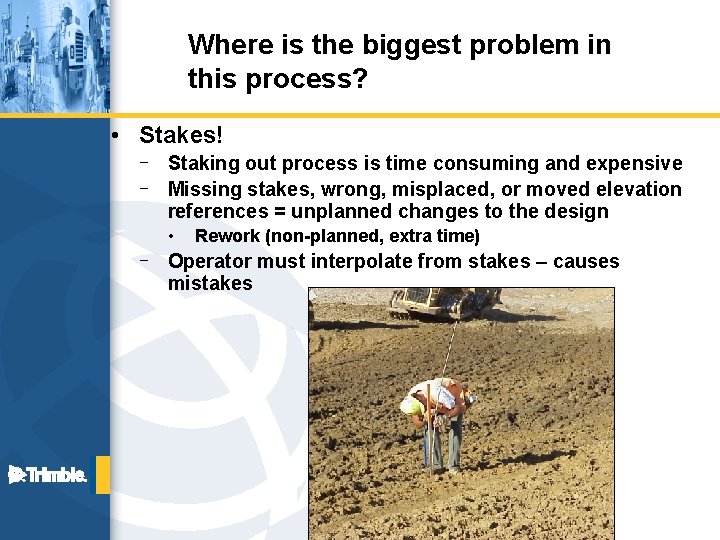

Where is the biggest problem in this process? • Stakes! – Staking out process is time consuming and expensive – Missing stakes, wrong, misplaced, or moved elevation references = unplanned changes to the design • Rework (non-planned, extra time) – Operator must interpolate from stakes – causes mistakes

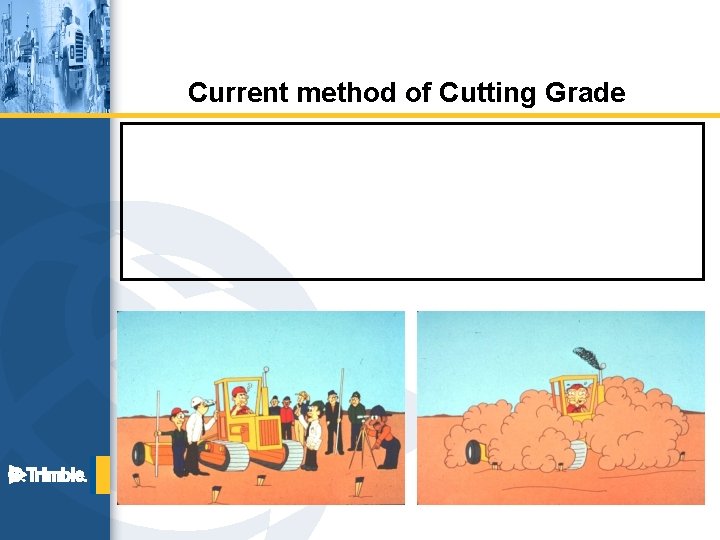

Current method of Cutting Grade

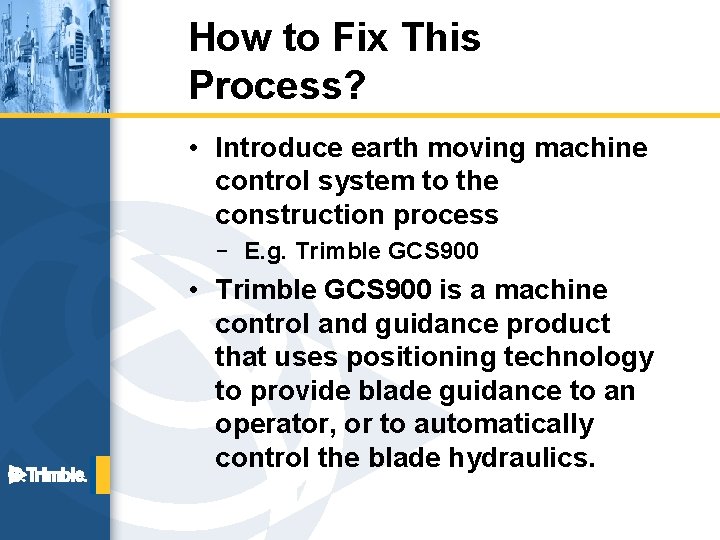

How to Fix This Process? • Introduce earth moving machine control system to the construction process – E. g. Trimble GCS 900 • Trimble GCS 900 is a machine control and guidance product that uses positioning technology to provide blade guidance to an operator, or to automatically control the blade hydraulics.

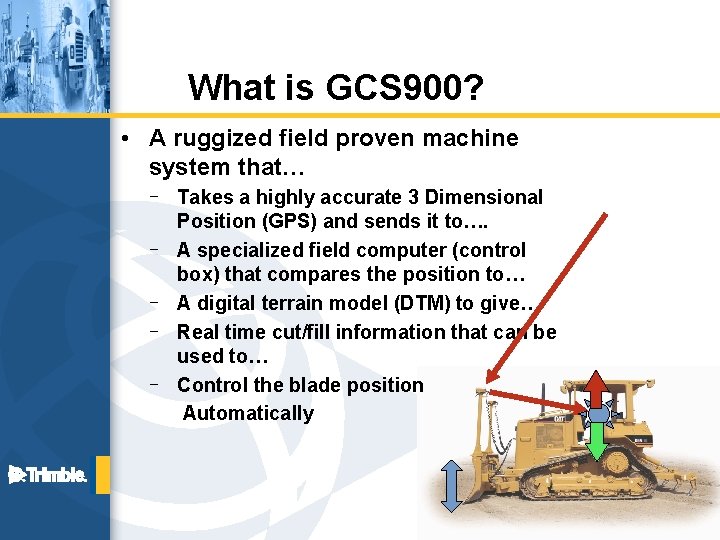

What is GCS 900? • A ruggized field proven machine system that… – Takes a highly accurate 3 Dimensional Position (GPS) and sends it to…. – A specialized field computer (control box) that compares the position to… – A digital terrain model (DTM) to give… – Real time cut/fill information that can be used to… – Control the blade position Automatically

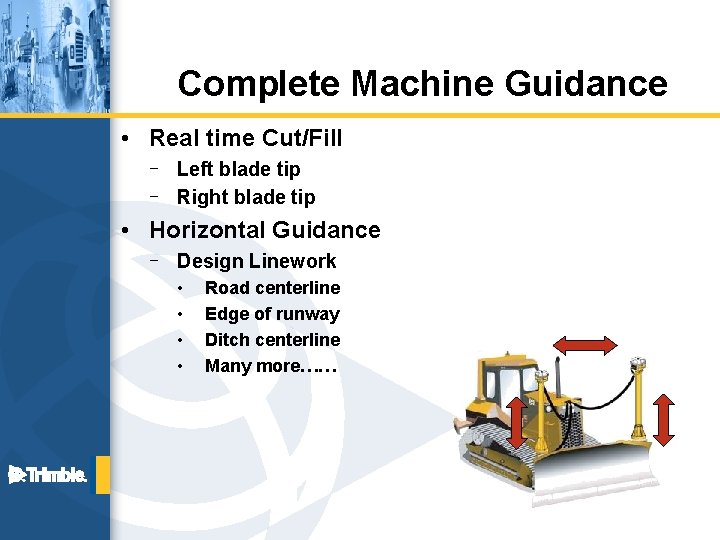

Complete Machine Guidance • Real time Cut/Fill – Left blade tip – Right blade tip • Horizontal Guidance – Design Linework • • Road centerline Edge of runway Ditch centerline Many more……

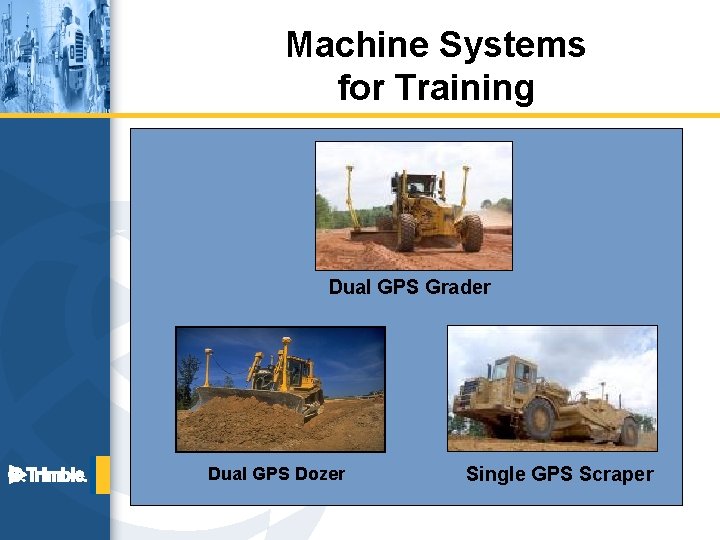

Machine Systems for Training Dual GPS Grader Dual GPS Dozer Single GPS Scraper

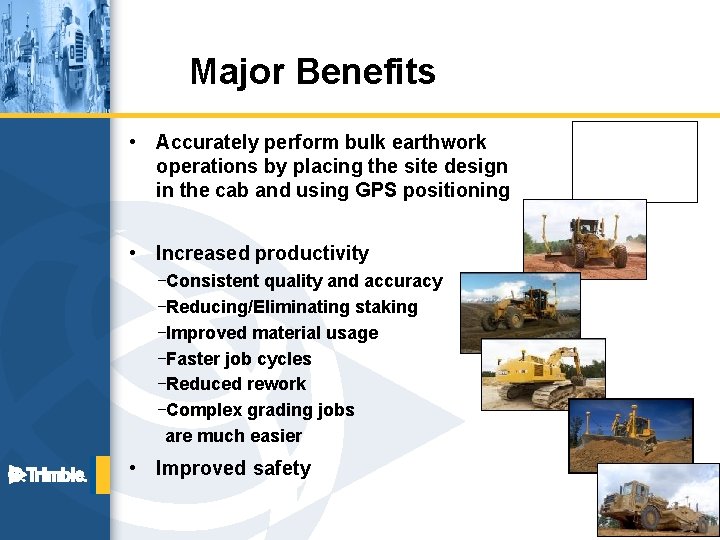

Major Benefits • Accurately perform bulk earthwork operations by placing the site design in the cab and using GPS positioning • Increased productivity –Consistent quality and accuracy –Reducing/Eliminating staking –Improved material usage –Faster job cycles –Reduced rework –Complex grading jobs are much easier • Improved safety

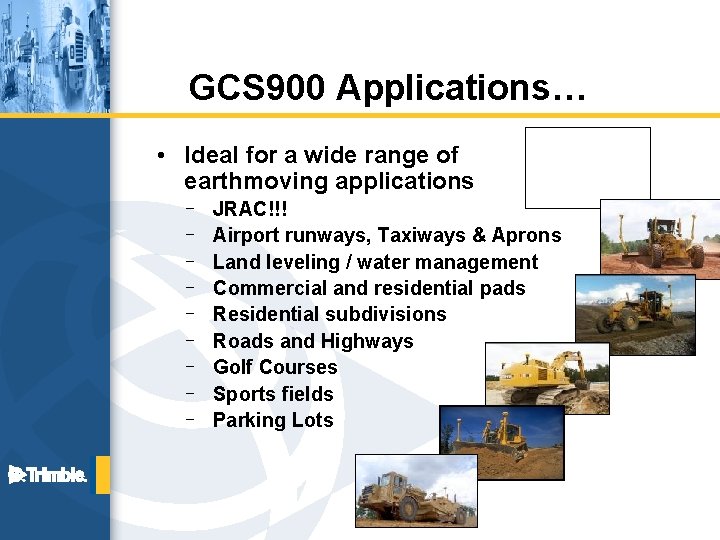

GCS 900 Applications… • Ideal for a wide range of earthmoving applications – – – – – JRAC!!! Airport runways, Taxiways & Aprons Land leveling / water management Commercial and residential pads Residential subdivisions Roads and Highways Golf Courses Sports fields Parking Lots

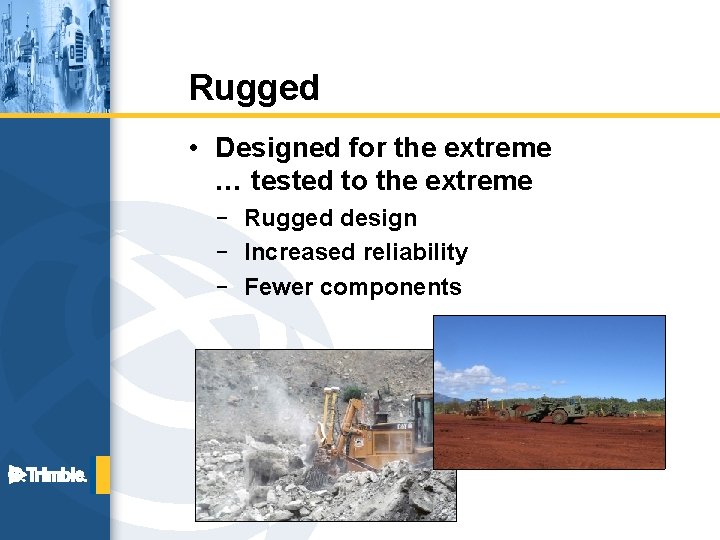

Rugged • Designed for the extreme … tested to the extreme – Rugged design – Increased reliability – Fewer components

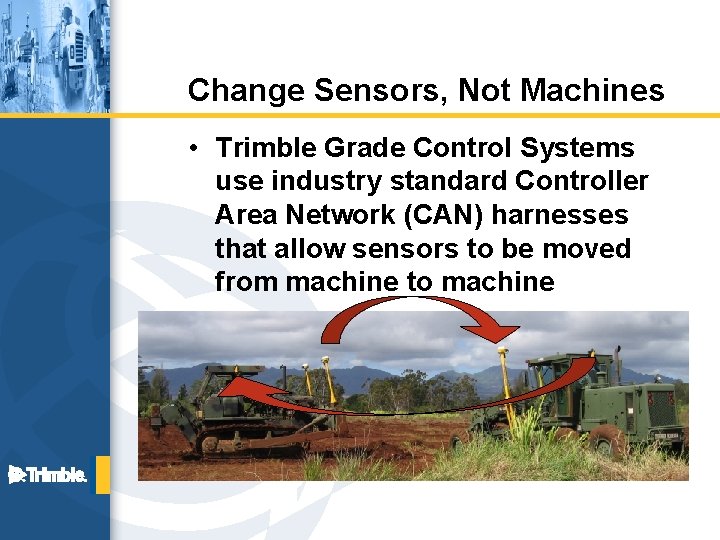

Change Sensors, Not Machines • Trimble Grade Control Systems use industry standard Controller Area Network (CAN) harnesses that allow sensors to be moved from machine to machine

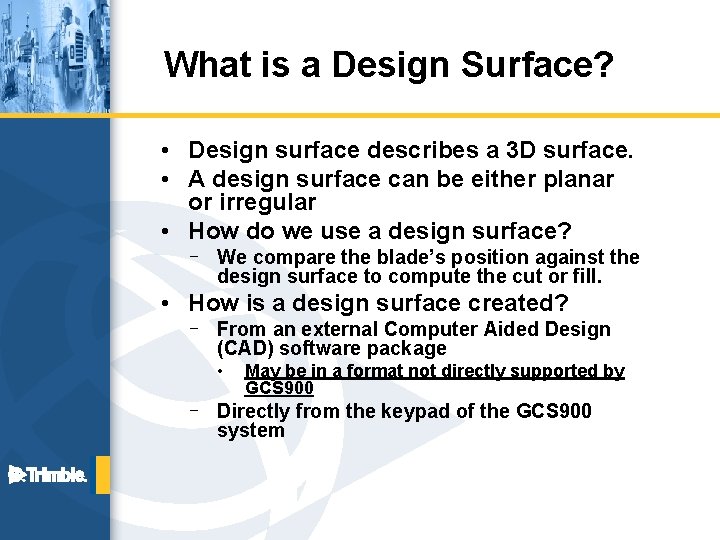

What is a Design Surface? • Design surface describes a 3 D surface. • A design surface can be either planar or irregular • How do we use a design surface? – We compare the blade’s position against the design surface to compute the cut or fill. • How is a design surface created? – From an external Computer Aided Design (CAD) software package • May be in a format not directly supported by GCS 900 – Directly from the keypad of the GCS 900 system

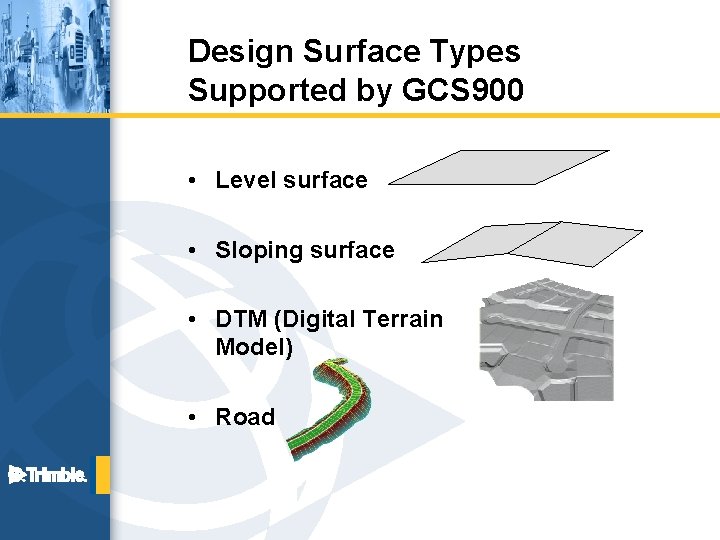

Design Surface Types Supported by GCS 900 • Level surface • Sloping surface • DTM (Digital Terrain Model) • Road

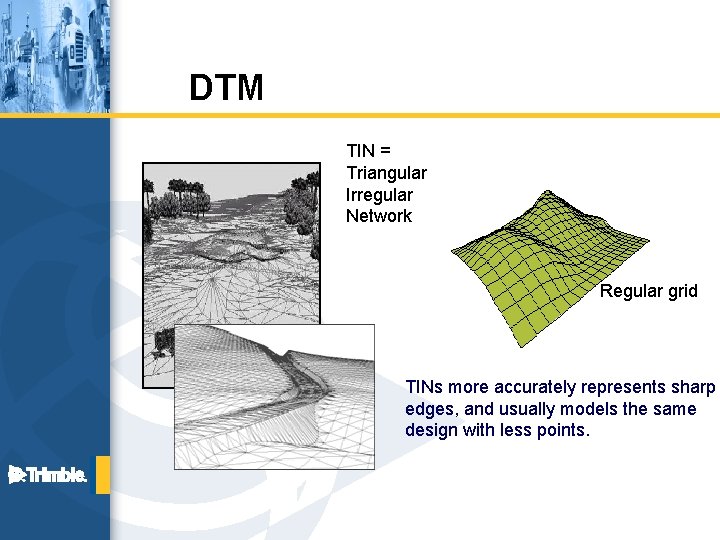

DTM TIN = Triangular Irregular Network Regular grid TINs more accurately represents sharp edges, and usually models the same design with less points.

Road design • • A road file describe a road surface using horizontal and vertical alignments A series of templates or standard cross- sections are then applied to these alignments to define the road surface

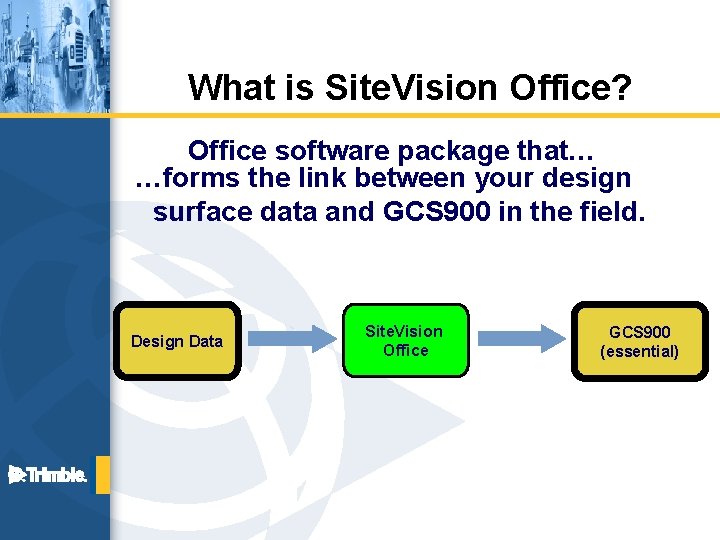

What is Site. Vision Office? Office software package that… …forms the link between your design surface data and GCS 900 in the field. Design Data Site. Vision Office GCS 900 (essential)

Questions
