TRILL Working Group From draft 03 to draft 04 Dinesh Dutt, Cisco Silvano Gai, Nuova Radia Perlman, Sun March 2007 68 th IETF - Prague 1

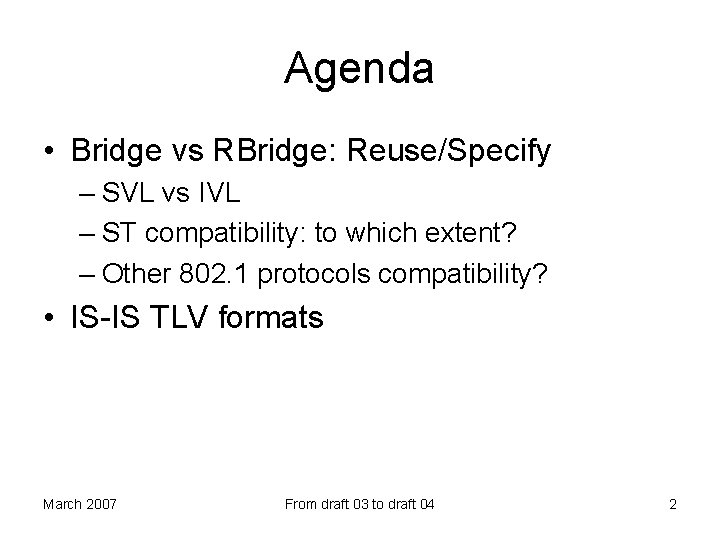

Agenda • Bridge vs RBridge: Reuse/Specify – SVL vs IVL – ST compatibility: to which extent? – Other 802. 1 protocols compatibility? • IS-IS TLV formats March 2007 From draft 03 to draft 04 2
Bridge vs RBridge: Reuse/Specify • Data Plane – What is leveraged from. 1 Q and what is new • Learning – Do we support IVL and SVL? • Control Plane – What versions of STP will we support – What about non-STP protocols such as GARP, GVRP etc. March 2007 From draft 03 to draft 04 3
Data Plane (1) LLC SS Filtering Database ISS 802. n March 2007 Bridge Port TX/RX ISS 802. n LAN Reuse S EI Bridge Port TX/RX Forwarding Process Ingress Rules Port State EI S Ingress Rules Port State LAN Specify From draft 03 to draft 04 Not Sure 4
Data Plane (2) • From IEEE 802. 1 Q, TRILL uses: – Bridge port transmit and receive – EISS • It includes port-and-protocol-based VLAN classification – Port States • no new states are defined – Ingress Rule / Egress Rule March 2007 From draft 03 to draft 04 5
EISS (Enhanced Internal Sublayer Service) • API that provides a normalized frame (independent of tagging) to the forwarding process: – Shall we assume that the RBridge’s interface is the same ? – Assumes that TRILL header encap/decap is part of forwarding process EM_UNITDATA. indication ( destination_address, source_address, mac_service_data_unit, priority, vlan_identifier, frame_check_sequence, canonical_format_indicator, rif_information (optional) ) March 2007 EM_UNITDATA. request ( destination_address, source_address, mac_service_data_unit, priority, vlan_identifier, frame_check_sequence, canonical_format_indicator, rif_information (optional) ) From draft 03 to draft 04 6
Data Plane (3) • TRILL specifies: – Forwarding Process • Includes Encap/Decap of shim header – Filtering database extension to: • • March 2007 Support TRILL encap decision Identify Egress RBridge Identify distribution tree for multi-destination frames Identify encapsulation and address to reach Next Hop Rbridge From draft 03 to draft 04 7
Learning (1) IS-IS LLC Ingress Rules SS EI S S EI Bridge Port TX/RX Filtering Database ISS 802. n March 2007 Bridge Port TX/RX ISS 802. n LAN Reuse LLC LAN Specify From draft 03 to draft 04 Not Sure 8
Learning (2) • IEEE 802. 1 Q distinguishes between – VID: VLAN ID – FID: Filtering ID • This allows: – IVL (Independent VLAN learning): one VID equal one FID – SVL (Shared VLAN learning): multiple VIDs map to one FID • TRILL assumes the IVL model – It announces through IS-IS {MAC Address, VID} pairs learnt locally • Does TRILL care about IVL and SVL issues or not ? – SVL has not been fully investigated – Should TRILL additionally announce FID to VID association ? March 2007 From draft 03 to draft 04 9
Control Plane (1) LLC IS-IS ST (per port) Ingress Rules Port State + + SS EI Bridge Port TX/RX Filtering Database ISS 802. n March 2007 Bridge Port TX/RX ISS 802. n LAN Reuse LLC LAN Specify From draft 03 to draft 04 Not Sure 10
Control Plane (2) • TRILL adds IS-IS – Need to formally specify IS-IS TLVs • The port state is controlled by: – Designated RBridge election – Spanning Tree • We need a ST per port per VLAN • Different from classical ST that is common to all ports • We need to add an algorithm to combine the ST state and the DR state into a port State March 2007 From draft 03 to draft 04 11
Spanning Trees (1) • Which styles does TRILL support: – STP – YES – RSTP – YES – MSTP - ? ? ? Since the original Spanning Tree Protocol (STP) has been removed from the 2004 revision of IEEE Std 802. 1 D, an implementation of RSTP is required for any claim of conformance for an implementation of IEEE Std 802. 1 Q-2003 that refers to the current revision of IEEE Std 802. 1 D unless that implementation includes the Multiple Spanning Tree Protocol (MSTP) specified in IEEE Std 802. 1 Q-2003. MSTP is based on RSTP, extended to provide support for multiple spanning trees. March 2007 From draft 03 to draft 04 12
Other Restrictions of the first version of TRILL • No support for: – GARP and its derivatives such as GVRP, GMRP – RIF (Routing Information) – CFI different from 0 March 2007 From draft 03 to draft 04 13
ARP/ND • Is ARP/ND support mandatory for an RBridge ? • One suggestion : – TRILL MUST provide mechanisms to carry this information in IS-IS, if known – To avoid interoperability issues • TRILL SHOULD NOT specify how to learn it • TRILL SHOULD NOT specify proxy ARP/ND behavior – TRILL implementation may decide to optimize ARP/ND – ARP/ND optimization and such can be called out in a separate draft March 2007 From draft 03 to draft 04 14
IS-IS TLV Formats • draft-ward-l 2 isis-01. txt has expired • Need to restart and finalize TLV formats March 2007 From draft 03 to draft 04 15
