Trigonometry was developed by Greek mathematicians over 2000

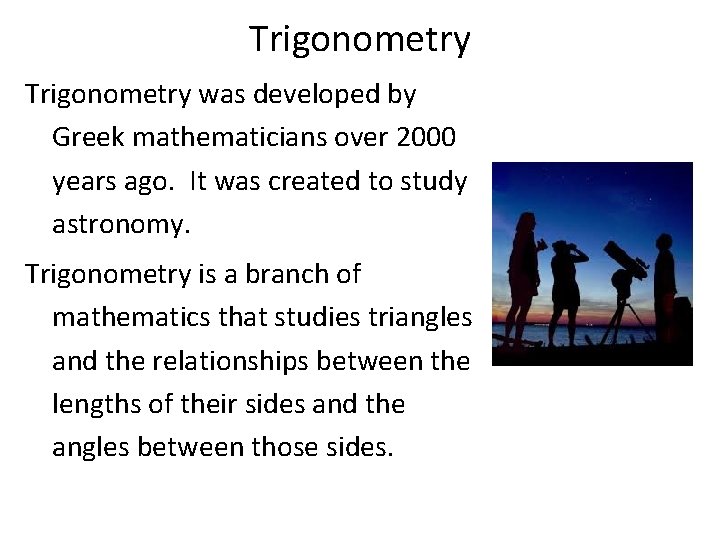

Trigonometry was developed by Greek mathematicians over 2000 years ago. It was created to study astronomy. Trigonometry is a branch of mathematics that studies triangles and the relationships between the lengths of their sides and the angles between those sides.

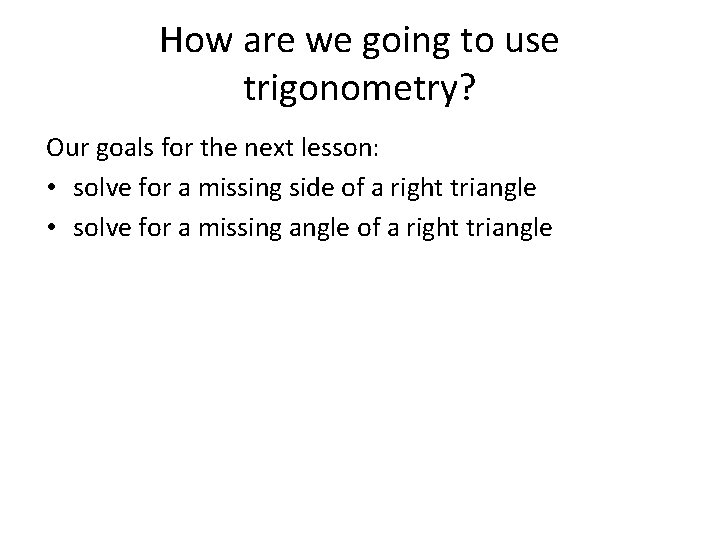

How are we going to use trigonometry? Our goals for the next lesson: • solve for a missing side of a right triangle • solve for a missing angle of a right triangle

Labeling Triangles for Trig

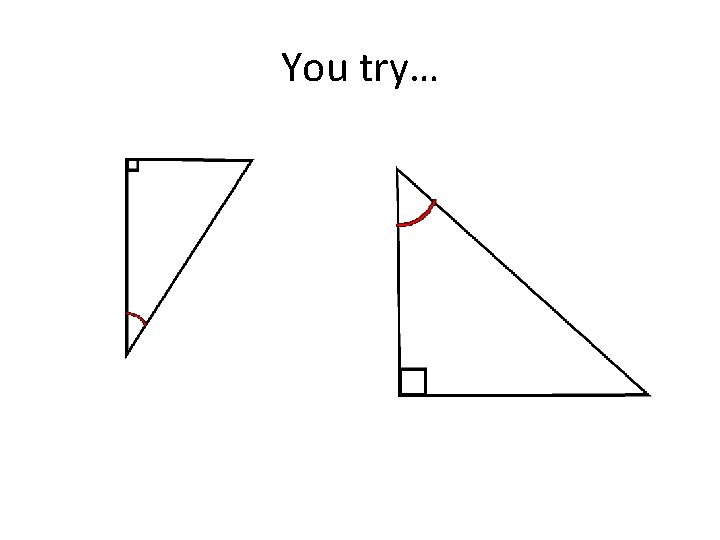

You try…

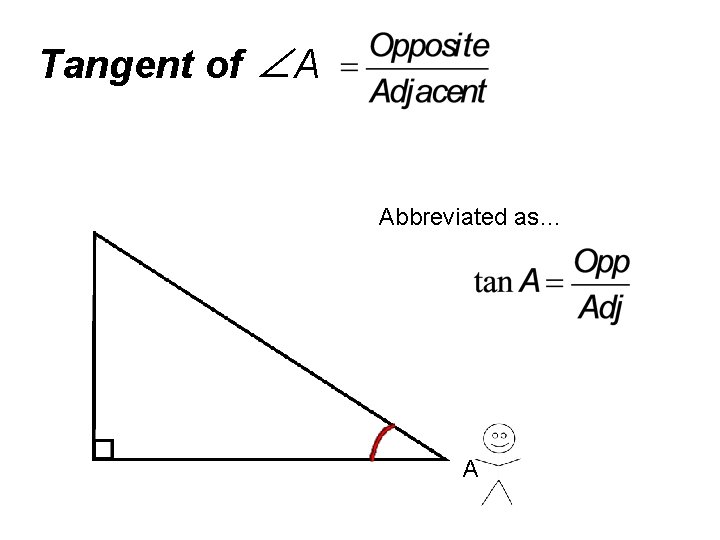

Tangent of ∠A Abbreviated as… A

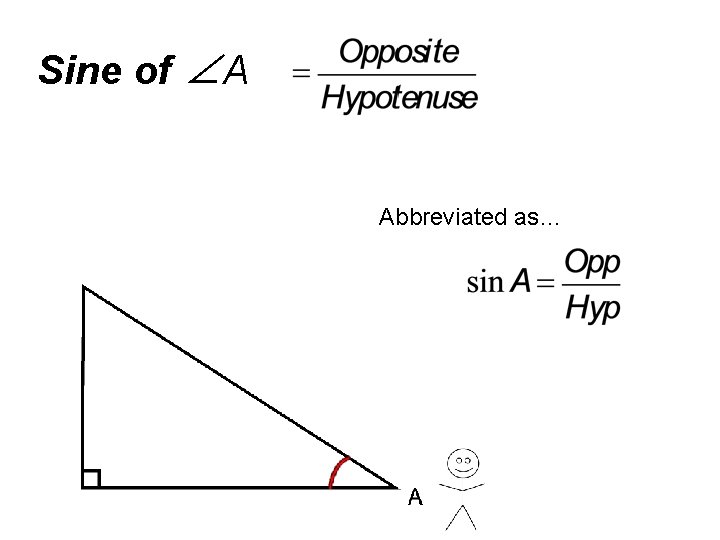

Sine of ∠A Abbreviated as…

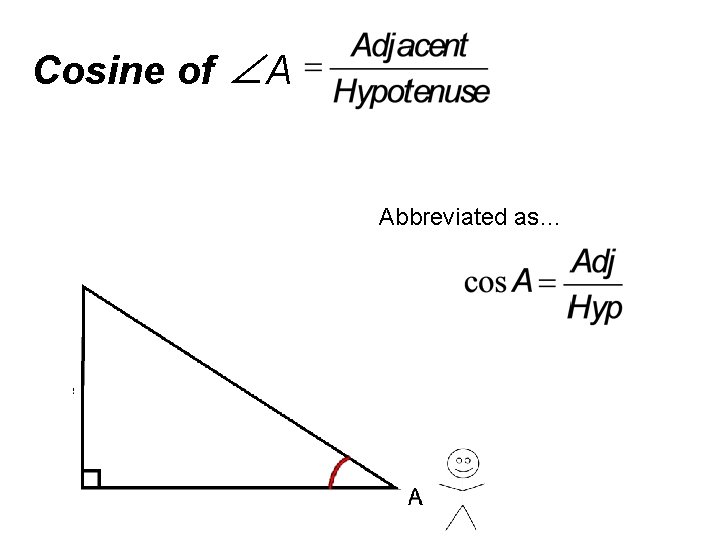

Cosine of ∠A Abbreviated as… adjacent

We now have three useful trig ratios:

soh cah toa

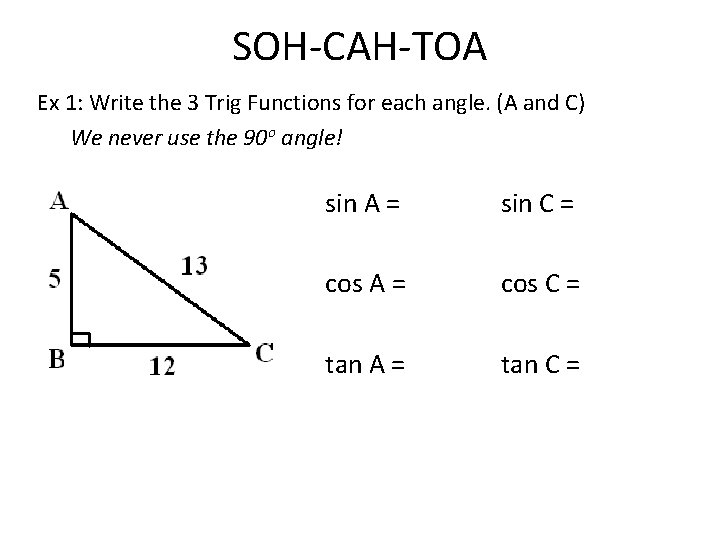

SOH-CAH-TOA Ex 1: Write the 3 Trig Functions for each angle. (A and C) We never use the 90 o angle! sin A = sin C = cos A = cos C = tan A = tan C =

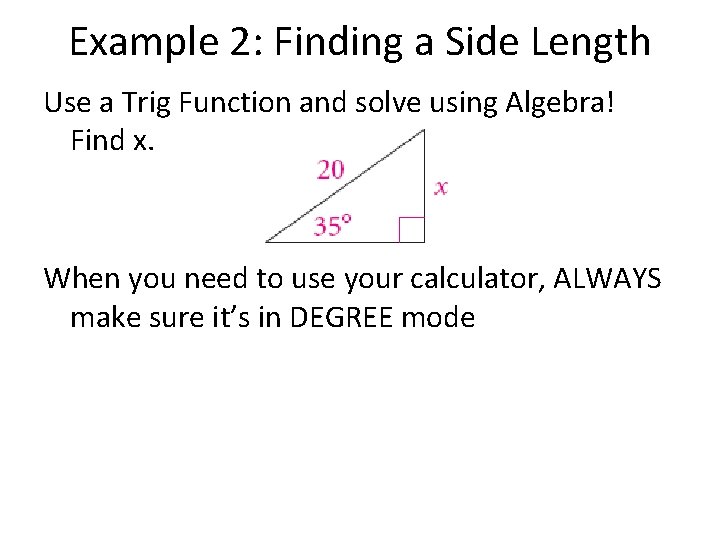

Example 2: Finding a Side Length Use a Trig Function and solve using Algebra! Find x. When you need to use your calculator, ALWAYS make sure it’s in DEGREE mode

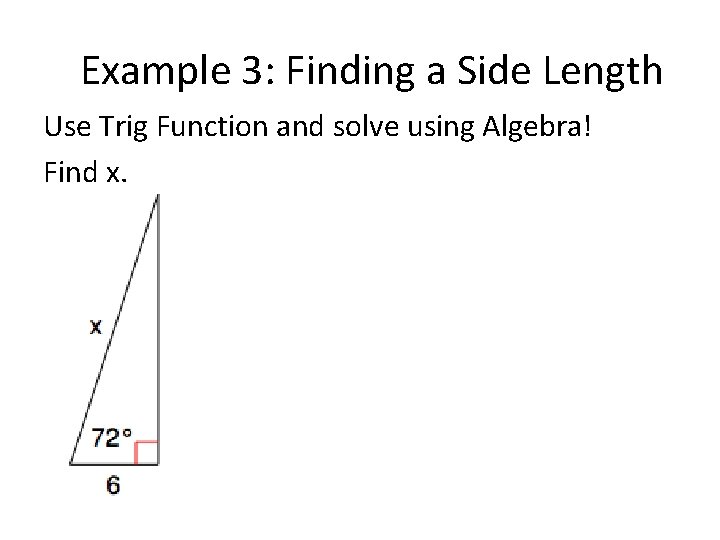

Example 3: Finding a Side Length Use Trig Function and solve using Algebra! Find x.

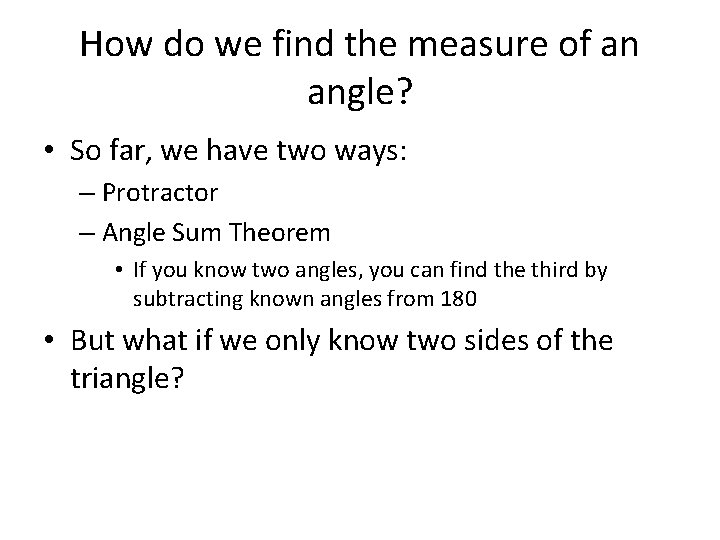

How do we find the measure of an angle? • So far, we have two ways: – Protractor – Angle Sum Theorem • If you know two angles, you can find the third by subtracting known angles from 180 • But what if we only know two sides of the triangle?

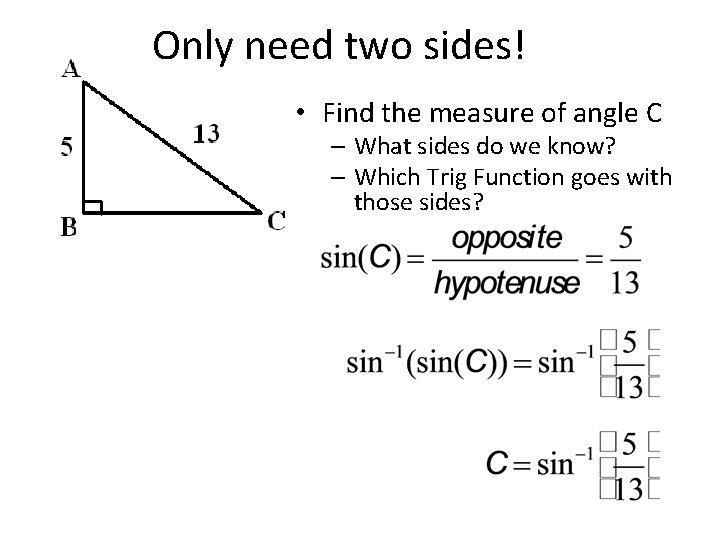

Only need two sides! • Find the measure of angle C – What sides do we know? – Which Trig Function goes with those sides?

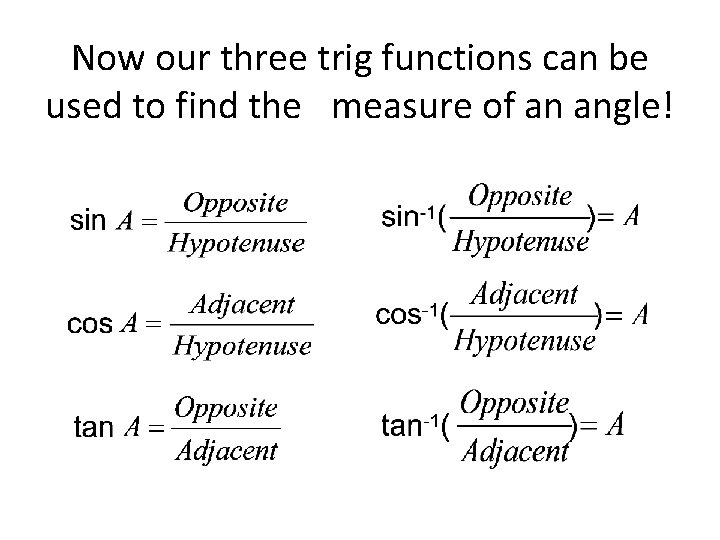

Now our three trig functions can be used to find the measure of an angle!

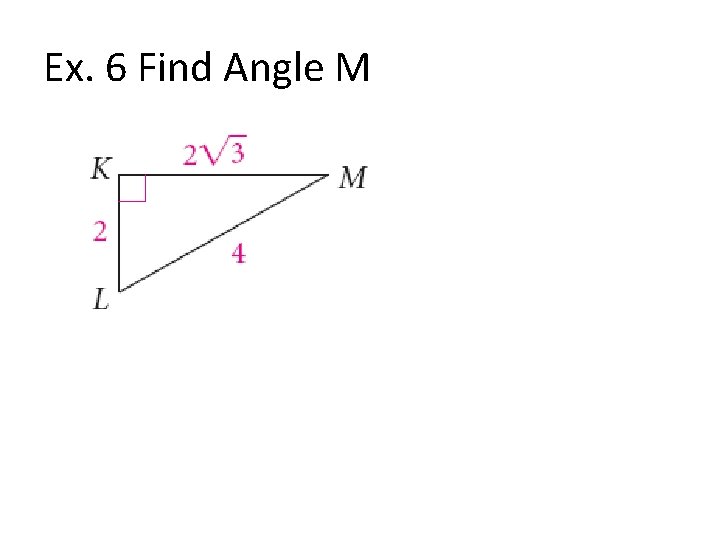

Ex. 6 Find Angle M

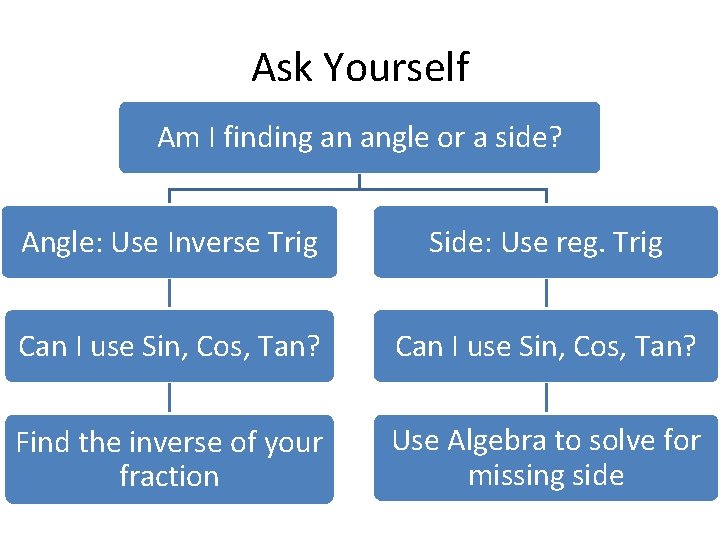

Ask Yourself Am I finding an angle or a side? Angle: Use Inverse Trig Side: Use reg. Trig Can I use Sin, Cos, Tan? Find the inverse of your fraction Use Algebra to solve for missing side

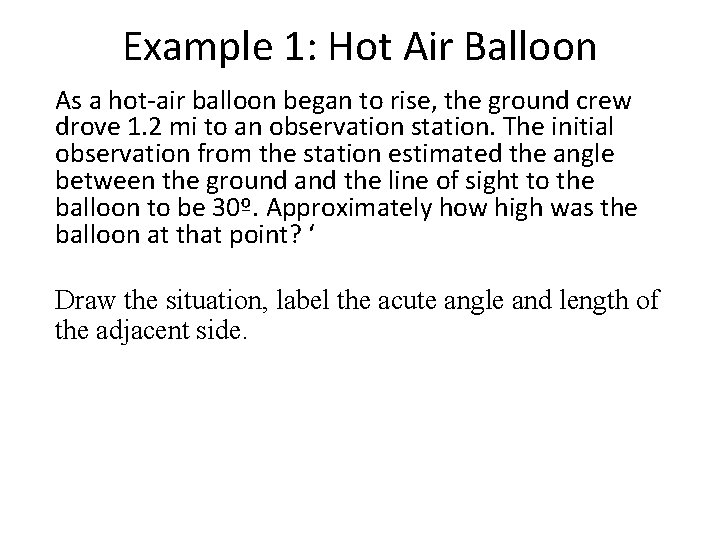

Example 1: Hot Air Balloon As a hot-air balloon began to rise, the ground crew drove 1. 2 mi to an observation station. The initial observation from the station estimated the angle between the ground and the line of sight to the balloon to be 30º. Approximately how high was the balloon at that point? ‘ Draw the situation, label the acute angle and length of the adjacent side.

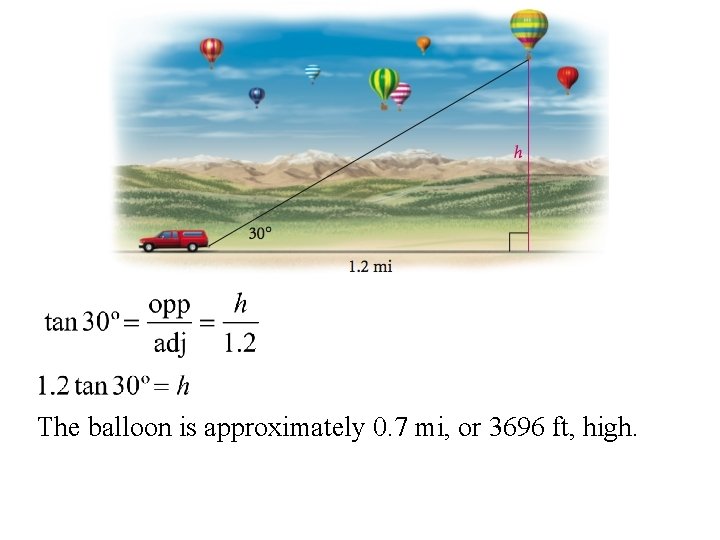

The balloon is approximately 0. 7 mi, or 3696 ft, high.

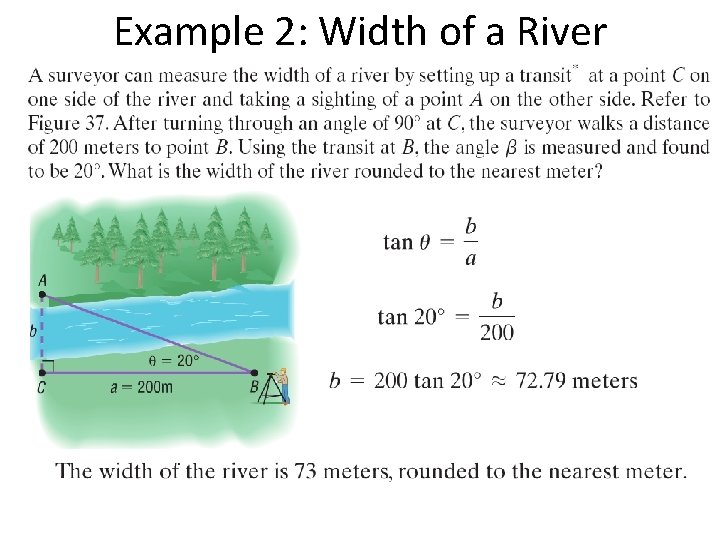

Example 2: Width of a River

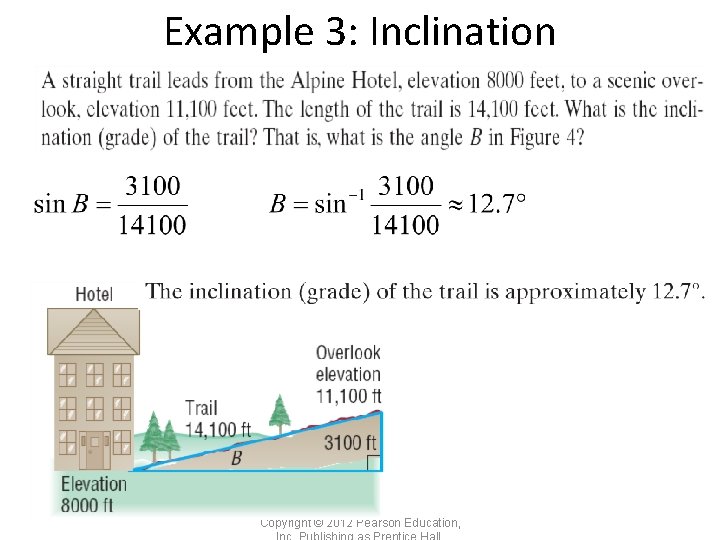

Example 3: Inclination Copyright © 2012 Pearson Education,

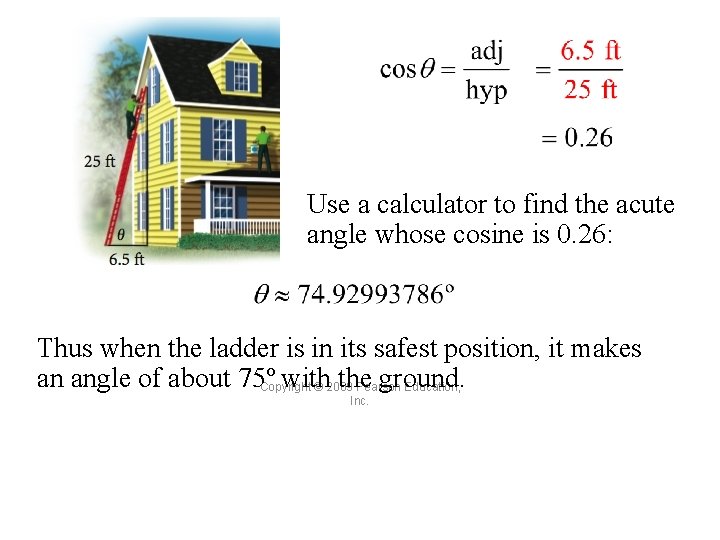

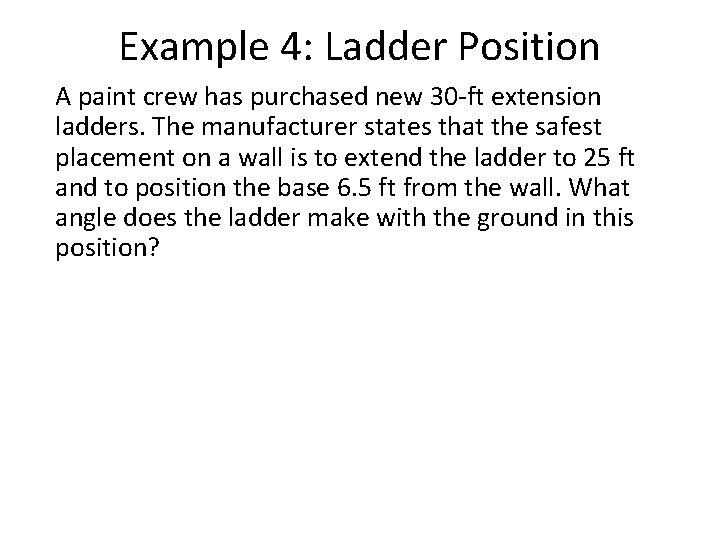

Example 4: Ladder Position A paint crew has purchased new 30 -ft extension ladders. The manufacturer states that the safest placement on a wall is to extend the ladder to 25 ft and to position the base 6. 5 ft from the wall. What angle does the ladder make with the ground in this position?
