Trigonometry Sine Cosine Angles Higher GCSE Questions These

Trigonometry – Sine & Cosine – Angles – Higher – GCSE Questions These questions are the same format as previous GCSE exams. COPY means they use the exact same numbers as the original GCSE question. Otherwise, they are clone questions using different numbers. The worksheets are provided in a variety of sizes.

Printing To print handouts from slides Select the slide from the left. Then click: File > Print > ‘Print Current Slide’ To print multiple slides Click on a section title to highlight all those slides, or press ‘Ctrl’ at the same time as selecting slides to highlight more than one. Then click: File > Print > ‘Print Selection’ To print double-sided handouts Highlight both slides before using ‘Print Selection’. Choose ‘Print on Both Sides’ and ‘Flip on Short Edge’.

GCSE Edexcel Higher: June 2017 Paper 3, Q 18 1 B B 6 cm A 6 cm D O A D O 6 cm C C B, C and D are points on a circle of radius 6 cm, centre O. AB and AC are tangents to the circle. AO = 10 cm Work out the length of arc BDC. Give your answer to 3 significant figures. (Total for Question 1 is 5 marks)

GCSE 1 GCSE Edexcel Higher: June 2018 Paper 3, Q 5 B ABC is a right-angled triangle. 1 Edexcel Higher: June 2018 Paper 3, Q 5 12 cm A B ABC is a right-angled triangle. 12 cm A C 9 cm (a) Work out the size of angle BAC. Give your answer correct to 1 decimal place. ° ° (2) The length of side AB is reduced by 1 cm. The length of side AC is still 9 cm. Angle ACB is still 90° (b) Will the value of cos ABC increase or decrease? You must give a reason for your answer. (1) (Total for Question 1 is 3 marks)

GCSE Edexcel Higher: June 2017 Paper 3, Q 18 1 B 6 cm A D O 6 cm C B, C and D are points on a circle of radius 6 cm, centre O. AB and AC are tangents to the circle. AO = 10 cm Work out the length of arc BDC. Give your answer to 3 significant figures. (Total for Question 1 is 5 marks)

GCSE 1 Edexcel Higher: June 2018 Paper 3, Q 5 B ABC is a right-angled triangle. 12 cm A C 9 cm (a) Work out the size of angle BAC. Give your answer correct to 1 decimal place. ° (2) The length of side AB is reduced by 1 cm. The length of side AC is still 9 cm. Angle ACB is still 90° (b) Will the value of cos ABC increase or decrease? You must give a reason for your answer. (1) (Total for Question 1 is 3 marks)

GCSE Edexcel Higher: June 2017 Paper 3, Q 18 1 B 6 cm 10 cm A x D O 6 cm C B, C and D are points on a circle of radius 6 cm, centre O. AB and AC are tangents to the circle. AO = 10 cm Work out the length of arc BDC. Give your answer to 3 significant figures. SOH CAH TOA H m 0 c x 1 A 6 cm O 26. 6 (Total for Question 1 is 5 marks)

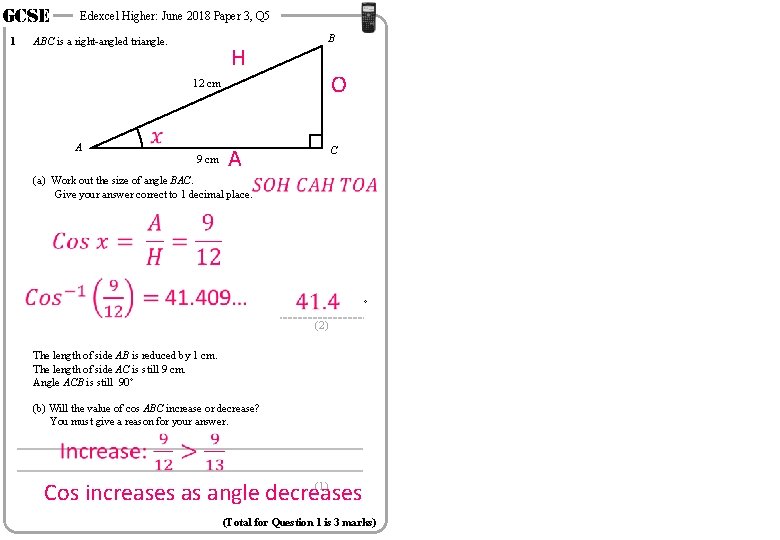

GCSE 1 Edexcel Higher: June 2018 Paper 3, Q 5 ABC is a right-angled triangle. B H O 12 cm A 9 cm A C (a) Work out the size of angle BAC. Give your answer correct to 1 decimal place. ° (2) The length of side AB is reduced by 1 cm. The length of side AC is still 9 cm. Angle ACB is still 90° (b) Will the value of cos ABC increase or decrease? You must give a reason for your answer. (1) Cos increases as angle decreases (Total for Question 1 is 3 marks)

Questions? Comments? Suggestions? …or have you found a mistake!? Any feedback would be appreciated . Please feel free to email: tom@goteachmaths. co. uk
