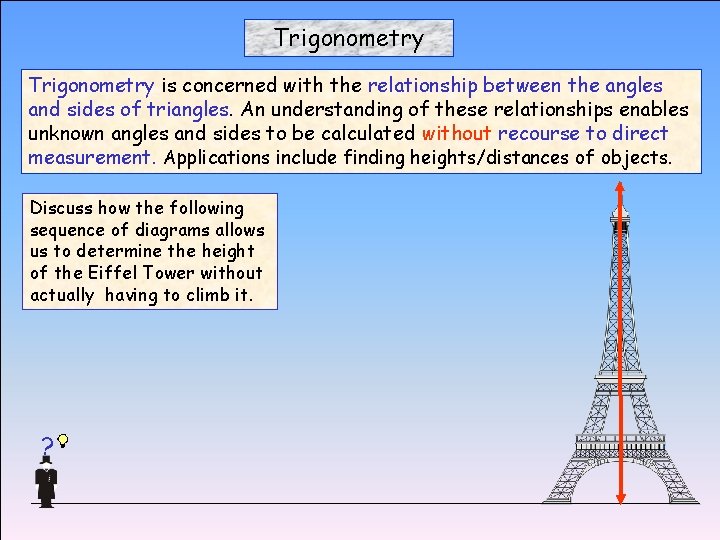

Trigonometry is concerned with the relationship between the angles and sides of triangles. An understanding of these relationships enables unknown angles and sides to be calculated without recourse to direct measurement. Applications include finding heights/distances of objects. Discuss how the following sequence of diagrams allows us to determine the height of the Eiffel Tower without actually having to climb it. ?

Trigonometry is concerned with the relationship between the angles and sides of triangles. An understanding of these relationships enables unknown angles and sides to be calculated without recourse to direct measurement. Applications include finding heights/distances of objects. Discuss how the following sequence of diagrams allows us to determine the height of the Eiffel Tower without actually having to climb it. 30 o

Trigonometry is concerned with the relationship between the angles and sides of triangles. An understanding of these relationships enables unknown angles and sides to be calculated without recourse to direct measurement. Applications include finding heights/distances of objects. Discuss how the following sequence of diagrams allows us to determine the height of the Eiffel Tower without actually having to climb it. 35 o

Trigonometry is concerned with the relationship between the angles and sides of triangles. An understanding of these relationships enables unknown angles and sides to be calculated without recourse to direct measurement. Applications include finding heights/distances of objects. Discuss how the following sequence of diagrams allows us to determine the height of the Eiffel Tower without actually having to climb it. 40 o

Trigonometry is concerned with the relationship between the angles and sides of triangles. An understanding of these relationships enables unknown angles and sides to be calculated without recourse to direct measurement. Applications include finding heights/distances of objects. Discuss how the following sequence of diagrams allows us to determine the height of the Eiffel Tower without actually having to climb it. ? What’s he going to do next? 45 o

Trigonometry is concerned with the relationship between the angles and sides of triangles. An understanding of these relationships enables unknown angles and sides to be calculated without recourse to direct measurement. Applications include finding heights/distances of objects. Discuss how the following sequence of diagrams allows us to determine the height of the Eiffel Tower without actually having to climb it. ? What’s he going to do next? 45 o 324 m

Trigonometry is concerned with the relationship between the angles and sides of triangles. An understanding of these relationships enables unknown angles and sides to be calculated without recourse to direct measurement. Applications include finding heights/distances of objects. 324 m 45 o 324 m

Trigonometry Eiffel Tower Facts: • Designed by Gustave Eiffel. • Completed in 1889 to celebrate the centenary of the French Revolution. • Intended to have been dismantled after the 1900 Paris Expo. • Took 26 months to build. • The structure is very light and only weighs 7 300 tonnes. • 18 000 pieces, 2½ million rivets. • 1665 steps. • Some tricky equations had to be solved for its design. 324 m

The Trigonometric Ratios A adjacent C B hypotenuse B opposite hypotenuse C adjacent Make up a Mnemonic! A S O H C A H T O A

The Trigonometric Ratios (Finding an unknown side). Example 1. In triangle ABC find side CB. A 70 o S O H C A H T O A Diagrams not to scale. 12 cm C B Opp Example 2. In triangle PQR find side PQ. P R 22 o S O H C A H T O A Q 7. 2 cm Example 3. In triangle LMN find side MN. L 4. 3 m M 75 o N S O H C A H T O A

The Trigonometric Ratios (Finding an unknown angle). True Values (2 dp) Sin 30 o = 0. 50 Cos 30 o = 0. 87 Tan 30 o = 0. 58 Anytime we come across a right-angled triangle containing 2 given sides we can calculate the ratio of the sides then look up (or calculate) the angle that corresponds to this ratio. S O H C A H T O A 43. 5 m xoo 30 75 m

The Trigonometric Ratios (Finding an unknown angle). Example 1. In triangle ABC find angle A. A Key Sequence 12 cm C 11. 3 cm Sin-1(11. 3 12) = B Example 2. In triangle LMN find angle N. L 4. 3 m M 1. 2 m Diagrams not to scale. S O H C A H T O A Key Sequence Tan-1(4. 3 1. 2) = N Example 3. In triangle PQR find angle Q. P 7. 8 cm R S O H C A H T O A 7. 2 cm Q S O H C A H T O A Key Sequence Cos-1(7. 2 7. 8) =

Applications of Trigonometry A boat sails due East from a Harbour (H), to a marker buoy (B), 15 miles away. At B the boat turns due South and sails for 6. 4 miles to a Lighthouse (L). It then returns to harbour. Make a sketch of the trip and calculate the bearing of the harbour from the lighthouse to the nearest degree. H 15 miles B 6. 4 miles L SOH CAH TOA

Applications of Trigonometry A 12 ft ladder rests against the side of a house. The top of the ladder is 9. 5 ft from the floor. Calculate the angle that the foot of ladder makes with the ground. 12 ft 9. 5 ft Lo SOH CAH TOA

Applications of Trigonometry An AWACS aircraft takes off from RAF Waddington (W) on a navigation exercise. It flies 430 miles North to a point P before turning left and flying for 570 miles to a second point Q, West of W. It then returns to base. Not to Scale P (a) Make a sketch of the flight. (b) Find the bearing of Q from P. 570 miles Q 430 miles W SOH CAH TOA

Angles of Elevation and Depression. An angle of elevation is the angle measured upwards from a horizontal to a fixed point. The angle of depression is the angle measured downwards from a horizontal to a fixed point. Horizontal Angle of depression Explain why the angles of elevation and depression are always equal. 25 o Angle of elevation Horizontal 25 o

Applications of Trigonometry A man stands at a point P, 45 m from the base of a building that is 20 m high. Find the angle of elevation of the top of the building from the man. 20 m 45 m P SOH CAH TOA

A 25 m tall lighthouse sits on a cliff top, 30 m above sea level. A fishing boat is seen 100 m from the base of the cliff, (vertically below the lighthouse). Find the angle of depression from the top of the lighthouse to the boat. C D 55 m 100 m D Or more directly since the angles of elevation and depression are equal. SOH CAH TOA

A 22 m tall lighthouse sits on a cliff top, 35 m above sea level. The angle of depression of a fishing boat is measured from the top of the lighthouse as 30 o. How far is the fishing boat from the base of the cliff? 30 o 60 o 57 m xm 30 o Or more directly since the angles of elevation and depression are equal. SOH CAH TOA
