Trigonometry Angles Lengths Higher GCSE Questions These questions

Trigonometry – Angles & Lengths – Higher – GCSE Questions These questions are the same format as previous GCSE exams. COPY means they use the exact same numbers as the original GCSE question. Otherwise, they are clone questions using different numbers. The worksheets are provided in a variety of sizes.

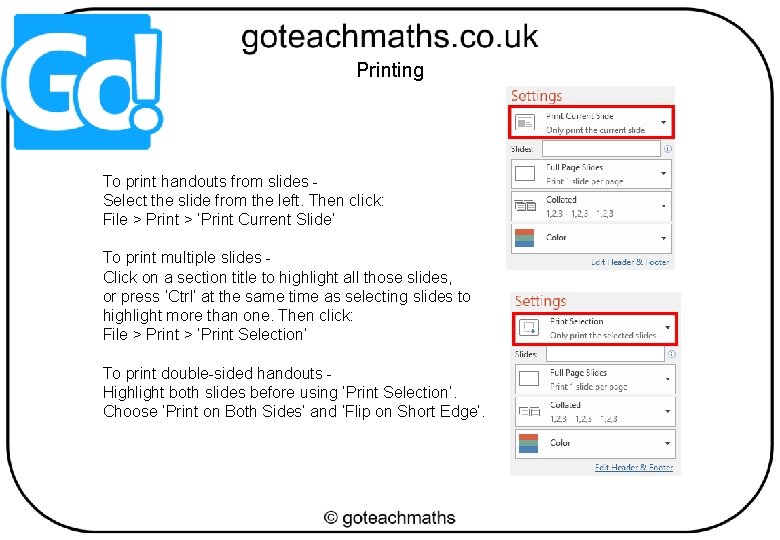

Printing To print handouts from slides Select the slide from the left. Then click: File > Print > ‘Print Current Slide’ To print multiple slides Click on a section title to highlight all those slides, or press ‘Ctrl’ at the same time as selecting slides to highlight more than one. Then click: File > Print > ‘Print Selection’ To print double-sided handouts Highlight both slides before using ‘Print Selection’. Choose ‘Print on Both Sides’ and ‘Flip on Short Edge’.

GCSE 1 GCSE Edexcel Higher: June 2018 Paper 2, Q 18 ABCDEFGH is a cuboid. 1 H ABCDEFGH is a cuboid. H G F E D A DC = 5. 4 cm AE = 6. 3 cm Angle CAD = 46° Edexcel Higher: June 2018 Paper 2, Q 18 G F E D C A DC = 5. 4 cm AE = 6. 3 cm Angle CAD = 46° B Find the size of the angle between CE and the plane ACDB. Give your answer correct to 1 decimal place. C B Find the size of the angle between CE and the plane ACDB. Give your answer correct to 1 decimal place. ° ° (Total for Question 1 is 4 marks)

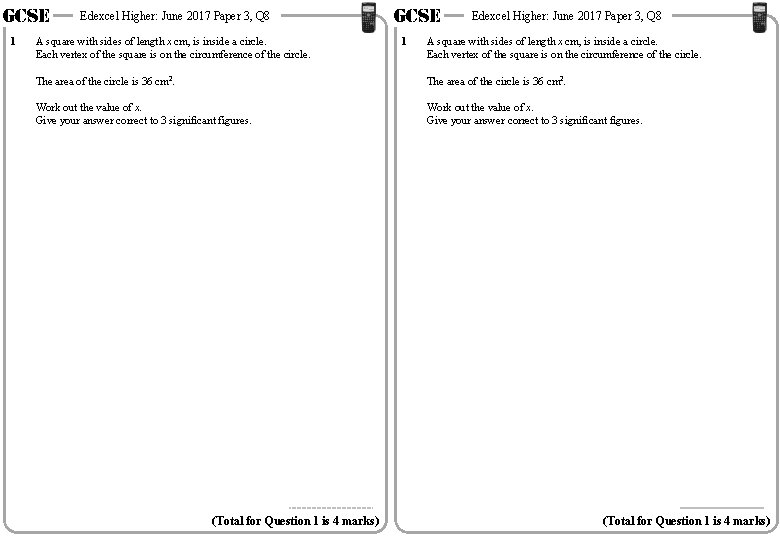

GCSE 1 Edexcel Higher: June 2017 Paper 3, Q 8 A square with sides of length x cm, is inside a circle. Each vertex of the square is on the circumference of the circle. The area of the circle is 36 cm 2. Work out the value of x. Give your answer correct to 3 significant figures. (Total for Question 1 is 4 marks)

GCSE 1 GCSE Edexcel Higher: June 2017 Paper 2, Q 21 1 The diagram shows 3 identical circles inside a rectangle. Each circle touches the other two circles and the sides of the rectangle, as shown in the diagram. Edexcel Higher: June 2017 Paper 2, Q 21 The diagram shows 3 identical circles inside a rectangle. Each circle touches the other two circles and the sides of the rectangle, as shown in the diagram. The radius of each circle is 16 mm. Work out the area of the rectangle. Give your answer correct to 3 significant figures. (Total for Question 1 is 4 marks)

GCSE 1 GCSE Edexcel Higher: May 2017 Paper 1, Q 5 1 This rectangular frame is made from 5 straight pieces of wood. Edexcel Higher: May 2017 Paper 1, Q 5 This rectangular frame is made from 5 straight pieces of wood. 9 m 9 m 12 m The weight of the wood is 2. 5 kg per metre. Work out the total weight of the wood in the frame. kg kg (Total for Question 1 is 5 marks)

GCSE 1 Edexcel Higher: June 2018 Paper 2, Q 18 ABCDEFGH is a cuboid. H G F E D A DC = 5. 4 cm AE = 6. 3 cm Angle CAD = 46° C B Find the size of the angle between CE and the plane ACDB. Give your answer correct to 1 decimal place. ° (Total for Question 1 is 4 marks)

GCSE 1 Edexcel Higher: June 2017 Paper 3, Q 8 A square with sides of length x cm, is inside a circle. Each vertex of the square is on the circumference of the circle. The area of the circle is 36 cm 2. Work out the value of x. Give your answer correct to 3 significant figures. (Total for Question 1 is 4 marks)

GCSE 1 Edexcel Higher: June 2017 Paper 2, Q 21 The diagram shows 3 identical circles inside a rectangle. Each circle touches the other two circles and the sides of the rectangle, as shown in the diagram. The radius of each circle is 16 mm. Work out the area of the rectangle. Give your answer correct to 3 significant figures. (Total for Question 1 is 4 marks)

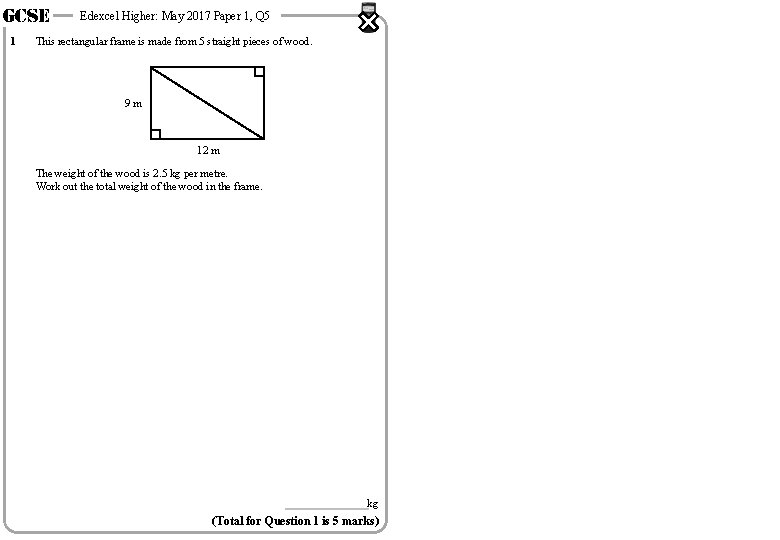

GCSE 1 Edexcel Higher: May 2017 Paper 1, Q 5 This rectangular frame is made from 5 straight pieces of wood. 9 m 12 m The weight of the wood is 2. 5 kg per metre. Work out the total weight of the wood in the frame. kg (Total for Question 1 is 5 marks)

GCSE 1 Edexcel Higher: June 2018 Paper 2, Q 18 ABCDEFGH is a cuboid. H G F E 6. 3 cm 5. 4 cm D C 46° A DC = 5. 4 cm AE = 6. 3 cm Angle CAD = 46° B Find the size of the angle between CE and the plane ACDB. Give your answer correct to 1 decimal place. 1) Find length of AC 5. 4 cm 46° C x E A 6. 3 cm C 2) Find angle y y 7. 5 cm A ° (Total for Question 1 is 4 marks)

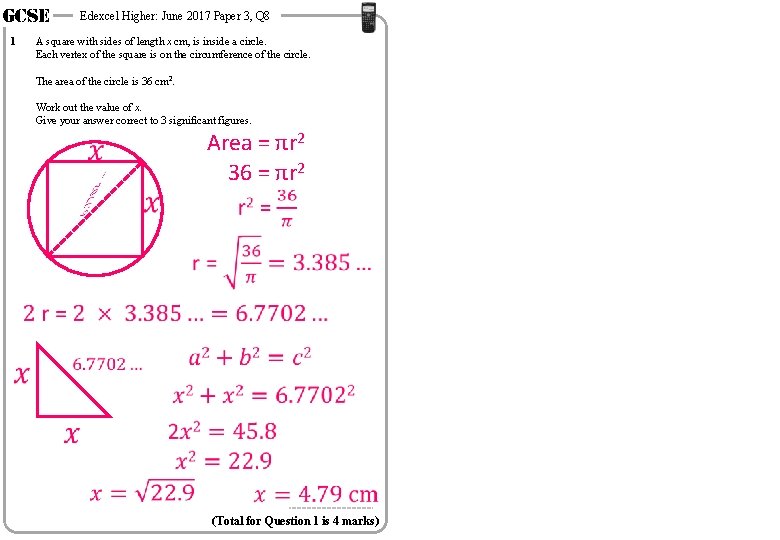

GCSE 1 Edexcel Higher: June 2017 Paper 3, Q 8 A square with sides of length x cm, is inside a circle. Each vertex of the square is on the circumference of the circle. The area of the circle is 36 cm 2. Work out the value of x. Give your answer correct to 3 significant figures. Area = πr 2 36 = πr 2 (Total for Question 1 is 4 marks)

GCSE 1 Edexcel Higher: June 2017 Paper 2, Q 21 The diagram shows 3 identical circles inside a rectangle. Each circle touches the other two circles and the sides of the rectangle, as shown in the diagram. 16 mm x 4 = 64 mm The radius of each circle is 16 mm. Work out the area of the rectangle. Give your answer correct to 3 significant figures. 32 mm 16 mm a 2 + b 2 = c 2 3920 (Total for Question 1 is 4 marks)

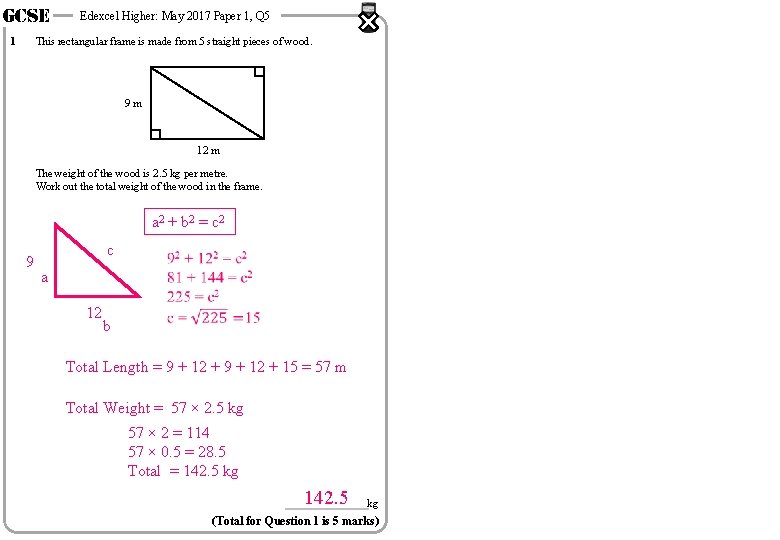

GCSE 1 Edexcel Higher: May 2017 Paper 1, Q 5 This rectangular frame is made from 5 straight pieces of wood. 9 m 12 m The weight of the wood is 2. 5 kg per metre. Work out the total weight of the wood in the frame. a 2 + b 2 = c 2 9 c a 12 b Total Length = 9 + 12 + 15 = 57 m Total Weight = 57 × 2. 5 kg 57 × 2 = 114 57 × 0. 5 = 28. 5 Total = 142. 5 kg (Total for Question 1 is 5 marks)
