Trigonometric Ratios Sine Cosine and Tangent p y

  • Slides: 24
Download presentation
Trigonometric Ratios Sine, Cosine, and Tangent p y h 34° adjacent opposite e s

Trigonometric Ratios Sine, Cosine, and Tangent p y h 34° adjacent opposite e s u n e t o

Trigonometric Ratios Sine, Cosine, and Tangent opposite h o p y 34° adjacent opposite

Trigonometric Ratios Sine, Cosine, and Tangent opposite h o p y 34° adjacent opposite e s u n te hypotenus e adjacent hypotenus e opposite adjacent = sine = cosine = tangent

Name the Trig Ratio Self-Check Click to start

Name the Trig Ratio Self-Check Click to start

Question 1 Sine, Cosine, or Tangent? 14 6 Cosine Tangent Sine Not enough info

Question 1 Sine, Cosine, or Tangent? 14 6 Cosine Tangent Sine Not enough info

Wrong Answer! Make sure to label your sides in relation to the reference angle.

Wrong Answer! Make sure to label your sides in relation to the reference angle. 14 hyp 6 opp

Question 2 Sine, Cosine, or Tangent 10 6 Cosine Sine Tangent Not Enough Info

Question 2 Sine, Cosine, or Tangent 10 6 Cosine Sine Tangent Not Enough Info

Wrong Answer! Make sure to label your sides in relation to the reference angle.

Wrong Answer! Make sure to label your sides in relation to the reference angle. 10 hyp 6 adj

Question 3 Sine, Cosine, or Tangent? 1 7 7 Not Enough Info Sine Tangent

Question 3 Sine, Cosine, or Tangent? 1 7 7 Not Enough Info Sine Tangent Cosine

Wrong Answer! Make sure to label your sides in relation to the reference angle.

Wrong Answer! Make sure to label your sides in relation to the reference angle. 17 hyp 7 adj

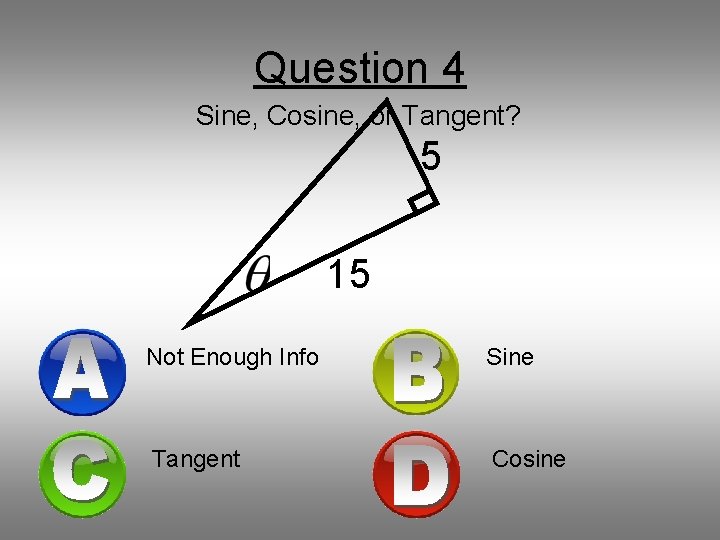

Question 4 Sine, Cosine, or Tangent? 5 15 Not Enough Info Sine Tangent Cosine

Question 4 Sine, Cosine, or Tangent? 5 15 Not Enough Info Sine Tangent Cosine

Wrong Answer! 5 opp 15 adj Make sure to label your sides in relation

Wrong Answer! 5 opp 15 adj Make sure to label your sides in relation to the reference angle.

Question 5 Sine, Cosine, or Tangent? 7 6 Tangent Not Enough Info Sine Cosine

Question 5 Sine, Cosine, or Tangent? 7 6 Tangent Not Enough Info Sine Cosine

Wrong Answer! Make sure to label your sides in relation to the reference angle.

Wrong Answer! Make sure to label your sides in relation to the reference angle. 7 adj 6 opp

Question 6 Sine, Cosine, or Tangent? 4 10 Sine Not Enough Info Tangent Cosine

Question 6 Sine, Cosine, or Tangent? 4 10 Sine Not Enough Info Tangent Cosine

Wrong Answer! 4 op p Make sure to label your sides in relation to

Wrong Answer! 4 op p Make sure to label your sides in relation to the reference angle. 10 hyp

Question 7 Sine, Cosine, or Tangent? 13 9 Tangent Sine Not Enough Info Cosine

Question 7 Sine, Cosine, or Tangent? 13 9 Tangent Sine Not Enough Info Cosine

Wrong Answer! Make sure to label your sides in relation to the reference angle.

Wrong Answer! Make sure to label your sides in relation to the reference angle. 9 opp 13 hyp

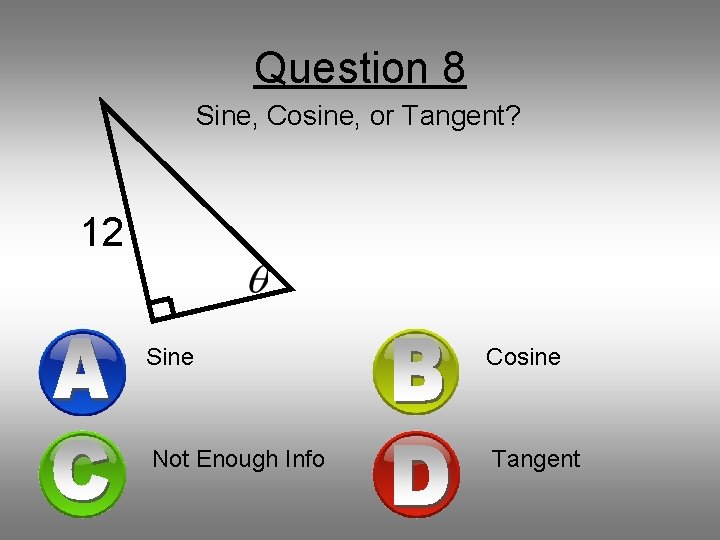

Question 8 Sine, Cosine, or Tangent? 12 Sine Cosine Not Enough Info Tangent

Question 8 Sine, Cosine, or Tangent? 12 Sine Cosine Not Enough Info Tangent

Wrong Answer! Make sure to label your sides in relation to the reference angle.

Wrong Answer! Make sure to label your sides in relation to the reference angle. 12 opp

Question 9 Sine, Cosine, or Tangent? 13 24 Cosine Sine Not Enough Info Tangent

Question 9 Sine, Cosine, or Tangent? 13 24 Cosine Sine Not Enough Info Tangent

Wrong Answer! Make sure to label your sides in relation to the reference angle.

Wrong Answer! Make sure to label your sides in relation to the reference angle. 13 adj 24 opp

Question 10 Sine, Cosine, or Tangent? 25 20 Not Enough Info Cosine Sine Tangent

Question 10 Sine, Cosine, or Tangent? 25 20 Not Enough Info Cosine Sine Tangent

Wrong Answer! Make sure to label your sides in relation to the reference angle.

Wrong Answer! Make sure to label your sides in relation to the reference angle. 25 hyp 20 ajd

Congratulations! You got it! You are now ready to move on !

Congratulations! You got it! You are now ready to move on !
