Trigonometric Function The Unit circle The Unit Circle

Trigonometric Function: The Unit circle

The Unit Circle A circle with radius of 1 Equation x 2 + y 2 = 1

The Unit Circle with Radian Measures

Do you remember 30º, 60º, 90º triangles? Now they are really! Important

Do you remember 30º, 60º, 90º triangles? Now they are really! Important Even more important Let 2 a = 1

Do you remember 30º, 60º, 90º triangles? Let 2 a = 1

Do you remember 30º, 60º, 90º triangles?

Do you remember 45º, 90º triangles? When the hypotenuse is 1 The legs are

Some common radian measurements These are the Degree expressed in Radians

The Unit Circle: Radian Measures and Coordinates

The Six Trig functions

Lets find the Trig functions if Think where this angle is on the unit circle.

Find the Trig functions of Think where this angle is on the unit circle.

How about

There are times when Tan or Cot does not exist. At what angles would this happen?

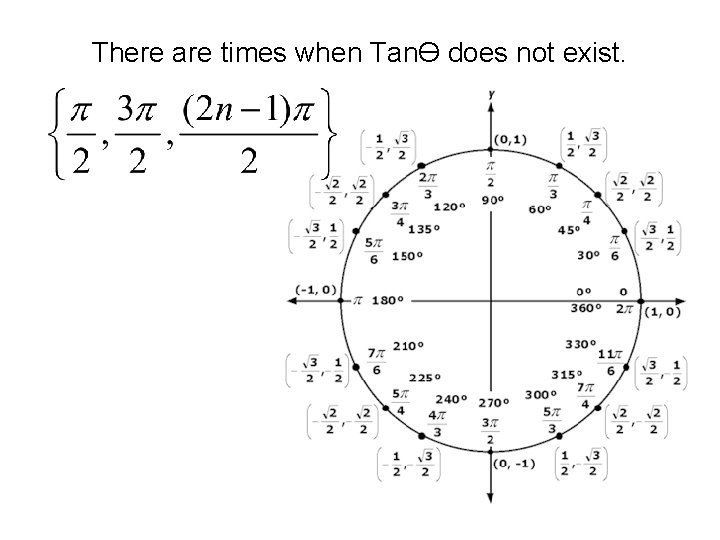

There are times when TanƟ does not exist.

There are times when cotƟ does not exist.

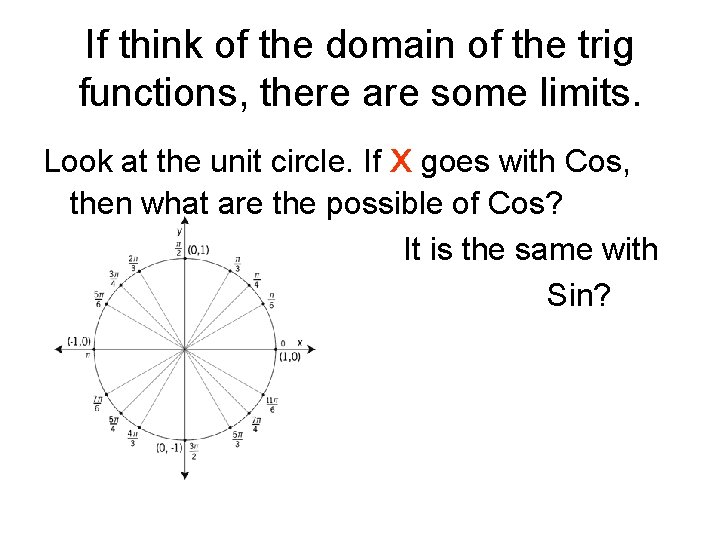

If think of the domain of the trig functions, there are some limits. Look at the unit circle. If x goes with Cos, then what are the possible of Cos? It is the same with Sin?

Even Function ( Trig. ) Cos (- Ɵ) = Cos (Ɵ) Sec( - Ɵ) = Sec (Ɵ) Sin(- Ɵ) = -sin (Ɵ) Csc (- Ɵ) = - Csc (Ɵ) Tan(- Ɵ) = -Tan (Ɵ) Cot(- Ɵ) = - Cot (Ɵ)
