Tribal Information Management System (TIMS) Enabling Geospatial Web Services Matt Moss SAIC National STORET Users Conference November 16, 2004

Tribal Information Management System (TIMS) - About • Provides an integrated view of environmental concerns in Indian Country (federally recognized tribes). • Full function Geographic Information System (GIS) allows visualization, spatial analysis across a variety of environmental topics (e. g. , air, water, land). • Emphasis on integration of geospatial services for greater access to core enterprise and geospatial reference information. • Available only to EPA AIEO, tribes, and trusted partners.

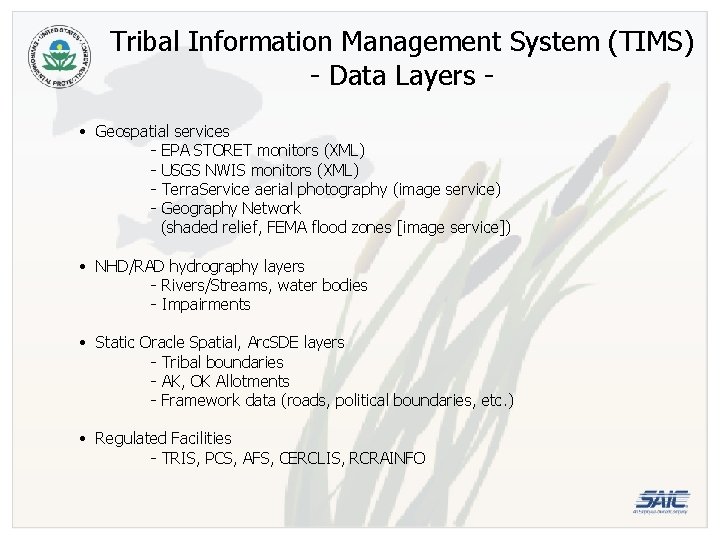

Tribal Information Management System (TIMS) - Data Layers • Geospatial services - EPA STORET monitors (XML) - USGS NWIS monitors (XML) - Terra. Service aerial photography (image service) - Geography Network (shaded relief, FEMA flood zones [image service]) • NHD/RAD hydrography layers - Rivers/Streams, water bodies - Impairments • Static Oracle Spatial, Arc. SDE layers - Tribal boundaries - AK, OK Allotments - Framework data (roads, political boundaries, etc. ) • Regulated Facilities - TRIS, PCS, AFS, CERCLIS, RCRAINFO

Tribal Information Management System (TIMS) - Why Services? • Advantages - Timely - Latest-and-greatest - No need to manage copies - Emphasis on partnerships, communications - Not proprietary if XML • Disadvantages - No need to manage copies - Emphasis on partnerships, communications - At mercy of access to source site, changes to source configuration

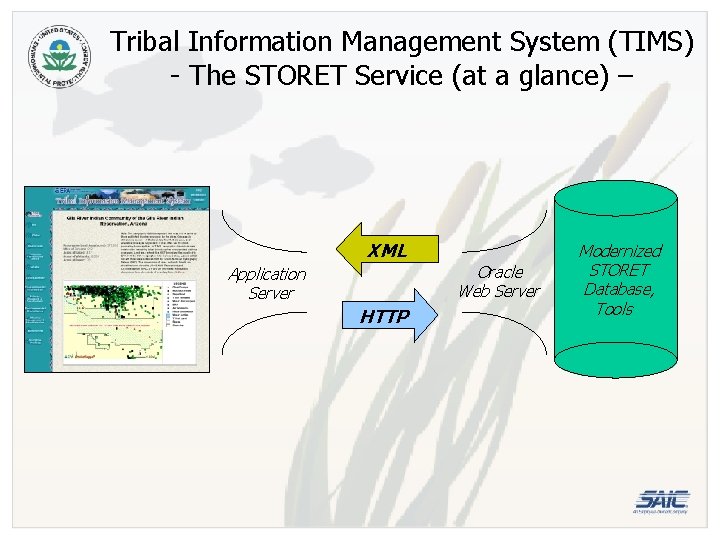

Tribal Information Management System (TIMS) - The STORET Service (at a glance) – XML Oracle Web Server Application Server HTTP Modernized STORET Database, Tools

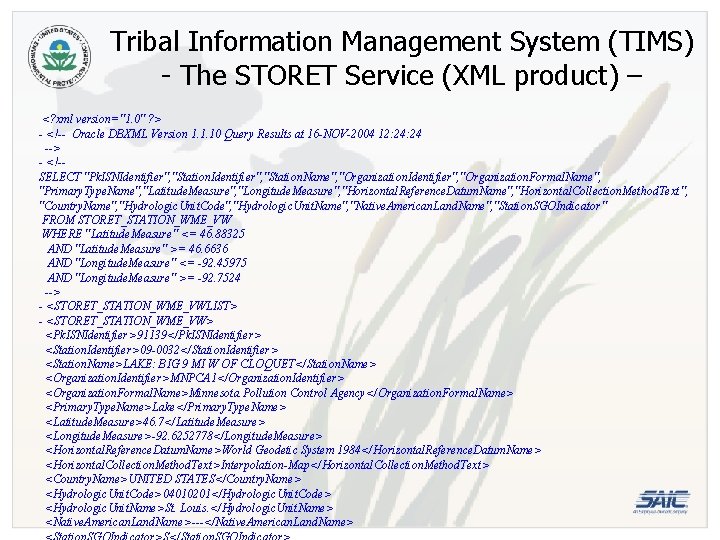

Tribal Information Management System (TIMS) - The STORET Service (XML product) – <? xml version="1. 0" ? > -  - <!-SELECT "Pk. ISNIdentifier", "Station. Name", "Organization. Identifier", "Organization. Formal. Name", "Primary. Type. Name", "Latitude. Measure", "Longitude. Measure", "Horizontal. Reference. Datum. Name", "Horizontal. Collection. Method. Text ", "Country. Name", "Hydrologic. Unit. Code", "Hydrologic. Unit. Name", "Native. American. Land. Name", "Station. SGOIndicator" FROM STORET_STATION_WME_VW WHERE "Latitude. Measure" <= 46. 88325 AND "Latitude. Measure" >= 46. 6636 AND "Longitude. Measure" <= -92. 45975 AND "Longitude. Measure" >= -92. 7524 --> - <STORET_STATION_WME_VWLIST> - <STORET_STATION_WME_VW> <Pk. ISNIdentifier>91139</Pk. ISNIdentifier> <Station. Identifier>09 -0032</Station. Identifier> <Station. Name>LAKE: BIG 9 MI W OF CLOQUET</Station. Name> <Organization. Identifier>MNPCA 1</Organization. Identifier> <Organization. Formal. Name>Minnesota Pollution Control Agency</Organization. Formal. Name> <Primary. Type. Name>Lake</Primary. Type. Name> <Latitude. Measure>46. 7</Latitude. Measure> <Longitude. Measure>-92. 6252778</Longitude. Measure> <Horizontal. Reference. Datum. Name>World Geodetic System 1984</Horizontal. Reference. Datum. Name> <Horizontal. Collection. Method. Text>Interpolation-Map</Horizontal. Collection. Method. Text> <Country. Name>UNITED STATES</Country. Name> <Hydrologic. Unit. Code>04010201</Hydrologic. Unit. Code> <Hydrologic. Unit. Name>St. Louis. </Hydrologic. Unit. Name> <Native. American. Land. Name>---</Native. American. Land. Name>

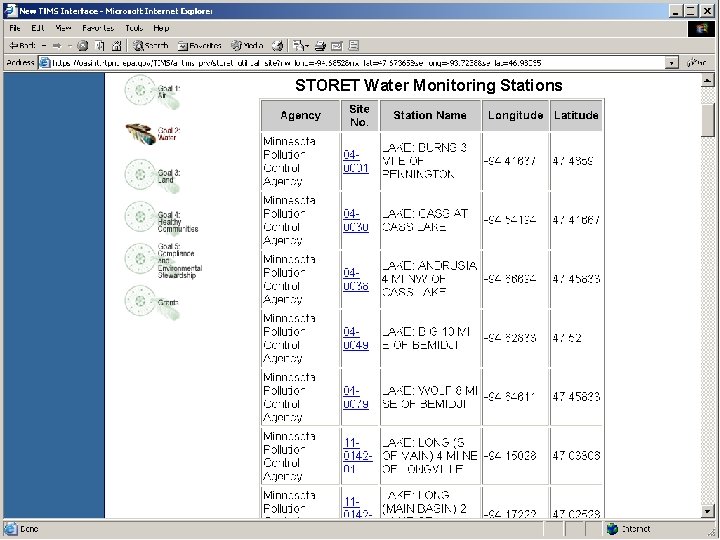

STORET Water Monitoring Stations

Tribal Information Management System (TIMS) - Let’s Talk – If you have (or know of) a data set that would fit well into the TIMS framework, have comments, or would like more information… Ed Liu Environmental Protection Agency American Indian Environmental Office 202 -564 -0287 liu. ed@epa. gov Matt Moss Science Applications International Corporation Solutions Delivery Center 703 -292 -6239 mossm@saic-solutions. com
