Trends in Advanced Process Control in the polyolefin industry Nordic Process Control Workshop, 29 -30 January 2009, Telemark by Bjørn Glemmestad, Borealis Thanks to colleagues: Ketil S. Andersen Staffan Haugwitz © 2008 Borealis AG Øivind Moen

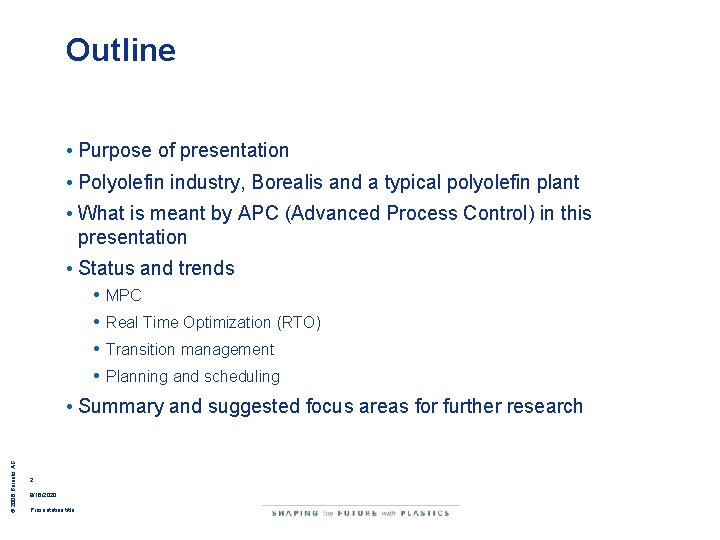

Outline • Purpose of presentation • Polyolefin industry, Borealis and a typical polyolefin plant • What is meant by APC (Advanced Process Control) in this presentation • Status and trends • MPC • Real Time Optimization (RTO) • Transition management • Planning and scheduling © 2008 Borealis AG • Summary and suggested focus areas for further research 2 9/16/2020 Presentation title

Purpose of presentation Background • Different industries develop differently with respect to Advanced Process Control Purpose • Present status, trends and to suggest research needs within APC in the polyolefin industry © 2008 Borealis AG • In addition: Recruitment 3 9/16/2020 Presentation title

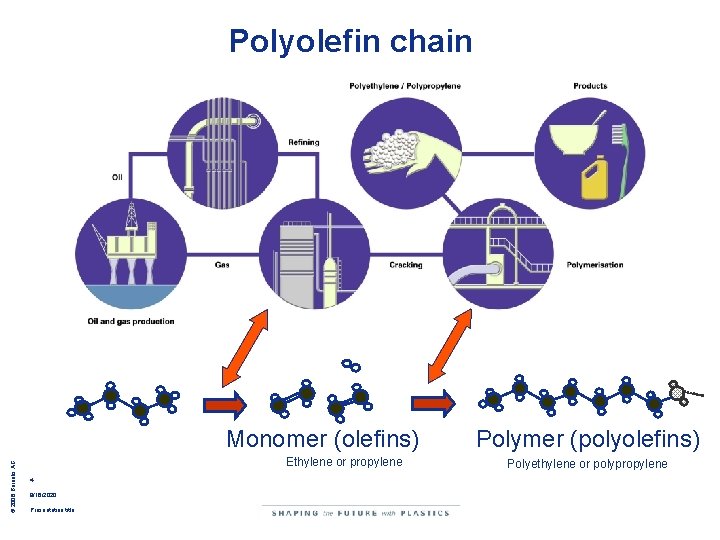

Polyolefin chain © 2008 Borealis AG Monomer (olefins) Ethylene or propylene 4 9/16/2020 Presentation title Polymer (polyolefins) Polyethylene or polypropylene

Providing solutions in Polyolefins infrastructure Copyright © 2008 Borealis AG automotive 5 9/16/2020 Presentation title advanced packaging

Borealis: where we are Borealis locations Production Plants: Austria, Belgium, Brazil, Finland, Germany, Italy, Sweden, United States Innovation Centres: Austria, Finland, Sweden Customer Service Centres: Austria, Belgium, Finland, Germany, Italy, Singapore, Sweden, Turkey, United States Head Office: Austria Borouge locations Production Plant: Ruwais (UAE) Customer Service Centres: Abu Dhabi (UAE), China, India, Singapore Sales Offices: Abu Dhabi (UAE), Australia, China, Lebanon, New Zealand, Saudi Arabia Copyright © 2008 Borealis AG Head Offices: Abu Dhabi (UAE), Singapore 6 9/16/2020 Presentation title

Investment in innovation capability • Expansion at our International Innovation Centre in Linz, Austria • New facilities at the Innovation Centre in Porvoo, Finland • Borstar® PP pilot plant in Schwechat, Austria • Investment in a new Innovation Centre in Abu Dhabi, United Arab Emirates Copyright © 2008 Borealis AG • Continue to leverage capacities at our Innovation Centre Stenungsund, Sweden 7 9/16/2020 Presentation title

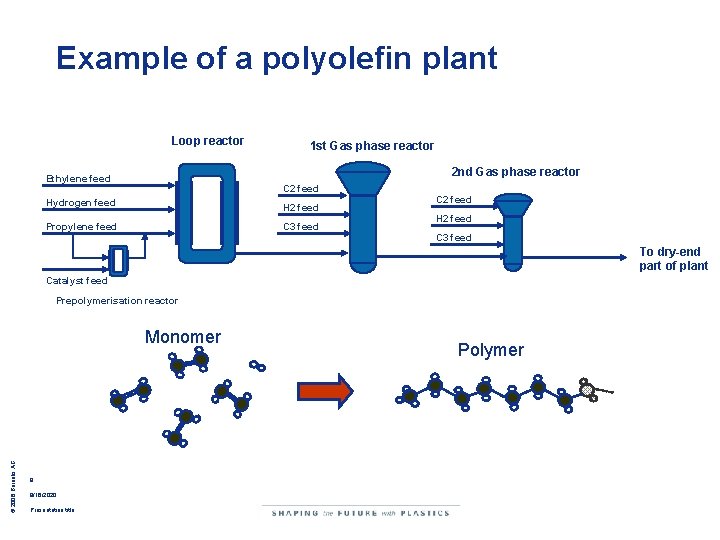

Example of a polyolefin plant Loop reactor 1 st Gas phase reactor 2 nd Gas phase reactor Ethylene feed C 2 feed Hydrogen feed H 2 feed Propylene feed C 3 feed C 2 feed H 2 feed C 3 feed To dry-end part of plant Catalyst feed Prepolymerisation reactor © 2008 Borealis AG Monomer 8 9/16/2020 Presentation title Polymer

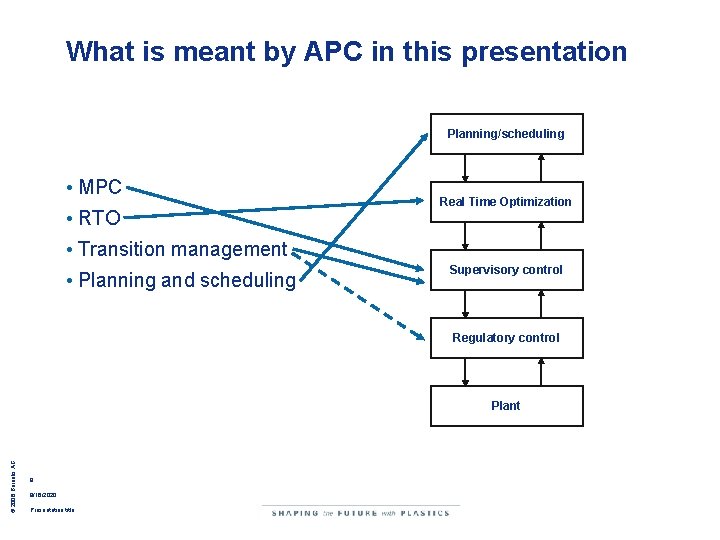

What is meant by APC in this presentation Planning/scheduling • MPC • RTO Real Time Optimization • Transition management • Planning and scheduling Supervisory control Regulatory control © 2008 Borealis AG Plant 9 9/16/2020 Presentation title

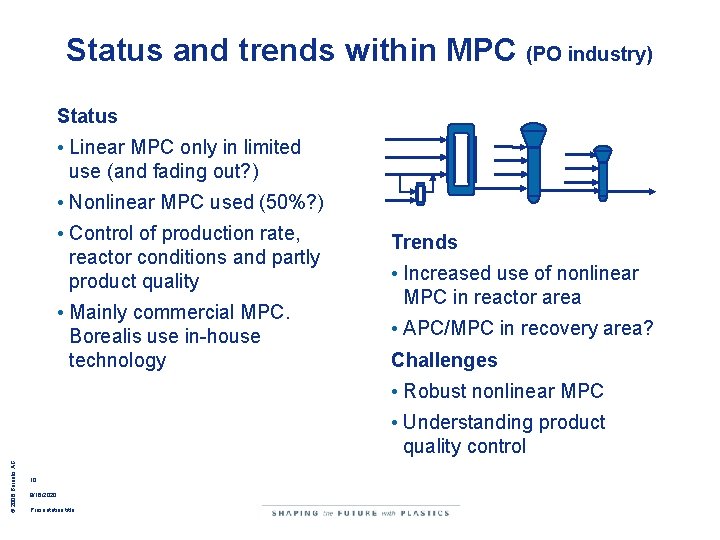

Status and trends within MPC (PO industry) Status • Linear MPC only in limited use (and fading out? ) • Nonlinear MPC used (50%? ) • Control of production rate, reactor conditions and partly product quality • Mainly commercial MPC. Borealis use in-house technology Trends • Increased use of nonlinear MPC in reactor area • APC/MPC in recovery area? Challenges • Robust nonlinear MPC © 2008 Borealis AG • Understanding product quality control 10 9/16/2020 Presentation title

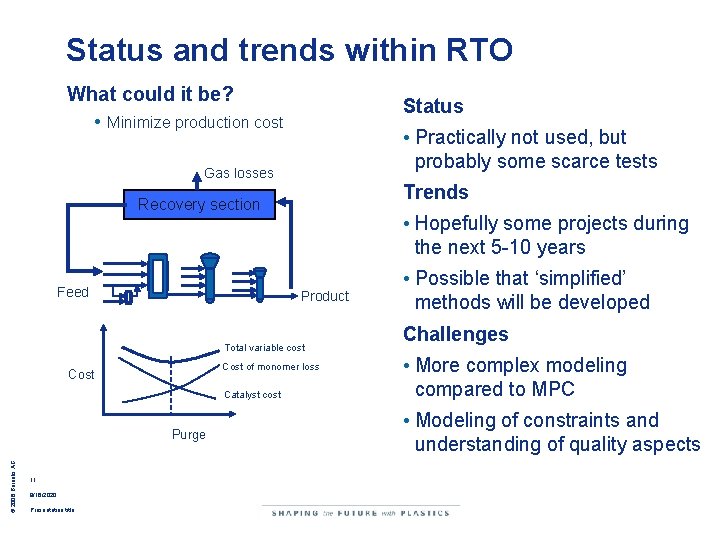

Status and trends within RTO What could it be? • Minimize production cost Status • Practically not used, but probably some scarce tests Gas losses Trends Recovery section Feed • Hopefully some projects during the next 5 -10 years Product Total variable cost Cost of monomer loss Cost Catalyst cost © 2008 Borealis AG Purge 11 9/16/2020 Presentation title • Possible that ‘simplified’ methods will be developed Challenges • More complex modeling compared to MPC • Modeling of constraints and understanding of quality aspects

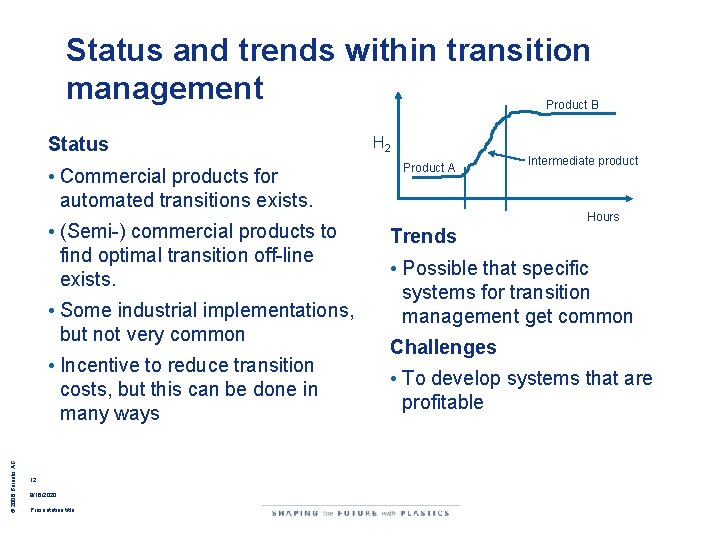

Status and trends within transition management Product B Status • Commercial products for automated transitions exists. • (Semi-) commercial products to find optimal transition off-line exists. • Some industrial implementations, but not very common © 2008 Borealis AG • Incentive to reduce transition costs, but this can be done in many ways 12 9/16/2020 Presentation title H 2 Product A Intermediate product Hours Trends • Possible that specific systems for transition management get common Challenges • To develop systems that are profitable

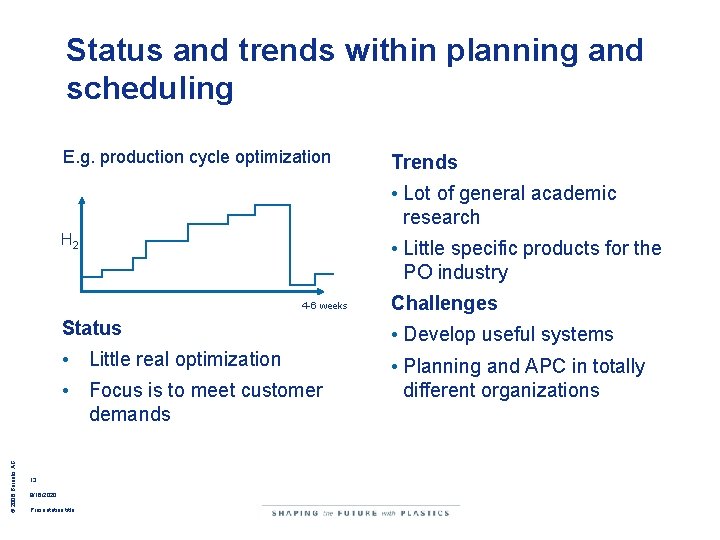

Status and trends within planning and scheduling E. g. production cycle optimization Trends • Lot of general academic research H 2 • Little specific products for the PO industry 4 -6 weeks Status • Develop useful systems • Little real optimization • Planning and APC in totally different organizations • Focus is to meet customer demands © 2008 Borealis AG Challenges 13 9/16/2020 Presentation title

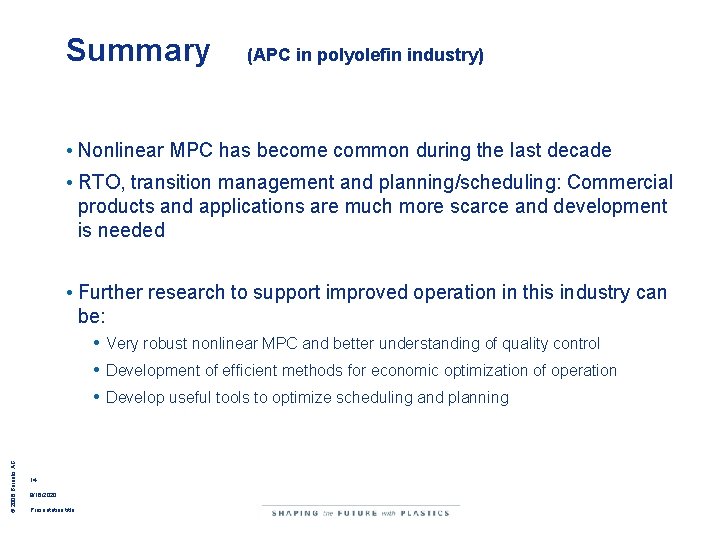

Summary (APC in polyolefin industry) • Nonlinear MPC has become common during the last decade • RTO, transition management and planning/scheduling: Commercial products and applications are much more scarce and development is needed © 2008 Borealis AG • Further research to support improved operation in this industry can be: • Very robust nonlinear MPC and better understanding of quality control • Development of efficient methods for economic optimization of operation • Develop useful tools to optimize scheduling and planning 14 9/16/2020 Presentation title
