Traversing symmetric NAT with predictable port allocation function SIN 2014 Dušan Klinec, Vashek Matyáš Faculty of Informatics, Masaryk University

After you try to find us: 2 I

3 I

Centre for Research on Cryptography and Security 4 I

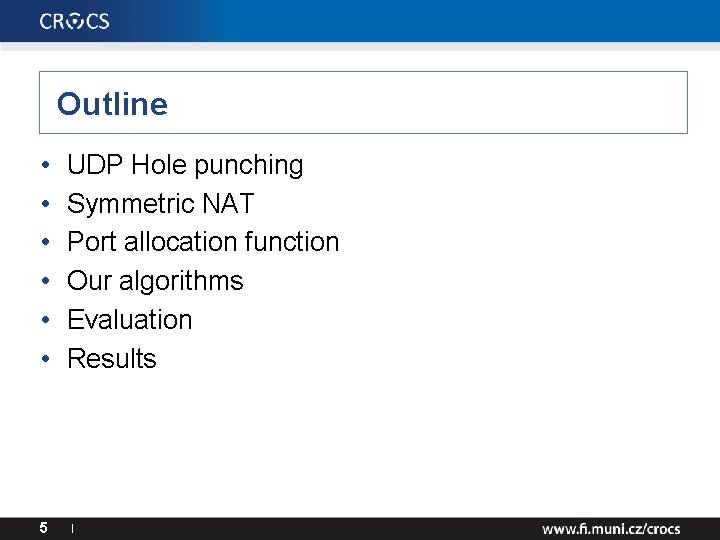

Outline • • • 5 UDP Hole punching Symmetric NAT Port allocation function Our algorithms Evaluation Results I

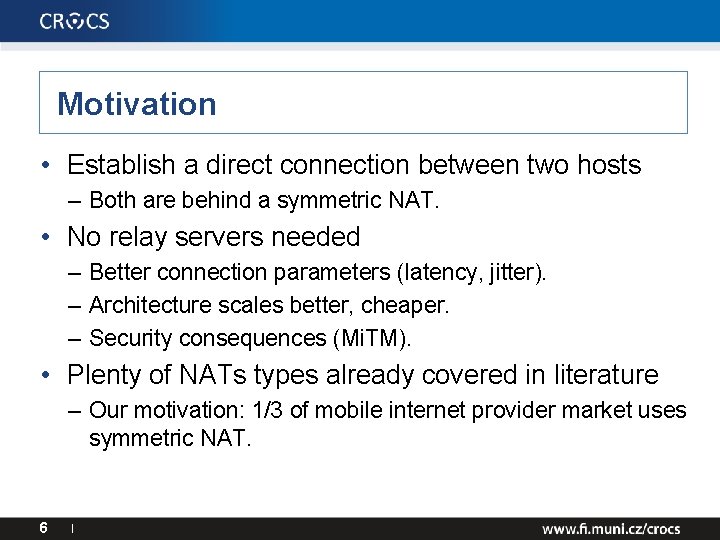

Motivation • Establish a direct connection between two hosts – Both are behind a symmetric NAT. • No relay servers needed – Better connection parameters (latency, jitter). – Architecture scales better, cheaper. – Security consequences (Mi. TM). • Plenty of NATs types already covered in literature – Our motivation: 1/3 of mobile internet provider market uses symmetric NAT. 6 I

UDP Hole punching 7 I

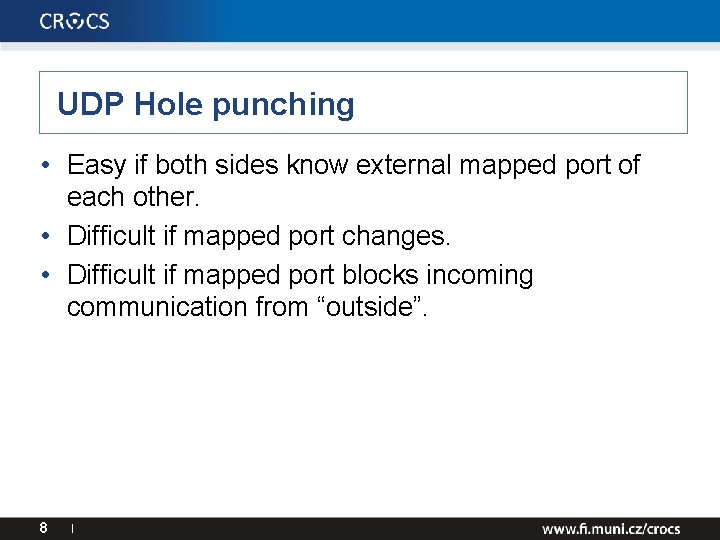

UDP Hole punching • Easy if both sides know external mapped port of each other. • Difficult if mapped port changes. • Difficult if mapped port blocks incoming communication from “outside”. 8 I

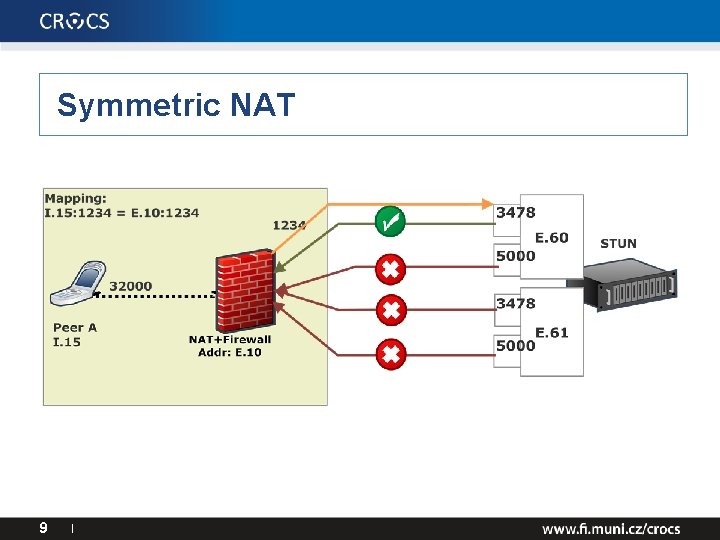

Symmetric NAT 9 I

Port allocation function 10 I

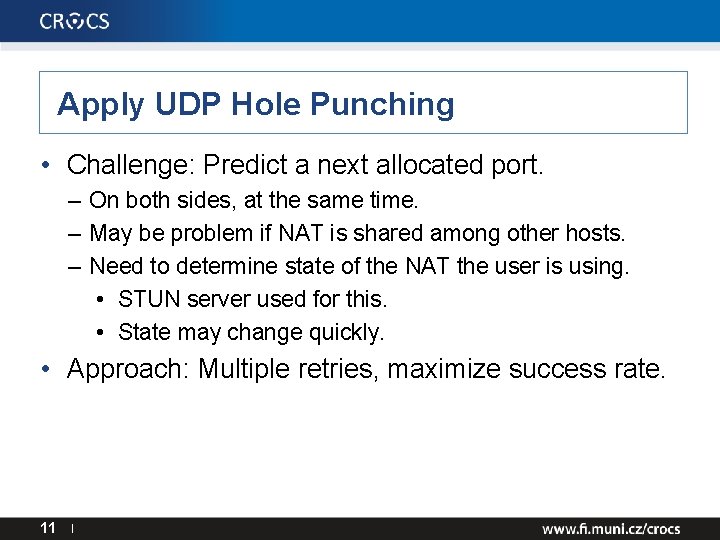

Apply UDP Hole Punching • Challenge: Predict a next allocated port. – On both sides, at the same time. – May be problem if NAT is shared among other hosts. – Need to determine state of the NAT the user is using. • STUN server used for this. • State may change quickly. • Approach: Multiple retries, maximize success rate. 11 I

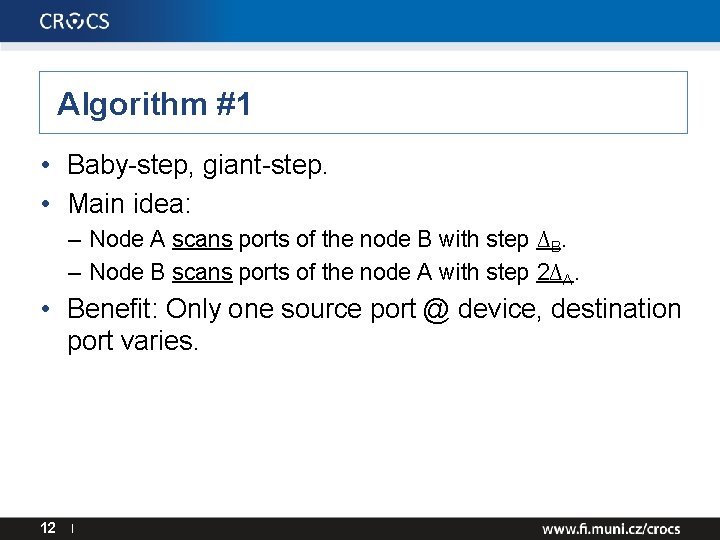

Algorithm #1 • Baby-step, giant-step. • Main idea: – Node A scans ports of the node B with step ∆B. – Node B scans ports of the node A with step 2∆A. • Benefit: Only one source port @ device, destination port varies. 12 I

13

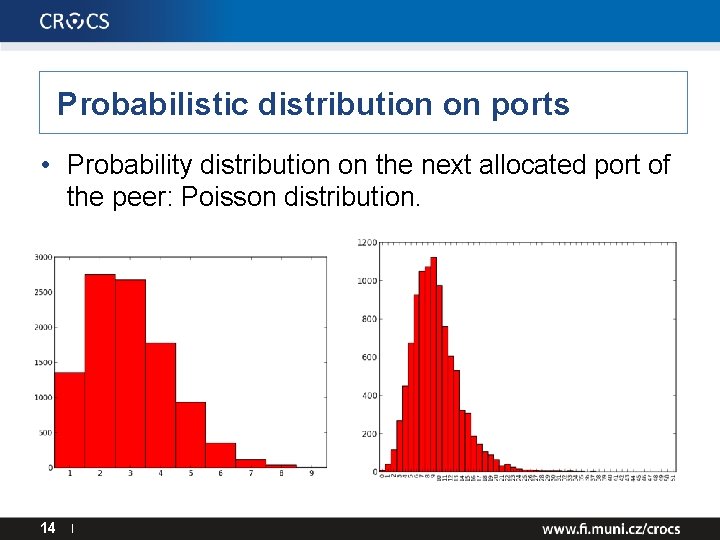

Probabilistic distribution on ports • Probability distribution on the next allocated port of the peer: Poisson distribution. 14 I

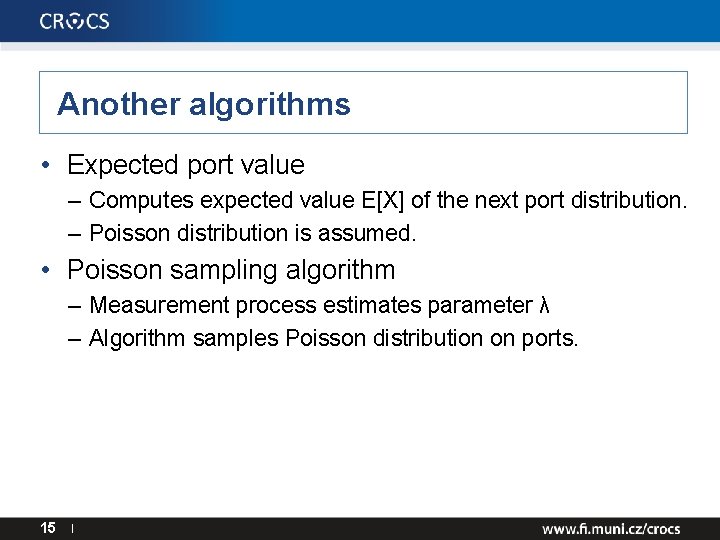

Another algorithms • Expected port value – Computes expected value E[X] of the next port distribution. – Poisson distribution is assumed. • Poisson sampling algorithm – Measurement process estimates parameter λ – Algorithm samples Poisson distribution on ports. 15 I

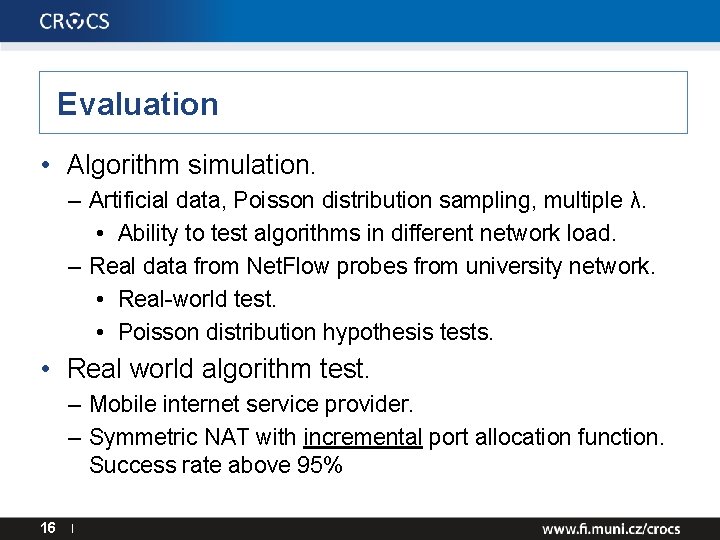

Evaluation • Algorithm simulation. – Artificial data, Poisson distribution sampling, multiple λ. • Ability to test algorithms in different network load. – Real data from Net. Flow probes from university network. • Real-world test. • Poisson distribution hypothesis tests. • Real world algorithm test. – Mobile internet service provider. – Symmetric NAT with incremental port allocation function. Success rate above 95% 16 I

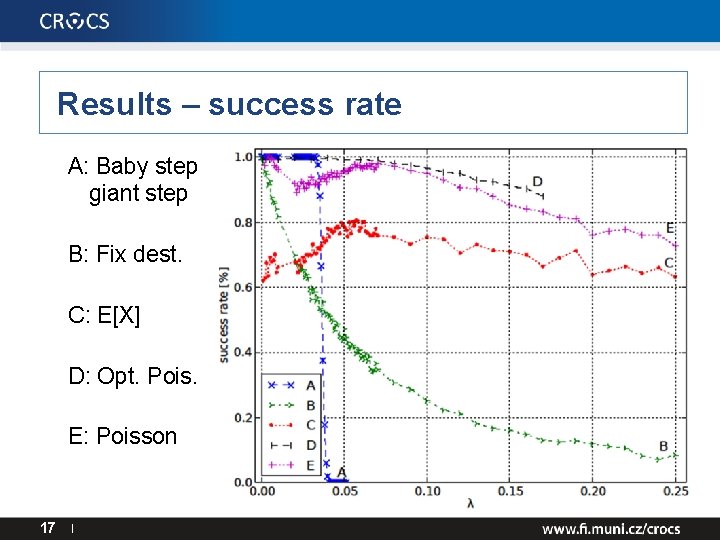

Results – success rate A: Baby step giant step B: Fix dest. C: E[X] D: Opt. Pois. E: Poisson 17 I

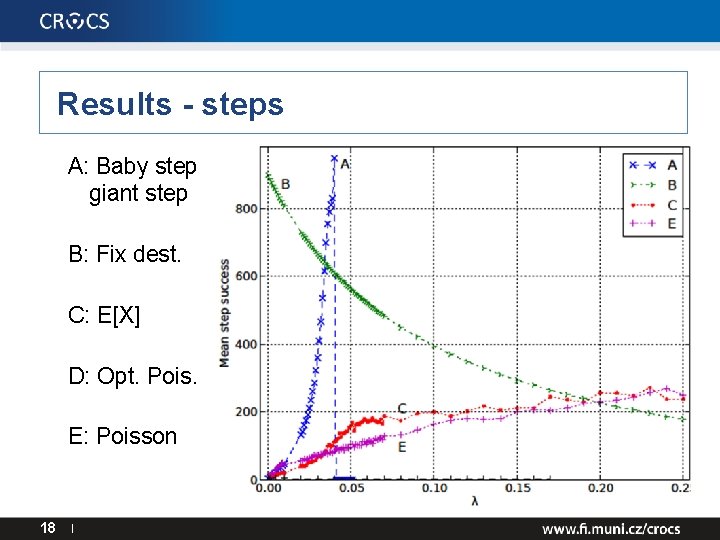

Results - steps A: Baby step giant step B: Fix dest. C: E[X] D: Opt. Pois. E: Poisson 18 I

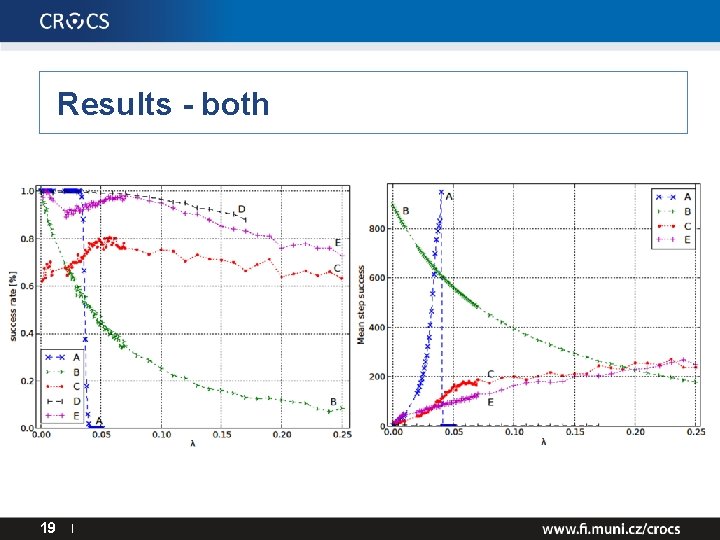

Results - both 19 I

Thank you for your attention! Questions? 20 I
