Travel Sensor Is Factory Adjusted l l The

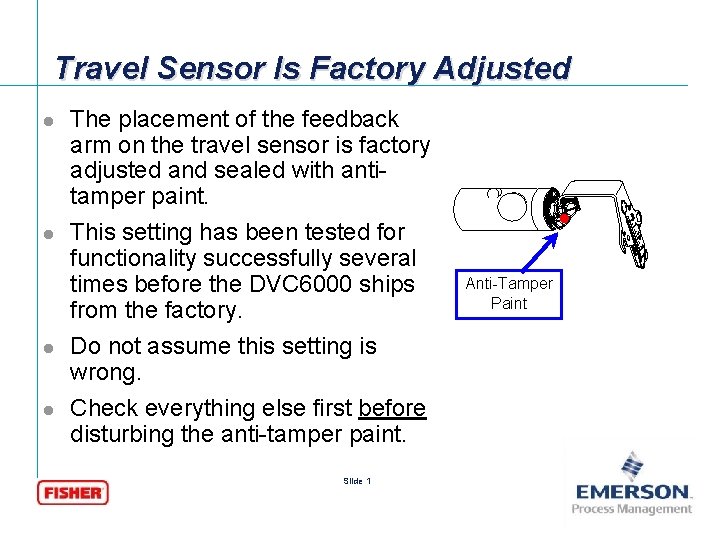

Travel Sensor Is Factory Adjusted l l The placement of the feedback arm on the travel sensor is factory adjusted and sealed with antitamper paint. This setting has been tested for functionality successfully several times before the DVC 6000 ships from the factory. Do not assume this setting is wrong. Check everything else first before disturbing the anti-tamper paint. Slide 1 [File Name or Event] Emerson Confidential 27 -Jun-01, Slide 1 Anti-Tamper Paint

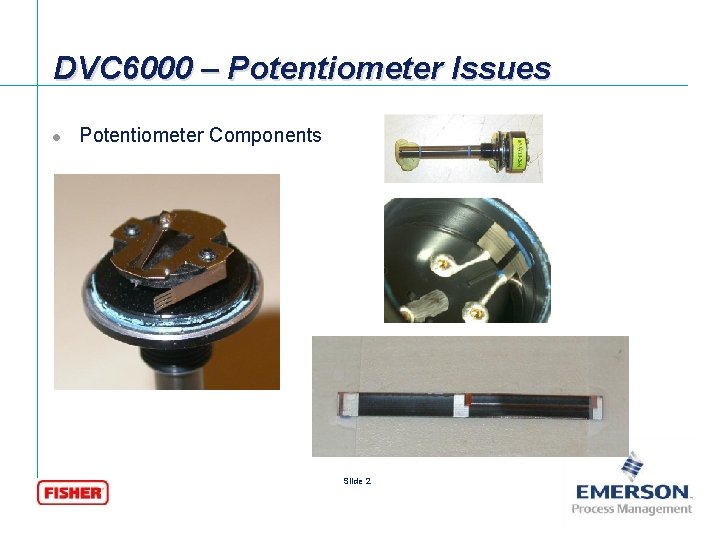

DVC 6000 – Potentiometer Issues l Potentiometer Components Slide 2 [File Name or Event] Emerson Confidential 27 -Jun-01, Slide 2

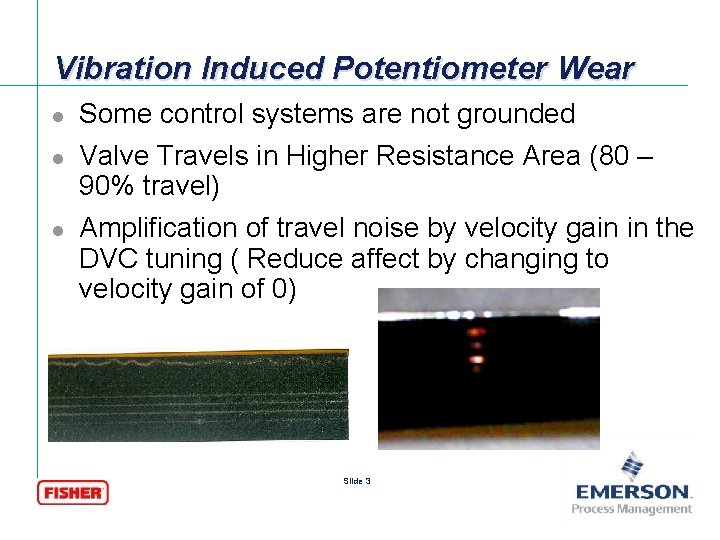

Vibration Induced Potentiometer Wear l l l Some control systems are not grounded Valve Travels in Higher Resistance Area (80 – 90% travel) Amplification of travel noise by velocity gain in the DVC tuning ( Reduce affect by changing to velocity gain of 0) Slide 3 [File Name or Event] Emerson Confidential 27 -Jun-01, Slide 3

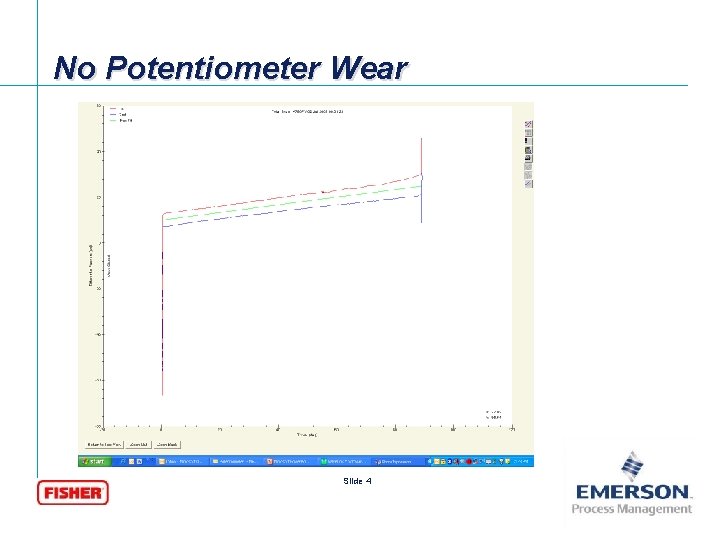

No Potentiometer Wear Slide 4 [File Name or Event] Emerson Confidential 27 -Jun-01, Slide 4

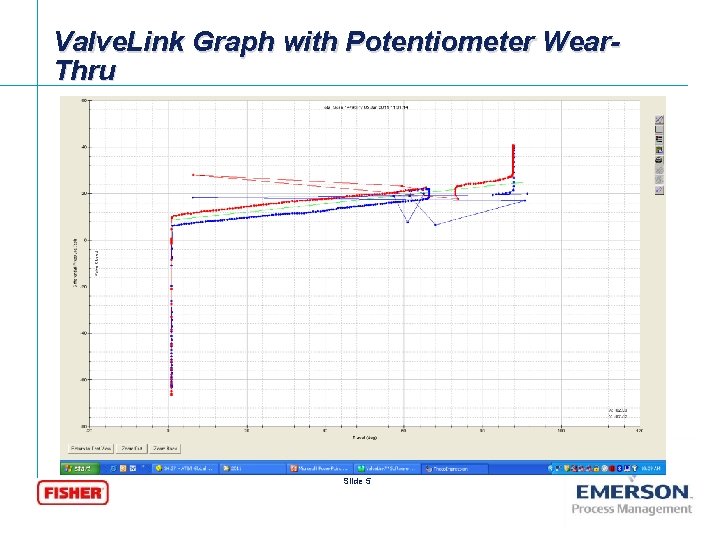

Valve. Link Graph with Potentiometer Wear. Thru Slide 5 [File Name or Event] Emerson Confidential 27 -Jun-01, Slide 5

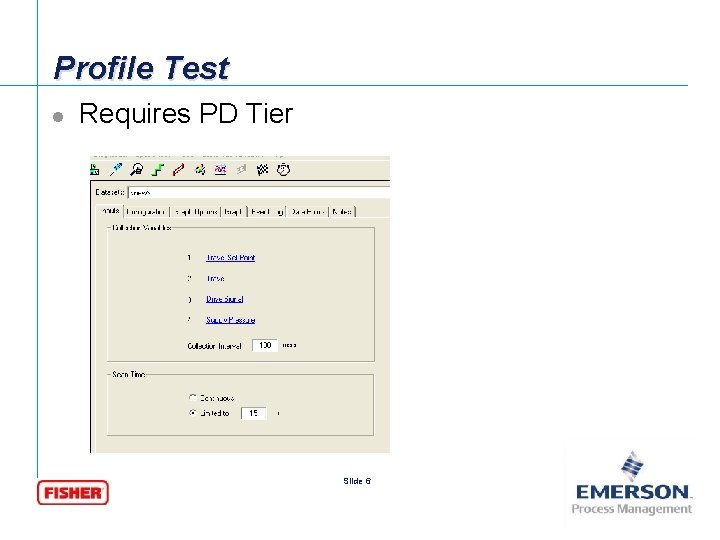

Profile Test l Requires PD Tier Slide 6 [File Name or Event] Emerson Confidential 27 -Jun-01, Slide 6

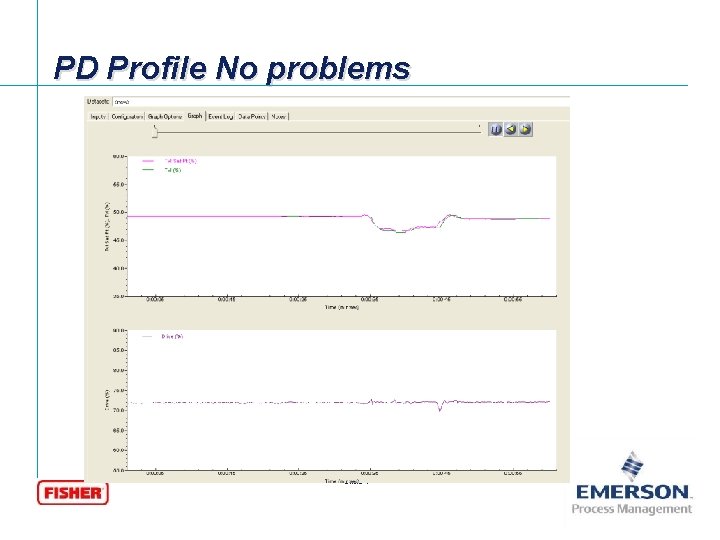

PD Profile No problems Slide 7 [File Name or Event] Emerson Confidential 27 -Jun-01, Slide 7

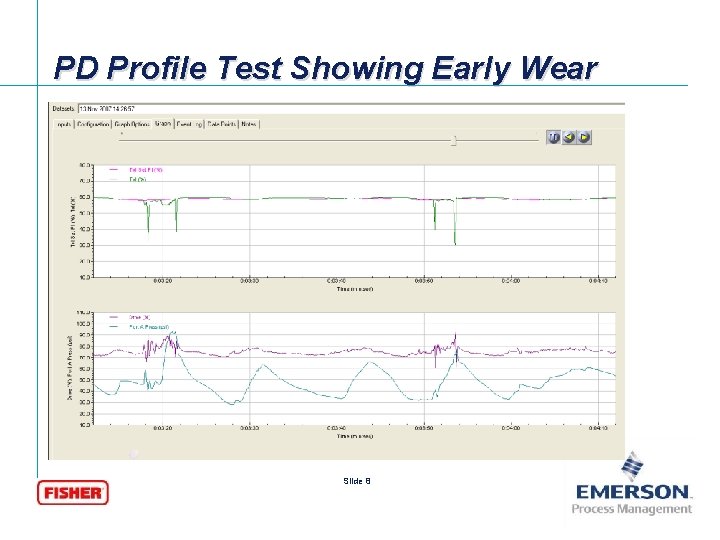

PD Profile Test Showing Early Wear Slide 8 [File Name or Event] Emerson Confidential 27 -Jun-01, Slide 8

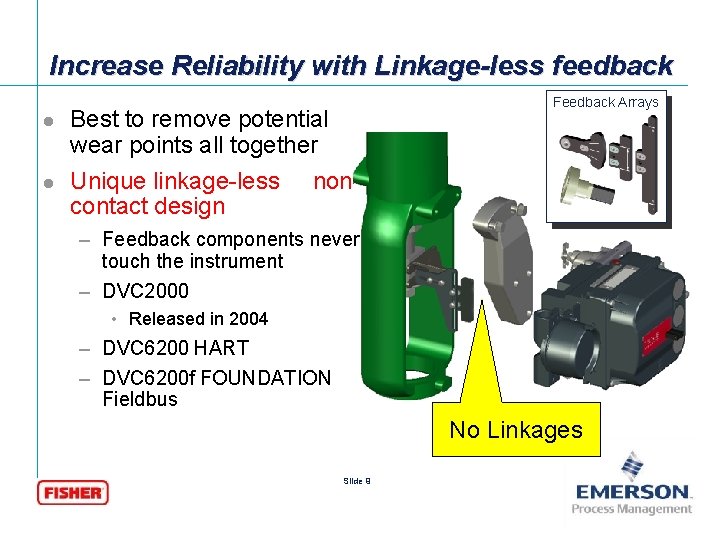

Increase Reliability with Linkage-less feedback l l Best to remove potential wear points all together Unique linkage-less noncontact design Feedback Arrays – Feedback components never touch the instrument – DVC 2000 • Released in 2004 – DVC 6200 HART – DVC 6200 f FOUNDATION Fieldbus No Linkages Slide 9 [File Name or Event] Emerson Confidential 27 -Jun-01, Slide 9

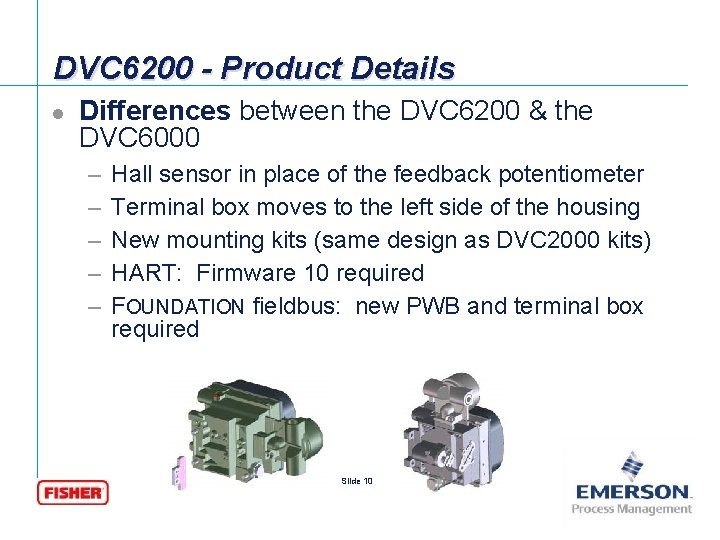

DVC 6200 - Product Details l Differences between the DVC 6200 & the DVC 6000 – – – Hall sensor in place of the feedback potentiometer Terminal box moves to the left side of the housing New mounting kits (same design as DVC 2000 kits) HART: Firmware 10 required FOUNDATION fieldbus: new PWB and terminal box required Slide 10 [File Name or Event] Emerson Confidential 27 -Jun-01, Slide 10

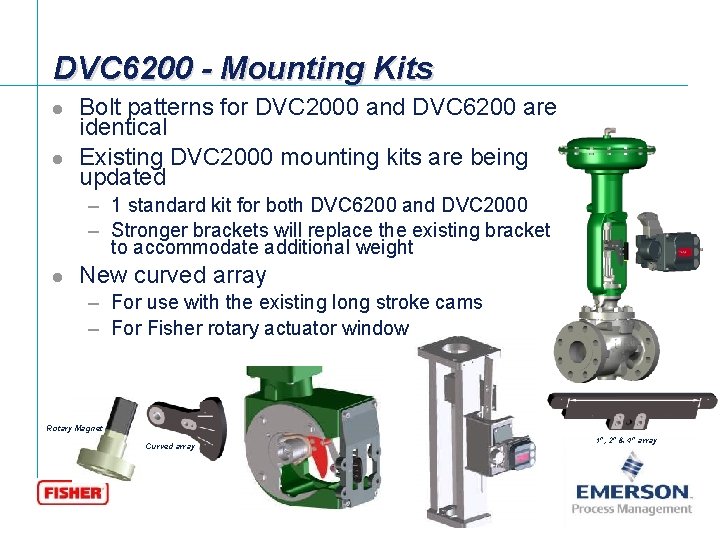

DVC 6200 - Mounting Kits l l Bolt patterns for DVC 2000 and DVC 6200 are identical Existing DVC 2000 mounting kits are being updated – 1 standard kit for both DVC 6200 and DVC 2000 – Stronger brackets will replace the existing brackets to accommodate additional weight l New curved array – For use with the existing long stroke cams – For Fisher rotary actuator window Rotary Magnet 1”, 2” & 4” array Curved array Slide 11 [File Name or Event] Emerson Confidential 27 -Jun-01, Slide 11

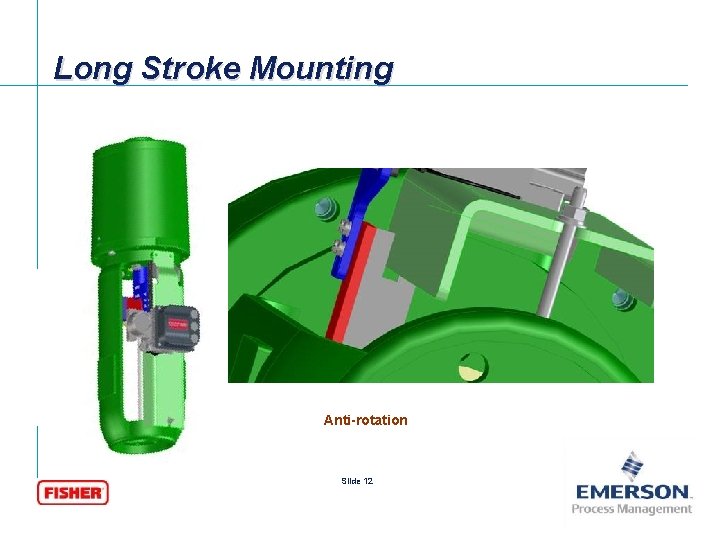

Long Stroke Mounting Anti-rotation Slide 12 [File Name or Event] Emerson Confidential 27 -Jun-01, Slide 12

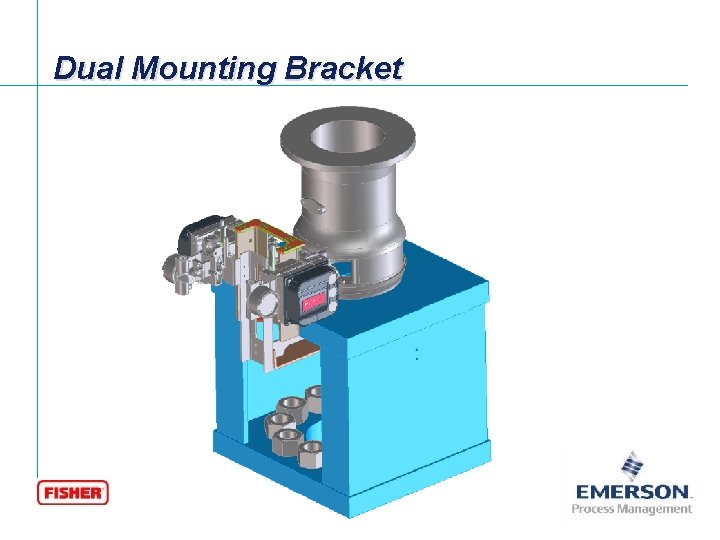

Dual Mounting Bracket Slide 13 [File Name or Event] Emerson Confidential 27 -Jun-01, Slide 13

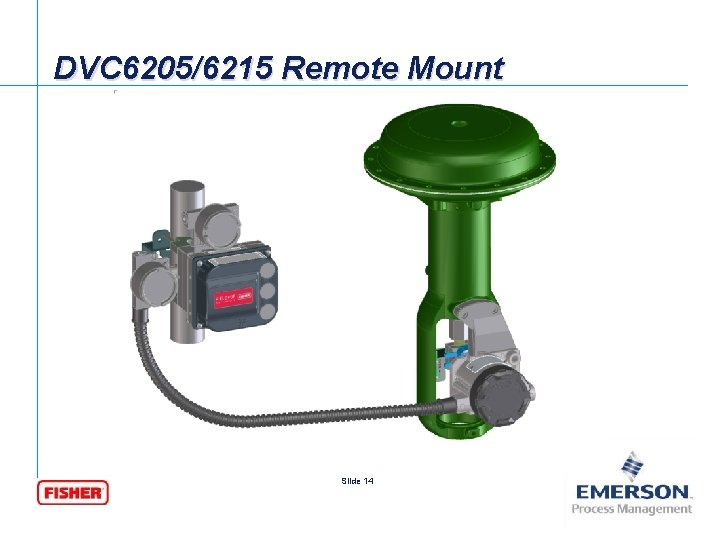

DVC 6205/6215 Remote Mount Slide 14 [File Name or Event] Emerson Confidential 27 -Jun-01, Slide 14

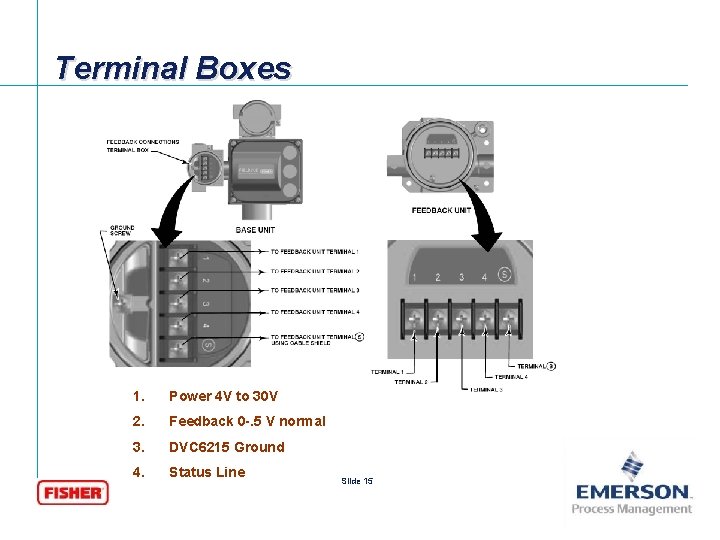

Terminal Boxes 1. Power 4 V to 30 V 2. Feedback 0 -. 5 V normal 3. DVC 6215 Ground 4. Status Line [File Name or Event] Emerson Confidential 27 -Jun-01, Slide 15

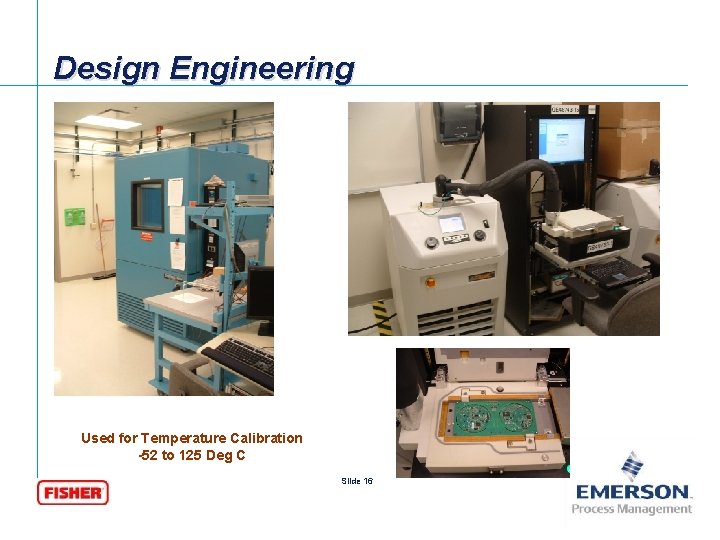

Design Engineering Used for Temperature Calibration -52 to 125 Deg C Slide 16 [File Name or Event] Emerson Confidential 27 -Jun-01, Slide 16

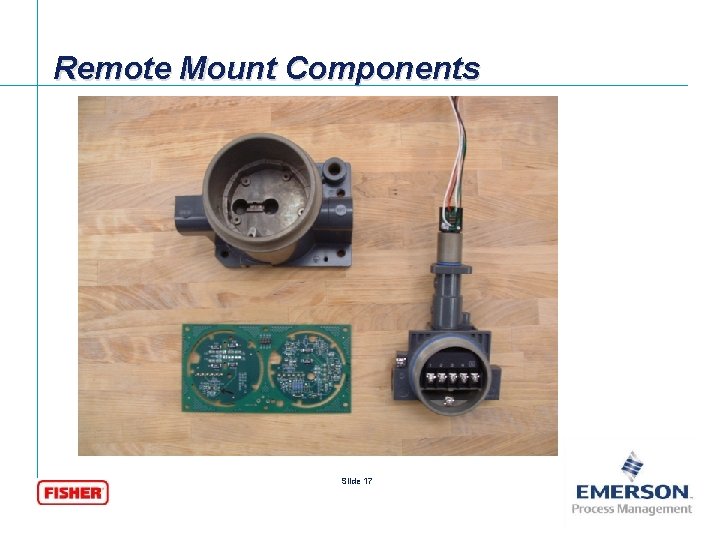

Remote Mount Components Slide 17 [File Name or Event] Emerson Confidential 27 -Jun-01, Slide 17

Valve. Link Mobile

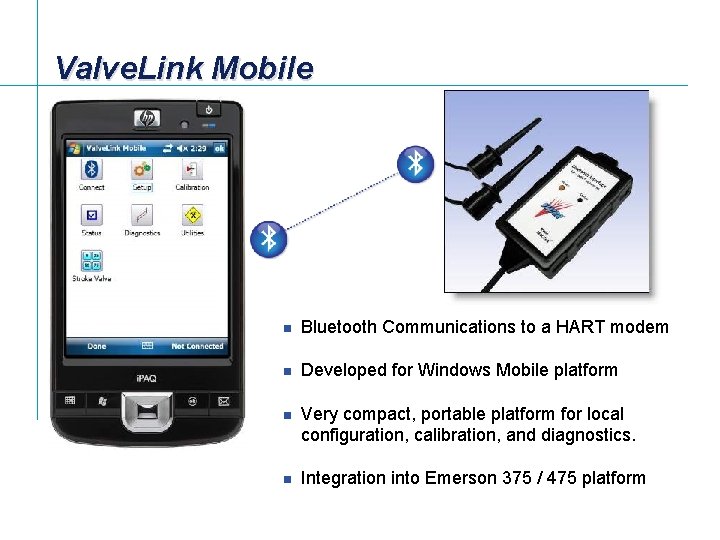

Valve. Link Mobile n Bluetooth Communications to a HART modem n Developed for Windows Mobile platform n Very compact, portable platform for local configuration, calibration, and diagnostics. n [File Name or Event] Emerson Confidential 27 -Jun-01, Slide 19 Integration into Emerson 375 / 475 platform

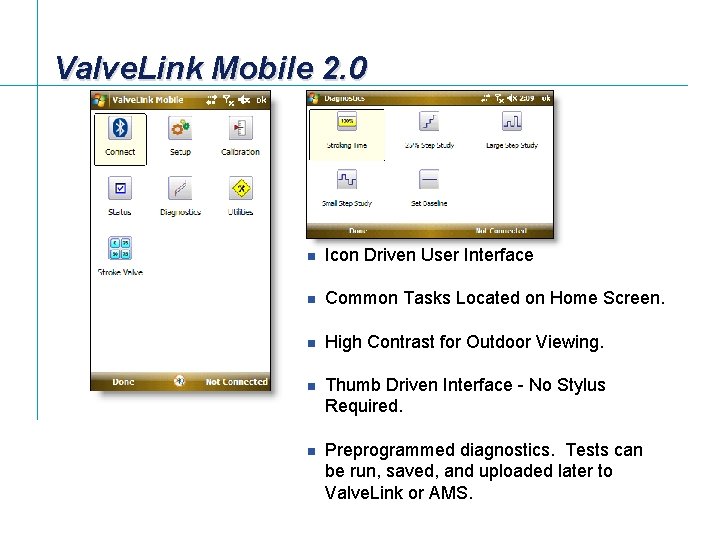

Valve. Link Mobile 2. 0 [File Name or Event] Emerson Confidential 27 -Jun-01, Slide 20 n Icon Driven User Interface n Common Tasks Located on Home Screen. n High Contrast for Outdoor Viewing. n Thumb Driven Interface - No Stylus Required. n Preprogrammed diagnostics. Tests can be. Slide run, saved, and uploaded later to 20 Valve. Link or AMS.

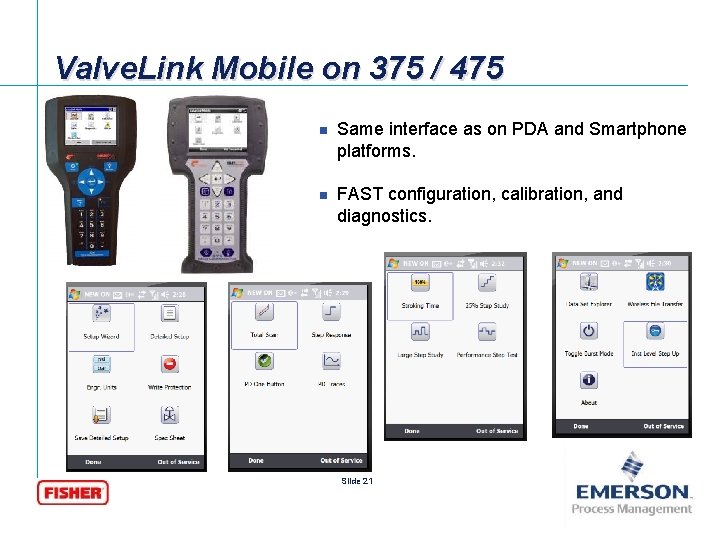

Valve. Link Mobile on 375 / 475 n Same interface as on PDA and Smartphone platforms. n FAST configuration, calibration, and diagnostics. Slide 21 [File Name or Event] Emerson Confidential 27 -Jun-01, Slide 21

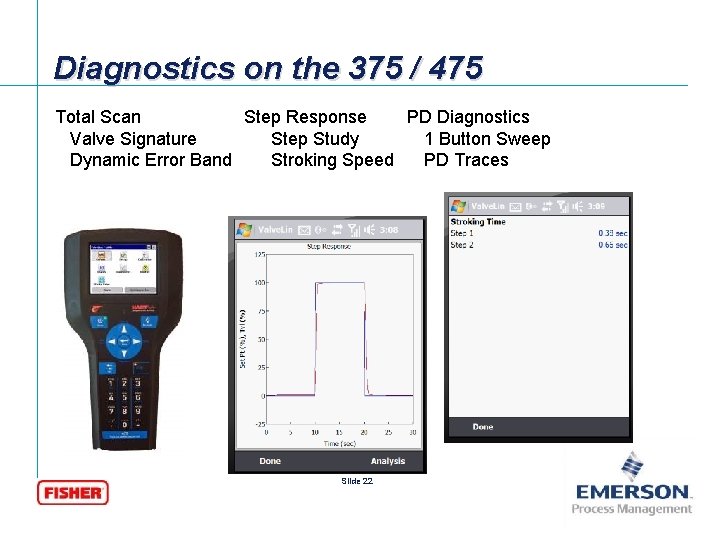

Diagnostics on the 375 / 475 Total Scan Step Response PD Diagnostics Valve Signature Step Study 1 Button Sweep Dynamic Error Band Stroking Speed PD Traces Slide 22 [File Name or Event] Emerson Confidential 27 -Jun-01, Slide 22

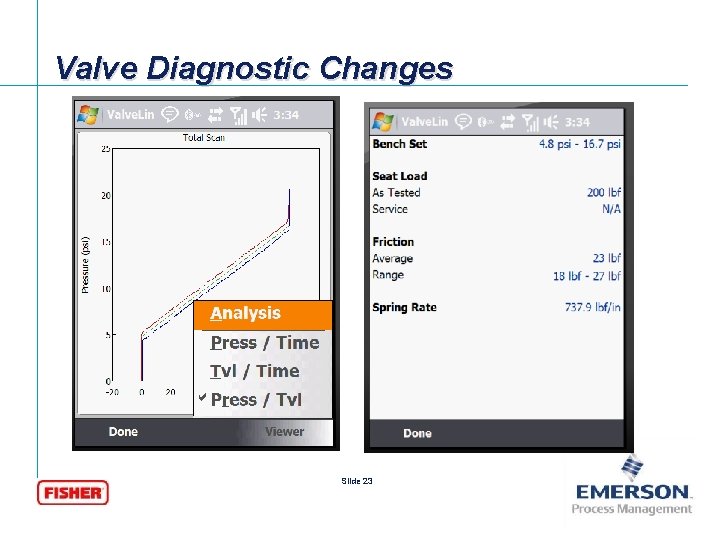

Valve Diagnostic Changes Slide 23 [File Name or Event] Emerson Confidential 27 -Jun-01, Slide 23

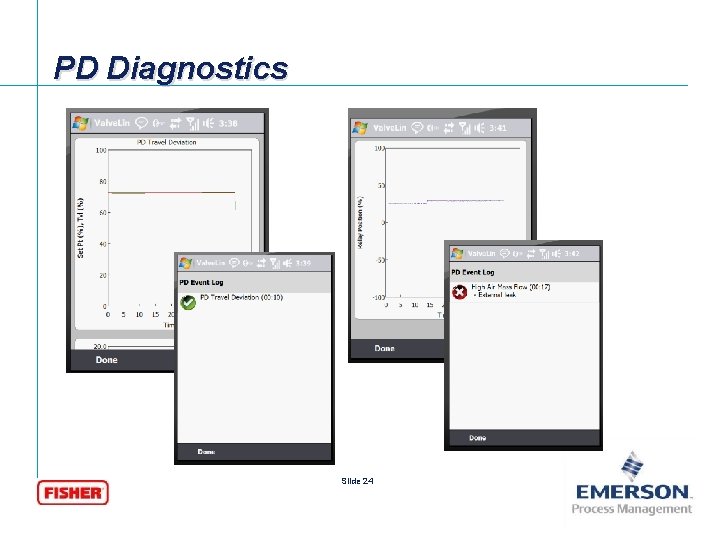

PD Diagnostics Slide 24 [File Name or Event] Emerson Confidential 27 -Jun-01, Slide 24

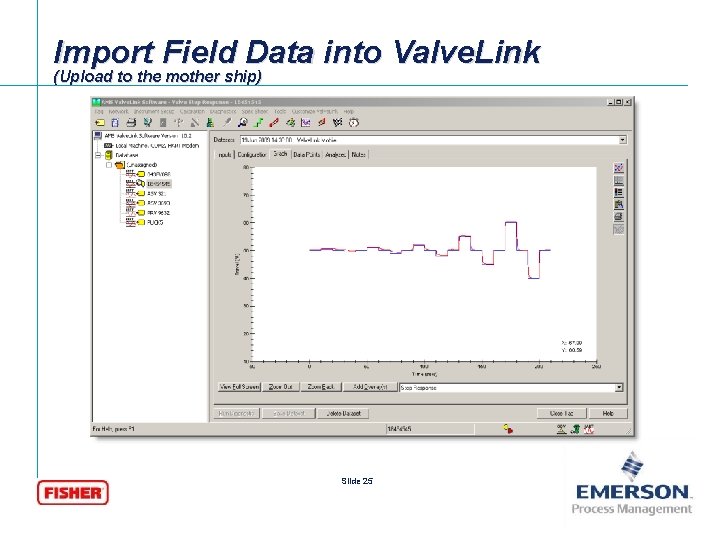

Import Field Data into Valve. Link (Upload to the mother ship) Slide 25 [File Name or Event] Emerson Confidential 27 -Jun-01, Slide 25

Valve. Link Support

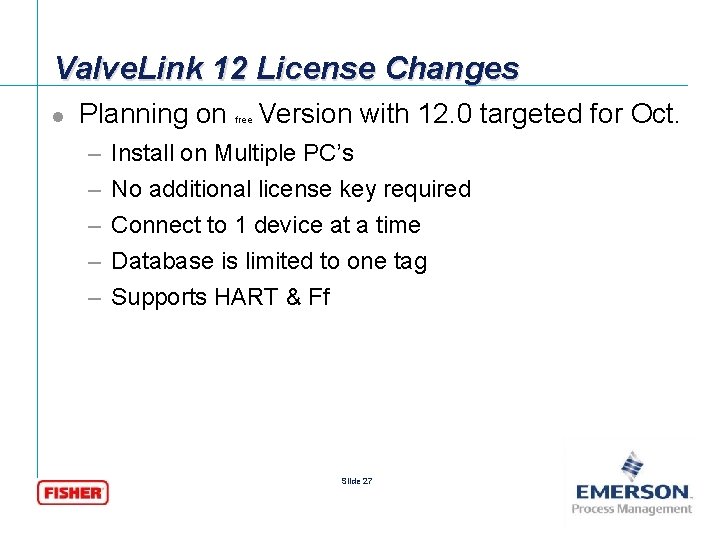

Valve. Link 12 License Changes l Planning on – – – free Version with 12. 0 targeted for Oct. Install on Multiple PC’s No additional license key required Connect to 1 device at a time Database is limited to one tag Supports HART & Ff Slide 27 [File Name or Event] Emerson Confidential 27 -Jun-01, Slide 27

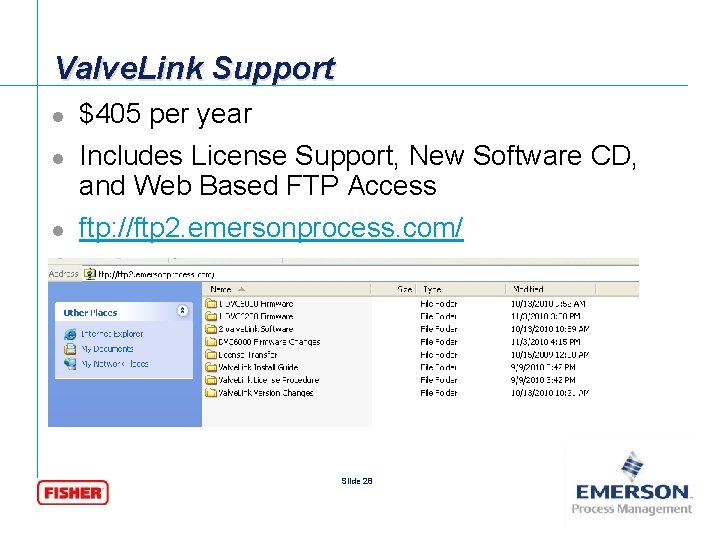

Valve. Link Support l l l $405 per year Includes License Support, New Software CD, and Web Based FTP Access ftp: //ftp 2. emersonprocess. com/ Slide 28 [File Name or Event] Emerson Confidential 27 -Jun-01, Slide 28
