TRANSVERTERS – “TAKE’S US SOMEWHERE ELSE” 50 MHZ and Above

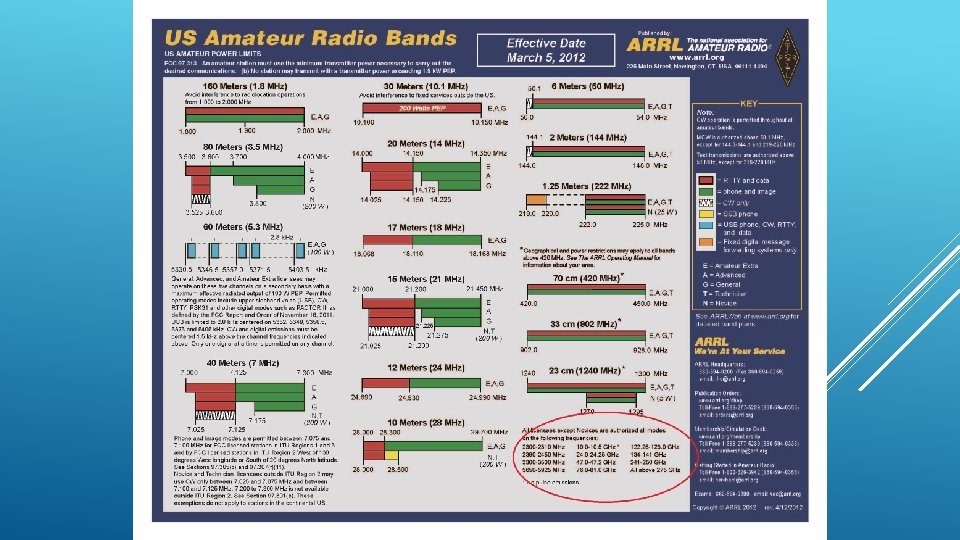

DO YOU WANT TO TRY -> 2304 MHz 3456 MHz 5706 MHz 10368 MHz And Higher? We have allocations PAST 250 GHZ
You Will Need A Transverter!
WHAT IS A TRANSVERTER? A Transverter is a RF device that consists of an Upconverter and a Downconverter in one unit. Transverters are used in conjunction with transceivers to change the range of frequencies over which the “Transceiver” can operate.
TRANSVERTERS PLAY WELL WITH OTHERS! Transverters are most commonly used to convert radio transceivers designed for use on HF to operate on higher frequency (VHF) bands. I. E 10 meters to 6 Meters / 2 Meters / 1. 25 Meters. Transverters are most commonly used to convert radio transceivers designed for use on the VHF 144 MHZ band (2 meters) to operate on even higher frequency bands (Microwave). I. E. 2 Meters to 1296 / 2304 / 3456 / 5760 / 10. 368 A transceiver - HF or 144 MHZ - used in this fashion is referred to as an “IF” radio. Indicating that it connects into the “IF” the Intermediate Frequency in the chain of the transceiver’s stages.

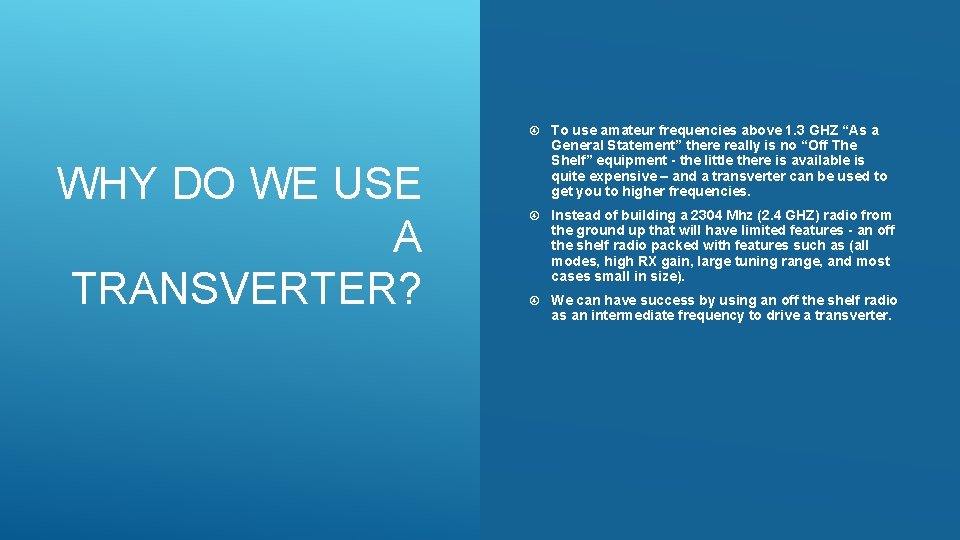

WHY DO WE USE A TRANSVERTER? To use amateur frequencies above 1. 3 GHZ “As a General Statement” there really is no “Off The Shelf” equipment - the little there is available is quite expensive – and a transverter can be used to get you to higher frequencies. Instead of building a 2304 Mhz (2. 4 GHZ) radio from the ground up that will have limited features - an off the shelf radio packed with features such as (all modes, high RX gain, large tuning range, and most cases small in size). We can have success by using an off the shelf radio as an intermediate frequency to drive a transverter.
HOW IT WORKS? A transverter just an extra stage with another with a mixer and oscillator. AS An Example: The transmit output of the 2 m radio is passed through an attenuator to limit the signal - low enough - to be mixed with the LO “local oscillator” of the transverter. (144 Mhz + 1152 Mhz = 1296 Mhz) The transverter “ADDS” the required 1152 mhz in the mix. This “Mix” is passed through a band pass filter to produce the final output frequency (1296 Mhz). The signal is amplified and then sent out the antenna port. 144 MHZ TO 1. 2 GHZ “TRANSMIT SIDE”
HOW IT WORKS? 1. 2 GHZ TO 144 MHZ “RECEIVE SIDE” On receive the same happens again. The incoming RF signal is amplified and then mixed with the transverter LO (local oscillator) to produce 144 Mhz for the radios input.

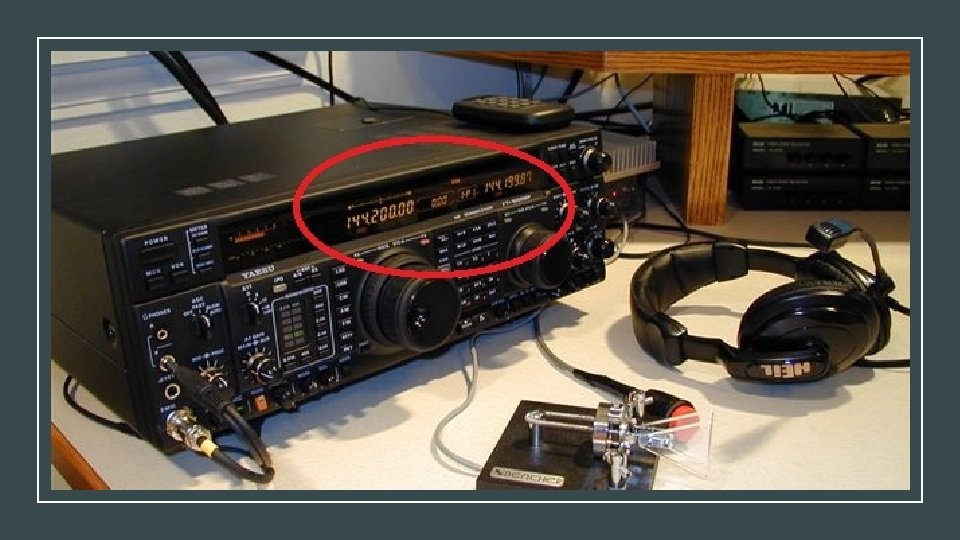

IF Radio “Yaesu 817” Set at 144. 100 USB 1296 Transverter 144. 100 -> 1296. 100 USB 1296 Ant 144 to 1296 Transverter Setup
WHAT GOES IN COMES OUT. Whatever mode you input to the transverter – that same mode will come out. Transverter does not need a mode change. 144 MHZ FM IN –> 1296 MHZ FM OUT.
THE NUMBERS ARE THE SAME!. Transverter “design principles” are the SAME for all frequencies. Higher frequencies have one common issue “Frequency Stability”! Tighter design and setup is required the higher you go in frequency. Temperature Control is CRITICAL! Frequency stability with 10 MHz an external reference i. e. GPS is required. YES – It can get complicated!
Getting High YEARS BACK
Before The Transverter
We Had “Converters”
“Converters” For Receive
“Daytong”
“Drake SC 6 ” For Receive 6 Meters
“Drake SC 2 ” For Receive 2 Meters
“Drake CCI ” Housing For Receive Converters
“Converters” For Transmit

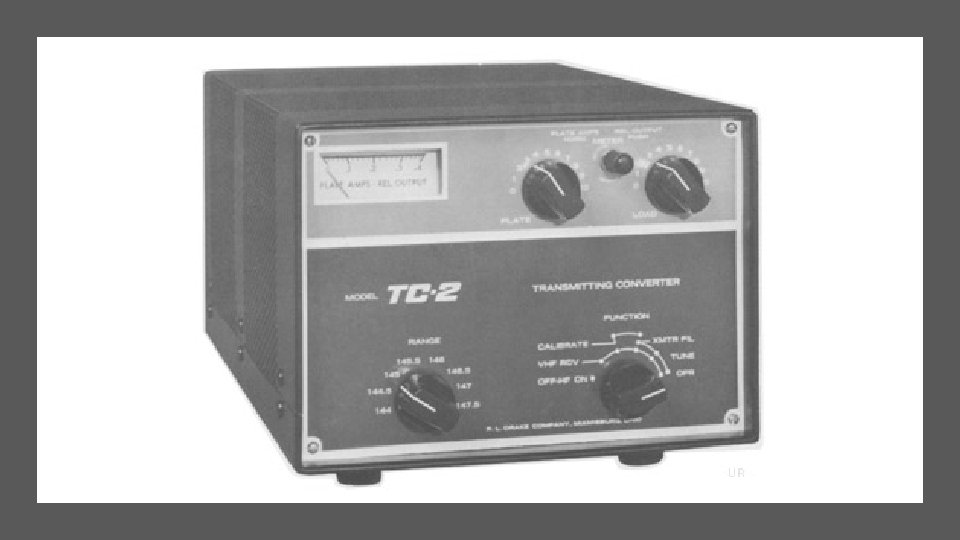

“Drake TC 2 ” For Receive 2 Meters

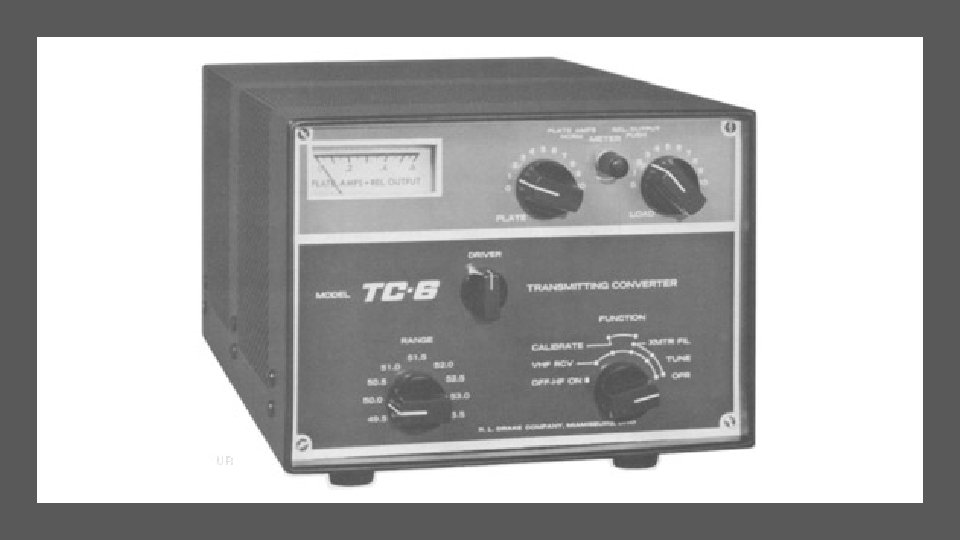

“Drake TC 6 ” For Receive 6 Meters
“The Cadillac” Back In The Day!
“The Cherry” on Top!
Some Early Transverters
SB-500 2 m Transverter
Heathkit SB-500

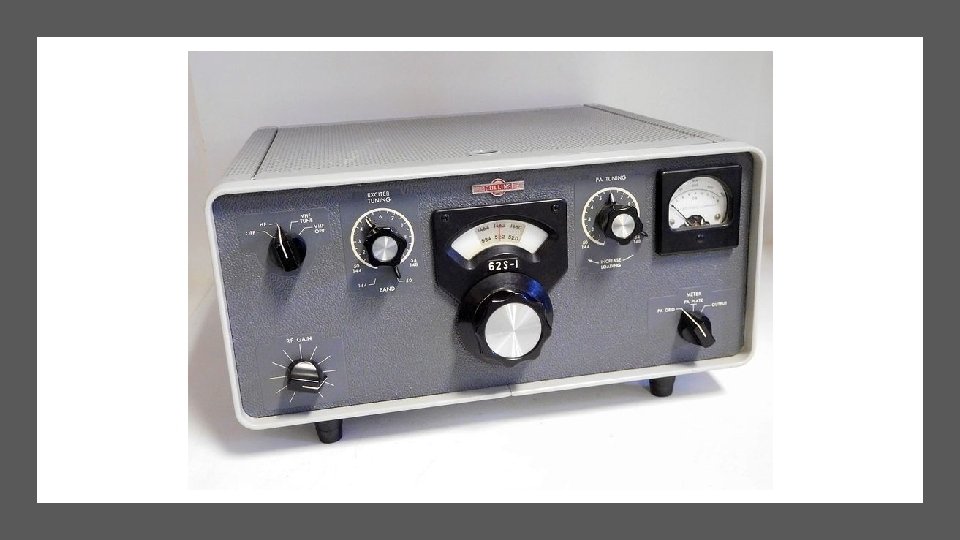

Collins 62 S-1 Transverter
Kenwood Transverter

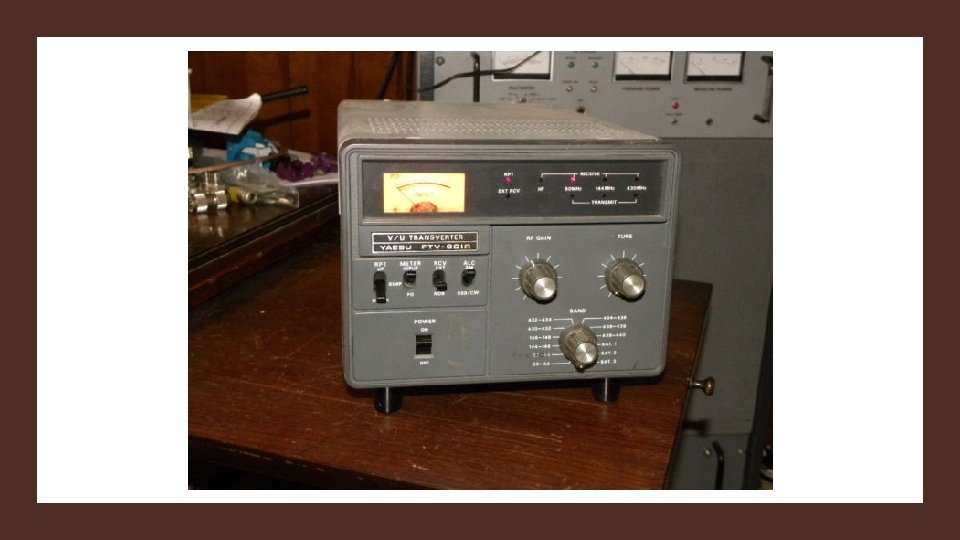

Yaesu Transverter

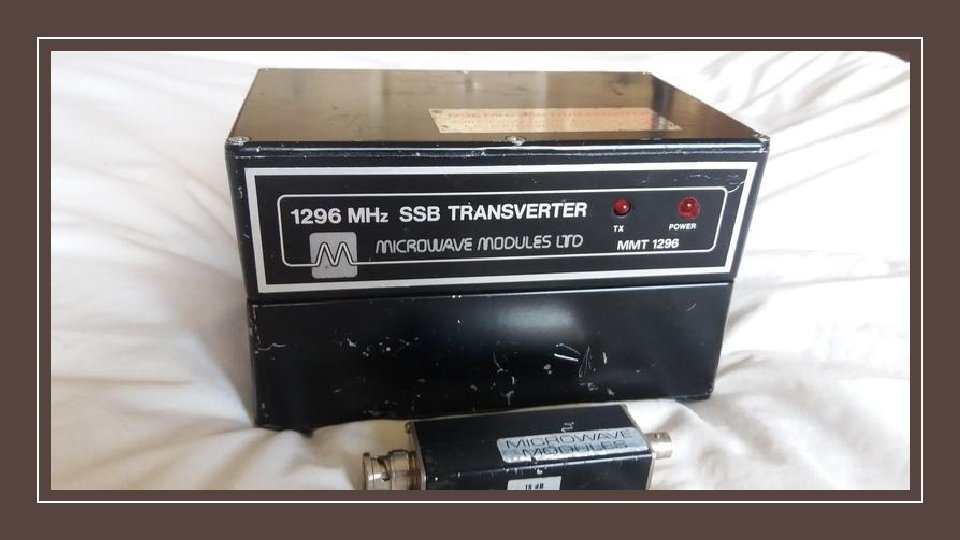

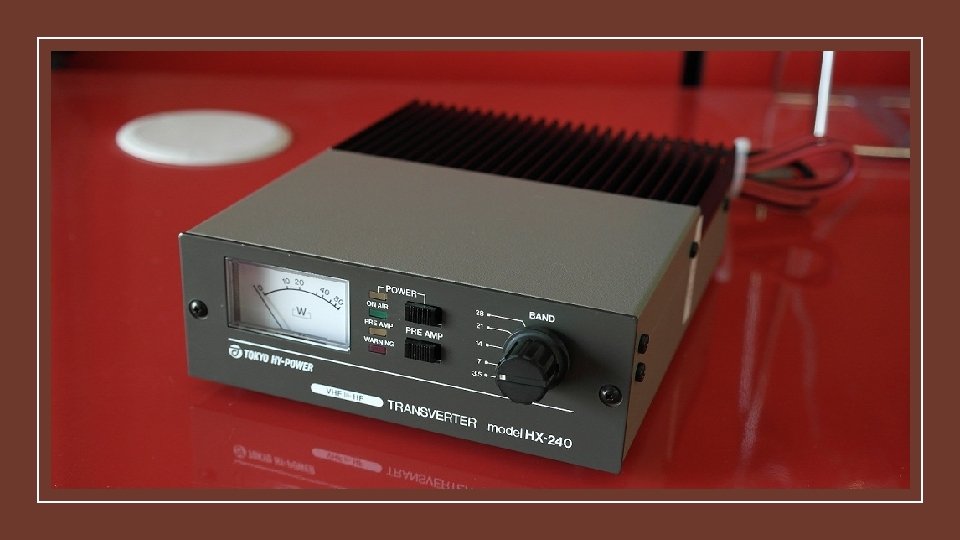

Popular 80’s 90’s Transverters Independent Companies

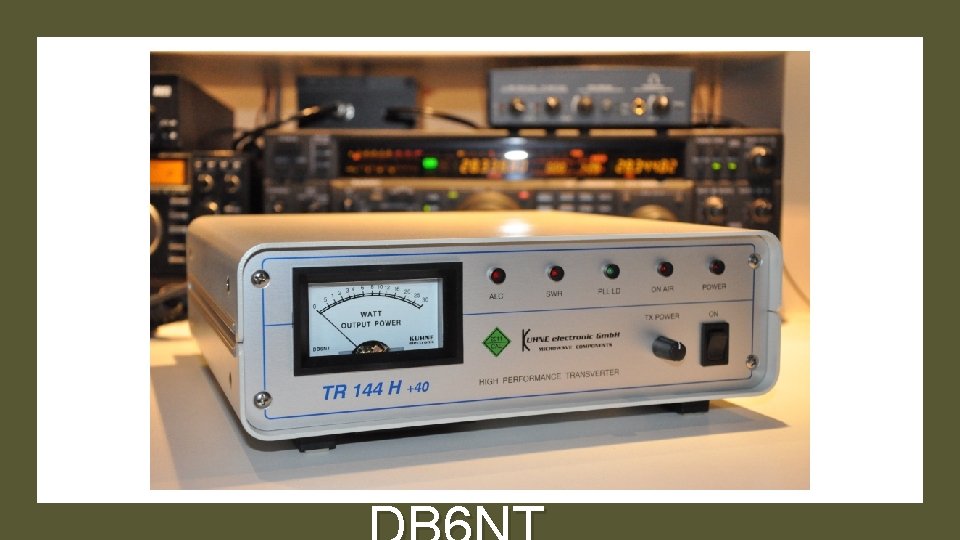

Modern Day Transverter

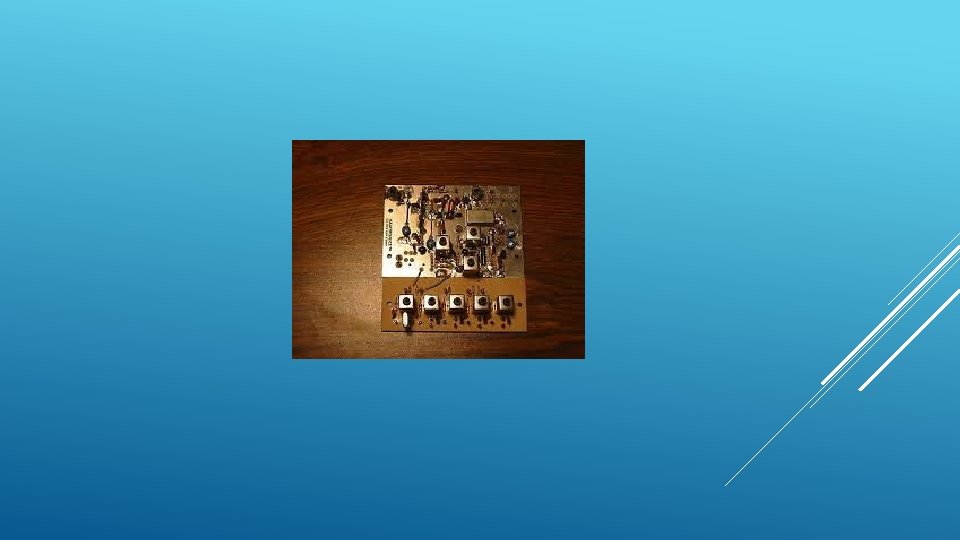

Down East Microwave
Elecraft
The Transverter Store
SG-LABS
Not All Transverters Go Up!
Dentron 160 Meter Transverter

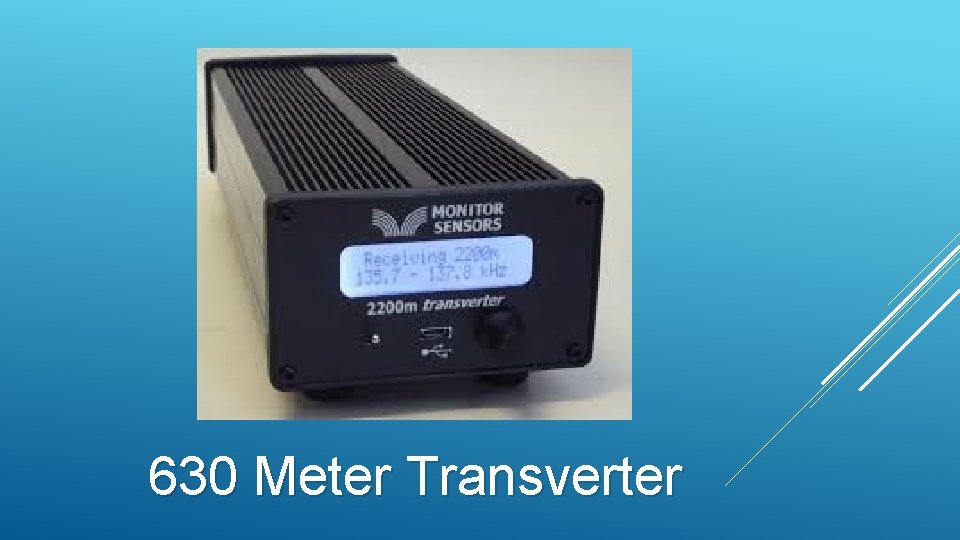

630 Meter Transverter
IF Radios
Yaesu 817
ELECRAFT KX 3
Xiegu X 5105
INPUT POWER
Watch DA POWER!!!!
Most Transverters Will Handle 5 Watts or Less
Some Transverters Can Only Handle Less Than 1 Watt
Some Transverters Can Only Handle -100 DBM
Most Full Size Transceivers Can Not Be Dialed Down to Under 5 Watts

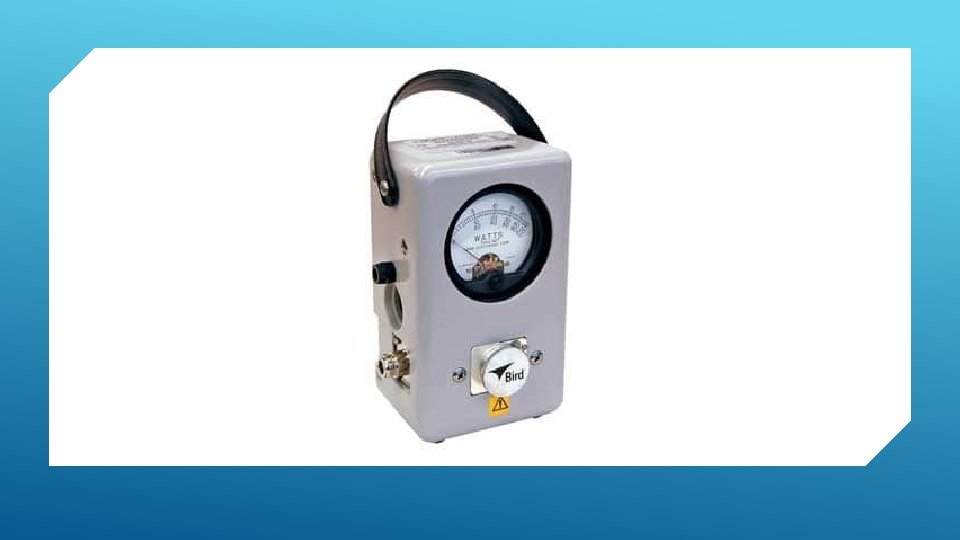

PLEASE Check The Wattage of the IF Radio Make Sure You Know!!!

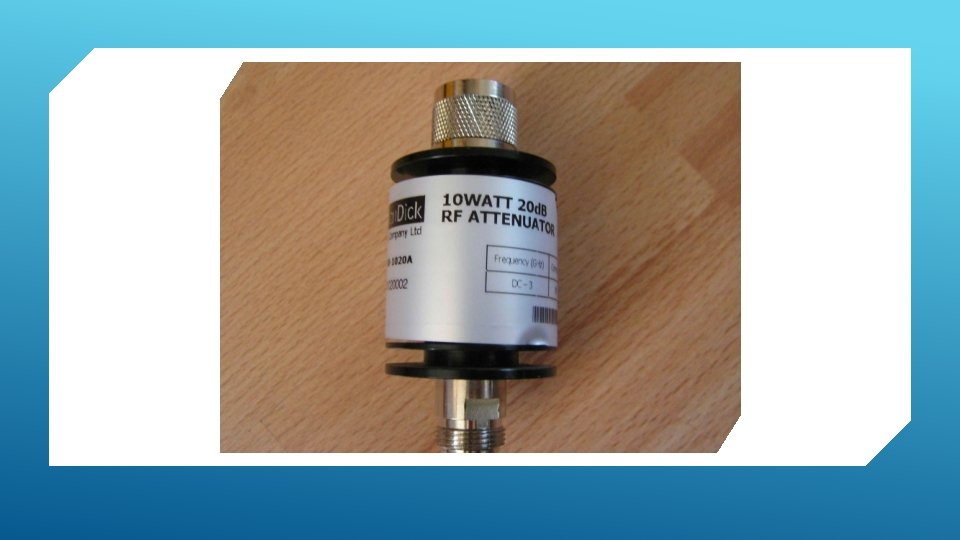

Use An Attenuator
Make Sure You Do The Math!!
Know The Facts!!
Usually Hidden
Usually Unadvertised

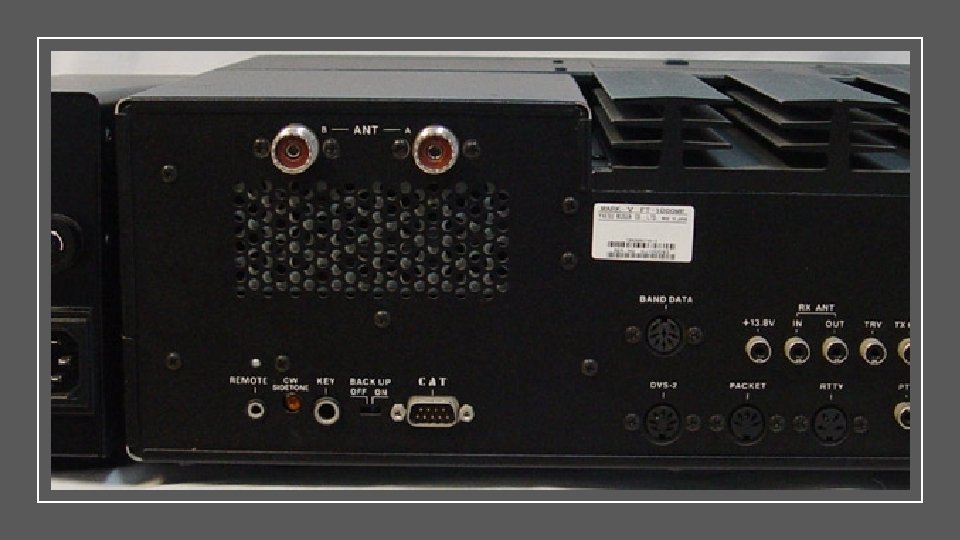

The “Hidden” Transverter Mode
Sometimes We Can Be A Little Off Center!
A “Little” Off The Mark
IF Radio “Yaesu 817” Set at 144. 100 1296 Transverter 144. 100 -> 1296. 103 144. 100 Input Into Transverter 1296. 103 Output We are off 3 KC’s 1296 Ant
Some Radios Can Handle The Offset

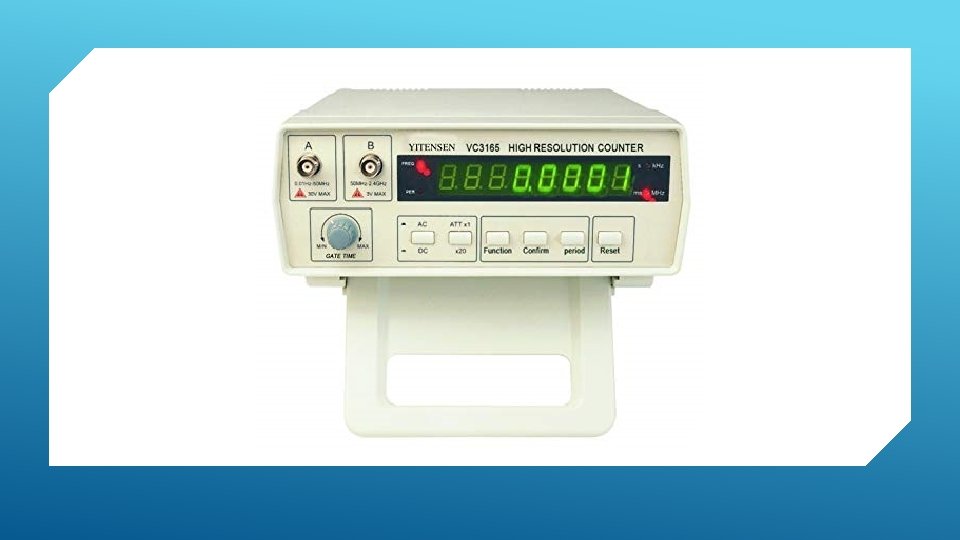

GPSDO
GPS Disciplined Oscillators (GPSDO)

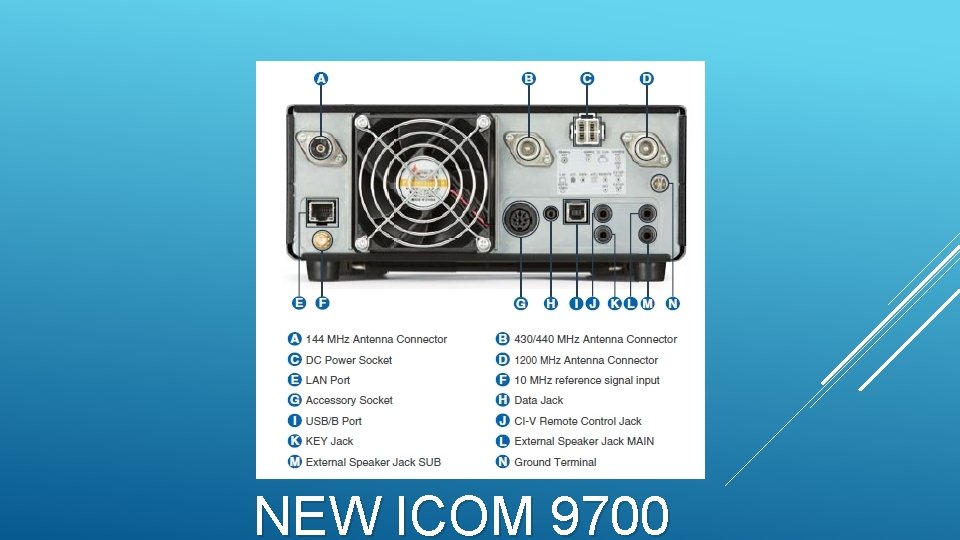

NEW ICOM 9700

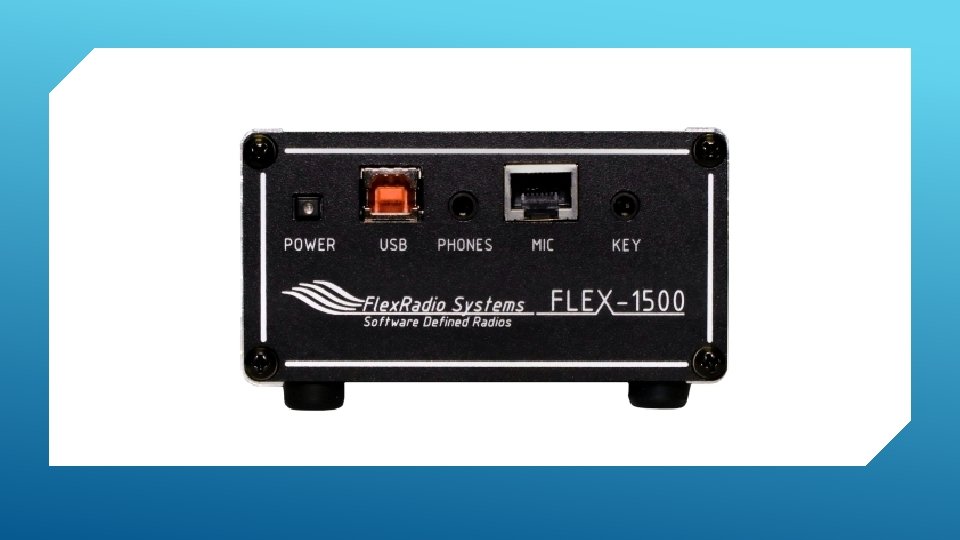

Flex. Radio Systems
K 7 LNP DN 30 XO UTAH
www. weaksignalwork. com
