Transposition and transposable elements Transposable elements mobile genetic

Transposition and transposable elements

Transposable elements • “mobile genetic elements” • comprise 45% of human chromosomal DNA “middle repetitive DNA” • contribute to spontaneous mutation, genetic rearrangements, horizontal transfer of genetic material • aid speciation and genomic change (in bacteria transposons are often associated with antibiotic resistance genes) • cells must depress transposition to insure genetic stability

Types of transposable elements • DNA vs. RNA • viral vs. nonviral • replicative mechanism vs. excision mechanism

transposon

transposon insertion mutation

Discovery of transposons • Barbara Mc. Clintock 1950’s Ac Ds system in maize influencing kernel color unstable elements changing map position promote chromosomal breaks • Rediscovery of bacterial insertion sequences source of polar mutations discrete change in physical length of DNA inverted repeat ends: form “lollipops” in EM after denaturation/reannealing

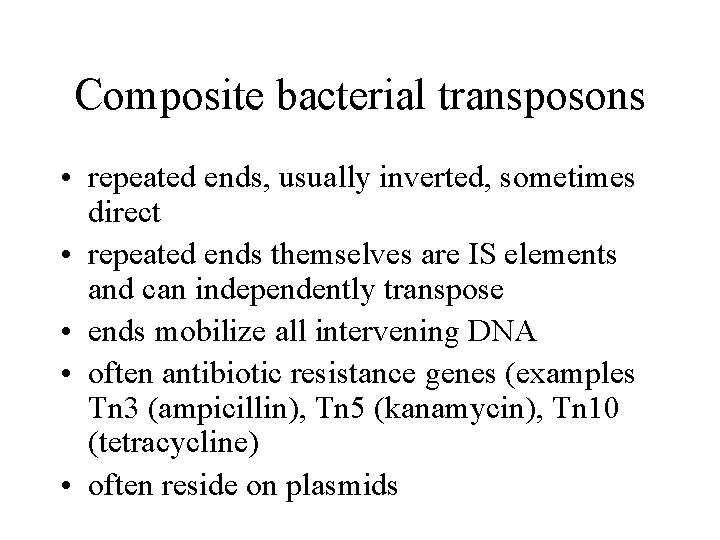

Composite bacterial transposons • repeated ends, usually inverted, sometimes direct • repeated ends themselves are IS elements and can independently transpose • ends mobilize all intervening DNA • often antibiotic resistance genes (examples Tn 3 (ampicillin), Tn 5 (kanamycin), Tn 10 (tetracycline) • often reside on plasmids

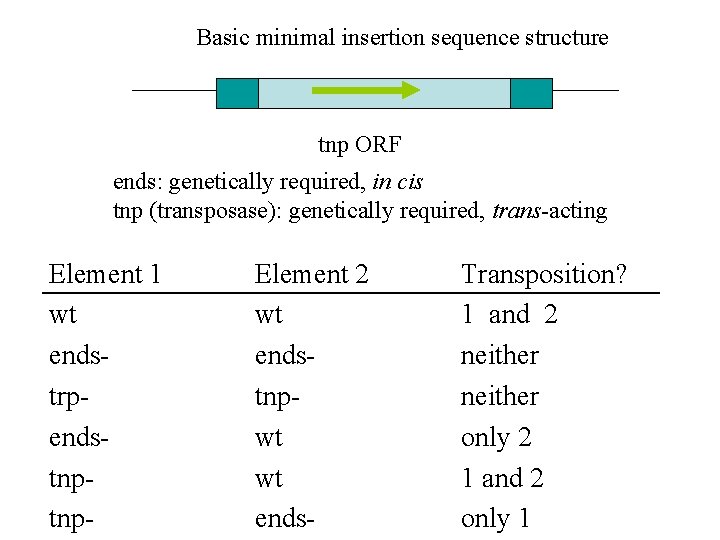

Basic minimal insertion sequence structure tnp ORF ends: genetically required, in cis tnp (transposase): genetically required, trans-acting Element 1 wt endstrpendstnptnp- Element 2 wt endstnpwt wt ends- Transposition? 1 and 2 neither only 2 1 and 2 only 1

Structure of Tn 3 3 trans-acting genes: transposase tnp. A 4957 bp “repressor” ampcillin-resistance tnp. R bla Tn 3 resolvase 2 cis-acting sites: 38 bp inverted repeat ends 120 bp “IRS” or res internal resolution site

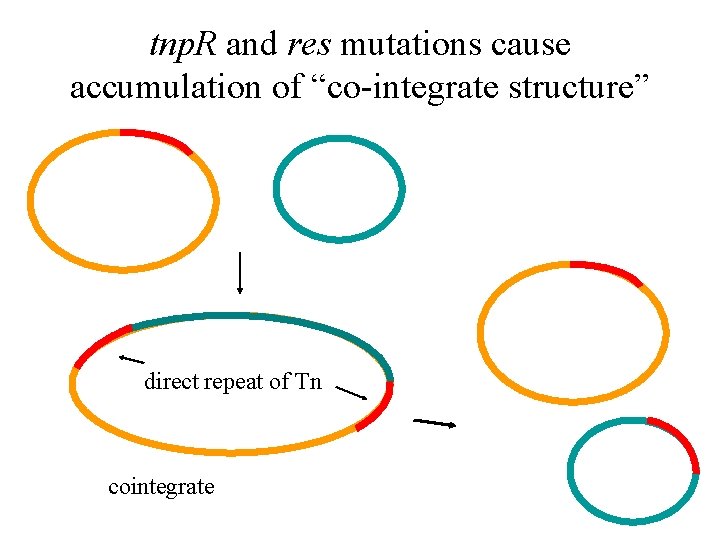

tnp. R and res mutations cause accumulation of “co-integrate structure” direct repeat of Tn cointegrate

2 types of DNA tranposons • excisive mechanism examples: Tn 5, Tn 10, P elements • replicative mechanism examples: Tn 3, bacteriophage Mu

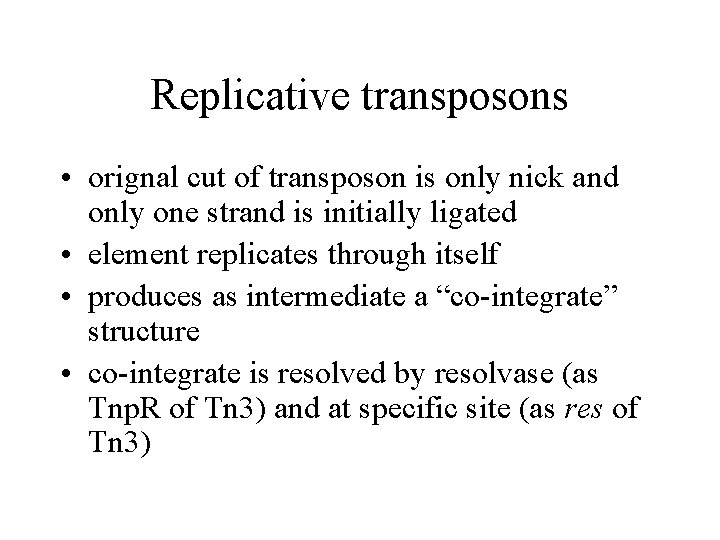

Replicative transposons • orignal cut of transposon is only nick and only one strand is initially ligated • element replicates through itself • produces as intermediate a “co-integrate” structure • co-integrate is resolved by resolvase (as Tnp. R of Tn 3) and at specific site (as res of Tn 3)

Excisive transposons • cut-and-paste mechanism • cut themselves out of original site, producing double strand break • cut target site and ligate to element ends, thereby inserting at new site • original site break repaired usually with sister chromosome, restoring transposon at original site sometimes end healed without transposon, can also be associated with deletion at excision site

Source of target site duplication “TSD” GAC CTG Staggered cleavage of target CTG Ligation of transposon DNA GAC CTG Repair replication generates short direct repeats

“degenerate” transposons • many naturally occurring transposable elements have suffered mutation and are no longer active • some of these may have cis-acting end mutations and cannot be mobilized • others may have intact ends but no transposase: these can be mobilized by a element that is tnp+ (“autonomous” element) • Ac Ds system is an example of latter: Ac (activator) can mobilize Ds (dissociator) • MITEs (minature inverted repeat transposable elements) are nonautonomous DNA elements • SINEs are retrotransposon version (LINEs)

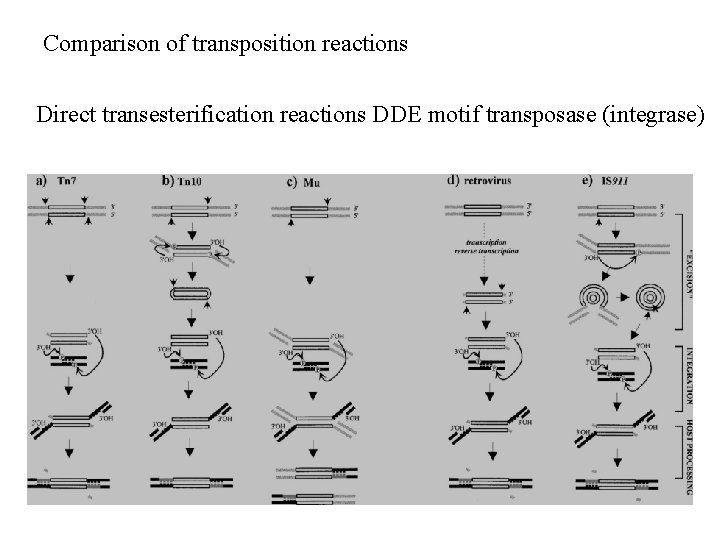

Comparison of transposition reactions Direct transesterification reactions DDE motif transposase (integrase)

Comparison of tranposase structural organization

Mechanism of transposases and retroviral integrases

Classification of retroelements • Have obligate RNA intermediate, use reverse transcriptase (RT, RNA-dependent DNA polymerase) • LTR-retroelements: long terminal repeats Ty 1/copia, Ty 3/gypsy, retroviruses • Non-LTR-retroelements “retroposons” LINES

Characteristics of LTR retroelements • Long terminal repeats: required for replication cycle • Genes: gag, pol, (viruses also have env) • Pol is polyprotein which gives rise to RT (reverse transcriptase), IN (integrase) RH (RNase H), PR (protease) • Forms VLPs virus-like particles • Integrase is functionally and structurally similar to transposase of DNA transposons, DDE motif • Integration gives characteristic TSD

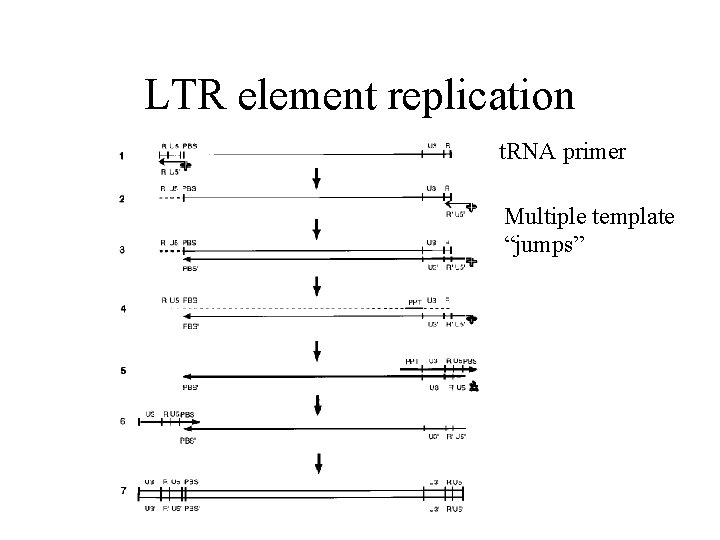

LTR element replication t. RNA primer Multiple template “jumps”

Characteristics of non-LTR retroelements • 2 ORFs, orf 1, orf 2 • Variable TSD • ORF 2 gives rise to EN, endonuclease, (similar to APE) and RT • Uses target primed reverse transcription TPRT • Can transduce 3’ downstream non-element segments

Target-primed reverse transcription Explains: Insertions are often 5’ truncated Transduction of 3’ markers

Human L 1 (LINE-1) retroelement • • 15% of human DNA 520, 000 copies, only 3 -5, 000 are full-length Associated with human disease loci Transpose specifically in germ line
