Transmission Electron Microscopy Visualization Techniques Bob Ashley AAS

Transmission Electron Microscopy Visualization Techniques Bob Ashley AAS SMFW 7 -13 -2013

Reading List • Negative Staining 1990 Hayat and Miller • Baker, T. S. , and R. Henderson (2006). Electron cryomicroscopy. In "International Tables for Crystallography", Vol. F, ch. 19, pp. 451 -463. Baker, T. S. , and R. Henderson (2006). • Baker, T. S. , N. H. Olson, and S. D. Fuller (2000) Erratum: Adding the third dimension to virus life cycles: Three. Dimensional reconstruction of icosahedral viruses from cryoelectron micrographs. Microbiol. Molec. Biol. Reviews 64: 237.

Overview • Free will vs. Determinism in electron microscopy • Two methods of viewing in TEM • Cryo and Negative Stain

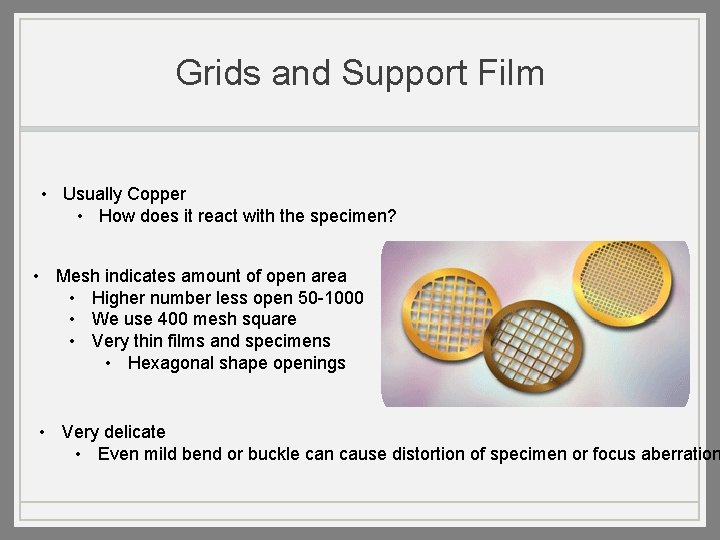

Grids and Support Film • Usually Copper • How does it react with the specimen? • Mesh indicates amount of open area • Higher number less open 50 -1000 • We use 400 mesh square • Very thin films and specimens • Hexagonal shape openings • Very delicate • Even mild bend or buckle can cause distortion of specimen or focus aberration

Grid Types • Supports used must be strong yet electron transparent • Plastic (formvar) • Carbon • Holey carbon • Quantifoil • C-flat

Support Film Concerns • Mass thickness influences contrast while mechanical stability increases image clarity • • Formvar • More clarity with less background than Carbon alone • Not as thermally stable and can cause charging and drift • Films in general must have • High transparency • Adequate strength to withstand E- beam and support specimen • Carbon coated only (6 -10 nm) • Uniformly amorphous • More elastic scattering events with e- beam • Can be stable very thin 1 -2 nm • More stable than plastic alone • Hydrophobic, fragile, time consuming to make Plastic only 10 -20 nm (10 -20 nm) • Carbon Coated with Plastic • Stability of carbon but will have a thickness that may impede resolution

All Sides Being Equal? • Dull Side (coppery) • More area for film to adhere • Shiny side (polished) • Not as much surface area for films to adhere • Can cause movement under e- beam exposure

To Glow or Not Glow Discharge renders continuous carbon coated grids hydrophilic by applying a negative charge. • Aids stain spread more uniformly (increases wettability) • Helps particles in specimen to adhere to the substrate • Decreases likelihood of the virus particles being held in aggregates as a result of the interaction between the virus particles and the surface charge of film

Contrast • Two types in electron microscopy • Amplitude contrast (scattering contrast) • Subtractive effect where various shades are evident by loss of electrons • Main source of most electron microscope contrast (except cryo) • Phase Contrast (interference contrast) • Interference of diffracted waves cause intensity differences due to loss of energy and the corresponding shorter focal points • Appear as bright ring or halo around the edge of an object • Fresnel ‘freh-nell’ fringe

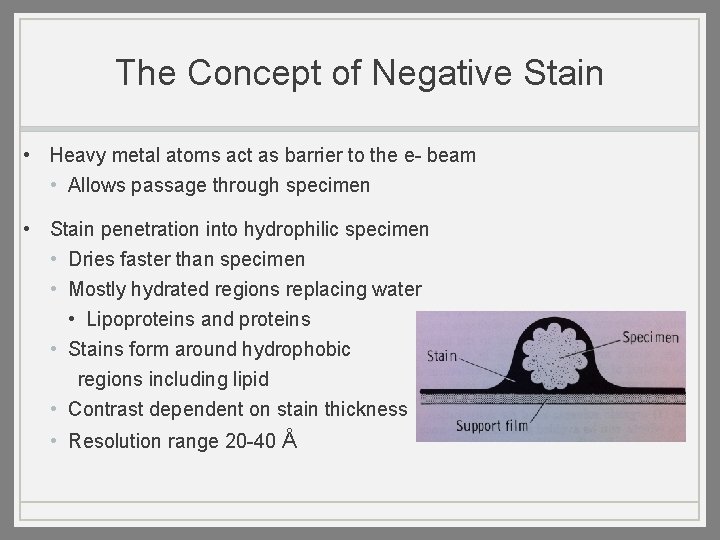

The Concept of Negative Stain • Heavy metal atoms act as barrier to the e- beam • Allows passage through specimen • Stain penetration into hydrophilic specimen • Dries faster than specimen • Mostly hydrated regions replacing water • Lipoproteins and proteins • Stains form around hydrophobic regions including lipid • Contrast dependent on stain thickness • Resolution range 20 -40 Å

Negative Contrast • Dense areas are bright also exclude stain • Amplitude contrast • Areas with no stain appear light because there is nothing for the electron beam to hit and the transmitted electrons shine through

Simple Microscopy • Lighter areas have more protein and exclude stain • Darker areas are where the stain pools • Indent in support mechanism

Stain Film and Particle Interactions A. Hydrophilic specimen hydrophilic film B. Hydrophilic specimen on hydrophobic film C. Hydrophobic specimen on hydrophilic film D. Hydrophobic specimen on hydrophobic film

Negative and Positive Staining A. 4% PTA Negative Stained B. 4% UA Positive Stained C. 4% UA Negative Stained • Three types of staining visible • Negative staining appearing white • Negative staining appearing grey • Positive staining appearing black • Severe structural distortion

Staining Methods

Factors Controlling Appearance • • Specimen • • p. H Interaction with the support mechanism • Isoelectric Point • Grid film • Fixation • Thickness of stain on film • Concentration • Charge and beam interactions Stain • p. H • Charge • Buffer and specimen interaction • Osmolarity • Can influence structure and volume of particle

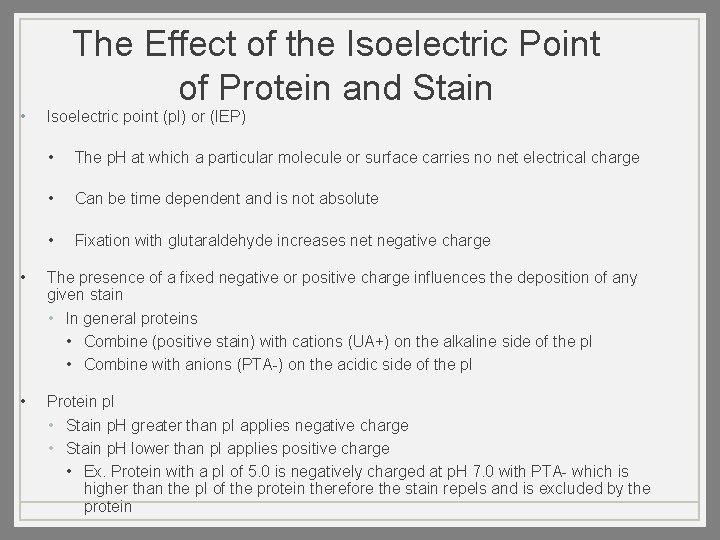

• The Effect of the Isoelectric Point of Protein and Stain Isoelectric point (p. I) or (IEP) • The p. H at which a particular molecule or surface carries no net electrical charge • Can be time dependent and is not absolute • Fixation with glutaraldehyde increases net negative charge • The presence of a fixed negative or positive charge influences the deposition of any given stain • In general proteins • Combine (positive stain) with cations (UA+) on the alkaline side of the p. I • Combine with anions (PTA-) on the acidic side of the p. I • Protein p. I • Stain p. H greater than p. I applies negative charge • Stain p. H lower than p. I applies positive charge • Ex. Protein with a p. I of 5. 0 is negatively charged at p. H 7. 0 with PTA- which is higher than the p. I of the protein therefore the stain repels and is excluded by the protein

Other Effects of p. H • Optimal p. H for stains is not known but each has a satisfactory range • At high p. H the stain penetration is usually enhanced with long stain time • At low p. H the surface detail is usually highlighted due to acidic environment • May change with stain storage and with stain drying • Use fresh stain preferable and check before staining specimen Ex. stained with PTA at 5. 0 p. H, influenza virus surface spikes well preserved same sample stained with 7. 5 p. H PTA stain penetrates virus envelope Ex. PTA with p. H of 4. 5 recommended for resolving antibody particles bound to rotavirus

Negative Stains • Negative stain should: • Have minimal interaction with specimen (pos. stain) • High solubility in solution (precipitates and crystalizes in e- beam) • High density (must be at least twice the density of the specimen to be visualized) • High melting point to avoid beam damage • Small grain size • Chemical p. H stability

Types of Stains • Uranyl Acetate+ (cation) • • Can be used in p. H from 5. 0 -7. 0 (ideal at 6. 5 -6. 8) • Most widely used • Density of 2. 87 g/cm^3 • Desirable for p. H sensitive specimens • Ion diameter. 4 -. 8 nm • p. H of 4. 0 -5. 5 (usually used at 4. 5 unstable at 6. 0) • Provides the contrast and penetration of UA without the acidity • Concentrations. 5 -5% ideal as 1% • Can act as fixative • Desirable for virus proteins below the p. I or low molecular weight • Higher contrast than PTA • Stabilizes lipids therefore may minimize drying effect of virus particles Uranyl Oxalate+(cation) • Uranyl Formate+(cation) • Smallest grain size for better penetration of interstices of sample • Useful for high-res • p. H of 4. 0 -5. 5 (usually used around 4. 5) • Density of 3. 68 g/cm^3 • Ideal as. 75%

Types of Stains Continued • PTA-(anion) • • • Along with UA most widely used Density 4 g/cm^3 Grain size of 1. 2 nm (not useful for high res work) At neutral p. H very little interaction with the specimen (avoids most positive staining) Very stable in e- beam Will not fix a specimen Not stable over time with storage <1 month May dissociate quaternary proteins into small units Ammonium Molybdate • Used for osmotically sensitive specimens • p. H from 5. 0 -8. 0 useful at 7. 0 -7. 4 • Higher contrast than PTA • Methylamine Tungstate (Nano. W) • p. H 6. 4 -7. 0 • Tolerates concentrated buffers

Drawbacks of Negative Stain • Fixation • Tends to concentrate sample • Cellular debris and other junk • Positive staining • Beam irradiation • Lower k. V=more damage potential • Drying • Leads to distortion of particle • Flattening • Will usually happen perpendicular to support mechanism • Makes sample typically larger in diameter to known size

Cryo EM • Negative Stain Light areas indicate density • Cryo Fixation Advantages • Keeps sample in near native state Higher resolution – 8 -15 Å • No artifacts from stain • Cryo Contrast reversal of negative stain, dark areas indicate density- Phase Contrast

Types of Ice • Amorphous or glassy ice • Target state of cryo. EM samples • Liquid nitrogen -195° C • Heat capacity too low- Liedenfrost Effect • Liquid ethane • Liquid propane • Cubic ice • Water in crystalline lattice obscures beam • Usually around -140° C • Vanilla Ice • Too hot to handle yet too cold to hold

The Grid in Cryo

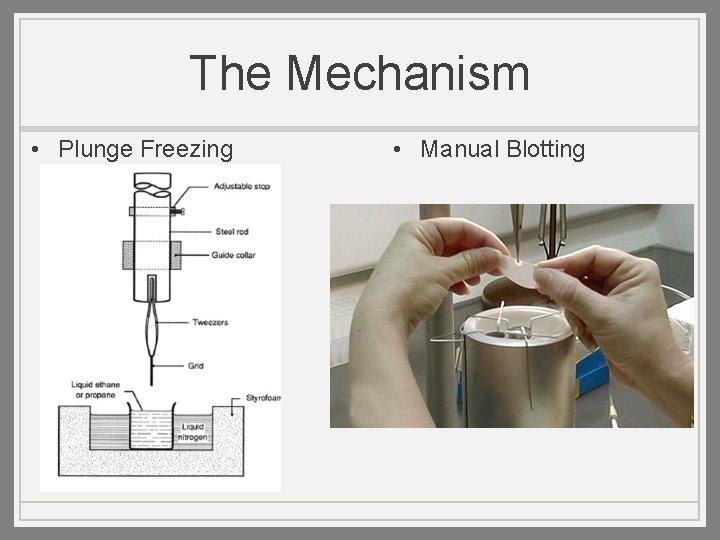

The Mechanism • Plunge Freezing • Manual Blotting

Advanced Grid Freezing- Gatan CP 3

Visualizing Ice on the Grid Search for suitable area on grid

Low Dose • Ice is beam sensitive • E- cause irradiated sample • High res data can be lost in a matter of seconds • Focus on area that is not photographed and correct for astigmatism • Keep levels to around 5 -20 E/A^2 • Can be a software automated process

Visibility of Particles

Irradiation Damage

Defocus Tradeoff • Focus adjacent region of interest to true focus • No inherent contrast from sample in ice • No tone ring visible in FFT • Reset to range desirable -2 to -5 ųm

Drawbacks of Cryo EM • Low contrast • Low signal to noise ratio • Expensive • Size limitation • • • Time intensive Labor intensive Beam irradiation • Lower k. V=more damage potential • Must be > 400 k. D for proper resolution • Smallest published to date is 260 k. D • Cryo negative stain as possible solution • Phase plates

The End Result

Try the best you can to achieve your EM dreams! Thank You
