Translator Structure Cw Code AST Structure Input Lexer

Translator Structure Cw Code AST Structure Input Lexer Parser Uses Intrinsics in Canonical Format Expression Binary. Expression Unary. Expression Declaration Function Statement If. Statement. . Translation. Unit Var. Declaration Identifier Output: AST Function. Definition Variable. Declaration Driver Compound-Statement . . Intrinsic Emitter Load Intrinsics Store Intrinsics Binary. Operator Intrinsics. . Other passes in the future Cw Translation Pass Translated AST Final Output

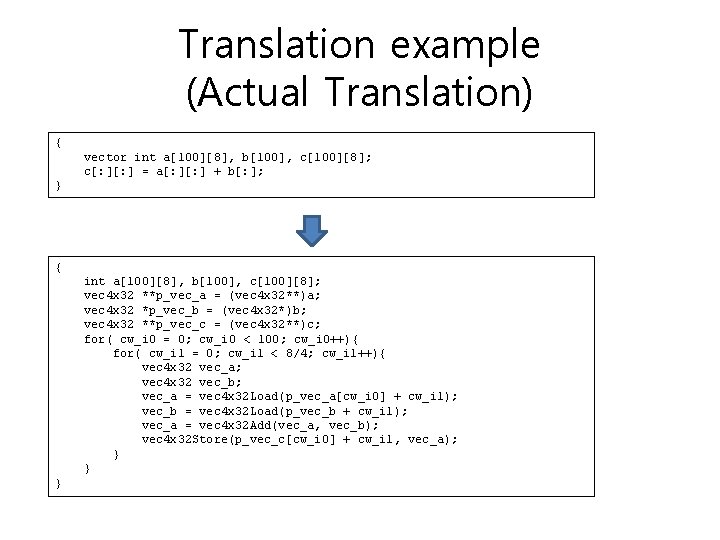

Translation example (Actual Translation) { vector int a[100][8], b[100], c[100][8]; c[: ] = a[: ] + b[: ]; } { int a[100][8], b[100], c[100][8]; vec 4 x 32 **p_vec_a = (vec 4 x 32**)a; vec 4 x 32 *p_vec_b = (vec 4 x 32*)b; vec 4 x 32 **p_vec_c = (vec 4 x 32**)c; for( cw_i 0 = 0; cw_i 0 < 100; cw_i 0++){ for( cw_i 1 = 0; cw_i 1 < 8/4; cw_i 1++){ vec 4 x 32 vec_a; vec 4 x 32 vec_b; vec_a = vec 4 x 32 Load(p_vec_a[cw_i 0] + cw_i 1); vec_b = vec 4 x 32 Load(p_vec_b + cw_i 1); vec_a = vec 4 x 32 Add(vec_a, vec_b); vec 4 x 32 Store(p_vec_c[cw_i 0] + cw_i 1, vec_a); } } }

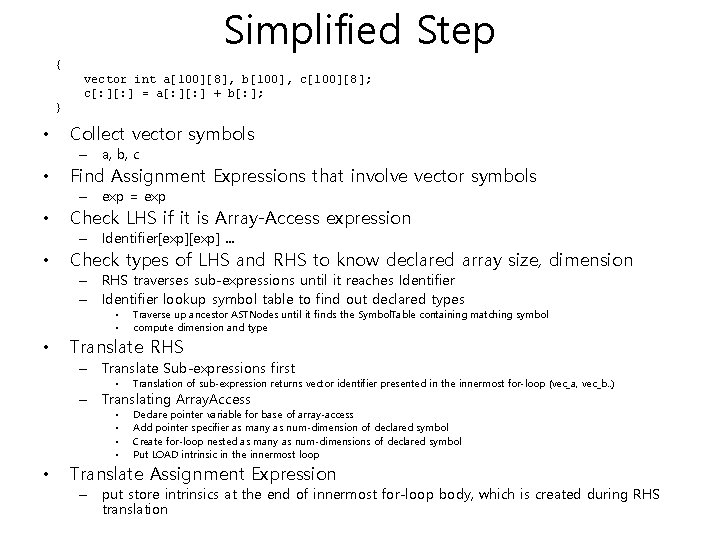

Simplified Step { vector int a[100][8], b[100], c[100][8]; c[: ] = a[: ] + b[: ]; } • Collect vector symbols – a, b, c • Find Assignment Expressions that involve vector symbols – exp = exp • Check LHS if it is Array-Access expression – Identifier[exp]. . . • Check types of LHS and RHS to know declared array size, dimension – RHS traverses sub-expressions until it reaches Identifier – Identifier lookup symbol table to find out declared types • • • Traverse up ancestor ASTNodes until it finds the Symbol. Table containing matching symbol compute dimension and type Translate RHS – Translate Sub-expressions first • Translation of sub-expression returns vector identifier presented in the innermost for-loop (vec_a, vec_b. . ) – Translating Array. Access • • • Declare pointer variable for base of array-access Add pointer specifier as many as num-dimension of declared symbol Create for-loop nested as many as num-dimensions of declared symbol Put LOAD intrinsic in the innermost loop Translate Assignment Expression – put store intrinsics at the end of innermost for-loop body, which is created during RHS translation
