Transitioning to the 2013 Kentucky Building Code Approximately

Transitioning to the 2013 Kentucky Building Code

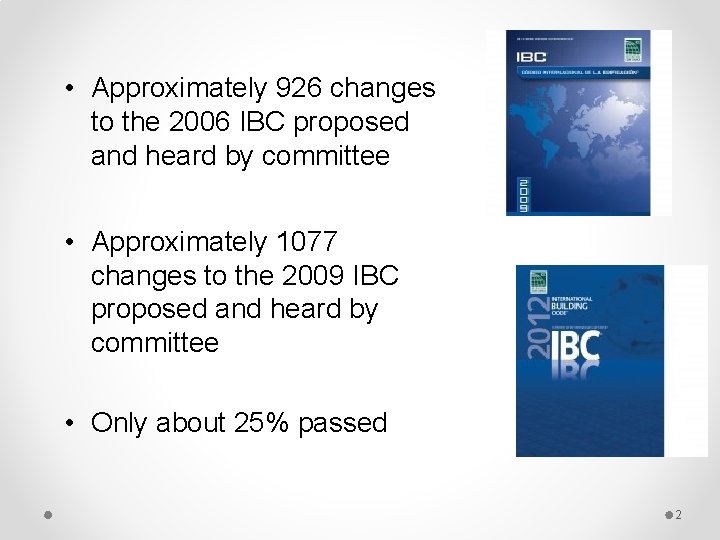

• Approximately 926 changes to the 2006 IBC proposed and heard by committee • Approximately 1077 changes to the 2009 IBC proposed and heard by committee • Only about 25% passed 2

Chapter 1 Scope and Administration • Chapter 1 has historically been re-written by Kentucky so as to address Kentucky specific needs and interests regarding building construction and code application. • The 2013 KBC follows the same formatting as the 2012 IBC. • Many of the KY amendments to Chapter 1 is code text carried forward from the previous edition and many you have seen since the 1980 edition of the KBC. However, there a few new sections we will review. 3

2007 KBC 2013 KBC New text added via IBC • Section 101. 3 Purpose o IBC text was deleted as an amendment to create this section in the 2007 edition. • Section 101. 3 Intent. o The purpose of this code is to establish the minimum/maximum requirements … and safety to life and property from fire and other hazards attributed to the built environment and to provide safety to fire fighters and emergency responders during emergency operations. The underscored language is not new to the code but is new to the KBC. The 2013 KBC no longer deletes this text. The new language extends the codes intent beyond that of establishing safeguards for the public and building occupants. It extends application to the protection of our fire fighters and first responders during any emergency operation and event. 4

2007 KBC 2013 KBC • 102. 6. 1 Moved structures. Buildings and structures moved into or within … New exception added via KY amendment. 102. 6. 1 Moved structures. Buildings and structures moved into or within the Commonwealth shall comply with the provisions of this code for new buildings and structures … This provision does not apply to manufactured homes. Exception: Industrialized buildings moved into or within the jurisdiction meeting the requirements of Chapter 16 of this code. Except for compliance with Chapter 16, this new exception seems to exempt all industrialized buildings from compliance with all other provisions of the code. 5

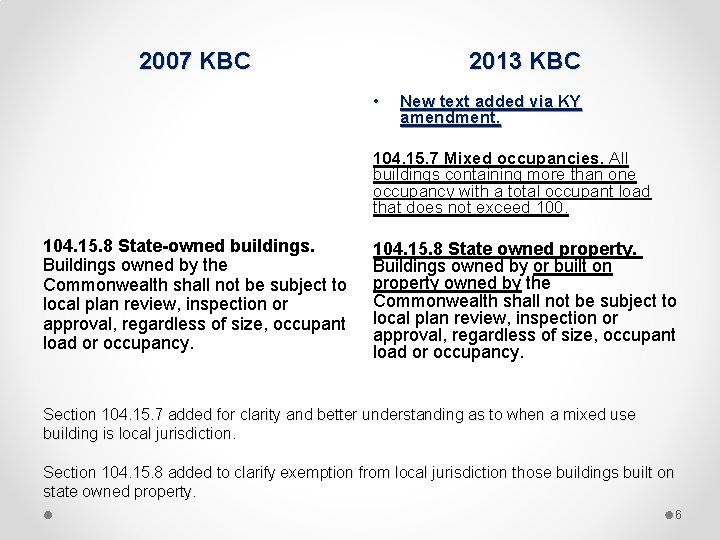

2007 KBC 2013 KBC • New text added via KY amendment. 104. 15. 7 Mixed occupancies. All buildings containing more than one occupancy with a total occupant load that does not exceed 100. 104. 15. 8 State-owned buildings. Buildings owned by the Commonwealth shall not be subject to local plan review, inspection or approval, regardless of size, occupant load or occupancy. 104. 15. 8 State owned property. Buildings owned by or built on property owned by the Commonwealth shall not be subject to local plan review, inspection or approval, regardless of size, occupant load or occupancy. Section 104. 15. 7 added for clarity and better understanding as to when a mixed use building is local jurisdiction. Section 104. 15. 8 added to clarify exemption from local jurisdiction those buildings built on state owned property. 6

2007 KBC 2013 KBC • New text added via KY amendment. 104. 16. 7 Mixed occupancies. All buildings containing more than one occupancy with a total occupant load that does not exceed 100. 104. 1. 7 State-owned buildings. Buildings owned by the Commonwealth regardless of occupancy classification or size. 104. 16. 8 State owned property. Buildings owned by or built on property owned by the Commonwealth regardless of occupancy classification or size. Like 104. 15. 7 and 104. 15. 8, both these amendments added for clarity and better understanding of jurisdictional thresholds. 7

2013 KBC New code language via the 2009 IBC SECTION 106 FLOOR AND ROOF DESIGN LOADS 106. 1 Live loads posted. Where the live loads for which each floor or portion thereof of a commercial or industrial building is or has been designed to exceed 50 psf (2. 40 k. N/m 2), such design live loads shall be conspicuously posted by the owner in that part of each story in which they apply, using durable signs. It shall be unlawful to remove or deface such notices. 106. 2 Issuance of certificate of occupancy. A certificate of occupancy required by Section 111 shall not be issued until the floor load signs, required by Section 106. 1, have been installed. 8

KRS 322 ENGINEERS LAW 322. 360 Public work required to be done under professional engineer or licensed architect. 1. Neither the state nor any of its political subdivisions shall engage in the construction of any public work involving engineering, unless the plans, specifications, and estimates have been prepared and the construction executed under the direct supervision of a professional engineer or a licensed architect. 2. Subsection (1) of this section shall not apply to any public work, including a highway or capital project under KRS 56. 491, that involves only maintenance or repair of the facility. Maintenance or repair shall not include any work which alters, modifies, or changes the original characteristics of the design. 9

KRS 323 ARCHITECTS LAW 323. 033 Buildings requiring services of licensed architect. (5) Neither the state nor any of its political subdivisions shall engage in the construction of any public work involving the practice of architecture or engineering unless the plans, specifications, and estimates have been prepared and the administration of construction contracts executed under the direct supervision of a licensed architect or a professional engineer. This subsection shall not apply to: (a) Any public work, including a building or capital project under KRS 56. 491, that involves only maintenance or repair of the facility. Maintenance or repair shall not include any work which alters, modifies, or changes the original characteristics of the design; or (b) Any residential dwelling that falls under the Kentucky Residential Code. 10

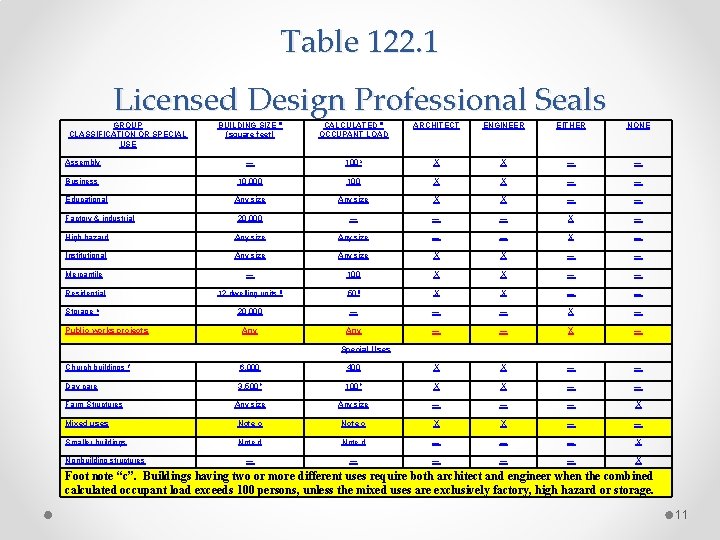

Table 122. 1 Licensed Design Professional Seals GROUP CLASSIFICATION OR SPECIAL USE BUILDING SIZE (square feet) e CALCULATED e OCCUPANT LOAD ARCHITECT ENGINEER EITHER NONE Assembly ― 100 a X X ― ― Business 10, 000 100 X X ― ― Any size X X ― ― 20, 000 ― ― ― X ― High hazard Any size ― ― X ― Institutional Any size X X ― ― Mercantile ― 100 X X ― ― 50 g X X ― ― 20, 000 ― ― ― X ― Any ― ― X ― Educational Factory & industrial Residential Storage 12 dwelling units e Public works projects g Special Uses Church buildings 6, 000 400 X X ― ― 3, 500 b 100 b X X ― ― Any size ― ― ― X Mixed uses Note c X X ― ― Smaller buildings Note d ― ― ― X f Day care Farm Structures Nonbuilding structures Foot note “c”. Buildings having two or more different uses require both architect and engineer when the combined calculated occupant load exceeds 100 persons, unless the mixed uses are exclusively factory, high hazard or storage. 11

Chapter 2 Definitions Following the 2012 IBC format, all definitions are once again located in Chapter 2. Also returning to the code via 2009 IBC changes, the use of italics to identify defined terms. Where terms appear in both the IBC and KBC, the corresponding definition found in the KBC shall supersede. 12

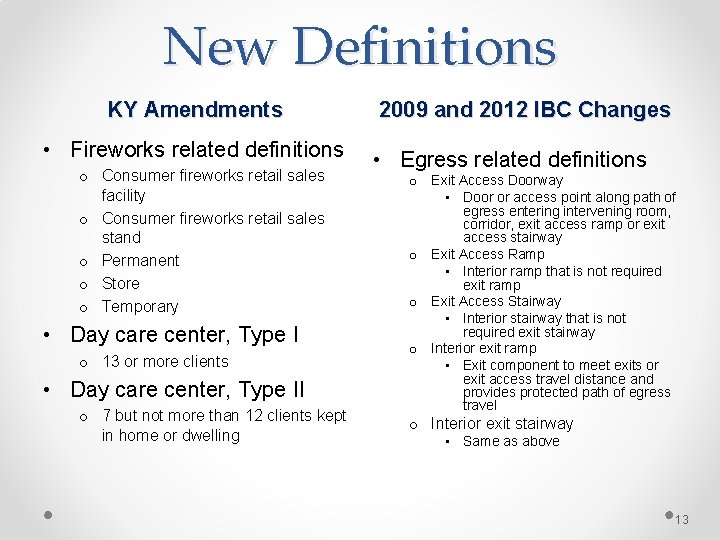

New Definitions KY Amendments • Fireworks related definitions o Consumer fireworks retail sales facility o Consumer fireworks retail sales stand o Permanent o Store o Temporary • Day care center, Type I o 13 or more clients • Day care center, Type II o 7 but not more than 12 clients kept in home or dwelling 2009 and 2012 IBC Changes • Egress related definitions o Exit Access Doorway • Door or access point along path of egress entering intervening room, corridor, exit access ramp or exit access stairway o Exit Access Ramp • Interior ramp that is not required exit ramp o Exit Access Stairway • Interior stairway that is not required exit stairway o Interior exit ramp • Exit component to meet exits or exit access travel distance and provides protected path of egress travel o Interior exit stairway • Same as above 13

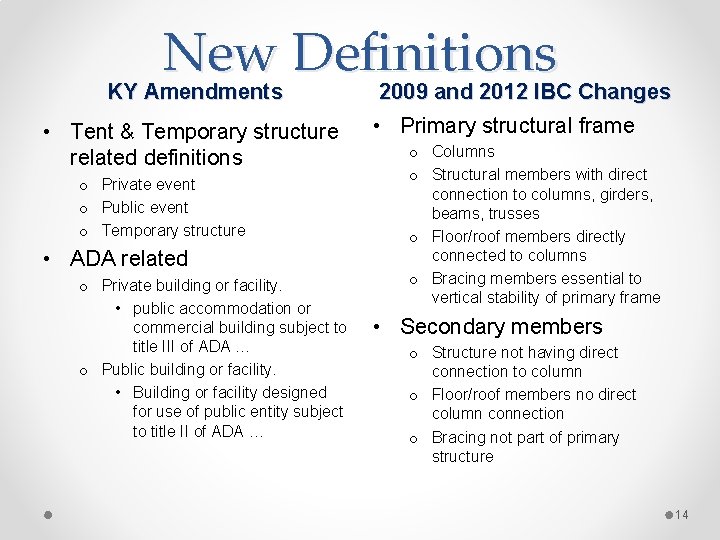

New Definitions KY Amendments 2009 and 2012 IBC Changes KY Amendments • Tent & Temporary structure related definitions o Private event o Public event o Temporary structure • ADA related o Private building or facility. • public accommodation or commercial building subject to title III of ADA … o Public building or facility. • Building or facility designed for use of public entity subject to title II of ADA … 2009 and 2012 IBC Changes • Primary structural frame o Columns o Structural members with direct connection to columns, girders, beams, trusses o Floor/roof members directly connected to columns o Bracing members essential to vertical stability of primary frame • Secondary members o Structure not having direct connection to column o Floor/roof members no direct column connection o Bracing not part of primary structure 14

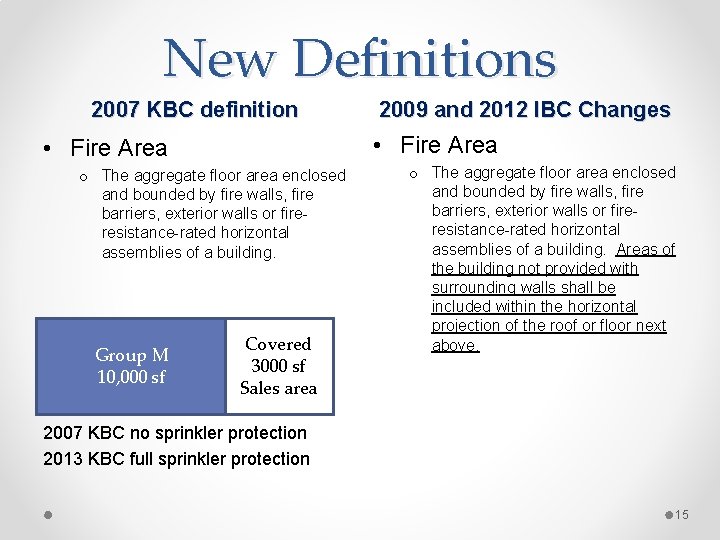

New Definitions 2007 KBC definition • Fire Area o The aggregate floor area enclosed and bounded by fire walls, fire barriers, exterior walls or fireresistance-rated horizontal assemblies of a building. Group M 10, 000 sf 2009 and 2012 IBC Changes Covered 3000 sf Sales area o The aggregate floor area enclosed and bounded by fire walls, fire barriers, exterior walls or fireresistance-rated horizontal assemblies of a building. Areas of the building not provided with surrounding walls shall be included within the horizontal projection of the roof or floor next above. 2007 KBC no sprinkler protection 2013 KBC full sprinkler protection 15

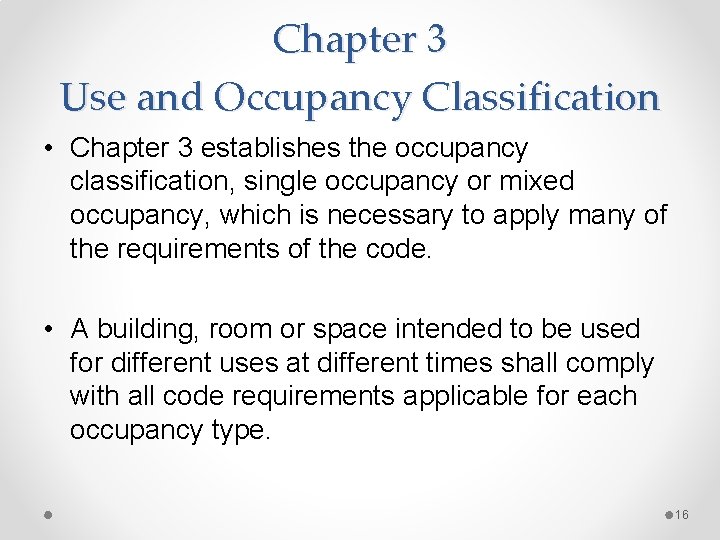

Chapter 3 Use and Occupancy Classification • Chapter 3 establishes the occupancy classification, single occupancy or mixed occupancy, which is necessary to apply many of the requirements of the code. • A building, room or space intended to be used for different uses at different times shall comply with all code requirements applicable for each occupancy type. 16

Section 303 Assembly Group A o A-1: theaters, concert halls o A-2: uses intended for consumption of food and/or drink; restaurants, bars, casinos o A-3: uses intended for worship, recreation, other assembly purposes not classified elsewhere; churches, courtrooms, funeral parlors, indoor sports facilities with no spectator seating o A-4: indoor sporting venues with spectator seating o A-5: participation in or viewing outdoor activities 17

Assembly Group A KY Amendments 2009 and 2012 IBC Changes • 303. 1. 4 Accessory to places • 303. 1. 3 Associated with of religious worship Group E Deleted o “A room or space used for o Deleted text is covered by KY amendment to Section 303. 4 • 303. 3 Assembly Group 2 o ADDED: Dance halls • 303. 4 Assembly Group A-3 o ADDED: “Places of religious worship, including fellowship halls, religious education classrooms, recreation and family life centers. ” assembly purposes that is associated with a Group E in not considered a separate occupancy. ” • 303. 3 Assembly Group 2 o Restaurants, cafeterias, … (including associated commercial kitchens) 18

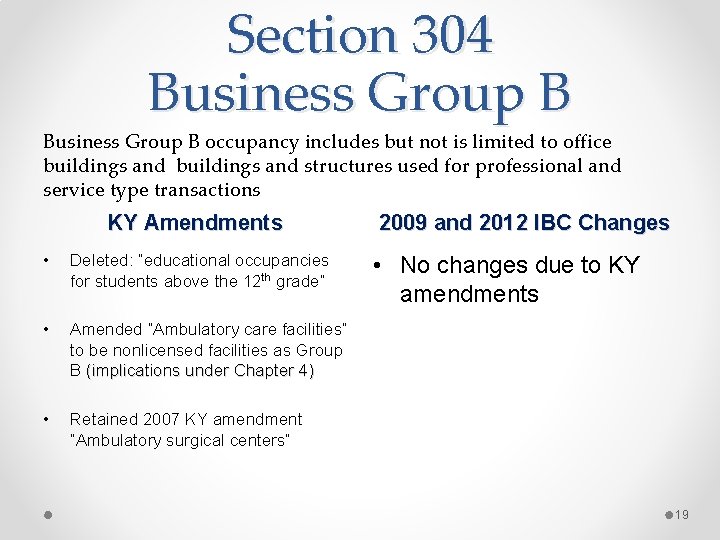

Section 304 Business Group B occupancy includes but not is limited to office buildings and structures used for professional and service type transactions KY Amendments • Deleted: “educational occupancies for students above the 12 th grade” • Amended “Ambulatory care facilities” to be nonlicensed facilities as Group B (implications under Chapter 4) • Retained 2007 KY amendment “Ambulatory surgical centers” 2009 and 2012 IBC Changes • No changes due to KY amendments 19

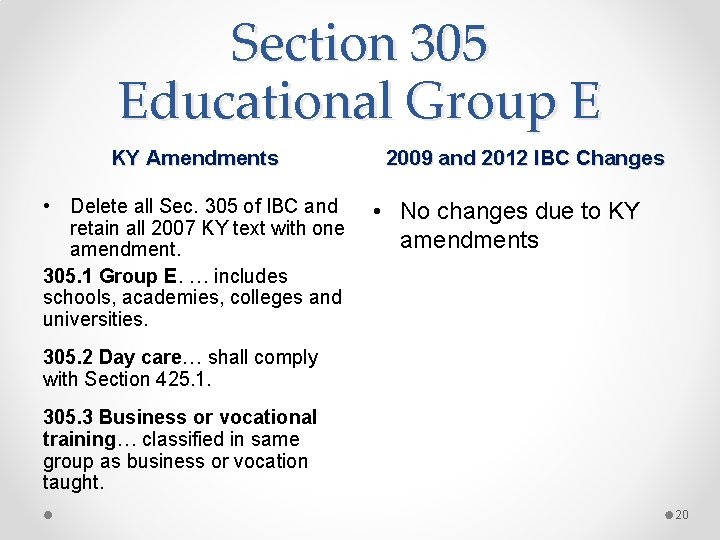

Section 305 Educational Group E KY Amendments • Delete all Sec. 305 of IBC and retain all 2007 KY text with one amendment. 305. 1 Group E. … includes schools, academies, colleges and universities. 2009 and 2012 IBC Changes • No changes due to KY amendments 305. 2 Day care… shall comply with Section 425. 1. 305. 3 Business or vocational training… classified in same group as business or vocation taught. 20

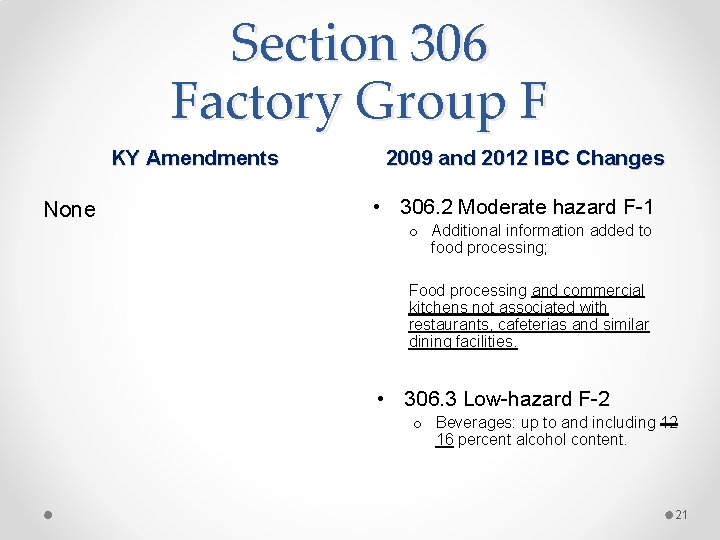

Section 306 Factory Group F KY Amendments None 2009 and 2012 IBC Changes • 306. 2 Moderate hazard F-1 o Additional information added to food processing; Food processing and commercial kitchens not associated with restaurants, cafeterias and similar dining facilities. • 306. 3 Low-hazard F-2 o Beverages: up to and including 12 16 percent alcohol content. 21

Section 307 High-Hazard Group H KY Amendments • New section added 307. 1. 2 Referenced codes. The fire code official shall have exclusive jurisdiction for enforcement of the storage, handling, processing and transportation of flammable and combustible liquids … 2009 and 2012 IBC Changes • Modified Table 307. 1(1 & (2) o Created new row for combustible dust and for Inert gas with maximum allowable quantities identified o Modified quantities for corrosive, highly toxic, and toxic materials 22

New to Table 307. 1(1) “Combustible Dust” Material Class Group when maximum allowable quantity exceeded Combustible Dust N/A H-2 Storage Use-Closed System Solid Pounds Liquid gallons Gas cubic feet at NTP Note q N/A Solid pounds Note q Use-Open System Liquid gallons Gas cubic feet at NTP N/A Solid pounds Note q Liquid gallons N/A q. Where manufactured, generated or used in such a manner that the concentration and conditions create a fire or explosion hazard based on information prepared in accordance with Section 414. 1. 3 is in current code slightly modified by the 2009 IBC but still reads about the same. Section 414. 1. 3, a report and opinion to identify if the concentration of the combustible dusts create a fire or explosion hazard. If such conditions exist, the H-2 classification would apply. The opinion and report shall be prepared by a qualified person, firm or corporation approved by the building official and submitted to the building official as part of the permit process. 23

Section 308 Institutional Group I KY Amendments • KY continues to modify Section 308. 3 for Group I-1 by stating I-1 are licensed through CFHS. 2009 and 2012 IBC Changes • None due to KY amendments • Delete Sections 308. 3. 1 - I-1 Five or fewer persons and 308. 3. 2 – I-1 6 to 16 persons • Delete 308. 6 which is IBC text for Institutional I-4 Day Care facilities. 24

Section 310 Storage Group S KY Amendments • None 2009 and 2012 IBC Changes • Aircraft hangers now classified as S-1 and not S-2 as identified in 2007 KBC • Beverages up to and including 12% 16% alcohol in metal, glass or ceramic containers 25

Chapter 4 Special Detailed Requirements Based on Use and Occupancy • In addition to the provisions found throughout the code for each given occupancy, this chapter provides special requirements due to special situations or conditions occurring in specific occupancies. 26

Chapter 4 Typical KY amendments are carried forward to the 2013 o Deleted Section 407 for I-1 and I-2 occupancies • insert text directing user to NFPA 101 and specific sections of KBC that apply to I-1 and I-2 occupancies o Section 408 Group I-3 • Provisions for local jails o Section 425 Day Care Centers o Section 427 Subterranean Spaces o Section 428 Barreled Spirit Storage Buildings 27

Chapter 4 Changes via the 2009 and 2012 IBC • Section 402 Mall Buildings o Open Mall. An unroofed pedestrian way serving a number of tenants not exceeding 3 levels … o Open Mall Building. Several structures housing a number of tenants, such as retail stores, drinking and dining establishments, entertainment and amusement facilities, offices, and other similar uses, wherein 2 or more tenants have a main entrance into one or more open malls. Anchor buildings are not considered as part of the open mall building. 28

Section 402 Mall Buildings • The new provisions permit open mall buildings to be treated the same as covered mall buildings. • A perimeter line must be established around an open mall bldg defining the extent of the open mall bldg. Parking garages and anchor bldgs shall be outside perimeter line and are not considered part of open mall bldg 29

Section 403 High-Rise Buildings • 2009 and 2012 IBC Changes Modifications to section made as result of info learned from post 9/11 terrorism study o Bond strength for spray on fire proofing increased – 403. 2. 4 o Fire pump water supply must be from two different sources – 403. 3. 2 o Smoke removal system required – 403. 4. 7 o Interior exit stairways to be separated at least 30 feet or ¼ of the diagonal, which ever is less – 403. 5. 1 o Luminous egress path markings required – 403. 5. 5 o Bldgs more than 120 feet in height must have 2 fire service access elevators – 403. 6. 1 o Occupant self-evacuation elevators permitted to be installed – 403. 6. 2 o New provisions only for high-rise buildings exceeding 420 feet in height 30

Section 422 Ambulatory Care Facilities KY amendment defines “Ambulatory Care Facility” o Non-licensed clinics per 902 KAR 20: 073 are Group B Occupancy and therefore subject to the special provisions of this section Non-licensed facilities: • Separation – with potential for 4 or more patients incapable of self-preservation, facility separated from other tenants and corridors by fire partition • Create smoke compartments when exceeding 10, 000 sf with no compartment > 22, 500 sf • Create area of refuge • Independent egress from each smoke compartment • Automatic sprinklers per Section 903. 2. 2 • Fire alarm per 907. 2. 2. 1 31

Section 423 Storm Shelters • Constructed to ICC-500 standard • Applies to shelters constructed as separate detached buildings or safe rooms within buildings to be used as safe refuge 32

Section 424 Children’s Play Structures • 2009 and 2012 IBC Changes • Children’s play structures installed in all occupancies regulated by this code shall comply with this section when: o Exceeding 10 feet in height and o 150 square feet in area • Maximum 300 square feet in area unless special investigation, approved by building official, demonstrates adequate fire safety 33

Section 425 Day Care Centers • KY amendment • Previously located in Section 421 • Creates 2 categories of Day Care Centers o Type I • What was regulated by BCE under Section 421 of the 2007 KBC o Type II • Recall definition - home or dwelling caring for 7 but not more than 12 clients 34

Section 429 Consumer Fireworks Retail Sales • KY amendments o Shall comply with Group M and provisions of NFPA 1124. o Not applicable to buildings used for storage of consumer fireworks o Identifies 2 types of “Consumer Fireworks Retail Sales Facility” • Permanent buildings o Used primarily for sale of consumer fireworks in detached stand alone buildings • Must comply with specified sections of NFPA 1124 • Temporary Structures o Tents, Stands, Canopy or membrane structures • Must comply with specified sections of NFPA 1124 35

Section 430 Temporary Structures • All temporary structures, tents, canopies and membrane structures erected for less than 180 days regulated by this new section. • All tents > 400 sf submitted to DHBC for model approval or on an individual use basis o Exceptions include; • Recreational tents • Fabric canopies up to 700 sf • Private event “Event involves use of temporary structures not open to public, no charge for admission and occupied by less than 1000” 36

Chapter 5 General Building Heights and Areas • This chapter regulates the height and area of buildings erected and additions to existing buildings. • KY amendments seen in past editions of KBC are continued in 2013: o o Day care centers (referring back to Table 425. 13) Open space limits (fire lane specifications per 503. 2 of IFC) Unlimited area buildings (exclusion of Type V construction) Use Group R (1 -hour horizontal assembly when above other occupancy) 37

Section 501. 2 Address Numbers KY Amendments • Buildings shall have approved address numbers, building numbers or approved building identification placed in a position that is plainly legible and visible from the street or road fronting the property. These numbers shall contrast with their background. Address numbers shall be Arabic numerals or alphabetical letters. Numbers shall be a minimum 4” high with a minimum stroke width of 0. 5”. 2009 and 2012 IBC Changes • New and existing buildings shall be provided with approved address numbers or letter. Each character shall be not less than 4” in height …. When required by the fire code official, address numbers shall be provided in additional approved locations to facilitate emergency response. Where access is by means of a private road and the building address cannot be virewed from the public way, a monument, pole or other approved sign or means shall be used to identify the structure. Address number shall be maintained. 38

Table 503 • Number of stories for B, M, S-1 and S-2 occupancies reduced by 1 story in Type IIB and IIIB construction Type III A B A B Type IV Type V A B B S A UL UL 5 37, 500 3 23, 000 5 28, 500 3 19, 000 5 36, 000 3 18, 000 2 9, 000 M S A UL UL 11 UL 4 21, 500 2 12, 500 4 18, 500 2 12, 500 4 20, 500 3 14, 000 3 9000 S-1 S A UL UL 11 48000 4 26000 2 17500 3 26000 2 17500 4 25000 3 14000 1 9000 S-2 S A UL UL 11 79000 5 39000 3 26000 4 39000 3 26000 5 38500 4 21000 2 13500 39

Section 506. 2. 1 Width Limits • Revised text and new equation via 2012 IBC added for clarification • 506. 2. 1 Width limits. To apply this section the value of W shall not be less than 20 feet. Where the value of W varies along the perimeter of the building, the calculation performed in accordance with Equation 5 -2 shall be based on the weighted average calculated in accordance with Equation 5 -3 for portions of the exterior perimeter walls where the value of W is greater than 20 feet…W shall be measured perpendicular from the face of the building to the closest interior lot line. Where the building fronts on a public way, the entire width of the public way shall be used. Where two or more buildings are on the same lot, W shall be measured from the exterior face of each building to the opposing exterior face of each adjacent building, as applicable. 40

Equation 5 -3 W=(L 1 x w 1 + L 2 x w 2 + L 3 x w 3 + L 4 x w 4)/F • L = length of a portion of exterior perimeter wall • w = width of open space associated with that portion of exterior perimeter wall (Remember: must be greater than 20) • F = building perimeter that fronts on a public way or open space having a width of 20’ or more 41

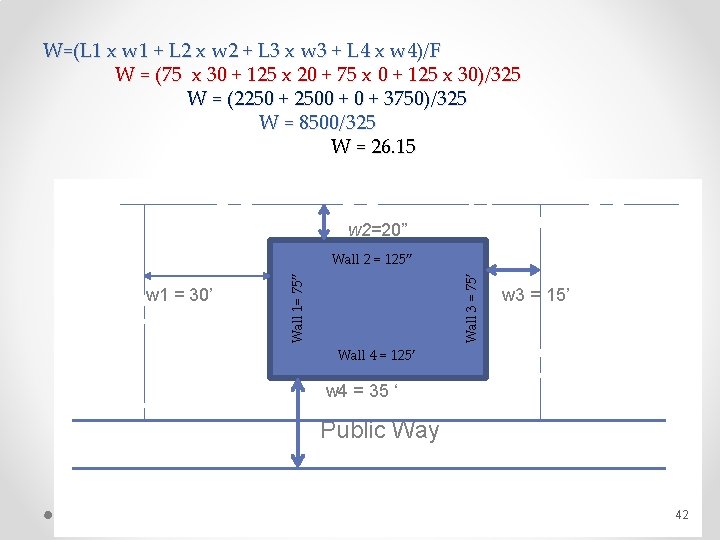

W=(L 1 x w 1 + L 2 x w 2 + L 3 x w 3 + L 4 x w 4)/F W = (75 x 30 + 125 x 20 + 75 x 0 + 125 x 30)/325 W = (2250 + 2500 + 3750)/325 W = 8500/325 W = 26. 15 w 2=20” Wall 1= 75” w 1 = 30’ Wall 3 = 75’ Wall 2 = 125” w 3 = 15’ Wall 4 = 125’ w 4 = 35 ‘ Public Way 42

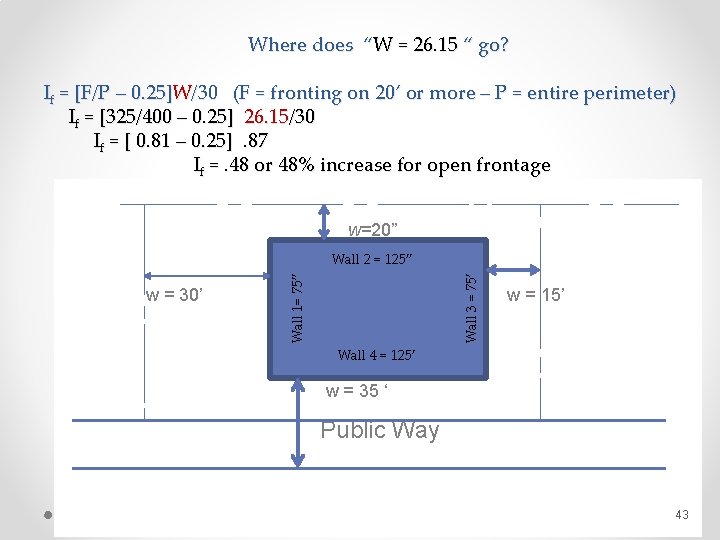

Where does “W = 26. 15 “ go? If = [F/P – 0. 25]W/30 (F = fronting on 20’ or more – P = entire perimeter) If = [325/400 – 0. 25] 26. 15/30 If = [ 0. 81 – 0. 25]. 87 If =. 48 or 48% increase for open frontage w=20” Wall 1= 75” w = 30’ Wall 3 = 75’ Wall 2 = 125” w = 15’ Wall 4 = 125’ w = 35 ‘ Public Way 43

Section 509 Incidental Uses 2007 KBC • Incidental uses was located Section 508 with MIXED USE and OCCUPANY 2009 and 2012 IBC Changes • New section 509 Incidental Uses o o o incidental uses are no longer associated with accessory occupancy provisions no longer considered mixed use occupancies. Incidental uses are classified as part of the occupancy within which they are located. Incidental uses shall not occupy more than 10% of building area of the story Mandates automatic sprinklers in lieu of fire extinguishing system under 2007 KBC o No longer requires protection of storage rooms > 100 square feet 44

Chapter 6 Types of Construction KY Amendments 2009 and 2012 IBC Changes • 602. 1 General. • None Type II A B Primary structural frame 3 2 1 0 Bearing Walls Exterior Interior 3 3 2 2 1 1 0 0 Building Elements Nonbearing walls and partitions Exterior o Clarifies openings, ducts and air transfer openings not required to be protected unless specified elsewhere in code. o Slight changes to Table 601 – added primary and secondary framing terms See Table 602 Floor construction and associated secondary members 2 2 1 0 Roof construction and associated secondary members 1½ 1 1 0 45

Chapter 7 Fire and Smoke Protection Features • KY Amendments • KY amendments seen in past editions of KBC are continued in 2013: o Fire wall construction restricted to concrete or masonry o Draftstopping alternative in Group R-1 and R-2 occupancies 46

Changes via 2009 and 2012 IBC • 703. 6 Marking and Identification: Fire walls, fire barriers, fire partitions, smoke barriers and smoke partitions to be identified by stenciling or sign: o Located in accessible concealed floor, floor-ceiling or attic space, o Within 15’ of end of wall and at intervals not more than 30’ o Lettering not less than 3” high, 3/8 stroke width, and contrasting color o Recommended wording: • Fire and/or Smoke Barrier – Protect all openings 47

Section 704 Fire resistance Rating of Structural Members 2007 KBC • Fire resistance protection of structural members Moved from 714 to 704 • 714. 2 Column Protection: … columns, girders, trusses, beams could be protected by individual protection or membrane or encasement depending on loading conditions 2009 and 2012 IBC Changes • 704. 2 Column protection: Where required to have protection to be fire-resistance rated, the entire column shall be provided with individual encasement protection by protecting on all sides for full column length … 48

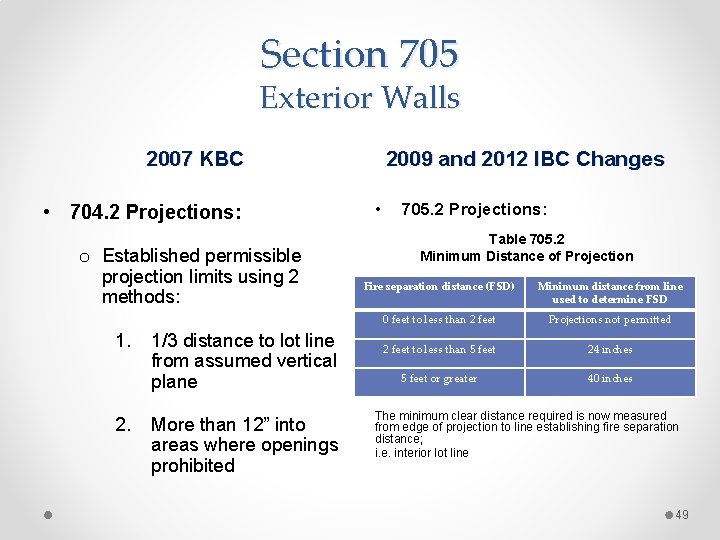

Section 705 Exterior Walls 2007 KBC • 704. 2 Projections: o Established permissible projection limits using 2 methods: 1. 2. 1/3 distance to lot line from assumed vertical plane More than 12” into areas where openings prohibited 2009 and 2012 IBC Changes • 705. 2 Projections: Table 705. 2 Minimum Distance of Projection Fire separation distance (FSD) Minimum distance from line used to determine FSD 0 feet to less than 2 feet Projections not permitted 2 feet to less than 5 feet 24 inches 5 feet or greater 40 inches The minimum clear distance required is now measured from edge of projection to line establishing fire separation distance; i. e. interior lot line 49

Section 705 Exterior Walls 2007 KBC • 704. 5 Fire-resistance rating: … The fire resistance rating of exterior walls with fire separation distance greater than 5’ shall be rated for exposure to fire from the inside. The fire resistance … 5’ or less rated for exposure from both sides. 2009 and 2012 IBC Changes • 705. 5 Fire-resistance rating: … The required fire resistance rating of exterior walls with a fire separation distance of greater than 10 feet shall be rated for exposure to fire from the inside. The required fire resistance rating of exterior walls with a fire separation distance of less than or equal to 10 feet shall be rated for exposure to fire from both sides. 50

Fire Walls • 2009 and 2012 IBC Changes • 706. 2 Structural Stability: Fire walls shall have sufficient structural stability under fire conditions to allow collapse of construction on either side without collapse of the wall … or shall be constructed as double fire walls in accordance with NFPA 221. 51

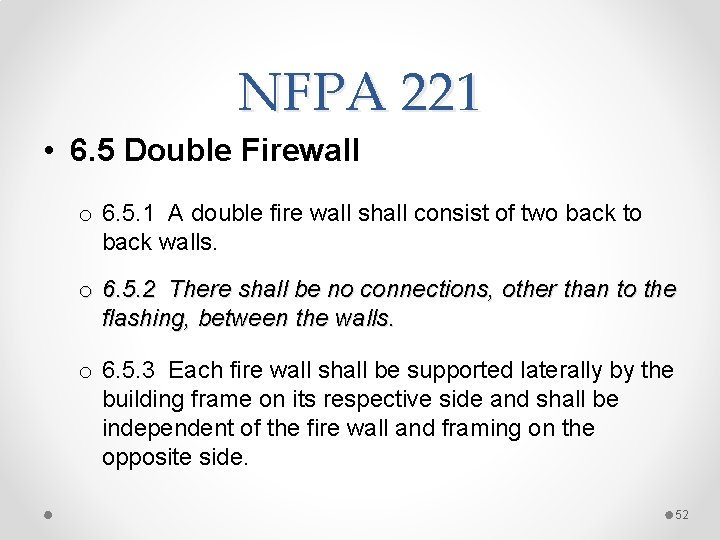

NFPA 221 • 6. 5 Double Firewall o 6. 5. 1 A double fire wall shall consist of two back to back walls. o 6. 5. 2 There shall be no connections, other than to the flashing, between the walls. o 6. 5. 3 Each fire wall shall be supported laterally by the building frame on its respective side and shall be independent of the fire wall and framing on the opposite side. 52

Vertical Continuity New Fire Wall Parapet Section • 706. 6. 2 Buildings with sloped roofs: → Where a fire wall serves as an interior wall → roof on one side or both slopes toward the fire wall at a slope > 2: 12, the fire wall shall extend to a height equal to the height of the roof located 4 feet from the fire wall plus 30 inches but in no case shall the extension be less than 30 inches. 4 ft. 30 in. min. Fire Wall 53

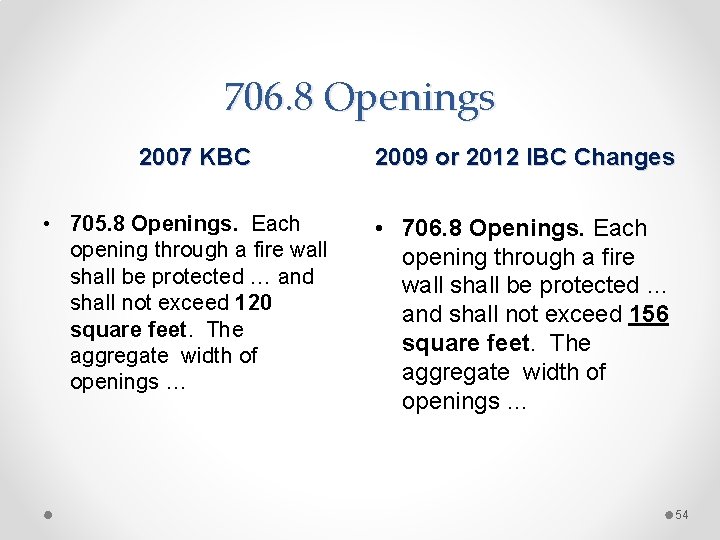

706. 8 Openings 2007 KBC • 705. 8 Openings. Each opening through a fire wall shall be protected … and shall not exceed 120 square feet. The aggregate width of openings … 2009 or 2012 IBC Changes • 706. 8 Openings. Each opening through a fire wall shall be protected … and shall not exceed 156 square feet. The aggregate width of openings … 54

Reorganization 2007 KBC • Section 707 Shafts. This section establishes the requirements for protecting openings and penetrations through floor/ceiling and roof/ceiling assemblies. 707. 2 Shaft enclosure required. Simply put, protect penetrations with a shaft enclosure or meet one of the exceptions. 2009 or 2012 IBC Changes • Section 712 Vertical openings. This section recognizes that a shaft enclosure is but one way of protecting openings and penetrations The body of this section reflects the exceptions found in Section 707. 2 of the 2007 KBC. 55

2007 KBC Shaft Enclosures • • 2013 KBC via 2012 IBC • • • • 707. 1 General 707. 2 Shafts Exception 1 Exception 2 o Exception 2. 1 o Exception 2. 2 Exception 3 Exception 4 Exception 5 Exception 6 Exception 7 Exception 8 Exception 9 Exception 10 Exception 11 Exception 12 N/A N/A • • • • • Exception 13 • 712. 1 General 712. 1. 1 Shafts 712. 1. 2 Individual dwelling unit 712. 1. 3 Escalators 712. 3. 1 Opening size 712. 1. 3. 2 Automatic shutters 712. 1. 4 Penetrations 712. 1. 5 Ducts 712. 1. 6 Atriums 712. 1. 7 Masonry chimney 712. 1. 8 Two story openings 712. 1. 9 Parking Garages 712. 1. 10 Mezzanines 712. 1. 11 Joints 712. 1. 12 Unenclosed stairs and ramps 712. 1. 13 Floor fire doors 712. 1. 14 Group I-3 712. 1. 15 Elevators in parking garage 712. 1. 16 Duct systems in parking garage 712. 1. 17 Openings otherwise permitted 56

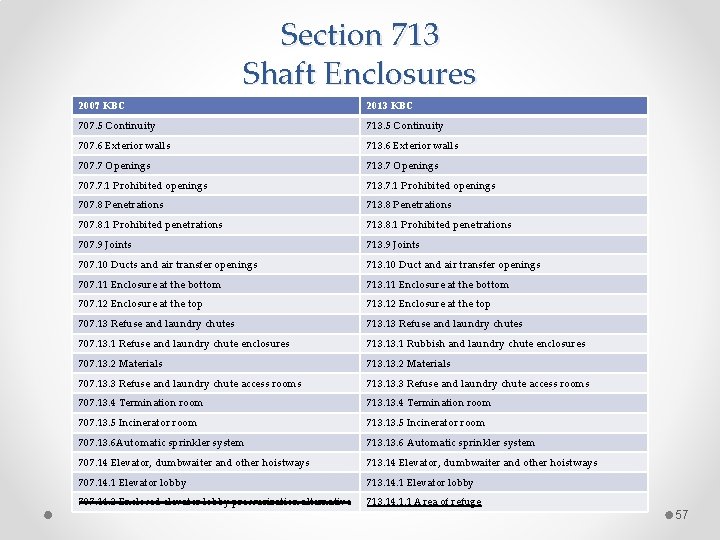

Section 713 Shaft Enclosures 2007 KBC 2013 KBC 707. 5 Continuity 713. 5 Continuity 707. 6 Exterior walls 713. 6 Exterior walls 707. 7 Openings 713. 7 Openings 707. 7. 1 Prohibited openings 713. 7. 1 Prohibited openings 707. 8 Penetrations 713. 8 Penetrations 707. 8. 1 Prohibited penetrations 713. 8. 1 Prohibited penetrations 707. 9 Joints 713. 9 Joints 707. 10 Ducts and air transfer openings 713. 10 Duct and air transfer openings 707. 11 Enclosure at the bottom 713. 11 Enclosure at the bottom 707. 12 Enclosure at the top 713. 12 Enclosure at the top 707. 13 Refuse and laundry chutes 713. 13 Refuse and laundry chutes 707. 13. 1 Refuse and laundry chute enclosures 713. 1 Rubbish and laundry chute enclosures 707. 13. 2 Materials 713. 2 Materials 707. 13. 3 Refuse and laundry chute access rooms 713. 3 Refuse and laundry chute access rooms 707. 13. 4 Termination room 713. 4 Termination room 707. 13. 5 Incinerator room 713. 5 Incinerator room 707. 13. 6 Automatic sprinkler system 713. 6 Automatic sprinkler system 707. 14 Elevator, dumbwaiter and other hoistways 713. 14 Elevator, dumbwaiter and other hoistways 707. 14. 1 Elevator lobby 713. 14. 1 Elevator lobby 707. 14. 2 Enclosed elevator lobby pressurization alternative 713. 14. 1. 1 Area of refuge 57

The 2 new sections in Vertical Shafts • 712. 1. 15 Elevators in parking garages. o Vertical openings for elevator hoistway is permitted in both open and enclosed parking garages, serving on the parking garage and complying with Sections 406. 5 and 406. 6 • 712. 1. 16 Duct systems in parking garages. o Vertical openings for exhaust and supply duct systems permitted to be unenclosed in open and enclosed parking garages when serving only the garage and complying with Sections 406. 5 and 406. 6. 58

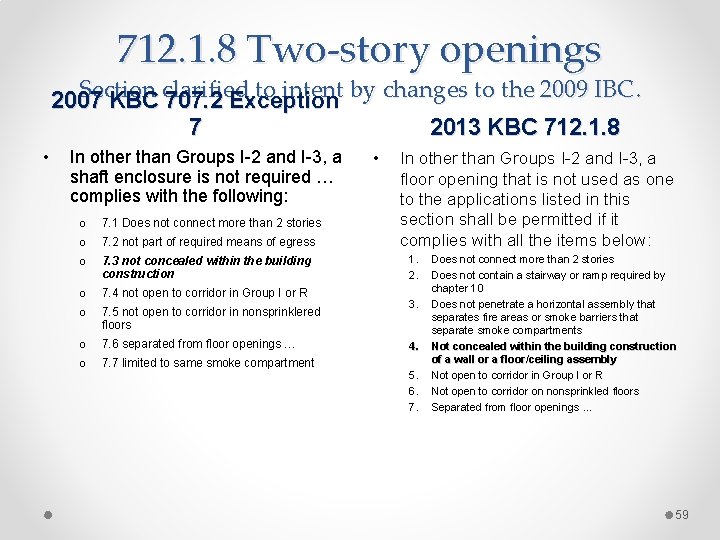

712. 1. 8 Two-story openings Section to intent by changes to the 2009 IBC. 2007 KBC clarified 707. 2 Exception 2013 KBC 712. 1. 8 7 • In other than Groups I-2 and I-3, a shaft enclosure is not required … complies with the following: o 7. 1 Does not connect more than 2 stories o 7. 2 not part of required means of egress o 7. 3 not concealed within the building construction o 7. 4 not open to corridor in Group I or R o 7. 5 not open to corridor in nonsprinklered floors o 7. 6 separated from floor openings … o 7. 7 limited to same smoke compartment • In other than Groups I-2 and I-3, a floor opening that is not used as one to the applications listed in this section shall be permitted if it complies with all the items below: 1. 2. 3. 4. 5. 6. 7. Does not connect more than 2 stories Does not contain a stairway or ramp required by chapter 10 Does not penetrate a horizontal assembly that separates fire areas or smoke barriers that separate smoke compartments Not concealed within the building construction of a wall or a floor/ceiling assembly Not open to corridor in Group I or R Not open to corridor on nonsprinkled floors Separated from floor openings … 59

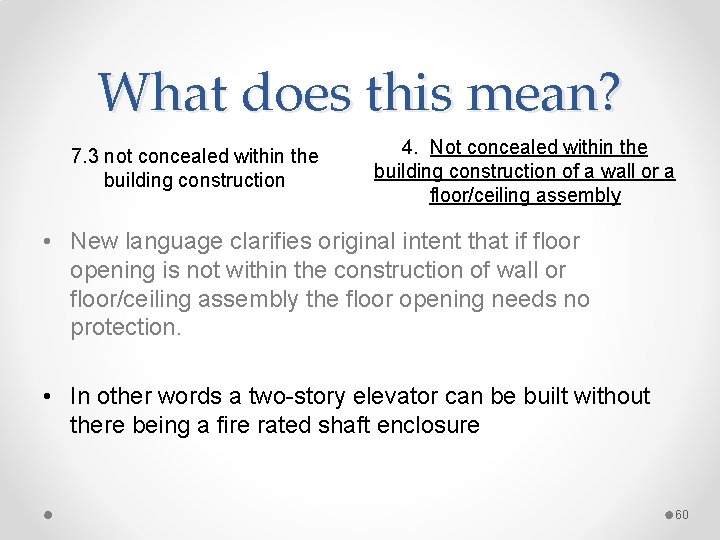

What does this mean? 7. 3 not concealed within the building construction 4. Not concealed within the building construction of a wall or a floor/ceiling assembly • New language clarifies original intent that if floor opening is not within the construction of wall or floor/ceiling assembly the floor opening needs no protection. • In other words a two-story elevator can be built without there being a fire rated shaft enclosure 60

Fire-Resistant Joint Systems 2009 or 2012 IBC Changes • Exterior wall / non-fire rated floor/ceiling assembly • Added new subsection • 715. 4. 1 Exterior curtain wall/nonfire-resistance-rated floor assembly intersections. • Must now seal any void between an exterior curtain wall and nonfire-resistant rated floor assembly. Exterior curtain wall Approved material or system to resist spread of fire and passage of gas and heat Path of smoke 61

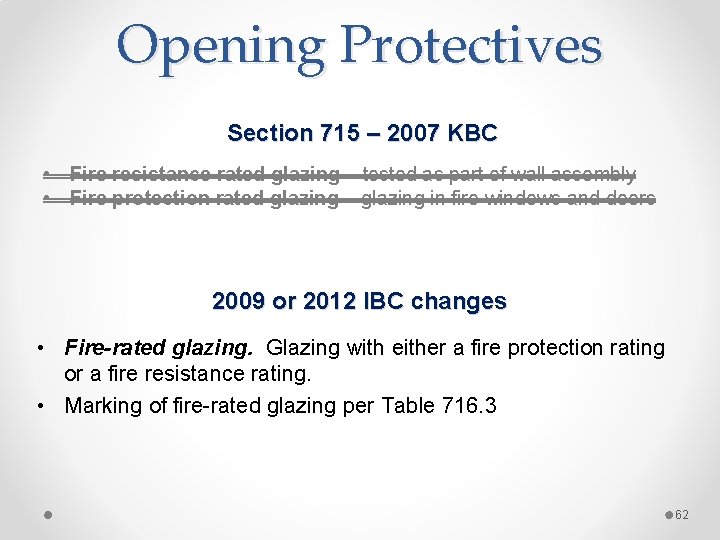

Opening Protectives Section 715 – 2007 KBC • Fire resistance rated glazing – tested as part of wall assembly • Fire protection rated glazing – glazing in fire windows and doors 2009 or 2012 IBC changes • Fire-rated glazing. Glazing with either a fire protection rating or a fire resistance rating. • Marking of fire-rated glazing per Table 716. 3 62

Table 716. 3 The location of the glazing and the required fire resistance rating for the wall assembly, door assembly or fire shutter assembly will determine which marking(s) are required. New Table 716. 5 will clarify. Fire Test Standard Marking Definition of Marking ASTM E 110 or UL 263 W Meets wall assembly criteria NFPA 257 or UL 9 OH Meets fire window assembly criteria including the hose stream test NFPA 252 or UL 10 B or UL 10 C D H T Meets fire door assembly criteria Meets Fire door assembly “Hose Stream” test Meets 450° F temperature rise criteria for 30 minutes XXX The time in minutes of the fire resistance or fire protection rating of the glazing assembly 63

Table 716. 5 • This table (previously Table 715. 4) has expanded so that in addition to fire door and shutter fire rating to include minimum rating and marking requirements for fire rated glazing vision panels, sidelights and transoms. • All previous code text deleted in favor of “user friendly” table. Type Assembly Exterior Walls Required Wall Assembly Rating Minimum Fire Door and Fire Shutter Assembly Rating Door Vision Panel Size 3 1½ 100 sq in 2 1½ 100 sq in Fire Rated Glazing Marking Door Vision Panel < 100 sq in = D-H_90 > 100 sq in = D-H-W-90 Minimum Sidelight/Transom Assembly Rating Fire-Rated glazing Marking Sidelight/Transom Panel Fire protection Fire resistance Fire Protection Fire Resistance Not Permitted 3 Not Permitted W-180 Not Permitted 2 Not Permitted W-120 Fire Protection 1 ¾ Maximum size tested D-H-45 ¾ D-H-45 64

Section 717 Duct and Air Transfer Openings 2007 KBC • No such text 2009 or 2012 IBC Changes • 717. 5. 6 Exterior Walls. Ducts and air transfer openings in fire-resistancerated exterior walls required to have protected openings per Sec. 705. 10 shall be protected with listed fire dampers. 65

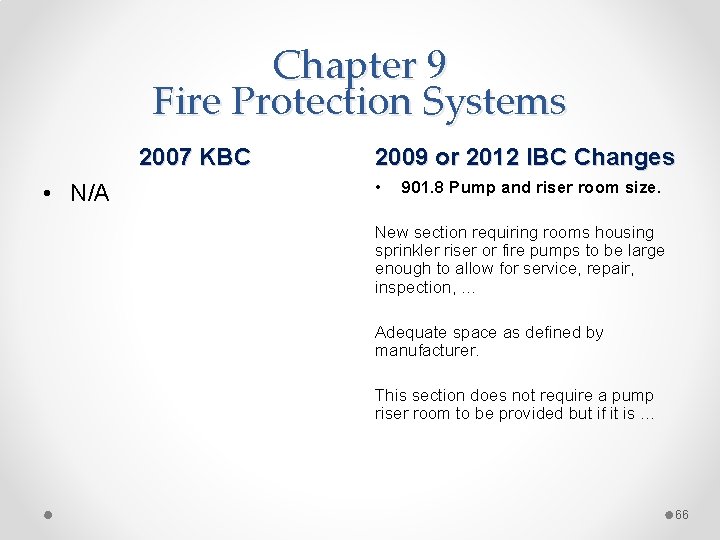

Chapter 9 Fire Protection Systems 2007 KBC • N/A 2009 or 2012 IBC Changes • 901. 8 Pump and riser room size. New section requiring rooms housing sprinkler riser or fire pumps to be large enough to allow for service, repair, inspection, … Adequate space as defined by manufacturer. This section does not require a pump riser room to be provided but if it is … 66

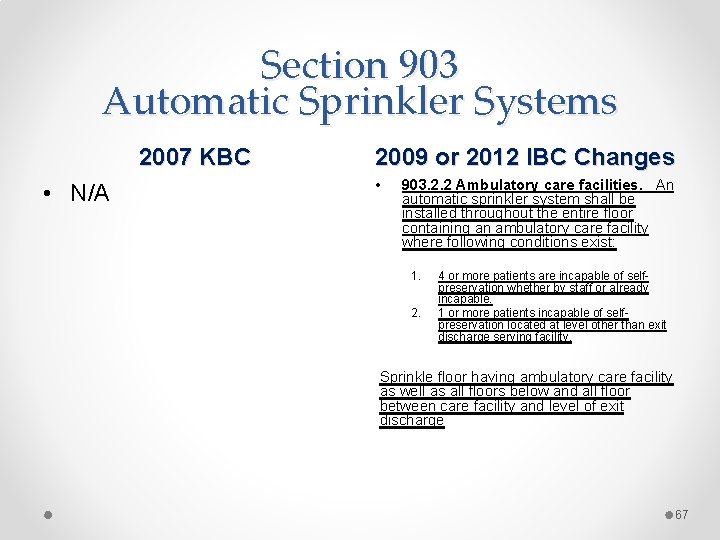

Section 903 Automatic Sprinkler Systems 2007 KBC • N/A 2009 or 2012 IBC Changes • 903. 2. 2 Ambulatory care facilities. An automatic sprinkler system shall be installed throughout the entire floor containing an ambulatory care facility where following conditions exist: 1. 2. 4 or more patients are incapable of selfpreservation whether by staff or already incapable. 1 or more patients incapable of selfpreservation located at level other than exit discharge serving facility. Sprinkle floor having ambulatory care facility as well as all floors below and all floor between care facility and level of exit discharge 67

Section 903 Automatic Sprinkler Systems 2007 KBC • 903. 2. 2 Group E. 2009 or 2012 IBC Changes • 903. 2. 3 Group E. An automatic sprinkler system shall be provided for Group E as follows: An automatic sprinkler system shall be provided for Group E occupancies as follows: 1. Throughout all Group E fire areas greater than 12, 000 sf. 2. Throughout every portion of education buildings below the lowest level of exit discharge serving that portion of the building. 1. Throughout all Group E fire areas greater than 20, 000 sf 2. Throughout every portion of educational buildings below the level of exit discharge. 68

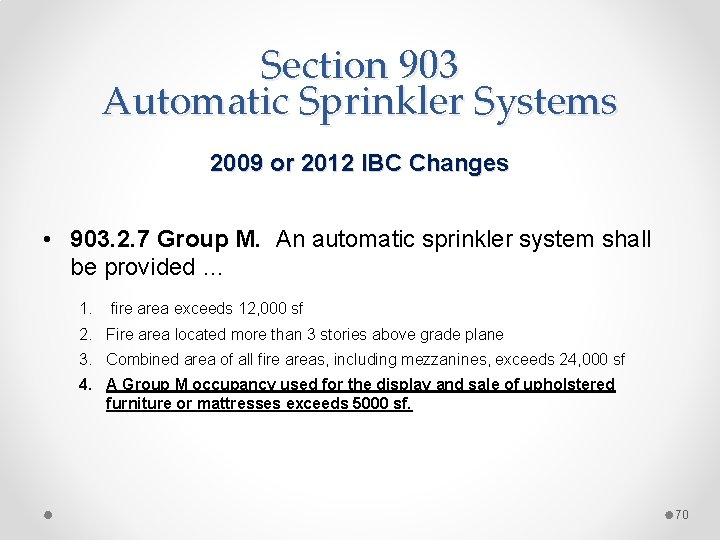

Section 903 Automatic Sprinkler Systems 2009 or 2012 IBC Changes • 903. 2. 4 Group F-1. An automatic sprinkler system shall be provided … 1. fire area exceeds 12, 000 sf 2. Fire area located more than 3 stories above grade plane 3. Combined area of all fire areas exceeds 24, 000 sf 4. A Group F-1 occupancy used for the manufacture of upholstered furniture or mattresses exceeds 2500 sf. 69

Section 903 Automatic Sprinkler Systems 2009 or 2012 IBC Changes • 903. 2. 7 Group M. An automatic sprinkler system shall be provided … 1. fire area exceeds 12, 000 sf 2. Fire area located more than 3 stories above grade plane 3. Combined area of all fire areas, including mezzanines, exceeds 24, 000 sf 4. A Group M occupancy used for the display and sale of upholstered furniture or mattresses exceeds 5000 sf. 70

Section 903 Automatic Sprinkler Systems • 2013 KY Amendment retains entire 2007 KBC text for Group-R sprinkler thresholds: 903. 2. 8 Group R. An automatic sprinkler system installed in accordance with Section 903. 3 shall be provided throughout all buildings with a Group R fire area. 903. 2. 8. 1 Group R-1. An automatic sprinkler system shall be provided throughout buildings with a Group R-1 fire area. (exceptions also retained) 903. 2. 7. 2 Group R-2 and R-3. An automatic sprinkler system shall be provided throughout all buildings with a Group R-2 and R-3 fire area where more than two stories in height, including basements. 71

Section 903 Automatic Sprinkler Systems 2009 or 2012 IBC Changes • 903. 2. 9 Group S-1. An automatic sprinkler system shall be provided … 1. fire area exceeds 12, 000 sf 2. Fire area located more than 3 stories above grade plane 3. Combined area of all fire areas exceeds 24, 000 sf 4. A Group S-1 occupancy used for the storage of upholstered furniture or mattresses exceeds 2500 sf. 72

Section 903 Automatic Sprinkler Systems 2009 or 2012 IBC Changes • 903. 2. 10 Group S-2 enclosed parking garage. An automatic sprinkler system shall be provided … 1. fire area exceeds 12, 000 sf 2. Where the enclosed parking garage is located beneath other groups. 73

Section 903 Automatic Sprinkler Systems • 2009 or 2012 IBC Changes • 903. 2. 11. 1. 3 Basements. Where any portion of a basement is located more than 75 feet from openings required by Section 903. 2. 11. 1, or where walls, partitions or other obstruction are installed that restrict the application of water from hose streams, the basement shall be equipped throughout with an approved automatic sprinkler system. The use of openings in the exterior wall no longer an alternative to sprinkler protection if there are obstructions present that will interfere with application of water from fire fighter hose stream. 74

Section 907 Fire Alarm and Detection Systems • 2009 or 2012 IBC Changes 907. 2 Where required. An approved fire alarm system installed in accordance with NFPA 72… A minimum of one manual fire alarm box shall be provided in an approved location to initiate a fire alarm signal for fire alarm system employing automatic fire detectors or waterflow detection devices. Where other sections of this code allow elimination of fire alarm boxes due to sprinklers, a single fire alarm box shall be installed. 75

Section 907 Fire Alarm and Detection Systems • KY Amendment – Section 907. 2. 3 of 2007 retained and carried over to the 2013 KBC 907. 2. 3 Group E. A manual fire alarm system shall be installed in Group E occupancies. When automatic sprinkler systems or smoke detectors are installed, such systems or detectors shall be connected to the building fire alarm system. Exceptions: 1. Group E occupancies with an occupant load of less than 50. (reads 30 in IBC) 2. Manual fire alarm boxes are not required in Group E occupancies where all the following apply: 2. 1 Interior corridors are protected by smoke detectors with alarm verification. 2. 2 Auditoriums, cafeterias, gymnasiums and the like are protected by heat detectors or other approved detection devices. 2. 3 Shops and laboratories involving dusts or vapors are protected by heat detectors or other approved detection devices. 2. 4 Off-premises monitoring is provided. 2. 5 The capability to activate the evacuation signal from a central point is provided. 2. 6 In buildings where normally occupied spaces are provided with a two-way communication system between such spaces and a constantly attended receiving station from where a general evacuation alarm can be sounded, except in locations specifically designated by the fire code official. 76

Section 907 Fire Alarm and Detection Systems • KY Amendment – Section 907. 2. 3 of 2007 retained and carried over to the 2013 KBC 907. 2. 3 Group E. A manual fire alarm system shall be installed in Group E occupancies. When automatic sprinkler systems or smoke detectors are installed, such systems or detectors shall be connected to the building fire alarm system. Exceptions: 3. Manual fire alarm boxes shall not be required in Group E occupancies where the building is equipped throughout with an approved automatic sprinkler system, the notification appliances will activate on sprinkler water flow and manual activation is provided from a normally occupies location. 4. Modular or portable educational buildings or clusters of such buildings in which the main building fire alarm is extended to the buildings or in which single-station smoke detectors are installed under the following conditions: 4. 1 Individual buildings or cluster of buildings with a total aggregate floor area of not more than 7200 square feet (672 m 2). 4. 2 Each modular or portable building is separated from all other school buildings on the campus by a minimum horizontal distance of 10 feet (3048 mm). 4. 3 Smoke alarms are installed in each classroom and wired in series so as to sound an alarm in each classroom of the building or cluster of buildings. Spacing shall be 30 feet (9144 mm) on center in corridors and 900 square feet (84 m 2) per detector in open spaces, or in accordance with the manufacturer specifications. 77

Section 907 Fire Alarm and Detection Systems • 2009 or 2012 IBC Change – New Text 907. 2. 9. 3 Group R-2 college and university buildings. An automatic smoke detection system that activates the occupant notification system in accordance with Section 907. 5 shall be installed in Group R-2 college and university buildings in the following locations: 1. Common spaces outside of dwelling and sleeping units. 2. Laundry rooms, mechanical rooms, storage rooms. 3. All interior corridors serving sleeping or dwelling units. 78

Section 908 Emergency Alarm Systems • 2009 or 2012 IBC Changes – New Text 908. 7 Carbon monoxide alarms. Group I and R occupancies located in a building containing fuel-burning appliance or which has an attached garage shall be equipped with single-station carbon monoxide alarms shall: o Be listed per UL 2034 o Be installed and maintained per NFPA 720 79

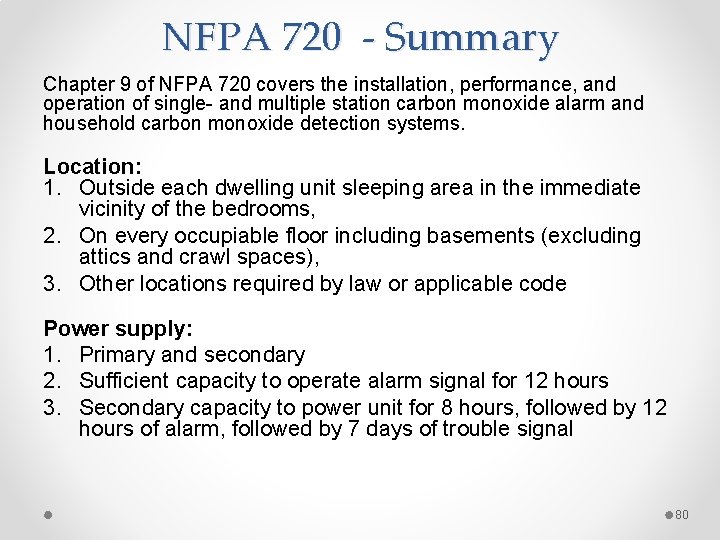

NFPA 720 - Summary Chapter 9 of NFPA 720 covers the installation, performance, and operation of single- and multiple station carbon monoxide alarm and household carbon monoxide detection systems. Location: 1. Outside each dwelling unit sleeping area in the immediate vicinity of the bedrooms, 2. On every occupiable floor including basements (excluding attics and crawl spaces), 3. Other locations required by law or applicable code Power supply: 1. Primary and secondary 2. Sufficient capacity to operate alarm signal for 12 hours 3. Secondary capacity to power unit for 8 hours, followed by 12 hours of alarm, followed by 7 days of trouble signal 80

Section 913 Fire Pumps • 2009 or 2012 IBC Changes – New Text 913. 2. 1 Protection of fire pump rooms. Fire pump rooms shall be located in rooms that are separated from all other areas of the building by 2 -hour fire barriers or 2 -hour horizontal assemblies or both. Exceptions: 1. Reduced to 1 -hour in fully sprinkled buildings 2. Fire pumps physically separated per NFPA 20 - (50 ft) 81

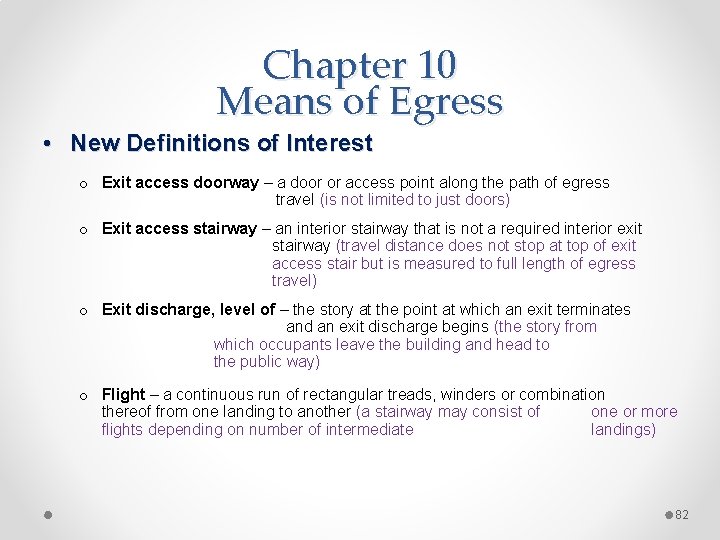

Chapter 10 Means of Egress • New Definitions of Interest o Exit access doorway – a door or access point along the path of egress travel (is not limited to just doors) o Exit access stairway – an interior stairway that is not a required interior exit stairway (travel distance does not stop at top of exit access stair but is measured to full length of egress travel) o Exit discharge, level of – the story at the point at which an exit terminates and an exit discharge begins (the story from which occupants leave the building and head to the public way) o Flight – a continuous run of rectangular treads, winders or combination thereof from one landing to another (a stairway may consist of one or more flights depending on number of intermediate landings) 82

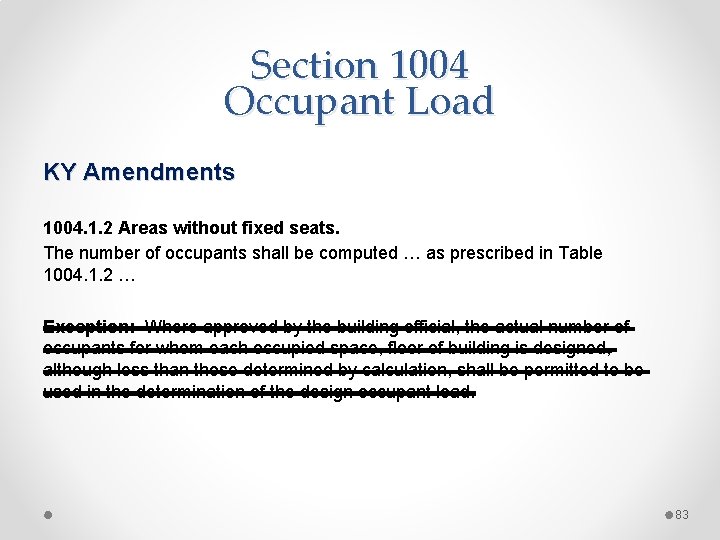

Section 1004 Occupant Load KY Amendments 1004. 1. 2 Areas without fixed seats. The number of occupants shall be computed … as prescribed in Table 1004. 1. 2 … Exception: Where approved by the building official, the actual number of occupants for whom each occupied space, floor of building is designed, although less than those determined by calculation, shall be permitted to be used in the determination of the design occupant load. 83

Section 1004 Occupant Load IBC and KY Changes Table 1004. 1. 2 Exhibit Gallery and Museum 30 net Industrial areasa 100 gross Industrial areas Institutional areas Inpatient treatment areas Outpatient areas Sleeping areas 240 gross 100 gross 120 gross Locker rooms 50 gross 84

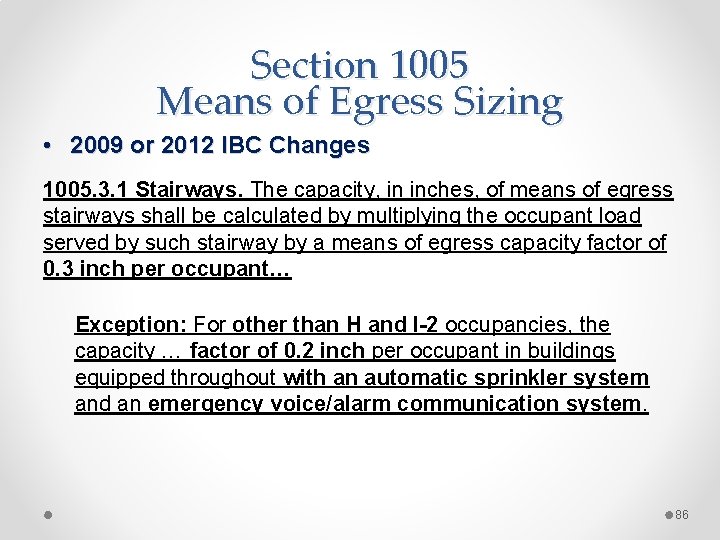

Section 1005 Means of Egress Sizing • The sizing of egress door, ramps, corridors, etc. and stair widths has changed. No longer is there a factor for sprinkled buildings and non-sprinkled buildings. • 2007 KBC looked like this: Occupancy Without Sprinkler System With Sprinkler System Stairways Other egress components Occupancies other than listed below 0. 3 0. 2 0. 15 High Hazard 0. 7 0. 4 0. 3 0. 2 I-2 NA NA 0. 3 0. 2 85

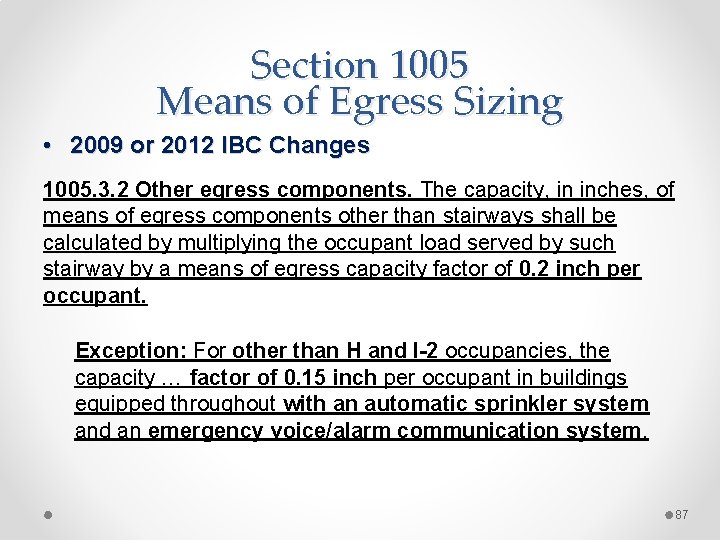

Section 1005 Means of Egress Sizing • 2009 or 2012 IBC Changes 1005. 3. 1 Stairways. The capacity, in inches, of means of egress stairways shall be calculated by multiplying the occupant load served by such stairway by a means of egress capacity factor of 0. 3 inch per occupant… Exception: For other than H and I-2 occupancies, the capacity … factor of 0. 2 inch per occupant in buildings equipped throughout with an automatic sprinkler system and an emergency voice/alarm communication system. 86

Section 1005 Means of Egress Sizing • 2009 or 2012 IBC Changes 1005. 3. 2 Other egress components. The capacity, in inches, of means of egress components other than stairways shall be calculated by multiplying the occupant load served by such stairway by a means of egress capacity factor of 0. 2 inch per occupant. Exception: For other than H and I-2 occupancies, the capacity … factor of 0. 15 inch per occupant in buildings equipped throughout with an automatic sprinkler system and an emergency voice/alarm communication system. 87

Emergency Voice/Alarm Communication System • Chapter 2 definition: Dedicated manual or automatic facilities for originating and distributing voice instructions, as well as alert and evacuation signals pertaining to a fire emergency, to the occupants of a building. 88

Let’s look Closer Corridor width -- “A” Door width - “B” Stairway – “C” Example: Assume exit serves 200 people Egress Component Min. width per 1005. 2 Min. width based on occupant load New factor 1005. 3 Sprinkled and voice alarm system Corridor “A” 44” 40” 30” Door “B” 32” 40” 30” Stairway “C” 44” 60” 40” 89

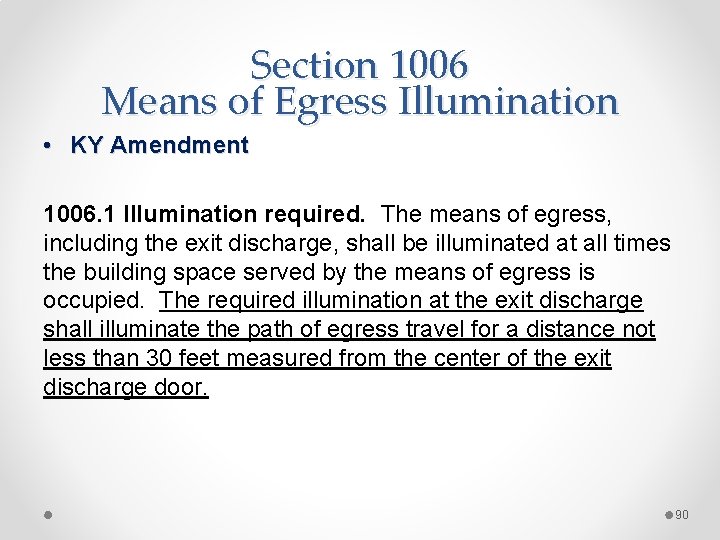

Section 1006 Means of Egress Illumination • KY Amendment 1006. 1 Illumination required. The means of egress, including the exit discharge, shall be illuminated at all times the building space served by the means of egress is occupied. The required illumination at the exit discharge shall illuminate the path of egress travel for a distance not less than 30 feet measured from the center of the exit discharge door. 90

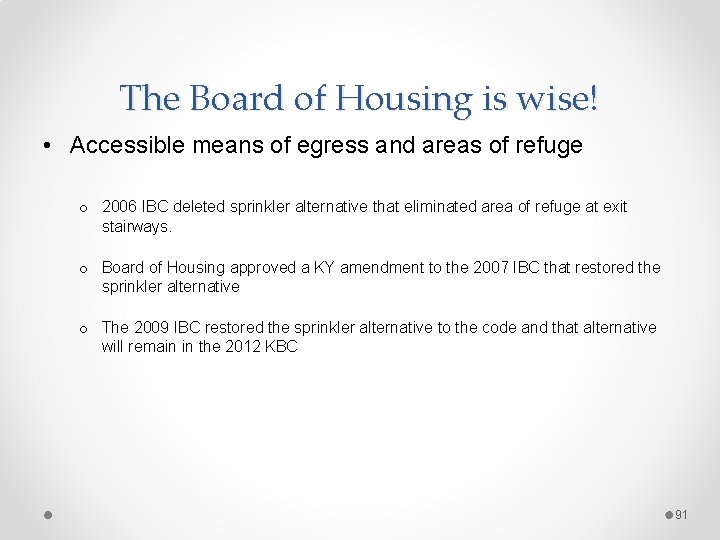

The Board of Housing is wise! • Accessible means of egress and areas of refuge o 2006 IBC deleted sprinkler alternative that eliminated area of refuge at exit stairways. o Board of Housing approved a KY amendment to the 2007 IBC that restored the sprinkler alternative o The 2009 IBC restored the sprinkler alternative to the code and that alternative will remain in the 2012 KBC 91

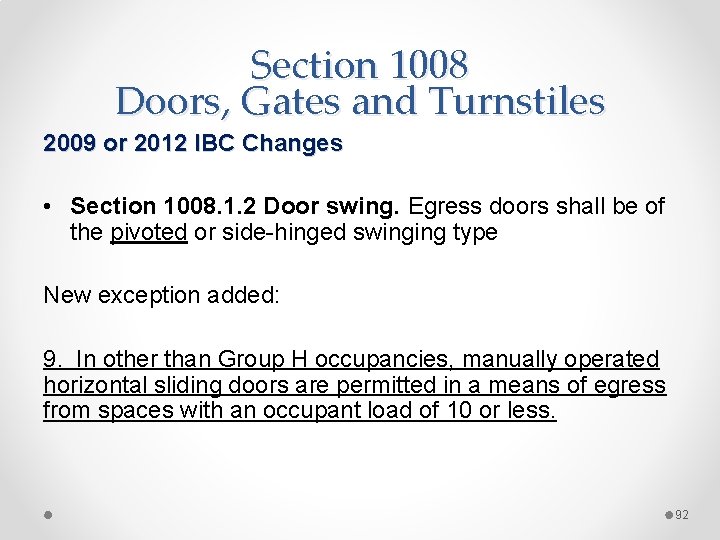

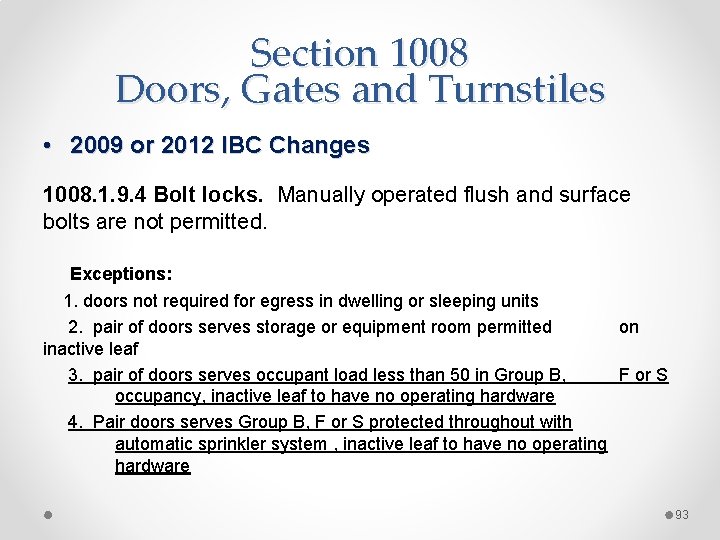

Section 1008 Doors, Gates and Turnstiles 2009 or 2012 IBC Changes • Section 1008. 1. 2 Door swing. Egress doors shall be of the pivoted or side-hinged swinging type New exception added: 9. In other than Group H occupancies, manually operated horizontal sliding doors are permitted in a means of egress from spaces with an occupant load of 10 or less. 92

Section 1008 Doors, Gates and Turnstiles • 2009 or 2012 IBC Changes 1008. 1. 9. 4 Bolt locks. Manually operated flush and surface bolts are not permitted. Exceptions: 1. doors not required for egress in dwelling or sleeping units 2. pair of doors serves storage or equipment room permitted on inactive leaf 3. pair of doors serves occupant load less than 50 in Group B, F or S occupancy, inactive leaf to have no operating hardware 4. Pair doors serves Group B, F or S protected throughout with automatic sprinkler system , inactive leaf to have no operating hardware 93

Section 1008 Doors, Gates and Turnstiles • KY Amendment 1008. 1. 9. 7 Delayed egress locks. Approved, listed delayed egress locks shall be permitted to be installed on doors serving any occupancy except Group A, E and H occupancies in buildings that are equipped throughout with an automatic sprinkler …provided that the doors unlock in accordance with Items 1 through 6 below. A building occupant shall not be required to pass through more than one door equipped with a delayed egress lock before entering an exit. Exception: For judicial centers under the control of the Administrative Office of the Courts, an egress door along the path of travel that enters a judges suite, chambers or area shall be allowed to be controlled by delayed egress locks subject to the provisions of this section. Items 1 thru 6 unchanged 94

Section 1009 Stairways • 2009 or 2012 IBC Change 1009. 1 General. Stairways serving occupied portions of a building shall comply with the requirements of this chapter. Though short and sweet, clarifies that any stairway, supplemental or convenience stairways, shall comply with section 1009. 95

Section 1009 Stairways 2009 or 2012 IBC Changes An interior stairway is now regulated as one of two egress components, exit access stairway or interior exit stairway. • 1009. 2 Interior exit stairways. o Used to meet number of exit requirement or exit access travel distance o Enclosed in fire rated construction per 1022 o Shall lead to the building exterior or exit passageway • 1009. 3 Exit access stairways. o Is not an exit o Reflects exceptions in 2007 KBC section 1020. 1 96

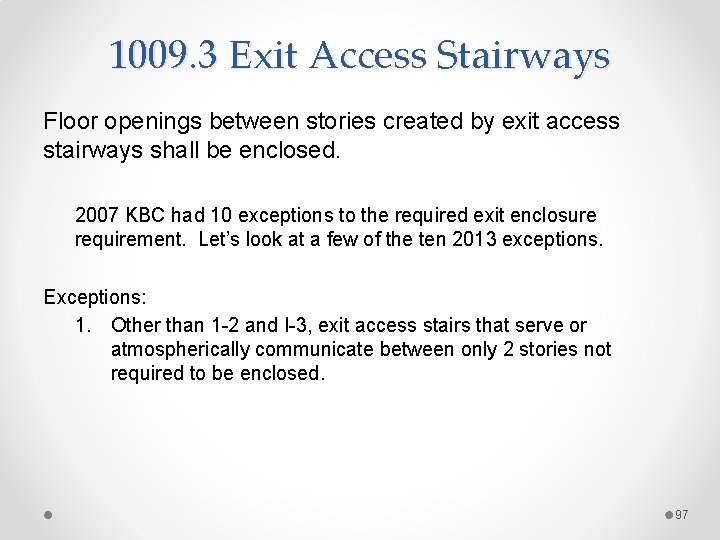

1009. 3 Exit Access Stairways Floor openings between stories created by exit access stairways shall be enclosed. 2007 KBC had 10 exceptions to the required exit enclosure requirement. Let’s look at a few of the ten 2013 exceptions. Exceptions: 1. Other than 1 -2 and I-3, exit access stairs that serve or atmospherically communicate between only 2 stories not required to be enclosed. 97

Exceptions 3. Group B and M occupancies, exit access stairway openings not required to be enclosed provided: * building 100% sprinkled * floor opening between stories does not exceed twice horizontal projected area of exit access stairway * opening is protected by draft curtain and closely spaced sprinklers 98

Exceptions 4. In other than Group B and M occupancies, exit access stairway openings not required to be enclosed provided: • building 100% sprinkled • floor opening between stories does not exceed twice horizontal projected area of exit access stairway • Floor opening does not connect more than 4 stories • opening is protected by draft curtain and closely spaced sprinklers 99

Section 1009 Stairways 2007 KBC • 1009. 3. 3 Profile. o Risers shall be solid • 1009. 5. 1 Stairway walking surface. o Stairway treads and landings shall be solid 2009 or 2012 IBC Changes • 1009. 7. 5. 3 Solid risers. o Risers shall be solid, exceptions: • #2 Group I-3 or Group F, H or S areas not accessible to public • Spiral stairways • Alternating tread devices • 1009. 9. 1 Stairway walking surface. o Shall be solid, exceptions: • #1. openings that do not allow passage ½ diameter sphere with elongated opening perpendicular to direction of travel 100

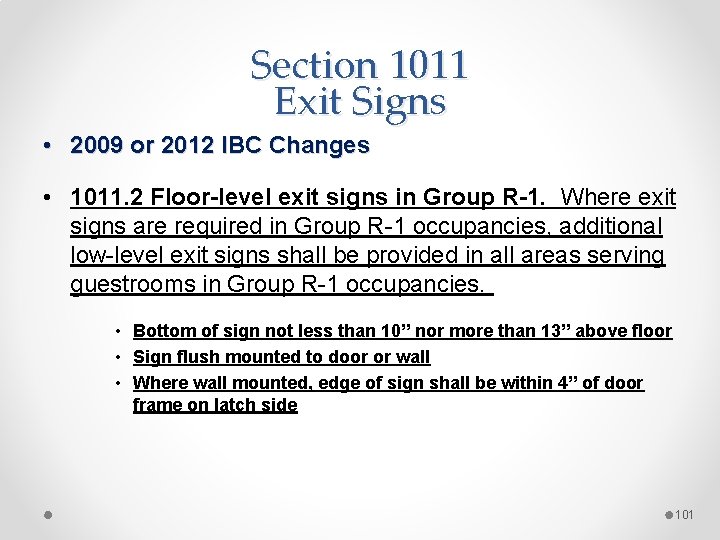

Section 1011 Exit Signs • 2009 or 2012 IBC Changes • 1011. 2 Floor-level exit signs in Group R-1. Where exit signs are required in Group R-1 occupancies, additional low-level exit signs shall be provided in all areas serving guestrooms in Group R-1 occupancies. • Bottom of sign not less than 10” nor more than 13” above floor • Sign flush mounted to door or wall • Where wall mounted, edge of sign shall be within 4” of door frame on latch side 101

Section 1013 Guards • 2009 or 2012 IBC Changes • 1013. 2 Where required. Guards shall be located along open-sided walking surfaces, including mezzanines, equipment platforms, stairs, ramps and landings that are located more than 30 inches measured vertically to the floor or grade below at any point within 36 inches horizontally to the edge of the open side. Guards shall be adequate strength … 42” guard height min. 36” > 30” 102

Section 1013 Guards • KY Amendment 1013. 8 Window sills. (section 1405. 12. 2 of 2007 KBC) In Occupancy Groups R-2 and R-3, one-and two- family and multiple family dwellings, where the opening of the sill portion of an operable window is located more than 72 inches above the finished grade or other surface below… The fall protection requirements of Section 1013. 8 and 1013. 8. 1 related to low-height window sills in R-2 and R-3 dwelling units has been DELETED in the 2013 KBC 103

Section 1018 Corridors 2009 or 2012 IBC Change • 1018. 4 Dead ends. Where more than one exit or exit access doorway is required, … no dead ends in corridors more than 20 feet in length. o Exceptions: 1. No change 2. In occupancies in Groups B, E, F, I-1, M, R-1, R-2, R-4, S and U where the building is equipped throughout with an automatic sprinkler system in accordance with … shall not exceed 50 feet. 3. No change 104

Section 1018 Corridors 2009 or 2012 IBC Change • 1018. 6 Corridor continuity. Fire resistance rated corridors shall be continuous from the point of entry to an exit, and shall not be interrupted by intervening rooms. Where the path of egress travel within a fire resistance rated corridor to the exit includes travel along unenclosed exit access stairways or ramps, the fire resistance rating shall be continuous for the length of the stairway or ramp and for the length of the connecting corridor on the adjacent floor leading to the exit. 105

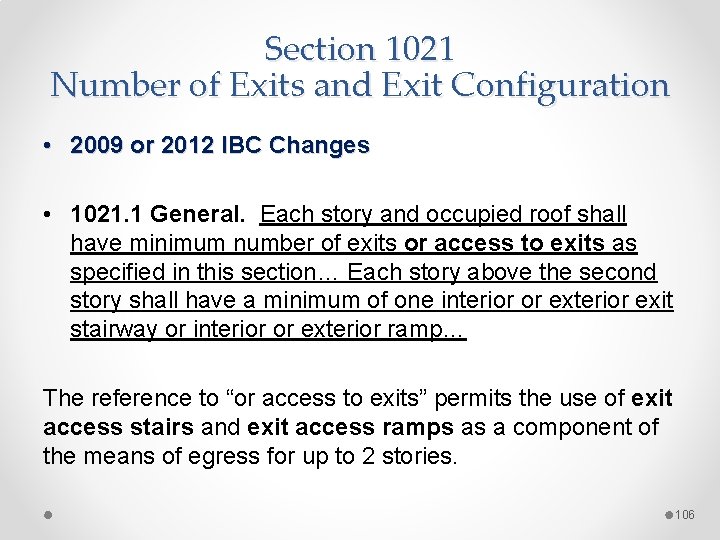

Section 1021 Number of Exits and Exit Configuration • 2009 or 2012 IBC Changes • 1021. 1 General. Each story and occupied roof shall have minimum number of exits or access to exits as specified in this section… Each story above the second story shall have a minimum of one interior or exterior exit stairway or interior or exterior ramp… The reference to “or access to exits” permits the use of exit access stairs and exit access ramps as a component of the means of egress for up to 2 stories. 106

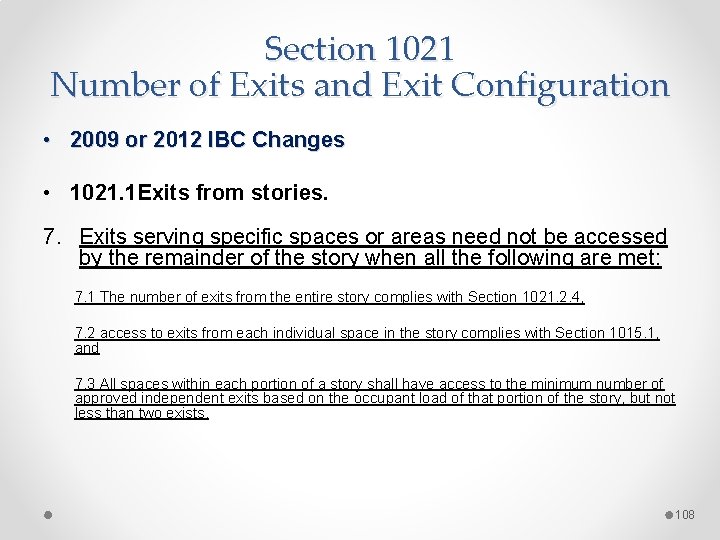

Section 1021 Number of Exits and Exit Configuration • 2009 or 2012 IBC Changes • 1021. 2 Exits from stories. Two exits, or exit access stairways or ramps providing access to exits or occupied roof shall be provided where one of the following exists: 1. 2. 3. Occupant load or number dwelling units exceeds values in Tables Exit access travel distance exceeds that in Tables Helistop landing areas located on buildings or structures There are 7 exceptions offered, #7 is new. 107

Section 1021 Number of Exits and Exit Configuration • 2009 or 2012 IBC Changes • 1021. 1 Exits from stories. 7. Exits serving specific spaces or areas need not be accessed by the remainder of the story when all the following are met: 7. 1 The number of exits from the entire story complies with Section 1021. 2. 4, 7. 2 access to exits from each individual space in the story complies with Section 1015. 1, and 7. 3 All spaces within each portion of a story shall have access to the minimum number of approved independent exits based on the occupant load of that portion of the story, but not less than two exists. 108

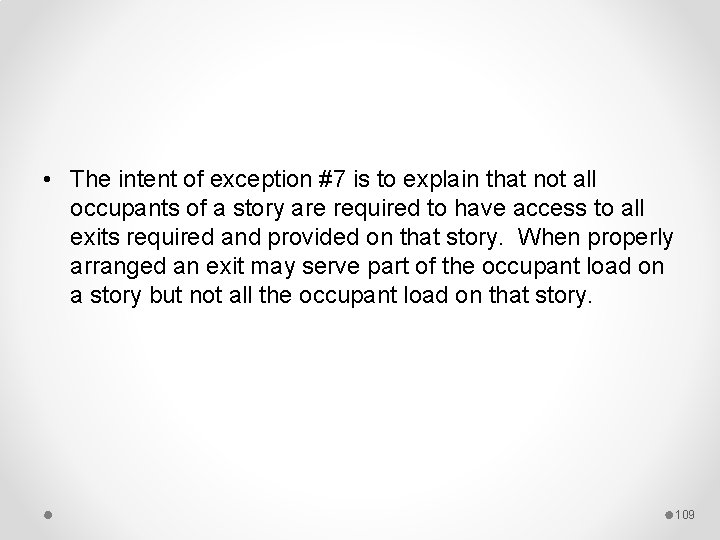

• The intent of exception #7 is to explain that not all occupants of a story are required to have access to all exits required and provided on that story. When properly arranged an exit may serve part of the occupant load on a story but not all the occupant load on that story. 109

Exception #7 Illustrated • Exception #7 7. 1 - The number of exits from the entire story complies with Section 1021. 2. 4, Office #1 300 occ. Office #3 75 occ. Office #2 100 occ. Office #4 75 occ. 550 occupants requires 3 exits per floor we comply 7. 2 access to exits from each individual space in the story complies with Section 1015. 1, exit access from spaces on the floor – we comply 7. 3 All spaces within each portion of a story shall have access to the minimum number of approved independent exits based on the occupant load of that portion of the story, but not less than two exists. all spaces have access to minimum # exits based on occupant load but not less than 2 – we comply 110

Section 1024 Luminous Egress Path Markings • 2009 or 2012 IBC Changes 1024. 1 General. Approved luminous egress path markings delineating the exit path shall be provided in High-rise buildings of Group A, B, E, I, M and R-1 occupancies in accordance with 1024. 1 through 1024. 5. 1024. 2 Markings within exit component. … shall be provided in interior exit stairways, interior exit ramps and exit passageways. 111

Section 1028 Assembly • KY Amendment • 1028. 6 Width of means of egress for assembly. The clear width of aisles and other means of egress that are integral with assembly seating shall comply with Section 1028. 6. 1 … Stairs, ramps, passageways, and doors that are not integral with assembly seating but serve as the means of egress from levels which contain assembly seating shall be constructed in accordance with Section 1008 Doors, 1009 stairs, 1010 Ramps, 1014 Exit Access and means of egress sizing in accordance with Section 1005. 112

Chapter 11 Accessibility • • KY Amendment Recall new definitions ADA related Private building or facility. o A place of public accommodation or commercial building subject to title III of ADA and 28 CFR part 36 or a transportation building or facility subject to title III of the ADA or 49 CFR 37. 45. • Public building or facility. o Building or facility or portion of a building or facility designed, constructed or altered by, on behalf of, or for the use of a public entity subject to title II of the ADA and 28 CFR part 35 or title II of the ADA and 49 CFR 37. 41 or 37. 43. 113

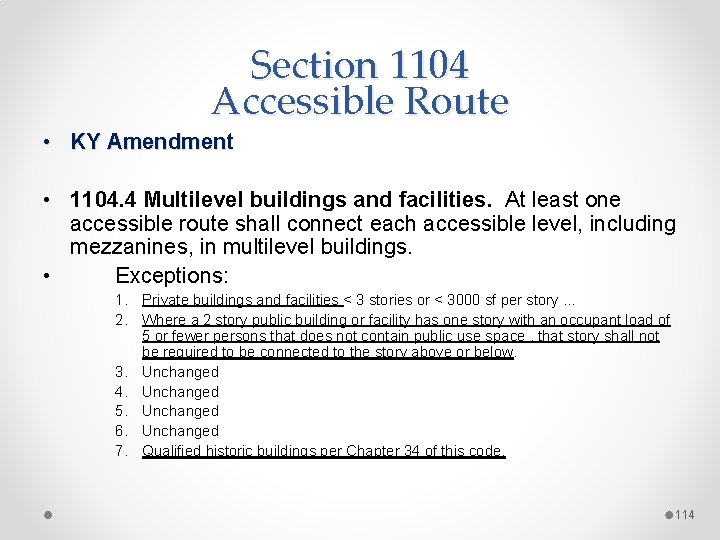

Section 1104 Accessible Route • KY Amendment • 1104. 4 Multilevel buildings and facilities. At least one accessible route shall connect each accessible level, including mezzanines, in multilevel buildings. • Exceptions: 1. Private buildings and facilities < 3 stories or < 3000 sf per story … 2. Where a 2 story public building or facility has one story with an occupant load of 5 or fewer persons that does not contain public use space , that story shall not be required to be connected to the story above or below. 3. Unchanged 4. Unchanged 5. Unchanged 6. Unchanged 7. Qualified historic buildings per Chapter 34 of this code. 114

Section 1106 Parking and Passenger Loading Facilities 2007 KBC • 1106. 5 Parking lots. A parking lot that contains over 1000 parking spaces shall maintain at least 1 additional disabledaccessible parking space designated as vanaccessible parking space. 2013 KBC • 1106. 5 Van spaces. For every 6 or fraction of 6 accessible parking spaces, at least 2 shall be van accessible parking space in accordance with Table 1106. 1. 115

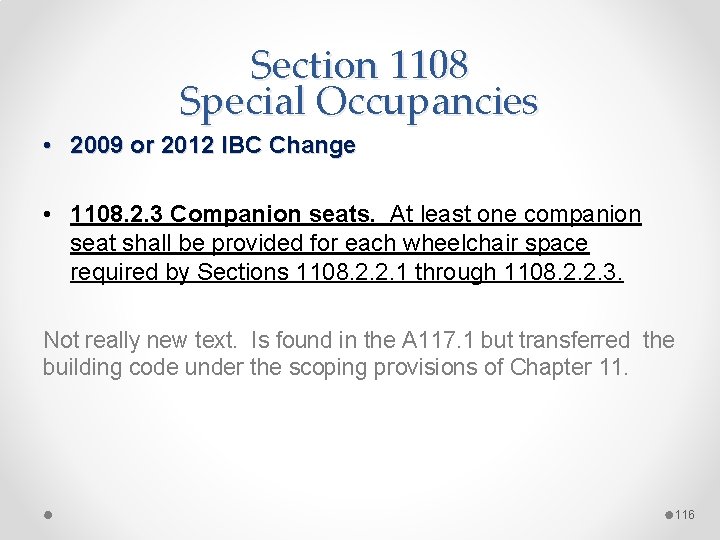

Section 1108 Special Occupancies • 2009 or 2012 IBC Change • 1108. 2. 3 Companion seats. At least one companion seat shall be provided for each wheelchair space required by Sections 1108. 2. 2. 1 through 1108. 2. 2. 3. Not really new text. Is found in the A 117. 1 but transferred the building code under the scoping provisions of Chapter 11. 116

Section 1108 Special Occupancies • 1108. 4 Judicial facilities 1108. 4. 1 Courtrooms. 1108. 4. 1. 1 Jury box. A wheelchair space shall be provided within the jury box. Exception: adjacent companion seating is not required. 1108. 4. 1. 2 Gallery seating. Wheelchair spaces shall be provided in accordance with Table 1108. 2. 2. 1. Designated aisle seats shall be provided in accordance with Section 1108. 2. 5. 1108. 4. 1. 3 Assistive listening systems. An assistive listening system must be provided. Receivers shall be provided for the assistive listening system in accordance with Section 1108. 2. 7. 1. 1108. 4. 1. 4 Employee work stations. The judge’s bench, clerk’s station, bailiff’s station, deputy clerk’s station and court reporter’s station shall be located on an accessible route. The vertical access to elevated employee work stations within a courtroom is not required at the time of initial construction, provided a ramp, lift or elevator can be installed without requiring reconfiguration or extension of the courtroom … 117

Section 1109 Other Features and Facilities • KY Amendment and 2009/2012 IBC Change 1109. 2. 1 Family or assisted-use toilet and bathing rooms. In assembly and mercantile occupancies, an accessible family or assisted-use toilet room shall be provided where an aggregate of 6 or more male and female water closets is required… Fixtures located within family or assisted-use toilet and bathing rooms shall not be included in determining the number of fixtures required by the plumbing code in an occupancy. 118

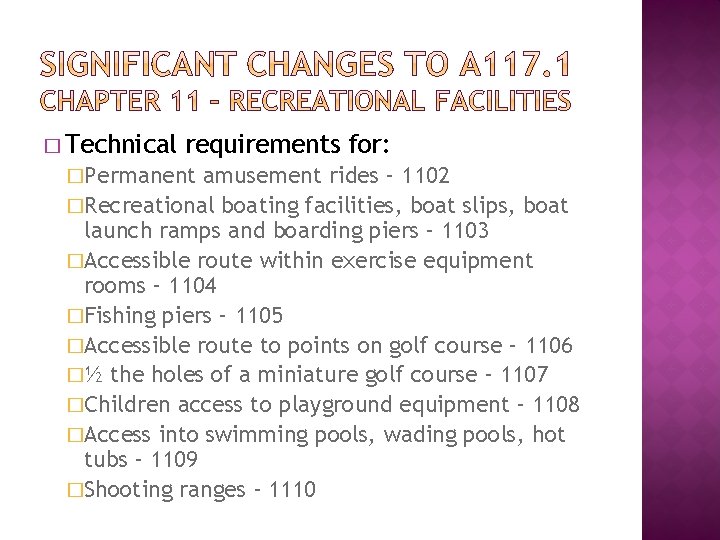

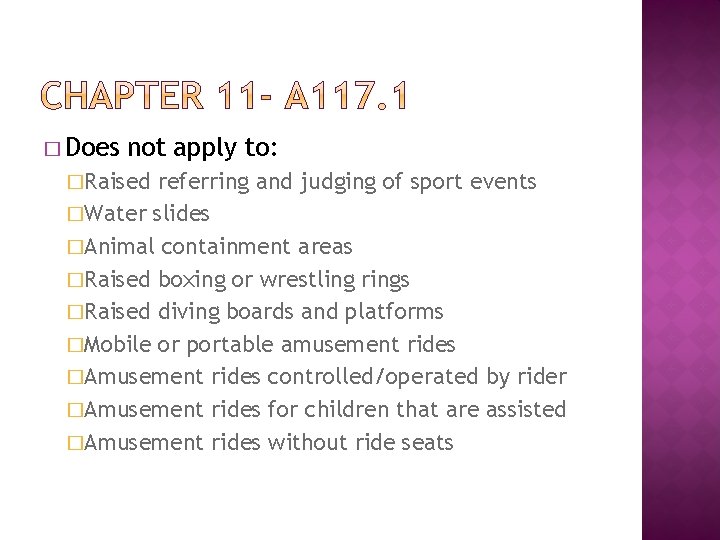

� Technical requirements for: �Permanent amusement rides – 1102 �Recreational boating facilities, boat slips, boat launch ramps and boarding piers – 1103 �Accessible route within exercise equipment rooms – 1104 �Fishing piers – 1105 �Accessible route to points on golf course – 1106 �½ the holes of a miniature golf course – 1107 �Children access to playground equipment – 1108 �Access into swimming pools, wading pools, hot tubs – 1109 �Shooting ranges - 1110

� Does not apply to: �Raised referring and judging of sport events �Water slides �Animal containment areas �Raised boxing or wrestling rings �Raised diving boards and platforms �Mobile or portable amusement rides �Amusement rides controlled/operated by rider �Amusement rides for children that are assisted �Amusement rides without ride seats

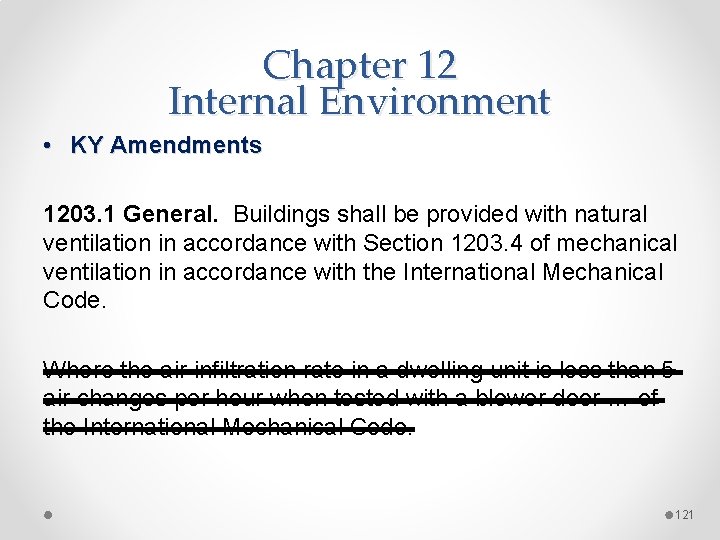

Chapter 12 Internal Environment • KY Amendments 1203. 1 General. Buildings shall be provided with natural ventilation in accordance with Section 1203. 4 of mechanical ventilation in accordance with the International Mechanical Code. Where the air infiltration rate in a dwelling unit is less than 5 air changes per hour when tested with a blower door … of the International Mechanical Code. 121

Chapter 12 Internal Environment • KY Amendments 1209. 2 Attic spaces. An A clear opening not less than 20 inches by 30 inches … Section 1210 Toilet and Bathroom Requirements 1210. 3 Privacy at water closets and urinals shall be provided in accordance with Section 1210. 3. 1 and 1210. 3. 2. 122

Chapter 14 Exterior Walls 2009 or 2012 IBC Changes. 1404. 12 Polypropylene siding. New section added to regulate polypropylene siding for: o conformance to the requirements of ASTM D 7254 … o 1404. 12. 1 Flame spread index o 1404. 12. 2 Fire separation distance. The fire separation distance no less than 10 feet. 1405. 18 Polypropylene siding. … shall be; o limited to Type VB construction o located in areas where the wind speed does not exceed 100 mph o and the building height is less than or equal to 40 feet in Exposure C. … 123

Chapter 15 Roof Assemblies and Rooftop Structures • KY Amendment (carried forward from 2007 KBC) 1503. 4. 1 Roof drains. Primary and secondary roof drains shall comply with the requirements of this section. 1503. 4. 1. 1 Strainers. 1503. 4. 1. 2 Flat decks 1503. 1. 3 Drain flashing 124

KY Amendment (carried forward from 2007 KBC) 1503. 4. 2 Secondary (emergency) roof drains. Secondary roof drains shall comply with the requirements of this section in addition to the requirements of 1503. 4. 1. 1503. 4. 2. 1 Secondary roof drains or scuppers shall be provided where the roof perimeter construction extends above the roof in such a manner that water will be entrapped if the primary drains allow buildup … 1503. 4. 2. 2 Separate systems required. Secondary roof drain system shall have piping and point of discharge separate from the primary system. Discharge shall be above grade in a location which would normally be observed by the building occupants or maintenance personnel. 1503. 4. 2. 3 Sizing of secondary drains. 125

Chapter 15 Roof Assemblies and Rooftop Structures • 2009 or 2012 IBC Change 1507. 16 Roof gardens and landscaped roofs. … shall comply with the requirements of this chapter and Section 1607. 12. 3 and 1607. 12. 3. 1 and the International Fire Code. 126

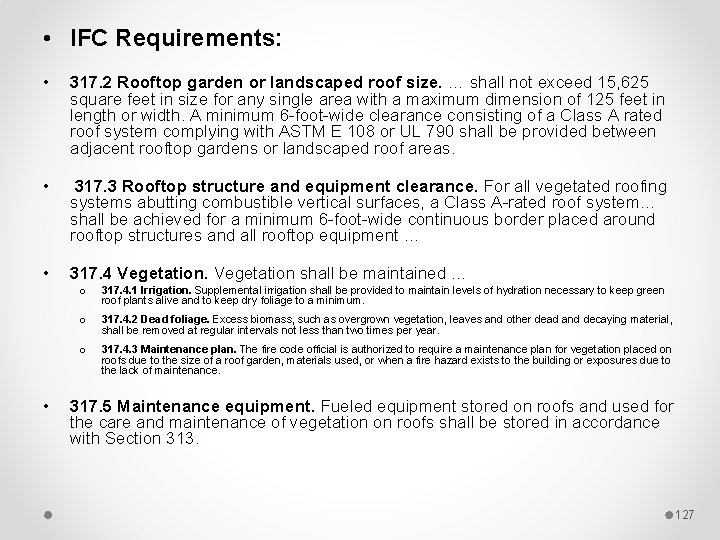

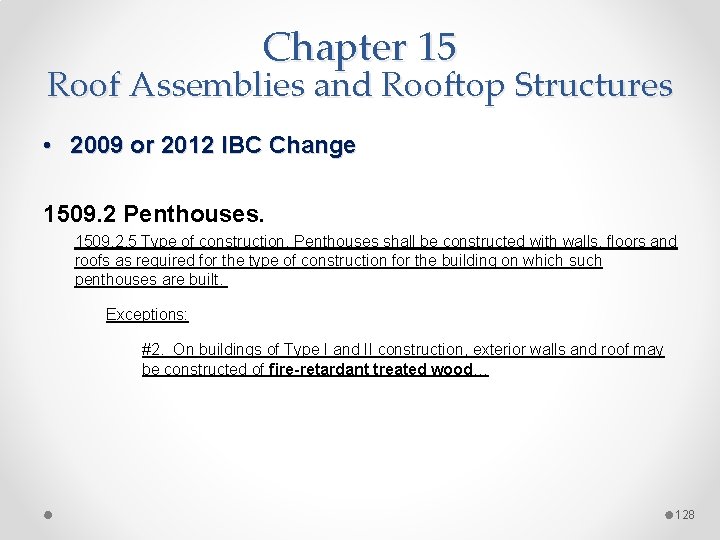

• IFC Requirements: • 317. 2 Rooftop garden or landscaped roof size. … shall not exceed 15, 625 square feet in size for any single area with a maximum dimension of 125 feet in length or width. A minimum 6 -foot-wide clearance consisting of a Class A rated roof system complying with ASTM E 108 or UL 790 shall be provided between adjacent rooftop gardens or landscaped roof areas. • 317. 3 Rooftop structure and equipment clearance. For all vegetated roofing systems abutting combustible vertical surfaces, a Class A-rated roof system… shall be achieved for a minimum 6 -foot-wide continuous border placed around rooftop structures and all rooftop equipment … • 317. 4 Vegetation shall be maintained … • o 317. 4. 1 Irrigation. Supplemental irrigation shall be provided to maintain levels of hydration necessary to keep green roof plants alive and to keep dry foliage to a minimum. o 317. 4. 2 Dead foliage. Excess biomass, such as overgrown vegetation, leaves and other dead and decaying material, shall be removed at regular intervals not less than two times per year. o 317. 4. 3 Maintenance plan. The fire code official is authorized to require a maintenance plan for vegetation placed on roofs due to the size of a roof garden, materials used, or when a fire hazard exists to the building or exposures due to the lack of maintenance. 317. 5 Maintenance equipment. Fueled equipment stored on roofs and used for the care and maintenance of vegetation on roofs shall be stored in accordance with Section 313. 127

Chapter 15 Roof Assemblies and Rooftop Structures • 2009 or 2012 IBC Change 1509. 2 Penthouses. 1509. 2. 5 Type of construction. Penthouses shall be constructed with walls, floors and roofs as required for the type of construction for the building on which such penthouses are built. Exceptions: #2. On buildings of Type I and II construction, exterior walls and roof may be constructed of fire-retardant treated wood… 128

Chapter 16 Structural Design 2009 or 2012 IBC Change 1603. 1 General. Construction documents shall show … The design loads and other information pertinent to the structural design required by Sections 1603. 1. 1 through 1603. 1. 9 shall be indicated on the construction documents. 1603. 1. 6 Geotechnical information. The design load-bearing values of soils shall be shown on the construction documents. 129

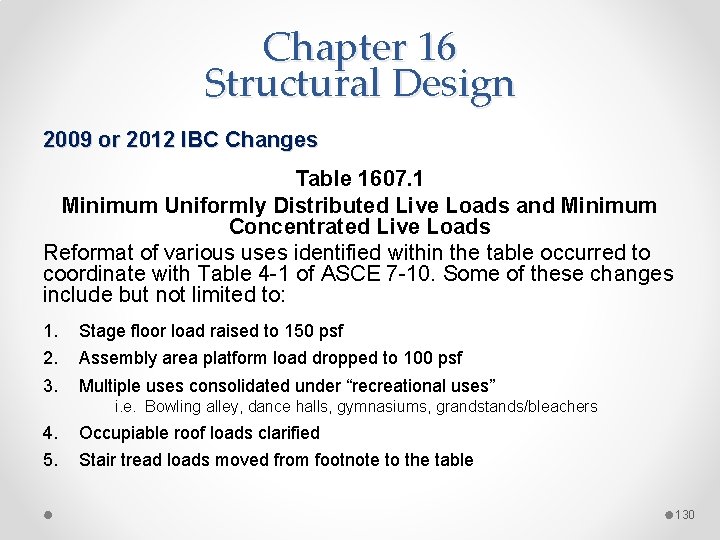

Chapter 16 Structural Design 2009 or 2012 IBC Changes Table 1607. 1 Minimum Uniformly Distributed Live Loads and Minimum Concentrated Live Loads Reformat of various uses identified within the table occurred to coordinate with Table 4 -1 of ASCE 7 -10. Some of these changes include but not limited to: 1. 2. 3. Stage floor load raised to 150 psf Assembly area platform load dropped to 100 psf Multiple uses consolidated under “recreational uses” i. e. Bowling alley, dance halls, gymnasiums, grandstands/bleachers 4. 5. Occupiable roof loads clarified Stair tread loads moved from footnote to the table 130

Chapter 16 Structural Design • KY Amendment Table 1608. 2 of the 2007 KBC has been reformatted such that the columns for “Ground Snow Load”, “Ice Loads” and “Spectral response Acceleration Coefficients” Have been broken up into 3 new tables. Table 1608. 2 Ground Snow Loads for Kentucky Counties (data remains the same) Table 1613. 3. 1 Seismic Acceleration Parameter for Kentucky (New parameters) Table 1614. 1 Atmospheric Ice Load Parameters for Kentucky (data remains same) 131

Chapter 16 Structural Design • KY Amendment New Table 132

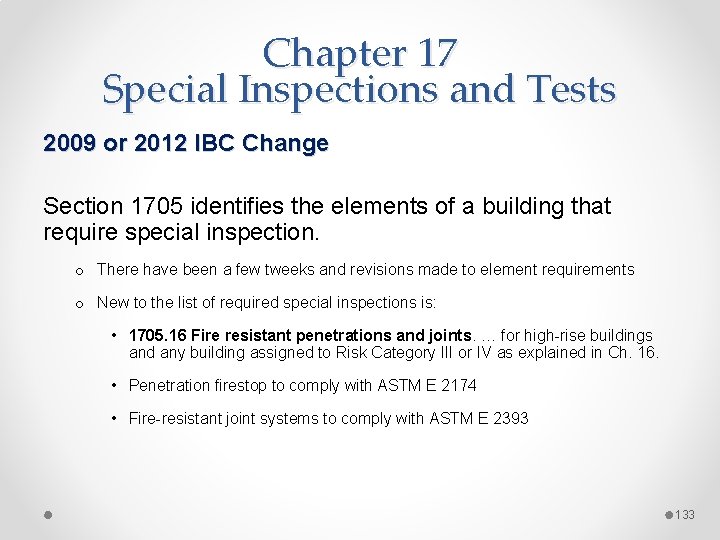

Chapter 17 Special Inspections and Tests 2009 or 2012 IBC Change Section 1705 identifies the elements of a building that require special inspection. o There have been a few tweeks and revisions made to element requirements o New to the list of required special inspections is: • 1705. 16 Fire resistant penetrations and joints. … for high-rise buildings and any building assigned to Risk Category III or IV as explained in Ch. 16. • Penetration firestop to comply with ASTM E 2174 • Fire-resistant joint systems to comply with ASTM E 2393 133

Chapter 23 Wood 2301. 2 General design requirements. A new standard now referenced for the design, construction and inspection of log structures. ICC 400 134

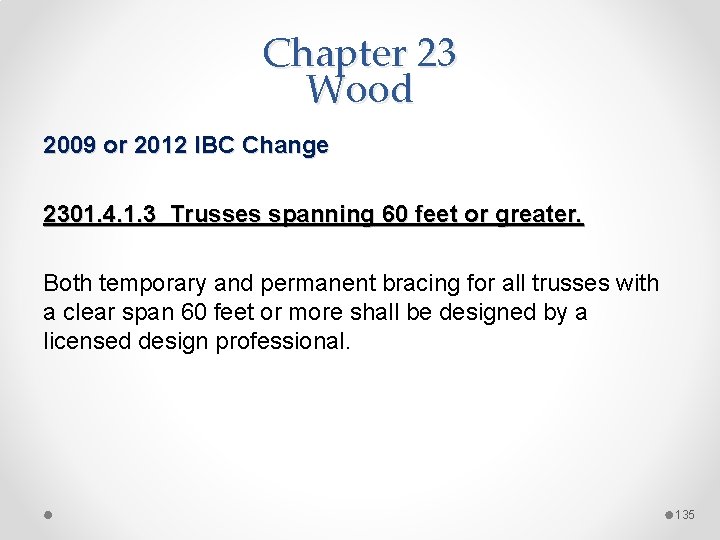

Chapter 23 Wood 2009 or 2012 IBC Change 2301. 4. 1. 3 Trusses spanning 60 feet or greater. Both temporary and permanent bracing for all trusses with a clear span 60 feet or more shall be designed by a licensed design professional. 135

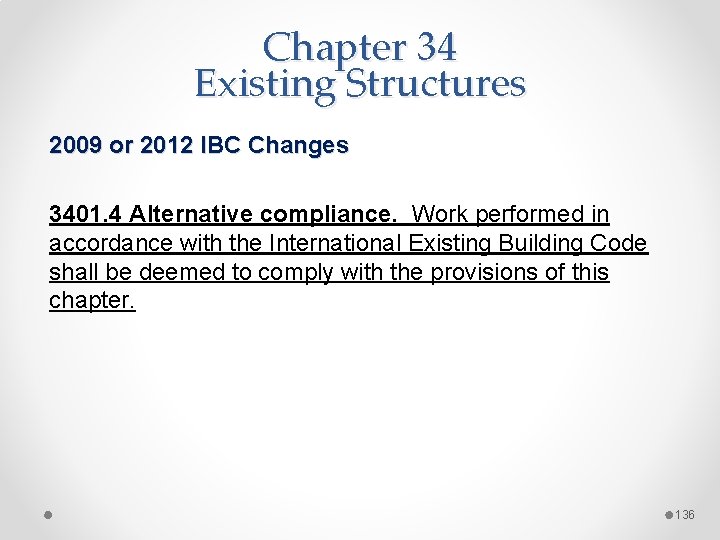

Chapter 34 Existing Structures 2009 or 2012 IBC Changes 3401. 4 Alternative compliance. Work performed in accordance with the International Existing Building Code shall be deemed to comply with the provisions of this chapter. 136

• There are obviously more changes resulting from the 2009 and 2012 IBC and Kentucky Amendments than are identified in this presentation. • Remember that the single line shown in the left or right hand margin of the IBC reflects changes rafter the printing of the 2009 IBC. • Efforts are underway to put a true Kentucky Building Code on the street once the regulation changes have been approved by LRC. 137
