Transformations SOL 8 8 Vocabulary Horizontal Axis Axis
Transformations SOL 8. 8

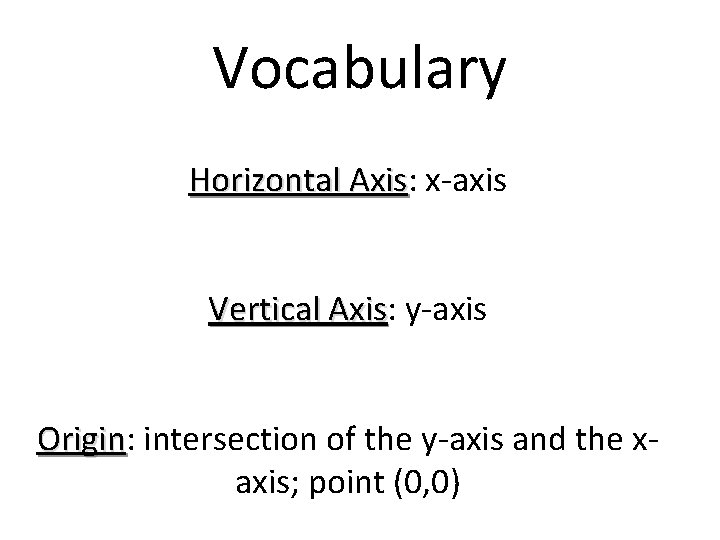

Vocabulary Horizontal Axis: Axis x-axis Vertical Axis: Axis y-axis Origin: Origin intersection of the y-axis and the xaxis; point (0, 0)
Reflection P I L F

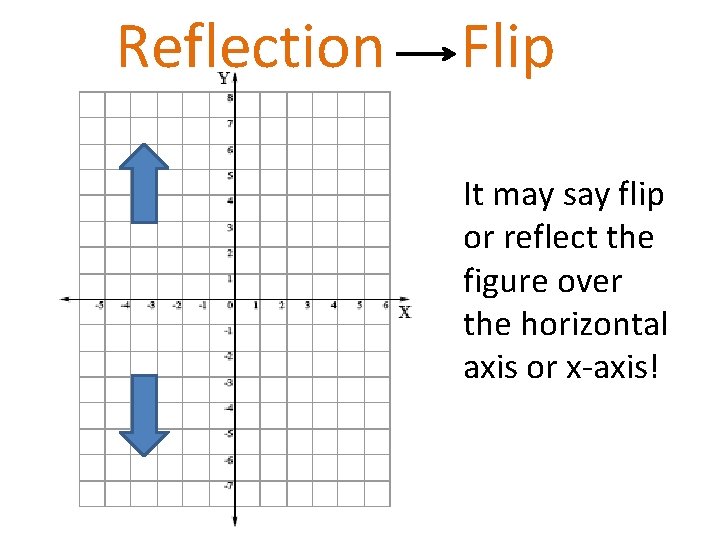

Reflection Flip It may say flip or reflect the figure over the horizontal axis or x-axis!

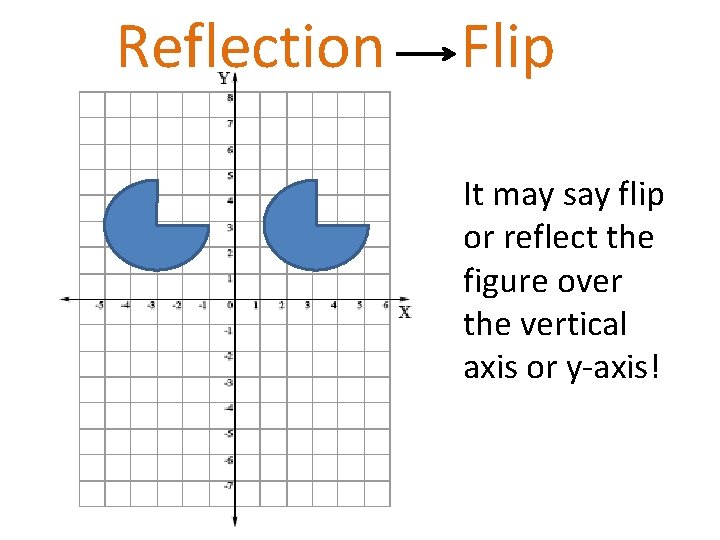

Reflection Flip It may say flip or reflect the figure over the vertical axis or y-axis!
Transformation Reflection Keyword Flip Shortcut Over x: Keep the x, change sign on y Over y: Keep the y, change sign on x Picture

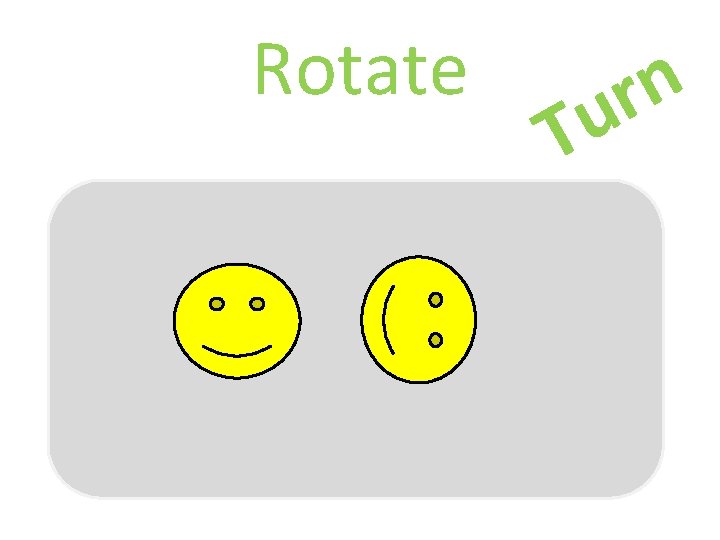

Rotate T n r u
Rotate Turn It may say rotate about the origin… 90 degrees 180 degrees 270 degrees 360 degrees This was clockwise. How do you think it will change for counterclockwise?
Transformation Reflection Keyword Flip Shortcut Over x: Keep the x, change sign on y Over y: Keep the y, change sign on x 90˚ CW: switch the coordinates and change the Rotate Turn sign of the 2 nd new coordinate 90˚ CCW: switch the coordinates and change the sign of the 1 st new coordinate 180˚: Change the sign on both coordinates Picture
Translate L S E ID
Translate Slide It may say translate the figure… Right 3 Down 4 Left 2, Up 4 (4, -5) (right or left, up or down)

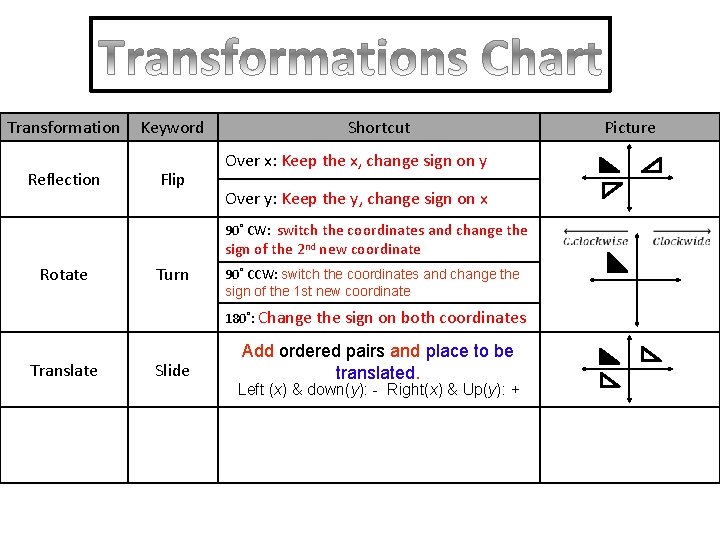

Transformation Reflection Keyword Flip Shortcut Over x: Keep the x, change sign on y Over y: Keep the y, change sign on x 90˚ CW: switch the coordinates and change the sign of the 2 nd new coordinate Rotate Turn 90˚ CCW: switch the coordinates and change the sign of the 1 st new coordinate 180˚: Change the sign on both coordinates Translate Slide Add ordered pairs and place to be translated. Left (x) & down(y): - Right(x) & Up(y): + Picture

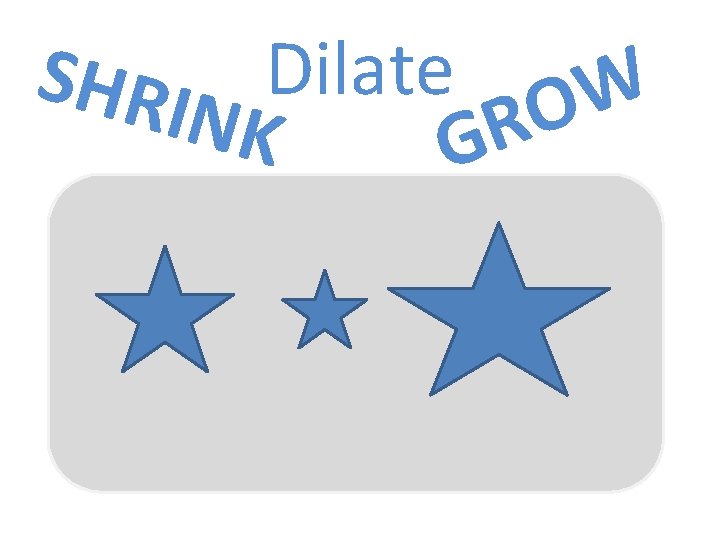

SHRI Dilate W O NK R G
Dilate Grow Dilate 2 (0, 3) (0, 6) (-1, 1) (-2, 2) (1, 1) (2, 2)

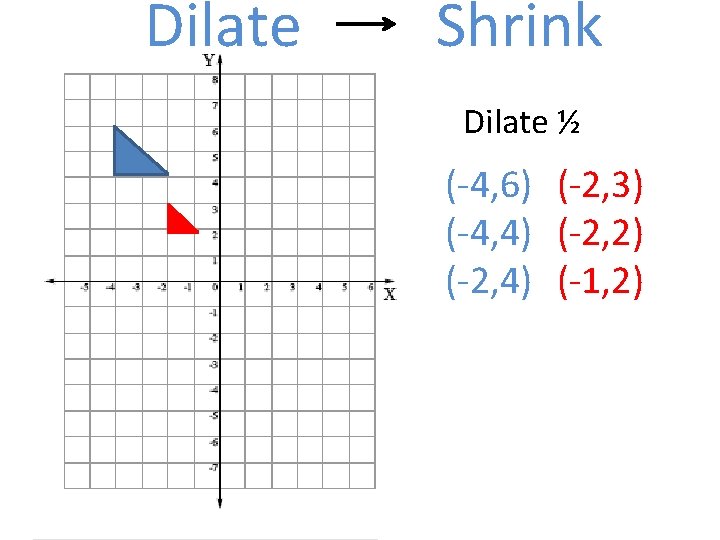

Dilate Shrink Dilate ½ (-4, 6) (-2, 3) (-4, 4) (-2, 2) (-2, 4) (-1, 2)

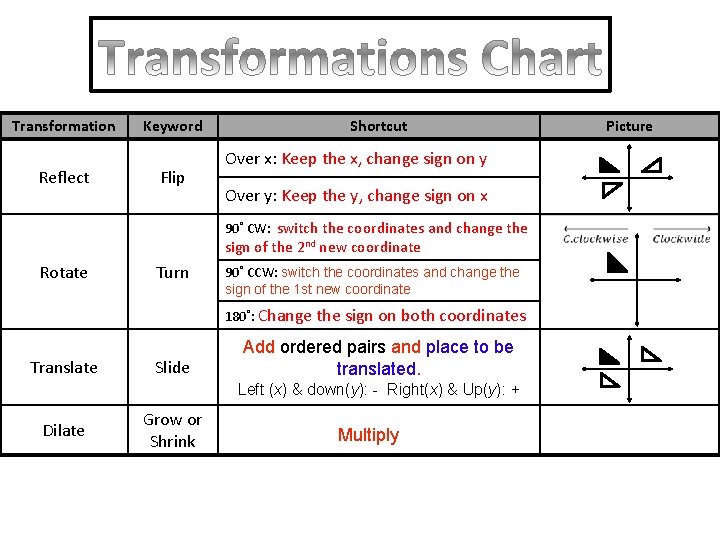

Transformation Reflect Keyword Flip Shortcut Over x: Keep the x, change sign on y Over y: Keep the y, change sign on x 90˚ CW: switch the coordinates and change the sign of the 2 nd new coordinate Rotate Turn 90˚ CCW: switch the coordinates and change the sign of the 1 st new coordinate 180˚: Change the sign on both coordinates Translate Slide Add ordered pairs and place to be translated. Left (x) & down(y): - Right(x) & Up(y): + Dilate Grow or Shrink Multiply Picture
Let’s Try Some! Next, there will be some examples. These examples are just asking you too identify the transformation on appearance only.
Which transformation is demonstrated below? Translation

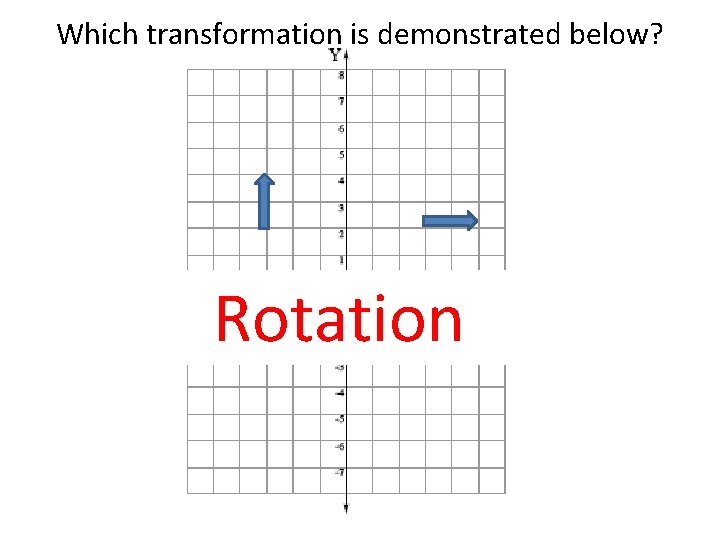

Which transformation is demonstrated below? Rotation
Which transformation is demonstrated below? Reflection
Which transformation is demonstrated below? Translation

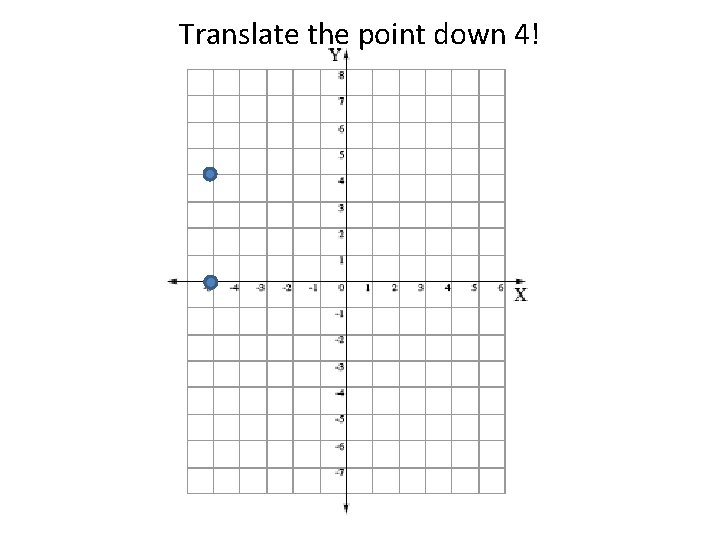

Translate the point down 4!

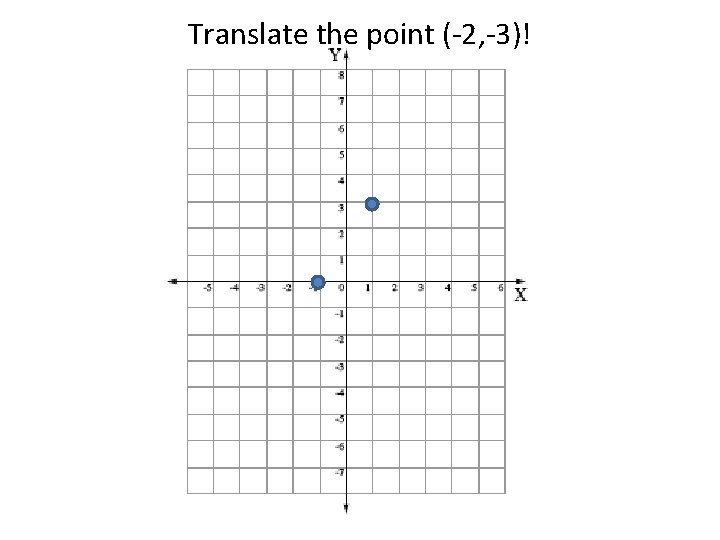

Translate the point (-2, -3)!
Which quadrant will the “L” be in if it is rotated 180 degrees about the origin? IV

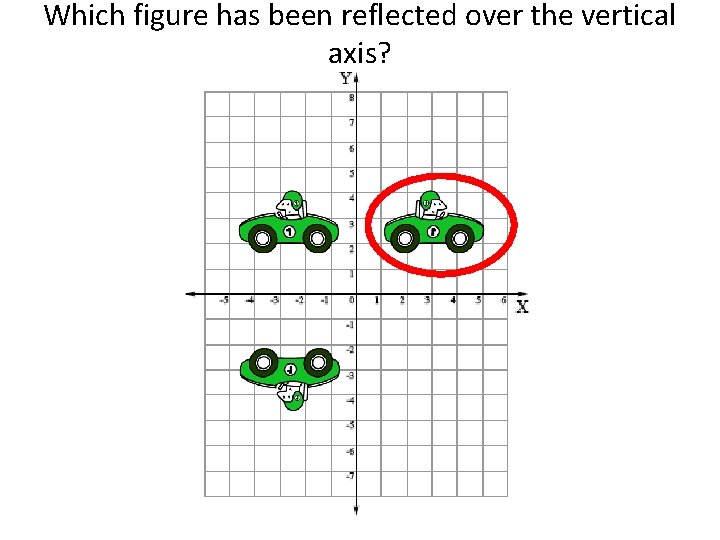

Which figure has been reflected over the vertical axis?

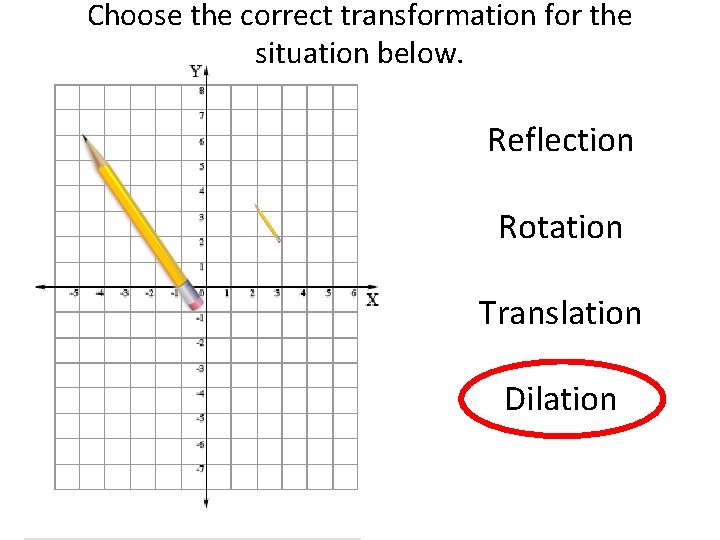

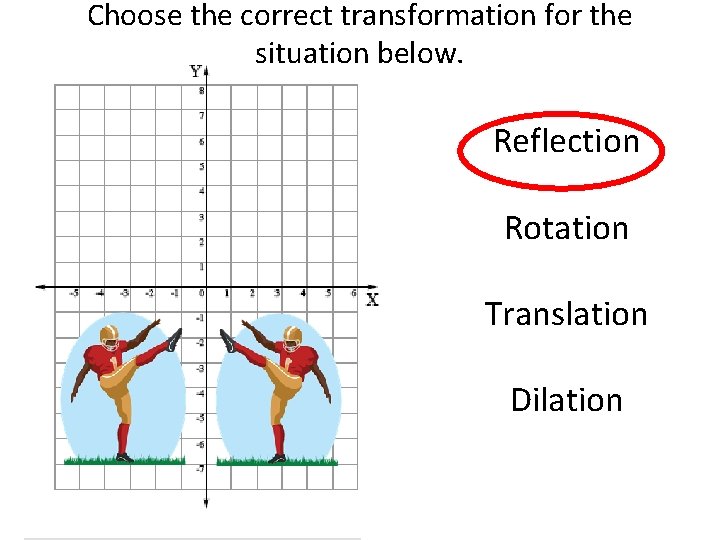

Choose the correct transformation for the situation below. Reflection Rotation Translation Dilation
Choose the correct transformation for the situation below. Reflection Rotation Translation Dilation
Choose the correct transformation for the situation below. Reflection Rotation Translation Dilation
Choose the correct transformation for the situation below. Reflection Rotation Translation Dilation
Choose the correct transformation for the situation below. Reflection Rotation Translation Dilation
Choose the correct transformation for the situation below. Reflection Rotation Translation Dilation
