Transformations of Functions and Graphs We will be looking at simple functions and Transformations seeing how various modifications to the functions transform them. Transformations

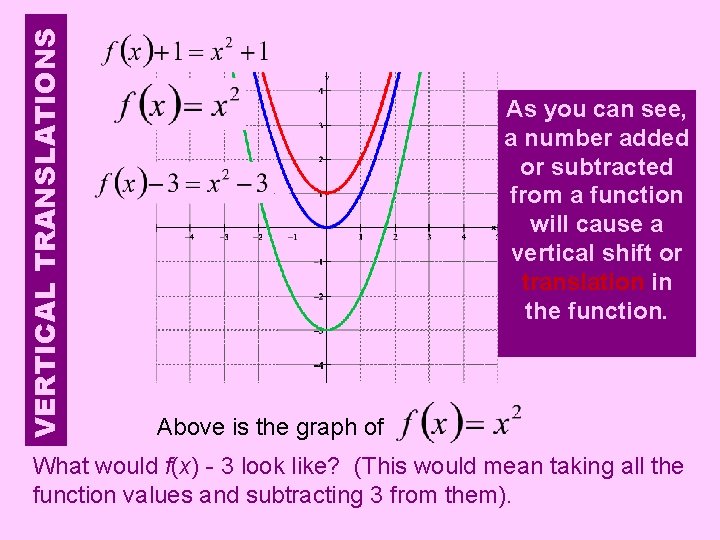

VERTICAL TRANSLATIONS As you can see, a number added or subtracted from a function will cause a vertical shift or translation in the function. Above is the graph of What would f(x) + - 31 look like? (This would mean taking all the function values andand subtracting from them). the function values adding 13 to them).

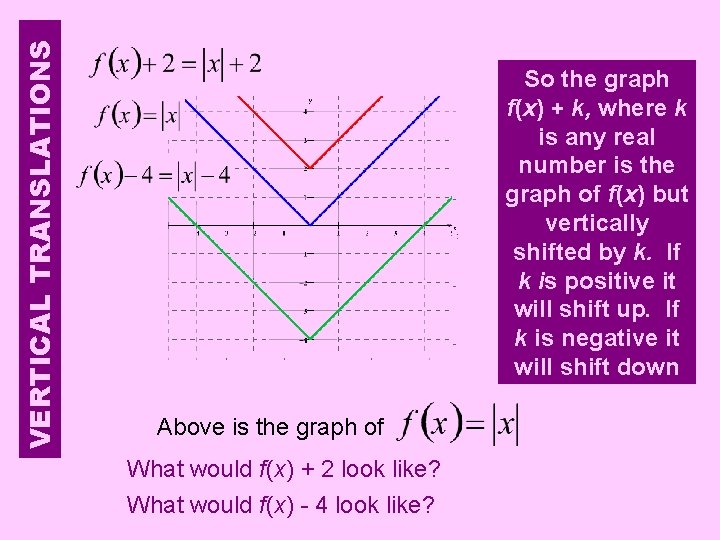

VERTICAL TRANSLATIONS So the graph f(x) + k, where k is any real number is the graph of f(x) but vertically shifted by k. If k is positive it will shift up. If k is negative it will shift down Above is the graph of What would f(x) + 2 look like? What would f(x) - 4 look like?

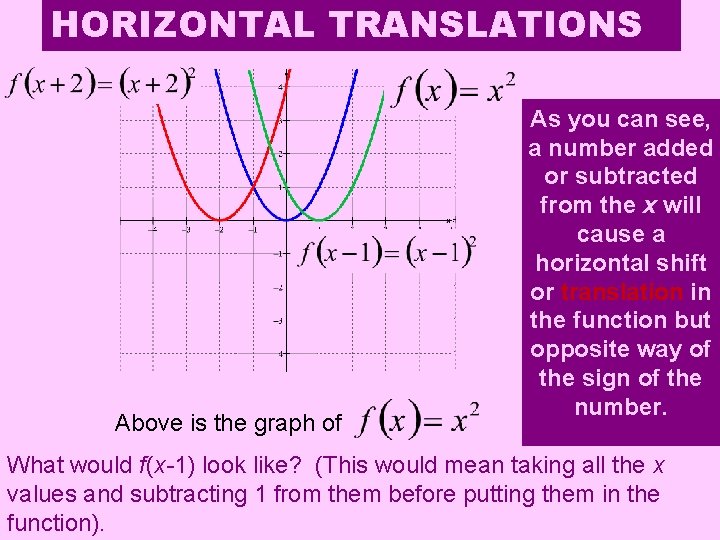

HORIZONTAL TRANSLATIONS Above is the graph of As you can see, a number added or subtracted from the x will cause a horizontal shift or translation in the function but opposite way of the sign of the number. What would f(x+2) looklike? (Thiswouldmeantakingall allthe xx f(x-1) look values and adding 2 to 1 them putting them inthem the function). subtracting frombefore them before in the function).

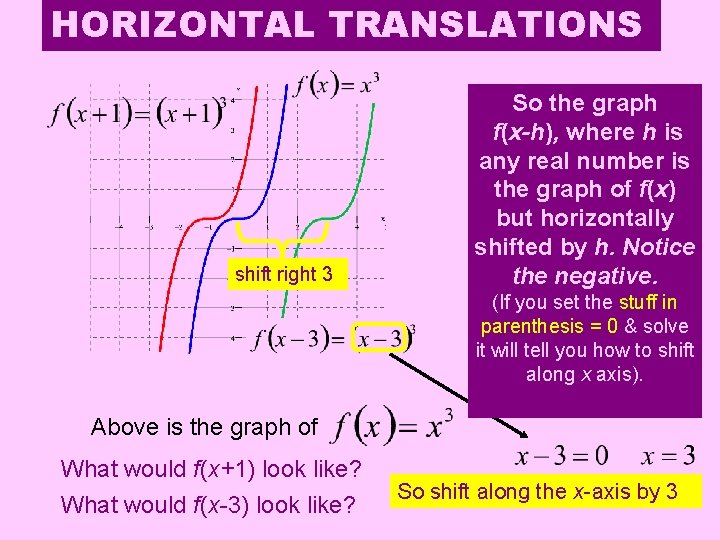

HORIZONTAL TRANSLATIONS shift right 3 So the graph f(x-h), where h is any real number is the graph of f(x) but horizontally shifted by h. Notice the negative. (If you set the stuff in parenthesis = 0 & solve it will tell you how to shift along x axis). Above is the graph of What would f(x+1) look like? What would f(x-3) look like? So shift along the x-axis by 3

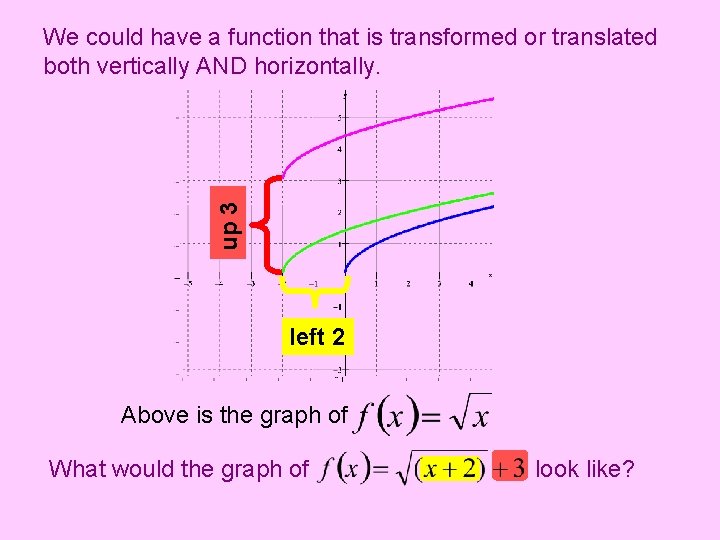

up 3 We could have a function that is transformed or translated both vertically AND horizontally. left 2 Above is the graph of What would the graph of look like?

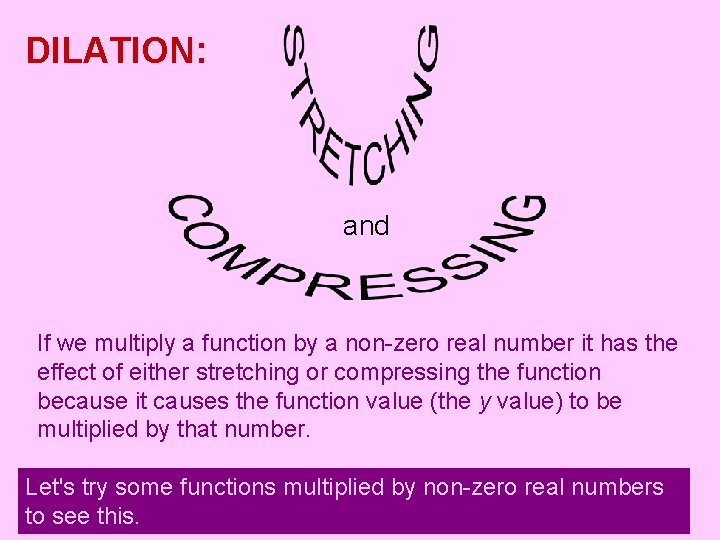

DILATION: and If we multiply a function by a non-zero real number it has the effect of either stretching or compressing the function because it causes the function value (the y value) to be multiplied by that number. Let's try some functions multiplied by non-zero real numbers to see this.

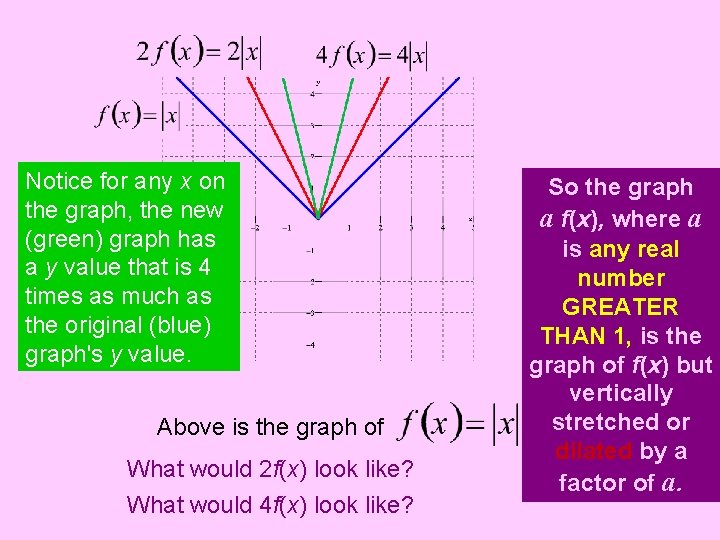

Notice for any x on the graph, the new (red) graph (green) graph hashas ay value a y value that is 2 is 4 times as much as the original (blue) graph's y value. Above is the graph of What would 2 f(x) look like? What would 4 f(x) look like? So the graph a f(x), where a is any real number GREATER THAN 1, is the graph of f(x) but vertically stretched or dilated by a factor of a.

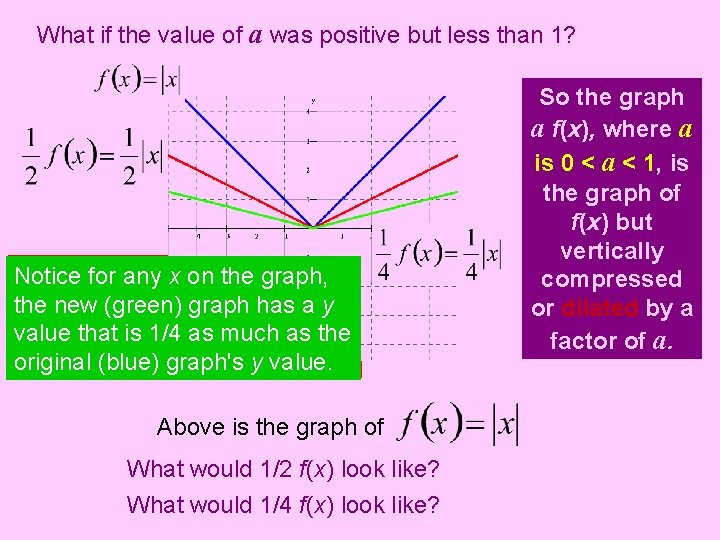

What if the value of a was positive but less than 1? Notice for any x on the graph, the new (green) (red) graph has a ya y graph has 1/2 as much as the value that is 1/4 original (blue) graph's y value. Above is the graph of What would 1/2 f(x) look like? What would 1/4 f(x) look like? So the graph a f(x), where a is 0 < a < 1, is the graph of f(x) but vertically compressed or dilated by a factor of a.

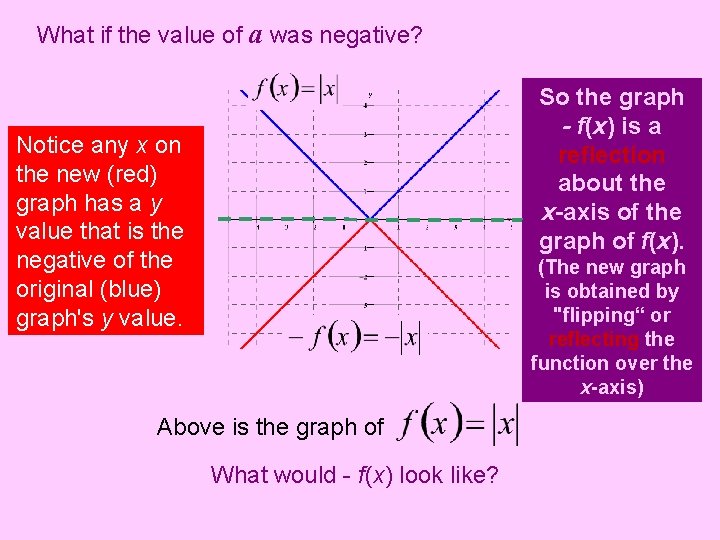

What if the value of a was negative? So the graph - f(x) is a reflection about the x-axis of the graph of f(x). Notice any x on the new (red) graph has a y value that is the negative of the original (blue) graph's y value. (The new graph is obtained by "flipping“ or reflecting the function over the x-axis) Above is the graph of What would - f(x) look like?

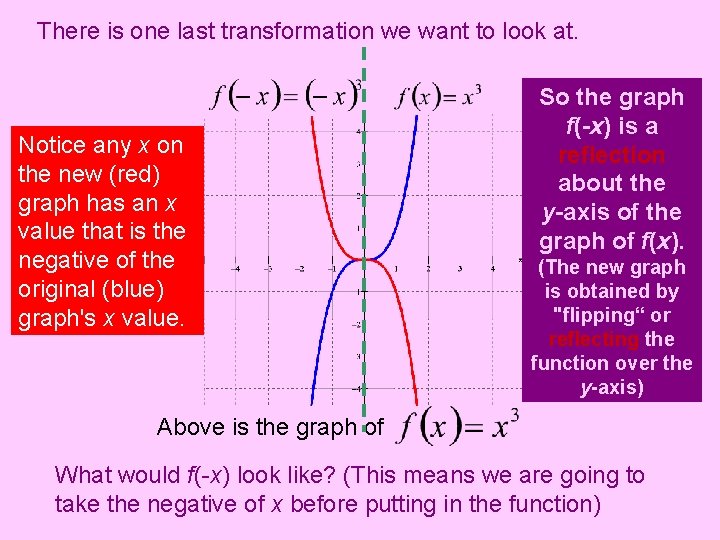

There is one last transformation we want to look at. Notice any x on the new (red) graph has an x value that is the negative of the original (blue) graph's x value. So the graph f(-x) is a reflection about the y-axis of the graph of f(x). (The new graph is obtained by "flipping“ or reflecting the function over the y-axis) Above is the graph of What would f(-x) look like? (This means we are going to take the negative of x before putting in the function)

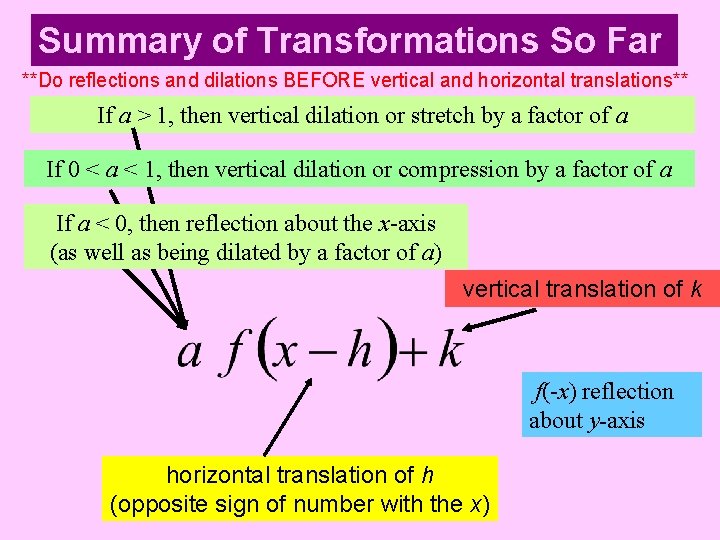

Summary of Transformations So Far **Do reflections and dilations BEFORE vertical and horizontal translations** If a > 1, then vertical dilation or stretch by a factor of a If 0 < a < 1, then vertical dilation or compression by a factor of a If a < 0, then reflection about the x-axis (as well as being dilated by a factor of a) vertical translation of k f(-x) reflection about y-axis horizontal translation of h (opposite sign of number with the x)

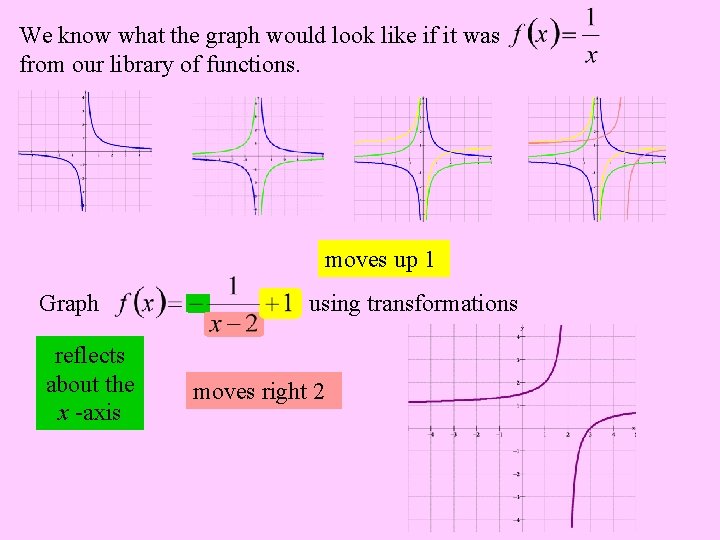

We know what the graph would look like if it was from our library of functions. moves up 1 Graph reflects about the x -axis using transformations moves right 2

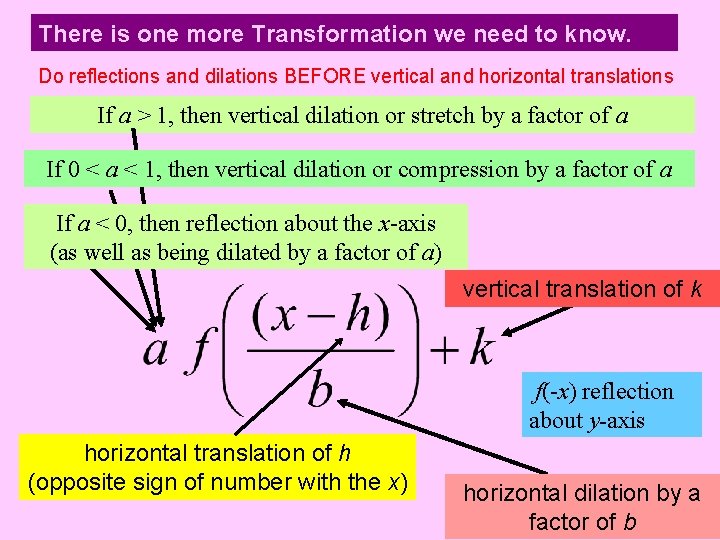

There is one more Transformation we need to know. Do reflections and dilations BEFORE vertical and horizontal translations If a > 1, then vertical dilation or stretch by a factor of a If 0 < a < 1, then vertical dilation or compression by a factor of a If a < 0, then reflection about the x-axis (as well as being dilated by a factor of a) vertical translation of k f(-x) reflection about y-axis horizontal translation of h (opposite sign of number with the x) horizontal dilation by a factor of b
