Transformations Combinations Worksheet B Worksheets increase in difficulty

Transformations – Combinations – Worksheet B Worksheets increase in difficulty and are in a variety of sizes.

Printing To print handouts from slides Select the slide from the left. Then click: File > Print > ‘Print Current Slide’ To print multiple slides Click on a section title to highlight all those slides, or press ‘Ctrl’ at the same time as selecting slides to highlight more than one. Then click: File > Print > ‘Print Selection’ To print double-sided handouts Highlight both slides before using ‘Print Selection’. Choose ‘Print on Both Sides’ and ‘Flip on Short Edge’.

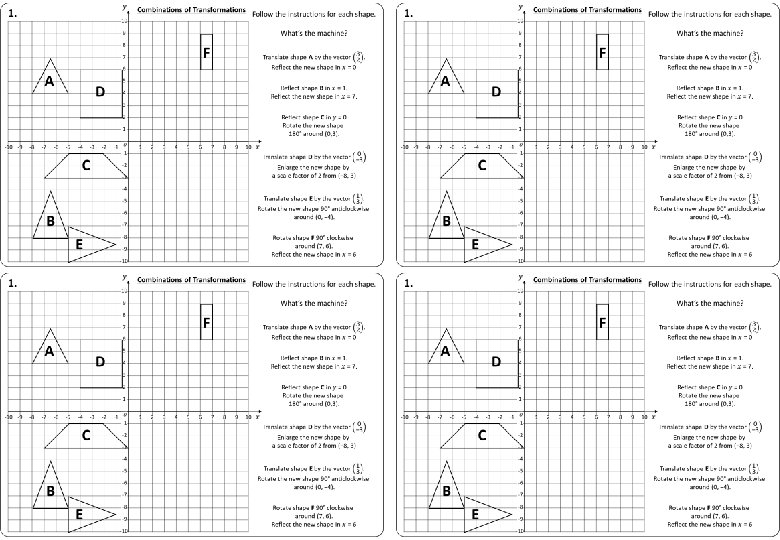

Combinations of Transformations 1. Follow the instructions for each shape. What’s the machine? F A D C B E

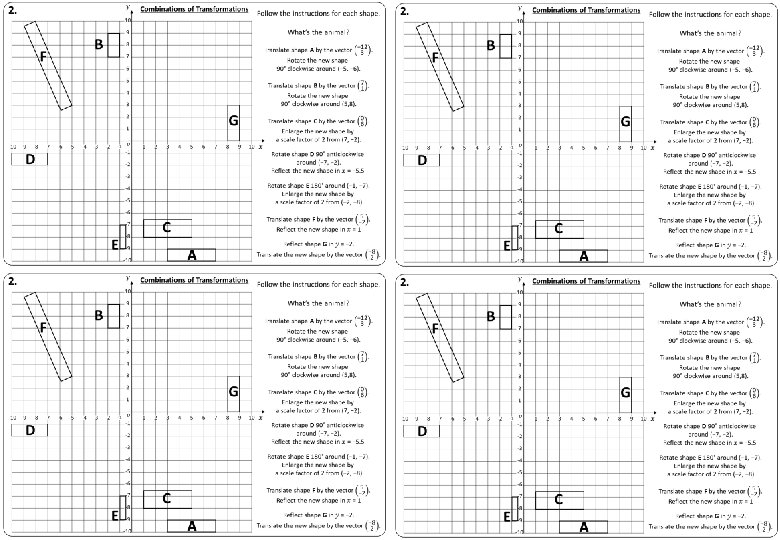

2. Combinations of Transformations F Follow the instructions for each shape. What’s the animal? B G D Rotate shape E 180° around (− 1, − 7). Enlarge the new shape by a scale factor of 2 from (− 2, − 8) E C A

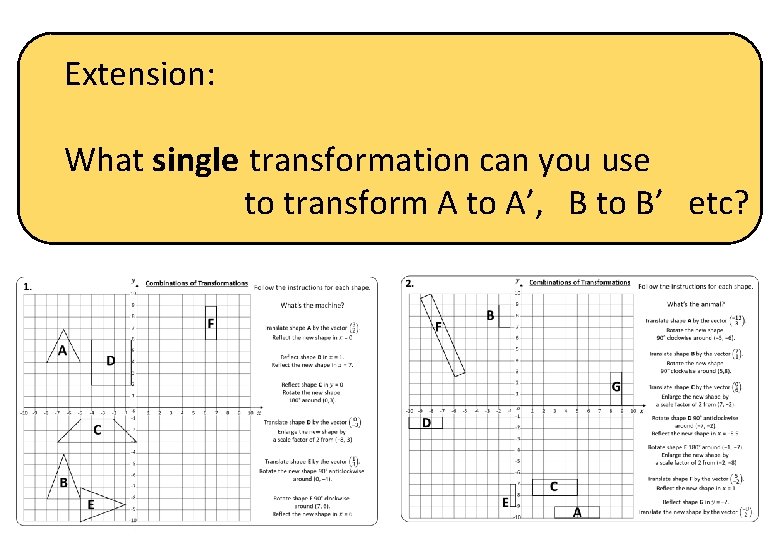

Extension: What single transformation can you use to transform A to A’, B to B’ etc?

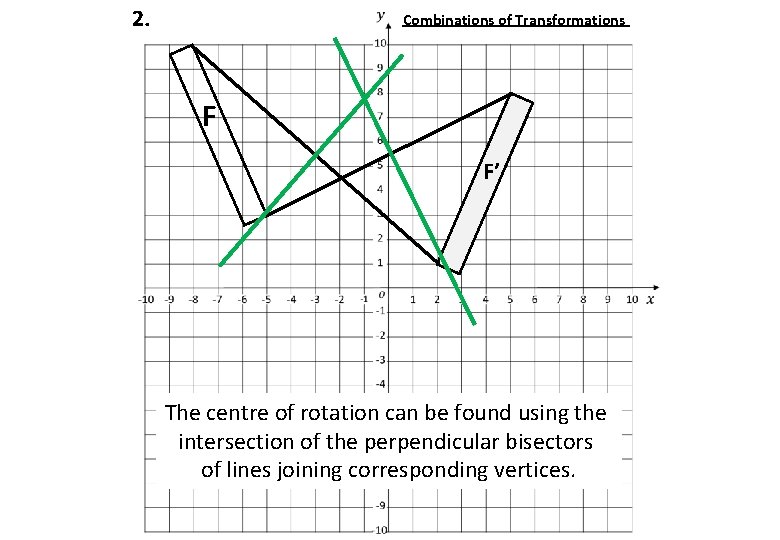

2. Combinations of Transformations F F’ The centre of rotation can be found using the intersection of the perpendicular bisectors of lines joining corresponding vertices.

Combinations of Transformations 1. Follow the instructions for each shape. What’s the machine? F A’ A F’ D C’ D’ C B E’ E B’

2. Combinations of Transformations F Follow the instructions for each shape. What’s the animal? B B’ F’ G C’ D A’ D’ E’ E G’ Rotate shape E 180° around (− 1, − 7). Enlarge the new shape by a scale factor of 2 from (− 2, − 8) C A

Extension: 1 A to A’ B to B’ C to C’ D to D’ E to E’ F to F’ Scale Factor: 2 C of E: (-8. 9) 90° clockwise around (-2, -5) 90° anticlockwise around (6, 5) D to D’ E to E’ F to F’ G to G’ 2 90° anticlockwise around (3, -2) 90° clockwise around (2, 4) Scale Factor: 2 C of E: (8, -17) 90° anticlockwise around (-5, 0) Scale Factor: 2 C of E: (-2, -12) 180° anticlockwise around (-1, 8)

Questions? Comments? Suggestions? …or have you found a mistake!? Any feedback would be appreciated . Please feel free to email: tom@goteachmaths. co. uk
