Transducer Device when activated from one form energy

Transducer Device when activated from one form energy converted to another quantity or Device which converts one physical quantity or condition to another

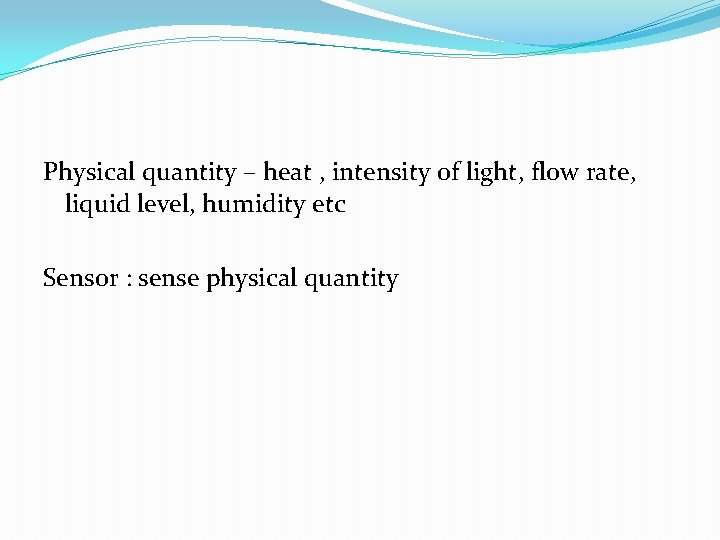

Physical quantity – heat , intensity of light, flow rate, liquid level, humidity etc Sensor : sense physical quantity

Classification of transducers 1. 2. 3. 4. Based on principle of transduction Active & passive Analog & digital Inverse transducer

Based on principle used �Thermo electric �Magneto resistive �Electro kinetic �Optical

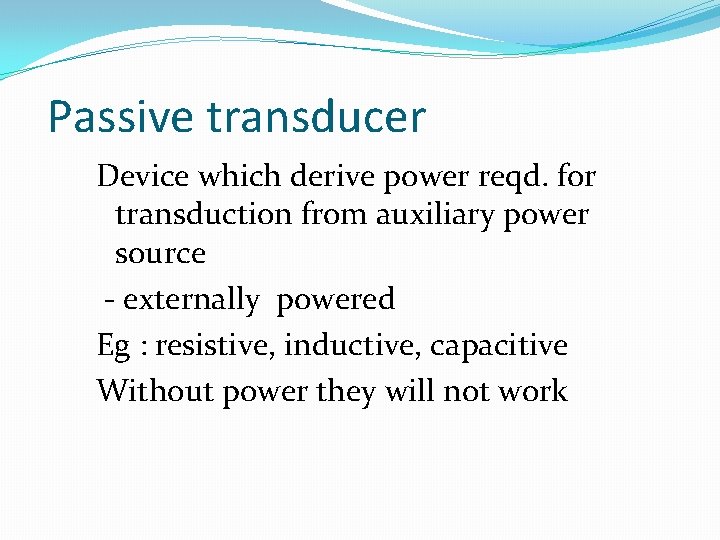

Passive transducer Device which derive power reqd. for transduction from auxiliary power source - externally powered Eg : resistive, inductive, capacitive Without power they will not work

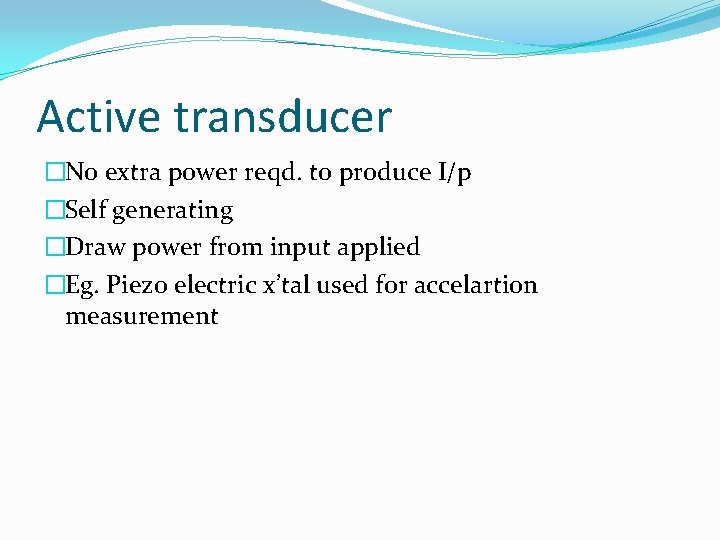

Active transducer �No extra power reqd. to produce I/p �Self generating �Draw power from input applied �Eg. Piezo electric x’tal used for accelartion measurement

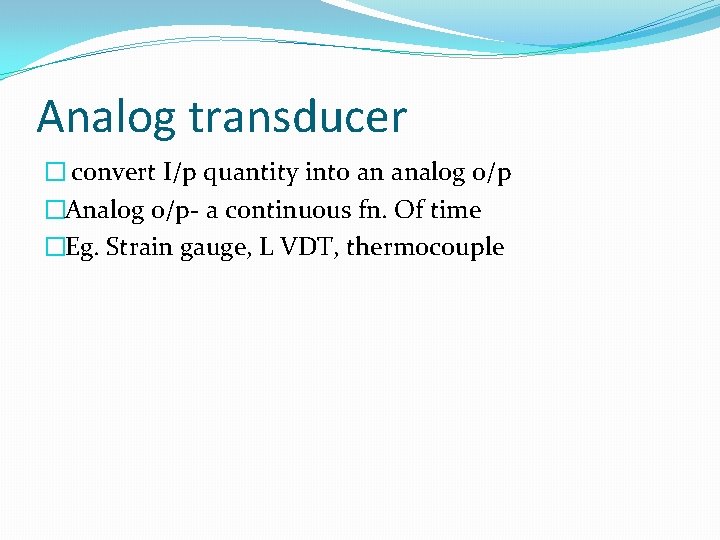

Analog transducer � convert I/p quantity into an analog o/p �Analog o/p- a continuous fn. Of time �Eg. Strain gauge, L VDT, thermocouple

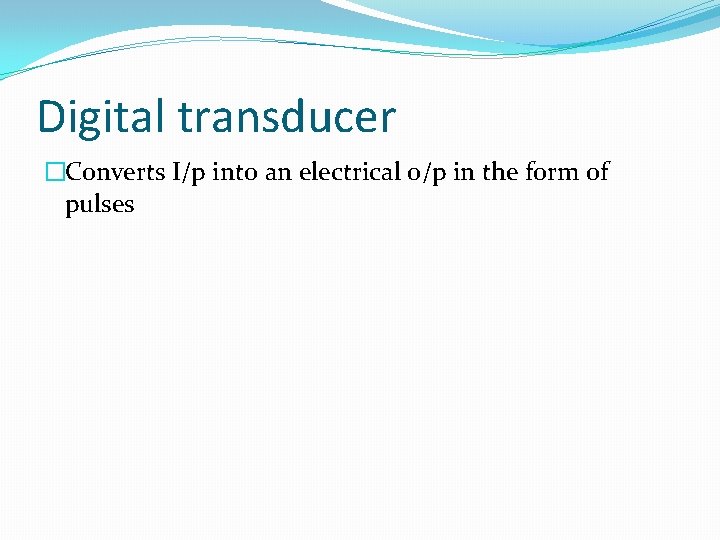

Digital transducer �Converts I/p into an electrical o/p in the form of pulses

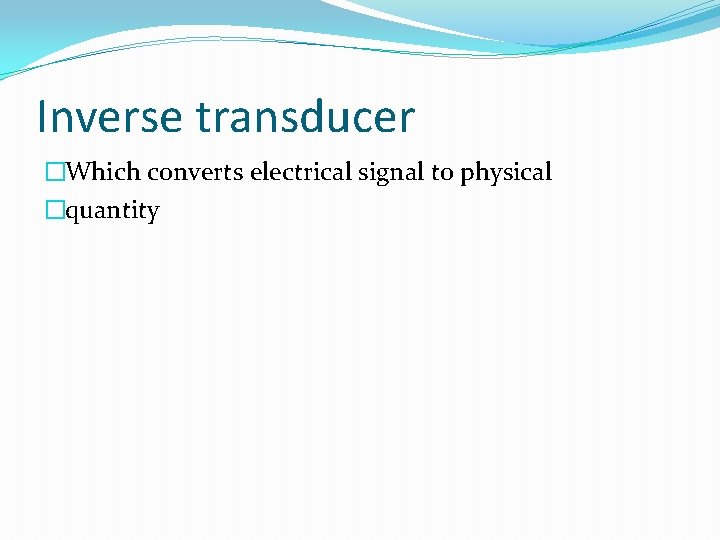

Inverse transducer �Which converts electrical signal to physical �quantity

Transducer for pressure measurement �What is pressure? force/ unit area Unit – (N/sq. m) Pa Pressure measured can be absolute , gauge or differential depending on type of reference

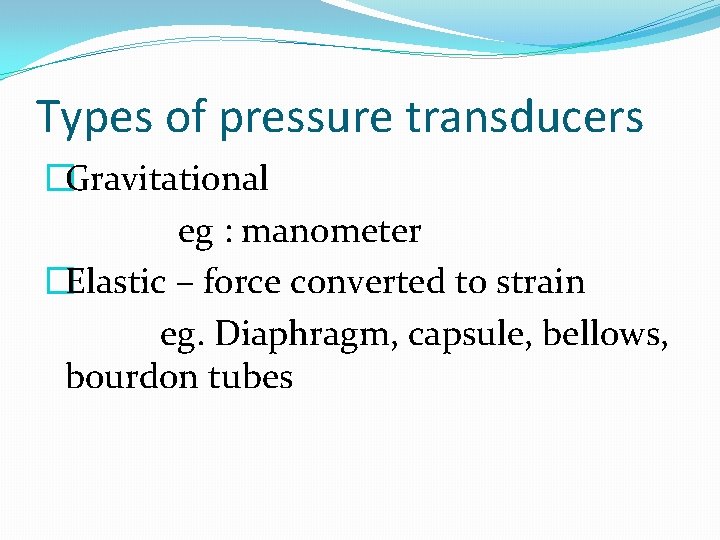

Types of pressure transducers �Gravitational eg : manometer �Elastic – force converted to strain eg. Diaphragm, capsule, bellows, bourdon tubes

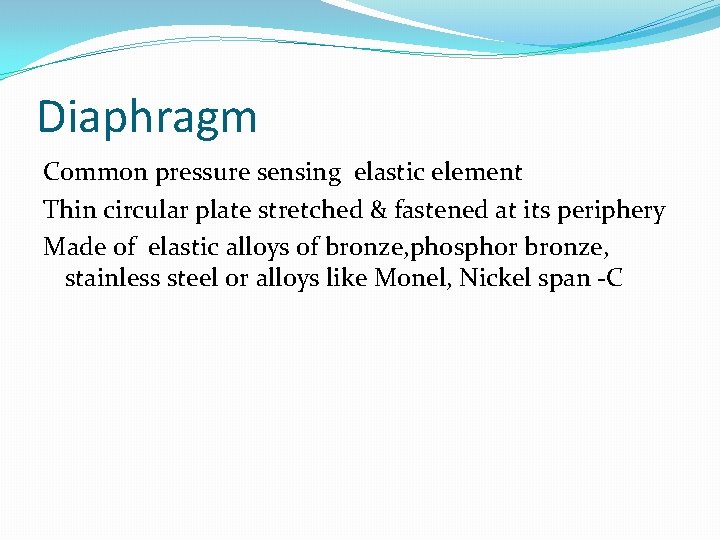

Diaphragm Common pressure sensing elastic element Thin circular plate stretched & fastened at its periphery Made of elastic alloys of bronze, phosphor bronze, stainless steel or alloys like Monel, Nickel span -C

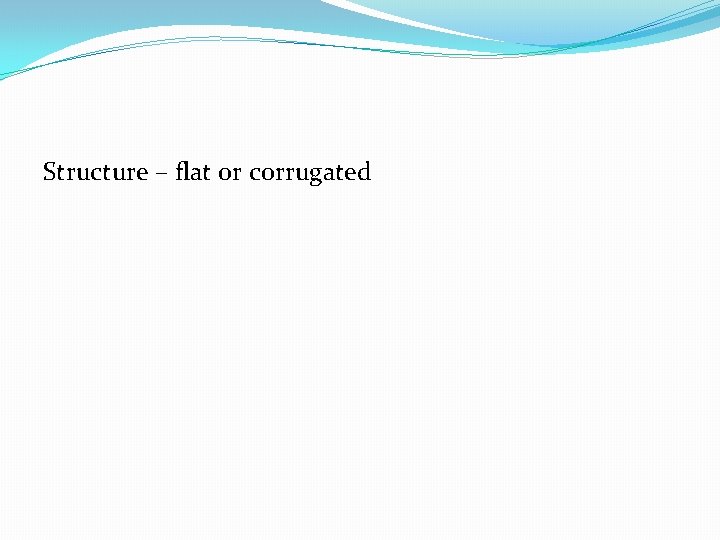

Structure – flat or corrugated

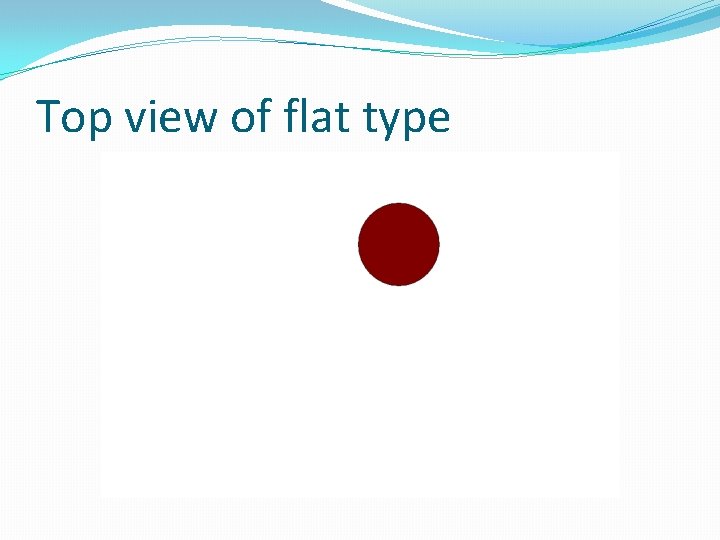

Top view of flat type

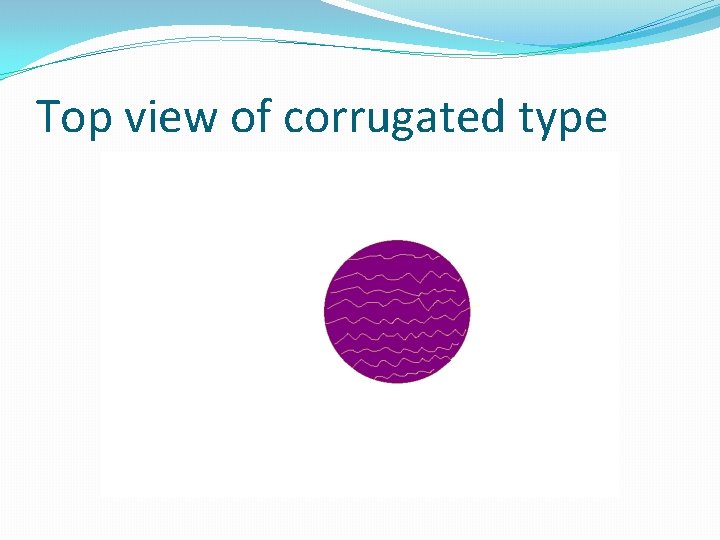

Top view of corrugated type

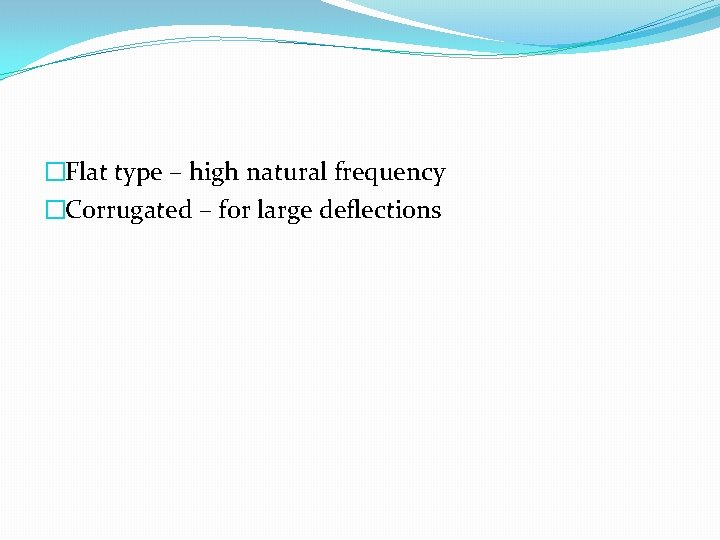

�Flat type – high natural frequency �Corrugated – for large deflections

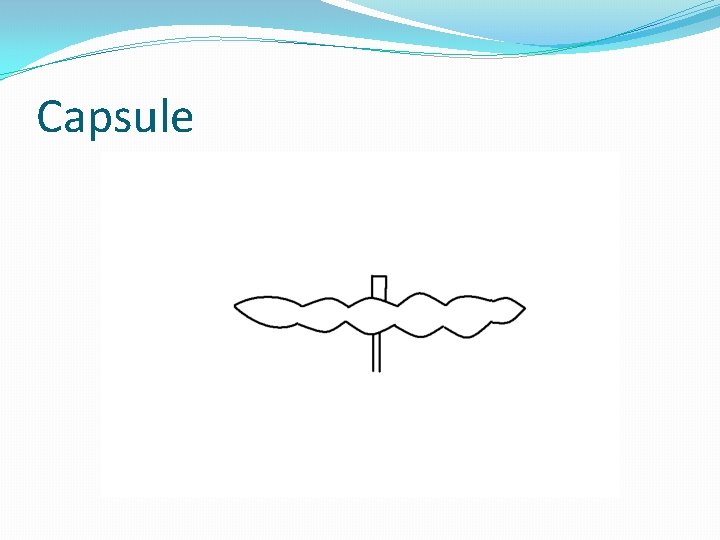

Capsule

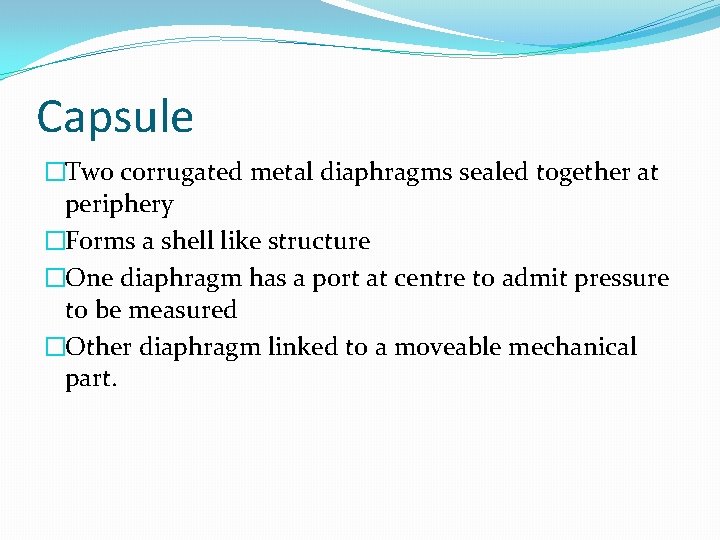

Capsule �Two corrugated metal diaphragms sealed together at periphery �Forms a shell like structure �One diaphragm has a port at centre to admit pressure to be measured �Other diaphragm linked to a moveable mechanical part.

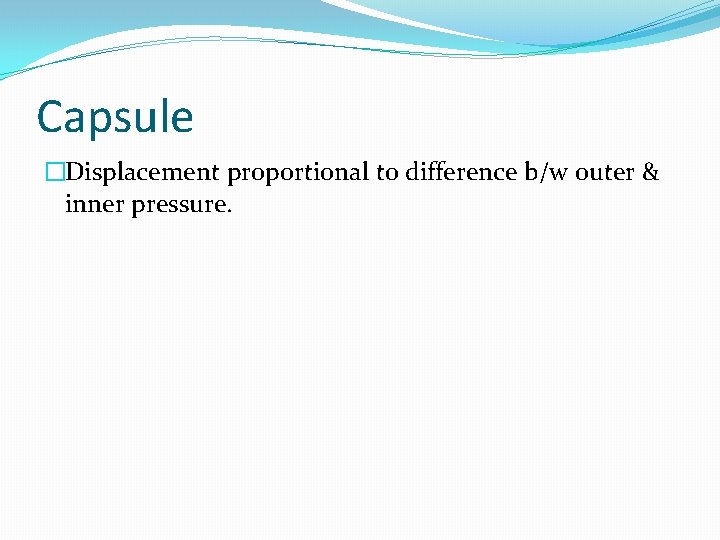

Capsule �Displacement proportional to difference b/w outer & inner pressure.

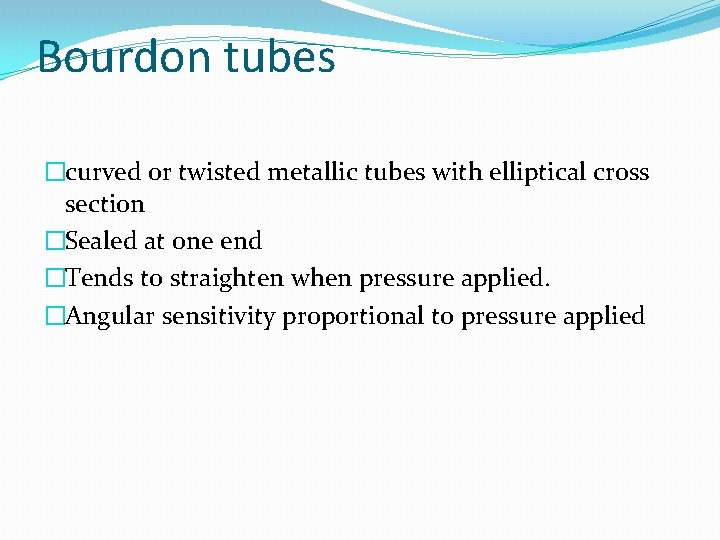

Bourdon tubes �curved or twisted metallic tubes with elliptical cross section �Sealed at one end �Tends to straighten when pressure applied. �Angular sensitivity proportional to pressure applied

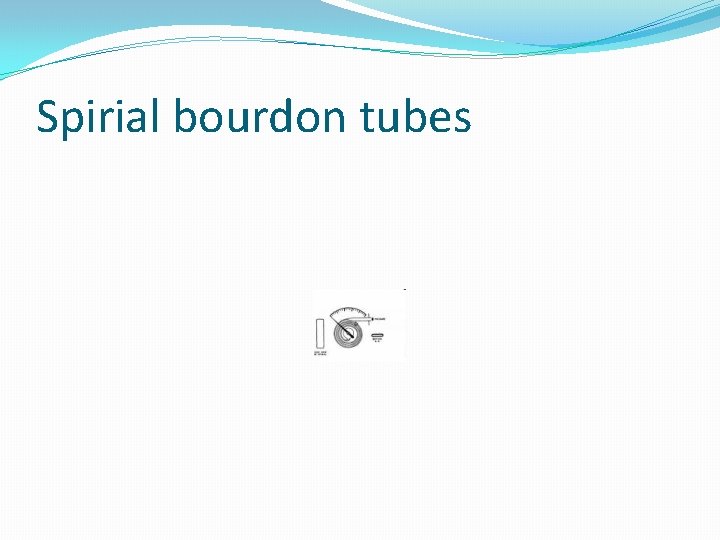

Spirial bourdon tubes

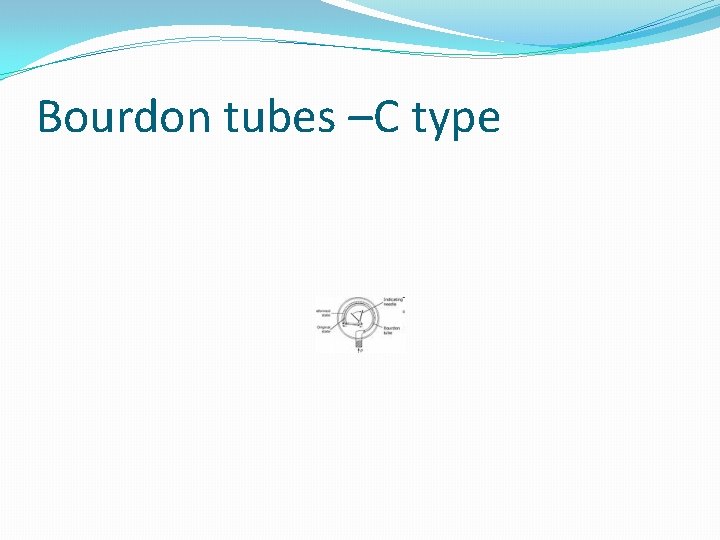

Bourdon tubes –C type

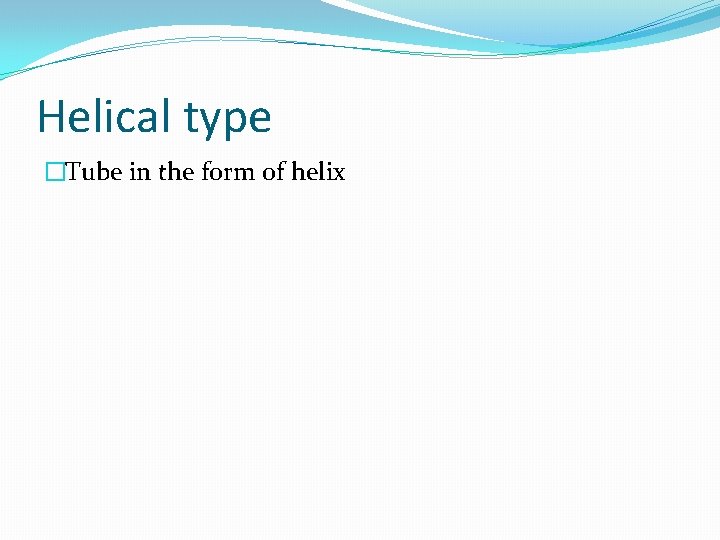

Helical type �Tube in the form of helix

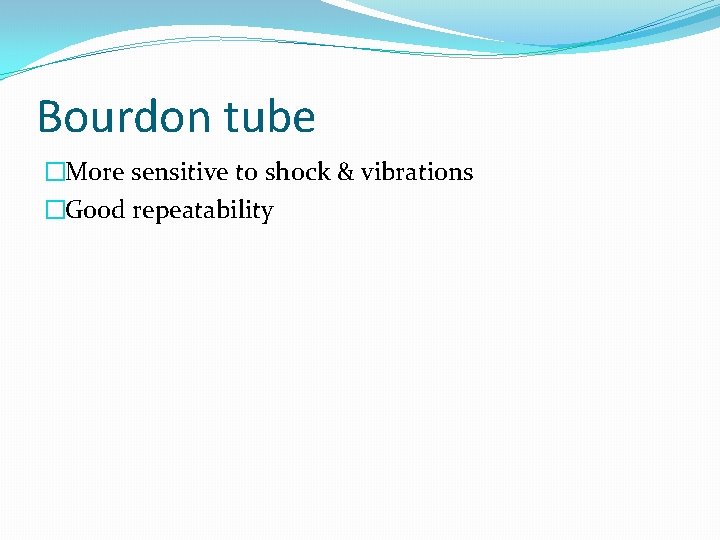

Bourdon tube �More sensitive to shock & vibrations �Good repeatability

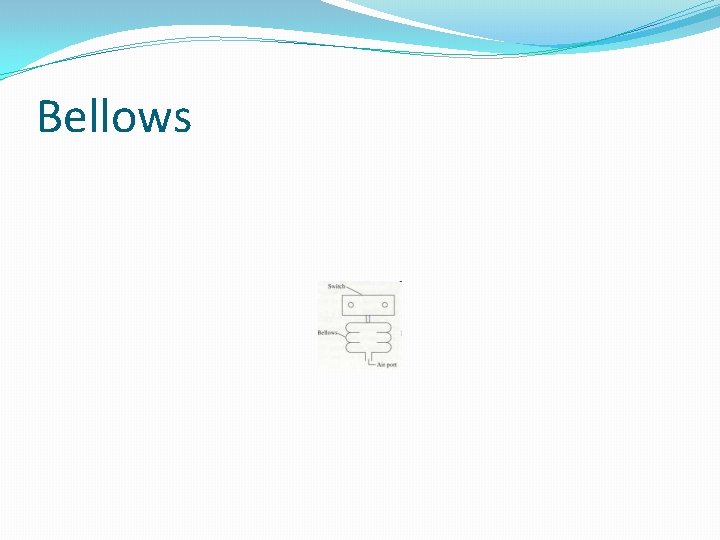

Bellows

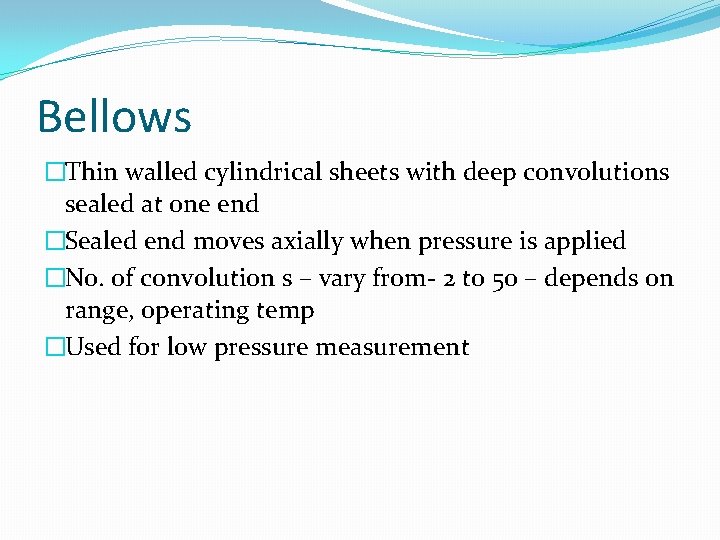

Bellows �Thin walled cylindrical sheets with deep convolutions sealed at one end �Sealed end moves axially when pressure is applied �No. of convolution s – vary from- 2 to 50 – depends on range, operating temp �Used for low pressure measurement

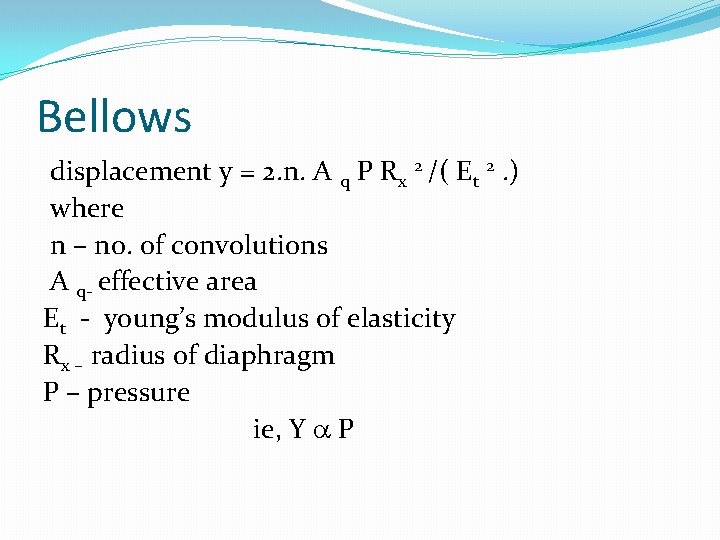

Bellows displacement y = 2. n. A q P Rx 2 /( Et 2. ) where n – no. of convolutions A q- effective area Et - young’s modulus of elasticity Rx – radius of diaphragm P – pressure ie, Y P

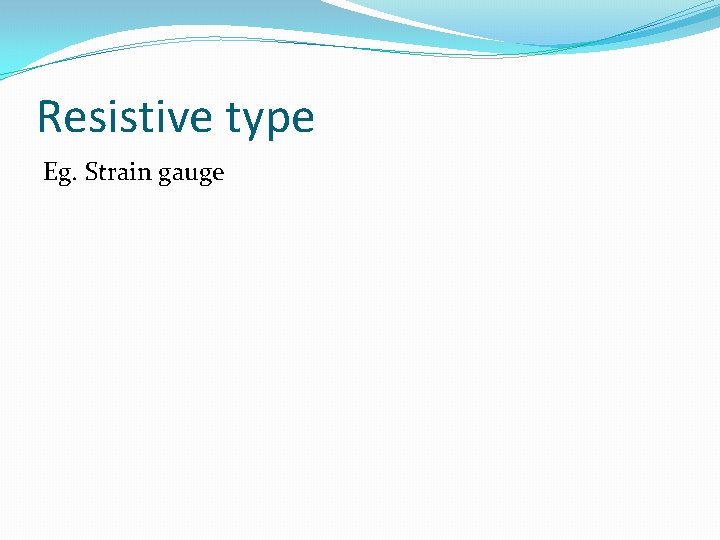

Resistive type Eg. Strain gauge

Capacitive

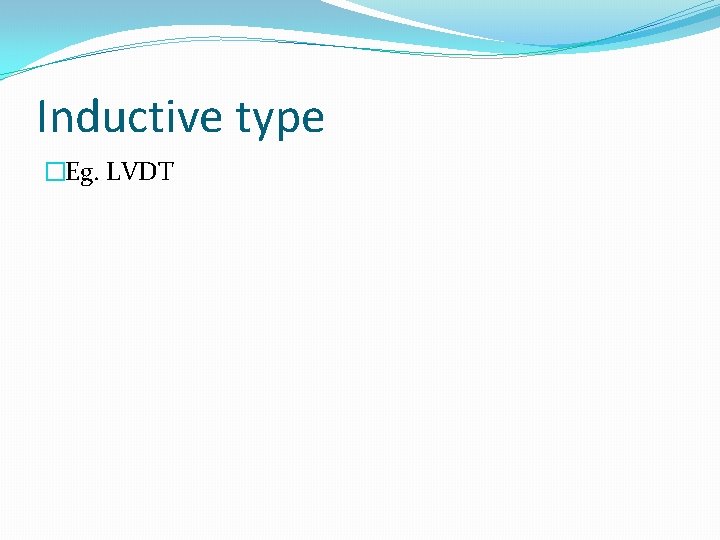

Inductive type �Eg. LVDT

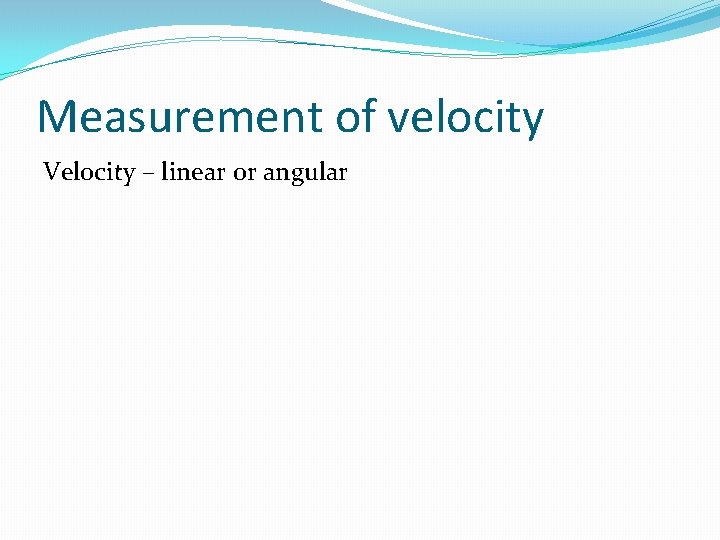

Measurement of velocity Velocity – linear or angular

Linear velocity �Electromagnetic transducers �O/p voltage E = / t � = N I/ R 2. d. R/dt where N I/ R 2 is a constant R- reluctance so E proportional to reluctance R proportional to air gap & air gap proportional to velocity

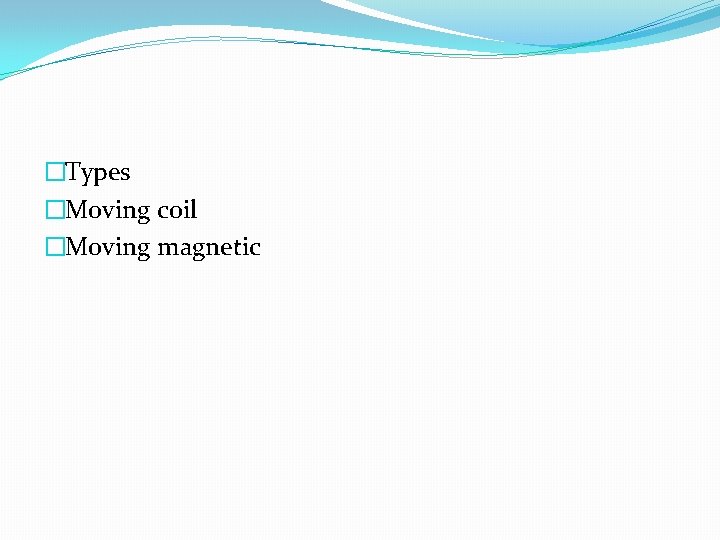

�Types �Moving coil �Moving magnetic

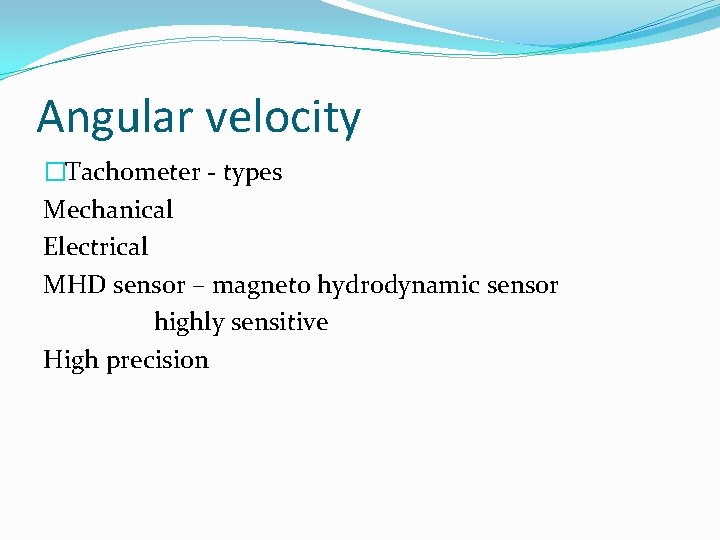

Angular velocity �Tachometer - types Mechanical Electrical MHD sensor – magneto hydrodynamic sensor highly sensitive High precision

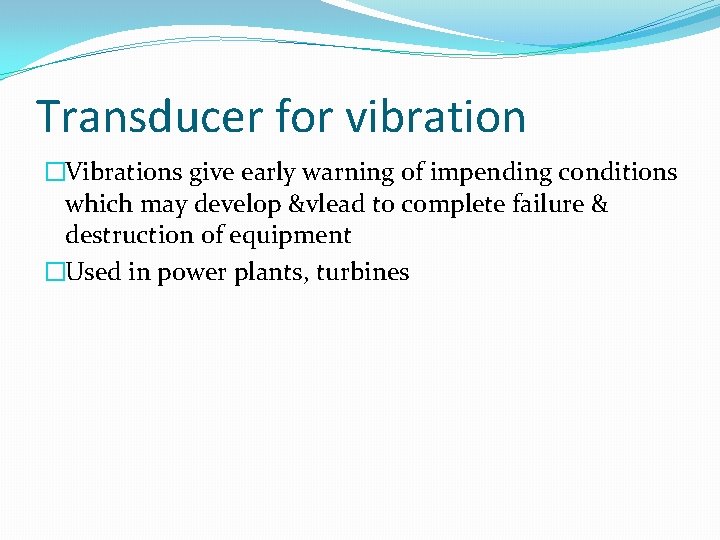

Transducer for vibration �Vibrations give early warning of impending conditions which may develop &vlead to complete failure & destruction of equipment �Used in power plants, turbines

�Most vibrations are sinusodial in nature �Got amp & freq. �Amp gives displacement �By measuring displacement, velocity or acceleration vibrations measured

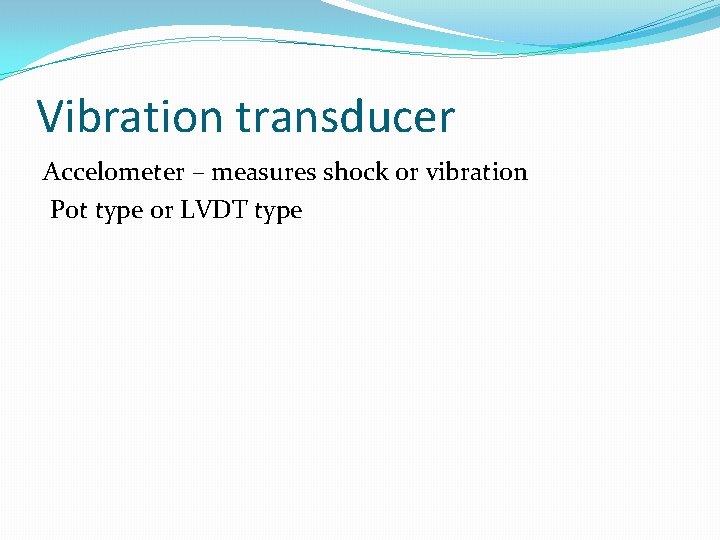

Vibration transducer Accelometer – measures shock or vibration Pot type or LVDT type

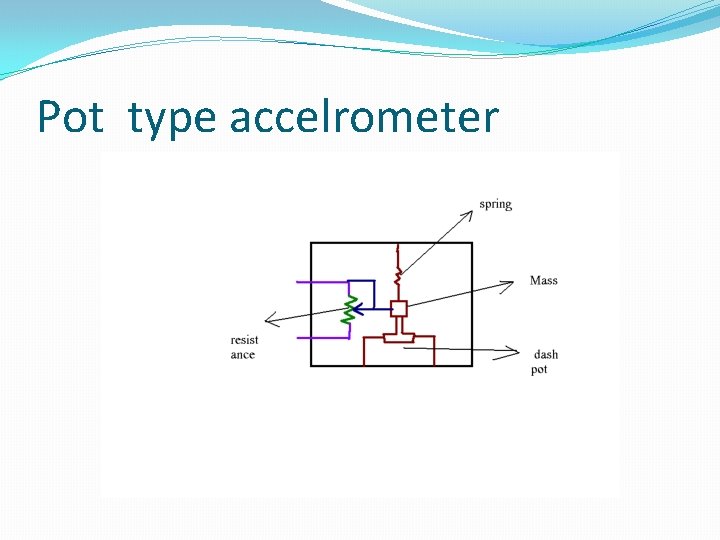

Pot type accelrometer

LVDT accelorometer
