Transaction-Oriented Database Recovery

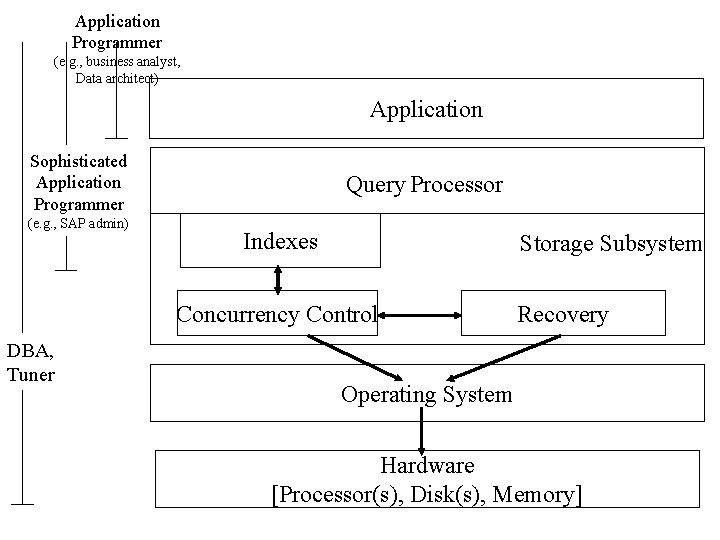

Application Programmer (e. g. , business analyst, Data architect) Application Sophisticated Application Programmer (e. g. , SAP admin) Query Processor Indexes Storage Subsystem Concurrency Control DBA, Tuner Recovery Operating System Hardware [Processor(s), Disk(s), Memory]
Outline • Principles of transaction-oriented database recovery • Recovery tuning

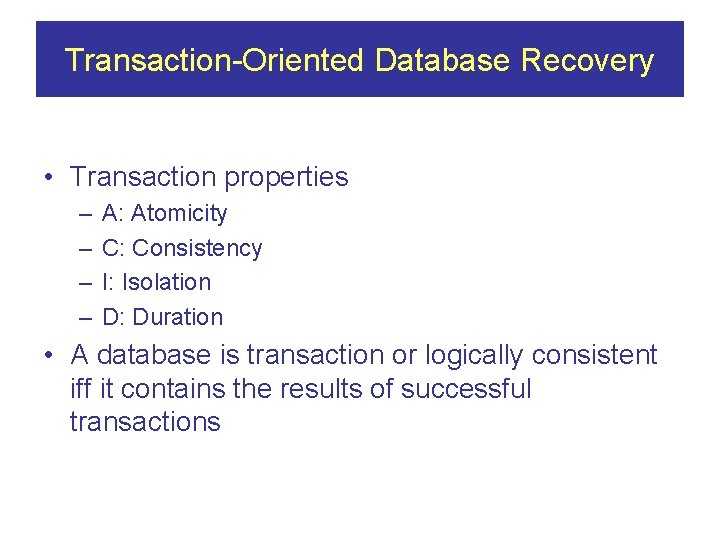

Transaction-Oriented Database Recovery • Transaction properties – – A: Atomicity C: Consistency I: Isolation D: Duration • A database is transaction or logically consistent iff it contains the results of successful transactions
Failures To Recover From • Transaction failure – Self- or system-abort – To recover within time for normal transaction – 10 -100 times per min. • System failure – OS or DBMS crash – To recover in same amount of time as required for all interrupted transactions – A few times per week • Media failure – Disk crash – To recover in hours – A few times per year

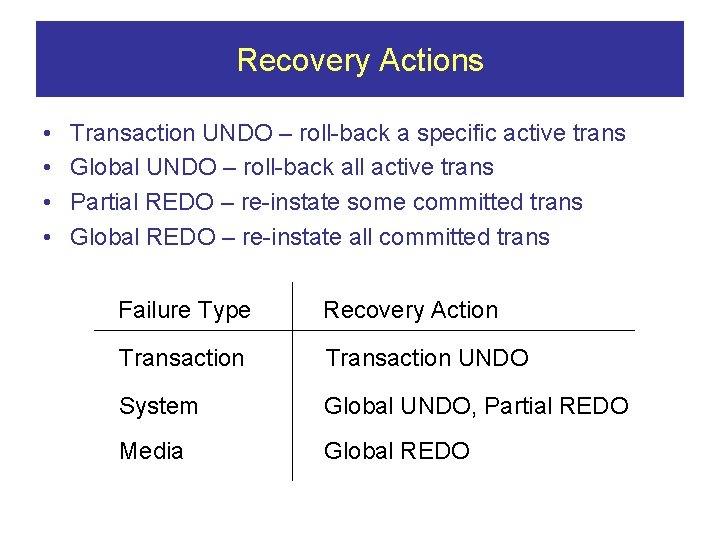

Recovery Actions • • Transaction UNDO – roll-back a specific active trans Global UNDO – roll-back all active trans Partial REDO – re-instate some committed trans Global REDO – re-instate all committed trans Failure Type Recovery Action Transaction UNDO System Global UNDO, Partial REDO Media Global REDO

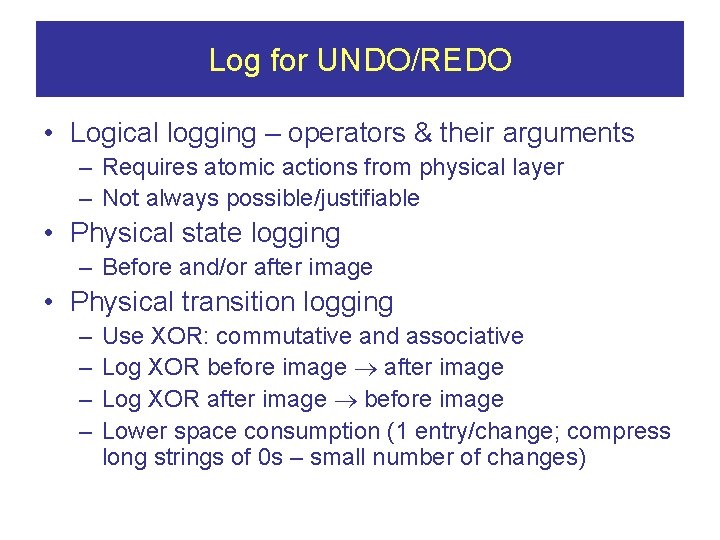

Log for UNDO/REDO • Logical logging – operators & their arguments – Requires atomic actions from physical layer – Not always possible/justifiable • Physical state logging – Before and/or after image • Physical transition logging – – Use XOR: commutative and associative Log XOR before image after image Log XOR after image before image Lower space consumption (1 entry/change; compress long strings of 0 s – small number of changes)

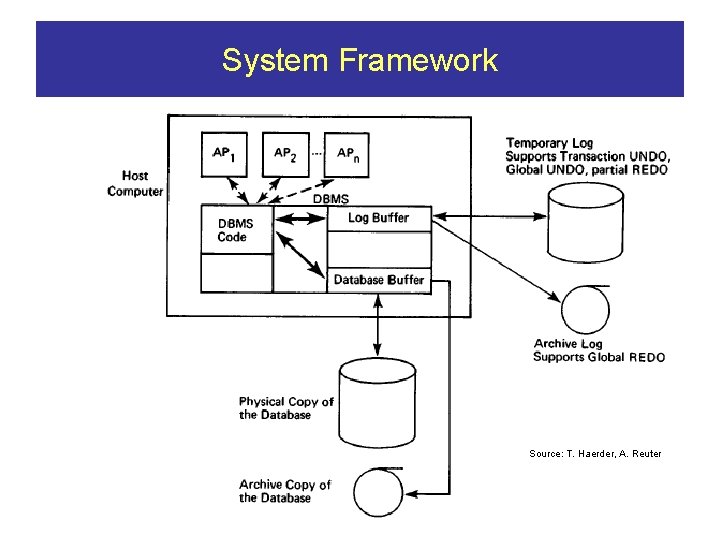

System Framework Source: T. Haerder, A. Reuter

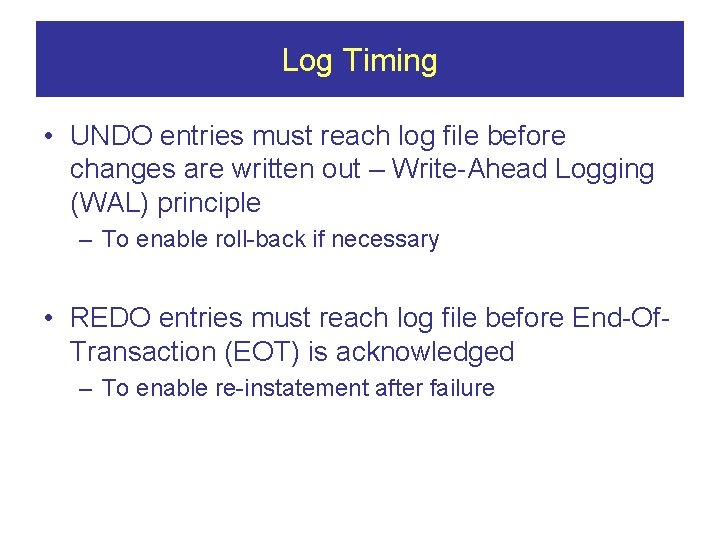

Log Timing • UNDO entries must reach log file before changes are written out – Write-Ahead Logging (WAL) principle – To enable roll-back if necessary • REDO entries must reach log file before End-Of. Transaction (EOT) is acknowledged – To enable re-instatement after failure

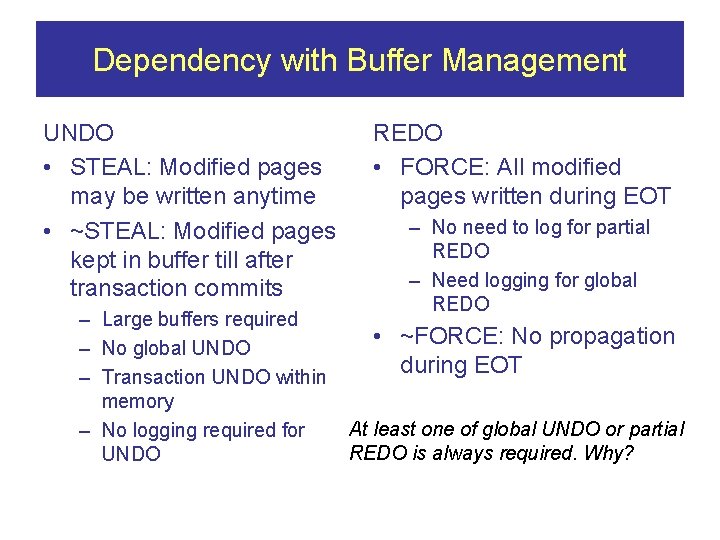

Dependency with Buffer Management UNDO • STEAL: Modified pages may be written anytime • ~STEAL: Modified pages kept in buffer till after transaction commits – Large buffers required – No global UNDO – Transaction UNDO within memory – No logging required for UNDO REDO • FORCE: All modified pages written during EOT – No need to log for partial REDO – Need logging for global REDO • ~FORCE: No propagation during EOT At least one of global UNDO or partial REDO is always required. Why?

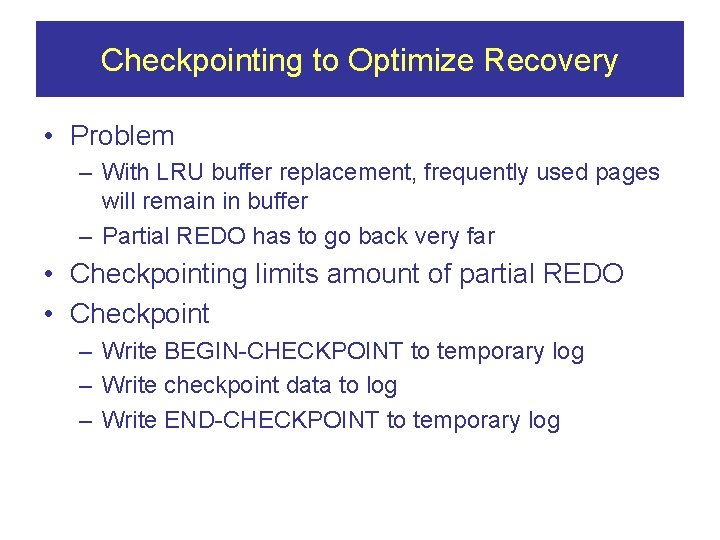

Checkpointing to Optimize Recovery • Problem – With LRU buffer replacement, frequently used pages will remain in buffer – Partial REDO has to go back very far • Checkpointing limits amount of partial REDO • Checkpoint – Write BEGIN-CHECKPOINT to temporary log – Write checkpoint data to log – Write END-CHECKPOINT to temporary log

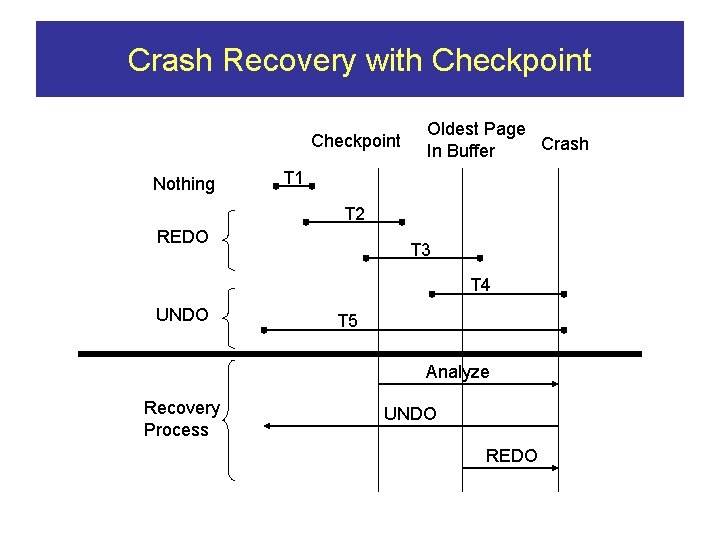

Crash Recovery with Checkpoint Nothing Oldest Page Crash In Buffer T 1 T 2 REDO T 3 T 4 UNDO T 5 Analyze Recovery Process UNDO REDO

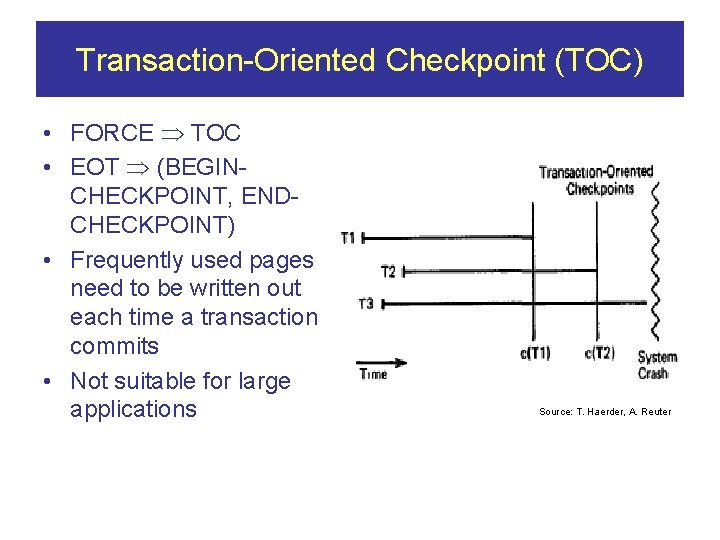

Transaction-Oriented Checkpoint (TOC) • FORCE TOC • EOT (BEGINCHECKPOINT, ENDCHECKPOINT) • Frequently used pages need to be written out each time a transaction commits • Not suitable for large applications Source: T. Haerder, A. Reuter

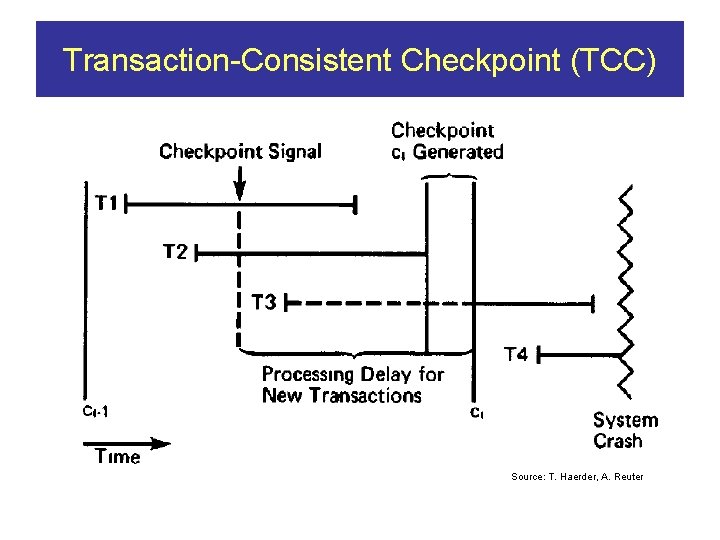

Transaction-Consistent Checkpoint (TCC) Source: T. Haerder, A. Reuter
Transaction-Consistent Checkpoint (TCC) • When checkpoint generation is triggered – All new update transactions are put on hold – All incomplete update transactions are completed – Write out all modified pages • Both REDO and UNDO are bounded – REDO starts from latest checkpoint – UNDO back to latest checkpoint • Drawback – Delay new update transactions; not suitable for large multi-user DBMS – High checkpointing costs

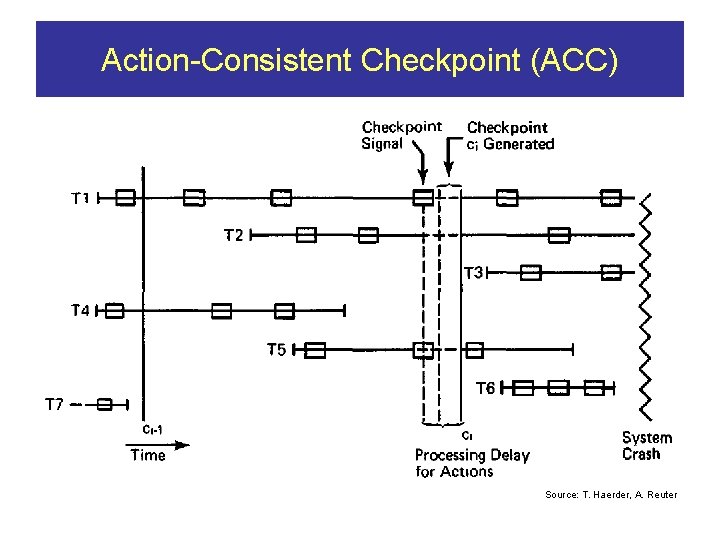

Action-Consistent Checkpoint (ACC) Source: T. Haerder, A. Reuter
Action-Consistent Checkpoint (ACC) • When checkpoint generation is triggered – All new actions are put on hold – All incomplete actions are completed – Write out all modified pages • Less disruptive than TCC • Partial REDO only from the most recent checkpoint • Global UNDO not bounded • Still costly when buffers are large

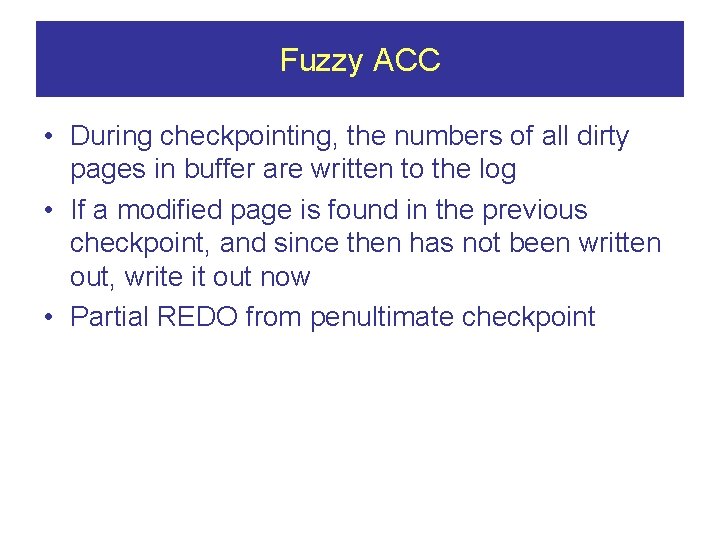

Fuzzy ACC • During checkpointing, the numbers of all dirty pages in buffer are written to the log • If a modified page is found in the previous checkpoint, and since then has not been written out, write it out now • Partial REDO from penultimate checkpoint

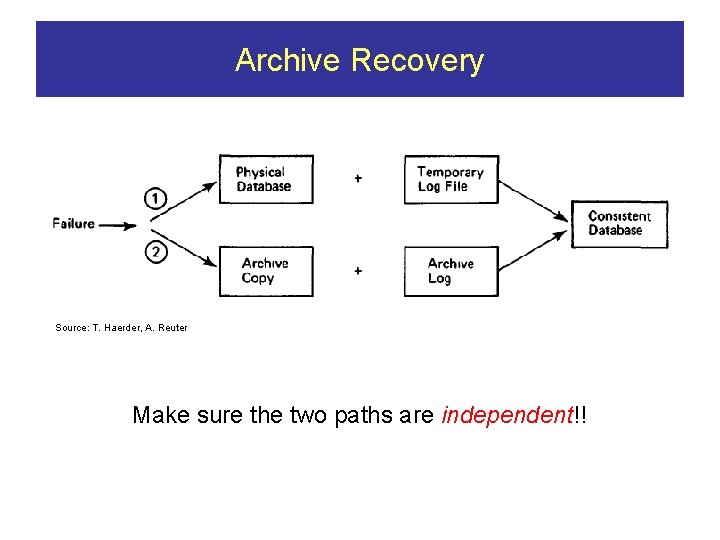

Archive Recovery Source: T. Haerder, A. Reuter Make sure the two paths are independent!!

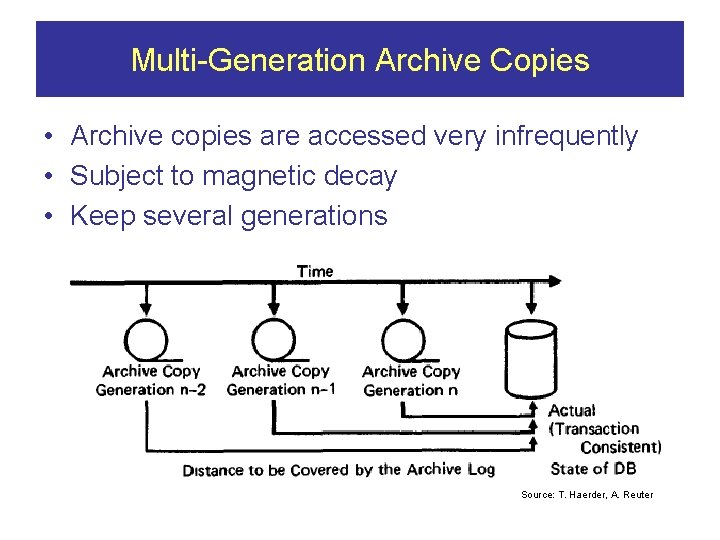

Multi-Generation Archive Copies • Archive copies are accessed very infrequently • Subject to magnetic decay • Keep several generations Source: T. Haerder, A. Reuter

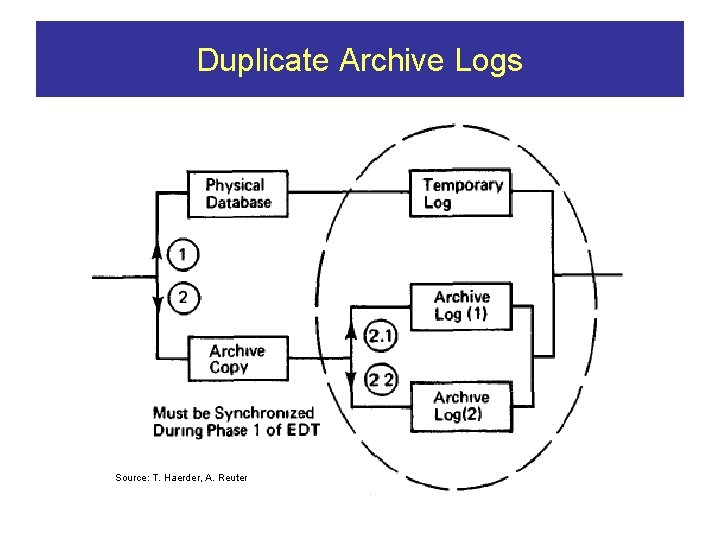

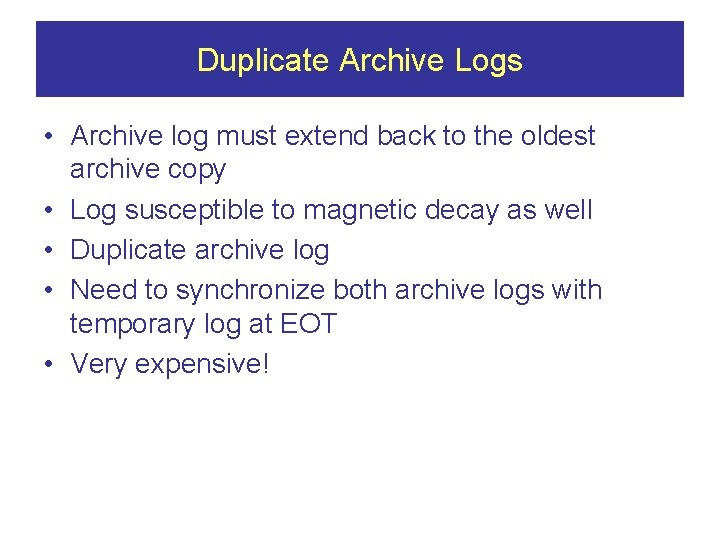

Duplicate Archive Logs Source: T. Haerder, A. Reuter
Duplicate Archive Logs • Archive log must extend back to the oldest archive copy • Log susceptible to magnetic decay as well • Duplicate archive log • Need to synchronize both archive logs with temporary log at EOT • Very expensive!

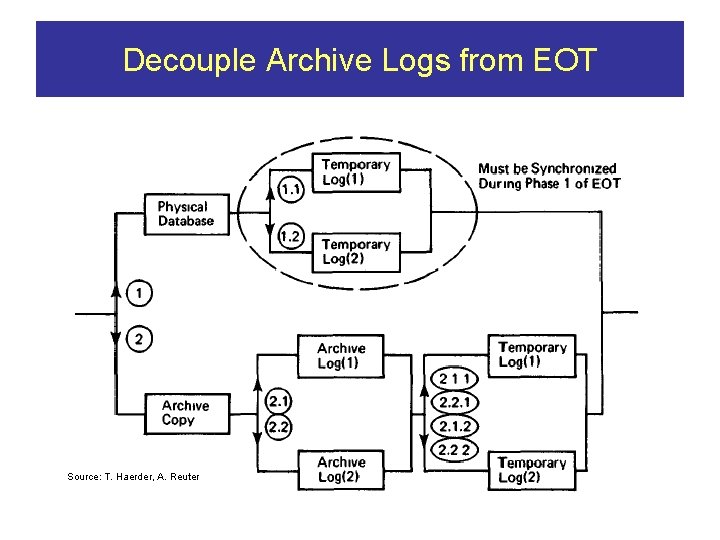

Decouple Archive Logs from EOT Source: T. Haerder, A. Reuter
Decouple Archive Logs from EOT • Log entries written only to temporary log during EOT • Asynchronous process copies REDO entries to archive log • Need to replicate temporary log • Synchronize both temporary logs at EOT

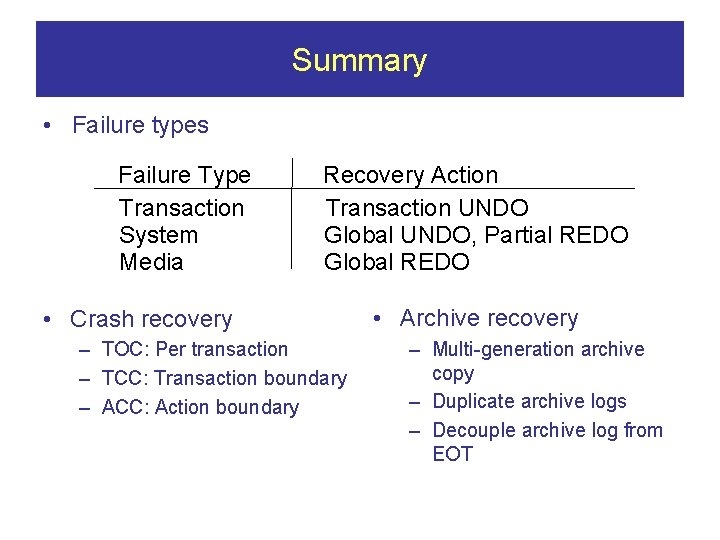

Summary • Failure types Failure Type Transaction System Media Recovery Action Transaction UNDO Global UNDO, Partial REDO Global REDO • Crash recovery – TOC: Per transaction – TCC: Transaction boundary – ACC: Action boundary • Archive recovery – Multi-generation archive copy – Duplicate archive logs – Decouple archive log from EOT
