Tralee Town Council Mitchels Boherbee Regeneration

Tralee Town Council Mitchels Boherbee Regeneration

Mitchels Boherbee Regeneration Vision Statement Establish an Energy Efficiency self sustaining area meeting the

Mitchels Boherbee Regeneration Vision Statement Establish an Energy Efficiency self sustaining area meeting the identified demand, transforming the local economy base through job creation and achieving a high living standard and excellent quality of life.

TOBAR NAOFA • • HIGH QUALITY, ACCESSIBLE ACCOMMODATION FOR THE ELDERLY In November 2008,

TOBAR NAOFA • • HIGH QUALITY, ACCESSIBLE ACCOMMODATION FOR THE ELDERLY In November 2008, Tobar Naofa was completed as part of Phase One of the Regeneration Project Consists of 46 - Apartments and caretaker accommodation. Fully accessible and designed for independent living by the elderly. Secure Living : On-site resident caretaker, controlled access gate and private open space

TOBAR NAOFA

TOBAR NAOFA

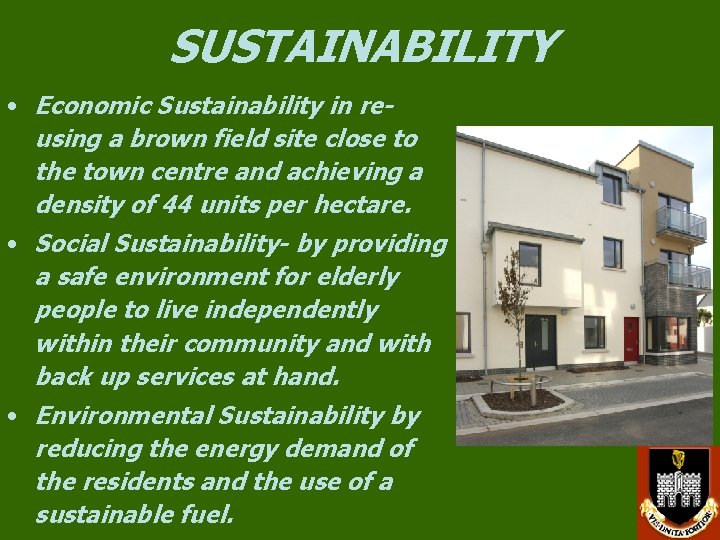

SUSTAINABILITY • Economic Sustainability in reusing a brown field site close to the town

SUSTAINABILITY • Economic Sustainability in reusing a brown field site close to the town centre and achieving a density of 44 units per hectare. • Social Sustainability- by providing a safe environment for elderly people to live independently within their community and with back up services at hand. • Environmental Sustainability by reducing the energy demand of the residents and the use of a sustainable fuel.

TOBAR NAOFA GREEN DEVELOPMENT • Designed to SEI ‘House of Tomorrow’ standards i. e.

TOBAR NAOFA GREEN DEVELOPMENT • Designed to SEI ‘House of Tomorrow’ standards i. e. 40% better insulated than the 2005 Building Regulations • Average annual saving of 0. 8 tonnes of CO 2 / € 200 per 2 bed apartment per year • Renewable resource- Wood Chip - fuelled District Heating System sourced locally

TOBAR NAOFA

TOBAR NAOFA

Tobar Naofa, Block 5 • Designed in compliance with 2008 Building Regs. • 6

Tobar Naofa, Block 5 • Designed in compliance with 2008 Building Regs. • 6 Units, 5 2 -beds and 1 1 -bed • Project cost: € 1. 04 million (incl. vat) • These units are to BER B 1 standard • Special features: – Solar panels – Photovoltaic – Rain water harvesting – Air tightness (0. 5 ac/hr)

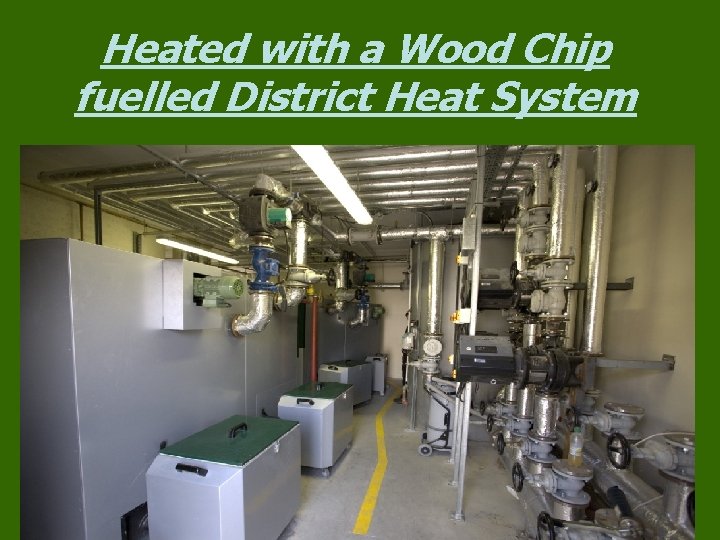

Heated with a Wood Chip fuelled District Heat System

Heated with a Wood Chip fuelled District Heat System

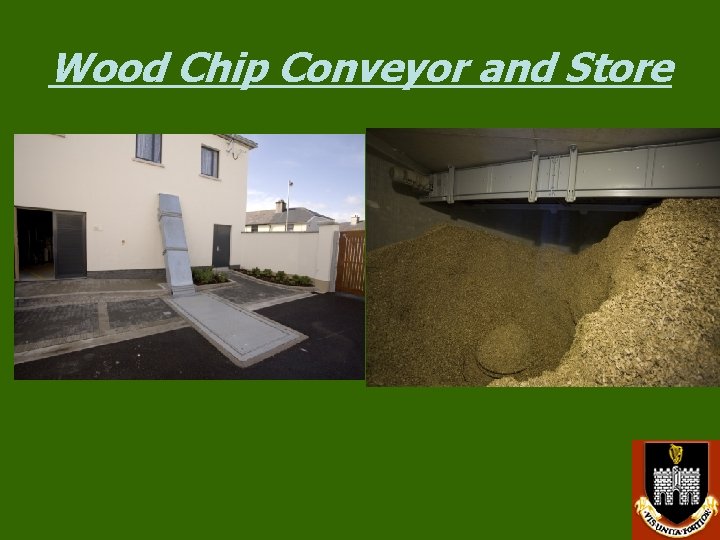

Wood Chip Conveyor and Store •

Wood Chip Conveyor and Store •

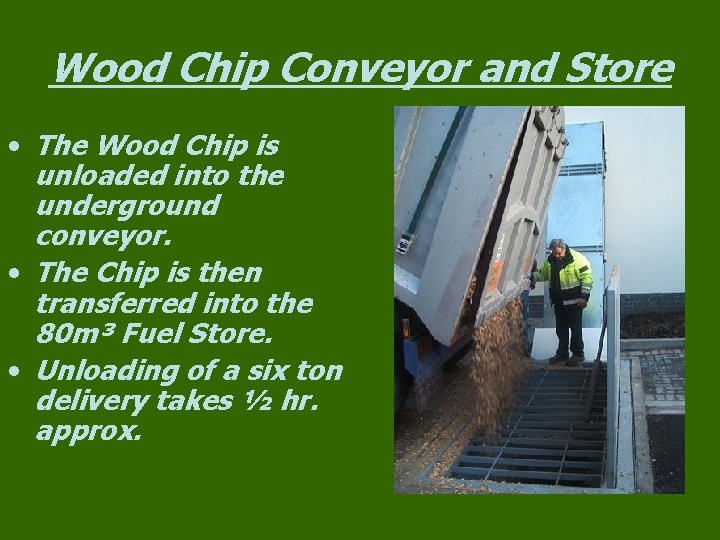

Wood Chip Conveyor and Store • The Wood Chip is unloaded into the underground

Wood Chip Conveyor and Store • The Wood Chip is unloaded into the underground conveyor. • The Chip is then transferred into the 80 m³ Fuel Store. • Unloading of a six ton delivery takes ½ hr. approx.

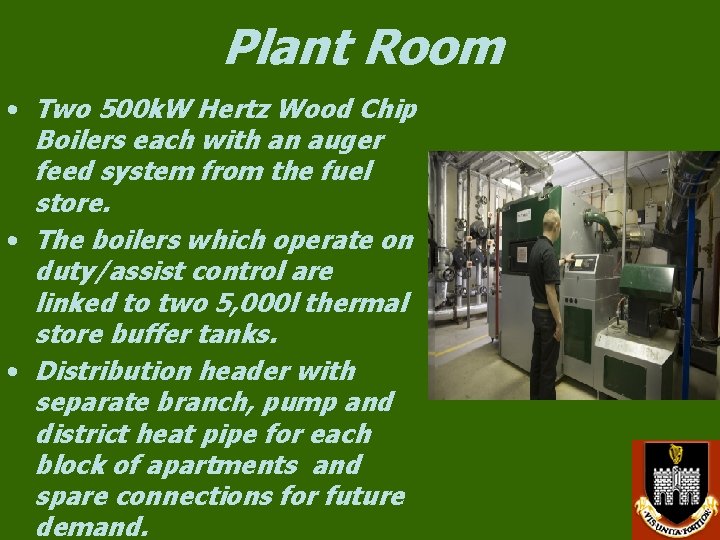

Plant Room • Two 500 k. W Hertz Wood Chip Boilers each with an

Plant Room • Two 500 k. W Hertz Wood Chip Boilers each with an auger feed system from the fuel store. • The boilers which operate on duty/assist control are linked to two 5, 000 l thermal store buffer tanks. • Distribution header with separate branch, pump and district heat pipe for each block of apartments and spare connections for future demand.

Fuel Supply Annual Demand • 1, 130 ton Wood Chip • < 25% moisture

Fuel Supply Annual Demand • 1, 130 ton Wood Chip • < 25% moisture content • 3, 400 MWhr Produced • 3. 01 MWhr per ton • Displaces 300, 000 litres of Oil • Reduces CO 2 levels by 900 tons • 8, 230 k. Wh per Apartment • € 700. 00 per annum for heating and hot water.

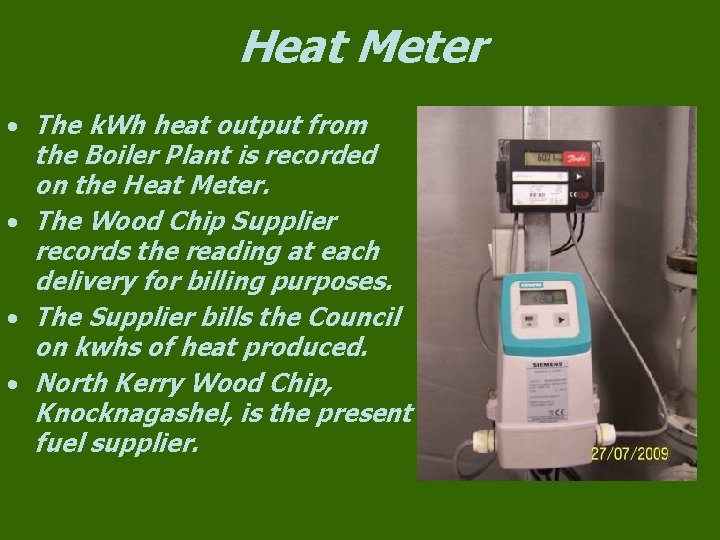

Heat Meter • The k. Wh heat output from the Boiler Plant is recorded

Heat Meter • The k. Wh heat output from the Boiler Plant is recorded on the Heat Meter. • The Wood Chip Supplier records the reading at each delivery for billing purposes. • The Supplier bills the Council on kwhs of heat produced. • North Kerry Wood Chip, Knocknagashel, is the present fuel supplier.

Grant Support • The Biomass Boiler Plant was Grant funded by Sustainable Energy Ireland

Grant Support • The Biomass Boiler Plant was Grant funded by Sustainable Energy Ireland SEI under their Renewable Heat Deployment Programme.

District Heating System • District Heat Pipe Network to each apartment block providing temperature

District Heating System • District Heat Pipe Network to each apartment block providing temperature controlled space heating and instant hot water on demand at low cost. • Supplying water at 700 c throughout the development

Heat Distribution Substation • Heat exchanger for instant hot water with anti-scald control. •

Heat Distribution Substation • Heat exchanger for instant hot water with anti-scald control. • Underfloor heating manifolds with circulating pump and temperature limiting control. • Time clock to control space heating times. . • Heat Meter measuring Kilowatt Hours. • Pre-Payment Card System linked to an isolating valve.

Underfloor Heating • Energy efficient uniform heating throughout the apartment. • Underfloor network designed

Underfloor Heating • Energy efficient uniform heating throughout the apartment. • Underfloor network designed to operate at low temperature 35ºC. • Heat thermostatically controlled in each unit • Heat store is built up gradually - no peak demands on Boiler Plant

PAY AS YOU USE PREPAYMENT SYSTEM “Pay As You Use Pre Payment System” will

PAY AS YOU USE PREPAYMENT SYSTEM “Pay As You Use Pre Payment System” will provide the following benefits to the householder • Addressing fuel poverty • Control over their budget • No bulk purchase of fuel required • Energy Awareness Tool • Hot water and heating on demand • Increased comfort level at reduced cost This prepayment system is already in use in 200 houses in Tralee and 60 in Killarney

District Heating Route Malachy Walsh and Partners Consulting Engineers

District Heating Route Malachy Walsh and Partners Consulting Engineers

Tralee District Heating Scheme Malachy Walsh and Partners Consulting Engineers

Tralee District Heating Scheme Malachy Walsh and Partners Consulting Engineers

RETROFIT HOUSING STOCK • To achieve a minimum Building Energy Rating of C 1

RETROFIT HOUSING STOCK • To achieve a minimum Building Energy Rating of C 1 for all housing units in the town • Pilot scheme, external insulation to 45 no. Units • This pilot produced 30 jobs 14 weeks • Building Energy Rating improved from G to C • Potential savings € 1000 - € 1500 on heating and hot water cost per unit. • Average insulation cost per unit is € 9, 540

PAY AS YOU SAVE – Retrofitting houses to a BER level of C 1

PAY AS YOU SAVE – Retrofitting houses to a BER level of C 1 • Average cost per unit will range from € 2, 000 to € 10, 000 • Grants and tax relief are available for private houses with the balance being made up through the proposed Pay As You Save Scheme • This will be recouped from the potential savings of € 1000 - € 1500 on energy cost per unit per year, over 3 to 5 years

Rath Óraigh Housing Development Local Authority Housing for Tralee Town Council Completed 2006

Rath Óraigh Housing Development Local Authority Housing for Tralee Town Council Completed 2006

Rath Óraigh 7 No Bungalows and Crèche Under-floor heating supplied by geothermal heat pump

Rath Óraigh 7 No Bungalows and Crèche Under-floor heating supplied by geothermal heat pump using the larger open kick-aboutspace for the collection pipes. Solar panels for hot water Mechanical Heat Recovery Ventilation

House Refurbishment • Air/air – air/water heat pumps used in single and two bed

House Refurbishment • Air/air – air/water heat pumps used in single and two bed house refurbishments. • Heating costs reduced by over 60% in comparison to electric storage heating. • No bulk purchase of oil required. Outdoor Condenser Unit Indoor Wall Unit

Cunamh Energy Action • The Cunamh Energy Action, Insulation Programme commenced in 1996 as

Cunamh Energy Action • The Cunamh Energy Action, Insulation Programme commenced in 1996 as a FAS C. E. Scheme to provide attic insulation, draught proofing and energy awareness advice. • Supported by Tralee Town Council, Kerry County Council, NEKD and FAS. • In 2000 the cavity wall insulation started - to address fuel poverty • In 2002 became a FAS Social Economy Project, employing 13 staff. • In March 2003, secured a partnership contract with SEAI under the warmer homes scheme, with four insulation crews and 17 full time staff.
