Trakcing systems with Silicon with special reference to ATLAS-SCT • • Some generalities about

Trakcing systems with Silicon with special reference to ATLAS-SCT • • Some generalities about tracking Special requirements in LHC environments About silicon About the ATLAS-SCT

Some general considerations Tracking measures particle 3 -momenta Particle track Le ve r ra

Some general considerations Tracking measures particle 3 -momenta Particle track Le ve r ra s a, rm , L tt gi Sa Interaction point Precision of sagitta measurement: (N position measurements)

Requirements for good resolution • Lever arm as long as possible (large p large

Requirements for good resolution • Lever arm as long as possible (large p large detector) • Measurement of sagitta as precise as possible • Magnetic field as large as possible

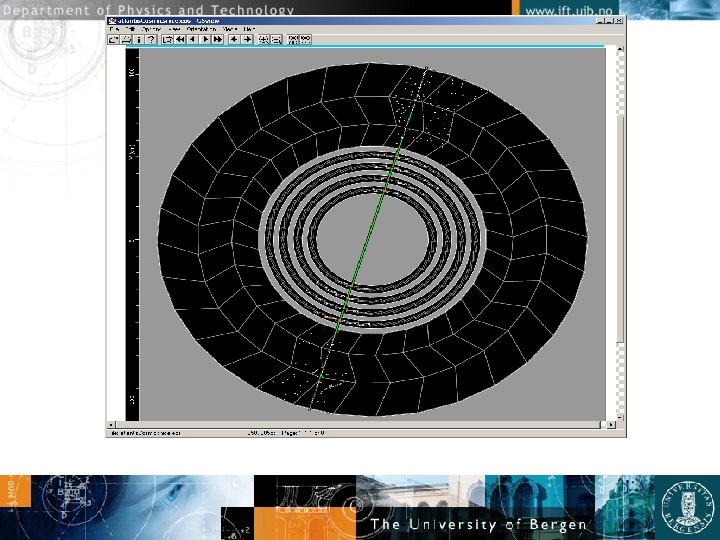

A ‘typical’ event Granularity is essential

A ‘typical’ event Granularity is essential

Requirements to LHC tracker • FAST (40 MHz) • Excludes ‘standard’ Drift Chambers due

Requirements to LHC tracker • FAST (40 MHz) • Excludes ‘standard’ Drift Chambers due to large drift times • • Spacial resolution a few tens of microns High granularity Radiation hard Must minimize material • Drift Chambers would be optimal from this point of view • Silicon is a good choice

Does very precise tracking give very precise momentum estimates? • Not necessarily due to

Does very precise tracking give very precise momentum estimates? • Not necessarily due to Multiple (coulomb) scattering • Direction change due to a concentrated scatterer: x/X 0 is the amount of material traversed in units of radiation lengths

Example: Atlas SCT, 3% X 0 /layer, and pixel measurements inside (probably also about

Example: Atlas SCT, 3% X 0 /layer, and pixel measurements inside (probably also about 3% X 0 per layer).

Displacement of tracks in different tracker layers as function of momentum due to MSC.

Displacement of tracks in different tracker layers as function of momentum due to MSC. Excellent resolution never harms, but is sometimes useless….

The silicon strips of the ATLAS-SCT has a pitch of 80 µm • ….

The silicon strips of the ATLAS-SCT has a pitch of 80 µm • …. So position resolution is 23 µm per hit…. • Standard deviation of a flat distribution =width/(√ 12)

Basics of Silicon detectors • ‘Simple’ p-n junctions • Reverse biased • Junctions can

Basics of Silicon detectors • ‘Simple’ p-n junctions • Reverse biased • Junctions can be segmented into strips ~300 um thickness From L. G. Johansen, Thesis (Bergen)

A model for the diode: Constant charge density in the depletion region of the

A model for the diode: Constant charge density in the depletion region of the n-bulk, and heavily doped p-side Nd is the donor concentration

Setting a reverse potential across the diode depletes it to a depth given by

Setting a reverse potential across the diode depletes it to a depth given by (about):

How to measure the depletion depth? • Charge stored in bulk: • Capacitance: (charge

How to measure the depletion depth? • Charge stored in bulk: • Capacitance: (charge density x volume (Al))

The formula works! 20 detectors from Hamamatsu (L. G. Johansen, thesis)

The formula works! 20 detectors from Hamamatsu (L. G. Johansen, thesis)

Charge collection • Typical detector thickness is 300 µm. • Bethe-Bloch equation + Landau

Charge collection • Typical detector thickness is 300 µm. • Bethe-Bloch equation + Landau fluctuations gives a most probable energy loss of about 80 ke. V • To create a free electron-hole pair you need 3. 6 e. V • Signal is about 22000 electrons ( 3. 5 f. C)

Energy loss distributions for 2 Ge. V electrons, pions and protons, broader than Landau.

Energy loss distributions for 2 Ge. V electrons, pions and protons, broader than Landau. (Bak et al , NPB 288: 681, 1987)

The ATLAS SCT barrel detector • • • Pitch 80 µm (resolution 23 µm)

The ATLAS SCT barrel detector • • • Pitch 80 µm (resolution 23 µm) 768 strips per detector Thickness 285 µm Size 6. 36 x 6. 40 cm 2 Should biassed to 350 V p strips on n material

Read-out electronics • Must have low noise • Noise scales with capacitance Size limitations

Read-out electronics • Must have low noise • Noise scales with capacitance Size limitations • microstrip detectors: inter-strip capacitances dominate. • Must be compact ASICs • For ATLAS: Must operate at 25 Mhz • For ATLAS: Must be radiation tolerant

Signal from electrons from a Ru-106 source (mostly minimum ionising particles). Fluctuations are dominated

Signal from electrons from a Ru-106 source (mostly minimum ionising particles). Fluctuations are dominated by Landau fluctuations in the deposited energy. Spectrum collected with fast analog electronics Chip SCT 128 A (from B. Pommersche, thesis, Bergen) N/bin Signal/noise

Charge collection vs bias, 25 ns collection time Difference in signal could be explained

Charge collection vs bias, 25 ns collection time Difference in signal could be explained by differences in detector thickness From B. Pommeresche, Cand. Scient thesis, (U of Bergen) We must over-deplete the detectors to collect all the charge in time

What do we look for to assess the quality of a detector? • Depletion

What do we look for to assess the quality of a detector? • Depletion voltage • Inter-strip capacitances • Radiation hardness • will require biassing to high volts • Leakage currents must under control at high volts

The leakage current nightmare • Current through the bulk: No problem • The Problem:

The leakage current nightmare • Current through the bulk: No problem • The Problem: Currents on detector surface, around corners and who knows from where. . …. • High currents into the readout destroys the electronics, to avoid it we take the following measures: • Capacitively (AC) coupled aluminium readout strips • Guard ring structures around active detector area (connect to ground to suck out current)

The nightmare (part II) • Large currents result in high power dissipation and heating

The nightmare (part II) • Large currents result in high power dissipation and heating of the detector system. • Must be able to control the current, if not fully understood, it should at least be stable with time! • Must test all detectors and detector modules for leakage current.

Careful detector design is required!

Careful detector design is required!

A detail of the detector for ATLAS-SCT (picture from L. G. Johansen, thesis)

A detail of the detector for ATLAS-SCT (picture from L. G. Johansen, thesis)

Leakage currents for some SCT detectors (From L. G. Johansen, thesis (Bergen))

Leakage currents for some SCT detectors (From L. G. Johansen, thesis (Bergen))

The detector modules must be radiation hard • All components tested in a proton

The detector modules must be radiation hard • All components tested in a proton beam to a fluence of 3 x 1014 protons/cm 2 • This is 50% more than expected for ten years of LHC operation

A few words on radiation damage • The two most important effects are: 1:

A few words on radiation damage • The two most important effects are: 1: Crystal defects are created in such a way that the effective doping gets more p-like with fluence (dose). Vdep decreases Type inversion Vdep increases 2: Leakage current increases increase in noise 3: Depletion from ‘below’ n+ doping of back side preserves diode junction

Development of leakage current with time L. G. Johansen, thesis

Development of leakage current with time L. G. Johansen, thesis

Signal/noise of an irradiated detector Plot from L. G. Johansen (of course…. )

Signal/noise of an irradiated detector Plot from L. G. Johansen (of course…. )

Leakage current doubles for a temperature increase of 7 degrees • ATLAS-SCT will be

Leakage current doubles for a temperature increase of 7 degrees • ATLAS-SCT will be operated at about -10 degrees C • Detector modules to be in thermal contact with cooling agent.

ATLAS-SCT readout electronics • Digital readout (hit/no hit) • Pros and cons. of digital

ATLAS-SCT readout electronics • Digital readout (hit/no hit) • Pros and cons. of digital electronics • Rad. Hard. • 128 readout channels per chip.

Schematic of the ABCD 3 T chip

Schematic of the ABCD 3 T chip

The ALTAS SCT module

The ALTAS SCT module

ATLAS-SCT barrel module • 4 detectors • 1 baseboard (Patented TPG solution) • Must

ATLAS-SCT barrel module • 4 detectors • 1 baseboard (Patented TPG solution) • Must be thermally conductive • Hybrid with 12 chips, wraps around the sensorbaseboard. • Strips are bonded together in pairs, to form 12 cm long strips. • About 3000 wire bonds per module

A drawing of the module

A drawing of the module

Production of about 2000 modules at 4 university ‘clusters’ around the world • Necessary

Production of about 2000 modules at 4 university ‘clusters’ around the world • Necessary for efficient use of small resources at each university. • Production clusters: • • Japan US UK Scandinavia

Equipment needed or developed • • • Cleanrooms Tools for precision mounting (motorized jigs

Equipment needed or developed • • • Cleanrooms Tools for precision mounting (motorized jigs etc) Microscopes Metrology equipment (‘smart microscope’) Bonding machines Setups for electric tests

Module production • • • Detector testing Glueing of detectors to baseboard (5 um

Module production • • • Detector testing Glueing of detectors to baseboard (5 um precision) Testing (IV), metrology Hybrid testing and glueing Bonding Testing

To mount to 5 micron precision is not trivial!

To mount to 5 micron precision is not trivial!

Noise occupancy must be under control!

Noise occupancy must be under control!

Some module IV curves (nightmare, part III)

Some module IV curves (nightmare, part III)

But, in the end, the project seems to have been successful • • •

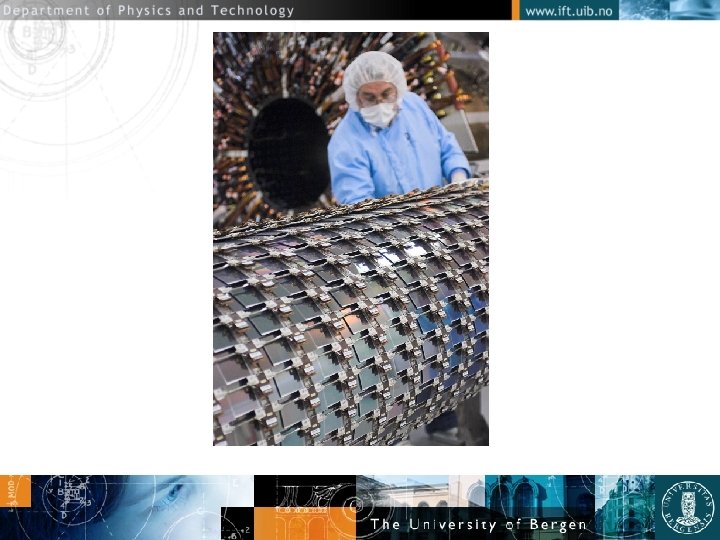

But, in the end, the project seems to have been successful • • • Yield factor OK (above 85 %) Module mounting on barrels in Oxford Transfer to CERN OK Cosmic tests OK Now, the barrel is in the ATLAS pit to be cabled and tested further……

Conclusions • Silicon tracking is very attractive in HEP • But not at all

Conclusions • Silicon tracking is very attractive in HEP • But not at all trivial to make…. • Very cost and manpower intensive…
