TRAINING FOR THE WEIGHTS AND MEASURES OFFICIAL COURSE

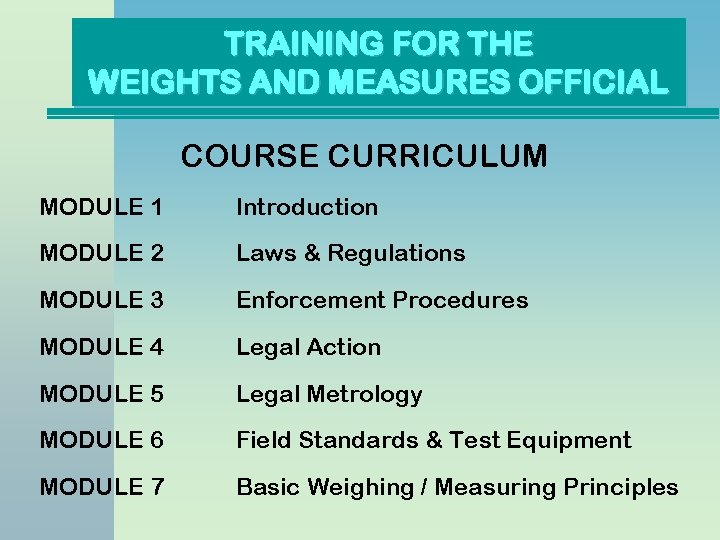

TRAINING FOR THE WEIGHTS AND MEASURES OFFICIAL COURSE CURRICULUM MODULE 1 Introduction MODULE 2 Laws & Regulations MODULE 3 Enforcement Procedures MODULE 4 Legal Action MODULE 5 Legal Metrology MODULE 6 Field Standards & Test Equipment MODULE 7 Basic Weighing / Measuring Principles

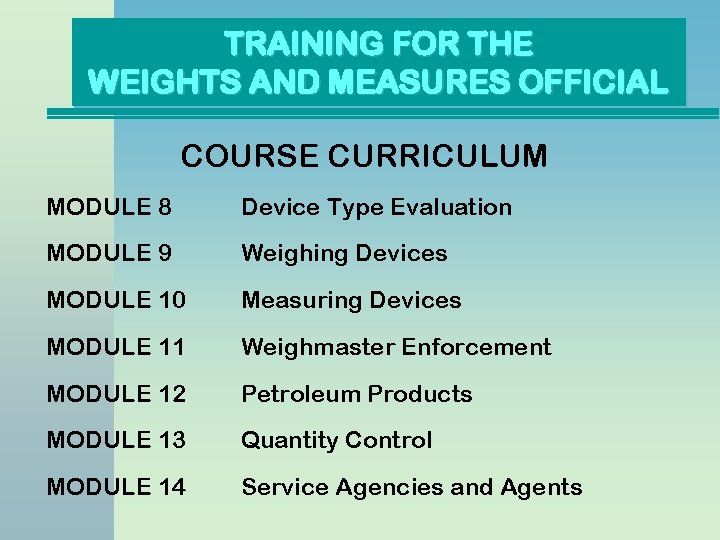

TRAINING FOR THE WEIGHTS AND MEASURES OFFICIAL COURSE CURRICULUM MODULE 8 Device Type Evaluation MODULE 9 Weighing Devices MODULE 10 Measuring Devices MODULE 11 Weighmaster Enforcement MODULE 12 Petroleum Products MODULE 13 Quantity Control MODULE 14 Service Agencies and Agents

TRAINING FOR THE WEIGHTS AND MEASURES OFFICIAL Module One “INTRODUCTION TO WEIGHTS & MEASURES” First in a series of 14

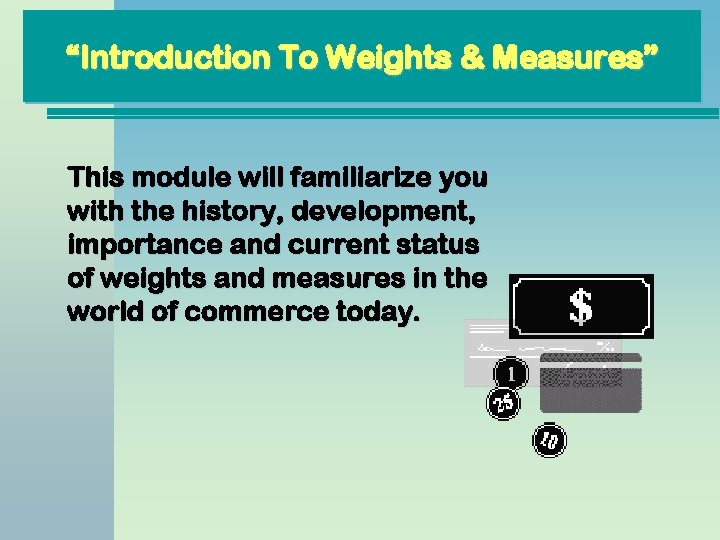

“Introduction To Weights & Measures” This module will familiarize you with the history, development, importance and current status of weights and measures in the world of commerce today.

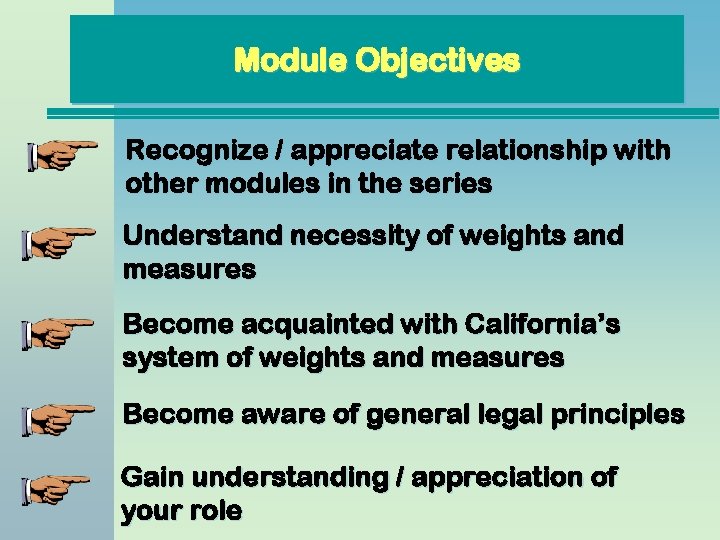

Module Objectives Recognize / appreciate relationship with other modules in the series Understand necessity of weights and measures Become acquainted with California’s system of weights and measures Become aware of general legal principles Gain understanding / appreciation of your role

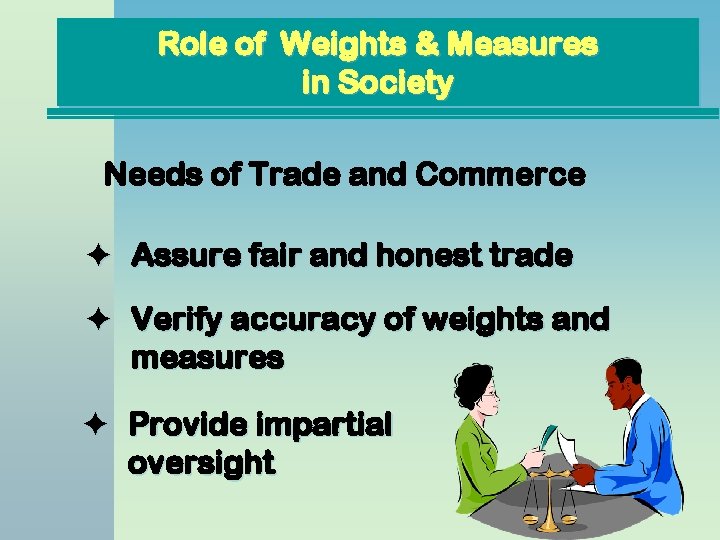

Role of Weights & Measures in Society Needs of Trade and Commerce Assure fair and honest trade Verify accuracy of weights and measures Provide impartial oversight

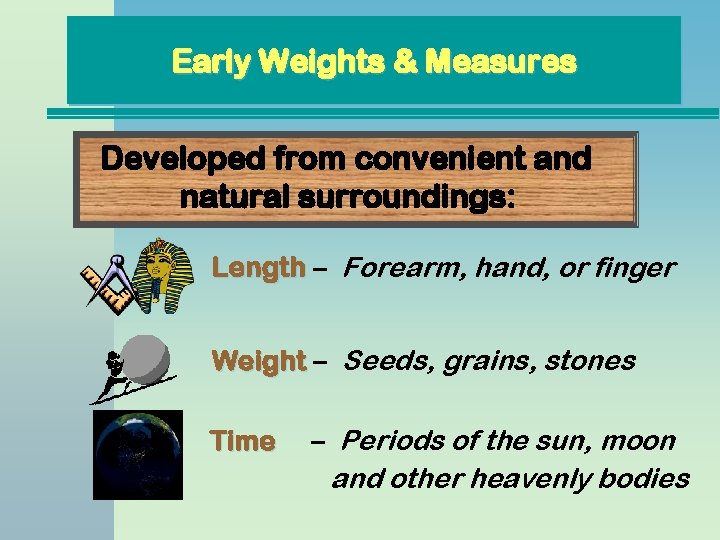

Early Weights & Measures Developed from convenient and natural surroundings: Length – Forearm, hand, or finger Weight – Seeds, grains, stones Time – Periods of the sun, moon and other heavenly bodies

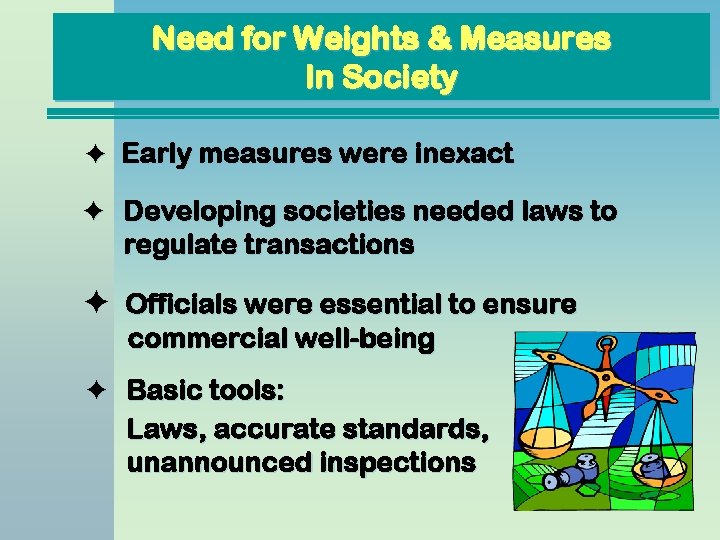

Need for Weights & Measures In Society Early measures were inexact Developing societies needed laws to regulate transactions Officials were essential to ensure commercial well-being Basic tools: Laws, accurate standards, unannounced inspections

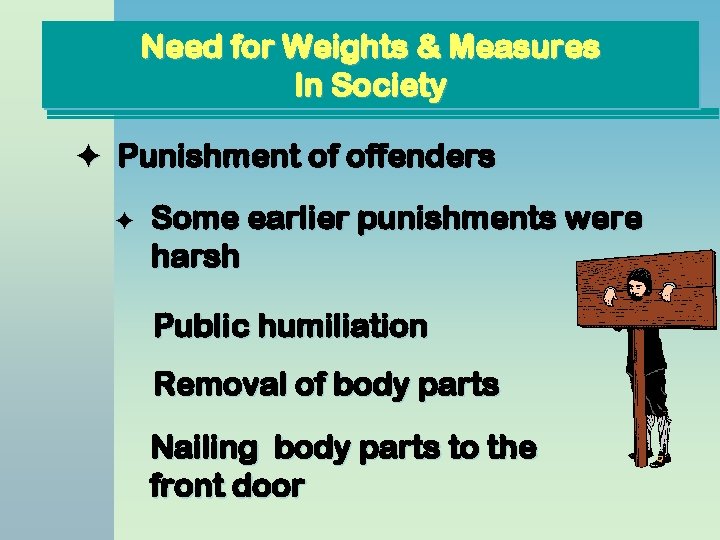

Need for Weights & Measures In Society Punishment of offenders Some earlier punishments were harsh Public humiliation Removal of body parts Nailing body parts to the front door

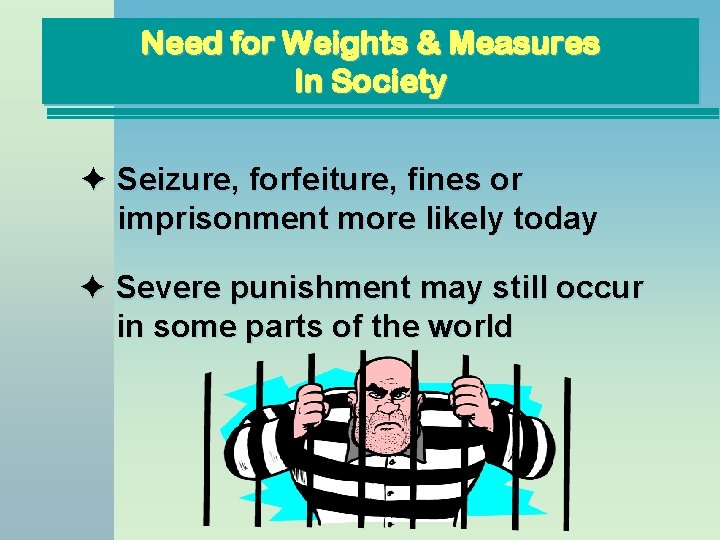

Need for Weights & Measures In Society Seizure, forfeiture, fines or imprisonment more likely today Severe punishment may still occur in some parts of the world

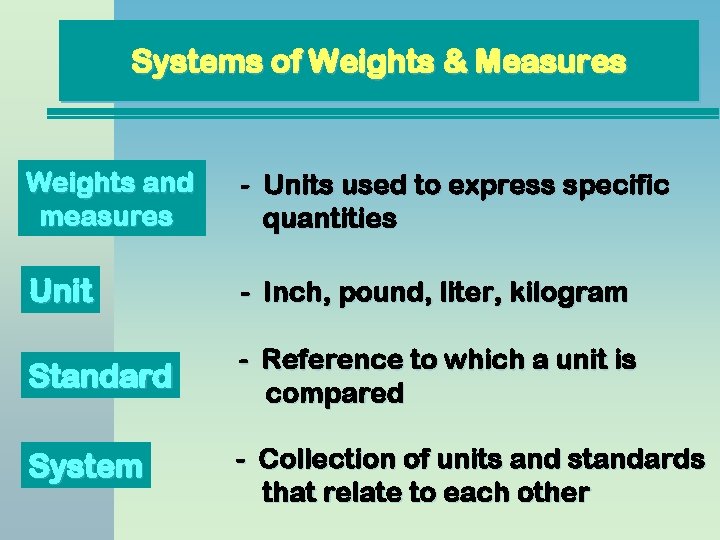

Systems of Weights & Measures Weights and measures - Units used to express specific quantities Unit - Inch, pound, liter, kilogram Standard - Reference to which a unit is compared System - Collection of units and standards that relate to each other

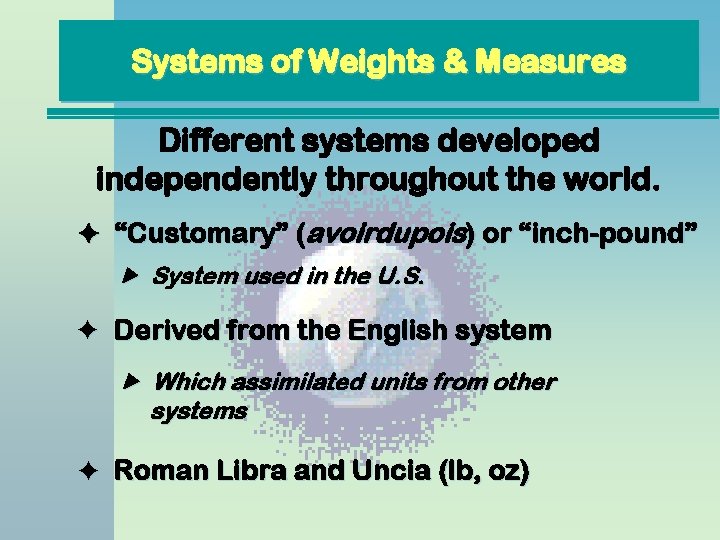

Systems of Weights & Measures Different systems developed independently throughout the world. “Customary” (avoirdupois) or “inch-pound” System used in the U. S. Derived from the English system Which assimilated units from other systems Roman Libra and Uncia (lb, oz)

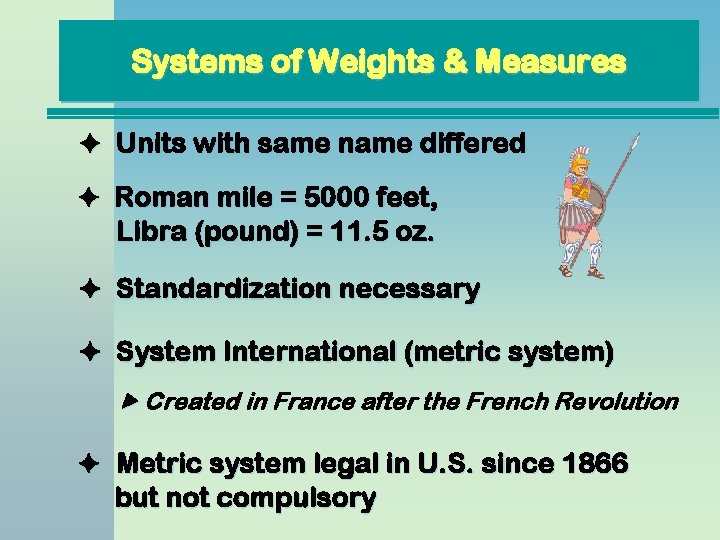

Systems of Weights Measures Systems of Weights and&Measures Units with same name differed Roman mile = 5000 feet, Libra (pound) = 11. 5 oz. Standardization necessary System International (metric system) Created in France after the French Revolution Metric system legal in U. S. since 1866 but not compulsory

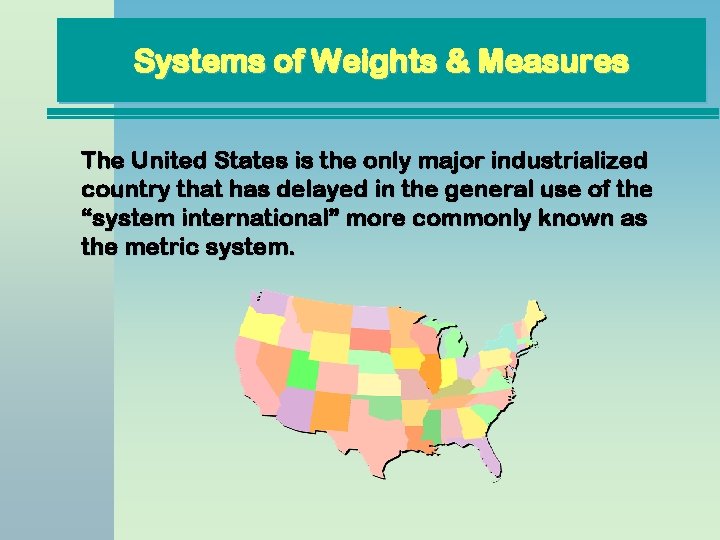

Systems of Weights & Measures The United States is the only major industrialized country that has delayed in the general use of the “system international” more commonly known as the metric system.

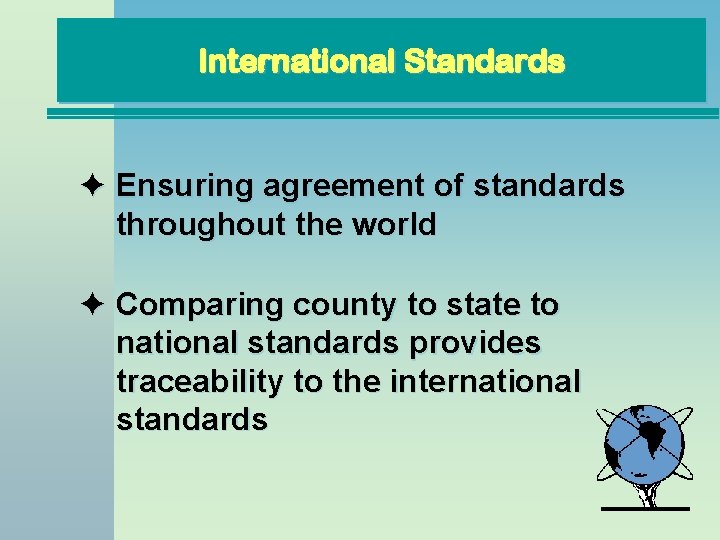

International. Standards International Ensuring agreement of standards throughout the world Comparing county to state to national standards provides traceability to the international standards

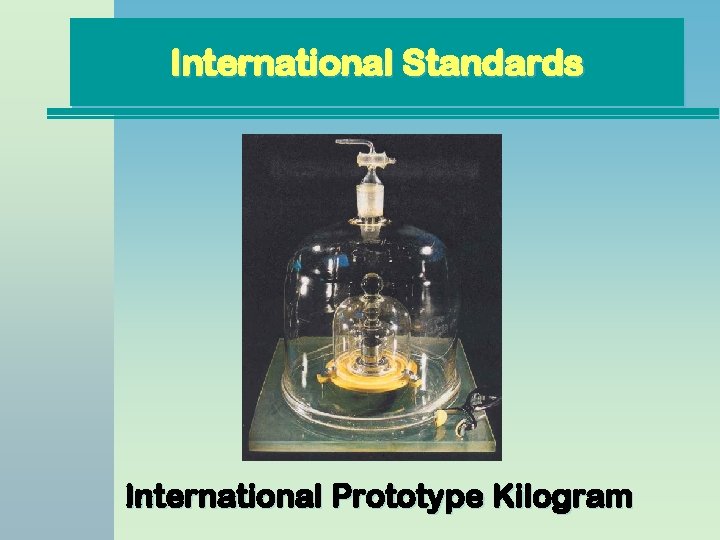

International Standards International Prototype Kilogram

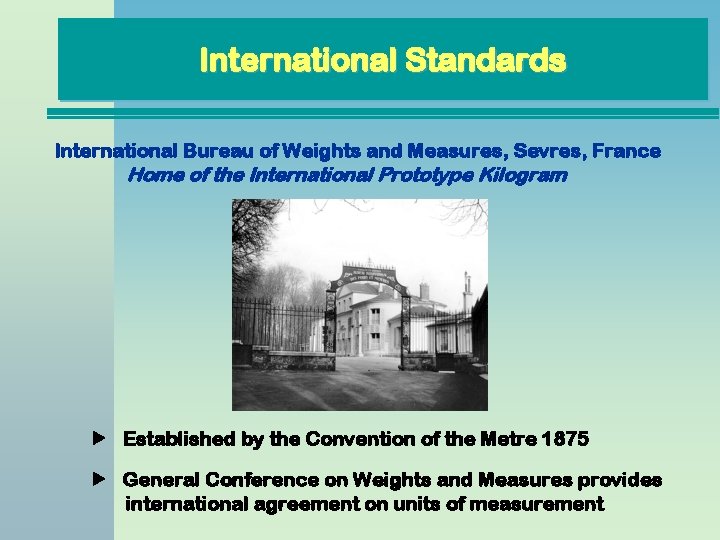

International Standards International Bureau of Weights and Measures, Sevres, France Home of the International Prototype Kilogram Established by the Convention of the Metre 1875 General Conference on Weights and Measures provides international agreement on units of measurement

Metrology Accurate traceable standards provide the Thesystems science ofmeasurements and the All of require a way means tothe determine of in that foundation ofaccuracy weightsaccuracy and measures. to define of the units transactions. system.

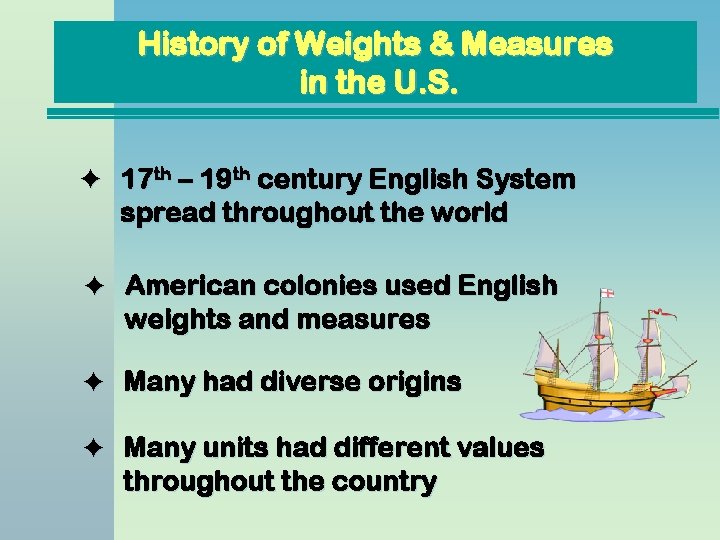

History of Weights & Measures in the U. S. 17 th – 19 th century English System spread throughout the world American colonies used English weights and measures Many had diverse origins Many units had different values throughout the country

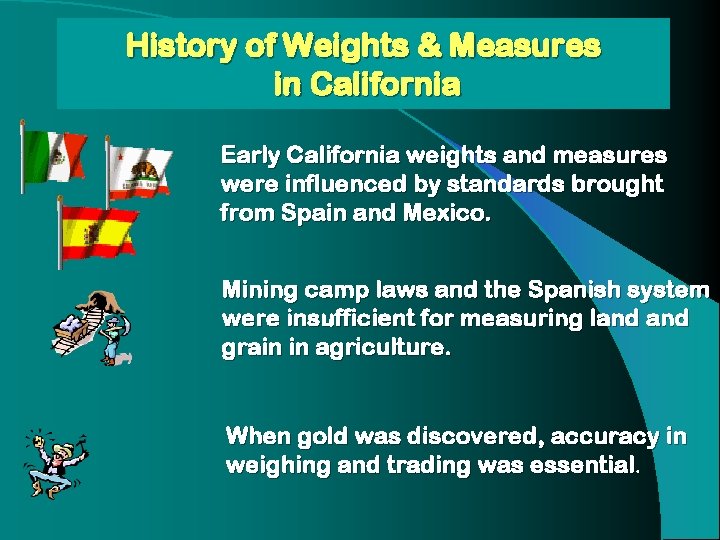

History of Weights & Measures in California Early California weights and measures were influenced by standards brought from Spain and Mexico. Mining camp laws and the Spanish system were insufficient for measuring land grain in agriculture. When gold was discovered, accuracy in weighing and trading was essential.

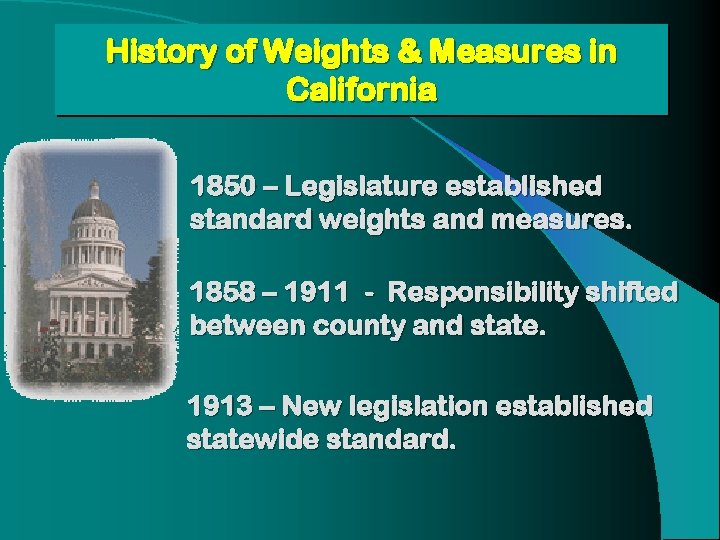

History of Weights & Measures in California 1850 – Legislature established standard weights and measures. 1858 – 1911 - Responsibility shifted between county and state. 1913 – New legislation established statewide standard.

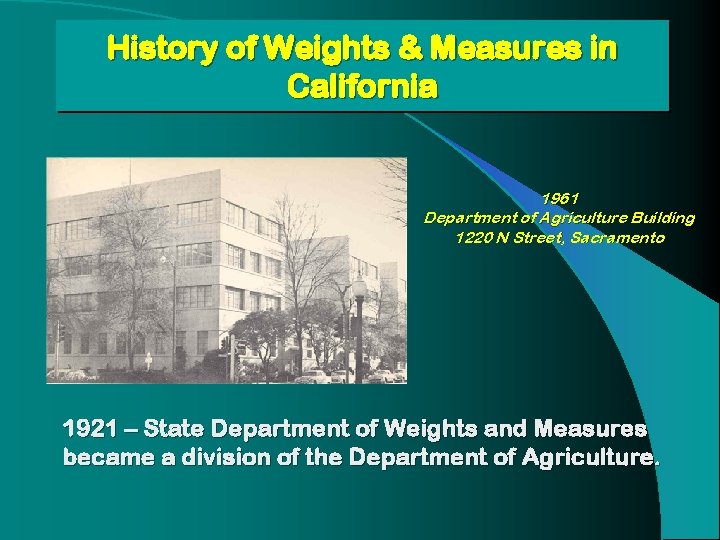

History of Weights & Measures in California 1961 Department of Agriculture Building 1220 N Street, Sacramento 1921 – State Department of Weights and Measures became a division of the Department of Agriculture.

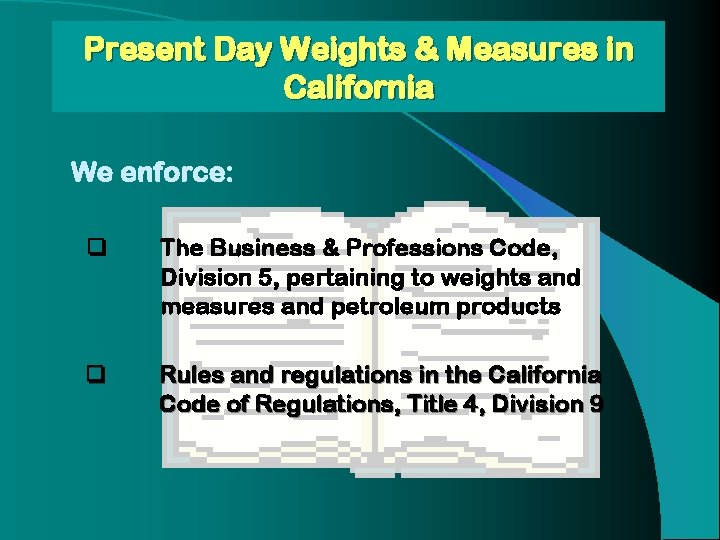

Present Day Weights & Measures in California We enforce: The Business & Professions Code, Division 5, pertaining to weights and measures and petroleum products Rules and regulations in the California Code of Regulations, Title 4, Division 9

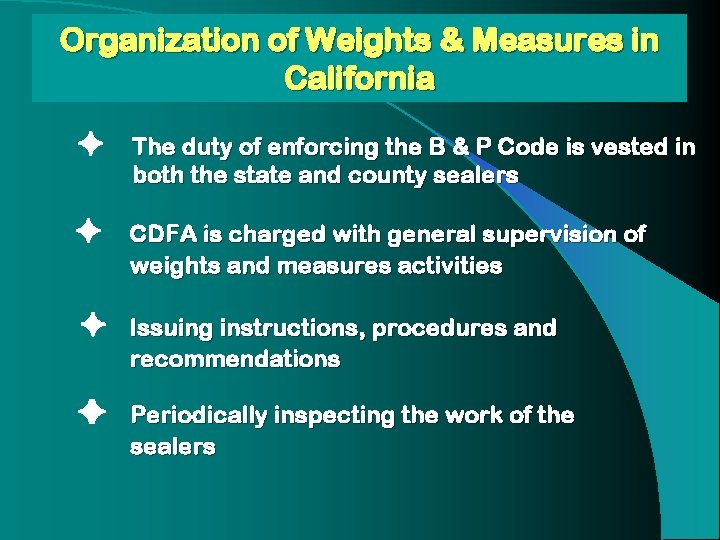

Organization of Weights & Measures in California The duty of enforcing the B & P Code is vested in both the state and county sealers CDFA is charged with general supervision of weights and measures activities Issuing instructions, procedures and recommendations Periodically inspecting the work of the sealers

Present Day Weights & Measures in California Work DMScounty and county officials The sealers are is carried out cooperate in formulating the local enforcement cooperatively with policy and. Department. enforcing arm of the operational units of weights & measures DMS. laws.

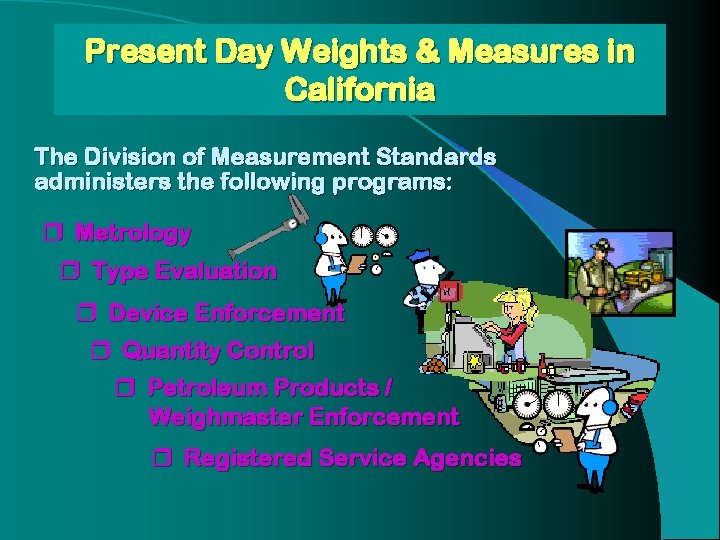

Present Day Weights & Measures in California The Division of Measurement Standards administers the following programs: Metrology Type Evaluation Device Enforcement Quantity Control Petroleum Products / Weighmaster Enforcement Registered Service Agencies

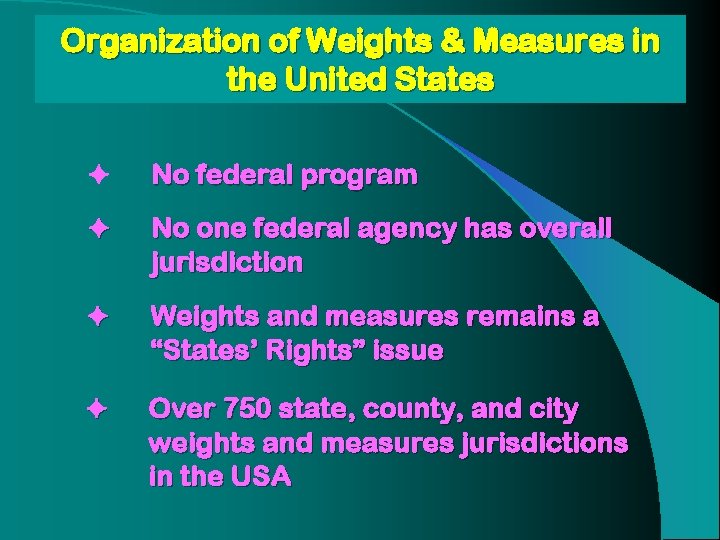

Organization of Weights & Measures in the United States No federal program No one federal agency has overall jurisdiction Weights and measures remains a “States’ Rights” issue Over 750 state, county, and city weights and measures jurisdictions in the USA

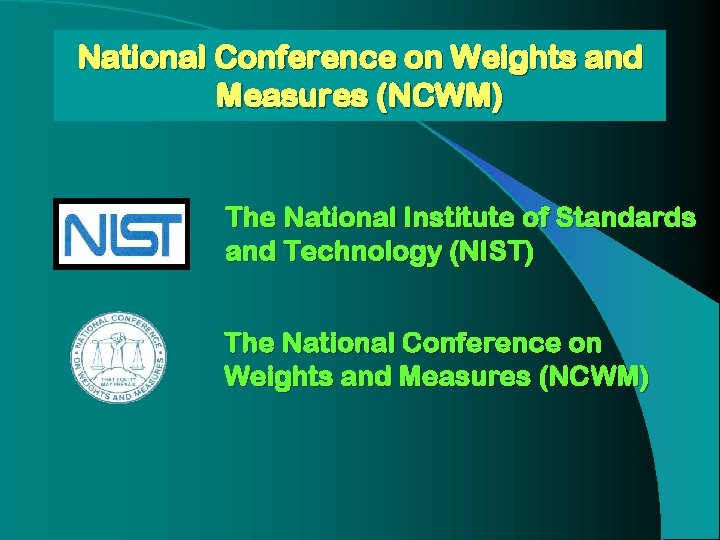

National Conference on Weights and Measures (NCWM) The National Institute of Standards and Technology (NIST) The National Conference on Weights and Measures (NCWM)

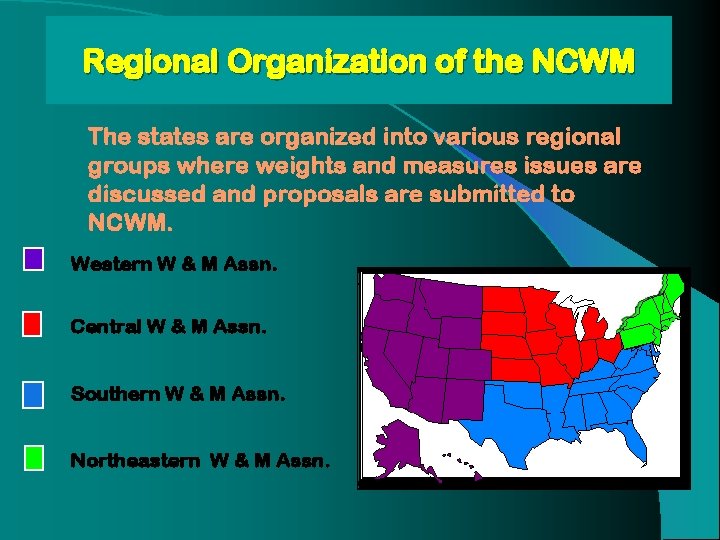

Regional Organization of the NCWM The states are organized into various regional groups where weights and measures issues are discussed and proposals are submitted to NCWM. Western W & M Assn. Central W & M Assn. Southern W & M Assn. Northeastern W & M Assn.

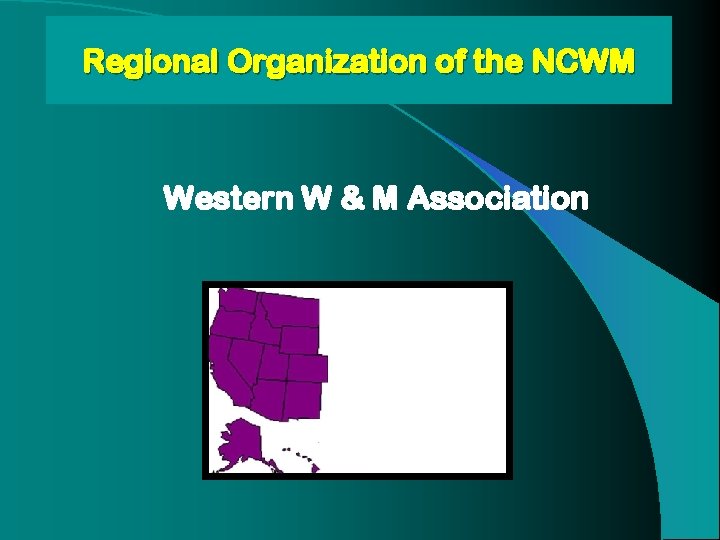

Regional Organization of the NCWM Western W & M Association

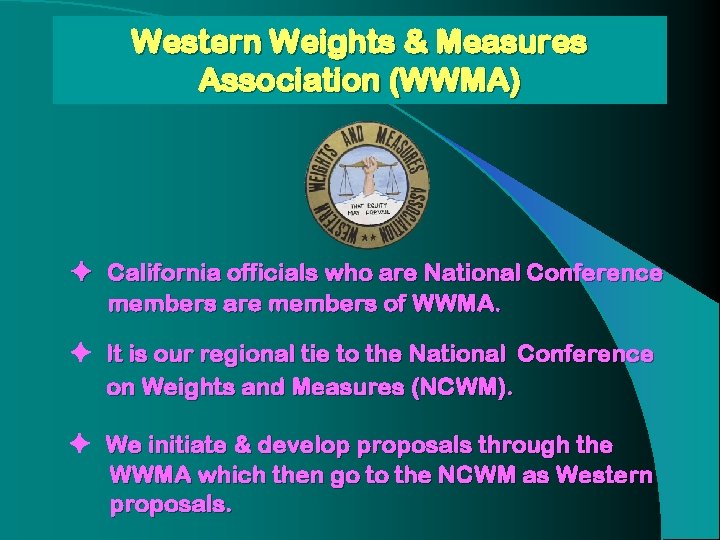

Western Weights & Measures Association (WWMA) California officials who are National Conference members are members of WWMA. It is our regional tie to the National Conference on Weights and Measures (NCWM). We initiate & develop proposals through the WWMA which then go to the NCWM as Western proposals.

General Legal Principles In your role as a weights and measures official you will inspect There are legal principles devices, and you willproducts, need to be aware documents for compliance of and follow at all times. with California law.

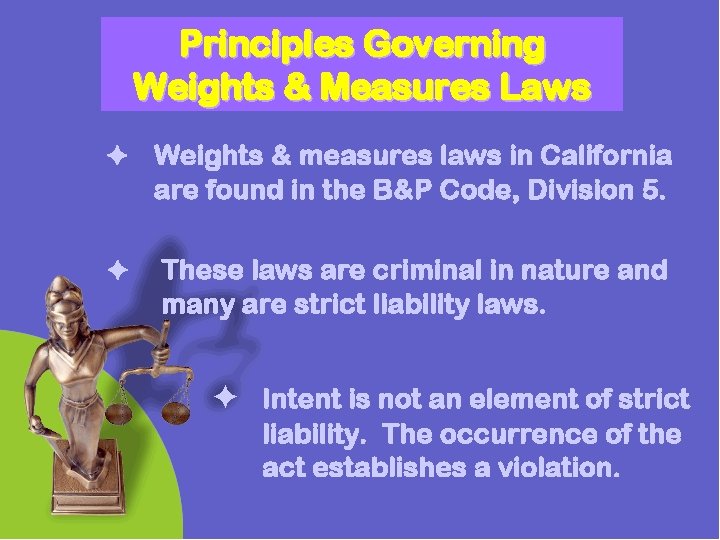

Principles Governing Weights & Measures Laws Weights & measures laws in California are found in the B&P Code, Division 5. These laws are criminal in nature and many are strict liability laws. Intent is not an element of strict liability. The occurrence of the act establishes a violation.

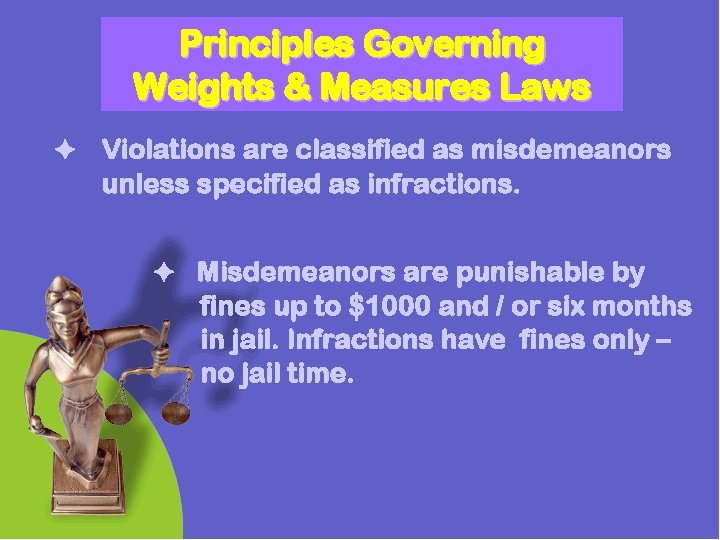

Principles Governing Weights & Measures Laws Violations are classified as misdemeanors unless specified as infractions. Misdemeanors are punishable by fines up to $1000 and / or six months in jail. Infractions have fines only – no jail time.

Principles Governing Weights & Measures Laws Persons who violate weights & measures laws, like any other violator, have the against selfhave theright to a trial, are right presumed innocent until the to confront incrimination. proven guilty by a court of and witnesses against them. law.

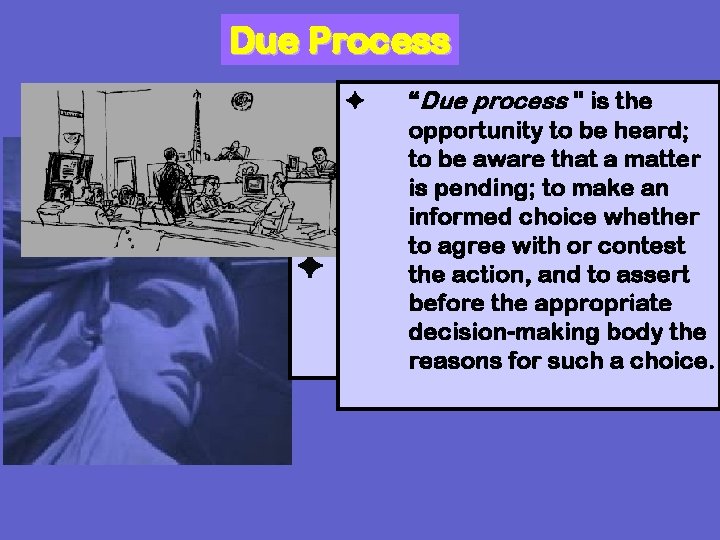

Due Process “Due process " is the opportunity to be heard; to be aware that a matter is pending; to make an informed choice whether to agree with or contest There a constitutional theisaction, and to assert guarantee the right to due before of the appropriate process in questions body of life, the decision-making liberty, or property. reasons for such a choice.

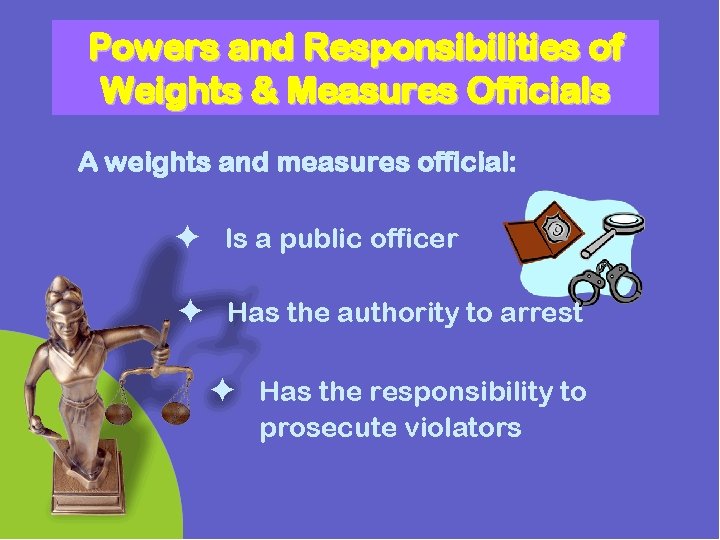

Powers and Responsibilities of Weights & Measures Officials A weights and measures official: Is a public officer Has the authority to arrest Has the responsibility to prosecute violators

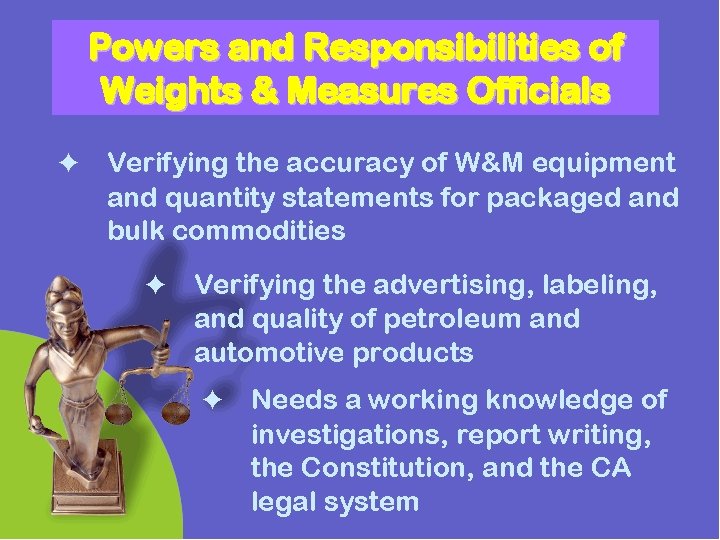

Powers and Responsibilities of Weights & Measures Officials Verifying the accuracy of W&M equipment and quantity statements for packaged and bulk commodities Verifying the advertising, labeling, and quality of petroleum and automotive products Needs a working knowledge of investigations, report writing, the Constitution, and the CA legal system

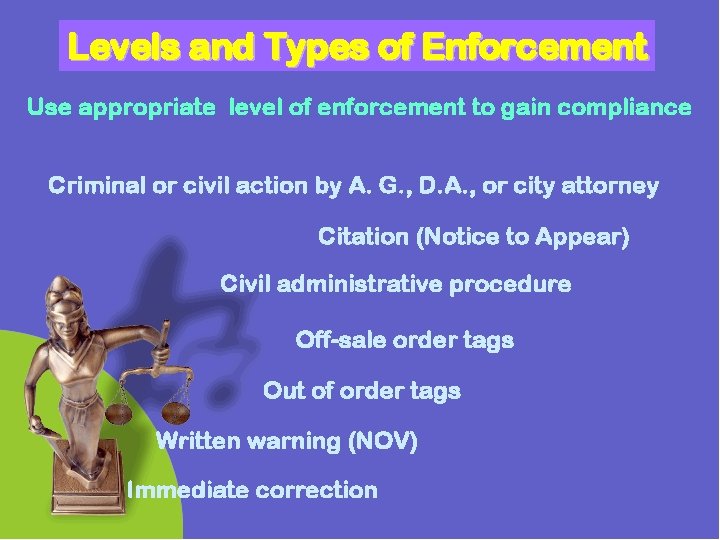

Levels and Types of Enforcement Use appropriate level of enforcement to gain compliance Criminal or civil action by A. G. , D. A. , or city attorney Citation (Notice to Appear) Civil administrative procedure Off-sale order tags Out of order tags Written warning (NOV) Immediate correction

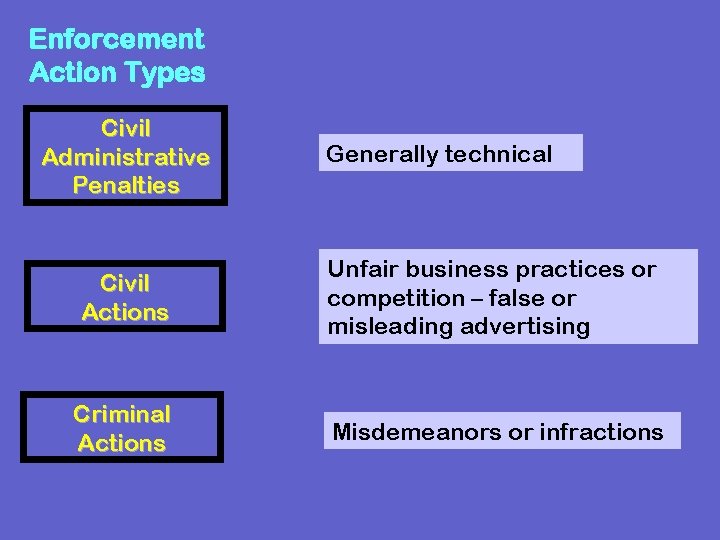

Enforcement Action Types Civil Administrative Penalties Generally technical Civil Actions Unfair business practices or competition – false or misleading advertising Criminal Actions Misdemeanors or infractions

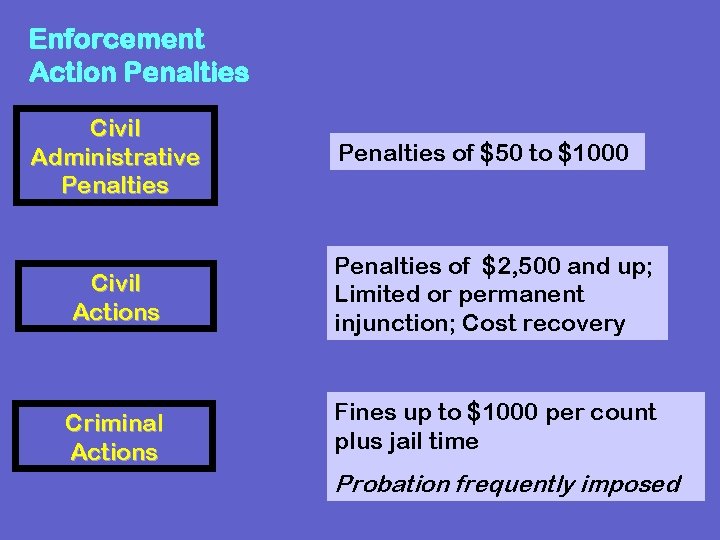

Enforcement Action Penalties Civil Administrative Penalties of $50 to $1000 Civil Actions Penalties of $2, 500 and up; Limited or permanent injunction; Cost recovery Criminal Actions Fines up to $1000 per count plus jail time Probation frequently imposed

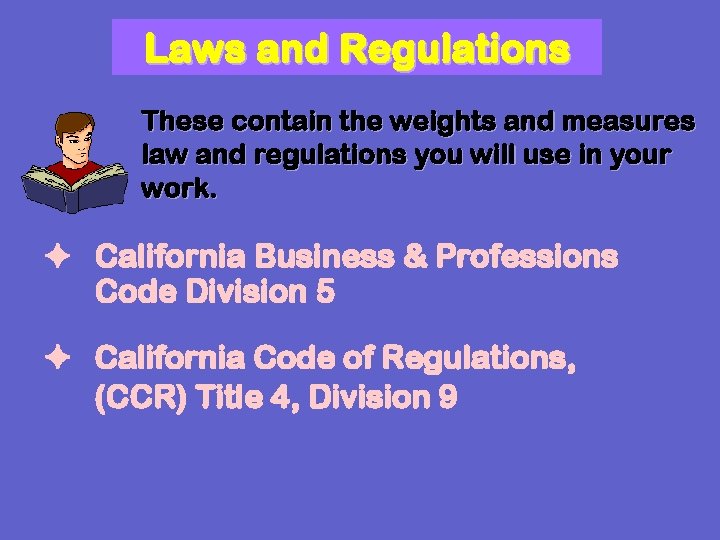

Laws and Regulations These contain the weights and measures law and regulations you will use in your work. California Business & Professions Code Division 5 California Code of Regulations, (CCR) Title 4, Division 9

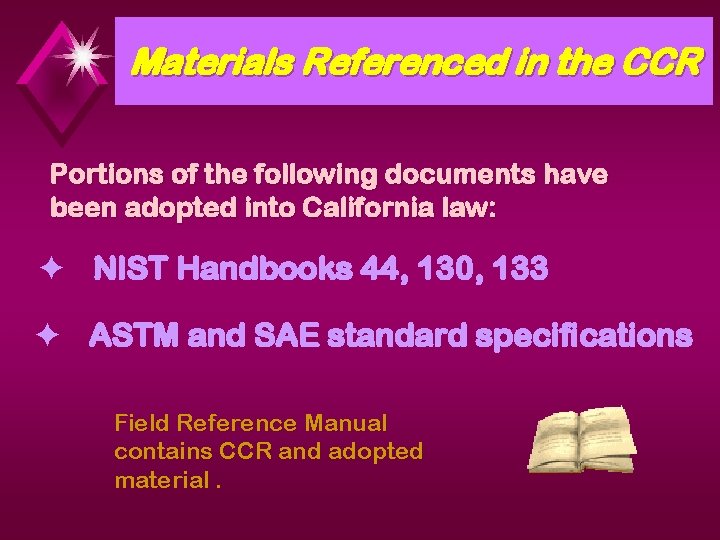

Materials Referenced in the CCR Portions of the following documents have been adopted into California law: NIST Handbooks 44, 130, 133 ASTM and SAE standard specifications Field Reference Manual contains CCR and adopted material.

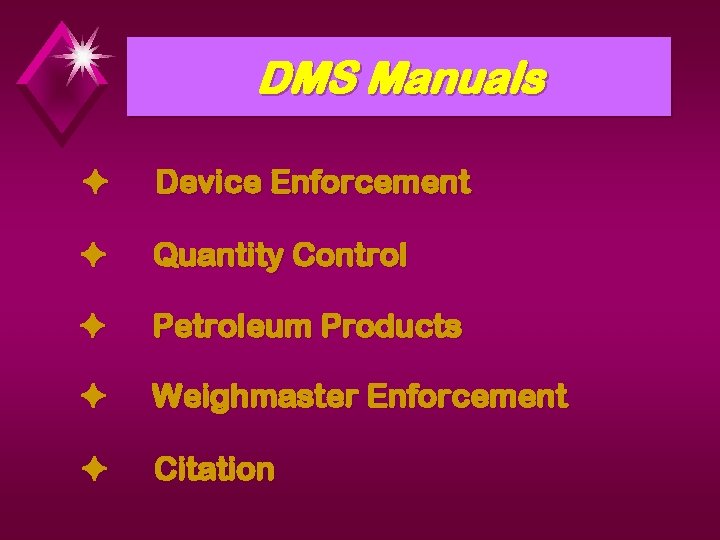

DMS Manuals Device Enforcement Quantity Control Petroleum Products Weighmaster Enforcement Citation

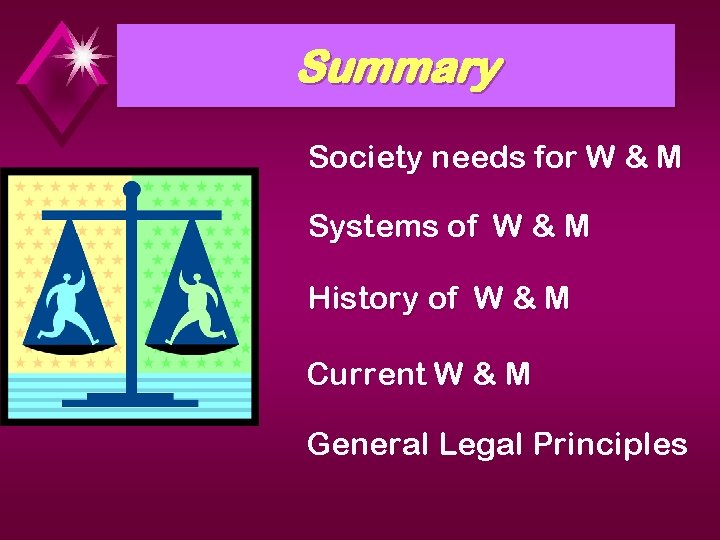

Summary Society needs for W & M Systems of W & M History of W & M Current W & M General Legal Principles

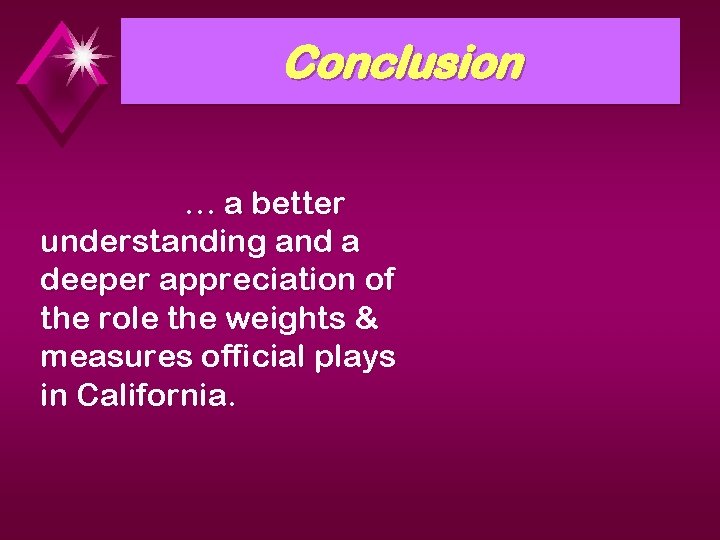

Conclusion … a better understanding and a deeper appreciation of the role the weights & measures official plays in California.
