Training Fire Periphery Security Systems 1 Internal STPRM

Training Fire Periphery Security Systems 1 Internal | ST/PRM 2 -EU ahu | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

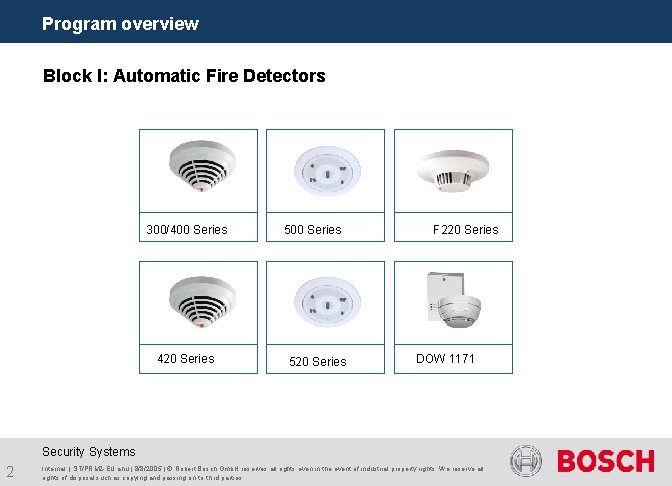

Program overview Block I: Automatic Fire Detectors 300/400 Series 420 Series 500 Series 520 Series F 220 Series DOW 1171 Security Systems 2 Internal | ST/PRM 2 -EU ahu | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

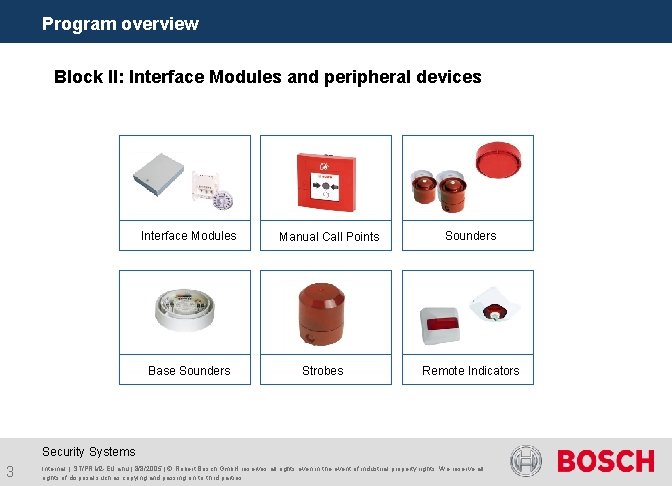

Program overview Block II: Interface Modules and peripheral devices Interface Modules Base Sounders Manual Call Points Strobes Sounders Remote Indicators Security Systems 3 Internal | ST/PRM 2 -EU ahu | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

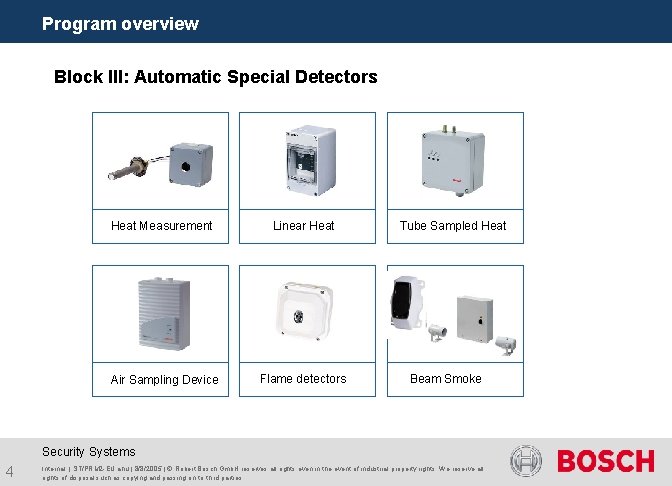

Program overview Block III: Automatic Special Detectors Heat Measurement Linear Heat Air Sampling Device Flame detectors Tube Sampled Heat Beam Smoke Security Systems 4 Internal | ST/PRM 2 -EU ahu | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

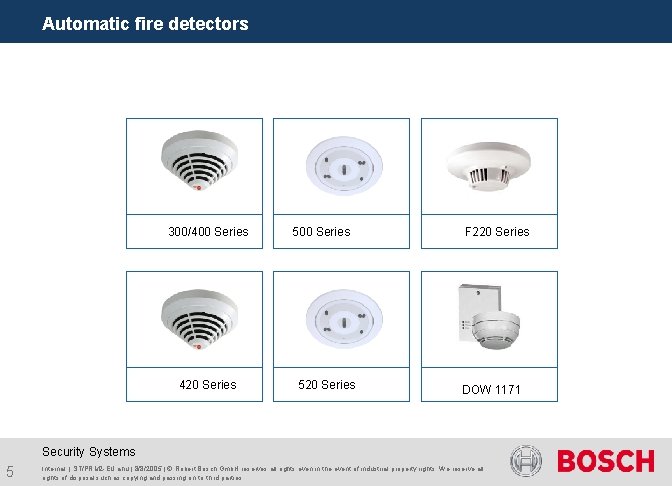

Automatic fire detectors 300/400 Series 420 Series 500 Series 520 Series F 220 Series DOW 1171 Security Systems 5 Internal | ST/PRM 2 -EU ahu | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

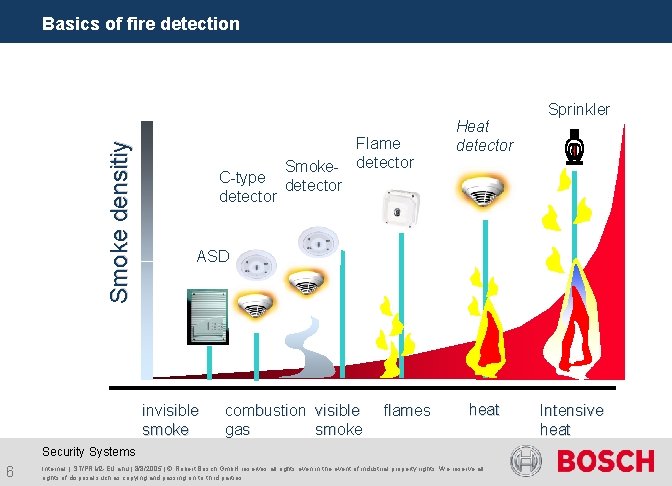

Smoke densitiy Basics of fire detection Smoke. C-type detector Flame detector Heat detector ASD invisible smoke combustion visible gas smoke flames heat Security Systems 6 Sprinkler Internal | ST/PRM 2 -EU ahu | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Intensive heat

Magic. Sens Automatic fire detectors 300/400 series Security Systems 7 Internal | ST/PRM 2 -EU ahu | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

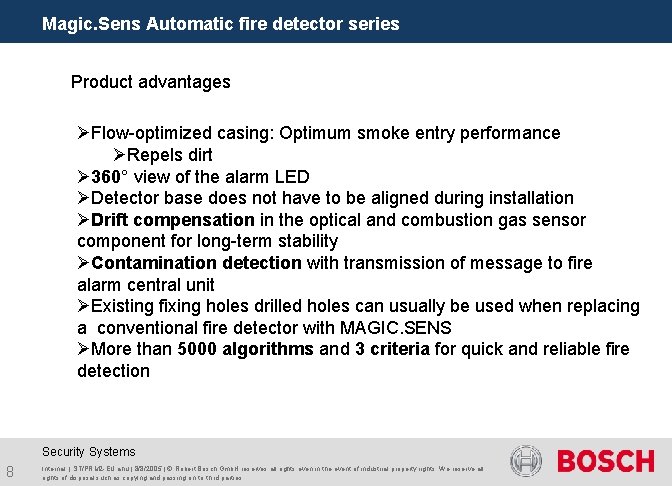

Magic. Sens Automatic fire detector series Product advantages ØFlow-optimized casing: Optimum smoke entry performance ØRepels dirt Ø 360° view of the alarm LED ØDetector base does not have to be aligned during installation ØDrift compensation in the optical and combustion gas sensor component for long-term stability ØContamination detection with transmission of message to fire alarm central unit ØExisting fixing holes drilled holes can usually be used when replacing a conventional fire detector with MAGIC. SENS ØMore than 5000 algorithms and 3 criteria for quick and reliable fire detection Security Systems 8 Internal | ST/PRM 2 -EU ahu | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

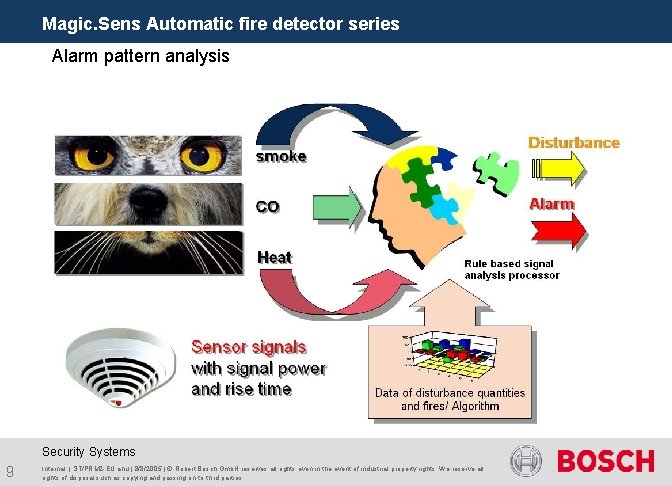

Magic. Sens Automatic fire detector series Alarm pattern analysis Security Systems 9 Internal | ST/PRM 2 -EU ahu | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

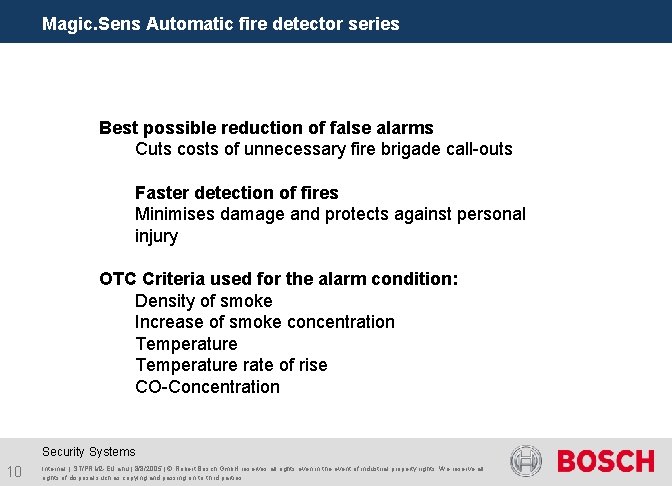

Magic. Sens Automatic fire detector series Best possible reduction of false alarms Cuts costs of unnecessary fire brigade call-outs Faster detection of fires Minimises damage and protects against personal injury OTC Criteria used for the alarm condition: Density of smoke Increase of smoke concentration Temperature rate of rise CO-Concentration Security Systems 10 Internal | ST/PRM 2 -EU ahu | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

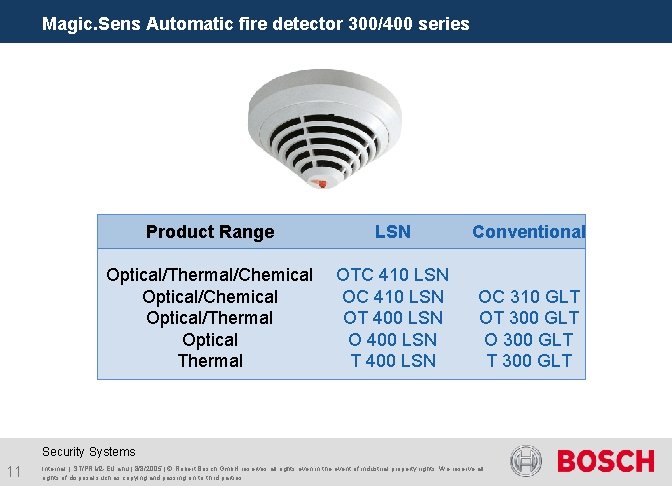

Magic. Sens Automatic fire detector 300/400 series Product Range LSN Conventional Optical/Thermal/Chemical Optical/Thermal Optical Thermal OTC 410 LSN OT 400 LSN O 400 LSN T 400 LSN OC 310 GLT OT 300 GLT O 300 GLT T 300 GLT Security Systems 11 Internal | ST/PRM 2 -EU ahu | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

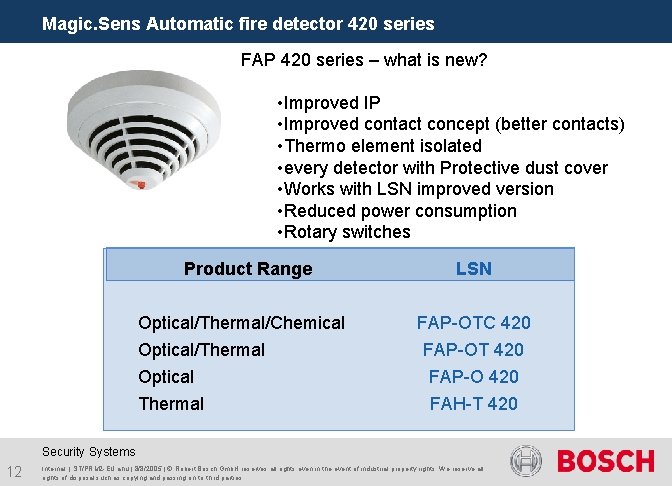

Magic. Sens Automatic fire detector 420 series FAP 420 series – what is new? • Improved IP • Improved contact concept (better contacts) • Thermo element isolated • every detector with Protective dust cover • Works with LSN improved version • Reduced power consumption • Rotary switches Product Range Optical/Thermal/Chemical Optical/Thermal Optical Thermal LSN FAP-OTC 420 FAP-OT 420 FAP-O 420 FAH-T 420 Security Systems 12 Internal | ST/PRM 2 -EU ahu | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

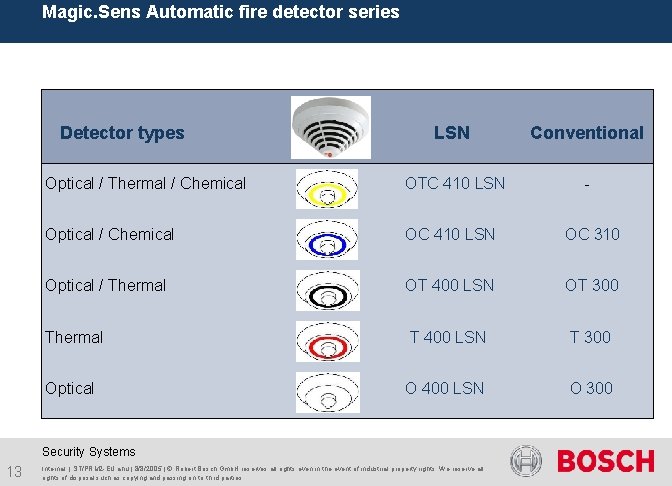

Magic. Sens Automatic fire detector series Detector types LSN Conventional Optical / Thermal / Chemical OTC 410 LSN - Optical / Chemical OC 410 LSN OC 310 Optical / Thermal OT 400 LSN OT 300 Thermal T 400 LSN T 300 Optical O 400 LSN O 300 Security Systems 13 Internal | ST/PRM 2 -EU ahu | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

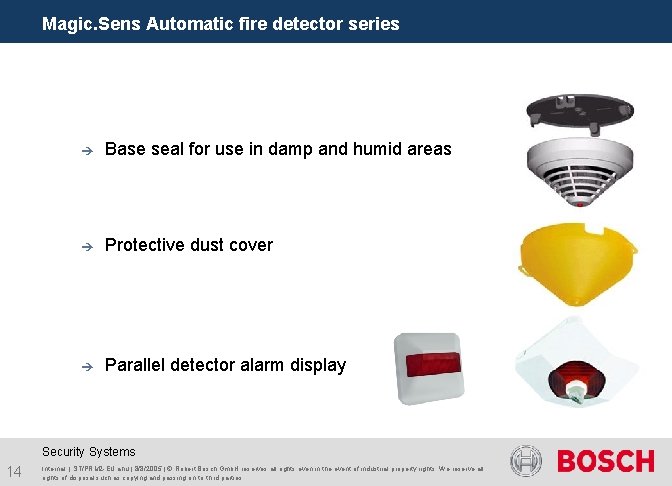

Magic. Sens Automatic fire detector series è Base seal for use in damp and humid areas è Protective dust cover è Parallel detector alarm display Security Systems 14 Internal | ST/PRM 2 -EU ahu | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

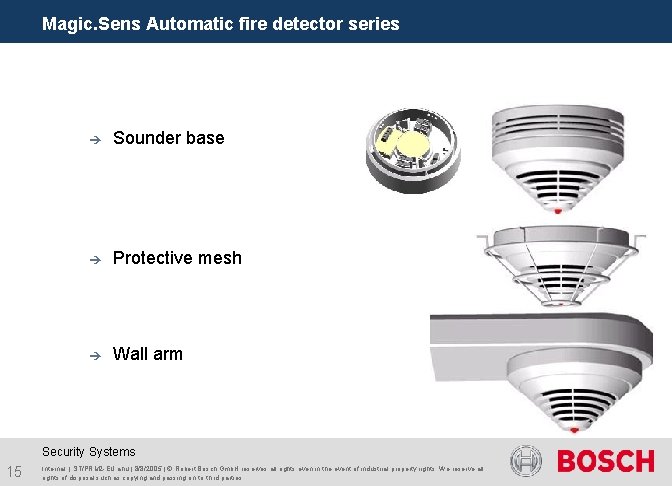

Magic. Sens Automatic fire detector series è Sounder base è Protective mesh è Wall arm Security Systems 15 Internal | ST/PRM 2 -EU ahu | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

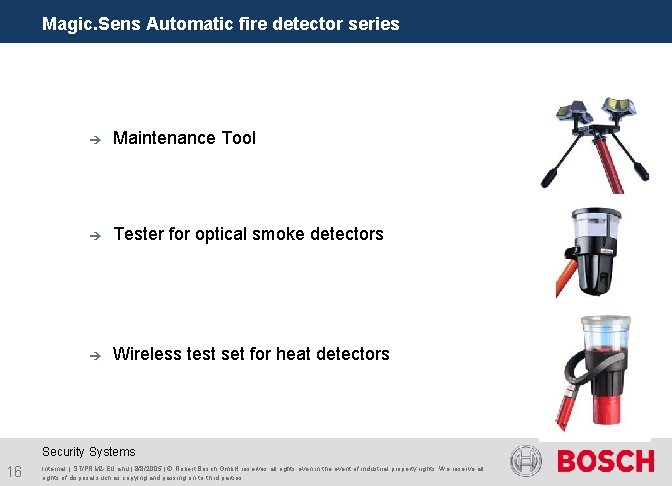

Magic. Sens Automatic fire detector series è Maintenance Tool è Tester for optical smoke detectors è Wireless test set for heat detectors Security Systems 16 Internal | ST/PRM 2 -EU ahu | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

500 Series The art of invisible fire detection Security Systems 17 Internal | ST/PRM 2 -EU ahu | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

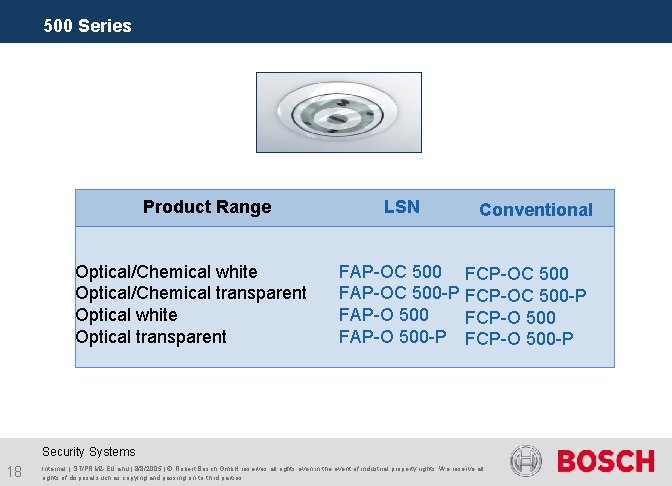

500 Series Product Range Optical/Chemical white Optical/Chemical transparent Optical white Optical transparent LSN Conventional FAP-OC 500 FCP-OC 500 FAP-OC 500 -P FCP-OC 500 -P FAP-O 500 FCP-O 500 FAP-O 500 -P FCP-O 500 -P Security Systems 18 Internal | ST/PRM 2 -EU ahu | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

500 Series Product Range Optical/Chemical white Optical/Chemical transparent Optical white Optical transparent LSN Conventional FAP-OC 500 FCP-OC 500 FAP-OC 500 -P FCP-OC 500 -P FAP-O 500 FCP-O 500 FAP-O 500 -P FCP-O 500 -P Security Systems 19 Internal | ST/PRM 2 -EU ahu | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

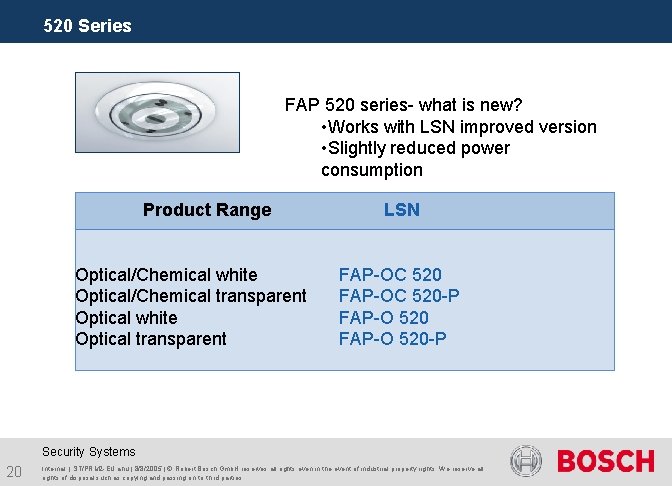

520 Series FAP 520 series- what is new? • Works with LSN improved version • Slightly reduced power consumption Product Range Optical/Chemical white Optical/Chemical transparent Optical white Optical transparent LSN FAP-OC 520 -P FAP-O 520 -P Security Systems 20 Internal | ST/PRM 2 -EU ahu | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

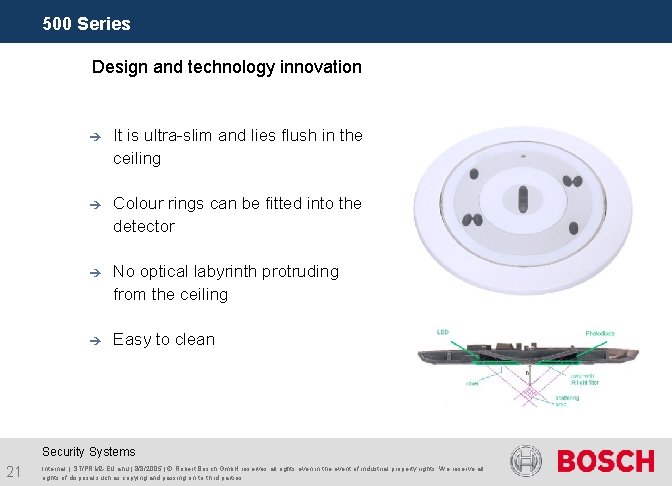

500 Series Design and technology innovation è It is ultra-slim and lies flush in the ceiling è Colour rings can be fitted into the detector è No optical labyrinth protruding from the ceiling è Easy to clean Security Systems 21 Internal | ST/PRM 2 -EU ahu | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

FCP-500 -Series Wiring Security Systems 22 Internal | ST-FIR/PRM 3 | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

FCP-500 -Series Alarm Resistance FCP-O 500 detector head R FCA-500 -EU base with alarm relay and alarm resistor in series FCP-O 500 detector head Conventional Fire Alarm Control Panel Security Systems 23 Internal | ST-FIR/PRM 3 | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. R= 0 Ohm or 680 Ohm To next detector

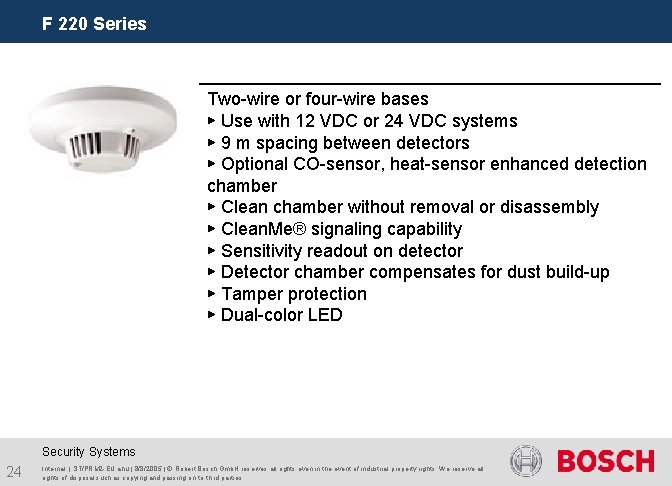

F 220 Series Two-wire or four-wire bases ▶ Use with 12 VDC or 24 VDC systems ▶ 9 m spacing between detectors ▶ Optional CO-sensor, heat-sensor enhanced detection chamber ▶ Clean chamber without removal or disassembly ▶ Clean. Me® signaling capability ▶ Sensitivity readout on detector ▶ Detector chamber compensates for dust build-up ▶ Tamper protection ▶ Dual-color LED Security Systems 24 Internal | ST/PRM 2 -EU ahu | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

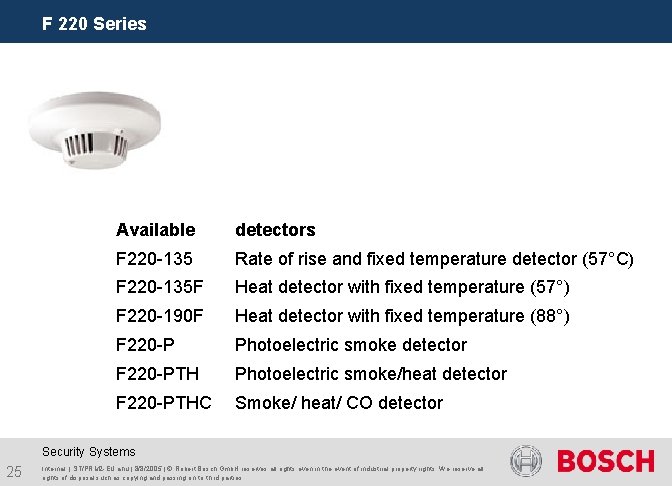

F 220 Series Available detectors F 220 -135 Rate of rise and fixed temperature detector (57°C) F 220 -135 F Heat detector with fixed temperature (57°) F 220 -190 F Heat detector with fixed temperature (88°) F 220 -P Photoelectric smoke detector F 220 -PTH Photoelectric smoke/heat detector F 220 -PTHC Smoke/ heat/ CO detector Security Systems 25 Internal | ST/PRM 2 -EU ahu | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

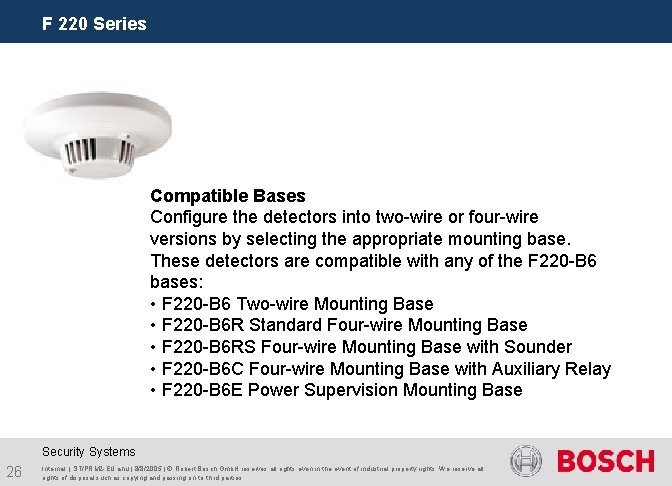

F 220 Series Compatible Bases Configure the detectors into two-wire or four-wire versions by selecting the appropriate mounting base. These detectors are compatible with any of the F 220 -B 6 bases: • F 220 -B 6 Two-wire Mounting Base • F 220 -B 6 R Standard Four-wire Mounting Base • F 220 -B 6 RS Four-wire Mounting Base with Sounder • F 220 -B 6 C Four-wire Mounting Base with Auxiliary Relay • F 220 -B 6 E Power Supervision Mounting Base Security Systems 26 Internal | ST/PRM 2 -EU ahu | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

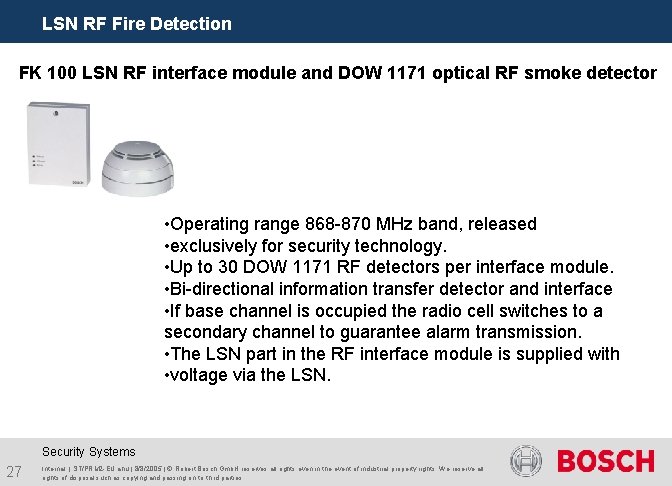

LSN RF Fire Detection FK 100 LSN RF interface module and DOW 1171 optical RF smoke detector • Operating range 868 -870 MHz band, released • exclusively for security technology. • Up to 30 DOW 1171 RF detectors per interface module. • Bi-directional information transfer detector and interface • If base channel is occupied the radio cell switches to a secondary channel to guarantee alarm transmission. • The LSN part in the RF interface module is supplied with • voltage via the LSN. Security Systems 27 Internal | ST/PRM 2 -EU ahu | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

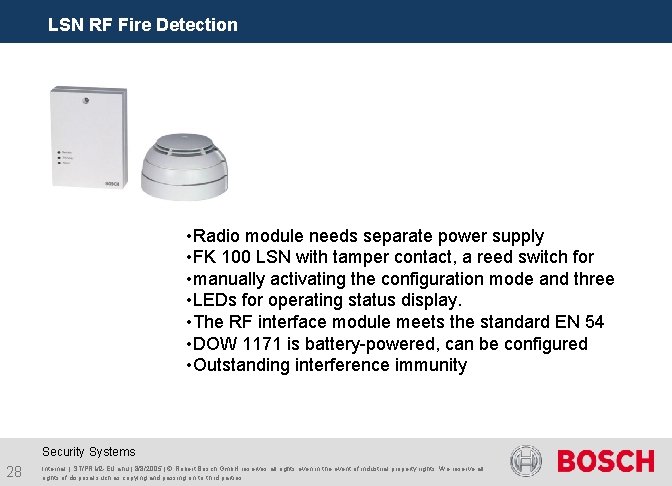

LSN RF Fire Detection • Radio module needs separate power supply • FK 100 LSN with tamper contact, a reed switch for • manually activating the configuration mode and three • LEDs for operating status display. • The RF interface module meets the standard EN 54 • DOW 1171 is battery-powered, can be configured • Outstanding interference immunity Security Systems 28 Internal | ST/PRM 2 -EU ahu | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

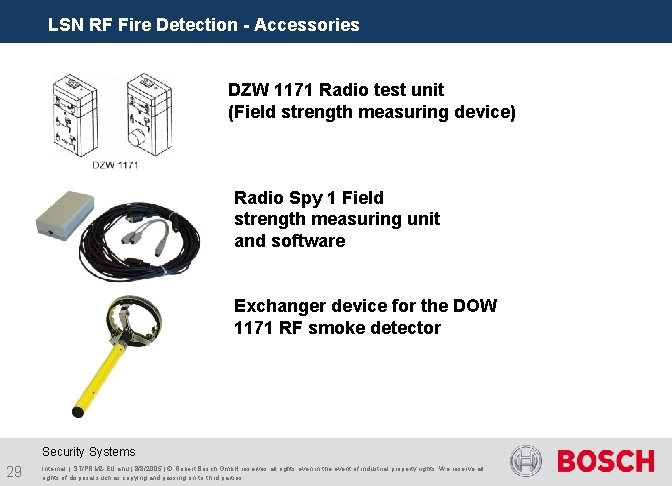

LSN RF Fire Detection - Accessories DZW 1171 Radio test unit (Field strength measuring device) Radio Spy 1 Field strength measuring unit and software Exchanger device for the DOW 1171 RF smoke detector Security Systems 29 Internal | ST/PRM 2 -EU ahu | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

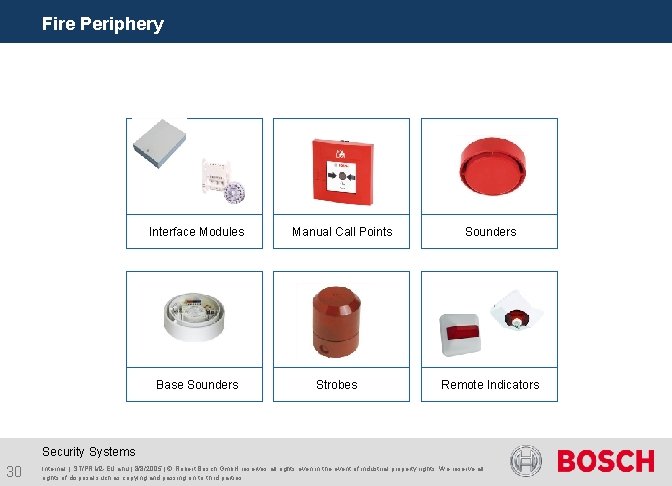

Fire Periphery Interface Modules Base Sounders Manual Call Points Strobes Sounders Remote Indicators Security Systems 30 Internal | ST/PRM 2 -EU ahu | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

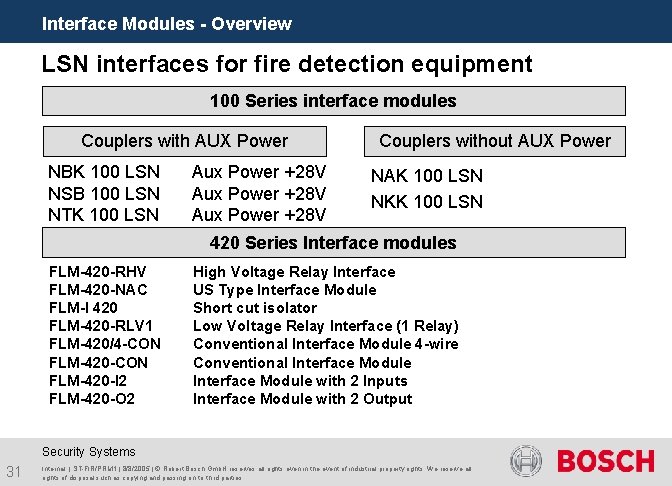

Interface Modules - Overview LSN interfaces for fire detection equipment 100 Series interface modules Couplers with AUX Power Couplers without AUX Power NBK 100 LSN NSB 100 LSN NTK 100 LSN Aux Power +28 V FLM-420 -RHV FLM-420 -NAC FLM-I 420 FLM-420 -RLV 1 FLM-420/4 -CON FLM-420 -I 2 FLM-420 -O 2 High Voltage Relay Interface US Type Interface Module Short cut isolator Low Voltage Relay Interface (1 Relay) Conventional Interface Module 4 -wire Conventional Interface Module with 2 Inputs Interface Module with 2 Output NAK 100 LSN NKK 100 LSN 420 Series Interface modules Security Systems 31 Internal | ST-FIR/PRM 1 | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

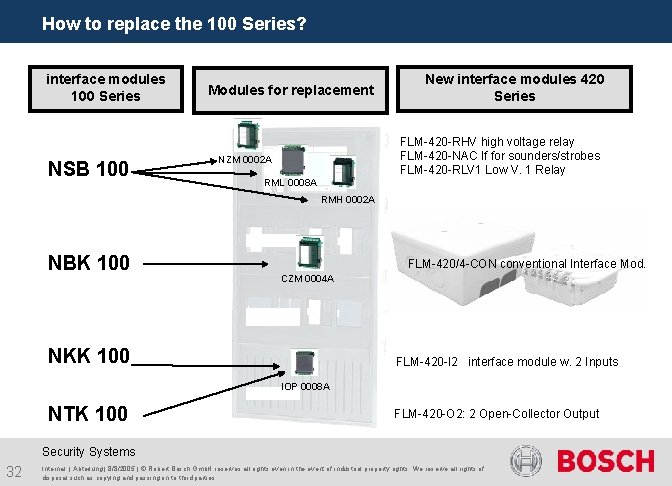

How to replace the 100 Series? interface modules 100 Series NSB 100 Modules for replacement New interface modules 420 Series FLM-420 -RHV high voltage relay FLM-420 -NAC If for sounders/strobes FLM-420 -RLV 1 Low V. 1 Relay NZM 0002 A RML 0008 A RMH 0002 A NBK 100 FLM-GLT 420 FLM-420/4 -CON conventional Interface Mod. CZM 0004 A NKK 100 FLM-420 -I 2 interface module w. 2 Inputs IOP 0008 A NTK 100 FLM-420 -O 2: 2 Open-Collector Output Security Systems 32 Internal | Abteilung | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

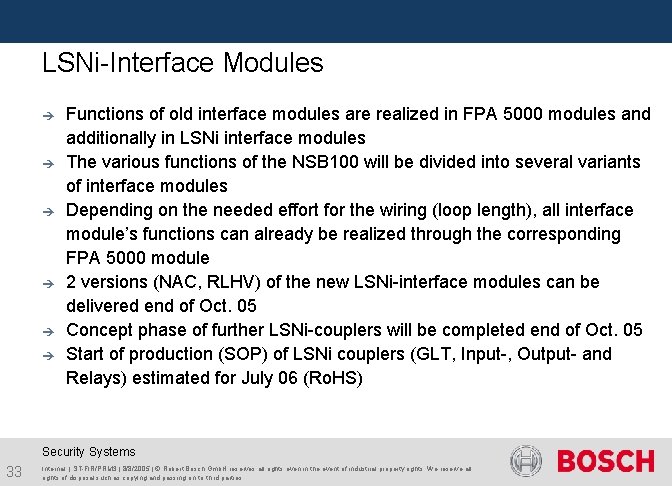

LSNi-Interface Modules è è è Functions of old interface modules are realized in FPA 5000 modules and additionally in LSNi interface modules The various functions of the NSB 100 will be divided into several variants of interface modules Depending on the needed effort for the wiring (loop length), all interface module’s functions can already be realized through the corresponding FPA 5000 module 2 versions (NAC, RLHV) of the new LSNi-interface modules can be delivered end of Oct. 05 Concept phase of further LSNi-couplers will be completed end of Oct. 05 Start of production (SOP) of LSNi couplers (GLT, Input-, Output- and Relays) estimated for July 06 (Ro. HS) Security Systems 33 Internal | ST-FIR/PRM 3 | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

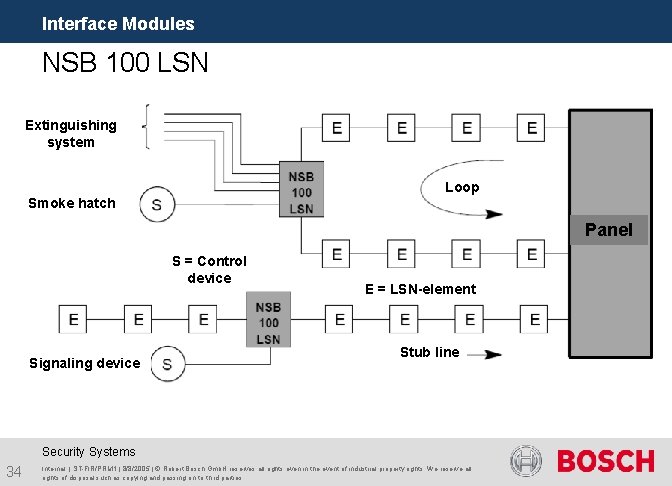

Interface Modules NSB 100 LSN Extinguishing system Loop Smoke hatch Panel S = Control device Signaling device E = LSN-element Stub line Security Systems 34 Internal | ST-FIR/PRM 1 | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

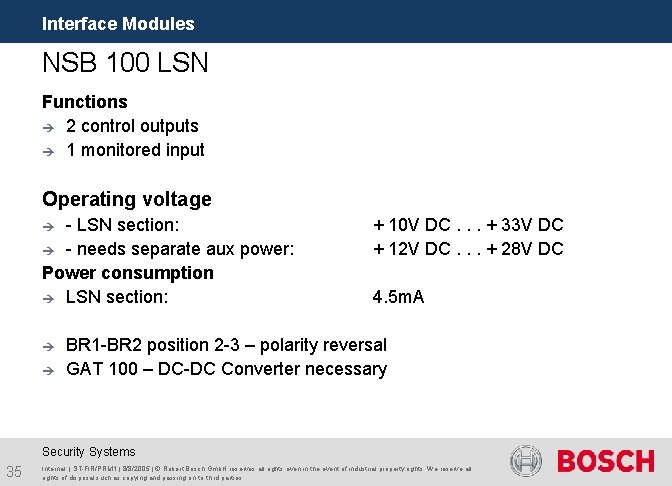

Interface Modules NSB 100 LSN Functions è 2 control outputs è 1 monitored input Operating voltage - LSN section: è - needs separate aux power: Power consumption è LSN section: è è è + 10 V DC. . . + 33 V DC + 12 V DC. . . + 28 V DC 4. 5 m. A BR 1 -BR 2 position 2 -3 – polarity reversal GAT 100 – DC-DC Converter necessary Security Systems 35 Internal | ST-FIR/PRM 1 | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

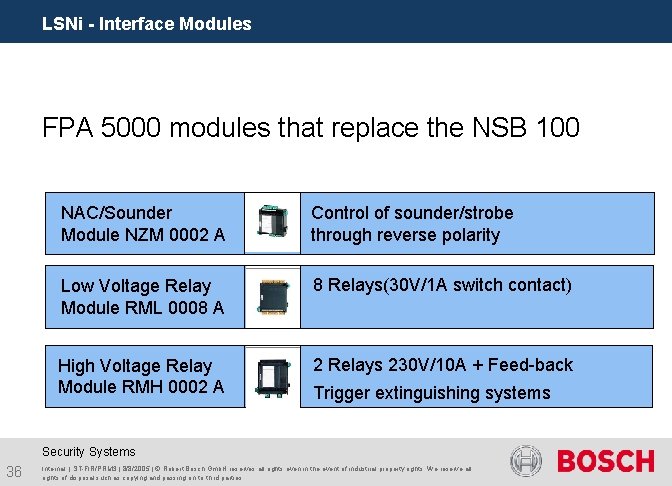

LSNi - Interface Modules FPA 5000 modules that replace the NSB 100 NAC/Sounder Module NZM 0002 A Control of sounder/strobe through reverse polarity Low Voltage Relay Module RML 0008 A 8 Relays(30 V/1 A switch contact) High Voltage Relay Module RMH 0002 A 2 Relays 230 V/10 A + Feed-back Trigger extinguishing systems Security Systems 36 Internal | ST-FIR/PRM 3 | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

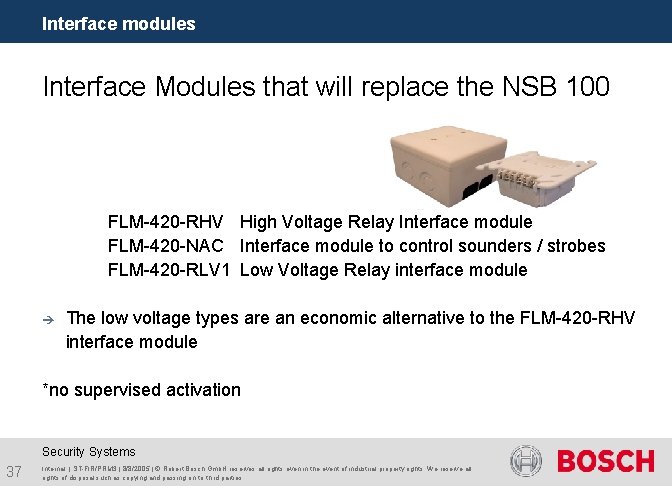

Interface modules Interface Modules that will replace the NSB 100 FLM-420 -RHV High Voltage Relay Interface module FLM-420 -NAC Interface module to control sounders / strobes FLM-420 -RLV 1 Low Voltage Relay interface module è The low voltage types are an economic alternative to the FLM-420 -RHV interface module *no supervised activation Security Systems 37 Internal | ST-FIR/PRM 3 | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

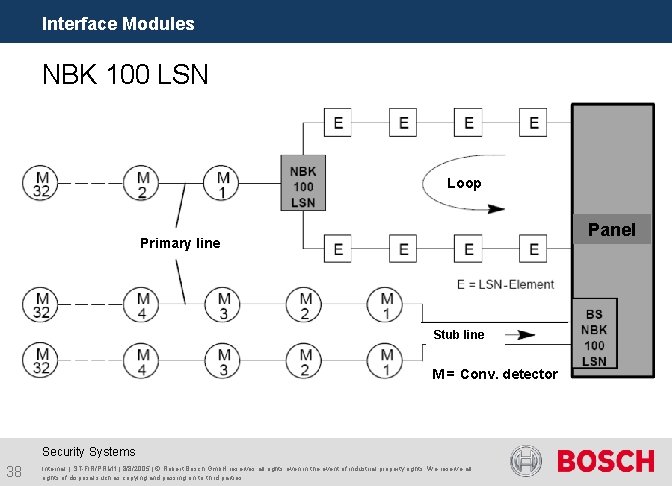

Interface Modules NBK 100 LSN Loop Panel Primary line Stub line M = Conv. detector Security Systems 38 Internal | ST-FIR/PRM 1 | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

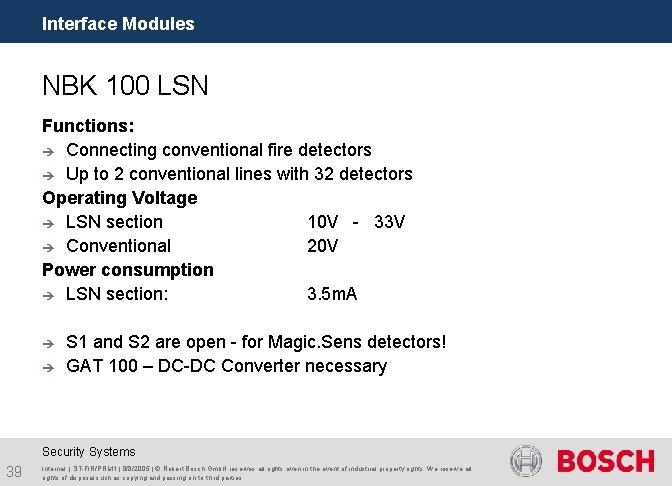

Interface Modules NBK 100 LSN Functions: è Connecting conventional fire detectors è Up to 2 conventional lines with 32 detectors Operating Voltage è LSN section 10 V - 33 V è Conventional 20 V Power consumption è LSN section: 3. 5 m. A è è S 1 and S 2 are open - for Magic. Sens detectors! GAT 100 – DC-DC Converter necessary Security Systems 39 Internal | ST-FIR/PRM 1 | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

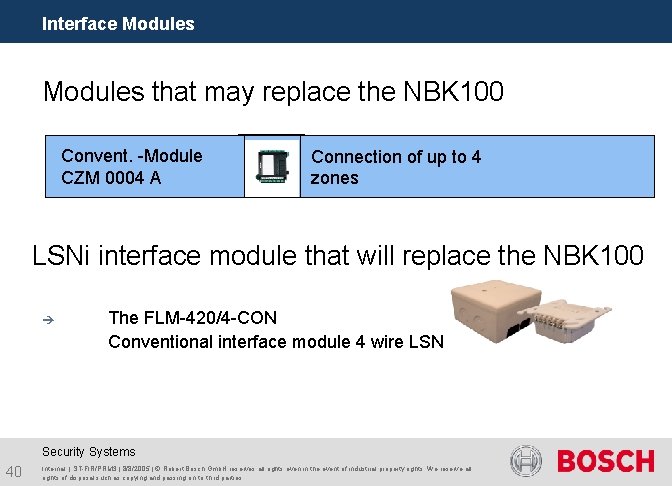

Interface Modules that may replace the NBK 100 Convent. -Module CZM 0004 A Connection of up to 4 zones LSNi interface module that will replace the NBK 100 è The FLM-420/4 -CON Conventional interface module 4 wire LSN Security Systems 40 Internal | ST-FIR/PRM 3 | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

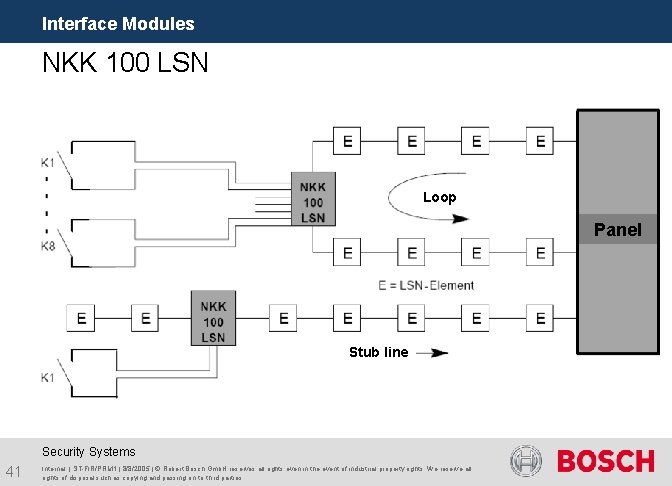

Interface Modules NKK 100 LSN Loop Panel Stub line Security Systems 41 Internal | ST-FIR/PRM 1 | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

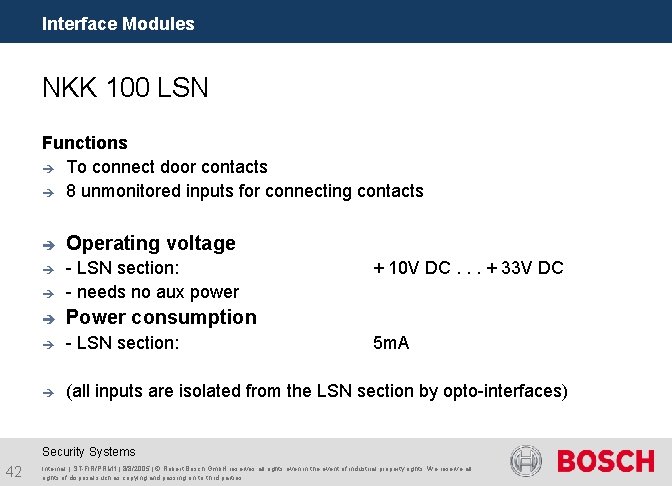

Interface Modules NKK 100 LSN Functions è To connect door contacts è 8 unmonitored inputs for connecting contacts è Operating voltage è è - LSN section: - needs no aux power è Power consumption è - LSN section: è (all inputs are isolated from the LSN section by opto-interfaces) + 10 V DC. . . + 33 V DC 5 m. A Security Systems 42 Internal | ST-FIR/PRM 1 | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

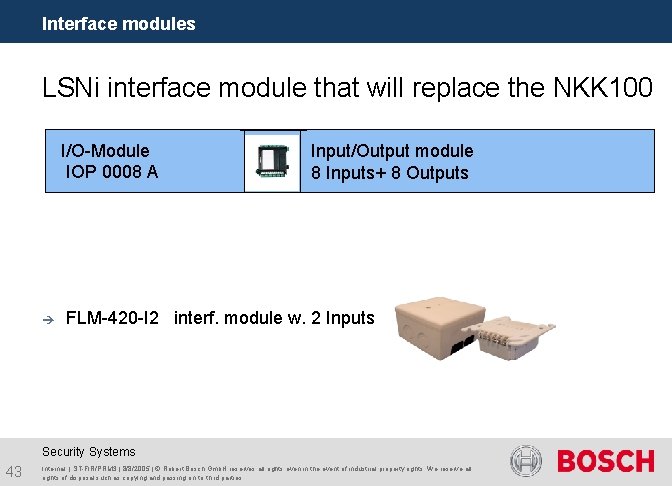

Interface modules LSNi interface module that will replace the NKK 100 I/O-Module IOP 0008 A è Input/Output module 8 Inputs+ 8 Outputs FLM-420 -I 2 interf. module w. 2 Inputs Security Systems 43 Internal | ST-FIR/PRM 3 | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

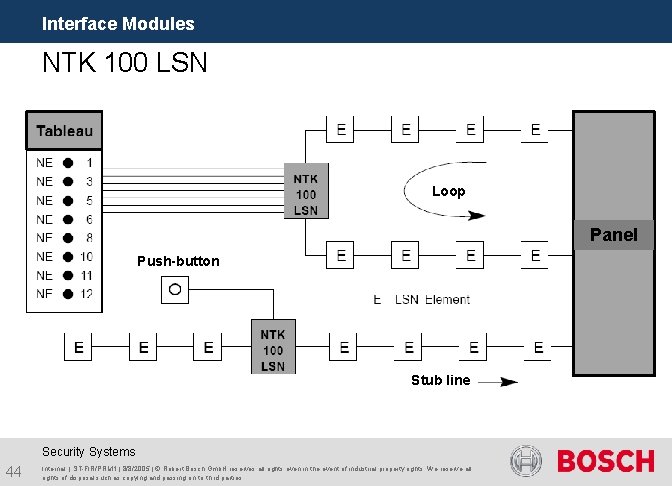

Interface Modules NTK 100 LSN Loop Panel Push-button Stub line Security Systems 44 Internal | ST-FIR/PRM 1 | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

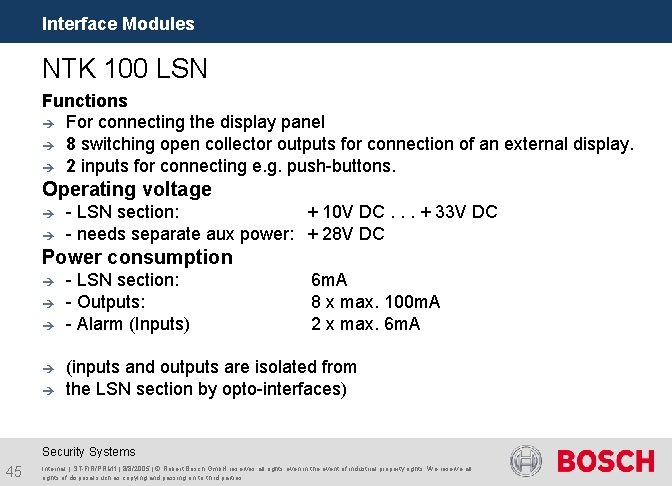

Interface Modules NTK 100 LSN Functions è For connecting the display panel è 8 switching open collector outputs for connection of an external display. è 2 inputs for connecting e. g. push-buttons. Operating voltage è è - LSN section: + 10 V DC. . . + 33 V DC - needs separate aux power: + 28 V DC Power consumption è è è - LSN section: - Outputs: - Alarm (Inputs) 6 m. A 8 x max. 100 m. A 2 x max. 6 m. A (inputs and outputs are isolated from the LSN section by opto-interfaces) Security Systems 45 Internal | ST-FIR/PRM 1 | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

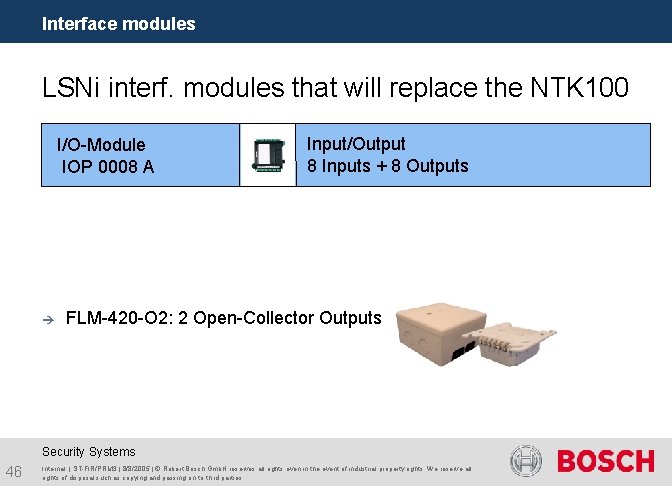

Interface modules LSNi interf. modules that will replace the NTK 100 I/O-Module IOP 0008 A è Input/Output 8 Inputs + 8 Outputs FLM-420 -O 2: 2 Open-Collector Outputs Security Systems 46 Internal | ST-FIR/PRM 3 | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

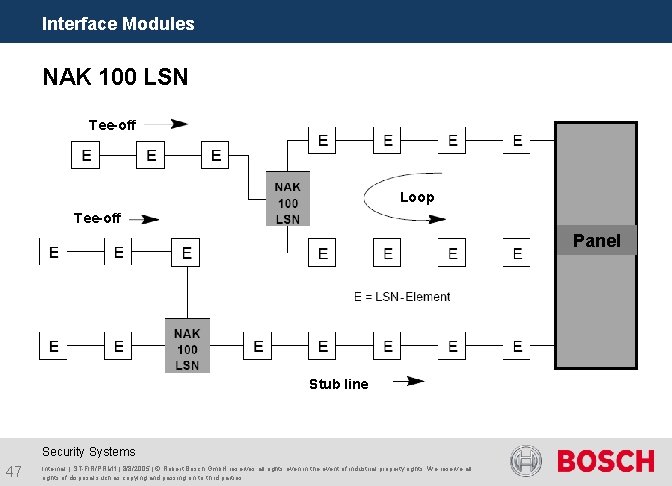

Interface Modules NAK 100 LSN Tee-off Loop Tee-off Panel Stub line Security Systems 47 Internal | ST-FIR/PRM 1 | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

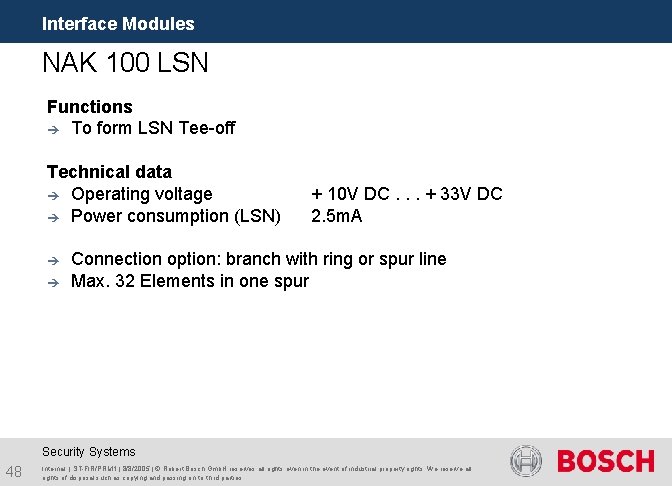

Interface Modules NAK 100 LSN Functions è To form LSN Tee-off Technical data è Operating voltage è Power consumption (LSN) è è + 10 V DC. . . + 33 V DC 2. 5 m. A Connection option: branch with ring or spur line Max. 32 Elements in one spur Security Systems 48 Internal | ST-FIR/PRM 1 | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

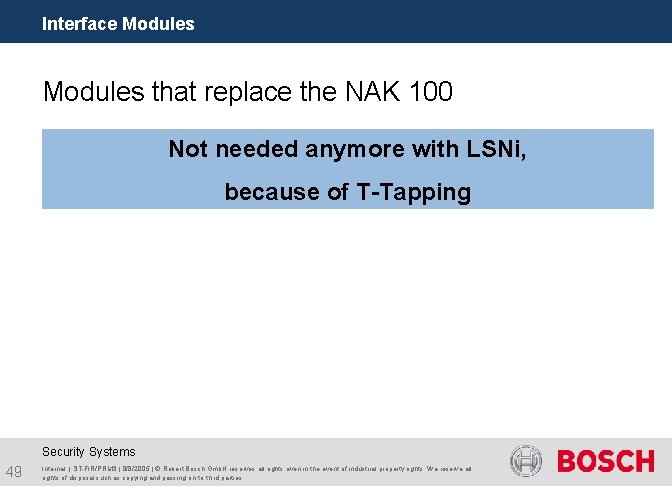

Interface Modules that replace the NAK 100 Not needed anymore with LSNi, because of T-Tapping Security Systems 49 Internal | ST-FIR/PRM 3 | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

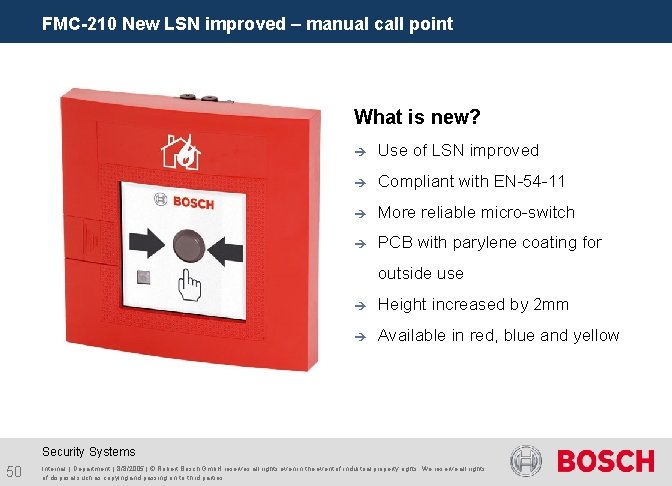

FMC-210 New LSN improved – manual call point What is new? è Use of LSN improved è Compliant with EN-54 -11 è More reliable micro-switch è PCB with parylene coating for outside use è Height increased by 2 mm è Available in red, blue and yellow Security Systems 50 Internal | Department | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

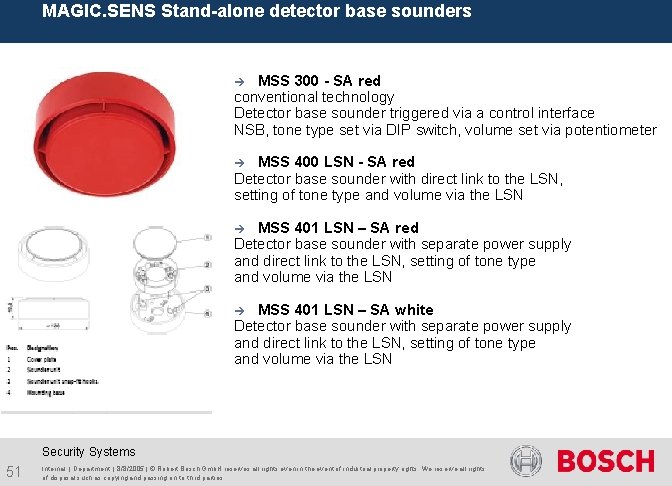

MAGIC. SENS Stand-alone detector base sounders MSS 300 - SA red conventional technology Detector base sounder triggered via a control interface NSB, tone type set via DIP switch, volume set via potentiometer è MSS 400 LSN - SA red Detector base sounder with direct link to the LSN, setting of tone type and volume via the LSN è MSS 401 LSN – SA red Detector base sounder with separate power supply and direct link to the LSN, setting of tone type and volume via the LSN è MSS 401 LSN – SA white Detector base sounder with separate power supply and direct link to the LSN, setting of tone type and volume via the LSN è Security Systems 51 Internal | Department | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

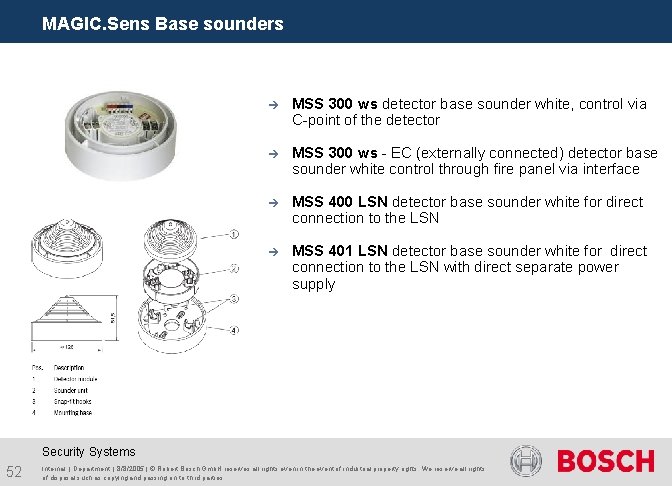

MAGIC. Sens Base sounders è MSS 300 ws detector base sounder white, control via C-point of the detector è MSS 300 ws - EC (externally connected) detector base sounder white control through fire panel via interface è MSS 400 LSN detector base sounder white for direct connection to the LSN è MSS 401 LSN detector base sounder white for direct connection to the LSN with direct separate power supply Security Systems 52 Internal | Department | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

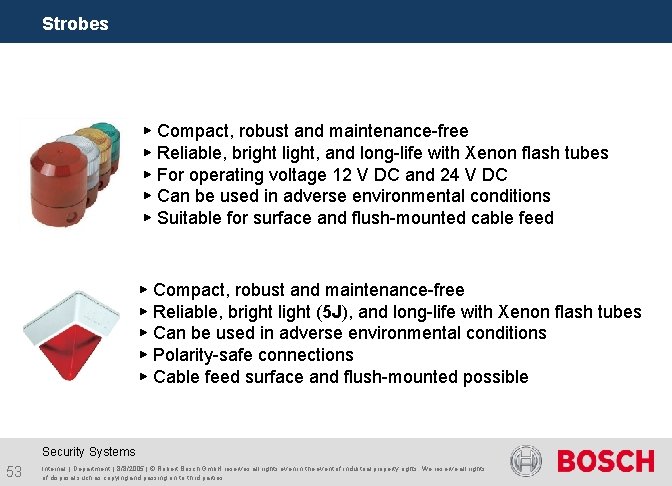

Strobes ▶ Compact, robust and maintenance-free ▶ Reliable, bright light, and long-life with Xenon flash tubes ▶ For operating voltage 12 V DC and 24 V DC ▶ Can be used in adverse environmental conditions ▶ Suitable for surface and flush-mounted cable feed ▶ Compact, robust and maintenance-free ▶ Reliable, bright light (5 J), and long-life with Xenon flash tubes ▶ Can be used in adverse environmental conditions ▶ Polarity-safe connections ▶ Cable feed surface and flush-mounted possible Security Systems 53 Internal | Department | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

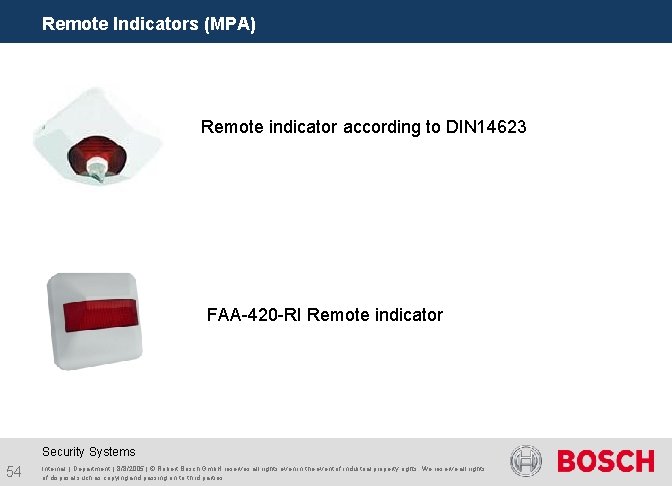

Remote Indicators (MPA) Remote indicator according to DIN 14623 FAA-420 -RI Remote indicator Security Systems 54 Internal | Department | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

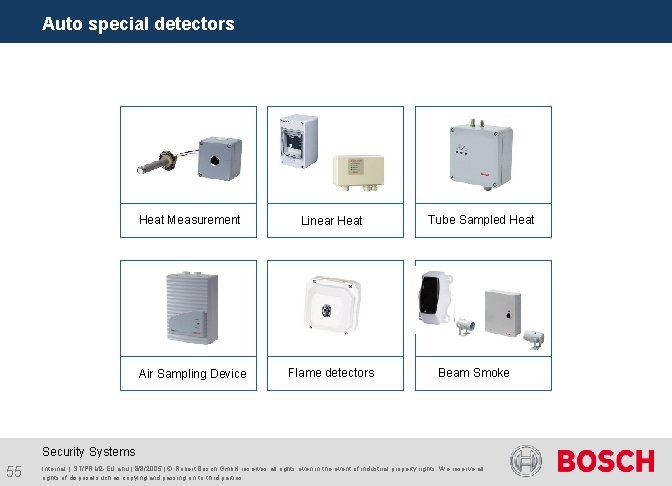

Auto special detectors Heat Measurement Linear Heat Air Sampling Device Flame detectors Tube Sampled Heat Beam Smoke Security Systems 55 Internal | ST/PRM 2 -EU ahu | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

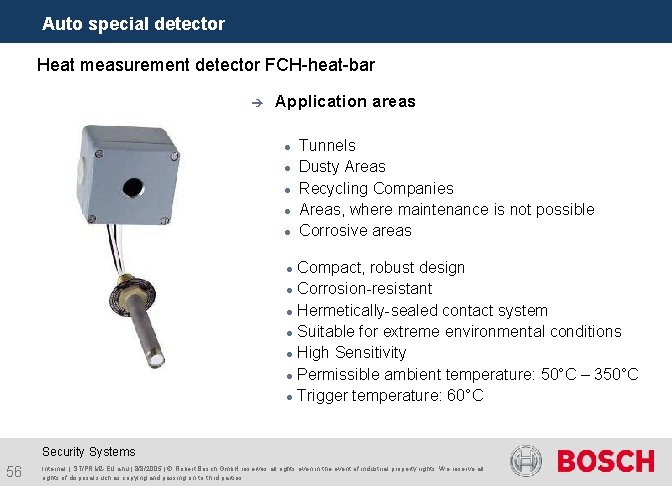

Auto special detector Heat measurement detector FCH-heat-bar è Application areas Tunnels Dusty Areas Recycling Companies Areas, where maintenance is not possible Corrosive areas Compact, robust design Corrosion-resistant Hermetically-sealed contact system Suitable for extreme environmental conditions High Sensitivity Permissible ambient temperature: 50°C – 350°C Trigger temperature: 60°C Security Systems 56 Internal | ST/PRM 2 -EU ahu | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

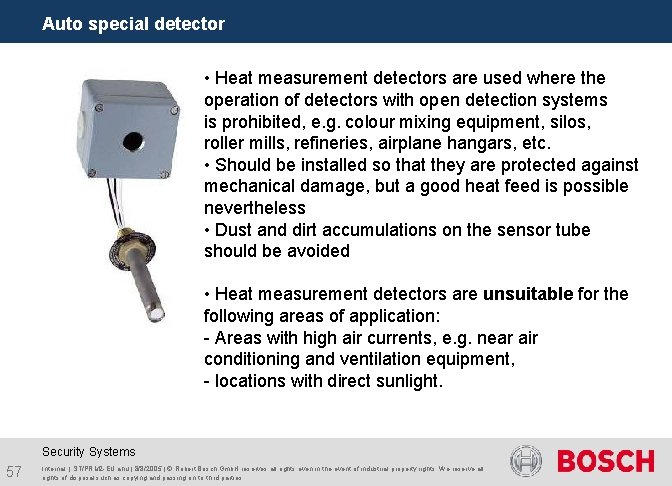

Auto special detector • Heat measurement detectors are used where the operation of detectors with open detection systems is prohibited, e. g. colour mixing equipment, silos, roller mills, refineries, airplane hangars, etc. • Should be installed so that they are protected against mechanical damage, but a good heat feed is possible nevertheless • Dust and dirt accumulations on the sensor tube should be avoided • Heat measurement detectors are unsuitable for the following areas of application: - Areas with high air currents, e. g. near air conditioning and ventilation equipment, - locations with direct sunlight. Security Systems 57 Internal | ST/PRM 2 -EU ahu | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

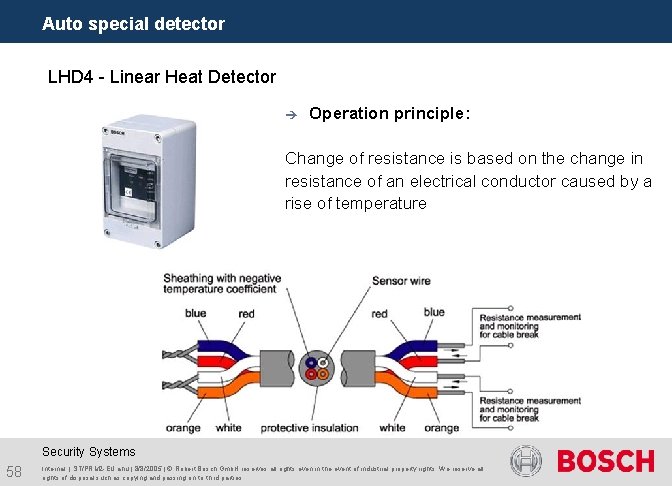

Auto special detector LHD 4 - Linear Heat Detector è Operation principle: Change of resistance is based on the change in resistance of an electrical conductor caused by a rise of temperature Security Systems 58 Internal | ST/PRM 2 -EU ahu | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

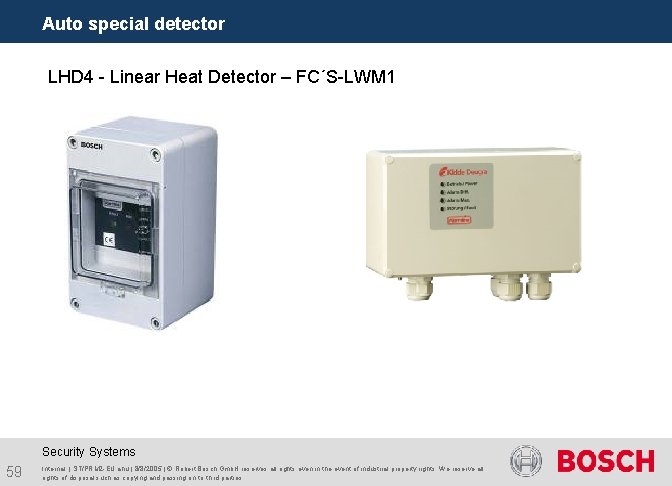

Auto special detector LHD 4 - Linear Heat Detector – FC´S-LWM 1 Security Systems 59 Internal | ST/PRM 2 -EU ahu | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

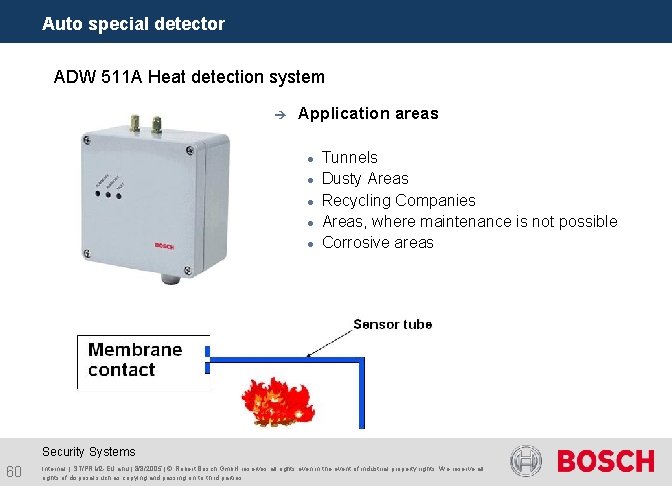

Auto special detector ADW 511 A Heat detection system è Application areas Tunnels Dusty Areas Recycling Companies Areas, where maintenance is not possible Corrosive areas Security Systems 60 Internal | ST/PRM 2 -EU ahu | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

Auto special detector ADW 511 A Heat detection system è Application areas Tunnels Dusty Areas Recycling Companies Areas, where maintenance is not possible Corrosive areas Security Systems 61 Internal | ST/PRM 2 -EU ahu | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

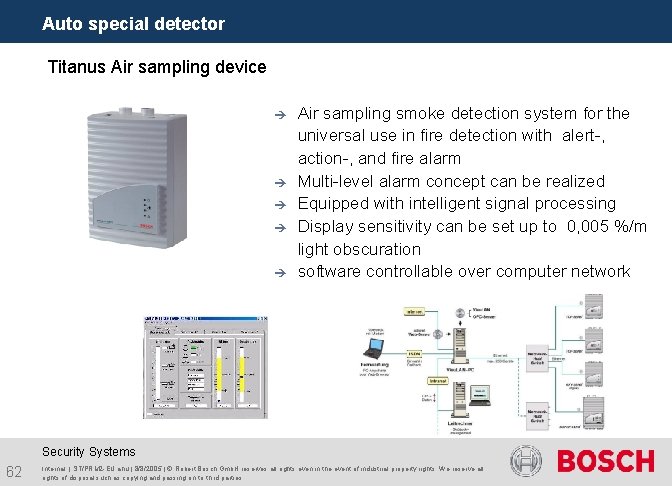

Auto special detector Titanus Air sampling device è è è Air sampling smoke detection system for the universal use in fire detection with alert-, action-, and fire alarm Multi-level alarm concept can be realized Equipped with intelligent signal processing Display sensitivity can be set up to 0, 005 %/m light obscuration software controllable over computer network Security Systems 62 Internal | ST/PRM 2 -EU ahu | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

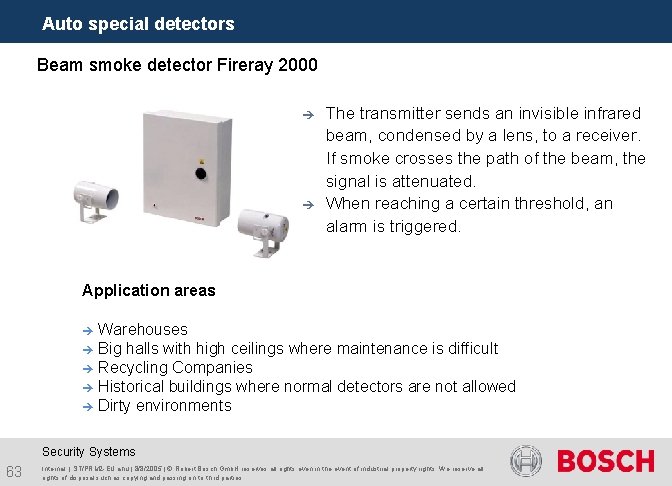

Auto special detectors Beam smoke detector Fireray 2000 è è The transmitter sends an invisible infrared beam, condensed by a lens, to a receiver. If smoke crosses the path of the beam, the signal is attenuated. When reaching a certain threshold, an alarm is triggered. Application areas è Warehouses è Big halls with high ceilings where maintenance is difficult è Recycling Companies è Historical buildings where normal detectors are not allowed è Dirty environments Security Systems 63 Internal | ST/PRM 2 -EU ahu | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

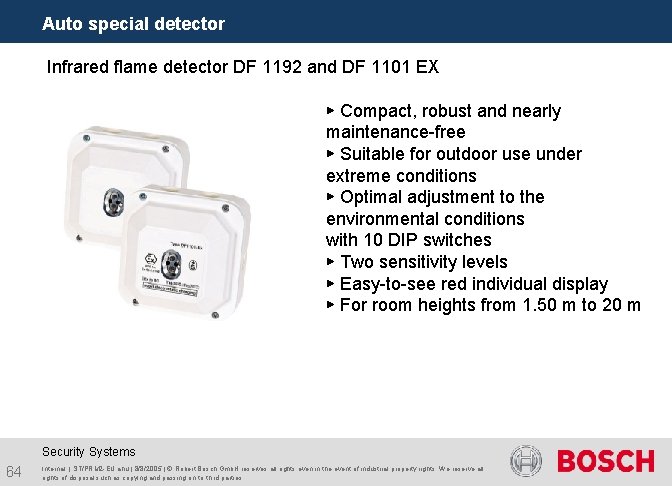

Auto special detector Infrared flame detector DF 1192 and DF 1101 EX ▶ Compact, robust and nearly maintenance-free ▶ Suitable for outdoor use under extreme conditions ▶ Optimal adjustment to the environmental conditions with 10 DIP switches ▶ Two sensitivity levels ▶ Easy-to-see red individual display ▶ For room heights from 1. 50 m to 20 m Security Systems 64 Internal | ST/PRM 2 -EU ahu | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

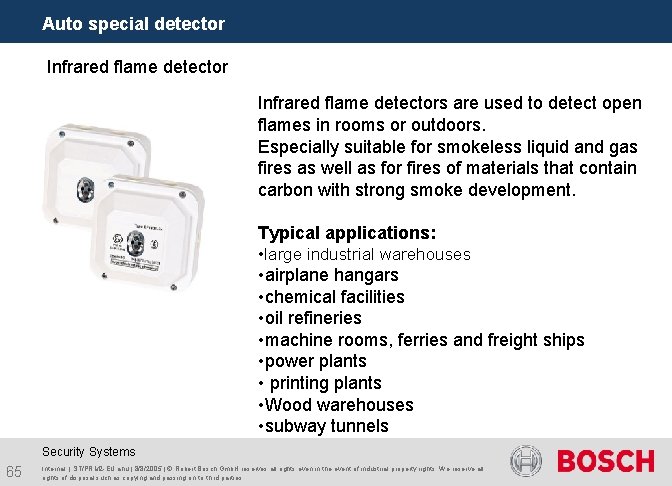

Auto special detector Infrared flame detectors are used to detect open flames in rooms or outdoors. Especially suitable for smokeless liquid and gas fires as well as for fires of materials that contain carbon with strong smoke development. Typical applications: • large industrial warehouses • airplane hangars • chemical facilities • oil refineries • machine rooms, ferries and freight ships • power plants • printing plants • Wood warehouses • subway tunnels Security Systems 65 Internal | ST/PRM 2 -EU ahu | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

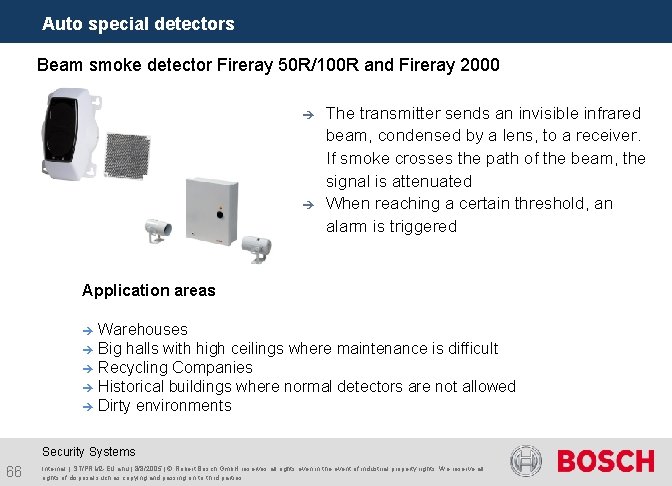

Auto special detectors Beam smoke detector Fireray 50 R/100 R and Fireray 2000 è è The transmitter sends an invisible infrared beam, condensed by a lens, to a receiver. If smoke crosses the path of the beam, the signal is attenuated When reaching a certain threshold, an alarm is triggered Application areas è Warehouses è Big halls with high ceilings where maintenance is difficult è Recycling Companies è Historical buildings where normal detectors are not allowed è Dirty environments Security Systems 66 Internal | ST/PRM 2 -EU ahu | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

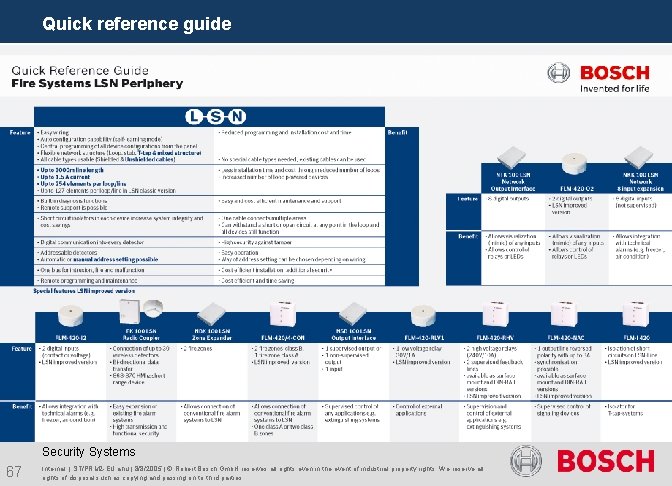

Quick reference guide Security Systems 67 Internal | ST/PRM 2 -EU ahu | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

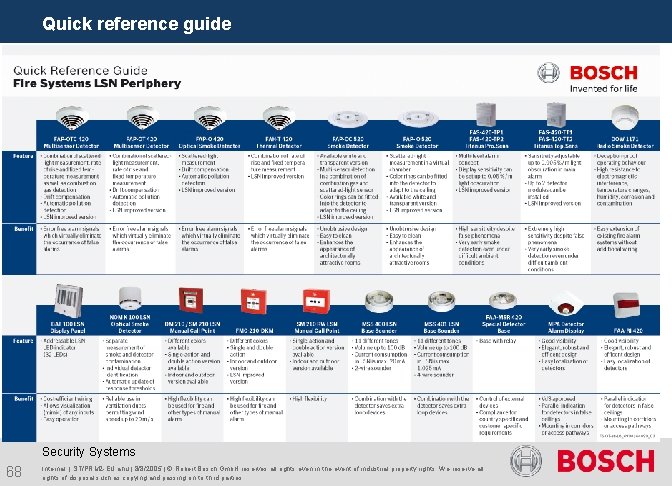

Quick reference guide Security Systems 68 Internal | ST/PRM 2 -EU ahu | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

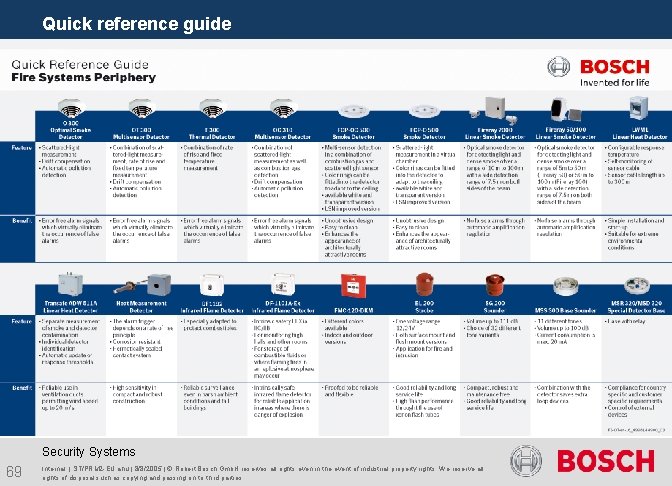

Quick reference guide Security Systems 69 Internal | ST/PRM 2 -EU ahu | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

Fire Periphery Security Systems 70 Internal | ST/PRM 2 -EU ahu | 8/8/2005 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.
