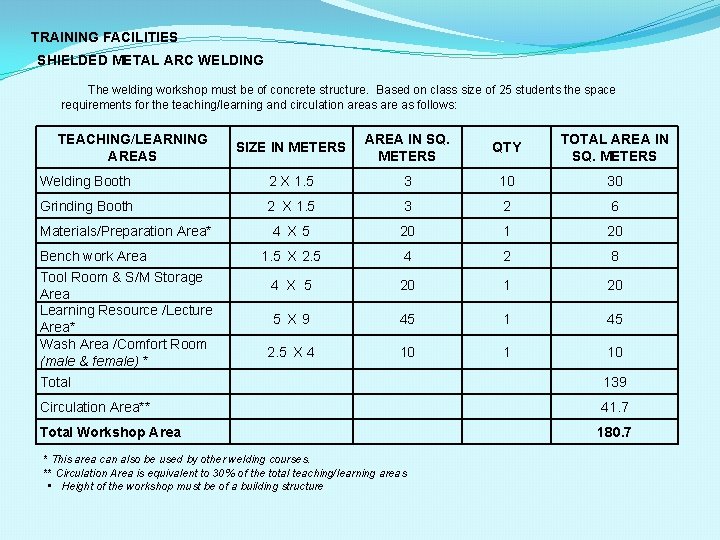

TRAINING FACILITIES SHIELDED METAL ARC WELDING The welding workshop must be of concrete structure. Based on class size of 25 students the space requirements for the teaching/learning and circulation areas are as follows: TEACHING/LEARNING AREAS SIZE IN METERS AREA IN SQ. METERS QTY TOTAL AREA IN SQ. METERS Welding Booth 2 X 1. 5 3 10 30 Grinding Booth 2 X 1. 5 3 2 6 Materials/Preparation Area* 4 X 5 20 1 20 Bench work Area Tool Room & S/M Storage Area Learning Resource /Lecture Area* Wash Area /Comfort Room (male & female) * Total 1. 5 X 2. 5 4 2 8 4 X 5 20 1 20 5 X 9 45 1 45 2. 5 X 4 10 139 Circulation Area** 41. 7 Total Workshop Area 180. 7 * This area can also be used by other welding courses. ** Circulation Area is equivalent to 30% of the total teaching/learning areas • Height of the workshop must be of a building structure

TRAINING FACILITIES AUTOMOTIVE SERVICING The automotive workshop must be made of reinforced concrete or steel structure. The size must be suited on the requirements of the competencies. The class size of 25 students is reserved for the lecture room and the practical demonstration area for carrying out servicing of minor automotive parts. Most of the learning activities such as on-vehicle servicing are performed in the workshop. AREA IN SQ. METERS QTY TOTAL AREA IN SQ. METERS 6 X 20 1 120 1. 5 X 2. 5 4 2 8 Tool Room & S/M Storage Area 4 X 5 20 1 20 Lecture Area /Learning Resource 5 X 9 45 1 45 2. 5 X 4 10 1 10 4 X 5 20 1 20 TEACHING/LEARNING AREAS SIZE IN METERS Workshop/Laboratory area Bench work Area Wash Area /Comfort Room (male & female) Demonstration Area Total 223 Circulation Area** 63 Total Workshop Area 286 ** Circulation Area is equivalent to 30% of the total teaching/learning areas

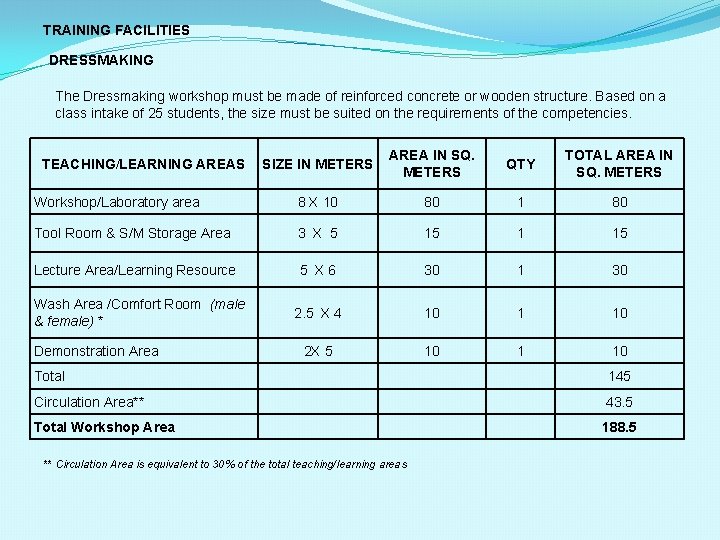

TRAINING FACILITIES DRESSMAKING The Dressmaking workshop must be made of reinforced concrete or wooden structure. Based on a class intake of 25 students, the size must be suited on the requirements of the competencies. SIZE IN METERS AREA IN SQ. METERS QTY TOTAL AREA IN SQ. METERS Workshop/Laboratory area 8 X 10 80 1 80 Tool Room & S/M Storage Area 3 X 5 15 1 15 Lecture Area/Learning Resource 5 X 6 30 1 30 2. 5 X 4 10 1 10 2 X 5 10 1 10 TEACHING/LEARNING AREAS Wash Area /Comfort Room (male & female) * Demonstration Area Total 145 Circulation Area** 43. 5 Total Workshop Area 188. 5 ** Circulation Area is equivalent to 30% of the total teaching/learning areas

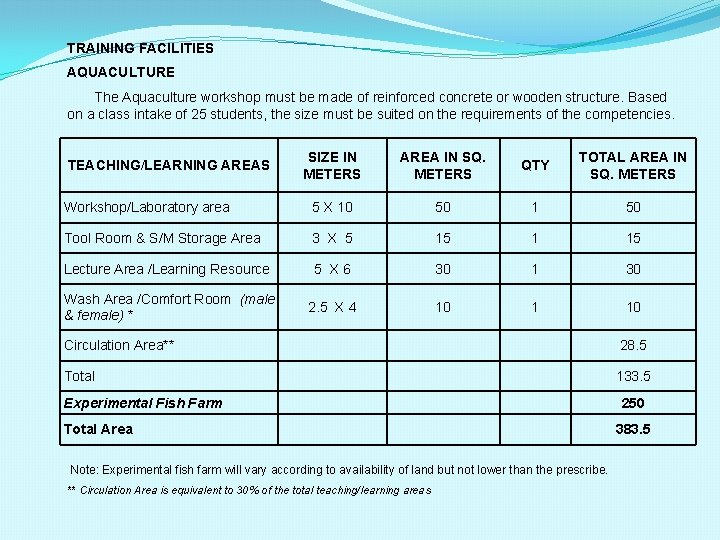

TRAINING FACILITIES AQUACULTURE The Aquaculture workshop must be made of reinforced concrete or wooden structure. Based on a class intake of 25 students, the size must be suited on the requirements of the competencies. SIZE IN METERS AREA IN SQ. METERS QTY TOTAL AREA IN SQ. METERS Workshop/Laboratory area 5 X 10 50 1 50 Tool Room & S/M Storage Area 3 X 5 15 1 15 Lecture Area /Learning Resource 5 X 6 30 1 30 Wash Area /Comfort Room (male & female) * 2. 5 X 4 10 1 10 TEACHING/LEARNING AREAS Circulation Area** 28. 5 Total 133. 5 Experimental Fish Farm Total Area Note: Experimental fish farm will vary according to availability of land but not lower than the prescribe. ** Circulation Area is equivalent to 30% of the total teaching/learning areas 250 383. 5

TRAINING FACILITIES AGRICULTURAL CROP PRODUCTION The Agricultural workshop must be made of reinforced concrete or wooden structure. Based on a class intake of 25 students, the size must be suited on the requirements of the competencies. TEACHING/LEARNING AREAS Workshop/Laboratory area Tool Room & S/M Storage Area Lecture Area /Learning Resource Wash Area /Comfort Room (male & female) * SIZE IN METERS AREA IN SQ. METERS QTY TOTAL AREA IN SQ. METERS 10 X 10 100 1 100 3 X 5 15 1 15 5 X 6 30 1 30 2. 5 X 4 10 1 10 Circulation Area** 46. 5 Total 201. 5 Experimental Farm 10 sq m/ student 250 Total Area Note: Experimental farm will vary according to availability of land but not lower than the prescribe. ** Circulation Area is equivalent to 30% of the total teaching/learning areas 250 451. 5

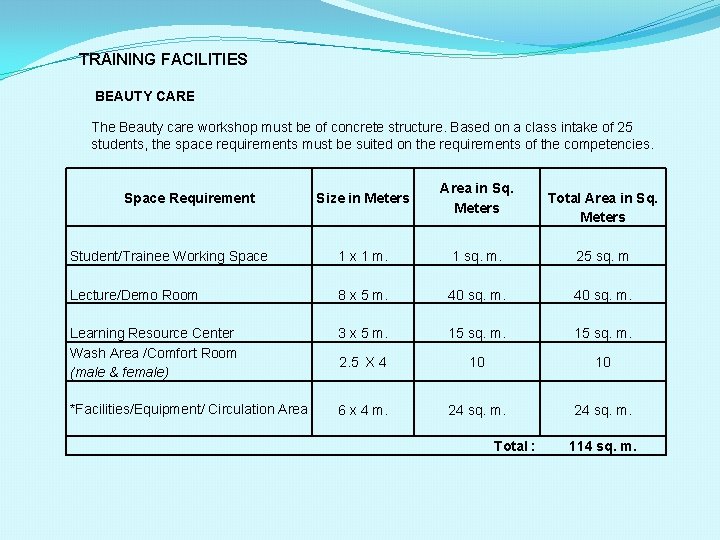

TRAINING FACILITIES BEAUTY CARE The Beauty care workshop must be of concrete structure. Based on a class intake of 25 students, the space requirements must be suited on the requirements of the competencies. Size in Meters Area in Sq. Meters Student/Trainee Working Space 1 x 1 m. 1 sq. m. 25 sq. m Lecture/Demo Room 8 x 5 m. 40 sq. m. Learning Resource Center Wash Area /Comfort Room (male & female) 3 x 5 m. 15 sq. m. 2. 5 X 4 10 10 *Facilities/Equipment/ Circulation Area 6 x 4 m. 24 sq. m. Space Requirement Total : Total Area in Sq. Meters 114 sq. m.

TRAINING FACILITIES FOOD PROCESSING The food processing workshop must be of concrete structure. Based on a class size of 25 students the space requirements for the teaching/learning and circulation areas are as follows: SIZE IN METERS AREA IN SQ. METERS TOTAL AREA IN SQ. METERS Laboratory area 6 x 10 60 60 Tool room & S/M storage area 4 x 5 20 20 Learning resource area 5 x 6 30 30 2. 5 x 4 10 10 SPACE REQUIREMENT A. Building (permanent) Wash area/comfort room (male & female) Facilities/Equipment/Circulation 40 Total workshop area 160

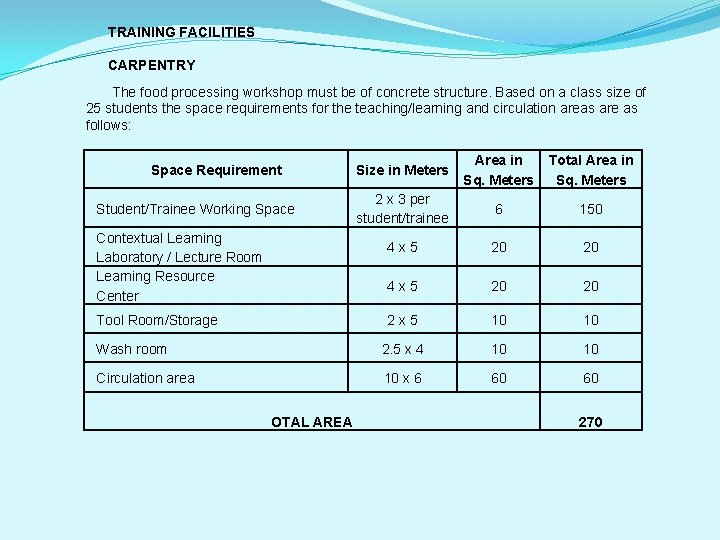

TRAINING FACILITIES CARPENTRY The food processing workshop must be of concrete structure. Based on a class size of 25 students the space requirements for the teaching/learning and circulation areas are as follows: Size in Meters Area in Sq. Meters Total Area in Sq. Meters 2 x 3 per student/trainee 6 150 4 x 5 20 20 2 x 5 10 10 Wash room 2. 5 x 4 10 10 Circulation area 10 x 6 60 60 Space Requirement Student/Trainee Working Space Contextual Learning Laboratory / Lecture Room Learning Resource Center Tool Room/Storage OTAL AREA 270

TRAINING FACILITIES ELECTRICAL INSTALLATION & MAINTENANCE The Electrical Installation Maintenance workshop must be of concrete structure. Based on a class intake of 25 students/trainees, below are the space requirement & their sizes: SPACE REQUIREMENTS Student/Trainee Working Space Contextual Learning Laboratory Learning Resource Center Facilities/Equipment/Circulation area TOTAL AREA SIZE IN METERS AREA IN SQ. METERS TOTAL AREA IN SQ. METERS 2. 50 x 2. 50 per student/trainee 6. 25 per student 156. 25 4 x 5 20 20 10 x 6 60 60 256. 25

TRAINING FACILITIES CONSUMER ELECTRONICS The Consumer electronics workshop must be of concrete structure. Based on a class intake of 25 students/trainees. Recommended space requirements for the various teaching/learning areas are as follows: SIZE IN METERS AREA IN SQ. METERS QTY TOTAL AREA IN SQ. METERS 4 x 5 20 1 30 3. 5 x 2. 5 8. 75 Minimum of 5 workstations 43. 75 Learning Resource Area 4 x 5 20 1 20 Tool Room/Storage Area 4 x 5 16 1 20 Wash , Toilet & Locker Room 2 x 5 10 1 10 TEACHING/LEARNING AREAS Lecture Area Laboratory Area/Workstations Facilities / Equipment / Circulation** Total Area 34. 12 158
