TIMBER DETEROIRATION & DECAY OBJECTIVES: l Recognize the Types and Causes of Timber Deterioration l Recognize Natural Defects In Timber Elements l Understand What Causes Decay l Identify Where Decay Is Likely To Occur l Identify Methods Used to Detect Deterioration 2

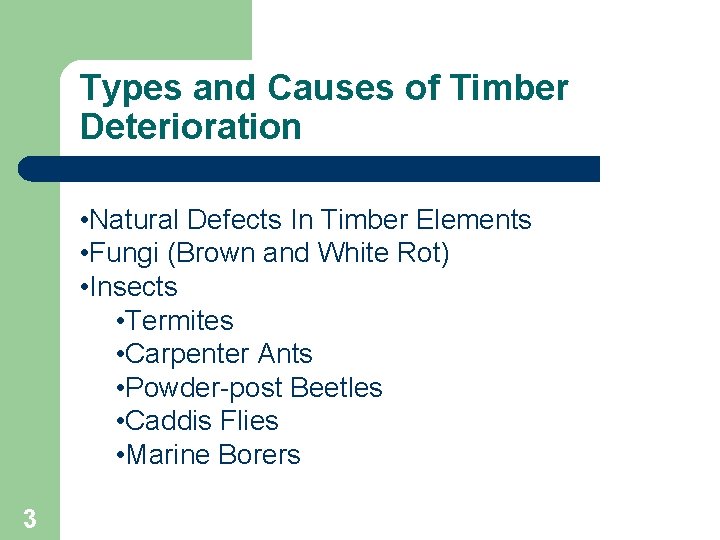

Types and Causes of Timber Deterioration • Natural Defects In Timber Elements • Fungi (Brown and White Rot) • Insects • Termites • Carpenter Ants • Powder-post Beetles • Caddis Flies • Marine Borers 3

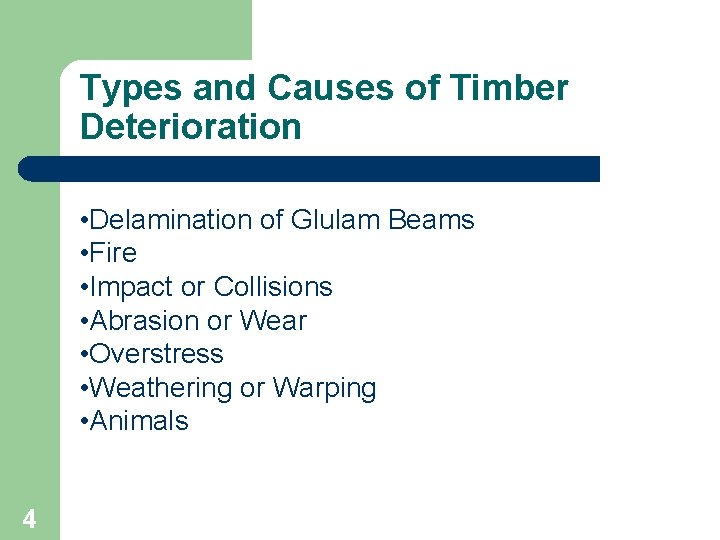

Types and Causes of Timber Deterioration • Delamination of Glulam Beams • Fire • Impact or Collisions • Abrasion or Wear • Overstress • Weathering or Warping • Animals 4

NATURAL DEFECTS OF TIMBER 5

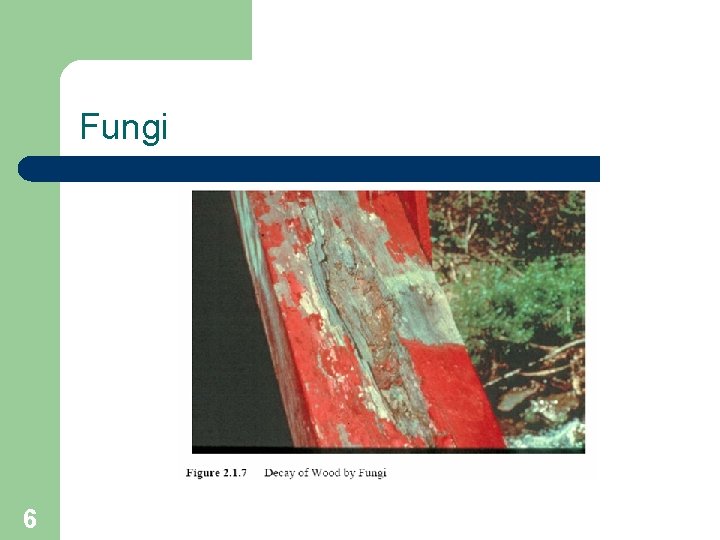

Fungi 6

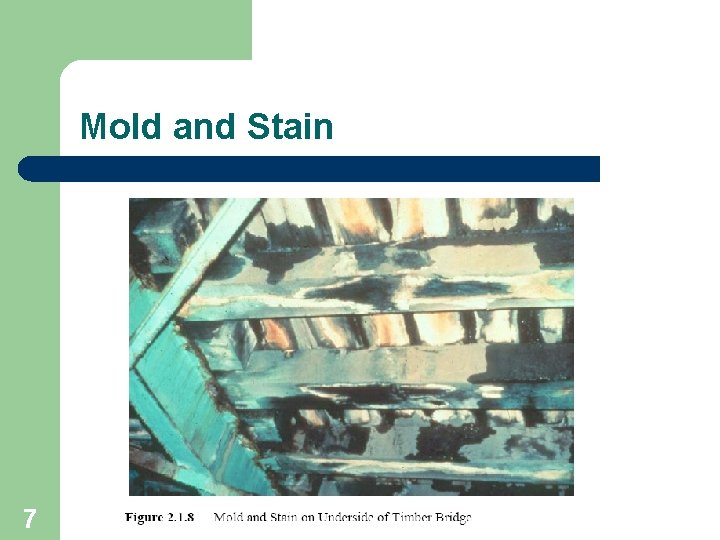

Mold and Stain 7

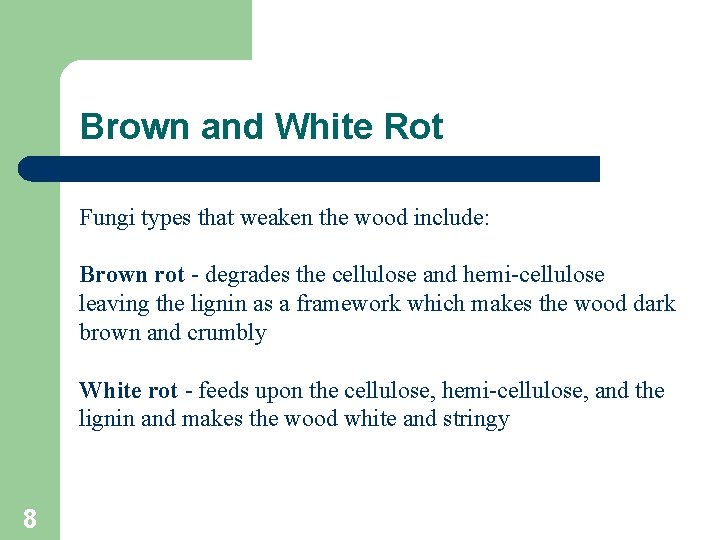

Brown and White Rot Fungi types that weaken the wood include: Brown rot - degrades the cellulose and hemi-cellulose leaving the lignin as a framework which makes the wood dark brown and crumbly White rot - feeds upon the cellulose, hemi-cellulose, and the lignin and makes the wood white and stringy 8

Brown and White Rot 9

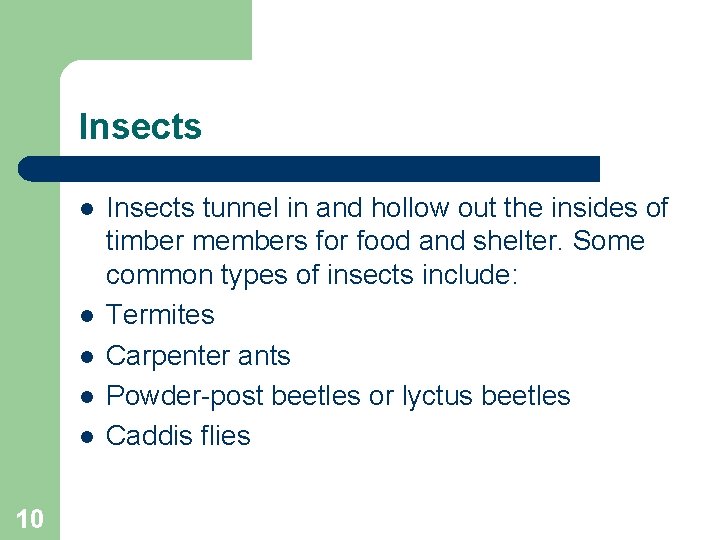

Insects l l l 10 Insects tunnel in and hollow out the insides of timber members for food and shelter. Some common types of insects include: Termites Carpenter ants Powder-post beetles or lyctus beetles Caddis flies

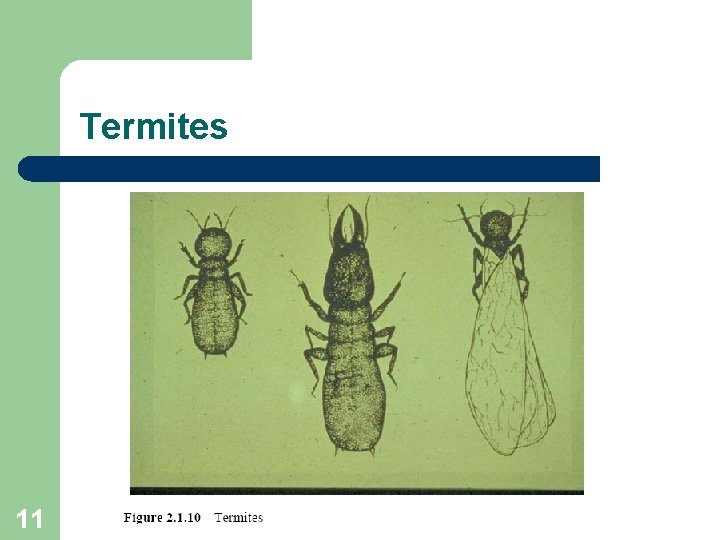

Termites 11

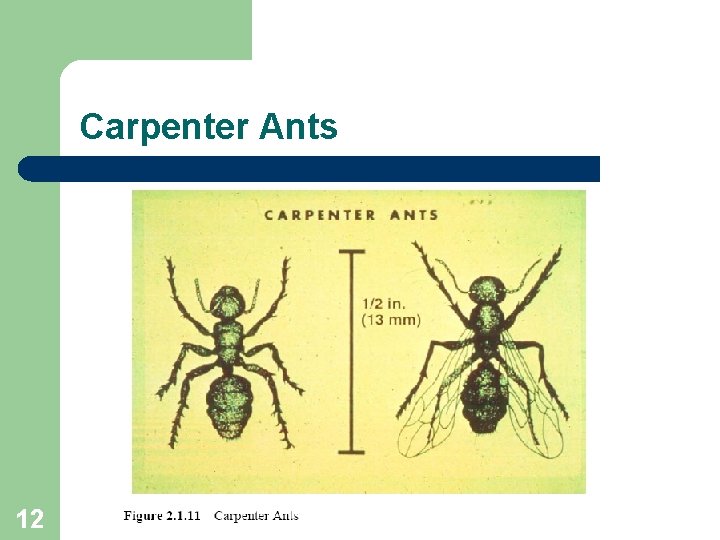

Carpenter Ants 12

Powder-post Beetles or Lyctus Beetles 13

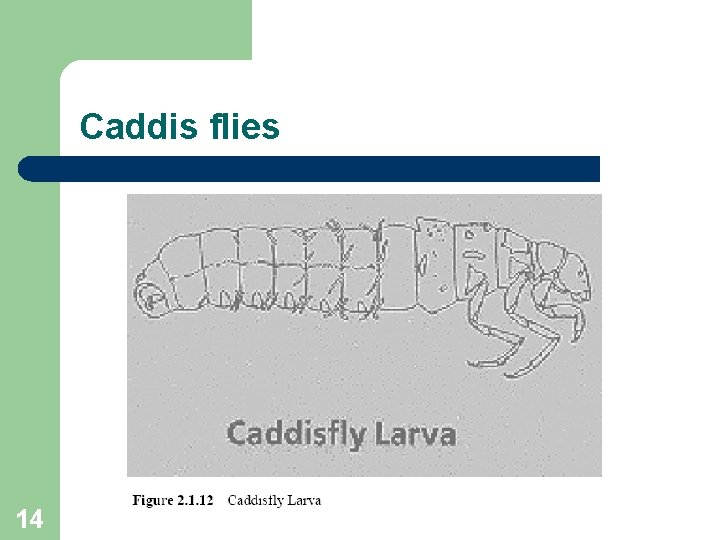

Caddis flies 14

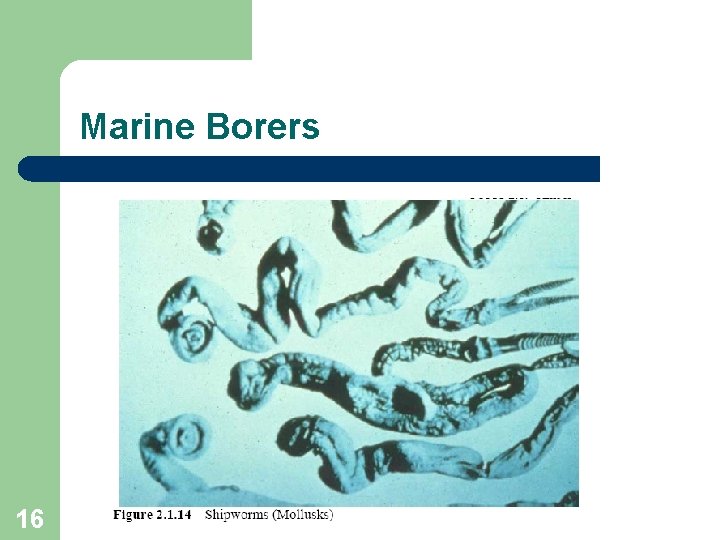

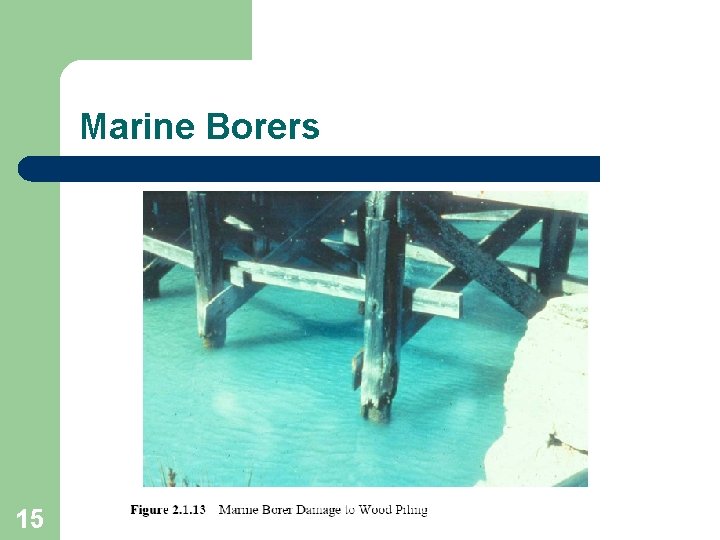

Marine Borers 15

Marine Borers 16

Marine Borers 17

Types and Sources of Deterioration l Delaminations – – 18 Delaminations occur in glued-laminated members when the layers separate due to failure within the adhesive or at the bond between the adhesive and the laminate. They provide openings for decay to begin and may cause a reduction in strength.

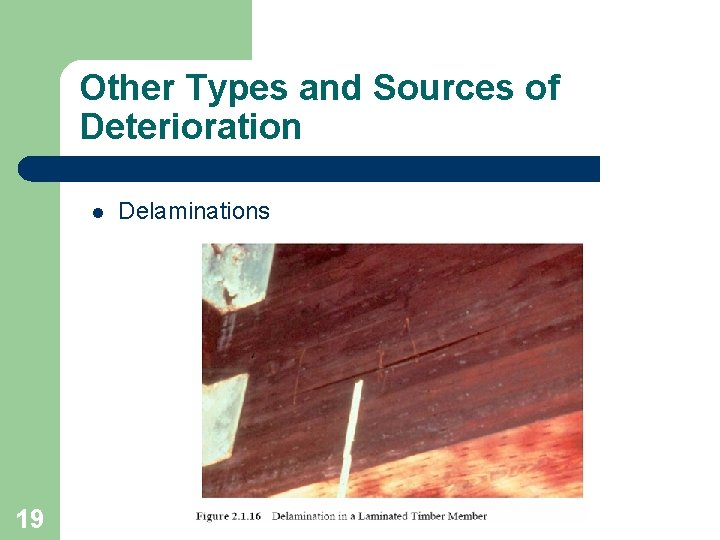

Other Types and Sources of Deterioration l 19 Delaminations

Types and Sources of Deterioration l Loose connections – – 20 Loose connections may be due to shrinkage of the wood, crushing of the wood around the fastener, or from repetitive impact loading (working) of the connection. Loose connections can reduce the bridge’s loadcarrying capacity.

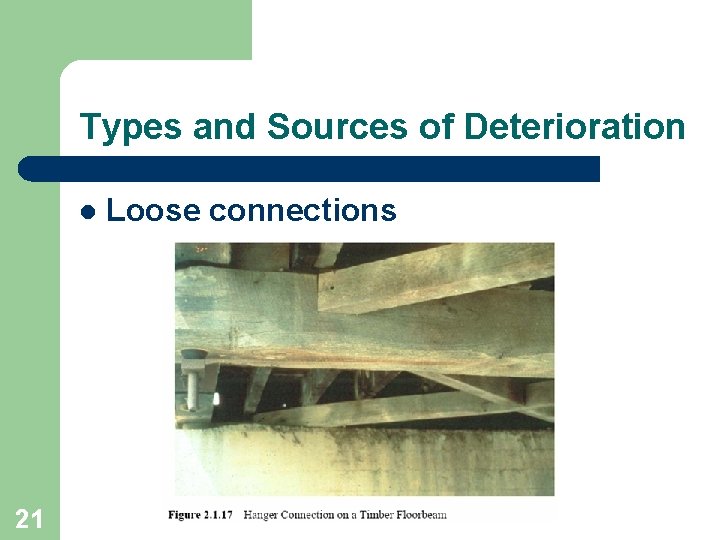

Types and Sources of Deterioration l 21 Loose connections

Types and Sources of Deterioration l Surface depressions – 22 Surface depressions indicate internal collapse, which could be caused by decay.

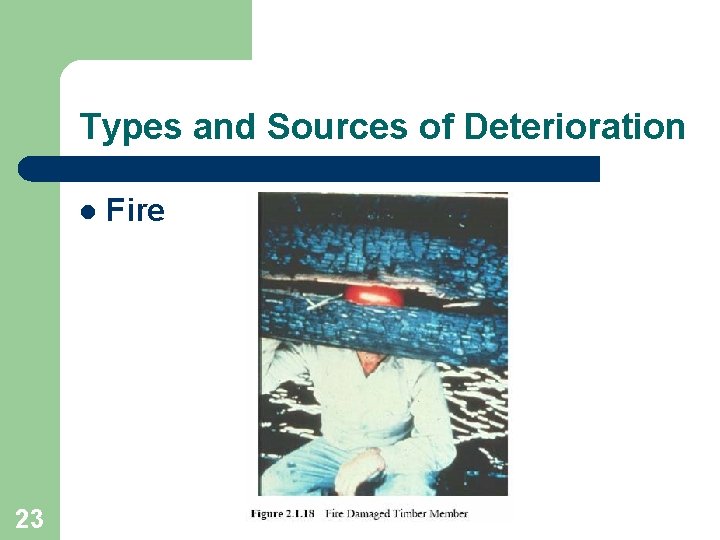

Types and Sources of Deterioration l 23 Fire

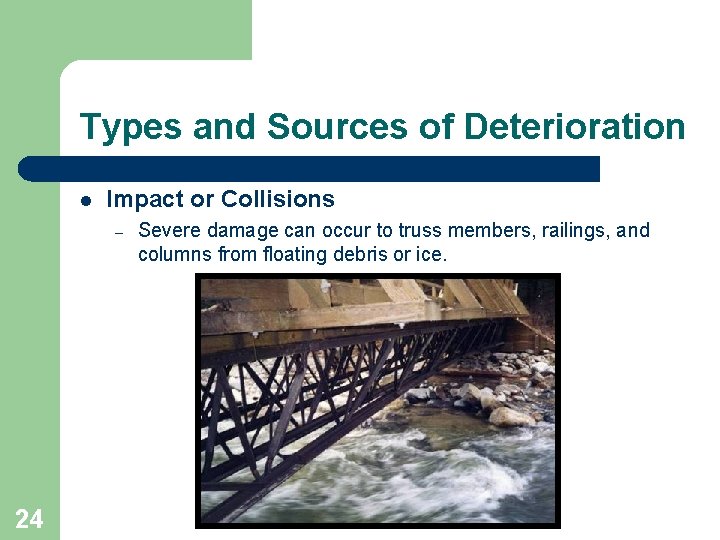

Types and Sources of Deterioration l Impact or Collisions – 24 Severe damage can occur to truss members, railings, and columns from floating debris or ice.

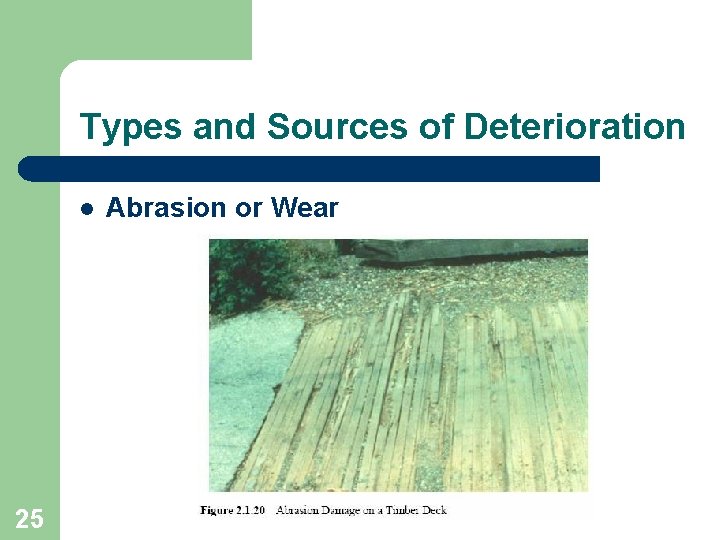

Types and Sources of Deterioration l 25 Abrasion or Wear

Types and Sources of Deterioration Excessive Wear Usually indicated by knots that are above the surrounding wood. Nails protruding above the surface and bent over. Rounding on the edges of the planks at the bridge end. Dished and polished Planks. 26

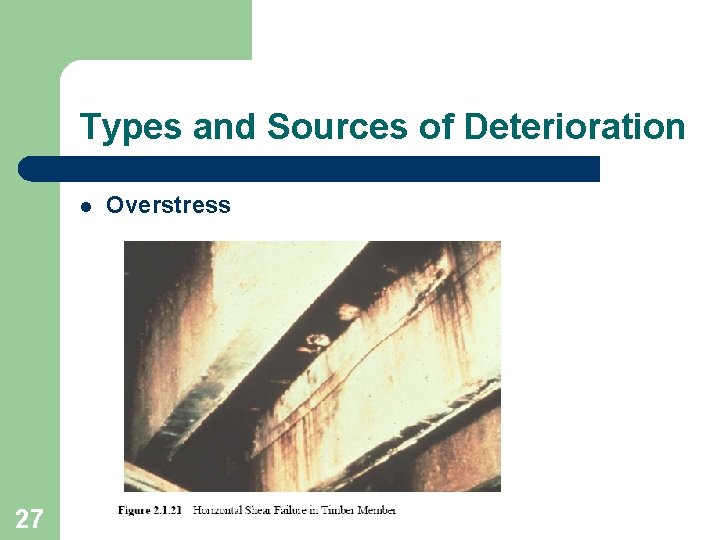

Types and Sources of Deterioration l 27 Overstress

Types and Sources of Deterioration l 28 Overstress

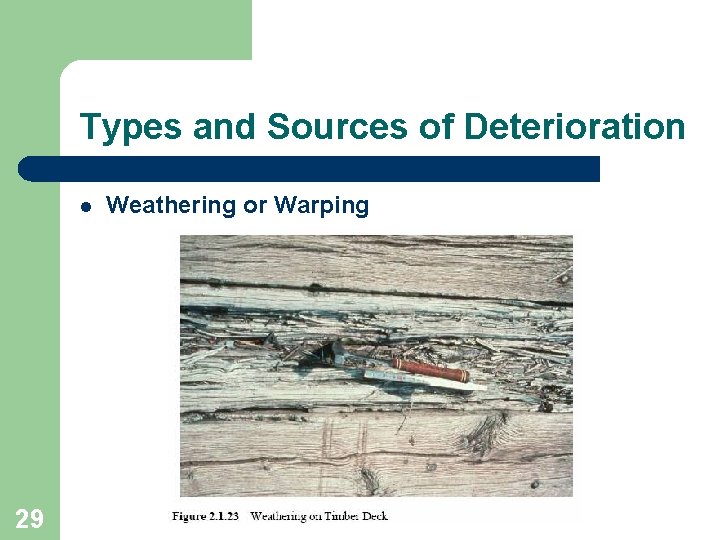

Types and Sources of Deterioration l 29 Weathering or Warping

Other Types and Sources of Damage Animal Wood swell 30

NATURAL DEFECTS OF TIMBER 31

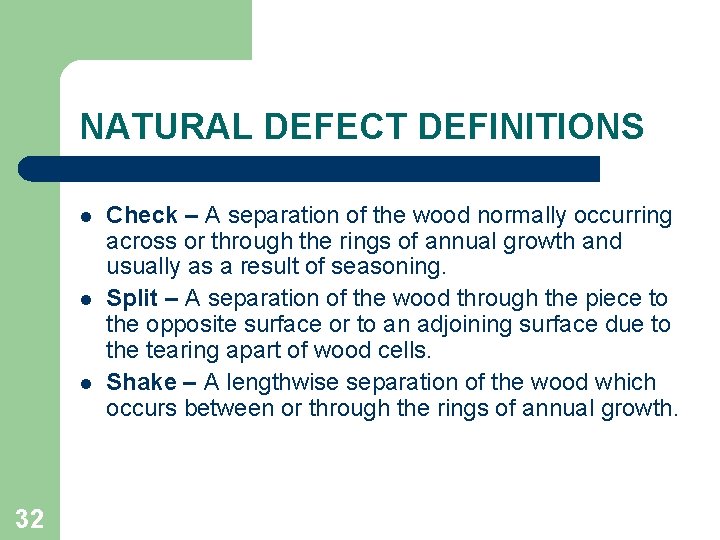

NATURAL DEFECT DEFINITIONS l l l 32 Check – A separation of the wood normally occurring across or through the rings of annual growth and usually as a result of seasoning. Split – A separation of the wood through the piece to the opposite surface or to an adjoining surface due to the tearing apart of wood cells. Shake – A lengthwise separation of the wood which occurs between or through the rings of annual growth.

Defect - Check 33

Defects - Split 34

Defect - Shake 35

Review of Natural Defects 36

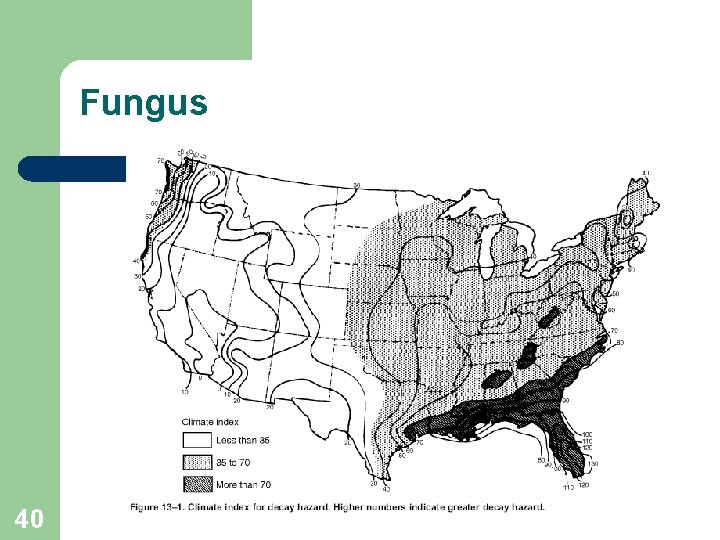

WHAT CAUSES DECAY? l l l 37 Decay detection is a significant part of the timber bridge inspection. Basic understanding of the decay is essential. The source of the decay is a plant – a fungus that has tiny microscopic, thread-like roots called “hyphae” that penetrate throughout the wood in search of food. The hyphae penetrate the wood secreting powerful enzymes that reduce the wood into food for the plant. This chemical alteration of the wood cell is what we call decay.

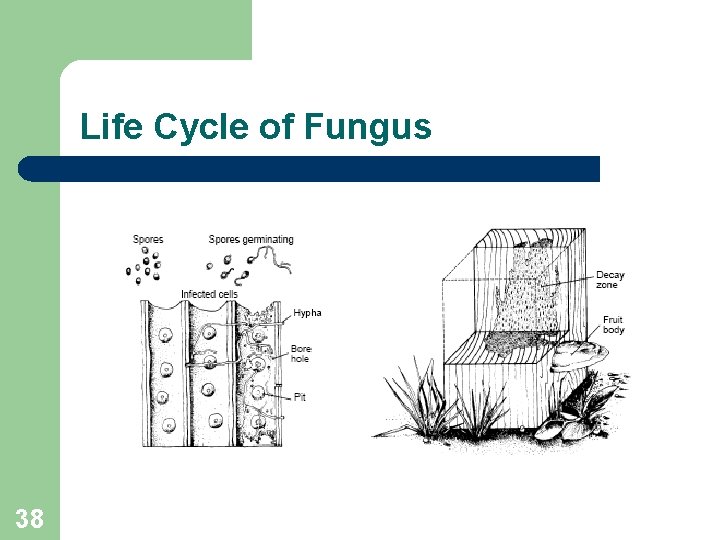

Life Cycle of Fungus 38

39

Fungus 40

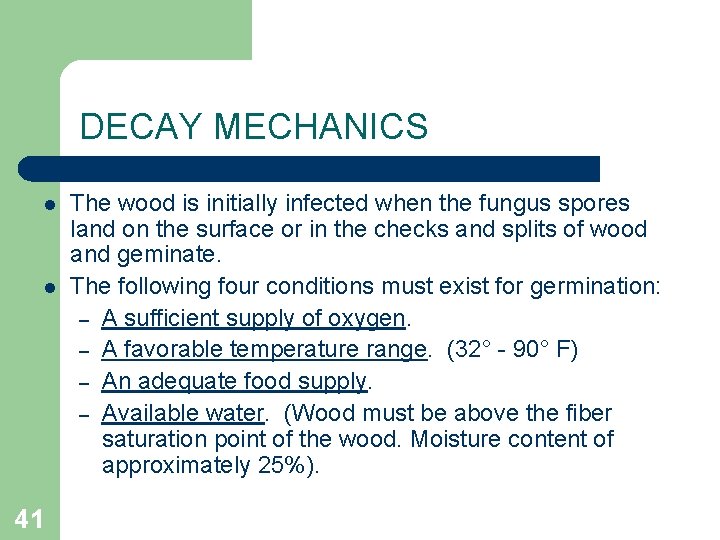

DECAY MECHANICS l l 41 The wood is initially infected when the fungus spores land on the surface or in the checks and splits of wood and geminate. The following four conditions must exist for germination: – A sufficient supply of oxygen. – A favorable temperature range. (32° - 90° F) – An adequate food supply. – Available water. (Wood must be above the fiber saturation point of the wood. Moisture content of approximately 25%).

Controlling Decay l Depriving the spores of any one of these requirements will effectively slow, stop or prevent decay. For example: (1) If wood is underwater, there is no usable oxygen present and the wood will not decay; HOWEVER DECAY WILL FLOURISH AT THE WATERLINE (2) If the wood is treated, there is no palatable food for the fungi; HOWEVER, IF THE TREATMENT ENVELOPE IS BREACHED AS IN A CHECK - -DECAY MAY BE PRESENT. (3) If the wood is always dry there is no moisture for germination. 42

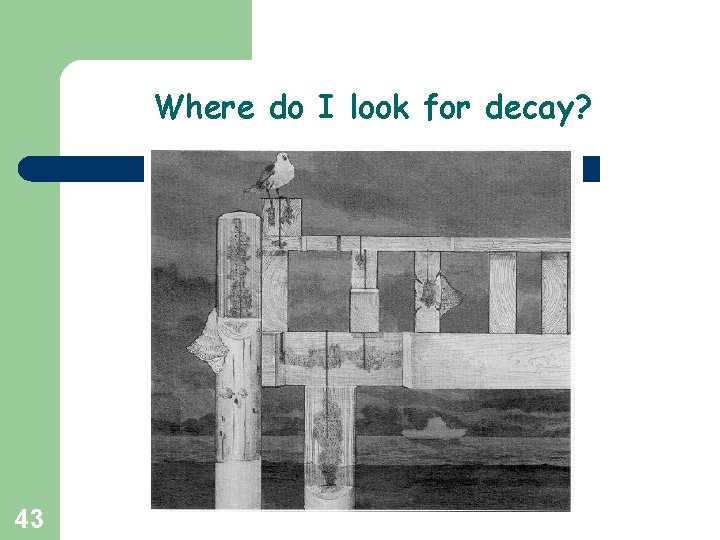

Where do I look for decay? 43

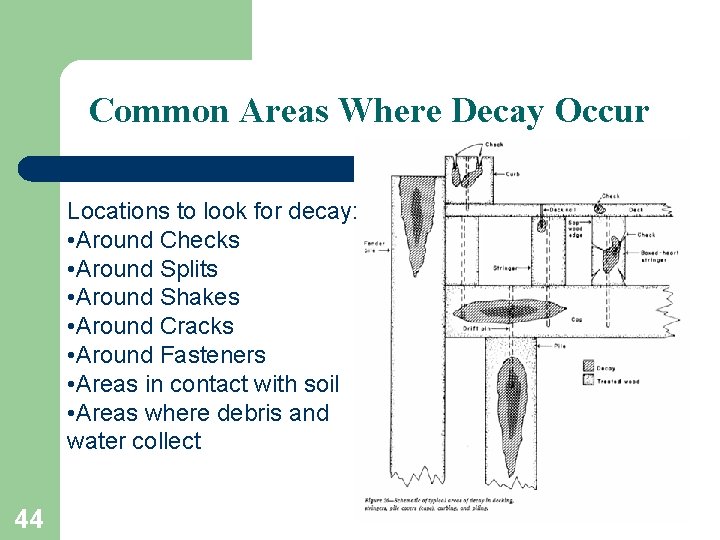

Common Areas Where Decay Occur Locations to look for decay: • Around Checks • Around Splits • Around Shakes • Around Cracks • Around Fasteners • Areas in contact with soil • Areas where debris and water collect 44

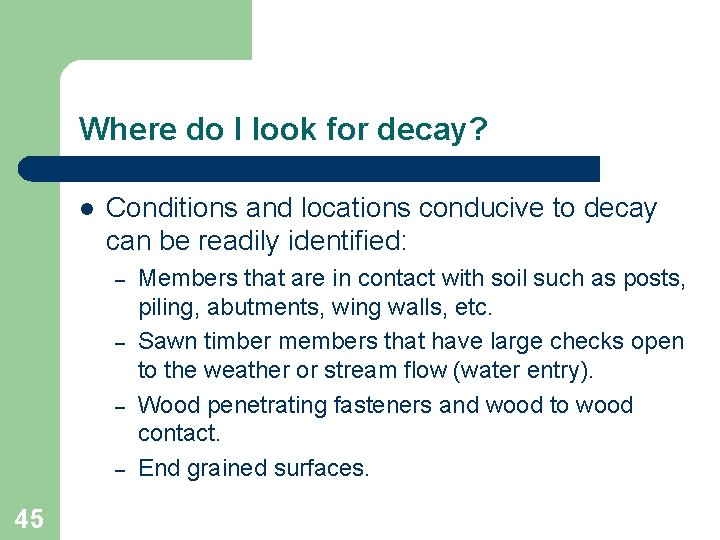

Where do I look for decay? l Conditions and locations conducive to decay can be readily identified: – – 45 Members that are in contact with soil such as posts, piling, abutments, wing walls, etc. Sawn timber members that have large checks open to the weather or stream flow (water entry). Wood penetrating fasteners and wood to wood contact. End grained surfaces.

Decay Detection Methods l Method for Detecting Exterior Deterioration – – l Method for Detecting Interior Deterioration – – – 46 Visual Inspection Probing Sounding Moisture Meter Drilling and Coring

Method for Detecting Exterior Deterioration -Visual Inspection l l 47 The simplest and most common method for locating deterioration and decay The inspector observes the structure for signs of actual or potential deterioration and decay Visual inspection requires a strong light and is useful for detecting intermediate or advanced surface decay Visual inspection cannot detect decay in the early stages, cannot detect internal decay, and should never be the sole method used.

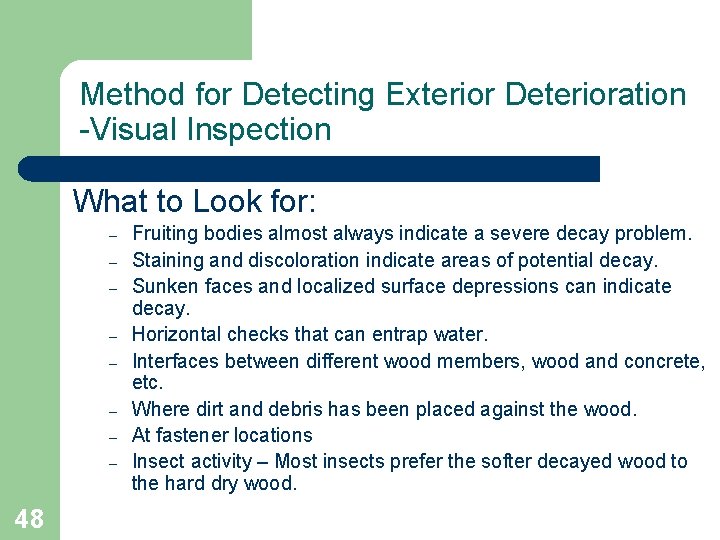

Method for Detecting Exterior Deterioration -Visual Inspection What to Look for: – – – – 48 Fruiting bodies almost always indicate a severe decay problem. Staining and discoloration indicate areas of potential decay. Sunken faces and localized surface depressions can indicate decay. Horizontal checks that can entrap water. Interfaces between different wood members, wood and concrete, etc. Where dirt and debris has been placed against the wood. At fastener locations Insect activity – Most insects prefer the softer decayed wood to the hard dry wood.

Visual Signs of External Decay 49 l Fungi or fruiting bodies (conks) l Under the bridge, on girders and sills, anywhere the wood is subject to wet/dry cycles.

Visual Signs of External Decay 50 l Spongy and Rotted areas. l Look at wood/soil interfaces and anywhere water collects. Stains may be rot indicators.

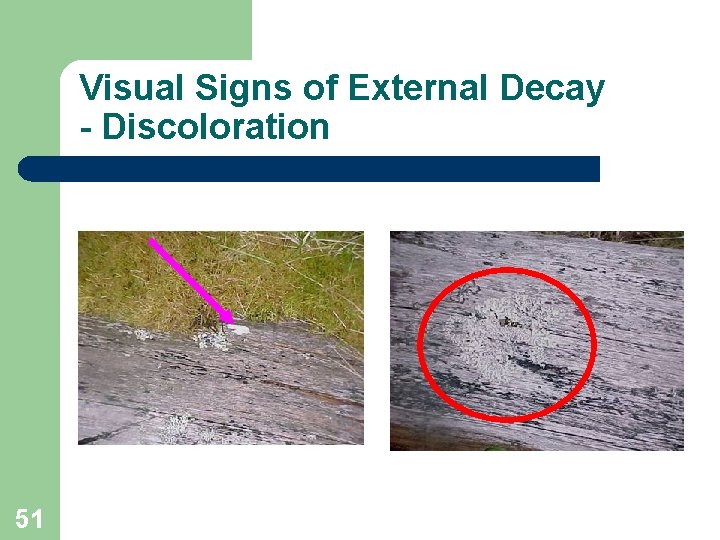

Visual Signs of External Decay - Discoloration 51

Visual Signs of External Decay - Brown Rot 52

Method for Detecting Interior Deterioration Probing l l 53 Probing with a pointed tool such as an awl will locate decay near the wood surface. Decay will be evidenced by excessive softness or lack of resistance to the probe penetration and the breakage pattern of the splinters. A brash break (straight line break directly above and parallel with the axis of the awl) indicates decayed wood, whereas a crisp splintered break with the splinter hinging from one end indicates sound wood. However, care must be taken to differentiate between decay and water-softened wood.

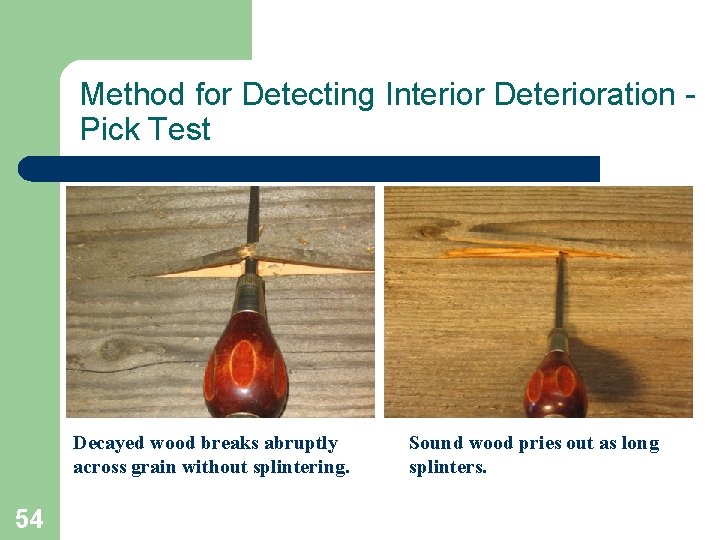

Method for Detecting Interior Deterioration Pick Test Decayed wood breaks abruptly across grain without splintering. 54 Sound wood pries out as long splinters.

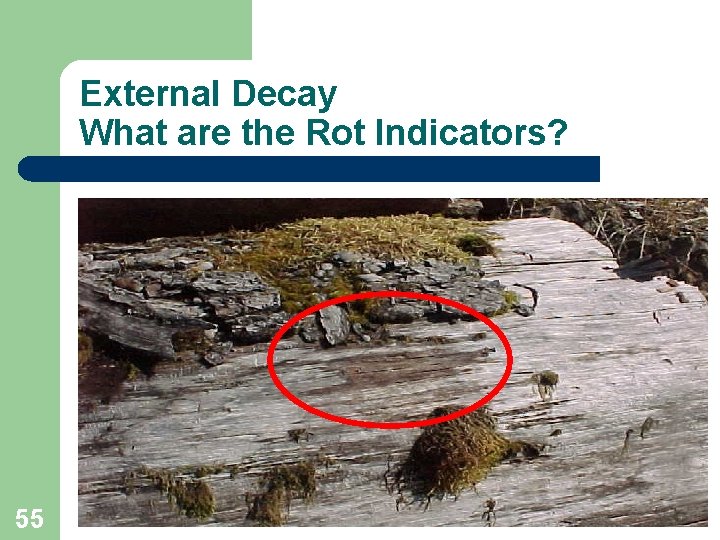

External Decay What are the Rot Indicators? 55

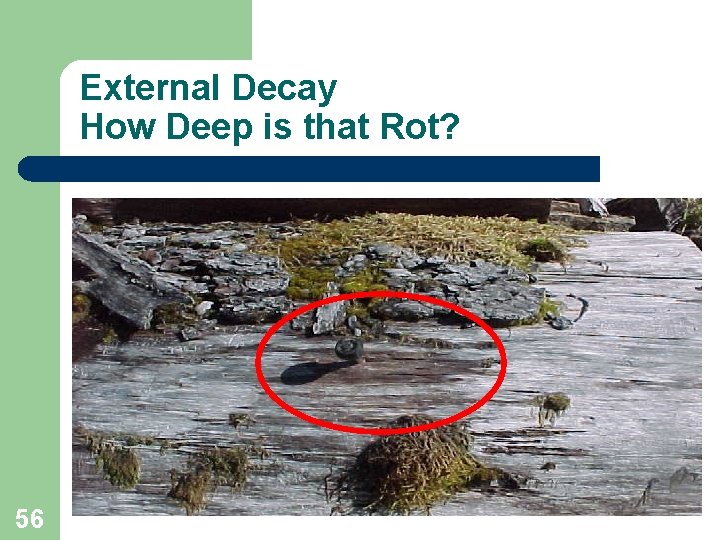

External Decay How Deep is that Rot? 56

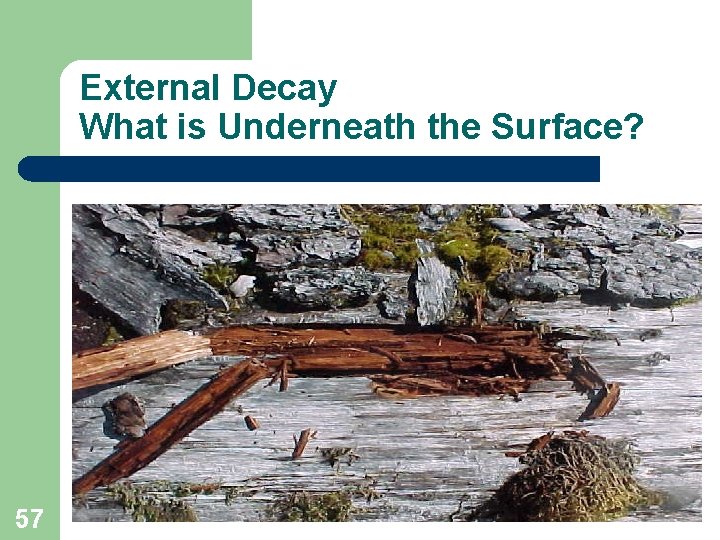

External Decay What is Underneath the Surface? 57

Method for Detecting Interior Deterioration Sounding l l 58 Sounding the surface by striking it with a hammer is one of the oldest and most commonly used inspection methods. Although sounding is widely used, interpretation is VERY subjective. Soundings are based on the tonal quality of the ensuing sounds and the rebound of the hammer. Practical experience has shown that sounding is only useful for members less than 4 inches thick.

Method for Detecting Interior Deterioration Sounding Interpreting Soundings: l l l Sound timber gives a crisp sound. Defective timber gives a dull sound. Loose hardware will vibrate. Note: A 2 inch thick shell of competent wood is sufficient to mask any interior rot. 59

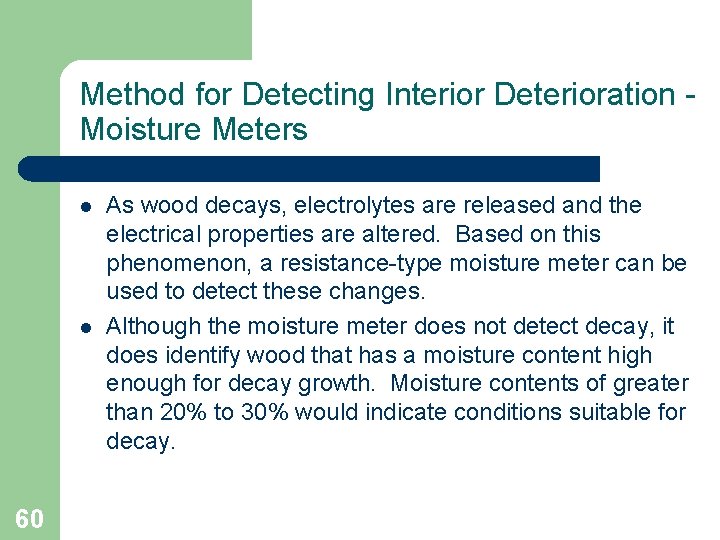

Method for Detecting Interior Deterioration Moisture Meters l l 60 As wood decays, electrolytes are released and the electrical properties are altered. Based on this phenomenon, a resistance-type moisture meter can be used to detect these changes. Although the moisture meter does not detect decay, it does identify wood that has a moisture content high enough for decay growth. Moisture contents of greater than 20% to 30% would indicate conditions suitable for decay.

Method for Detecting Interior Deterioration - Drilling and Coring l l 61 Drilling and coring are probably the most common methods used to detect internal decay in wood members. Drilling is usually done with a battery powered reversible drill (12 volt minimum, 18 volt to 24 volt recommended) using a 14 inch long, 3/8 inch wood auger. The inspector drills into the wood member under examination, noting the depths at which the resistance to drilling may become easier and observes the drill shavings for decay. The drill shavings for each hole usually caught and stored in a plastic bag for future examination with a magnifying glass and possible testing with decay identifying chemical dyes.

Method for Detecting Interior Deterioration - Drilling and Coring l l l 62 To facilitate the capture of the wood shavings, the plastic bag is usually thumb tacked to the wood just below the core hole and the bag held open with one hand while the other hand operates the drill. The color, luster, fracture characteristics, hardness, smell, and moisture all indicators of the wood fiber condition. The presence of common wood defects, such as knots, resin pockets, and abnormal grain, should be anticipated while drilling and should not be confused with decay. Inspection holes may also be probed with a bent piece of wire to measure shell thickness.

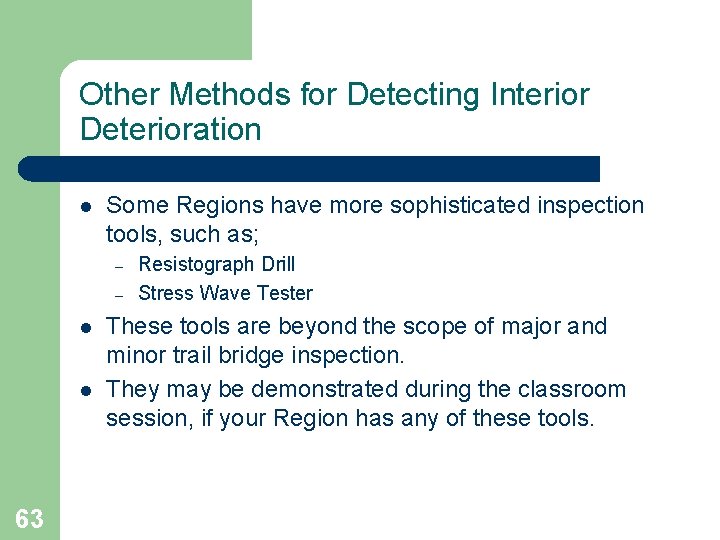

Other Methods for Detecting Interior Deterioration l Some Regions have more sophisticated inspection tools, such as; – – l l 63 Resistograph Drill Stress Wave Tester These tools are beyond the scope of major and minor trail bridge inspection. They may be demonstrated during the classroom session, if your Region has any of these tools.

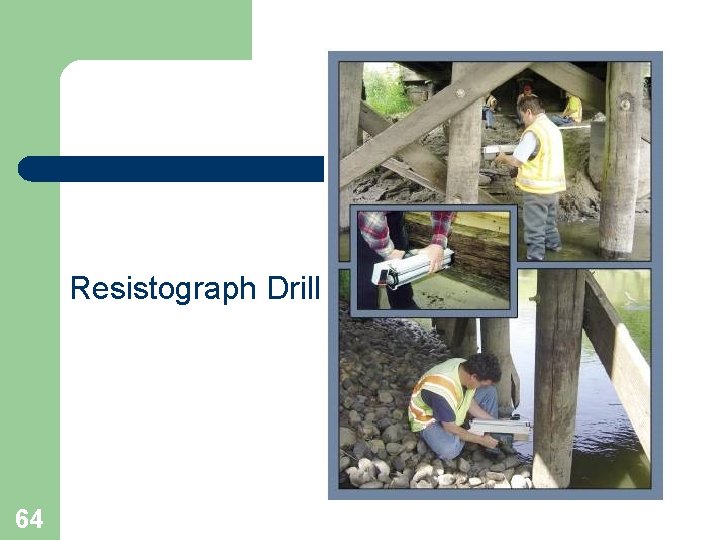

Resistograph Drill 64

Review of Visual Signs of Exterior Deterioration l l l 65 Fungus/Conks – under bridge, on girder bottoms and sills, on wet wood Rot – look for at wood/soil interfaces and anywhere water collects. Indicated by: Discoloration Cube or Alligator Patterns Insect activity

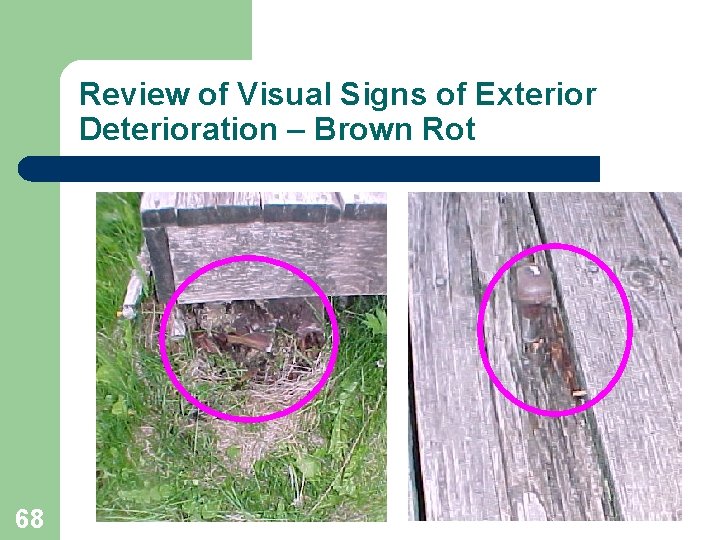

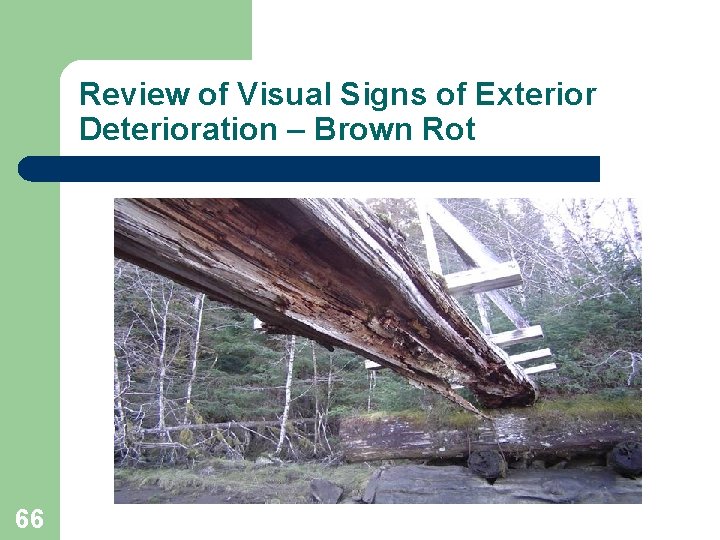

Review of Visual Signs of Exterior Deterioration – Brown Rot 66

Review of Visual Signs of Exterior Deterioration - Probing 67

Review of Visual Signs of Exterior Deterioration – Brown Rot 68

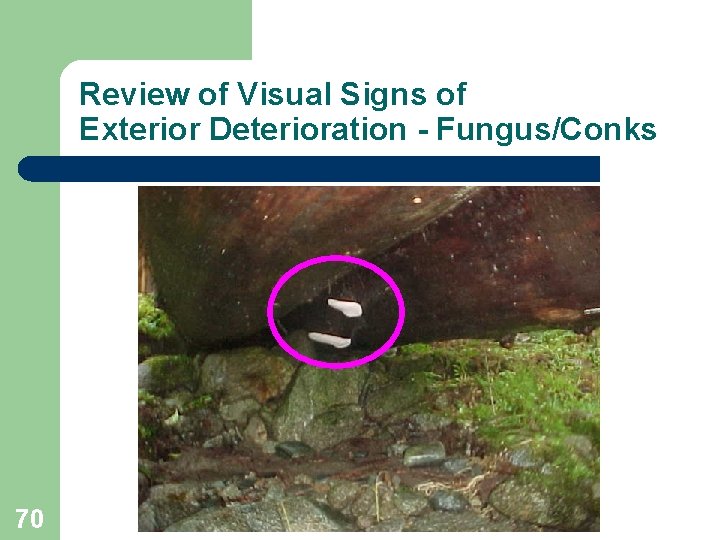

Review of Visual Signs of Exterior Deterioration - Fungus/Conks 69

Review of Visual Signs of Exterior Deterioration - Fungus/Conks 70

Review of Methods of Detecting Interior Deterioration l l l 71 Soundings Moisture Meter Coring and Drilling

END Timber Deterioration and Decay 72
