Tracker Cooling Operation and Maintenance plan Spare Parts

Tracker Cooling Operation and Maintenance plan Spare Parts: procurement & Logistique Sébastien ROUSSEE 16/04/2010 S. ROUSSEE 1

Summary 1/CMS Spare part list 2/critical parts 3/installed parts & list spare parts 4/ store operation 5/Big part to buy 16/04/2010 S. ROUSSEE 2

1/CMS Spare part list Experiment Sub-system Part No. Description Manufacturer Preferred Supplier CMS Main F 05 -04 -028 Danfoss bobine 230 V AC, type 018 F 7363 Danfoss Werner Kuster Supplier reference critical parts Quantity installed Spare part no. 018 F 7363 15 low CMS Main F 05 -06 -030 Siemens Pressure regulation valve, MX 461, 65 -50 Ribat MX 461, 65 -50 Siemens CMS Main Pixel F 05 -07 -022 Comp. Air filtre a poussiere, type 1030 V Comp. Air Aeberhardt SA F 05 -06 -038 Solyro 2 way regulating valve type 359 V PS 40, DN 20 Ribat type 1030 V medium Pixel F 05 -07 -018 Carly filter cartridge CCY 48 PLATINIUM Carly 1 2 359 V PS 40 - DN 20 SOLYRO CMS 1 high M. Paulus SA CCY 48 PLATINIUM 2 low CMS PS F 05 -07 -018 Carly filter cartridge CCY 48 PLATINIUM Carly M. Paulus SA CCY 48 PLATINIUM 4 low CMS PS F 05 -10 -003 KNF type NPK 100 vacuum pump KNF Neuberger NPK 100 KNF CMS SS SS F 05 -06 -041 Solyro 2 way regulating valve type 359 V PS 40, DN 40 + act. Pneumatique 3277 F 05 -07 -021 Totaline High capacity cartridge, type C 100 HP Ribat 359 V PS 40 - DN 40 SOLYRO Totaline 2 high M Paulus SA WC 100 HP 8 low CMS TS F 05 -06 -045 SOLYRO Non-return valve, type 1220 Solyro 1220 16 low CMS TS 16/04/2010 F 05 -10 -035 3 M Pumps magnetic drive pump, type T-MAG M 4 MONOBLOC - 4 KW 3 M Pumps S. ROUSSEE T-MAG M 4 MONOBLOC - 4 KW 2 high 3

2/critical parts Class Description Storage? LOW pièces utiles pour la maintenance préventive, ne bloque pas l’installation en défaut. (ex: Filters) stockage non necessaire pièces nécessitant une modification électrique ou automate MEDIUM mineure pour le redémarrage de la station. (ex: pressostat) HIGHT 16/04/2010 pièces bloquantes pour l’installation (ex: pump) S. ROUSSEE stockage nécessaire si la durée d’approvisionnement est longue >1 semaine stockage nécessaire 4

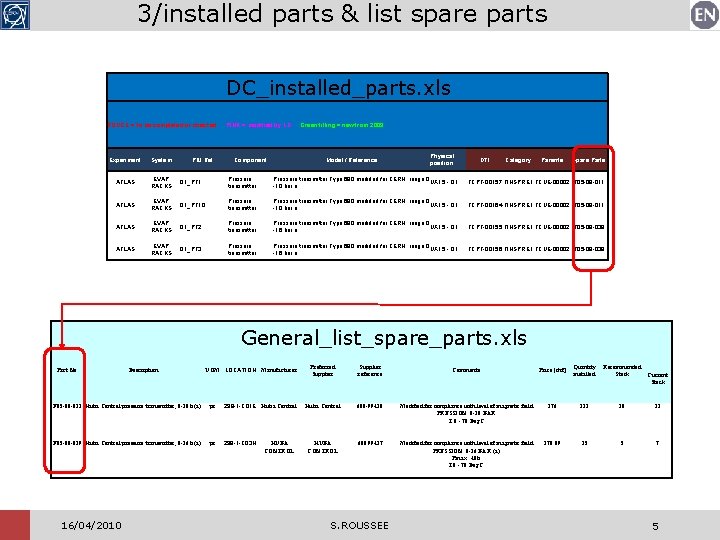

3/installed parts & list spare parts DC_installed_parts. xls ROUGE = to be completed or checked P&I Ref. PINK = modified by LD Component Green filling = new from 2009 Model / Reference Physical position Experiment System D 7 I Category Parents Spare Parts ATLAS EVAP RACKS Q 1_PT 1 Pressure transmitter Type 680 modified for CERN, range 0 UX 15 - Q 1 -10 bar. a FCPT-00157 FINSPRE 1 FCUE-00002 F 05 -08 -011 ATLAS EVAP RACKS Q 1_PT 10 Pressure transmitter Type 680 modified for CERN, range 0 UX 15 - Q 1 -10 bar. a FCPT-00164 FINSPRE 1 FCUE-00002 F 05 -08 -011 ATLAS EVAP RACKS Q 1_PT 2 Pressure transmitter Type 680 modified for CERN, range 0 UX 15 - Q 1 -16 bar. a FCPT-00155 FINSPRE 1 FCUE-00002 F 05 -08 -039 ATLAS EVAP RACKS Q 1_PT 3 Pressure transmitter Type 680 modified for CERN, range 0 UX 15 - Q 1 -16 bar. a FCPT-00156 FINSPRE 1 FCUE-00002 F 05 -08 -039 General_list_spare_parts. xls Part No. Description UOM LOCATION Manufacturer F 05 -08 -011 Huba Control pressure transmitter, 0 -10 b(a) pc 298 -1 -C 01 E Huba Control F 05 -08 -039 Huba Control pressure transmitter, 0 -16 b(a) pc 298 -1 -C 03 H 16/04/2010 HUBA CONTROL Preferred Supplier reference Comments Price [chf] Quantity installed Huba Control HUBA CONTROL 680 -99418 Modified for compliance with level of magnetic field PRESSION: 0 -10 BAR T: 0 - 70 Deg. C 276 111 10 11 680. 99417 Modified for compliance with level of magnetic field PRESSION: 0 -16 BAR (a) Pmax: 48 b T: 0 - 70 Deg. C. 270. 09 15 5 7 S. ROUSSEE Recommended Stock Current Stock 5

4/ store operation • EN/CV/DC: Two storage: Bat 298 and Bat 264 Bat 298: electrical parts and consumable (ex: contactor, filters etc. . ) Bat 264: big parts (ex: pump etc. . ) 16/04/2010 S. ROUSSEE 6

4/ store operation (next) exemple for part number F 05 -04 -086 Location: 298 -1 -I 10 A 298= Bulding number 1= Floor number I 10 A 16/04/2010 S. ROUSSEE 7

5/Big part to buy nb nb en stock installee necessaire acheter CV CMS proposal Included in CV M&O Cost Delivery time 2 0 0 6 weeks 2 1 0 0 6 weeks 3954 2 1 idem TS 1 1 0 3954 6 weeks 3 M Pumps magnetic drive pump, type CM 50 -200 MONOBLOC-18. 5 KW 8568 2 0 1 1 0 8568 6 weeks Moteur 1105 2 0 0 pieces CMS necessaire reference pompe prix en euros SS 1&2 3 M Pumps magnetic drive pump, type CM 50 -250 NT-MONOBLOC-30 KW +moteur 16000 2 PS 1&2 3 M Pumps magnetic drive pump, type CM 32 -160 MONOBLOC - 7, 5 KW + moteur 7760 TS 1&2&pixel 3 M Pumps magnetic drive pump, type T-MAG M 4 MONOBLOC - 4 KW + moteur brine nb nb en stock installee 1 0 1105 6 weeks necessaire acheter CV CMS proposal Included in CV M&O Cost Delivery time reference heater prix en euros SS 1&2 thermoplongeur 52 kw reference dimeca R 16 C 2110/0225 4360 2 1 0 0 6 weeks PS 1&2 thermoplongeur 13 kw reference dimeca R 16 C 1530/0225 2245 2 1 0 0 6 weeks TS 1&2 thermoplongeur 7 kw reference dimeca R 16 C 1610/0225 1366 2 1 0 0 6 weeks Pixel thermoplongeur 10 kw reference dimeca R 16 C 2110/0225 1423 2 1 0 0 6 weeks reference vanne + actuateur prix en euros necessaire acheter CV CMS proposal Included in CV M&O Cost Delivery time SS 1&2 vanne DN 50 type 241 2195 2 0 1 2195 6 weeks SS 1&2 servomoteur type 3277 350 cm 2 1313 2 0 1 2 1 1313 6 weeks SS 1&2+ brine vanne DN 40 type 241 2056 2 0 1 2056 6 weeks PS&TS&SS&PIXEL+ brine servomoteur type 3277 120 cm 2 1073 12 2 0 2146 6 weeks nb nb en stock installee PS vanne DN 32 type 241 2013 2 0 1 1 1 0 6 weeks PS&TS&PIXEL vanne DN 25 type 241 1675 5 0 1 2 1 1675 6 weeks PS&TS&PIXEL vanne DN 20 type 241 1662 3 0 1 1 1 0 6 weeks 10914€ for cv 16/04/2010 S. ROUSSEE 23012€ for cms 8
